*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | VF-3SSYT |
| Year: | 2010 |
| Machine Type: | CNC Vertical Machining Center |

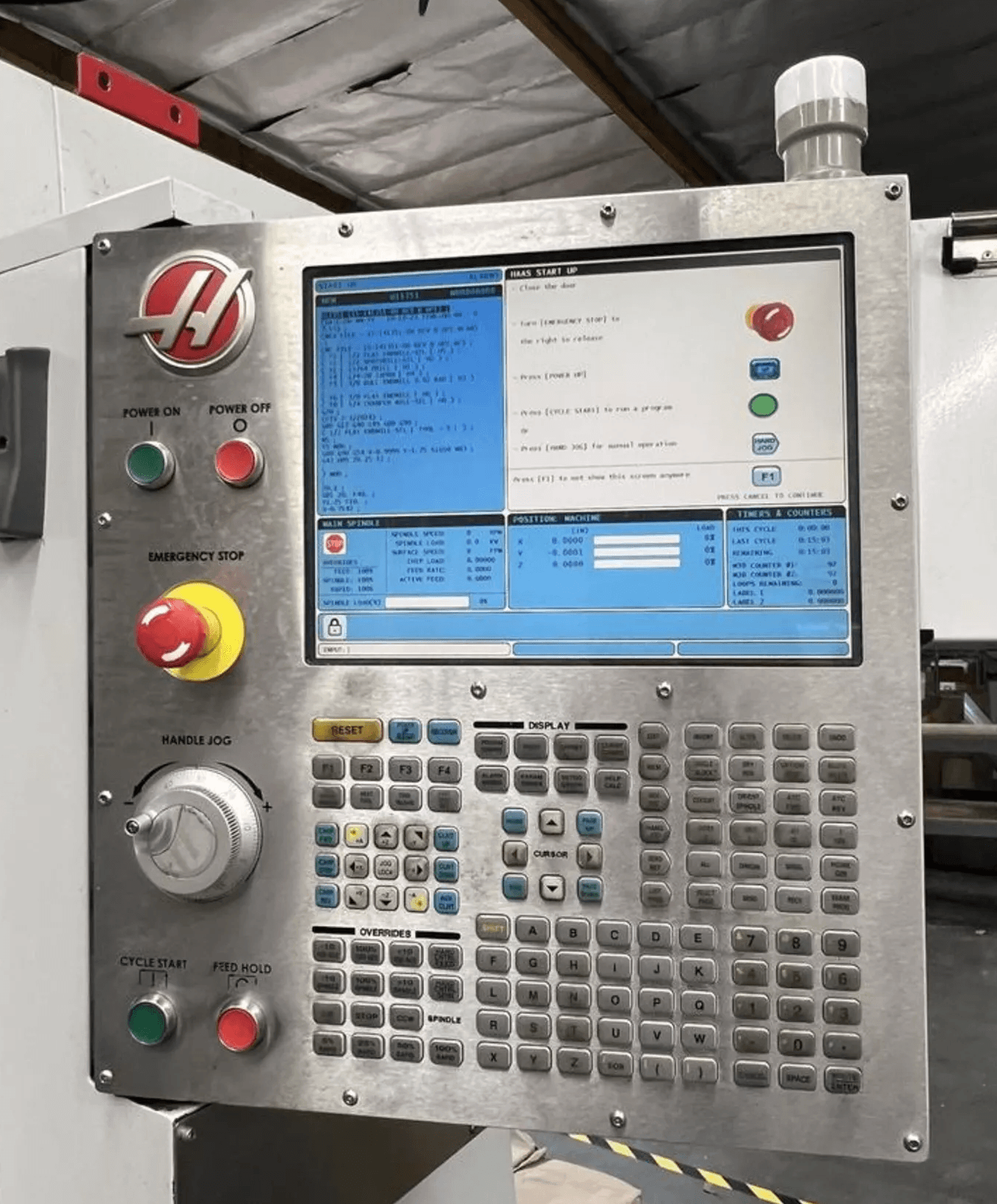

| Control: | Haas CNC Control |
| Country of Origin: | USA |
| Features: |
|---|
| Haas CNC Control |
| Super Speed Configuration |
| Y-Axis Travels |
| 40 Position Side Mount Tool Changer |
| Through Spindle Coolant |
| Programmable Coolant Nozzle |
| Chip Augers |
| Side Chip Conveyor |
| Rigid Tapping |
| Flood Coolant System |
| USB Port |
| Electronic Handwheel |

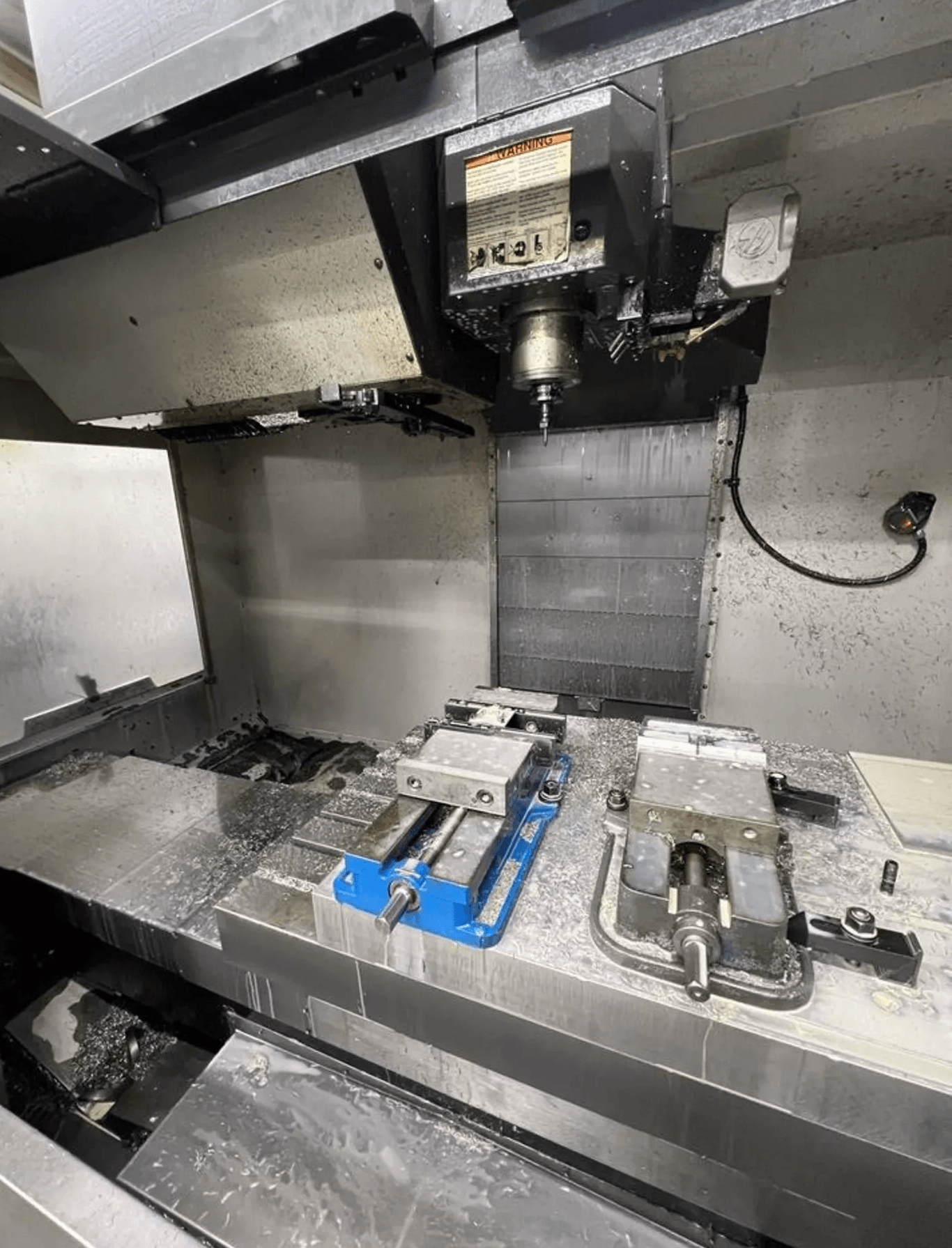

| Dual Kurt-Style Vises |
| Work Light |
| Way Covers |
| Automatic Lubrication System |
| Full Enclosure |
| Travels: |
|---|
| X-Axis Travel: 40″ |
| Y-Axis Travel: 26″ |
| Z-Axis Travel: 25″ |
| Table: |
|---|
| Table Size: 54″ x 25″ |
| Maximum Table Load: 3,500 lbs |
| T-Slot Width: 5/8″ |
| Number of T-Slots: 5 |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Taper: CAT 40 |
| Spindle Motor: 30 HP Vector Drive |
| Spindle Type: Inline Direct Drive |
| Tool Changer: |
|---|
| Tool Capacity: 40 Position Side Mount ATC |
| Tool-to-Tool Time: Approx. 1.6 Seconds |
| Chip-to-Chip Time: Approx. 2.4 Seconds |
| Maximum Tool Weight: 12 lbs |
| Feeds: |
|---|
| Rapid Traverse Rate: 1,400 IPM |
| Cutting Feed Rate: Approx. 833 IPM |

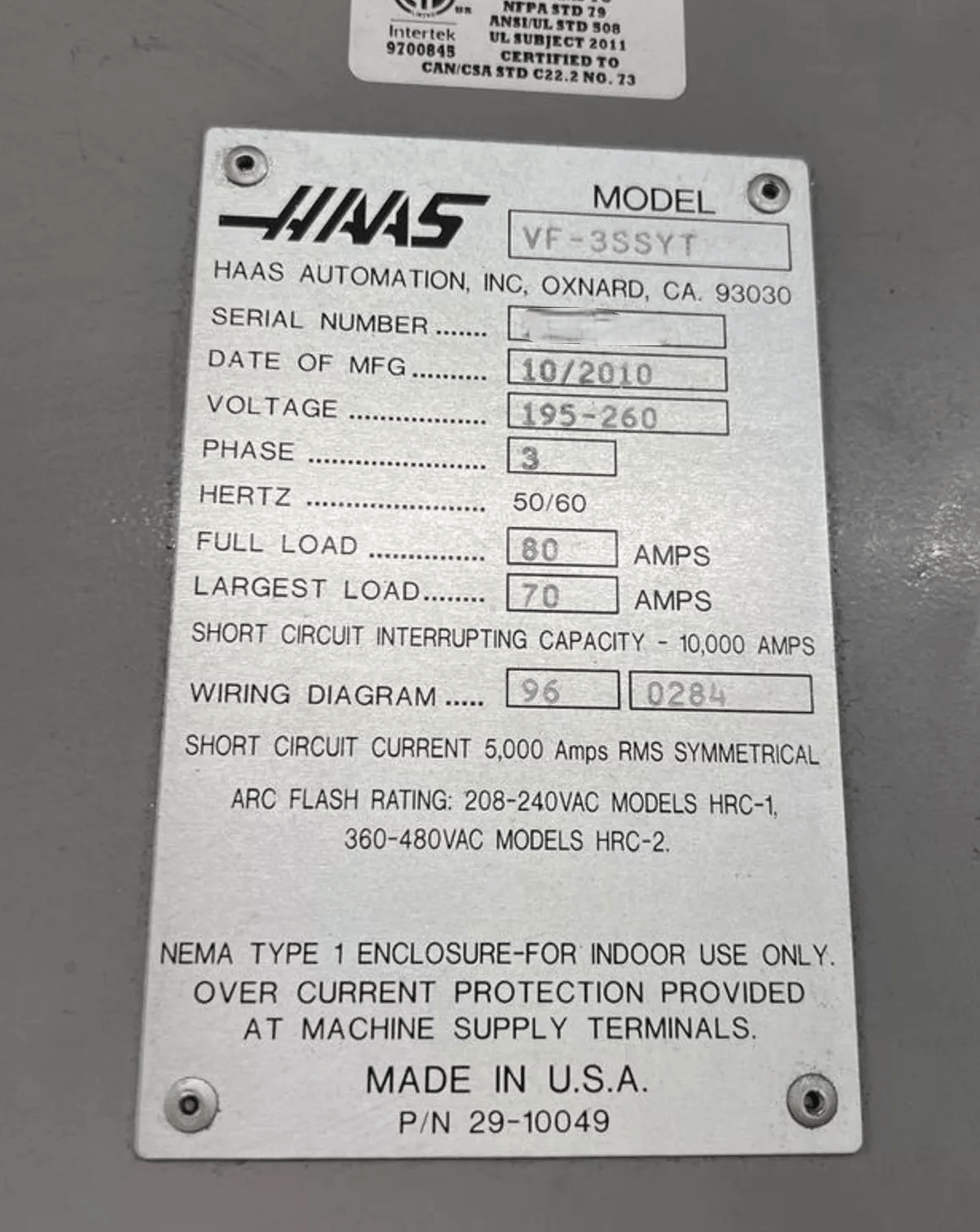

| Electrical: |
|---|
| Voltage: 195-260 VAC |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Full Load Current: 80 Amps |
| General: |
|---|
| Power Requirement: 208-240V / 3 Phase |
| Air Requirement: 100 PSI Clean Dry Air |
| Machine Weight: Approx. 13,500 lbs |
| Machine Dimensions: Approx. 130″ x 115″ x 120″ |
