*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

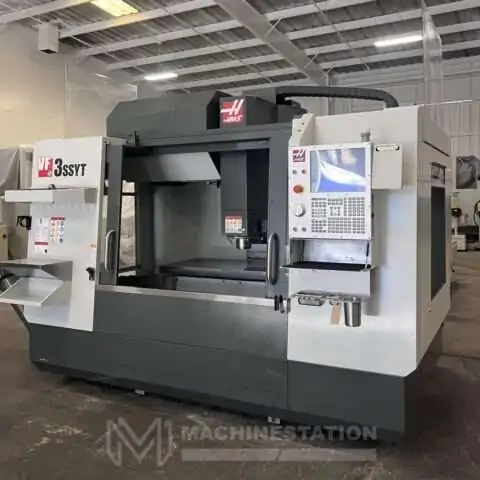

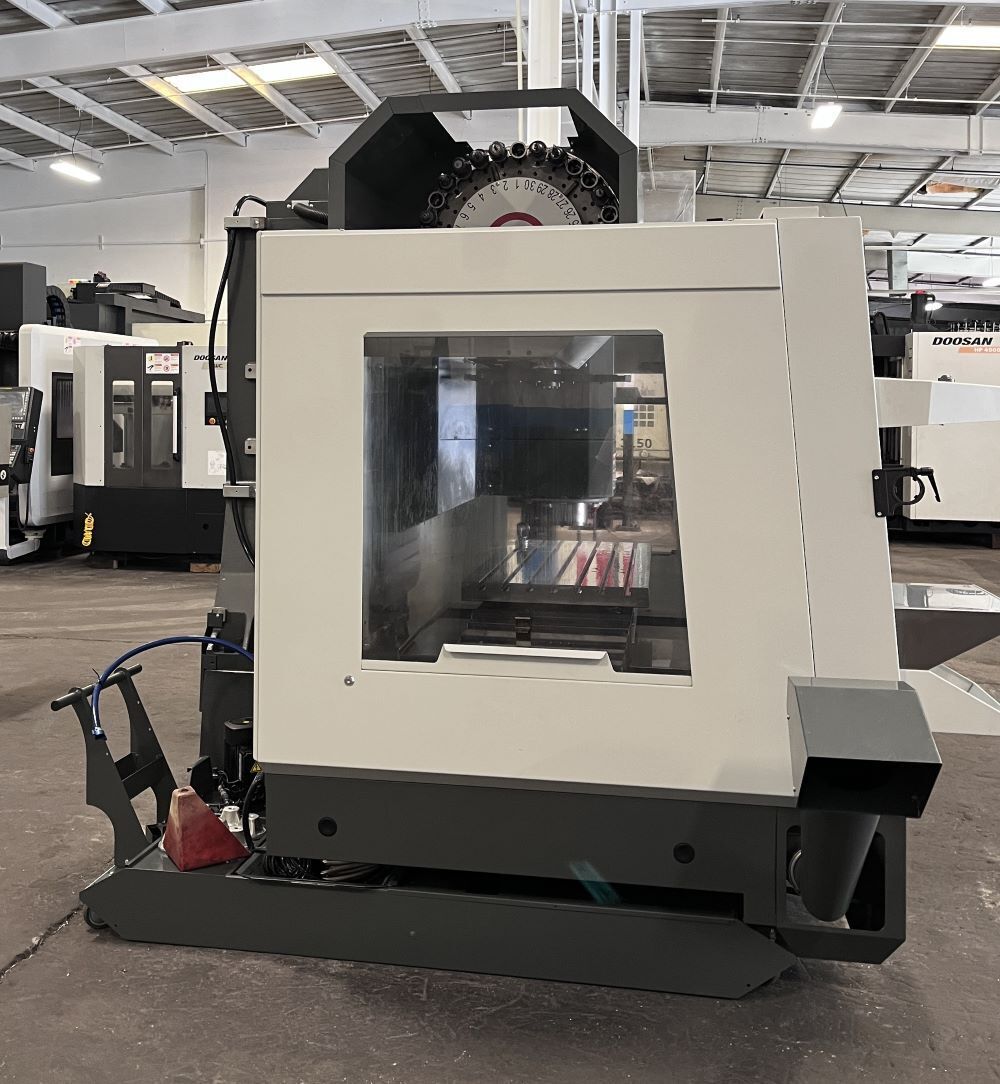

| Make: | HAAS |

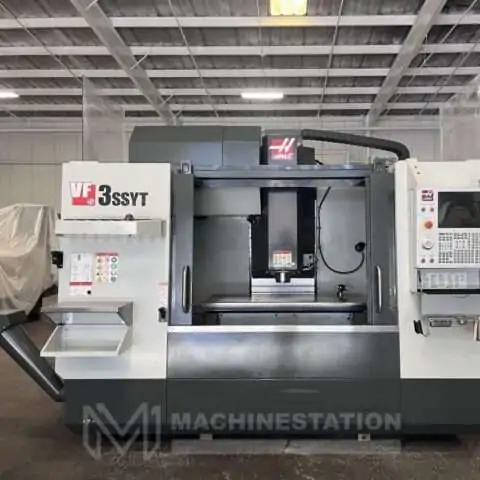

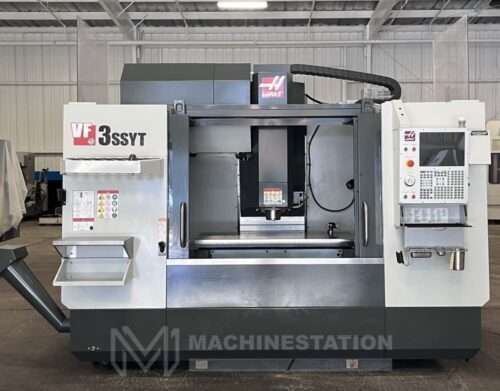

| Model: | VF-3SSYT |
| Year: | 2022 |
| Condition: | Used – Excellent |
| Key Features: |
|---|

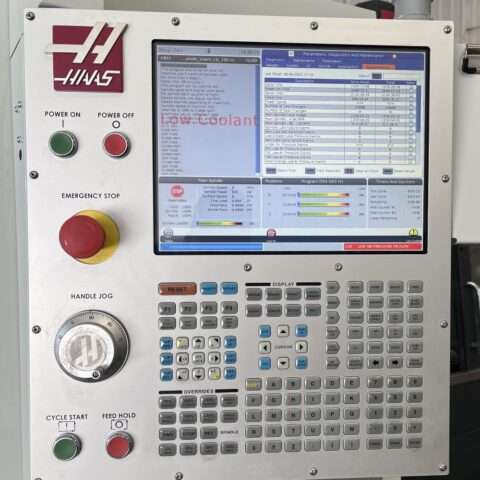

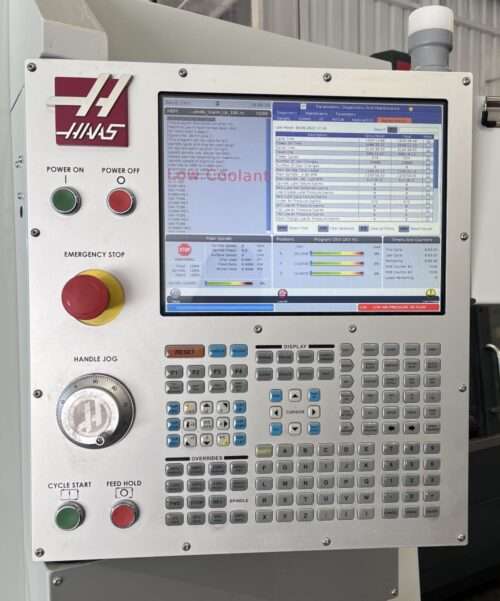

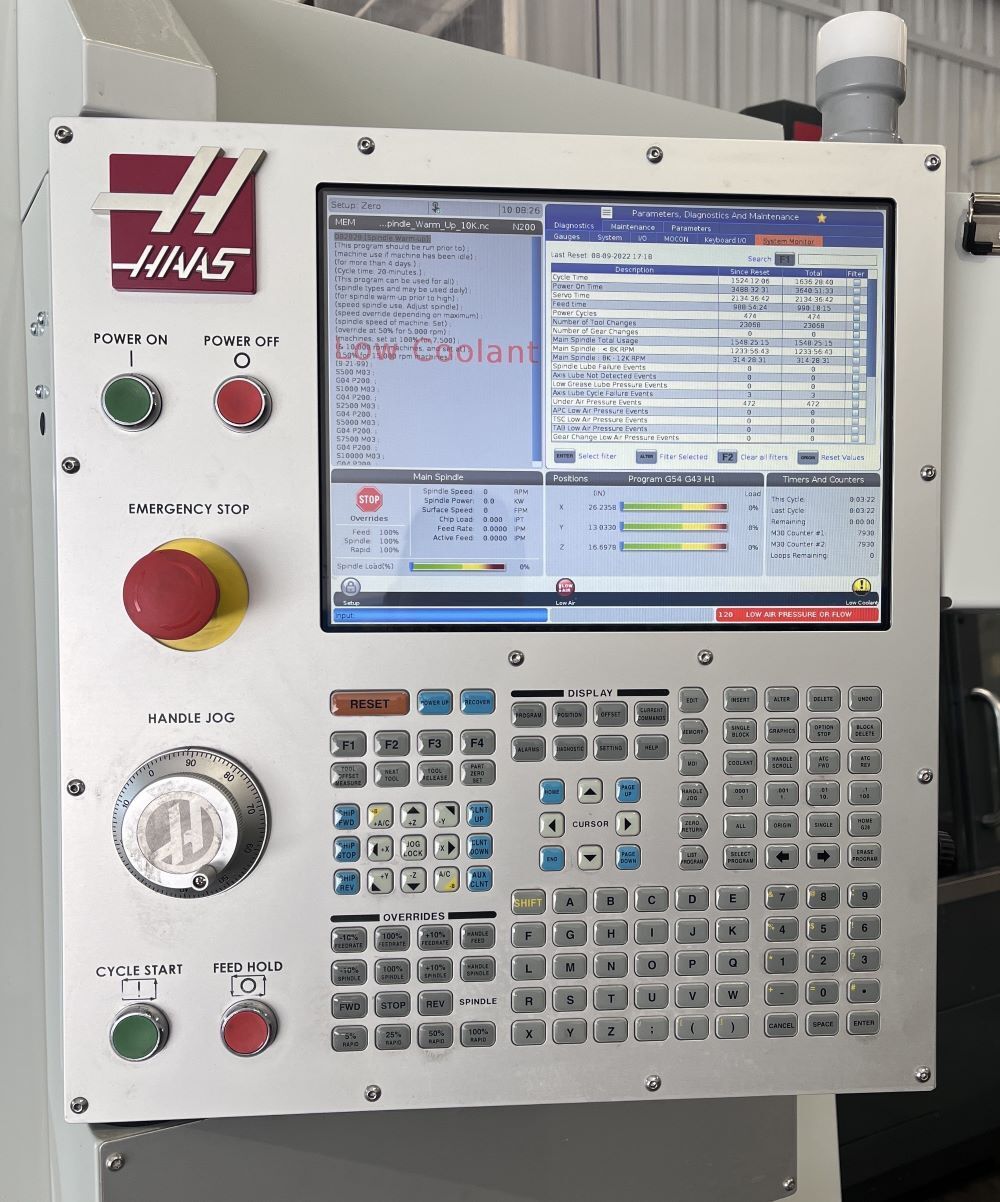

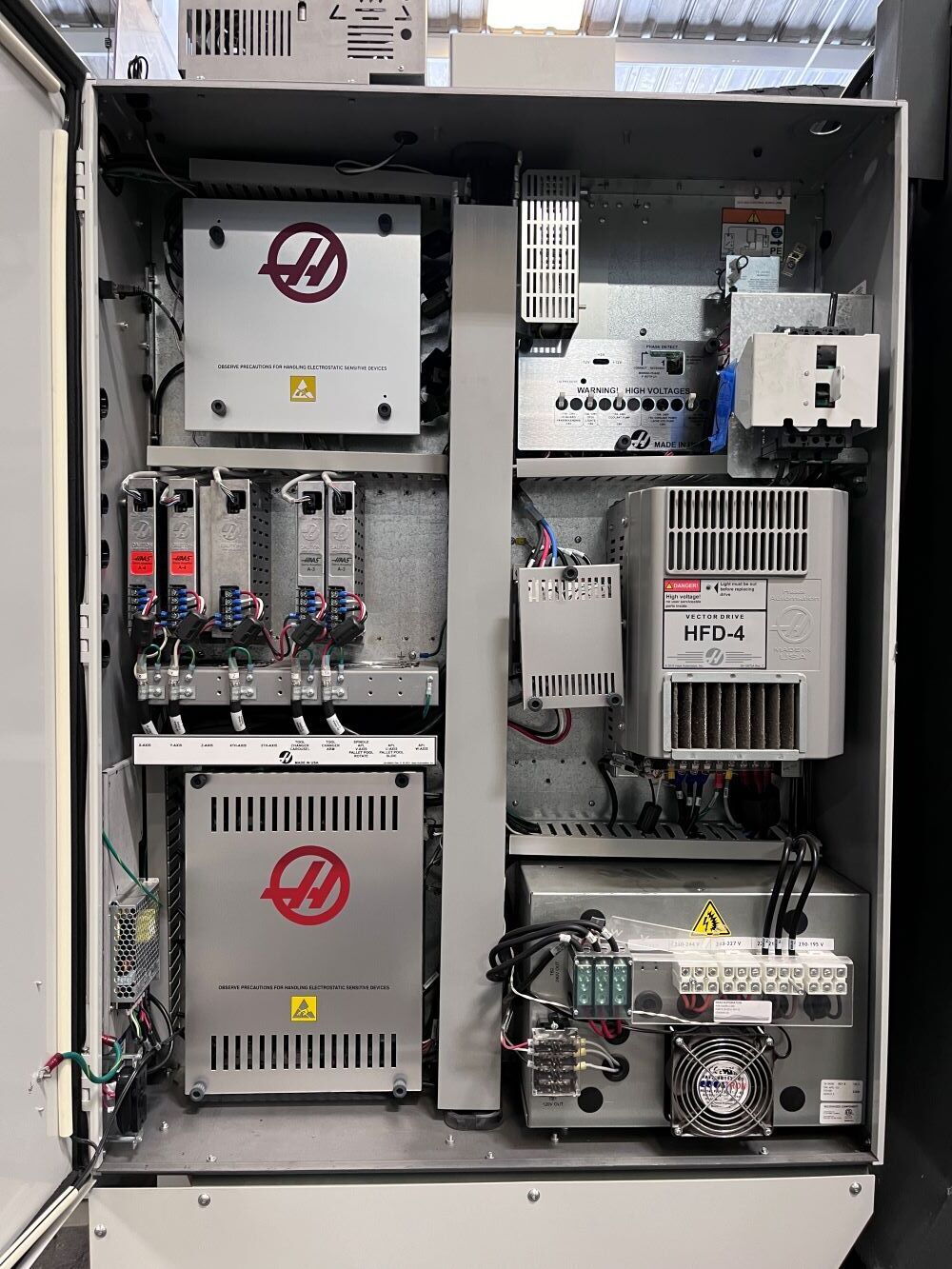

| Haas CNC Control |
| 4th Axis Drive (Upgraded $3195 value Included) |
| 12,000 RPM High-Speed Spindle |

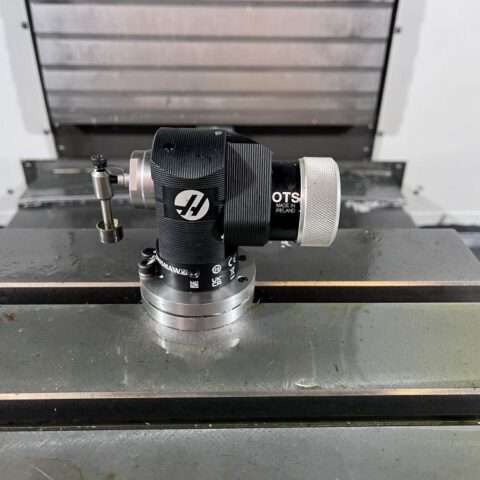

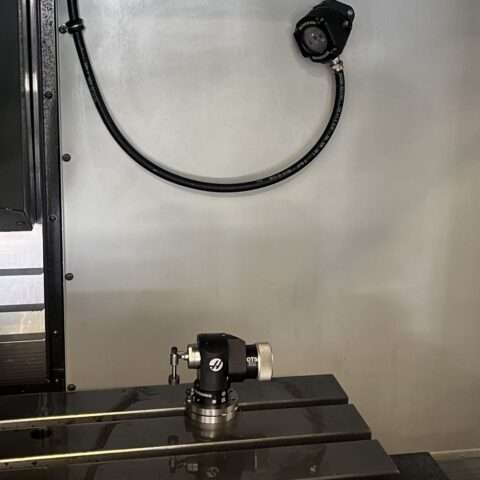

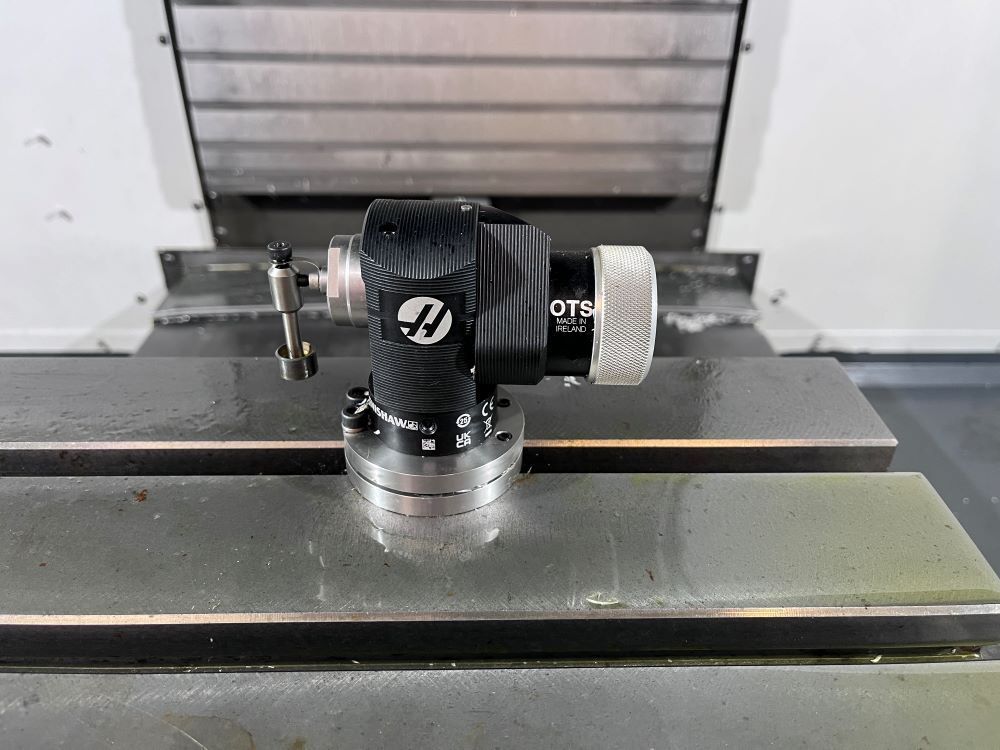

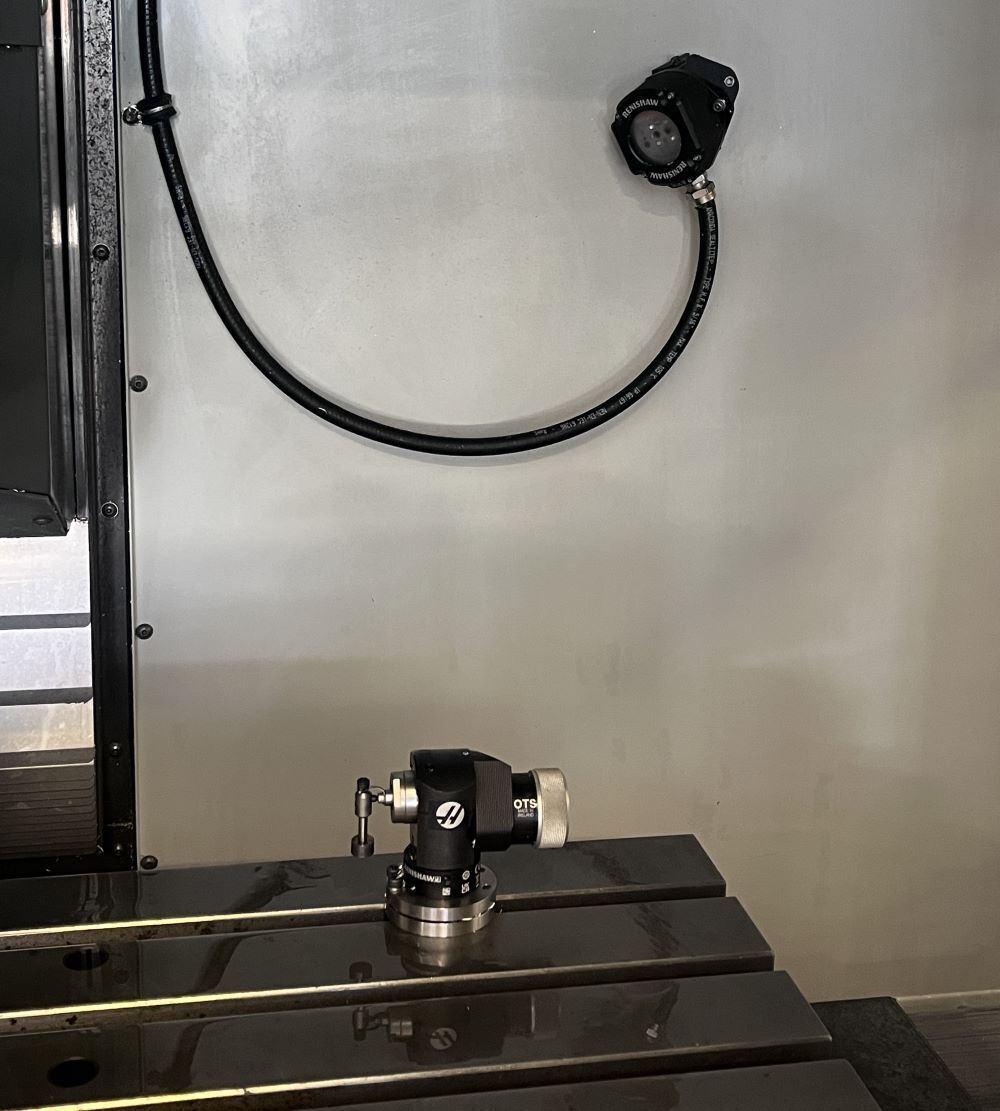

| WIPS-R Renishaw Probing System Ready (Probe Needed) |
| Probe Riser Block (Upgraded $495 value Included) |
| 30 Station High-Speed Tool Changer |
| 30 HP High Torque Spindle |
| 1400 IPM Fast Rapid Traverse |
| MPG Control |
| User-Definable Macros |
| Coordination Rotation and Scaling |
| Visual Part Programming System |
| Rigid Tapping |
| Spindle Orientation |
| USB & Ethernet Ports |
| 1GB Memory |
| Haas Connect |
| Door Interlocks |

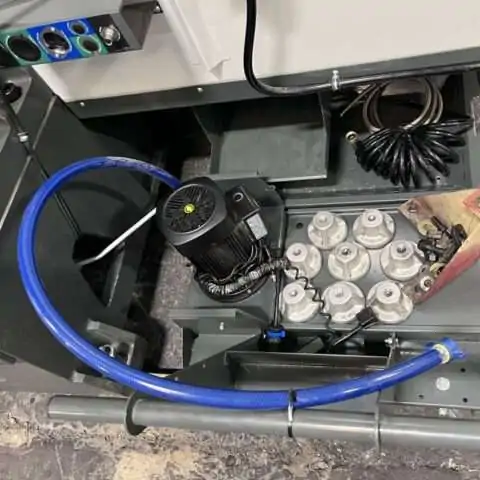

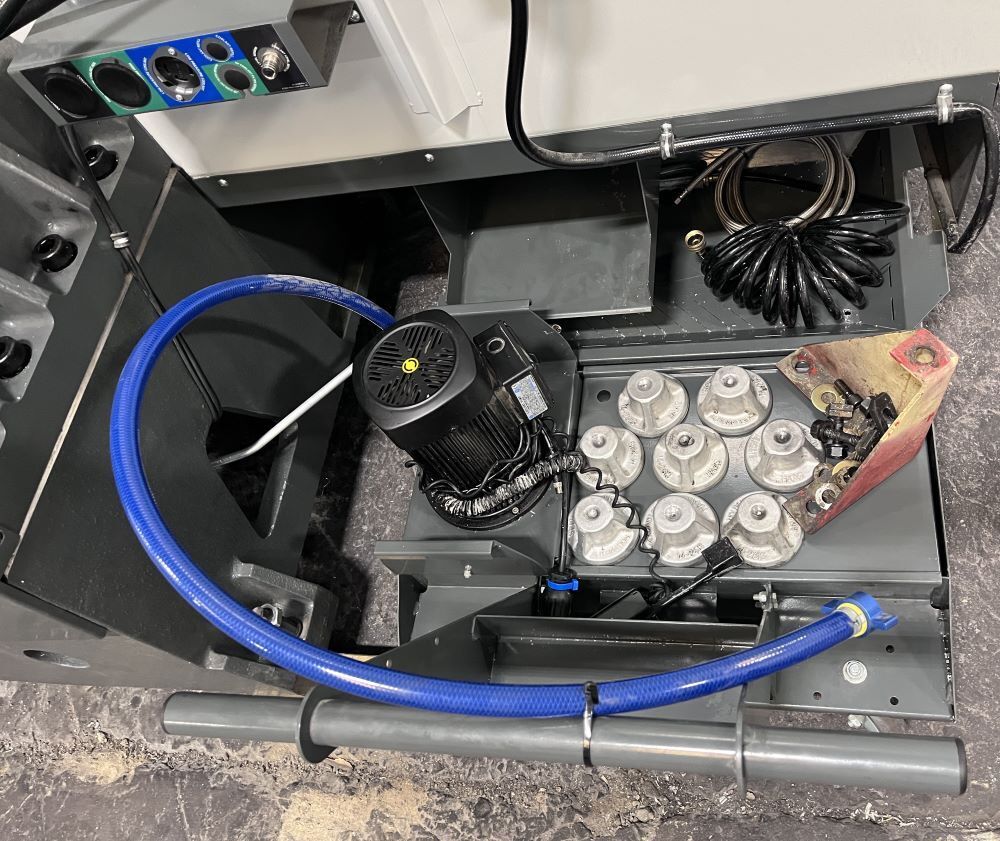

| Flood Coolant System |
| Chip Auger (Upgraded $3695 value Included) |
| Leveling Pads |
| Travel: |
|---|
| X-Axis: 40″ |
| Y-Axis: 26″ |
| Z-Axis: 25″ |
| Rapid Traverse Rates: 1400 Inch Per Minute |
| Cutting Feed Rates: 833 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″ |

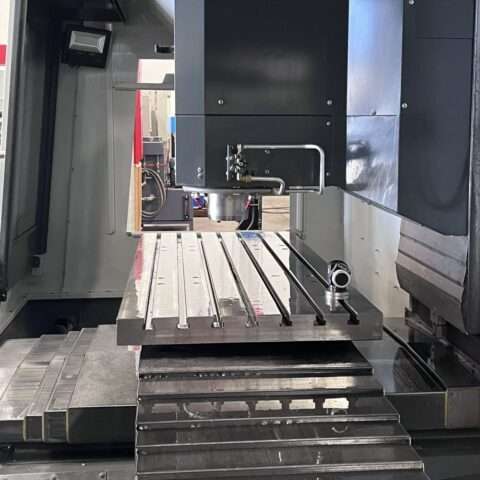

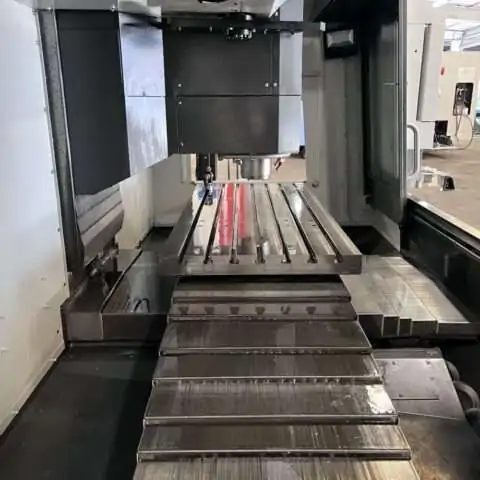

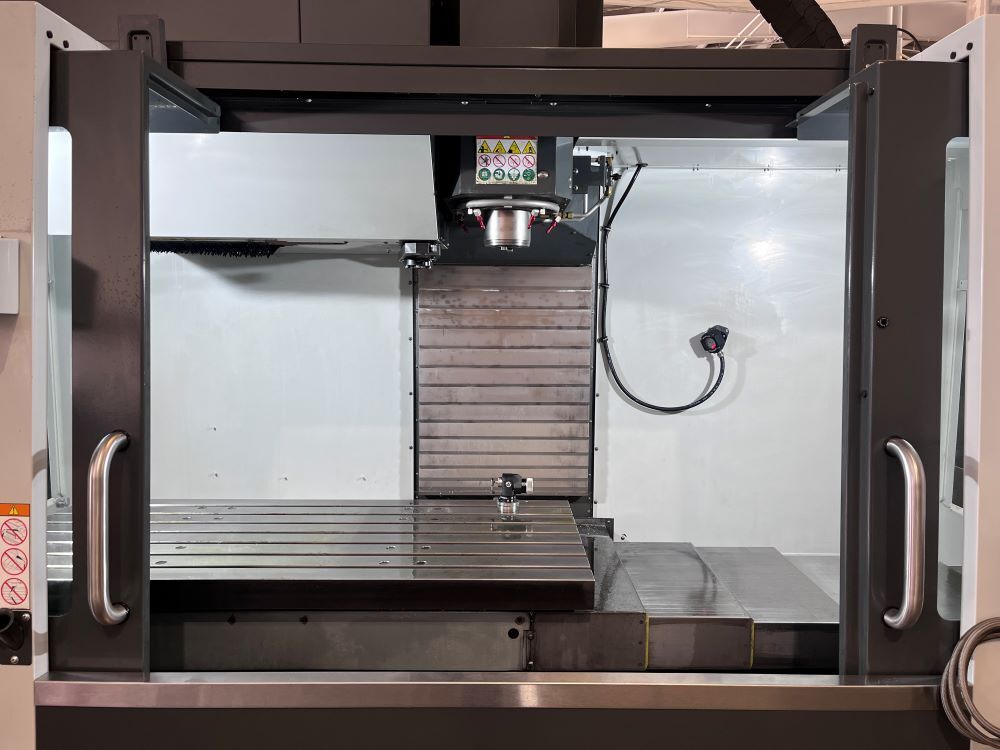

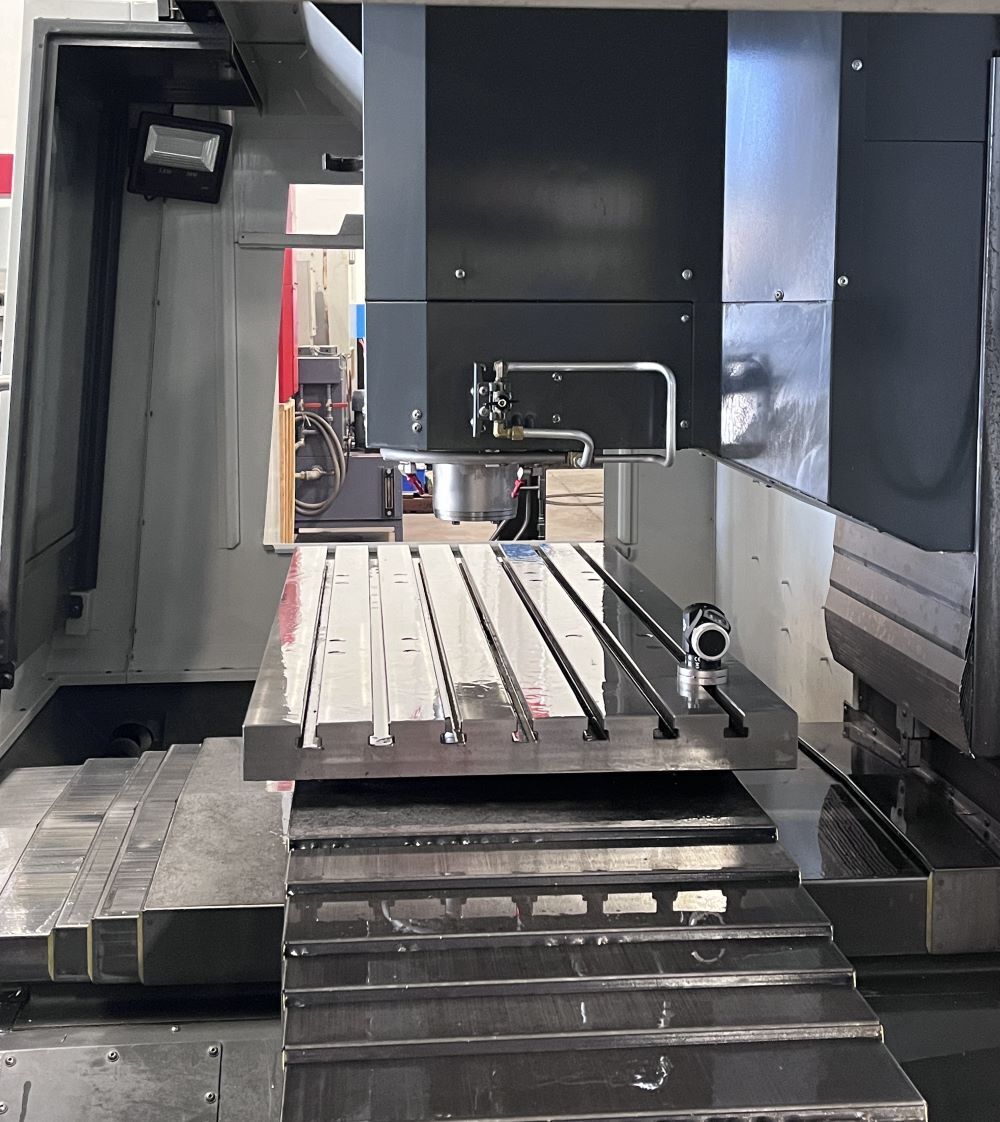

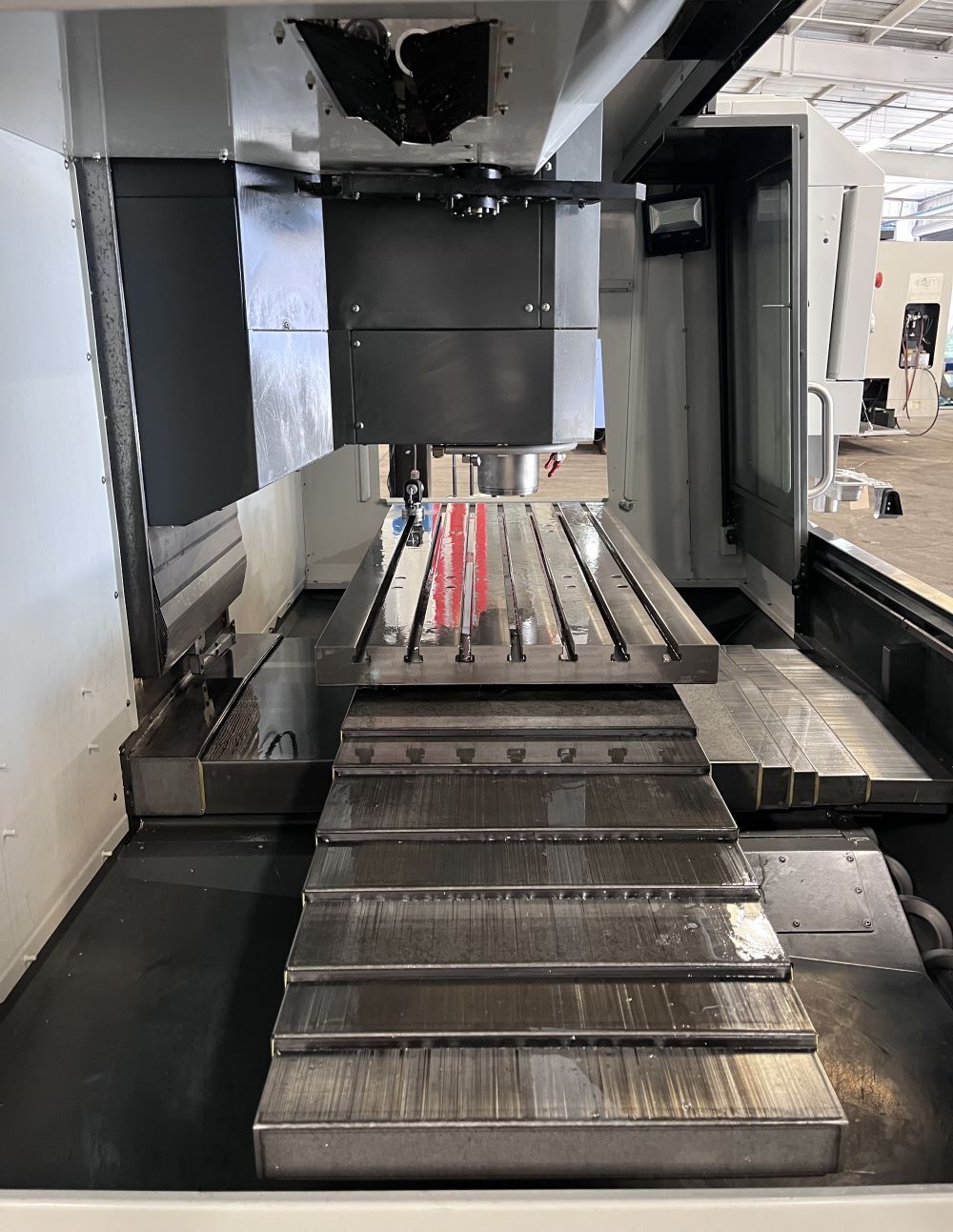

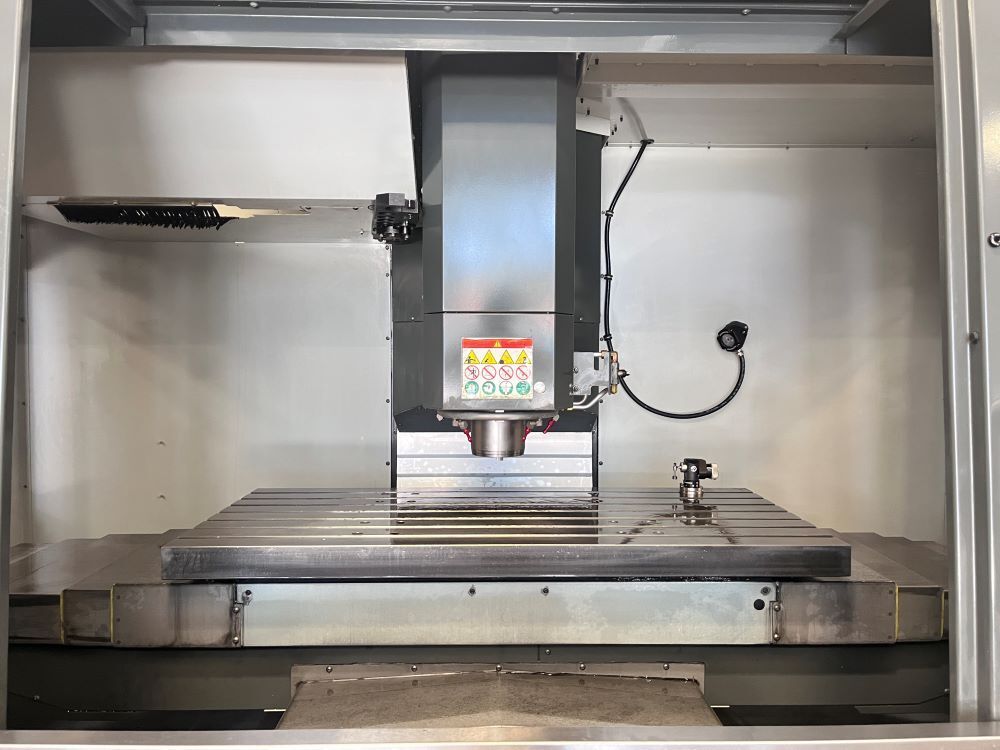

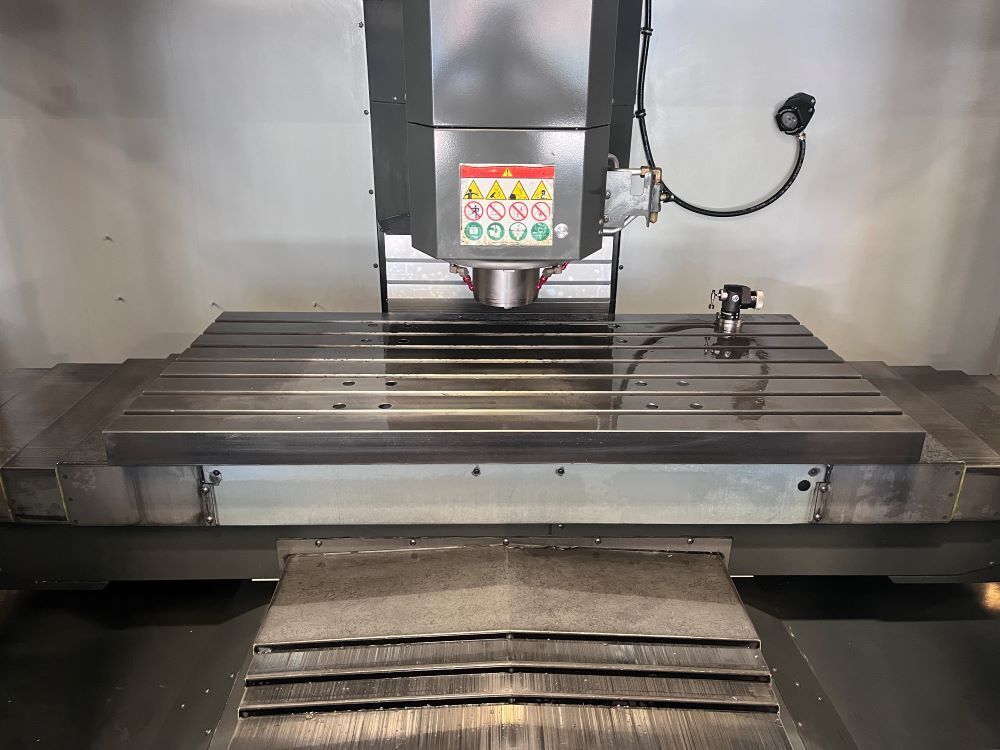

| Table: |
|---|
| Length: 54″ |
| Width: 24″ |
| Number of Std T-Slots: 7 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1750 lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Tools |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 2.5″ – 5.0″ |
| Max Tool Length: 13″ |
| Tool Changing Time: 1.80 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

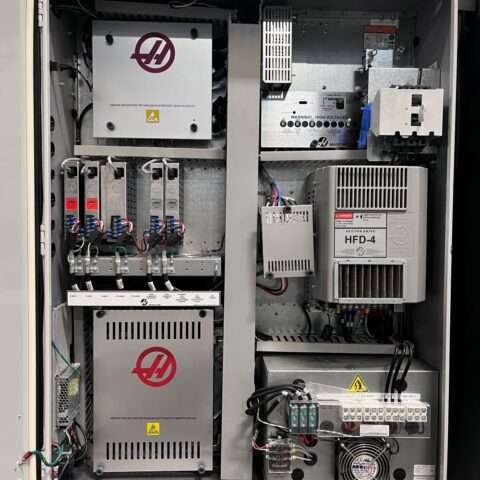

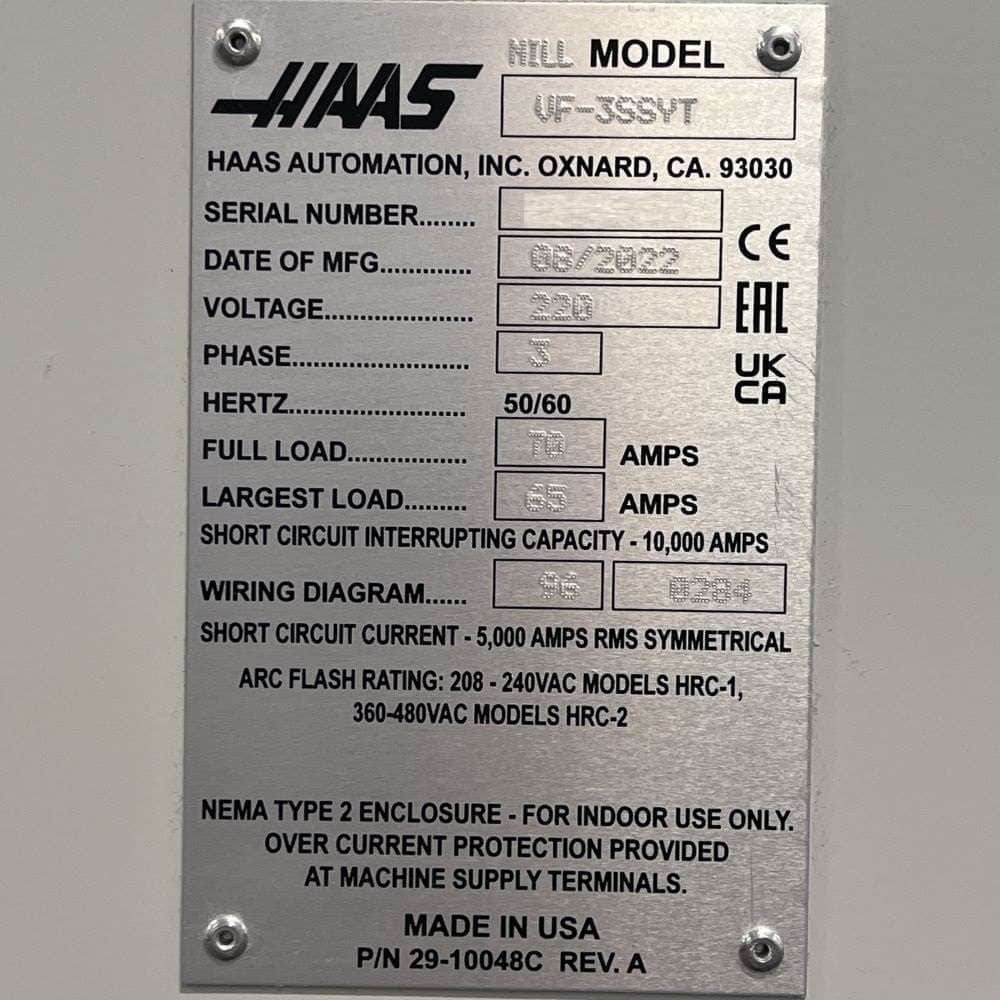

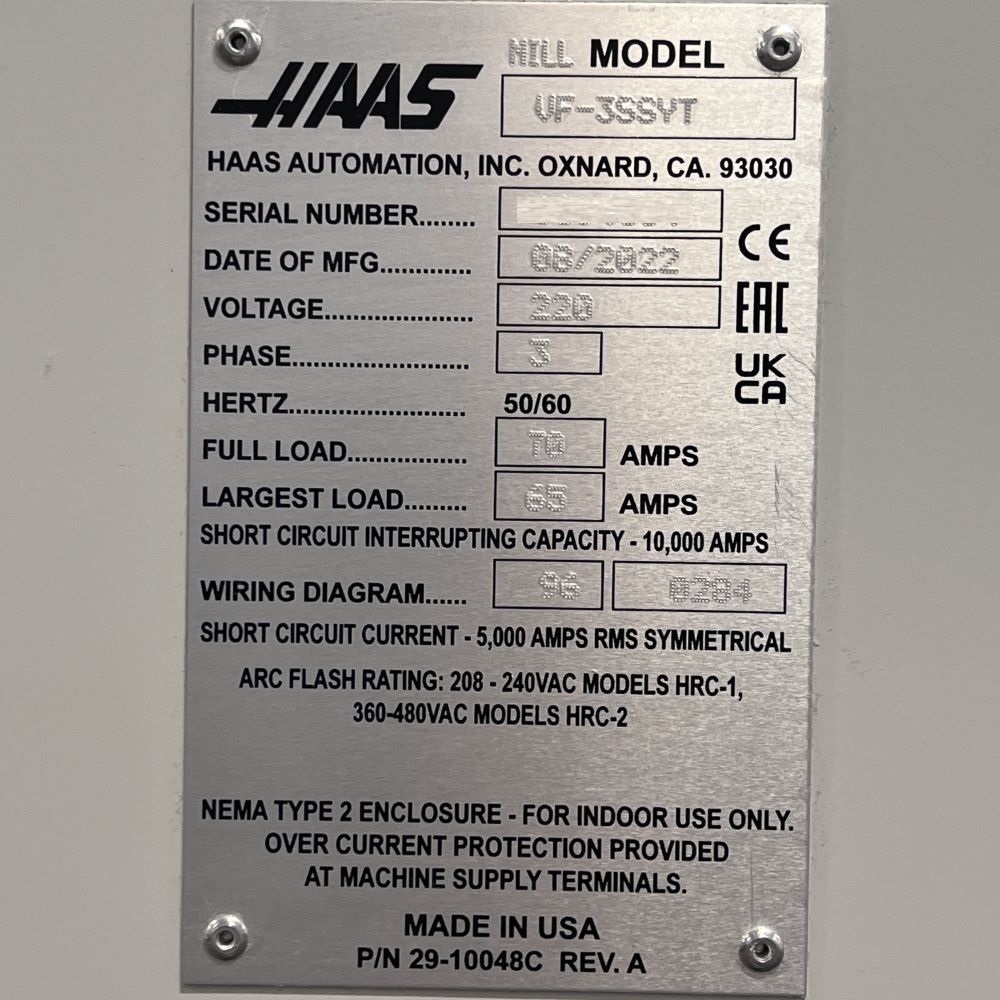

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 152″ x 102″ x 109″ High |
| Weight: 15,000 lbs Approx. |
