*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

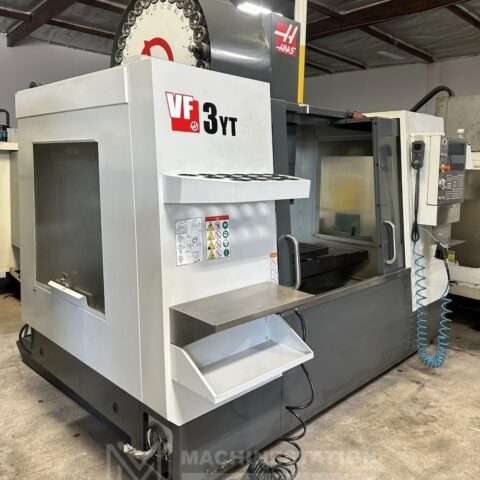

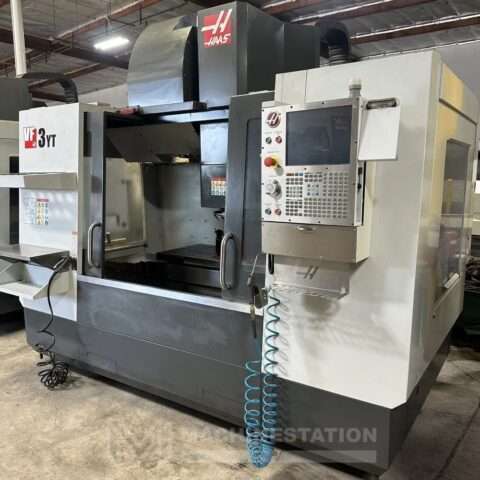

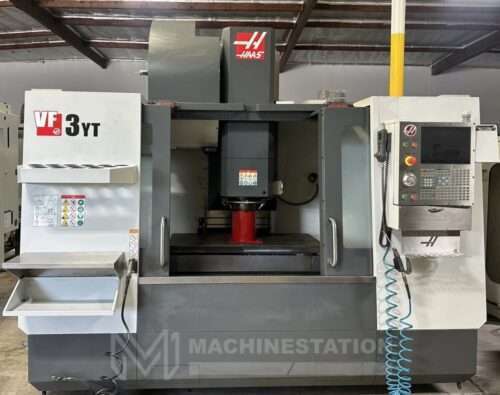

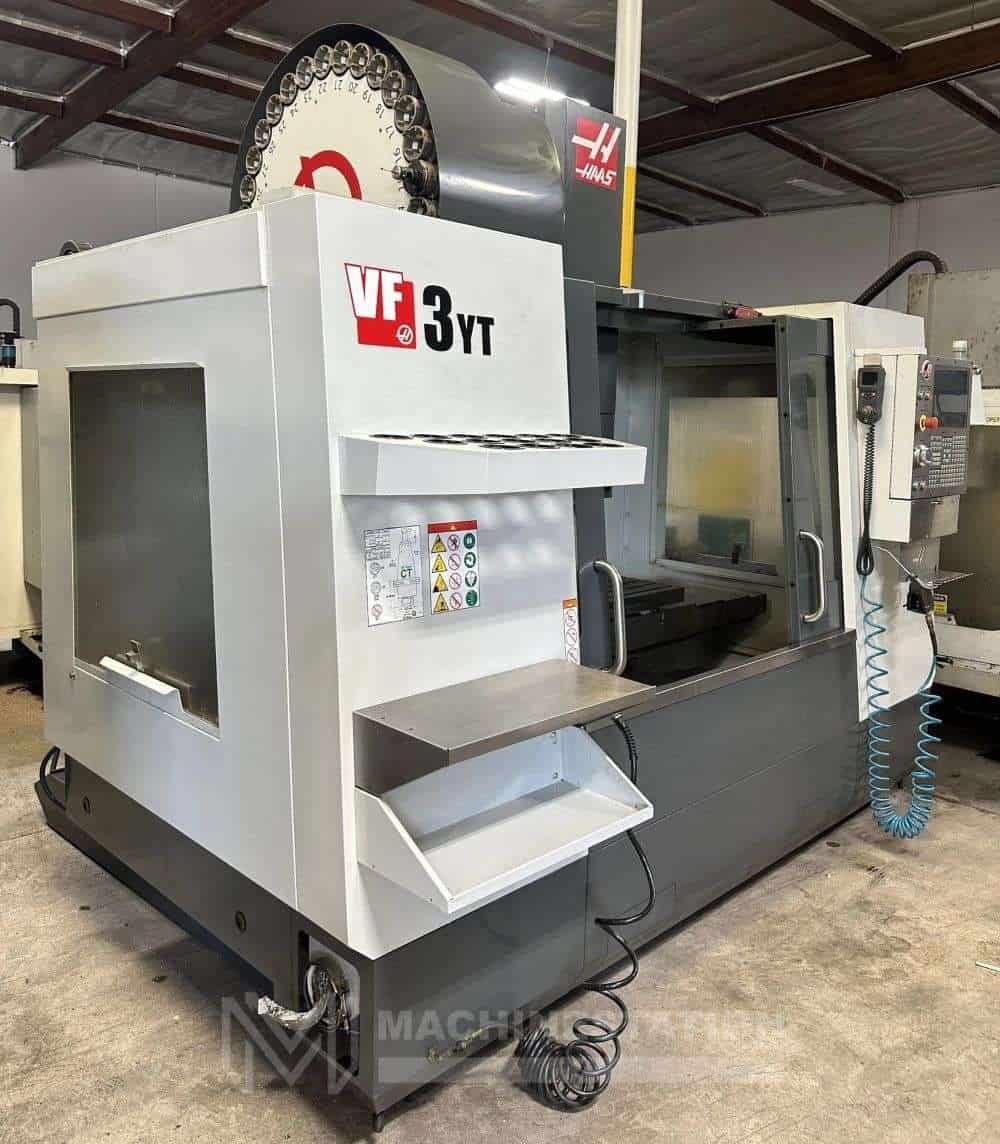

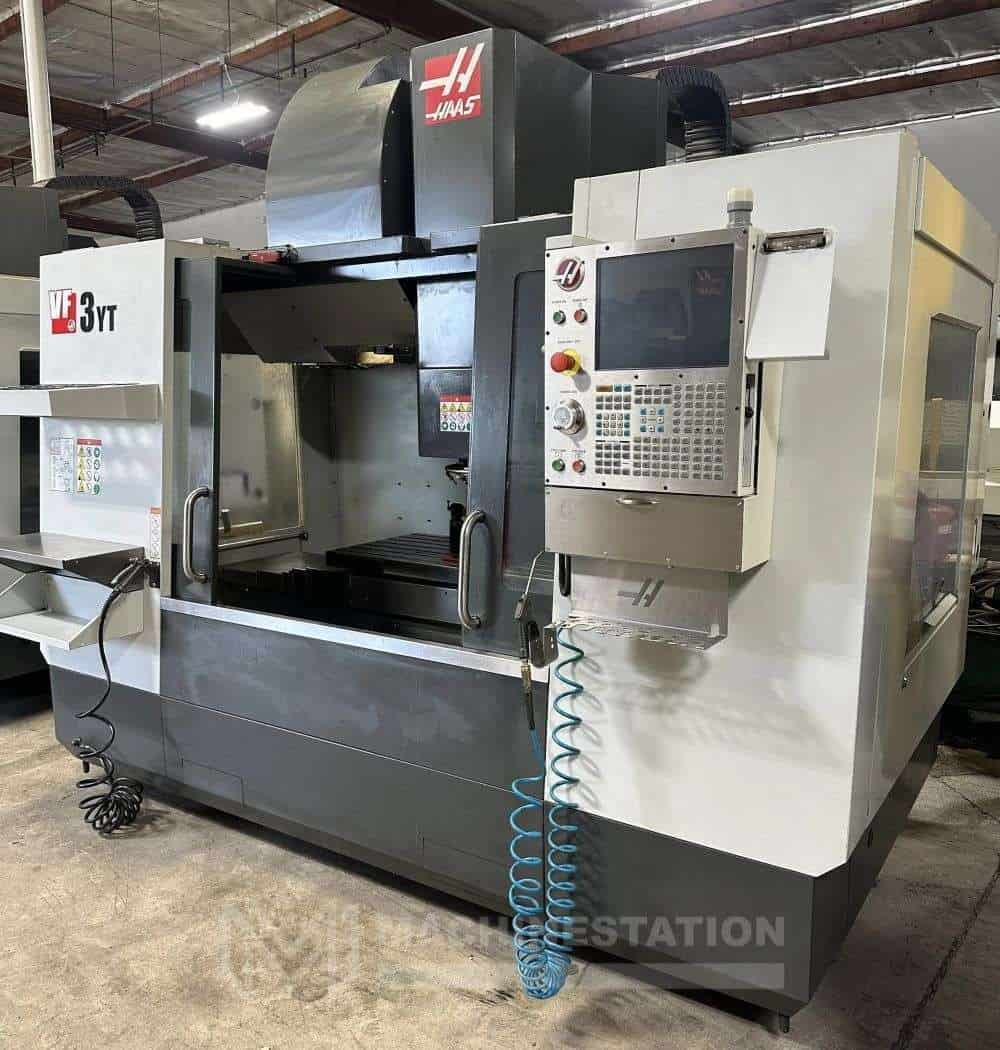

| Make: | HAAS |
| Model: | VF-3YT/50 |
| Year: | 2017 |
| Condition: | Used – Excellent |
| Key Features: |
|---|

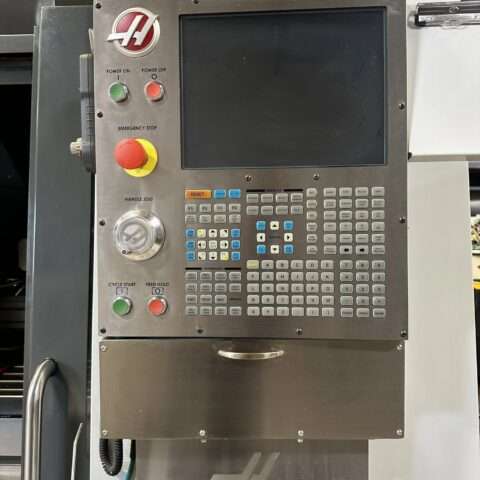

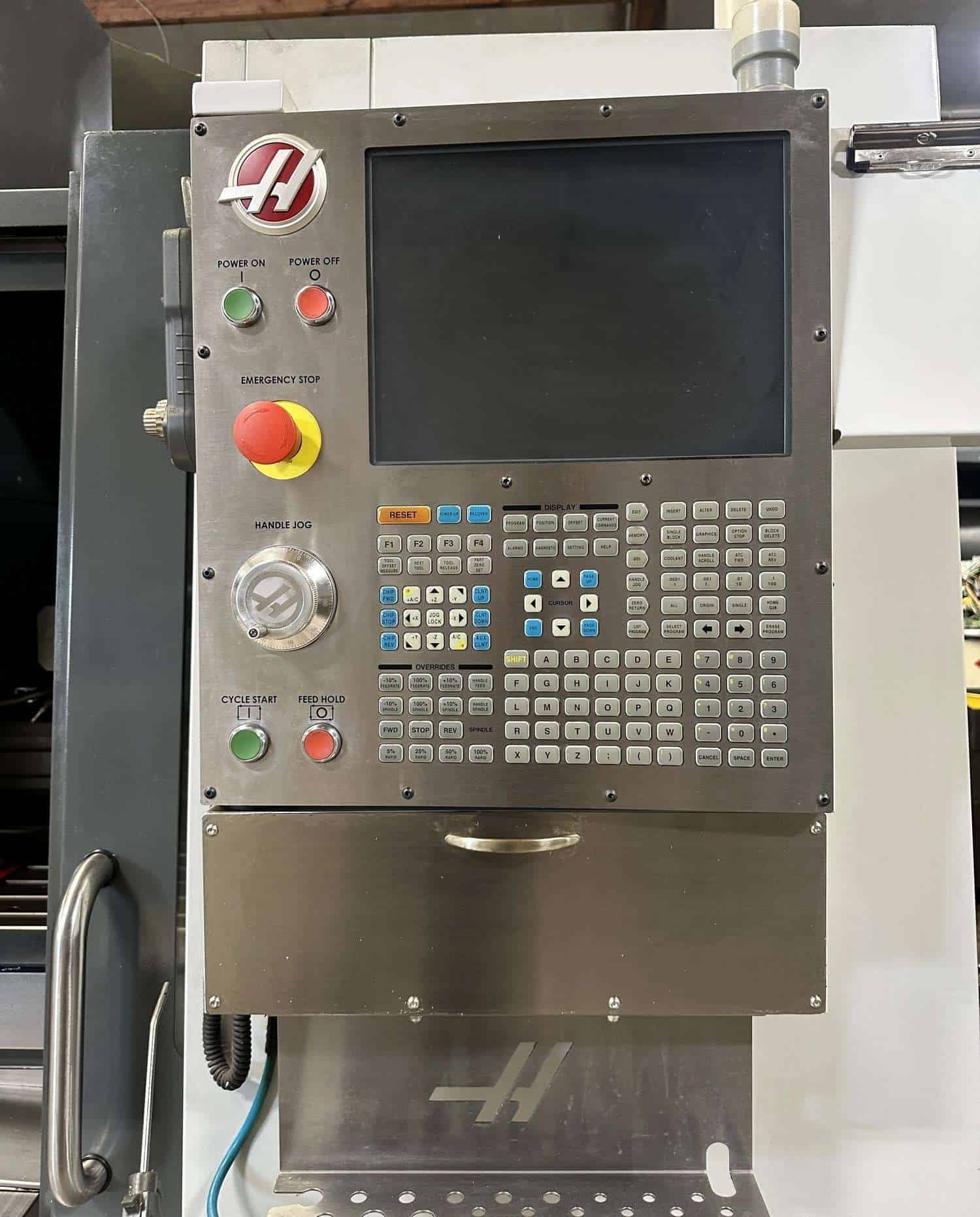

| Haas CNC Control |
| 50 Taper Spindle |
| Through Spindle Coolant – 300 psi (Upgraded $6295 value Included) |
| WIPS-R Renishaw Probing System Ready |

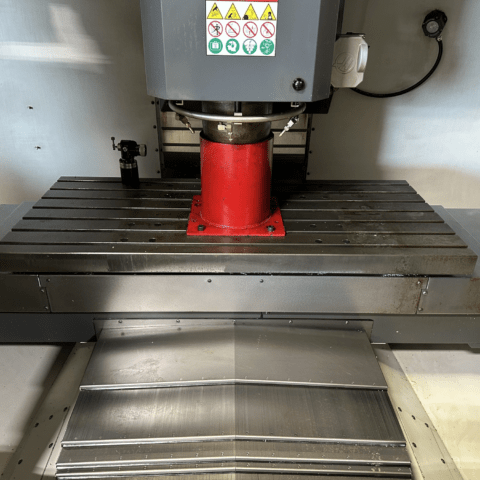

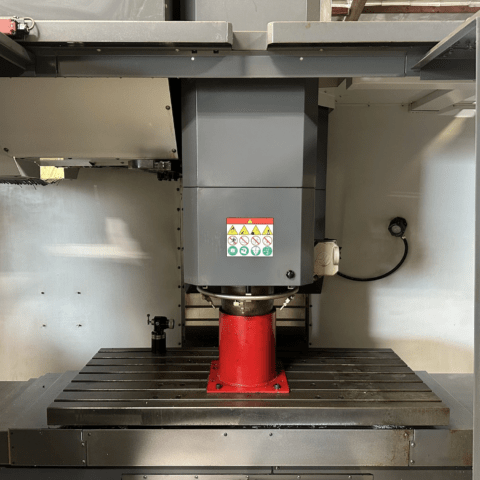

| Probe Riser Block (Upgraded $495 value Included) |
| 7500 RPM High-Speed Spindle |
| 30 Station Automatic Tool Changer |
| 30 HP High Torque Spindle |
| Remote Jog Handle w/ Color LCD |
| User-Definable Macros |
| Coordination Rotation and Scaling |
| Visual Part Programming System |
| Media Display M-Code |
| Rigid Tapping |
| Spindle Orientation |
| Programmable Coolant |
| Coolant Tank Oil Skimmer |
| Chip Auger |
| Travel: |
|---|
| X-Axis: 40″ |
| Y-Axis: 26″ |
| Z-Axis: 25″ |
| Rapid Traverse Rates: 710 Inch Per Minute |
| Cutting Feed Rates: 500 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 7.9″ – 32.9″ |

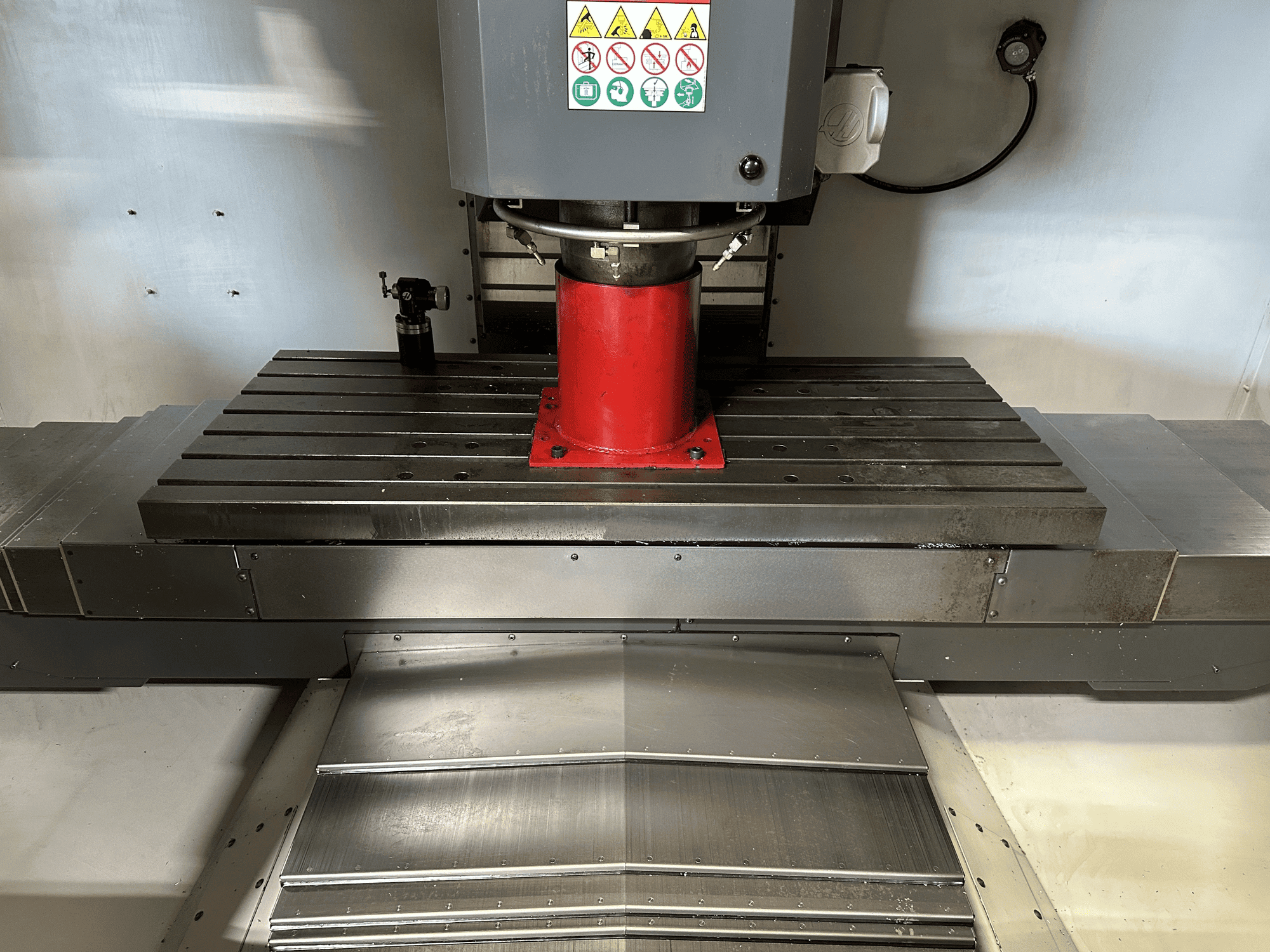

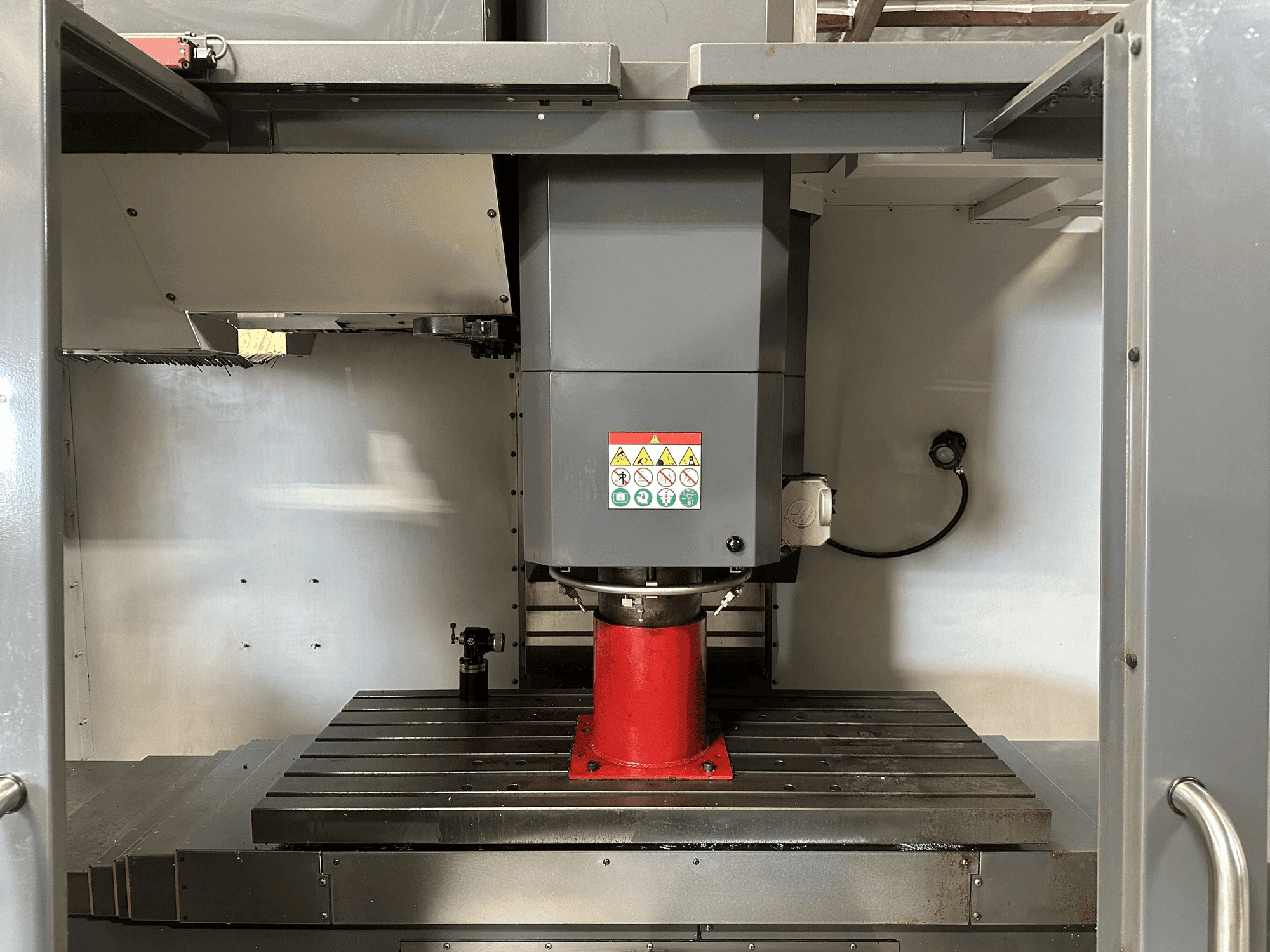

| Table: |
|---|
| Length: 54″ |
| Width: 24″ |
| Number of Std T-Slots: 7 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 4000 lbs |

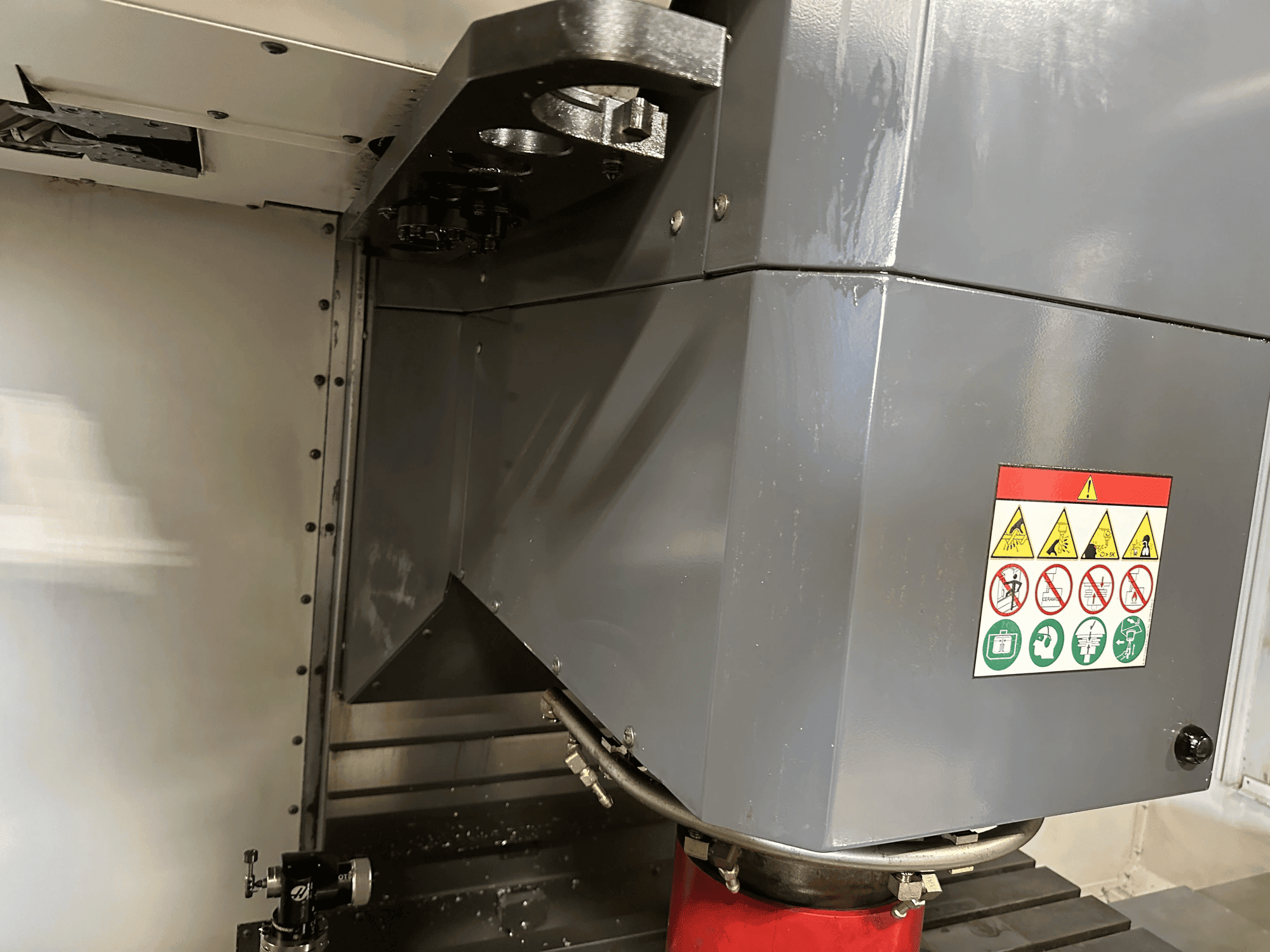

| Spindle: |
|---|
| Taper Size: 50 |
| Speed Range: 7500 RPM |
| Spindle Power: 30 HP |

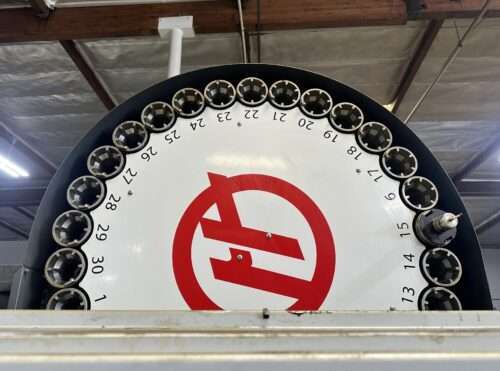

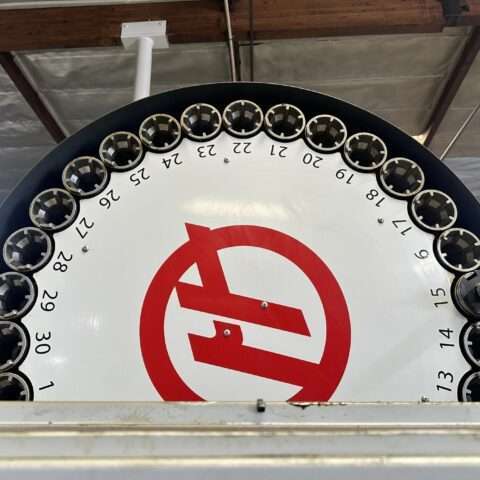

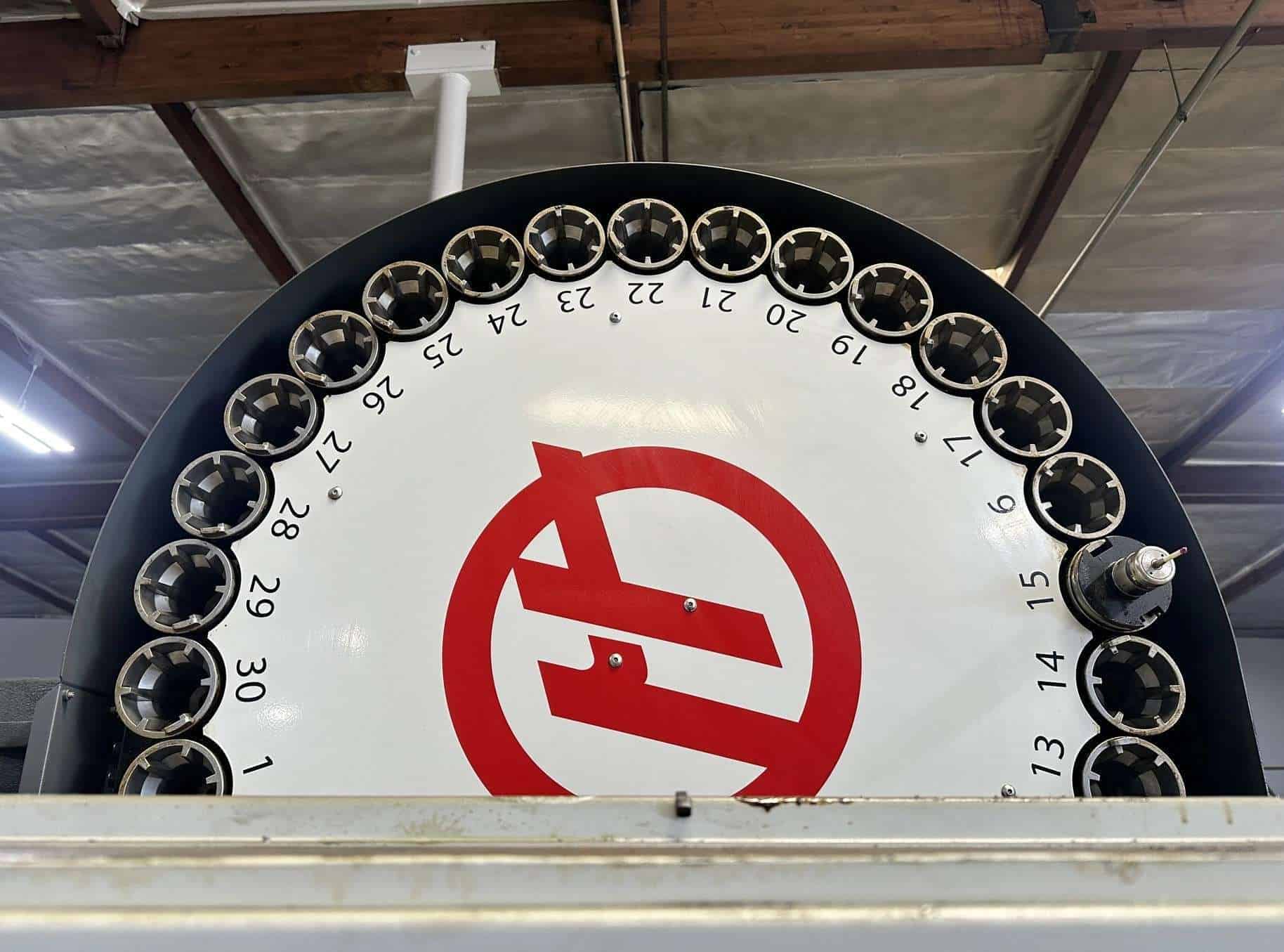

| Automatic Tool Changer: |
|---|
| Capacity: 30 Tools |
| Max Tool Weight: 30 lbs |
| Max Tool Dia: 4.0″ – 7.0″ |
| Max Tool Length: 16″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 156″ x 102″ x 121″ High |
| Weight: 16,500 lbs Approx. |
