Sold

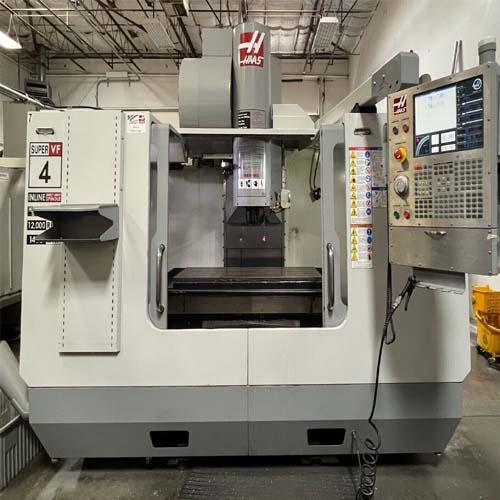

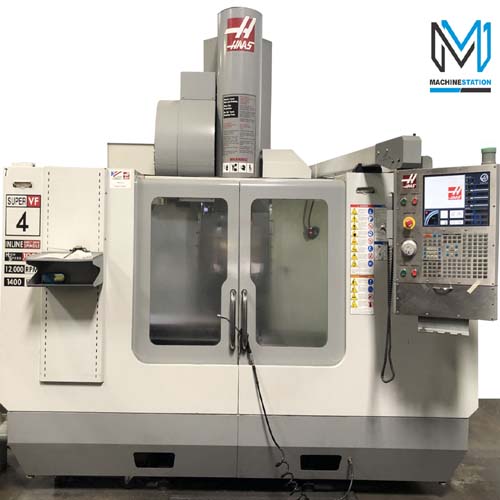

Haas VF-4SS CNC Vertical Machining Center
Out of stock
| Location |
Lake Elsinore, CA |
| SKU |
105337 |
| Make |
Haas |
| Model No. |
VF-4SS |
| Year |
2007 |
| Condition |
Used-Good |
| Cutting Hours: |
3640 Only |
-
Features:

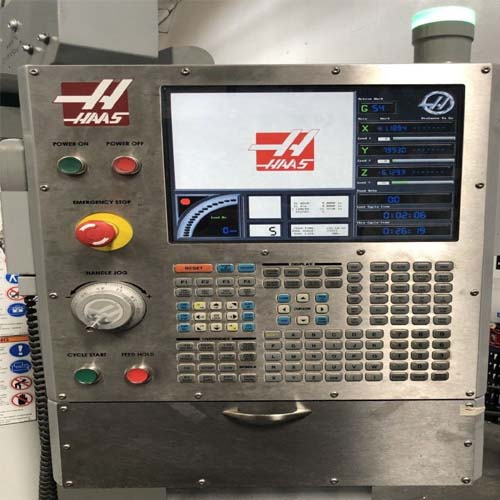

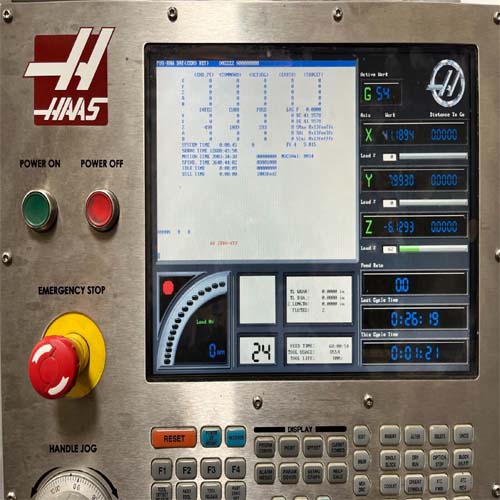

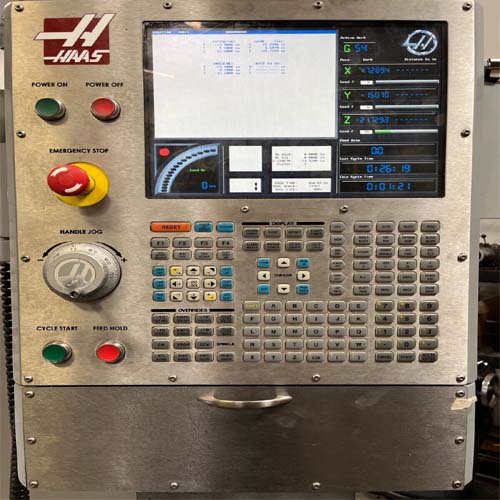

- Haas CNC Control
- 12000 RPM Inline Direct Drive Spindle
- 24 Station Super Speed Side Mount Tool changer
- 1400 IPM Fast Rapid
- Renishaw Probing Ready
- 4th Axis Ready
- High speed Machining

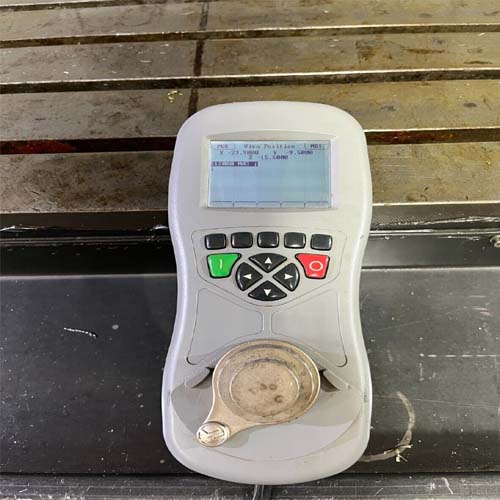

- Hand Wheel MPG Control
- Rigid Tapping
- Advanced tool Management
- Extended Memory
- Quick Code Programming
- Programmable Coolant
- Telescopic way covers
- Automatic Chip auger
-
Spindle:
- Taper Size: 40
- Speed Range: 12000 RPM
- Spindle Power: 30 HP
- Vector Dual Drive Max Torque: 90ft-lb @2000 RPM
-

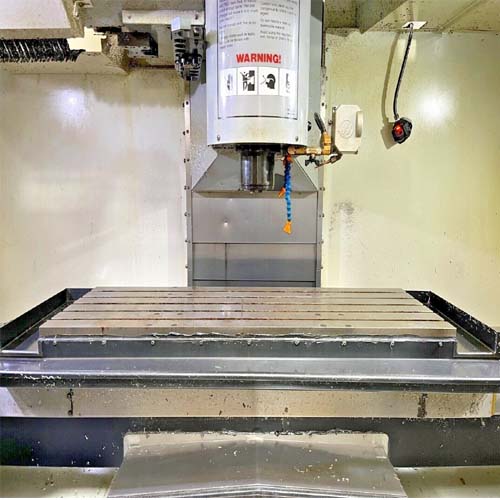

Table:
- Length: 52″
- Width: 18″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 1750 lbs
-
Specifications:
- Travels:
- X-Axis: 50″
- Y-Axis: 26″
- Z-Axis: 25″
- Rapid Traverse Rates: 1400 Inch Per Minute
- Cutting Feed Rates: 833 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″
-
Automatic Tool Changer:
- Capacity: 24
- Max Tool Weight: 12 lbs
- Max Tool Dia: 2.5″
- Max Tool Length: 16″
- Tool Changing Time: 1.8 Seconds
-
General:
- Air Required: 100 psi, 4 scfm

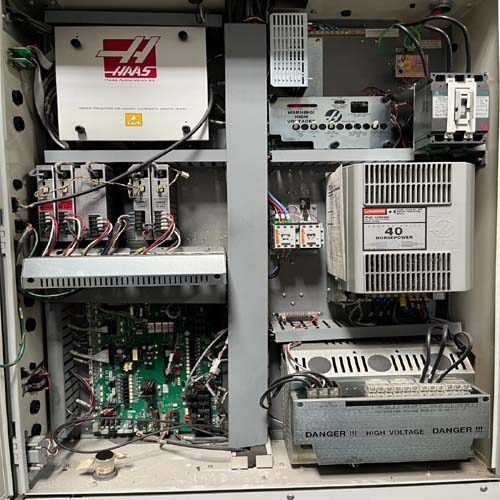

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 152″ x 99″ x 106″ High
- Weight: 13800 lbs
