*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

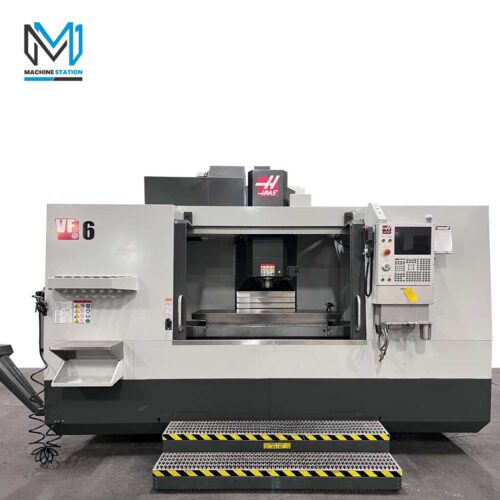

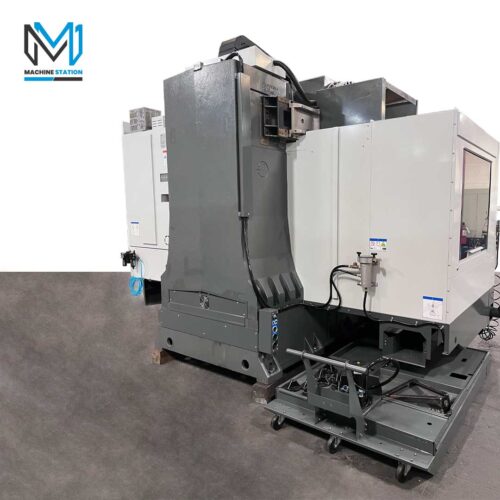

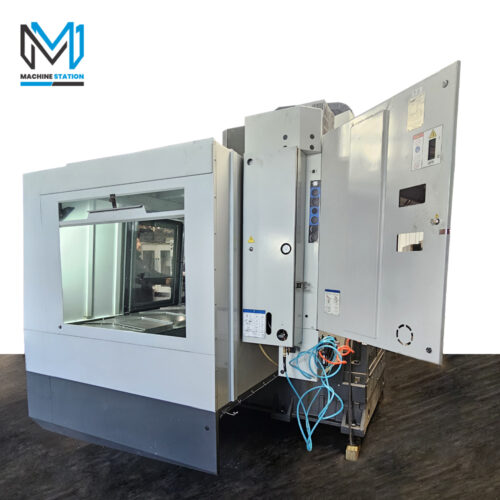

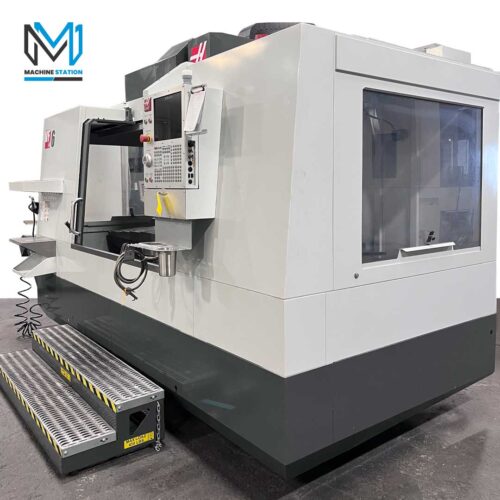

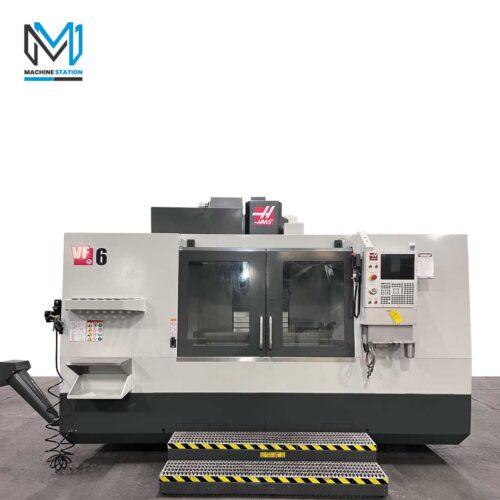

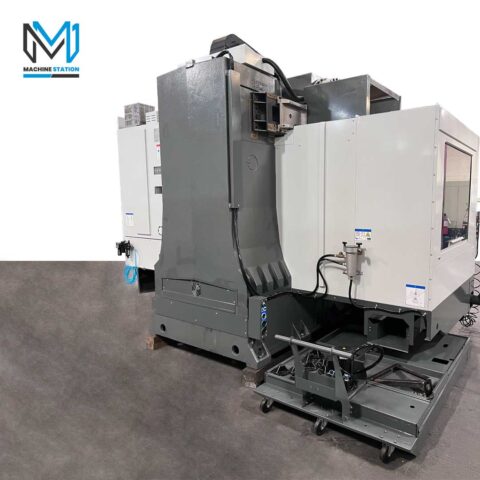

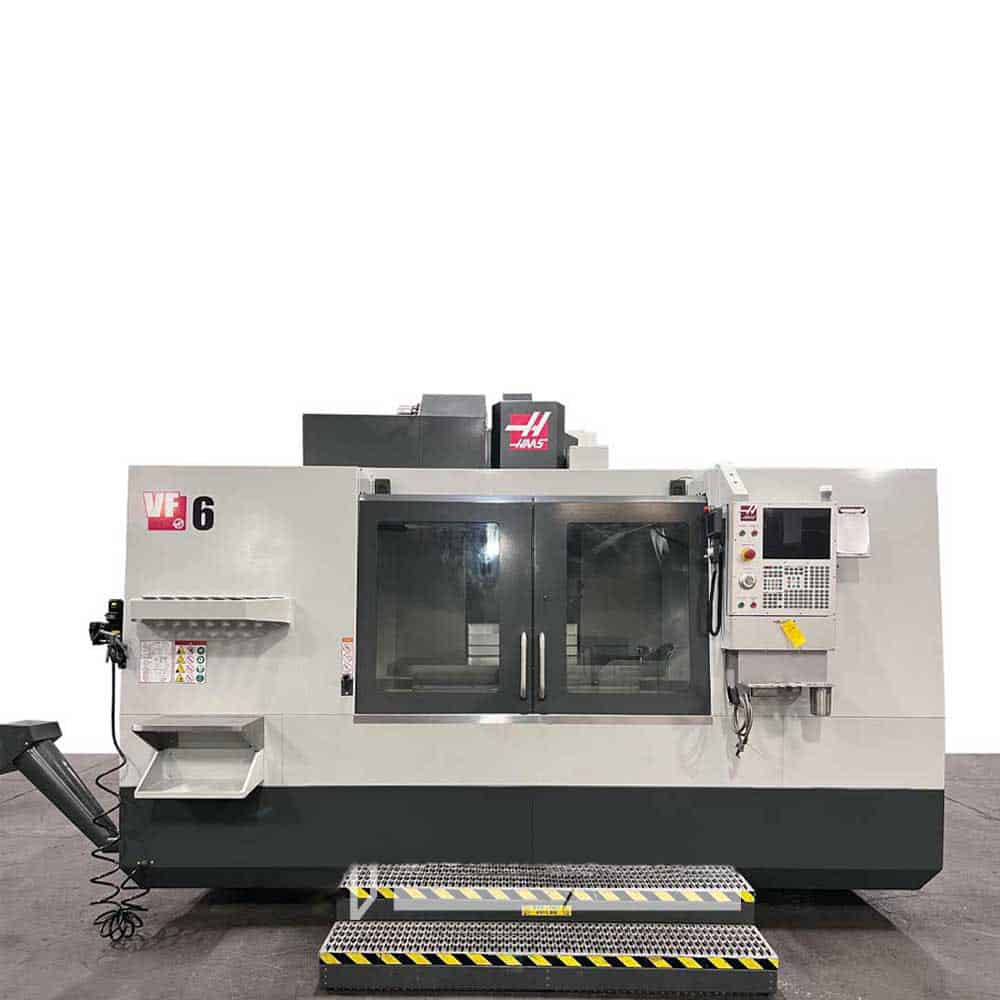

| Make: | Haas |
| Model: | VF-6/40 |
| Year: | 2021 |
| Condition: | Used-Good |
| Equipped With: |
|---|

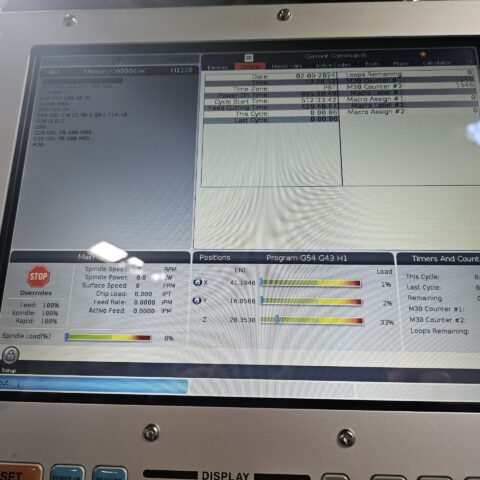

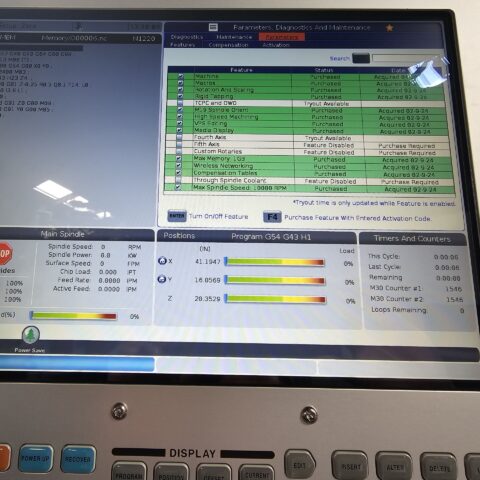

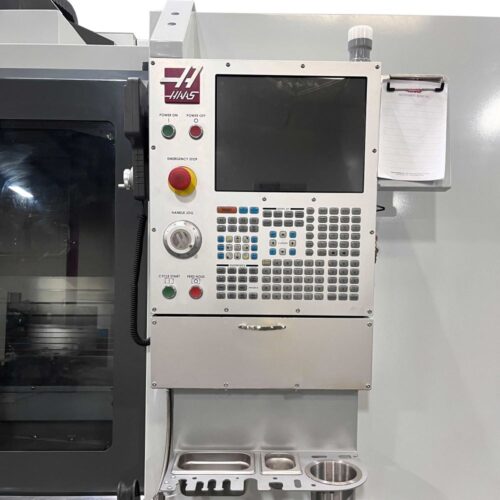

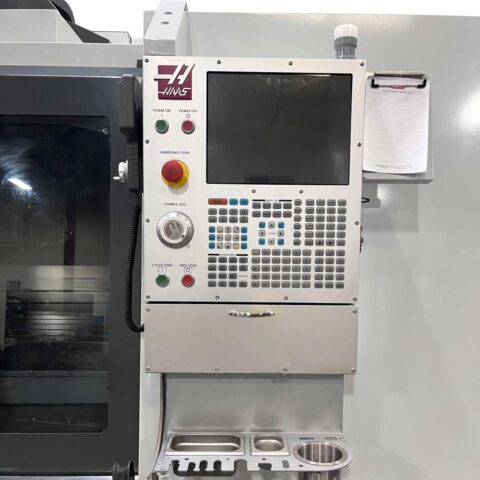

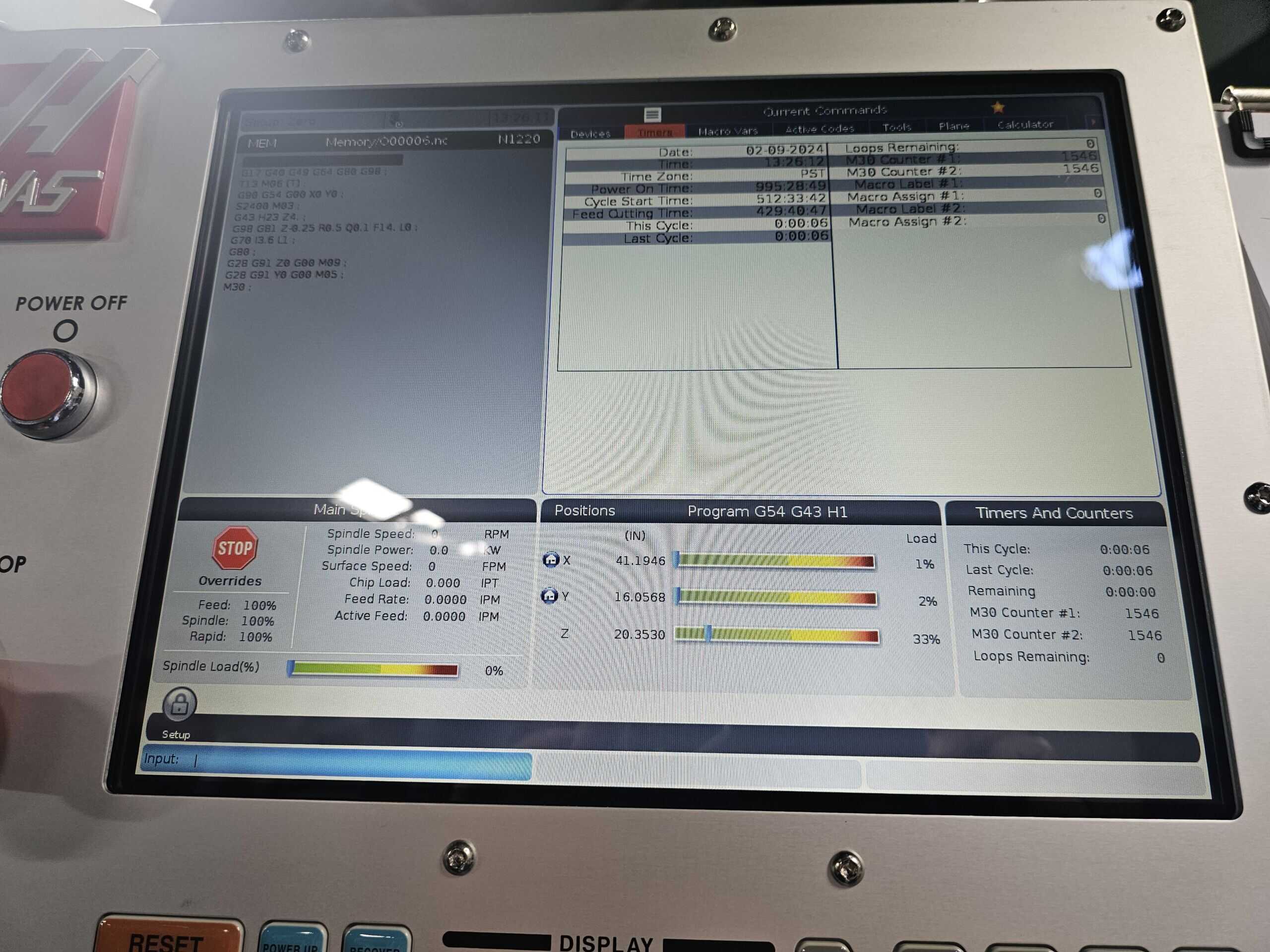

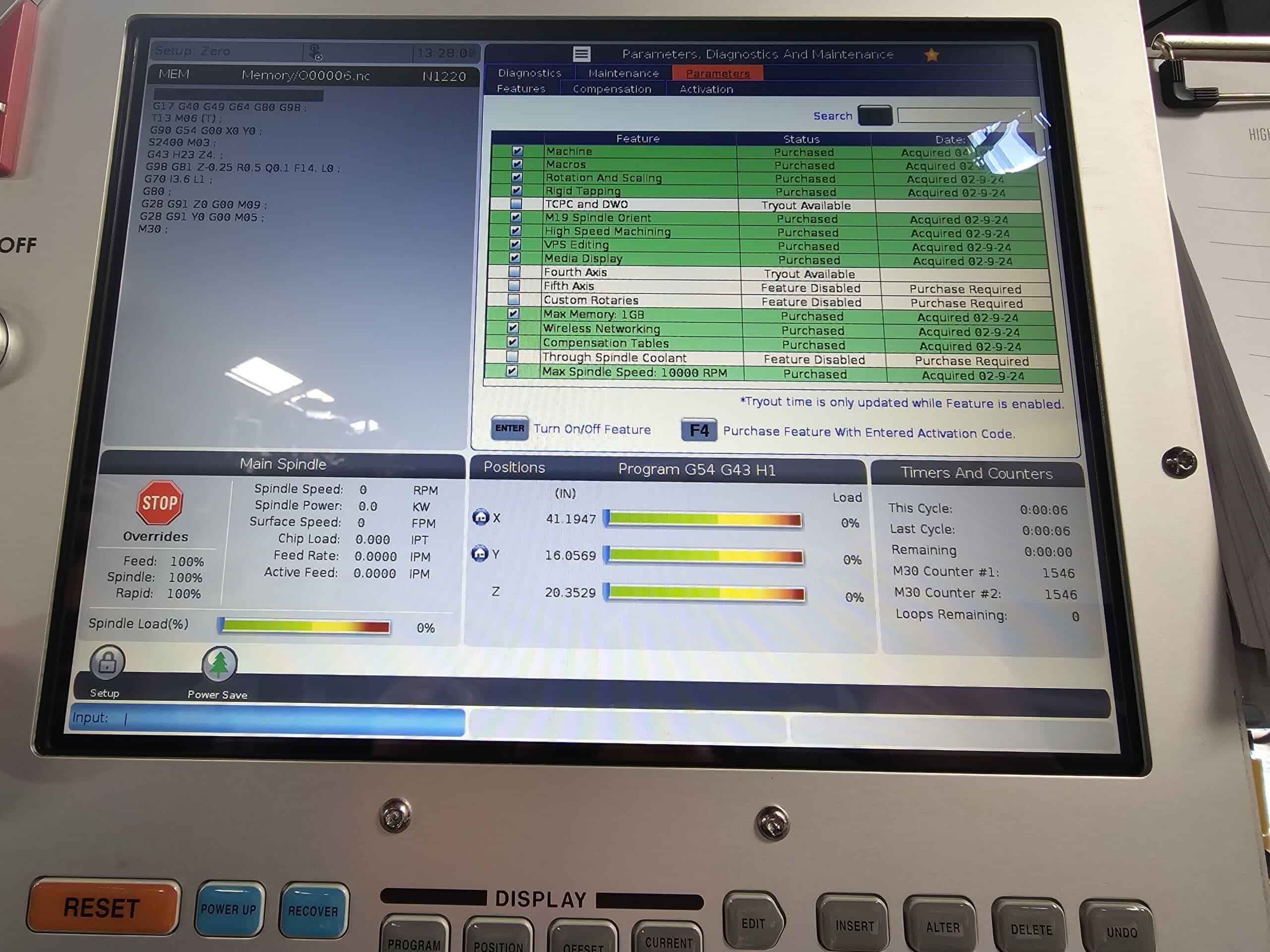

| Haas CNC Control |
| 10,000 RPM High Speed Spindle |
| 30 Station Side Mounted Automatic tool changer |
| 40 Taper Spindle |

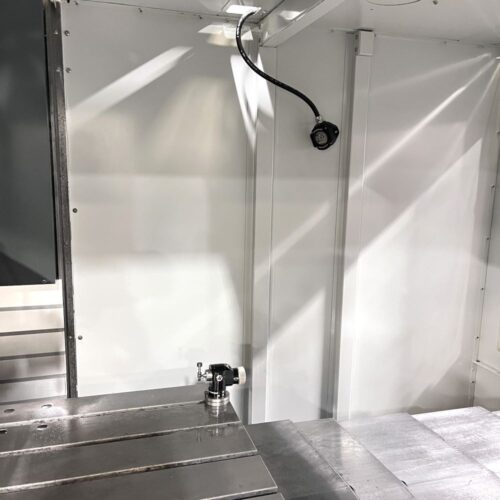

| Renishaw Tool Probe |
| Ethernet Interface |
| Rotation and Scaling |
| Tool Presetter |

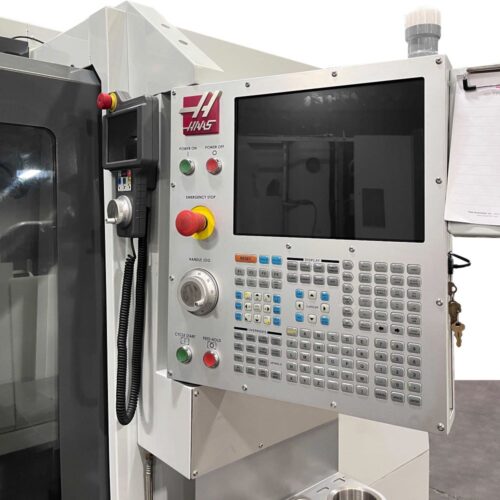

| MPG Control |
| Rigid Tapping |
| Spindle Orientation |
| Coolant System |
| Telescopic way covers |
| Chip Auger |
| Travels: |
|---|
| X-Axis: 64″ |
| Y-Axis: 32″ |
| Z-Axis: 30″ |
| Rapid Traverse Rates X,Y & Z Axis: 600 IPM |
| Cutting Feed Rates: 500 IPM |
| Spindle Nose to Table (Min.- Max.): 4″ – 34″” |

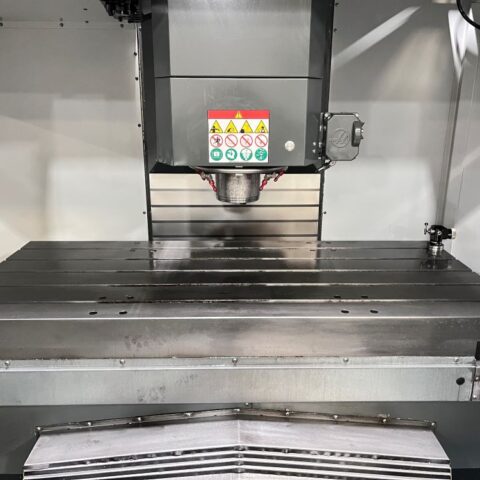

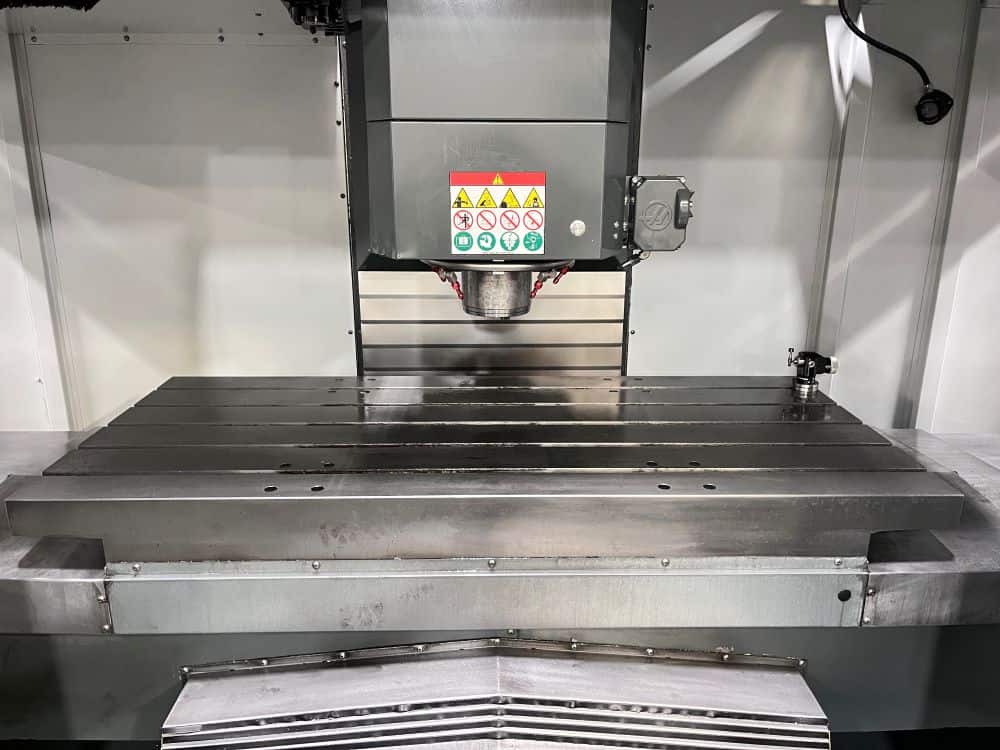

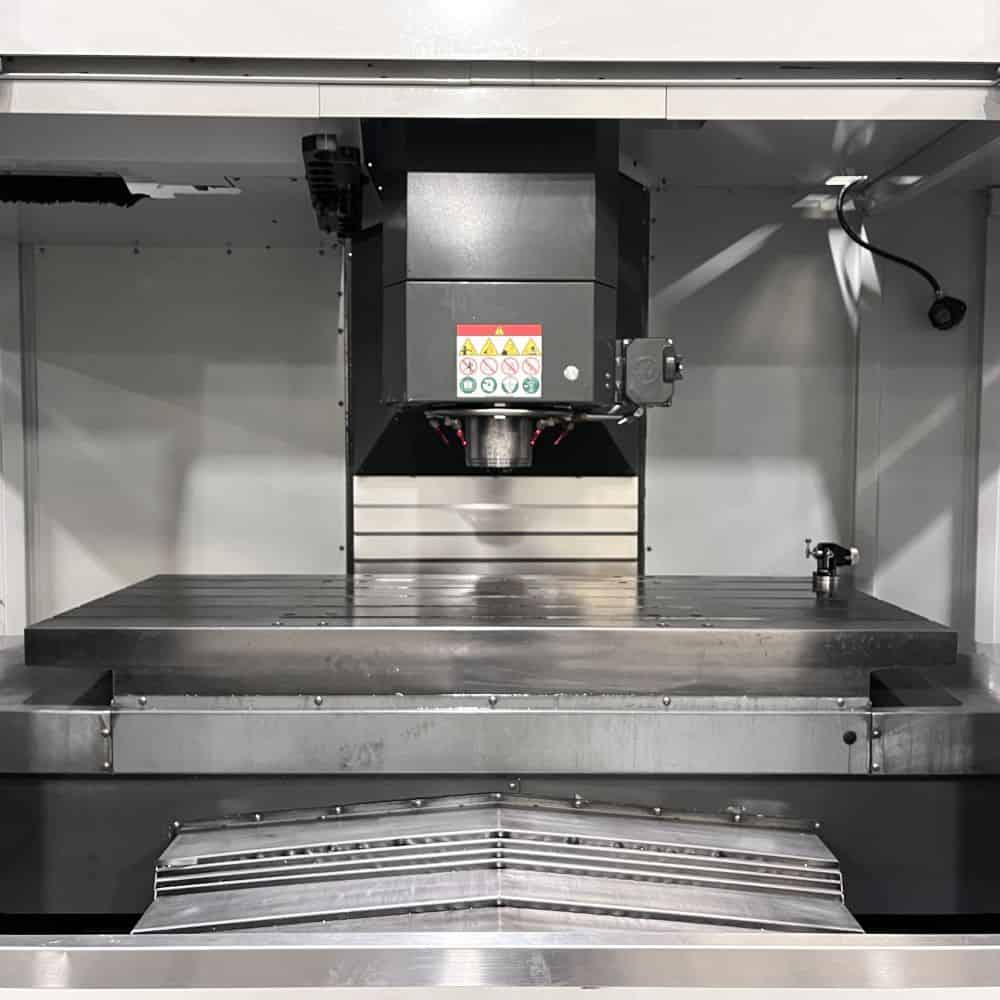

| Table: |
|---|
| Length: 64″ |
| Width: 28″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 4000 lbs |

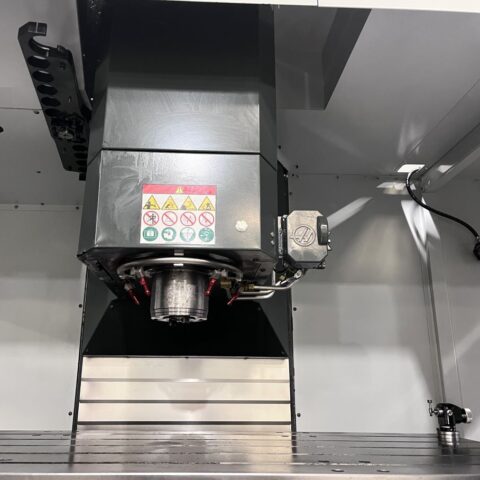

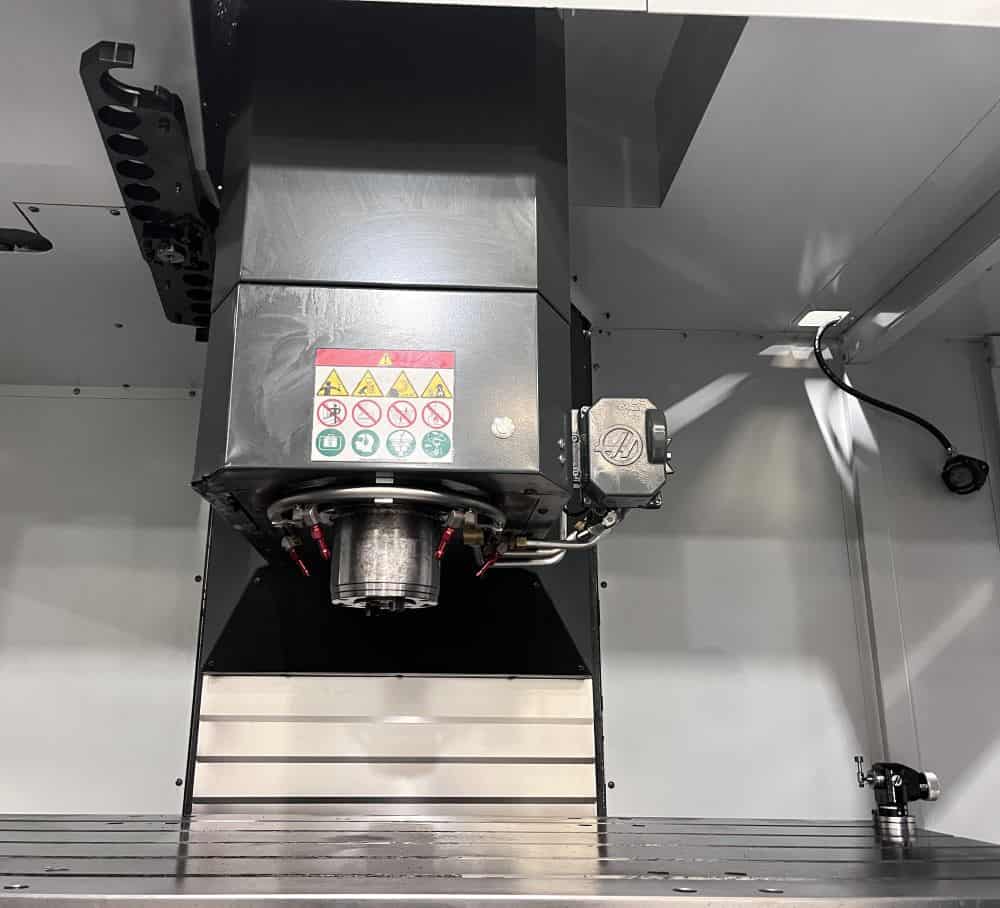

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 2.5″ -5.0″ |
| Max Tool Length: 16.0″ |
| Tool Changing Time : 2.8 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

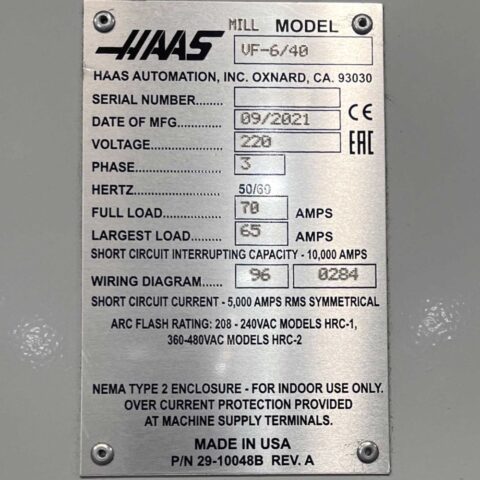

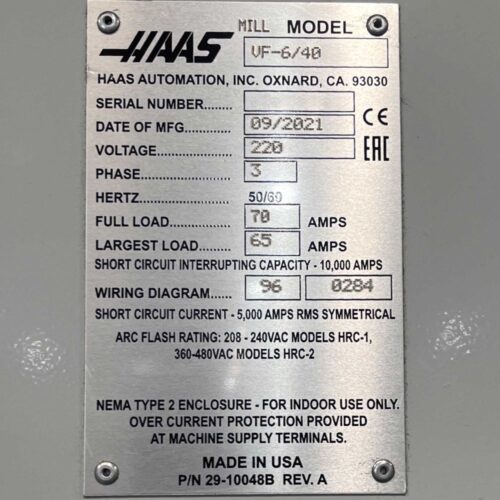

| Power: 220v / kva / 3-Phase |
| Overall Dimensions: 195″ x 102″ x 128.5″ High |
| Weight: 22,300 lbs |
