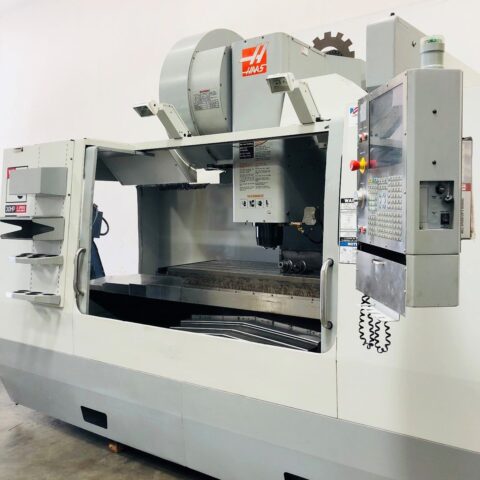

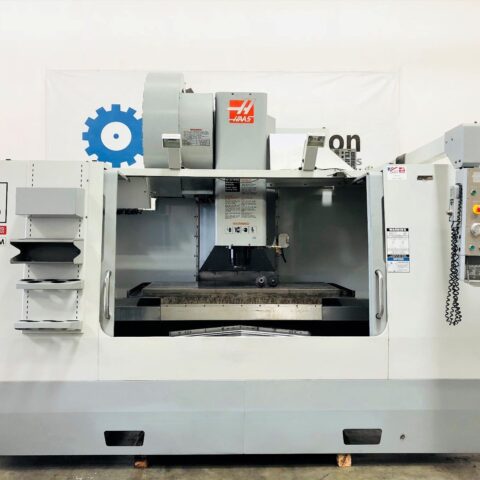

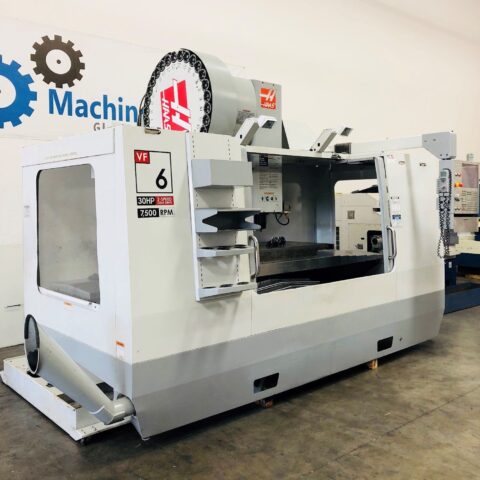

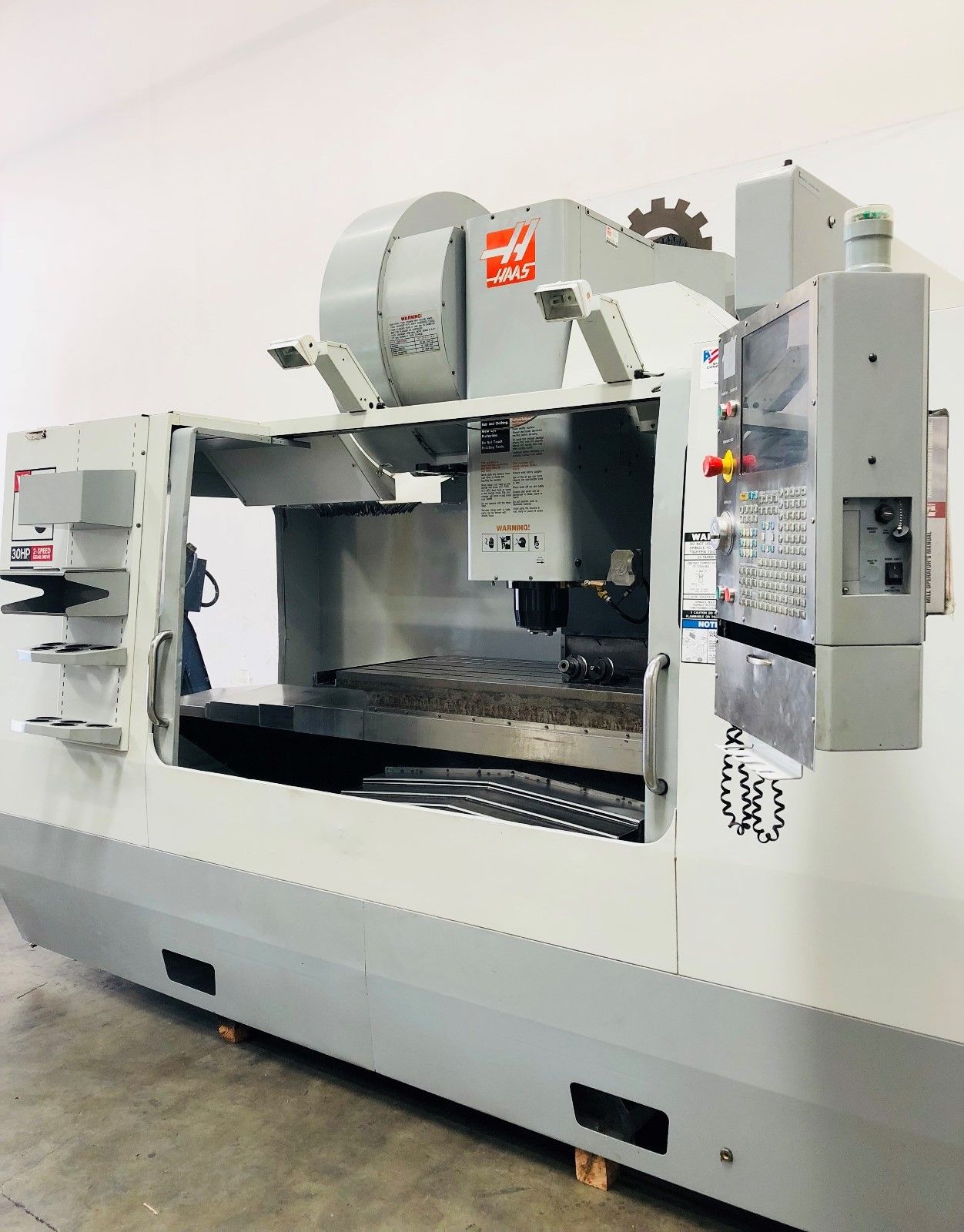

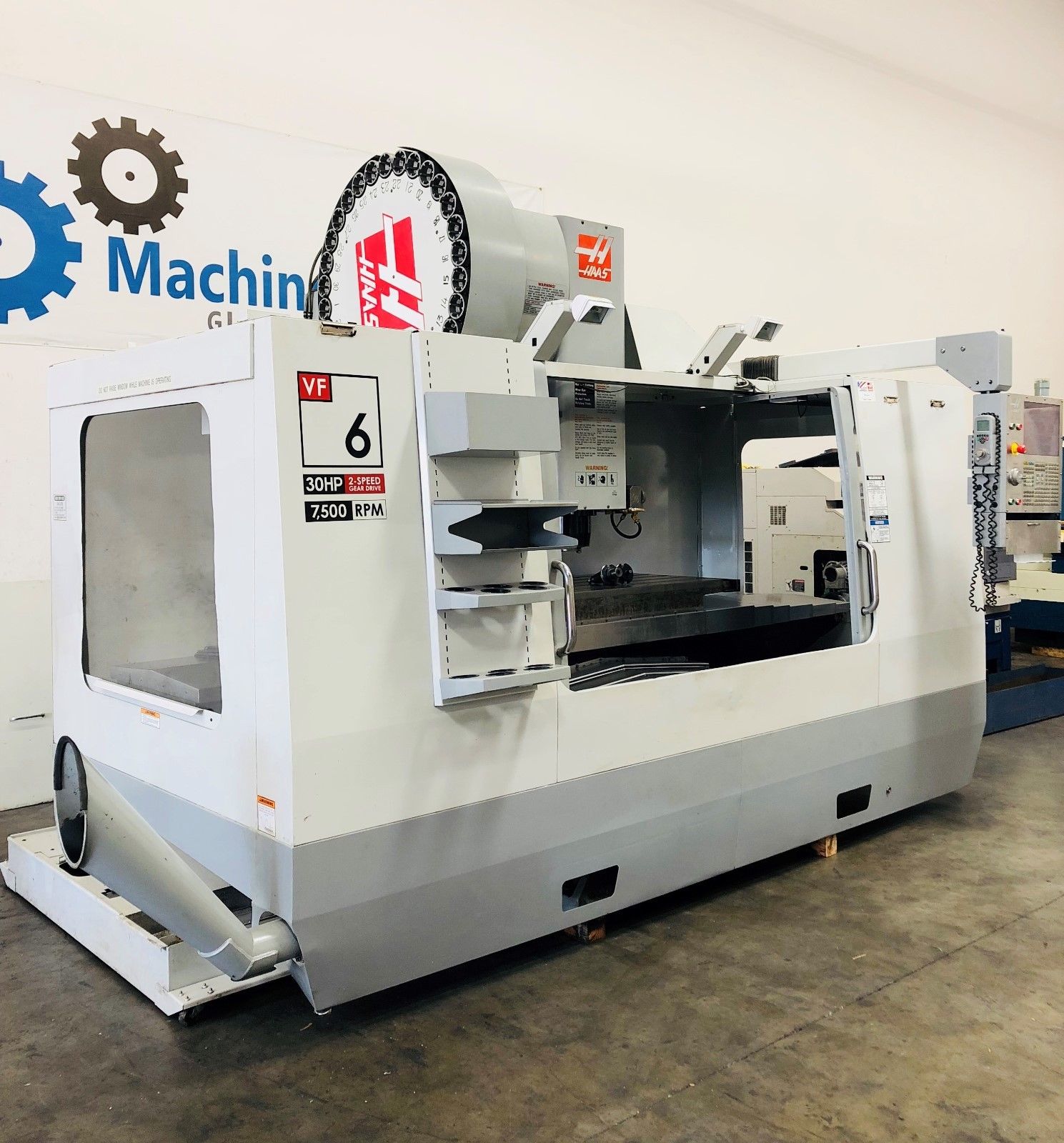

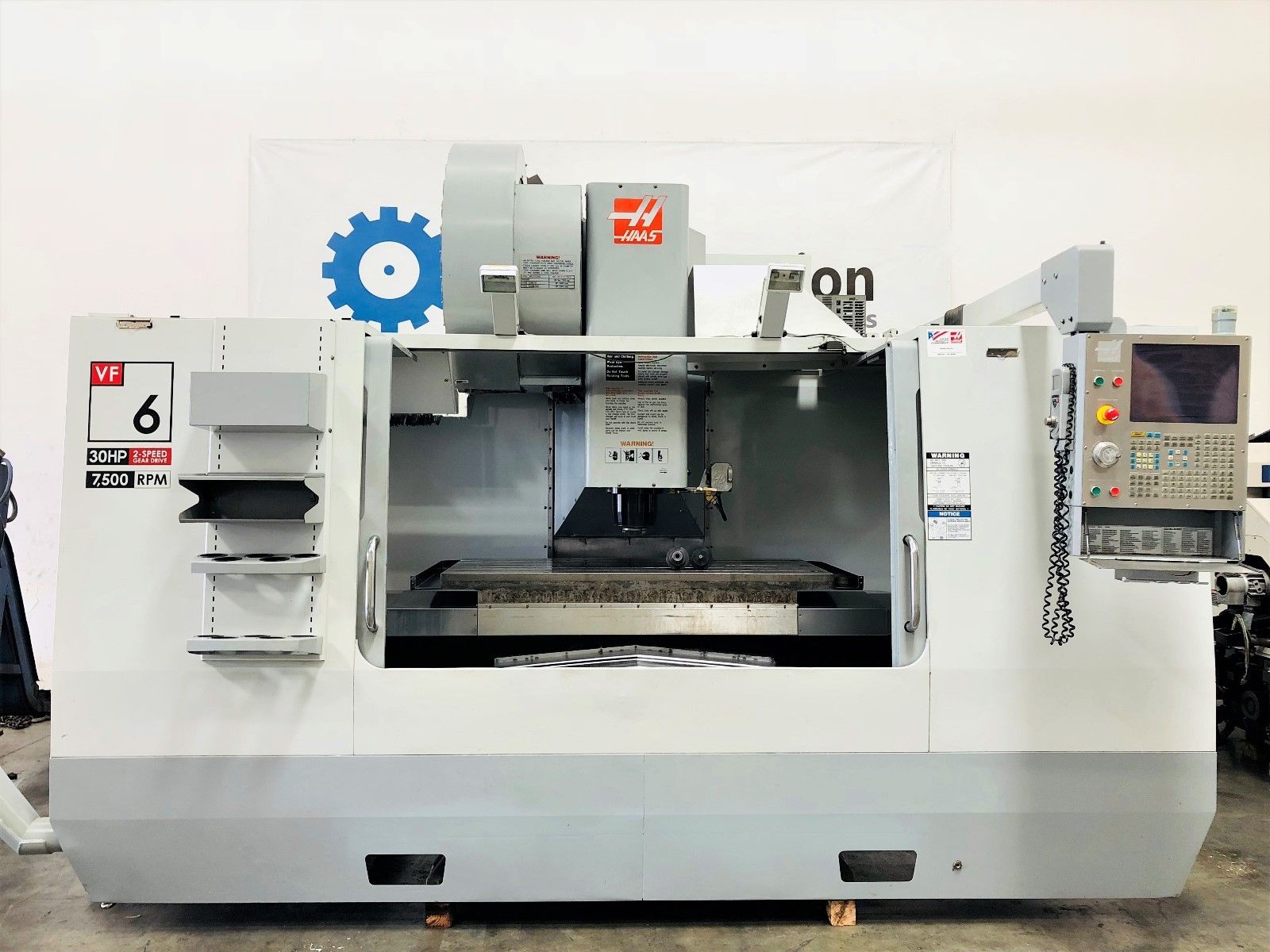

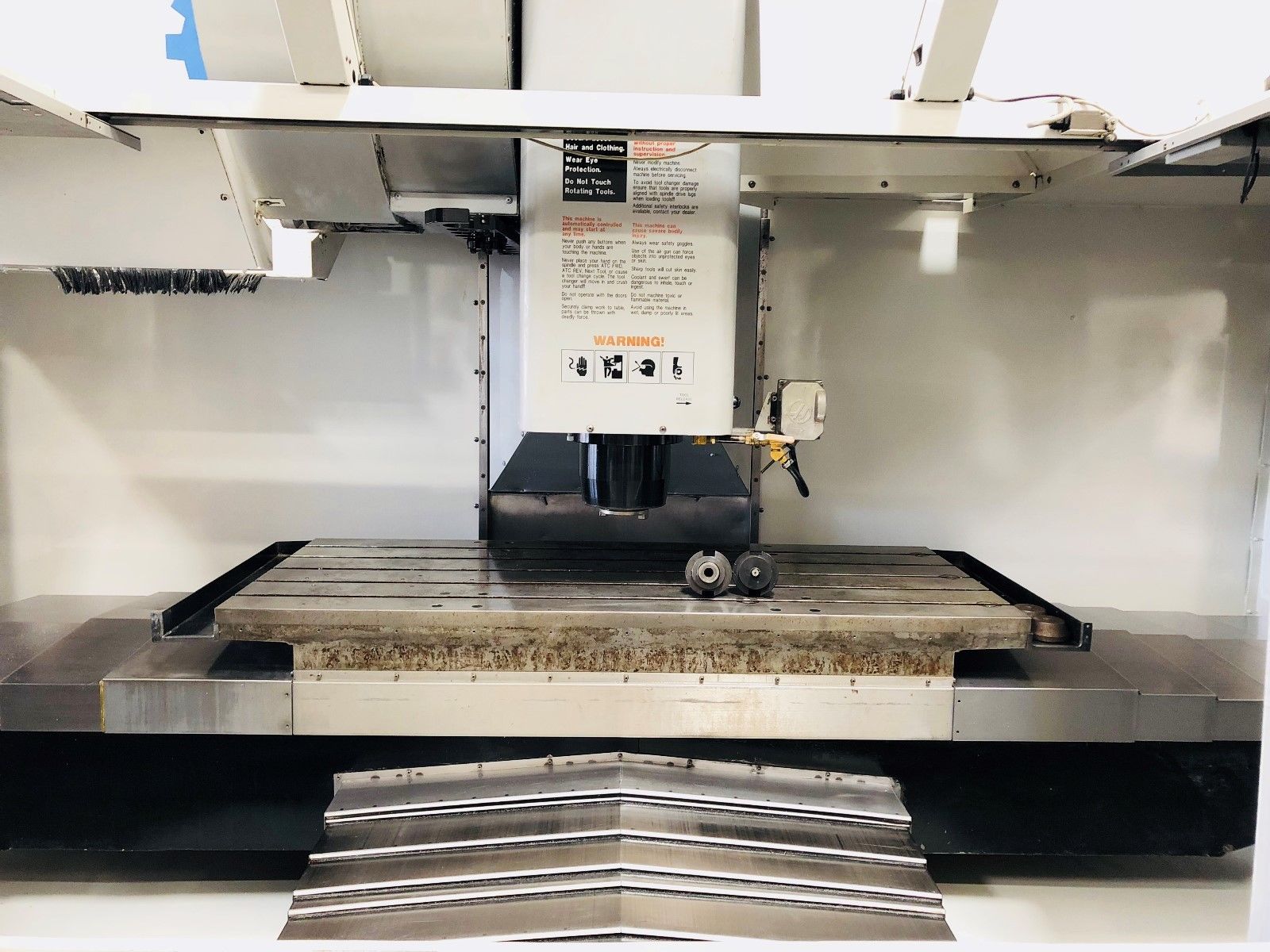

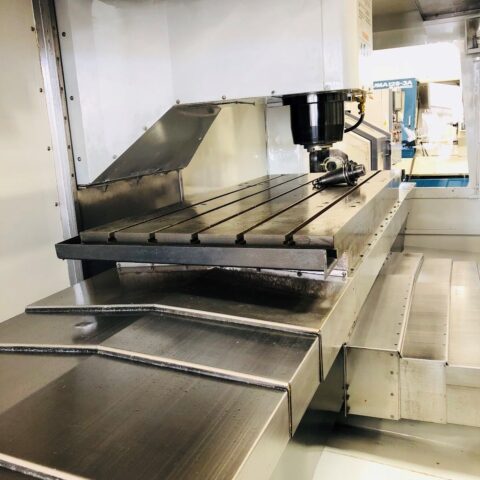

HAAS VF- 6/50 Vertical Machining Center

All specifications are approximations and are subject to verification.

• HAAS VF- 6/50 Features:

• 30HP Gearhead Drive
• 50 Taper 7500 RPM Spindle

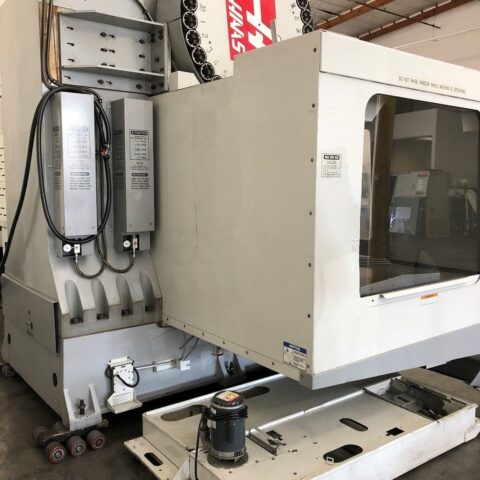

• 30 + 1 automatic Side Mount tool changer
• Remote Jog Handle
• Rigid Tapping
• USB Drive
• Power Failure Detection Module
• Brush-type servo drive motors on all axis
• Programmable coolant

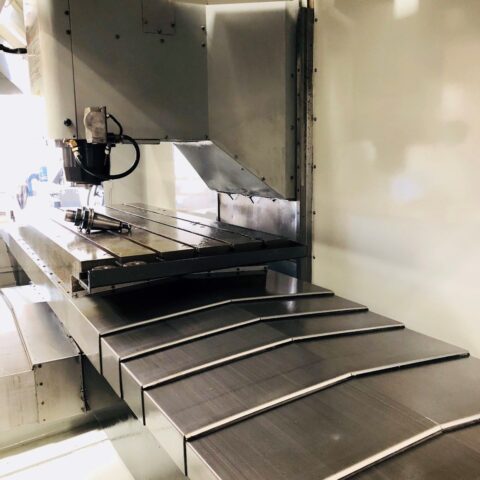

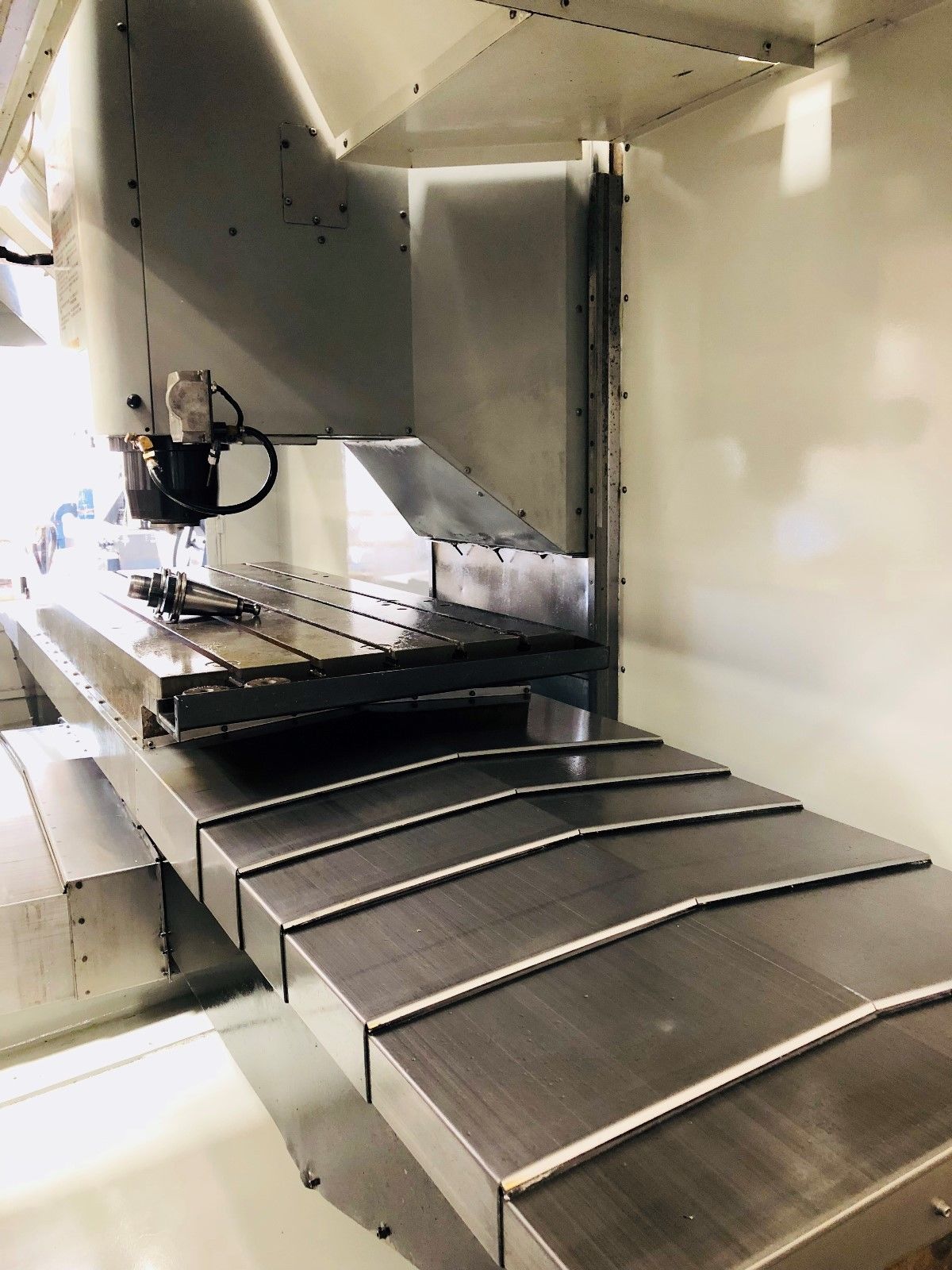

• Telescopic way covers
• Chip auger
• Flood Coolant system
• Work Lights

• HAAS VF- 6/50 Specifications:

• Travels:
• X-Axis: 64″
• Y-Axis: 32″
• Z-Axis: 30″
• Rapid Traverse Rates: 600 Inch Per Minute
• Cutting Feed Rates: 500 Inch Per Minute
• Spindle Nose to Table (Min.- Max.): 5″ – 35″

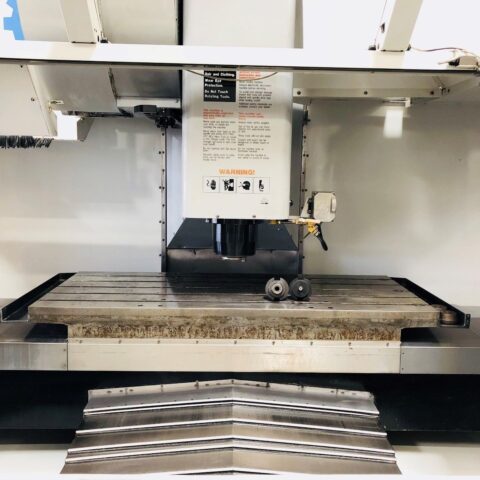

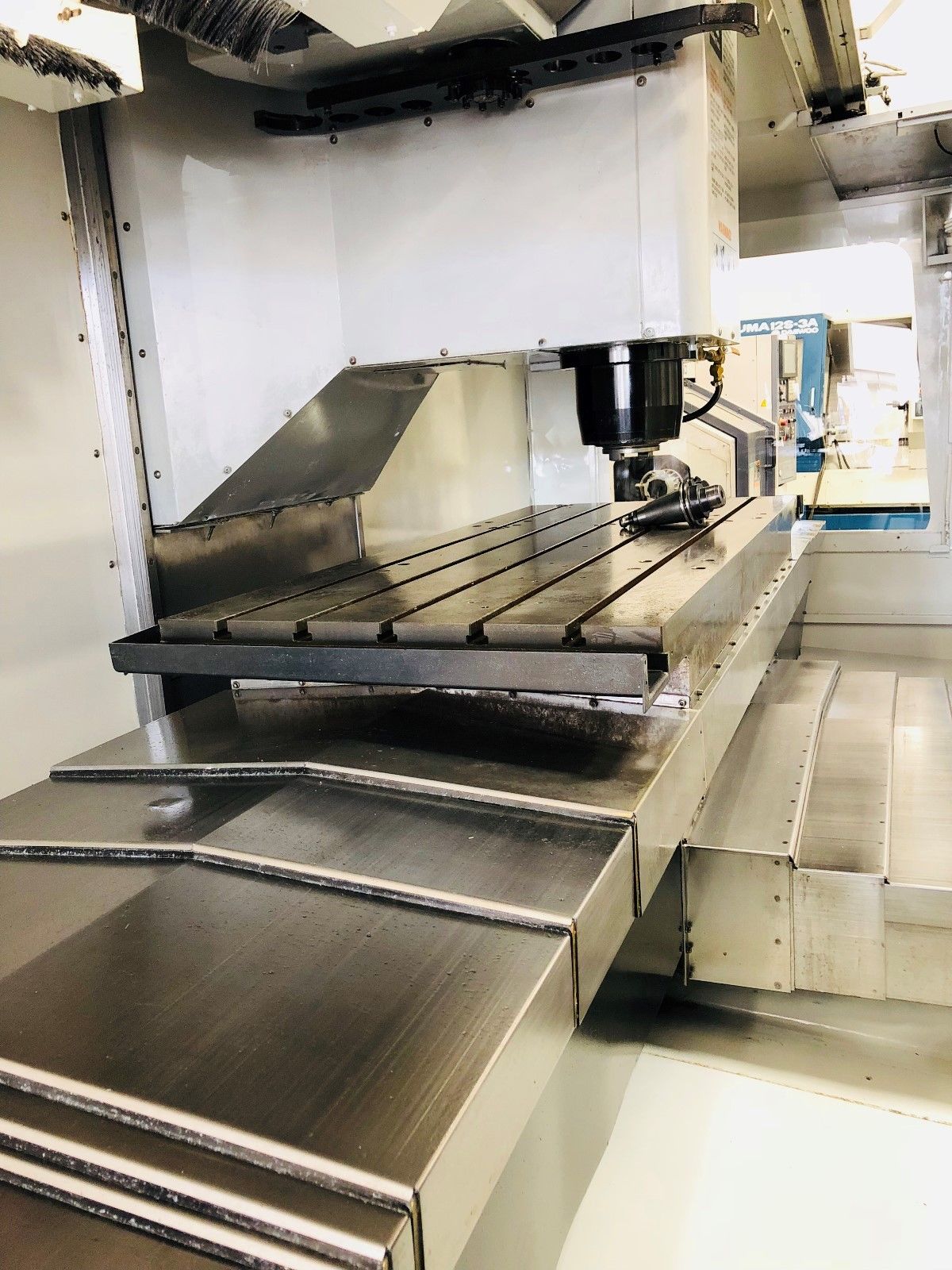

• Table:

• Length: 64″
• Width: 28″
• Number of Std T-Slots: 5
• T-Slot Width: 5/8″
• Max Weight on Table: 4000 lbs

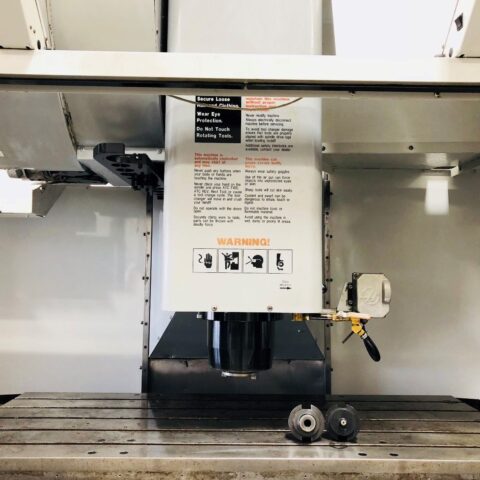

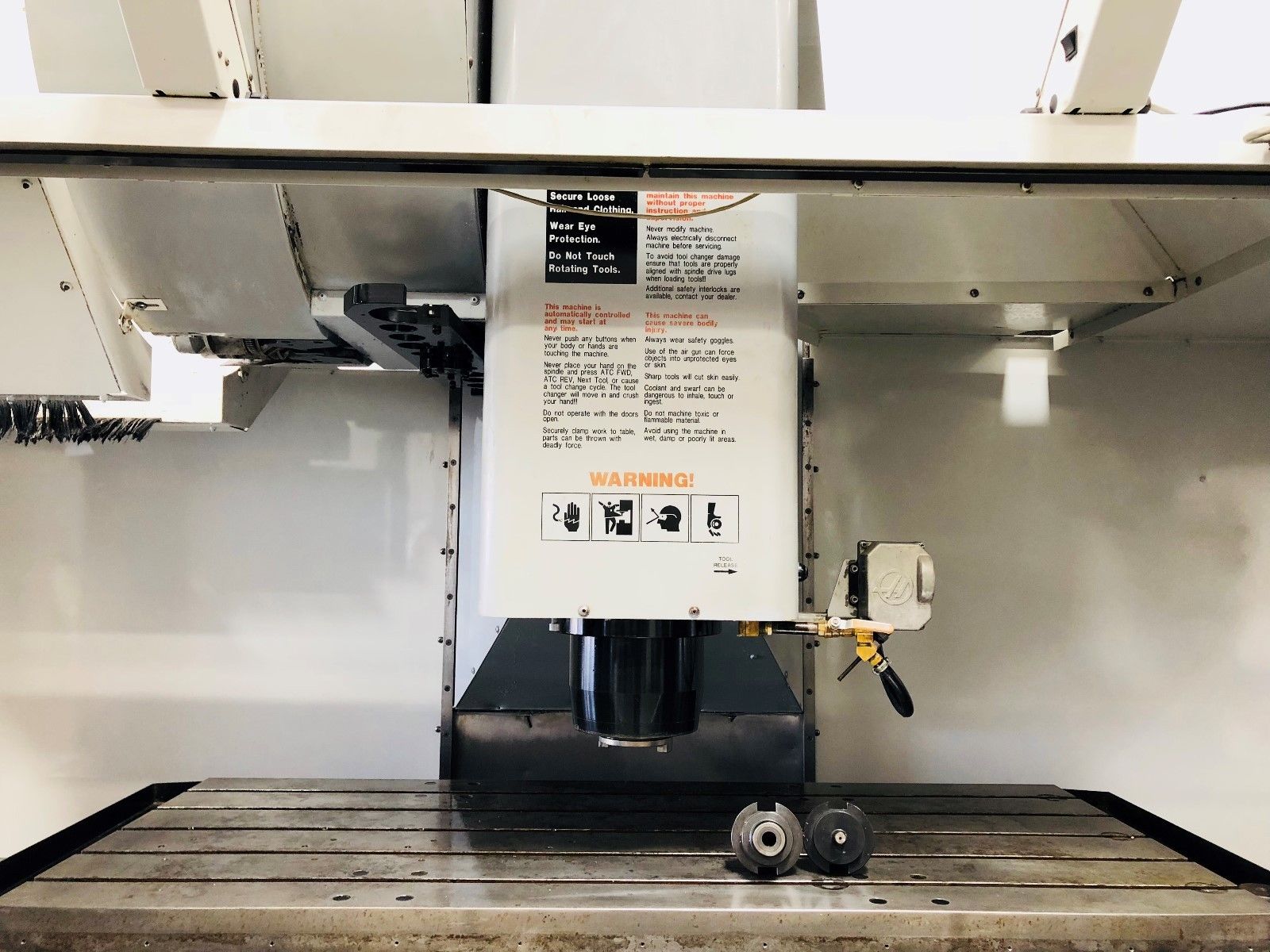

• Spindle:

• Taper Size: CAT 50
• Speed Range: 7500 RPM
• Spindle Power: 30 HP Vector Dual Drive
• Max Torque: 90ft-lb @ 2000RPM

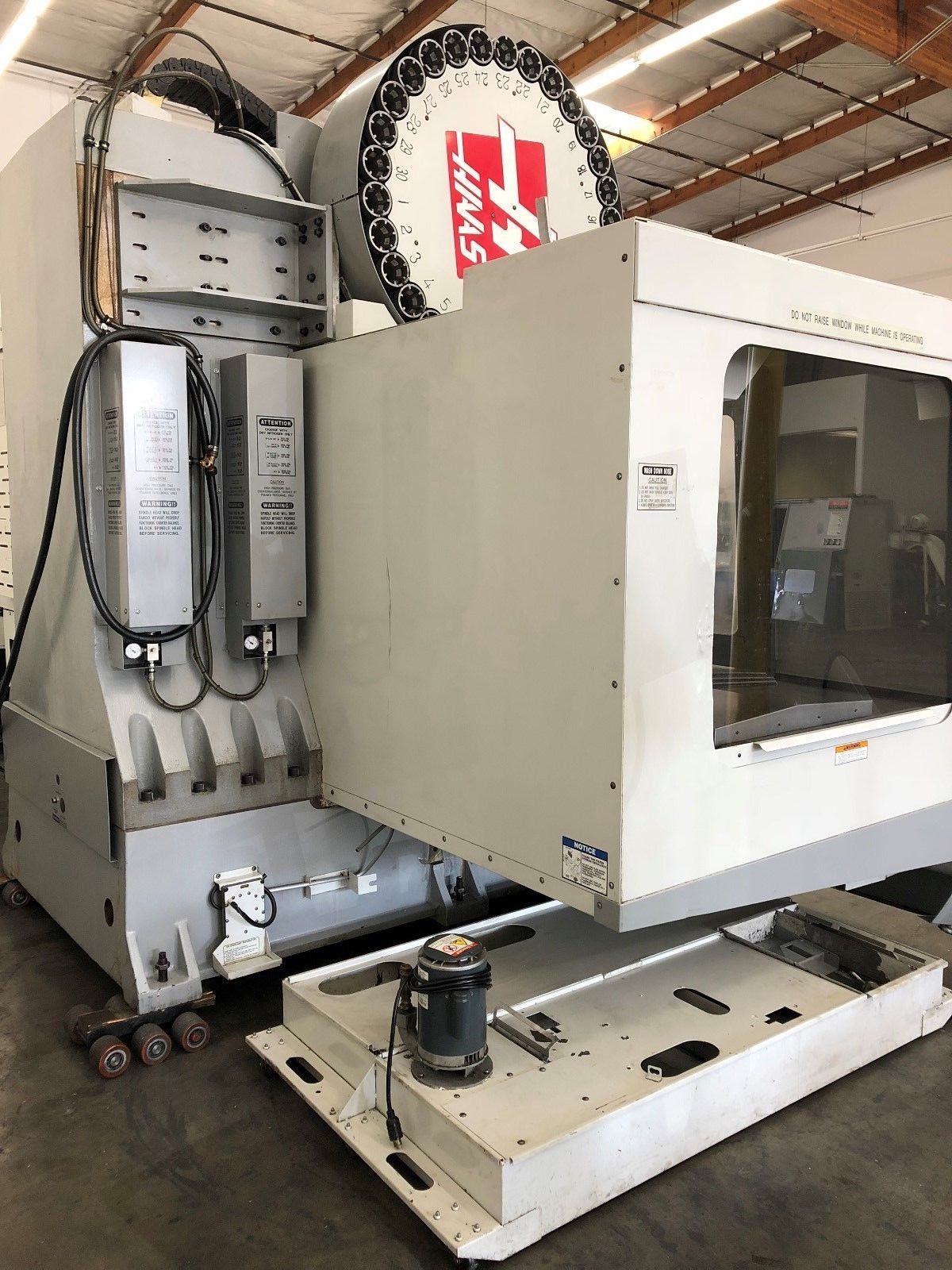

• Automatic Tool Changer:

• Capacity: 30 + 1
• Max Tool Weight: 12 lbs
• Max Tool Dia: 6″
• Max Tool Length: 16″
• Tool Changing Time: 4.2 Seconds

• General:

• Air Required: 100 psi, 4 scfm

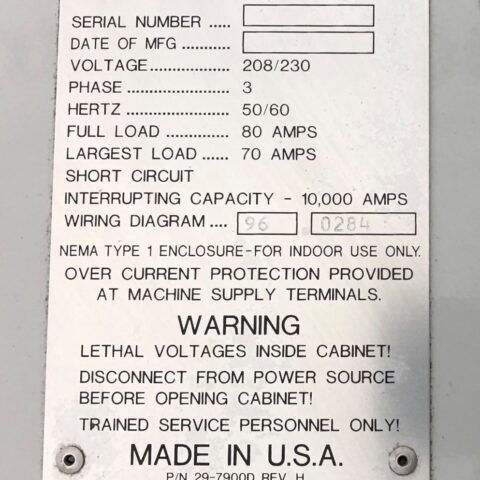

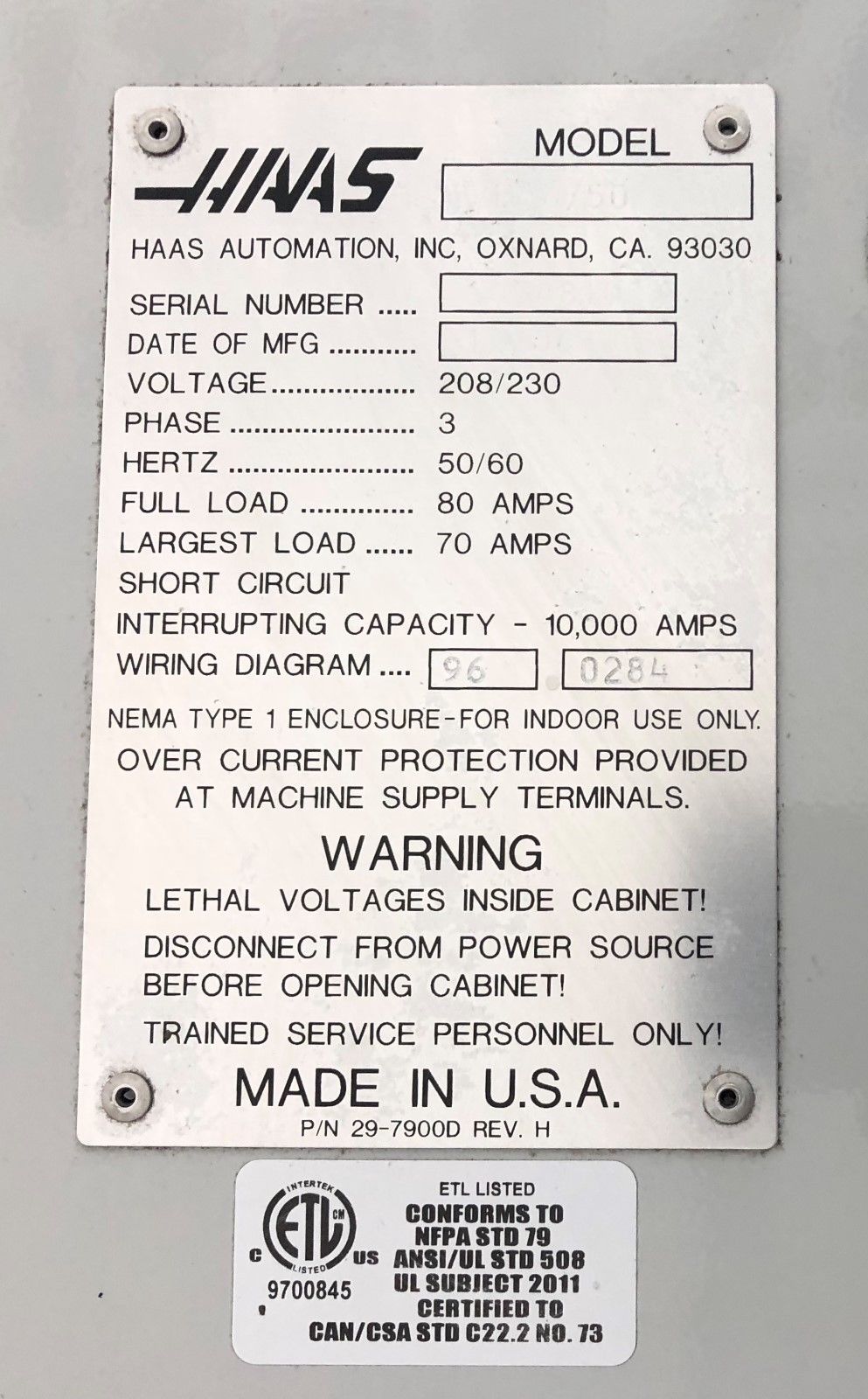

• Power: 220v / 66FLA / 3-Phase
• Overall Dimensions: 158″ x 98″ x 118″ High
• Weight: 22000 lbs
