All specifications are approximations and are subject to verification.

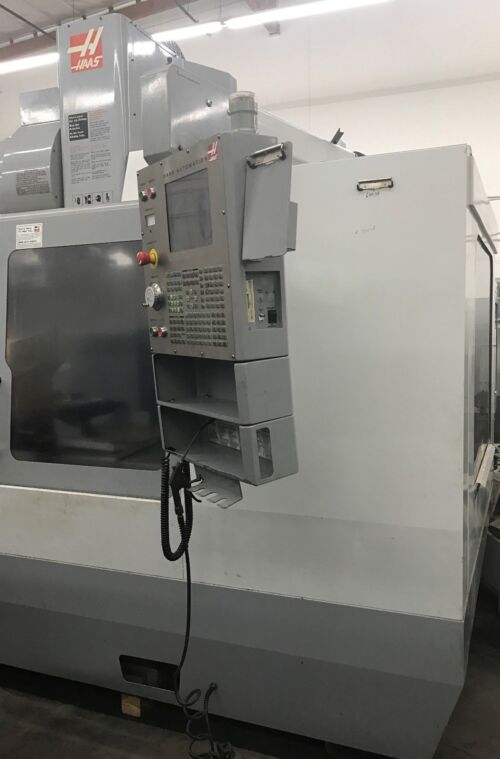

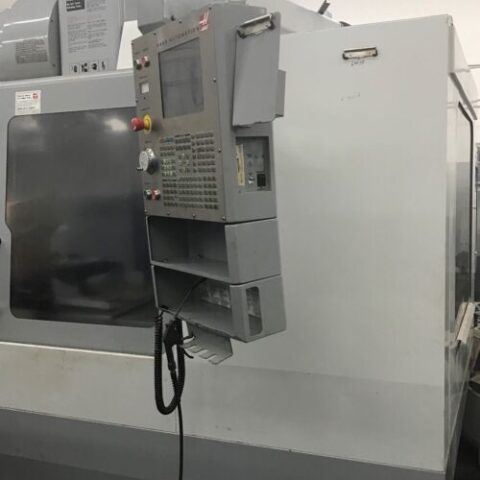

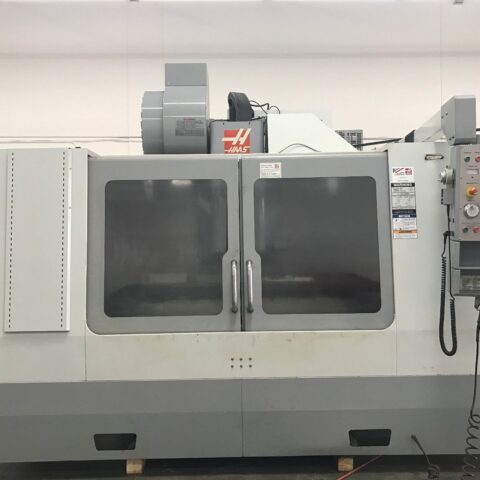

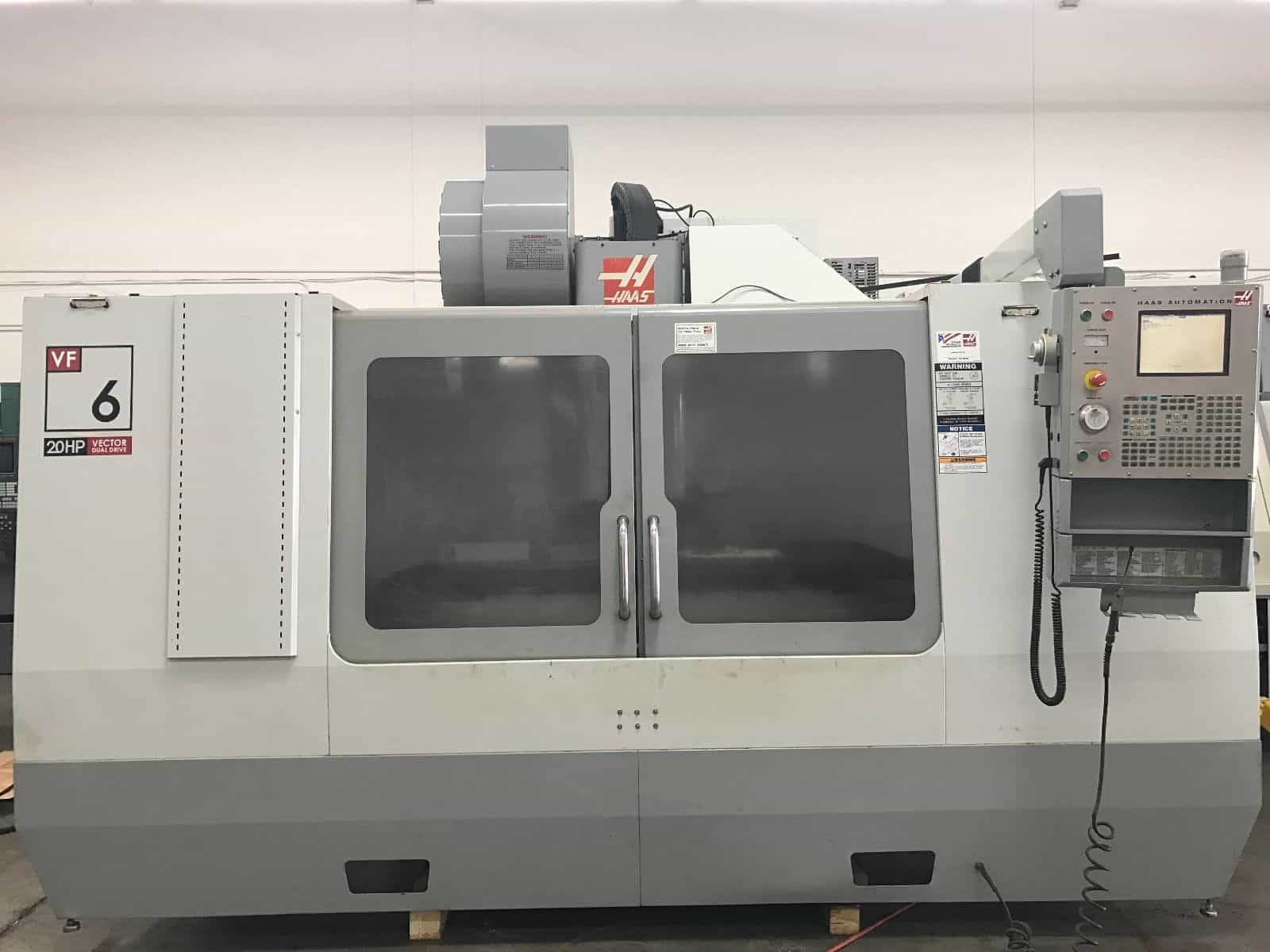

“This One Owner Machine has 7500rpm, 24 tool side mount tool changer, 4th Axis Ready, 1MB Memory. Spindle Hours 2030 Only. On our Floor now, fully powered / tested & is in Great working condition.”
-
HAAS VF 6D Features:
- 20HP High Torque Spindle Motor
- 4th Axis Ready ( drives and wiring installed )
- 1 MB Program Memory

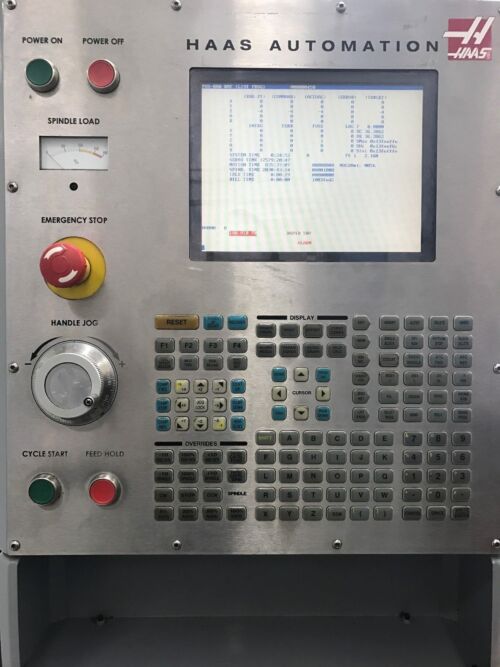

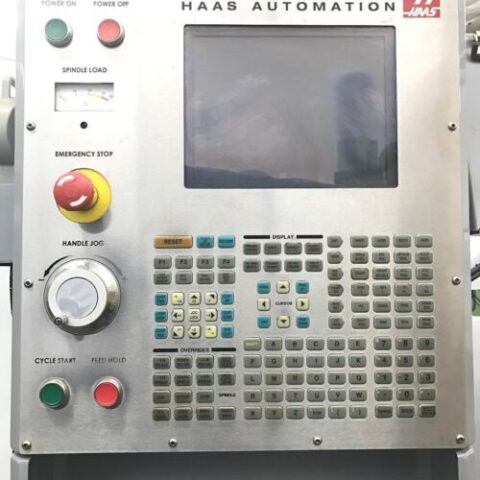

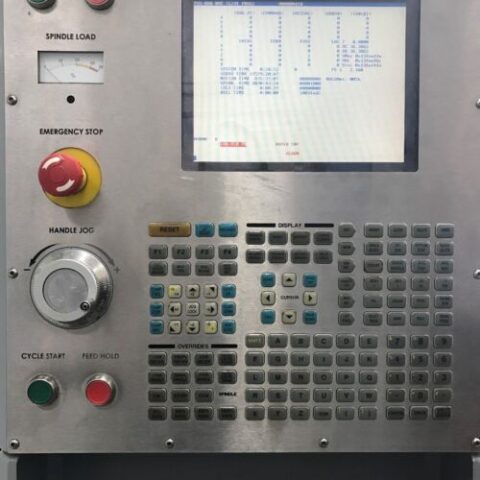

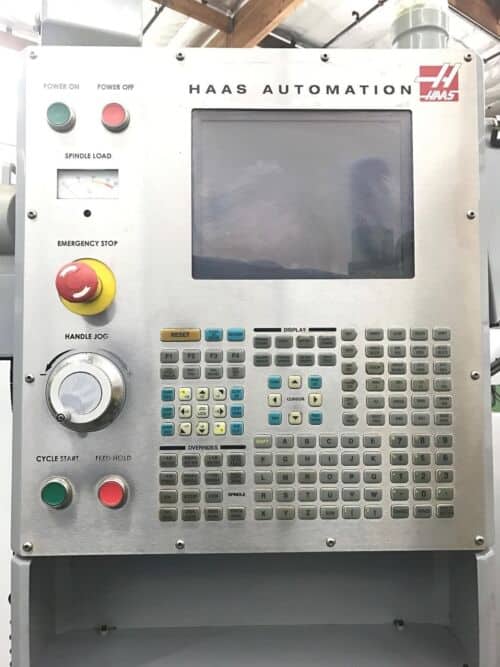

- Remote Jog Handle
- Rigid Tapping
- High Speed Machining
- Advanced Tool Management
- Power Failure Detection Module
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
- Brush-type servo drive motors on all axis
- 24 + 1 automatic Side Mount tool changer
- Programmable coolant

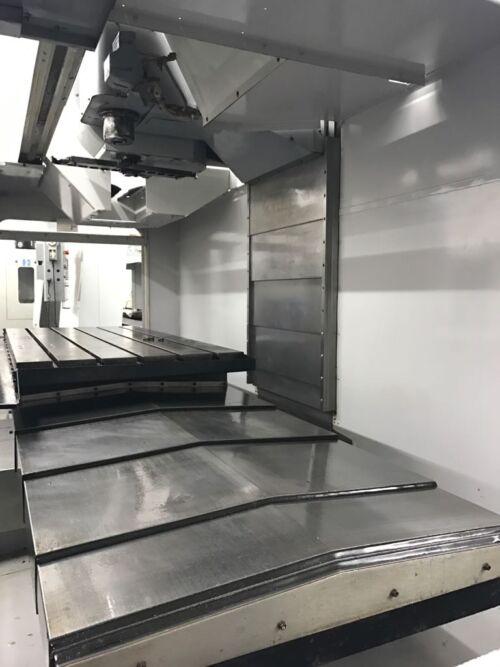

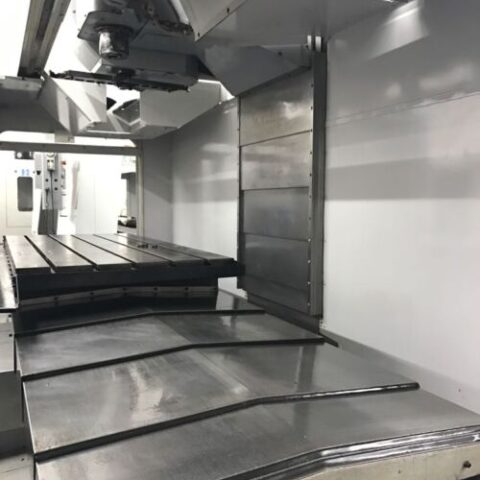

- Telescopic way covers
- Chip auger
- Floppy Drive
- Flood Coolant system
-
HAAS VF 6D Specifications:
- Travels:
- X-Axis: 64″
- Y-Axis: 32″
- Z-Axis: 30″
- Rapid Traverse Rates: 600 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 34″
-

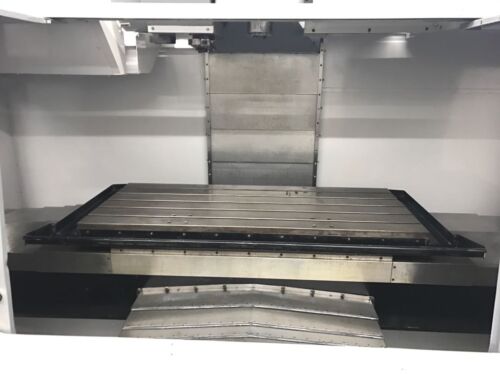

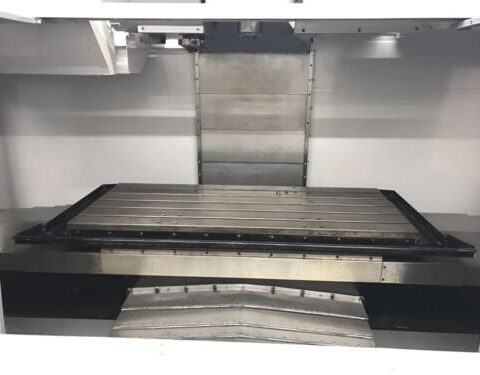

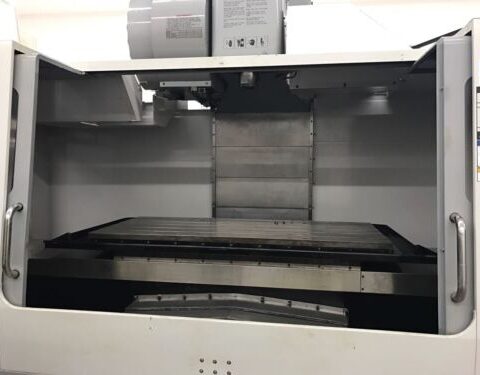

Table:
- Length: 64″
- Width: 28″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 4000 lbs
-

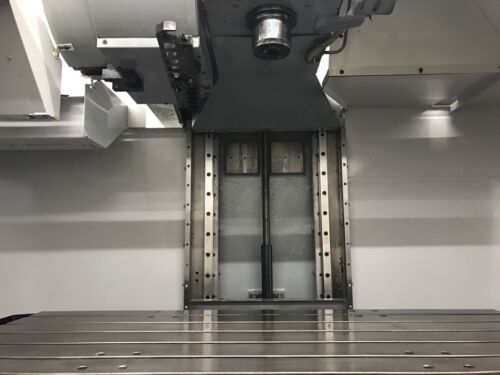

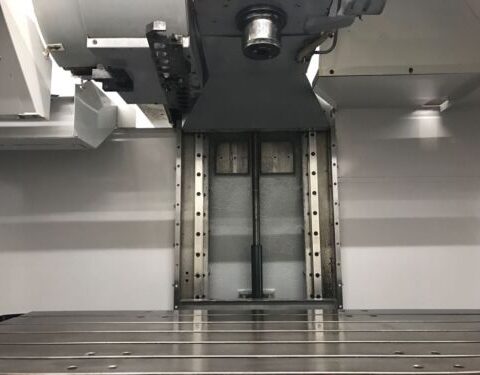

Spindle:
- Taper Size: CAT 40
- Speed Range: 0 – 7500 RPM
- Spindle Power: 20 HP Vector Dual Drive
- Max Torque: 90ft-lb @ 2000RPM
-
Automatic Tool Changer:
- Capacity: 24 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 6″
- Max Tool Length: 16″
- Tool Changing Time: 2.8 Seconds
-
General:
- Air Required: 100 psi, 4 scfm

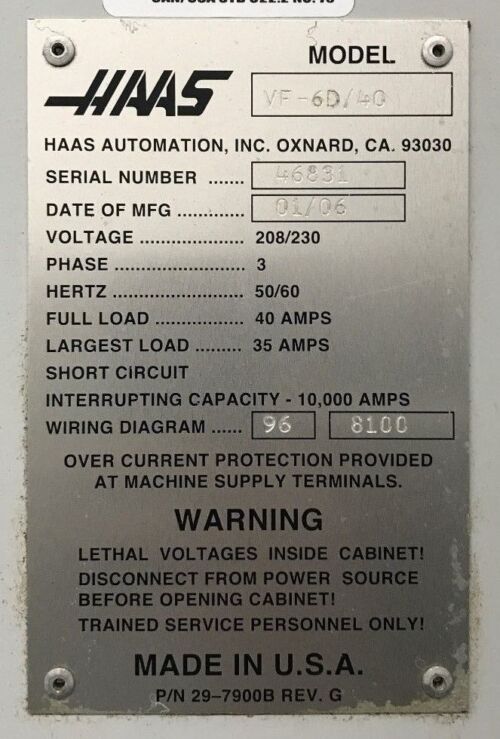

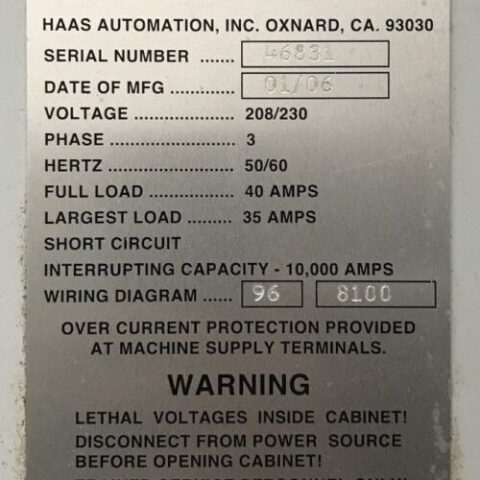

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 158″ x 98″ x 118″ High
- Weight: 22000 lbs
