*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | VF-6SS |
| Year: | 2019 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center |

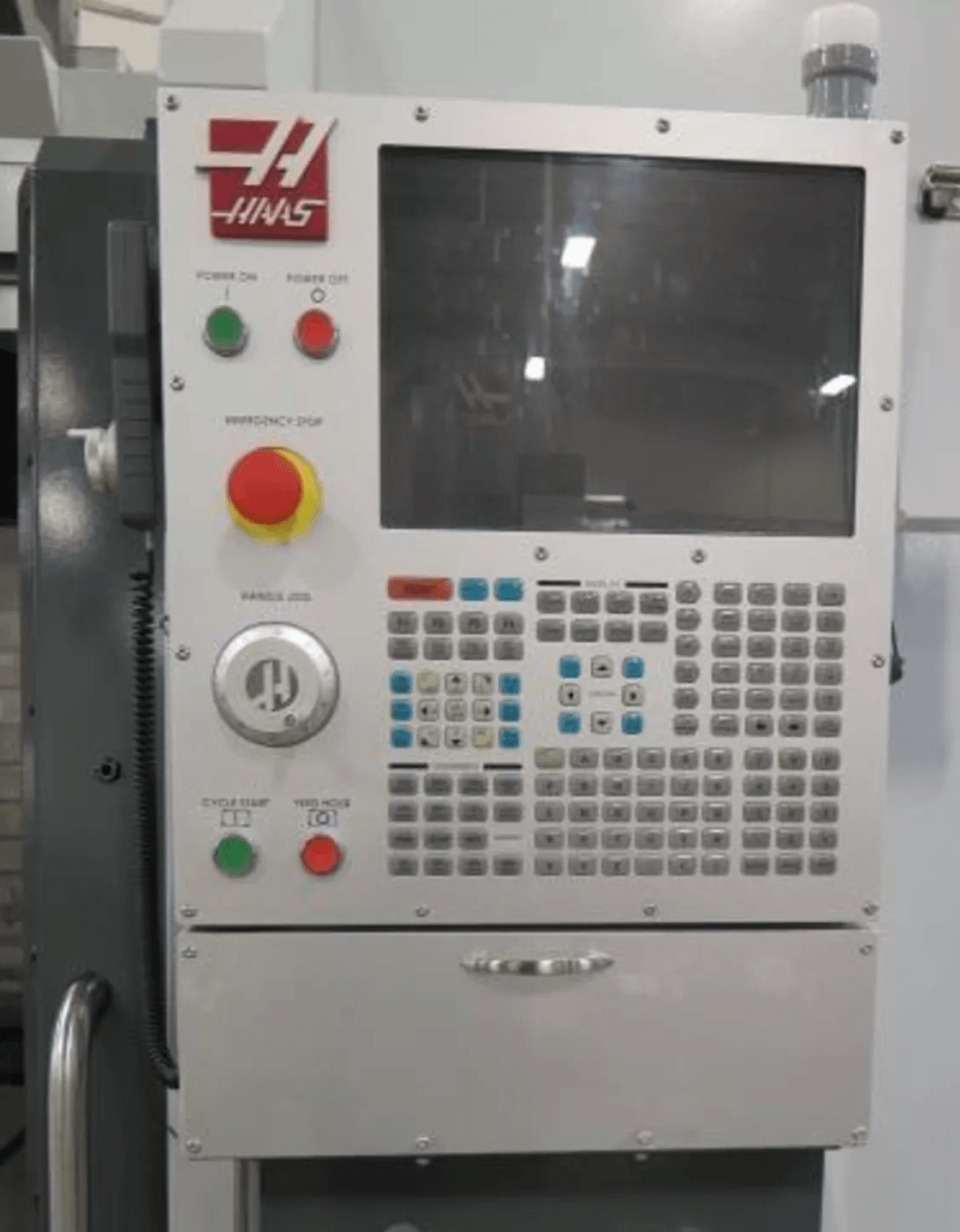

| Control: | Haas CNC Control |
| Country of Origin: | USA |
| Equipped With: |
|---|
| Haas CNC Control |
| 50-Station Side Mount Automatic Tool Changer |
| CAT-40 Taper Spindle |
| 12,000 RPM High-Speed Spindle |
| Renishaw Wireless Probing System |
| Renishaw OTS Wireless Tool Setter |
| Rigid Tapping |
| Macros |
| Coordinate Rotation and Scaling |
| M19 Spindle Orientation |
| High Speed Machining |
| VPS Editing |
| Media Display |
| 1GB Memory |
| Wireless Networking |
| Compensation Tables |
| Chip Auger |
| Coolant System |
| Digital Handwheel |
| Full Enclosure |
| Capacity: |
|---|
| Table Size: 64″ x 28″ |
| Max Table Load: 4,000 lbs |
| Max Cutting Height: Approx. 32″ |
| Spindle Nose to Table: Approx. 6″ – 38″ |
| Travels: |
|---|
| X-Axis Travel: 64″ |
| Y-Axis Travel: 32″ |
| Z-Axis Travel: 30″ |
| Spindle: |
|---|
| Spindle Taper: CAT-40 |
| Spindle Speed: 12,000 RPM |
| Main Motor: 30 HP |
| Spindle Drive Type: Inline Direct Drive |
| Tool Changer: |
|---|
| Tool Changer Type: Side Mount ATC |
| Tool Capacity: 50 Stations |
| Max Tool Diameter: 4″ |
| Max Tool Weight: 12 lbs |
| Feed Rates: |
|---|
| Rapid Traverse Rate: 1,400 IPM |
| Cutting Feed Rate: Programmable |
| High-Speed Machining: Included |
| Electrical: |
|---|
| Power Requirement: 220V / 3-Phase / 50-60 Hz |
| Air Requirement: 100 PSI |
| General: |
|---|
| Machine Dimensions: Approx. 170″ x 160″ x 135″ |
| Machine Weight: Approx. 24,000 lbs |
