*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

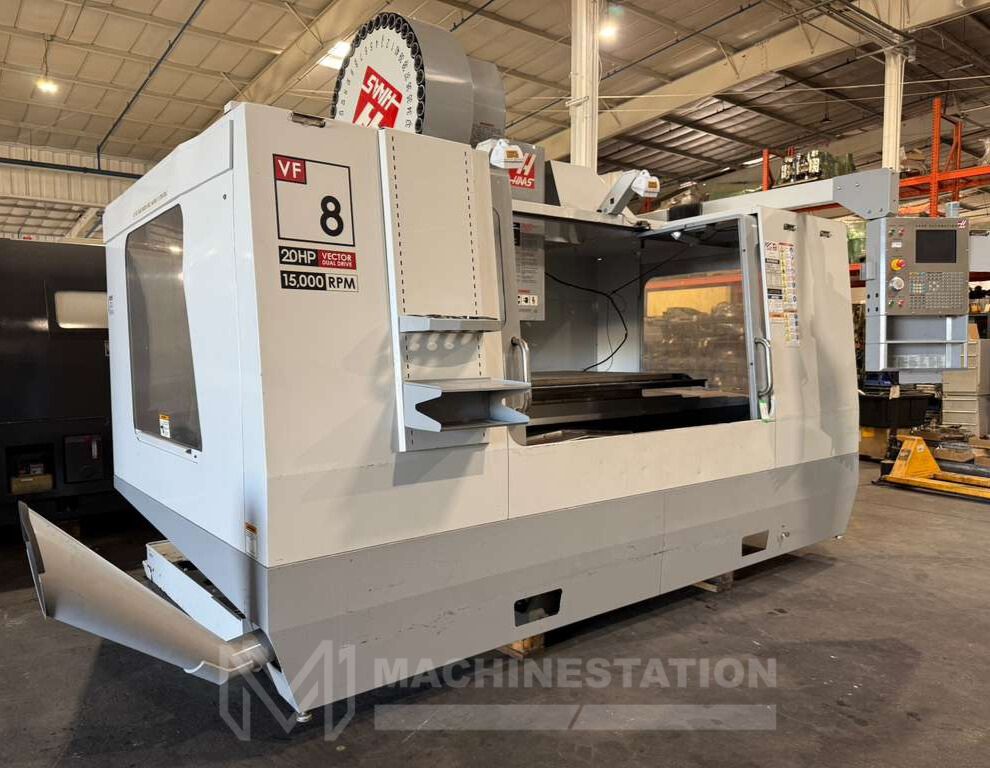

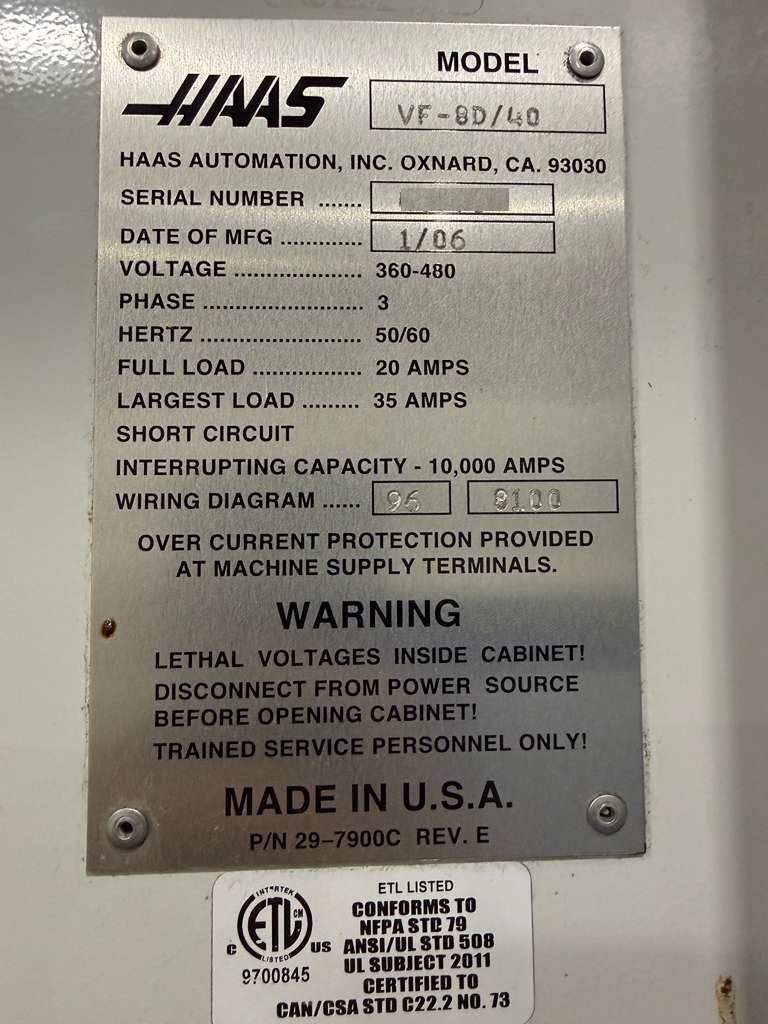

| Make: | HAAS |

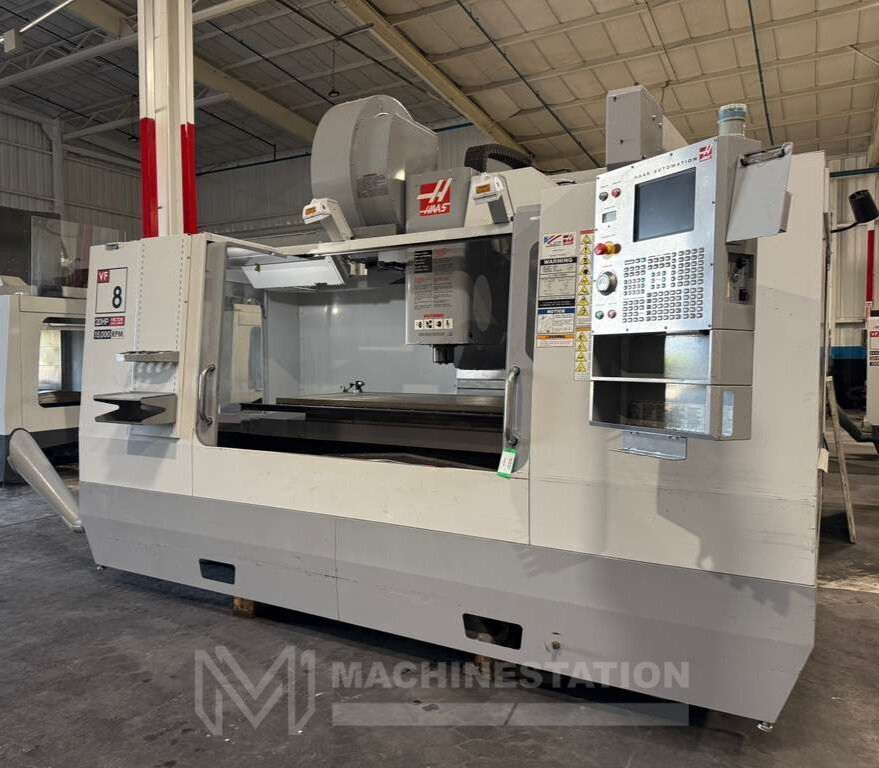

| Model: | VF-8D/40 |
| Year: | 2006 |
| Condition: | Used – Good |
-
Features:

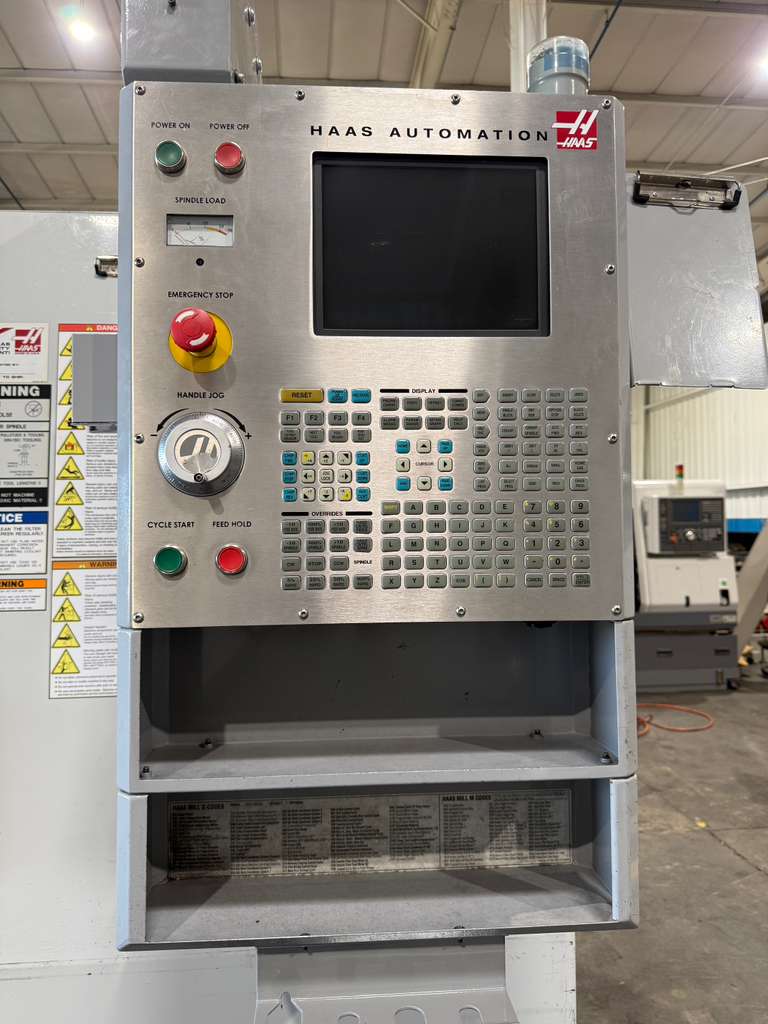

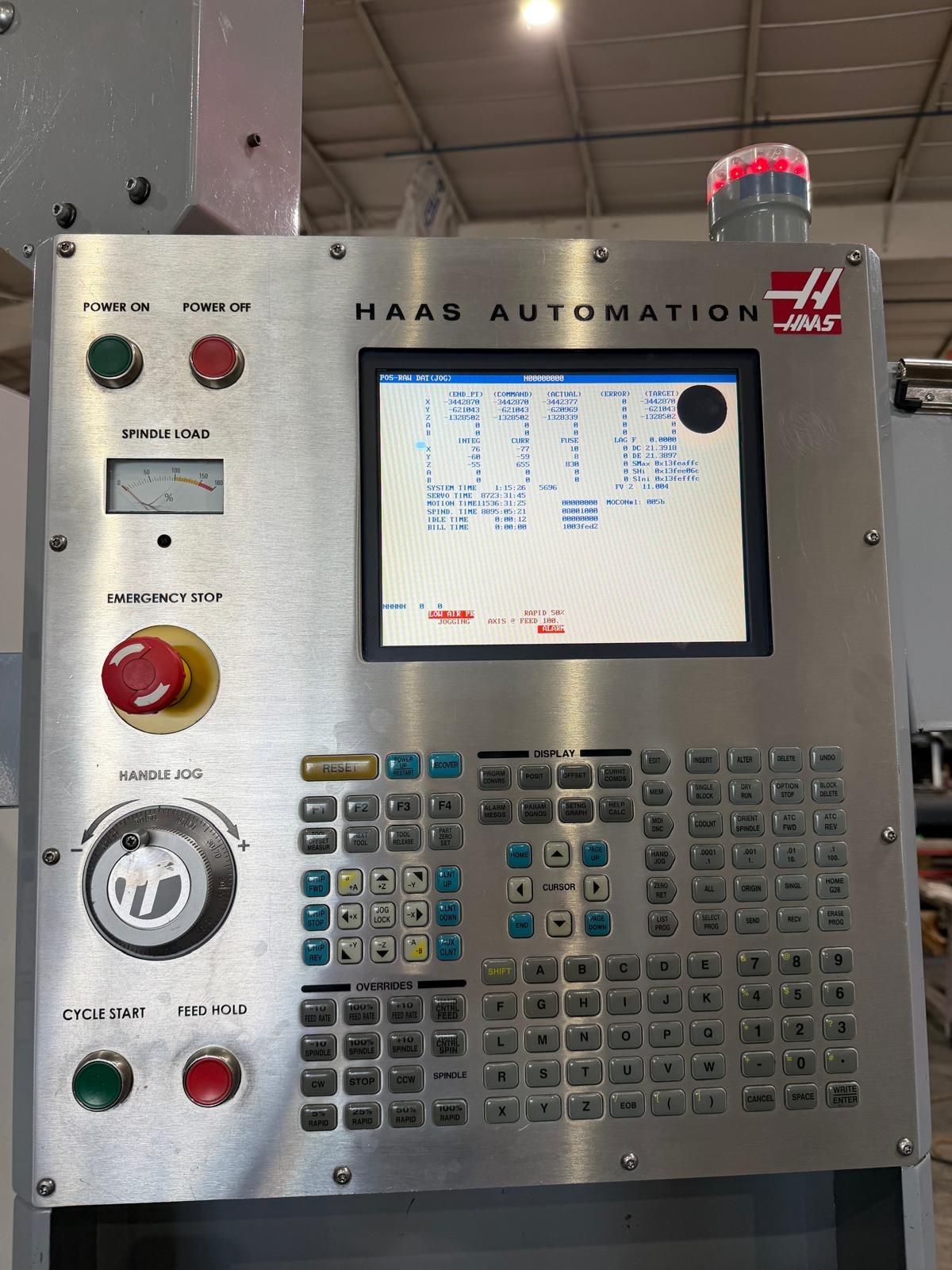

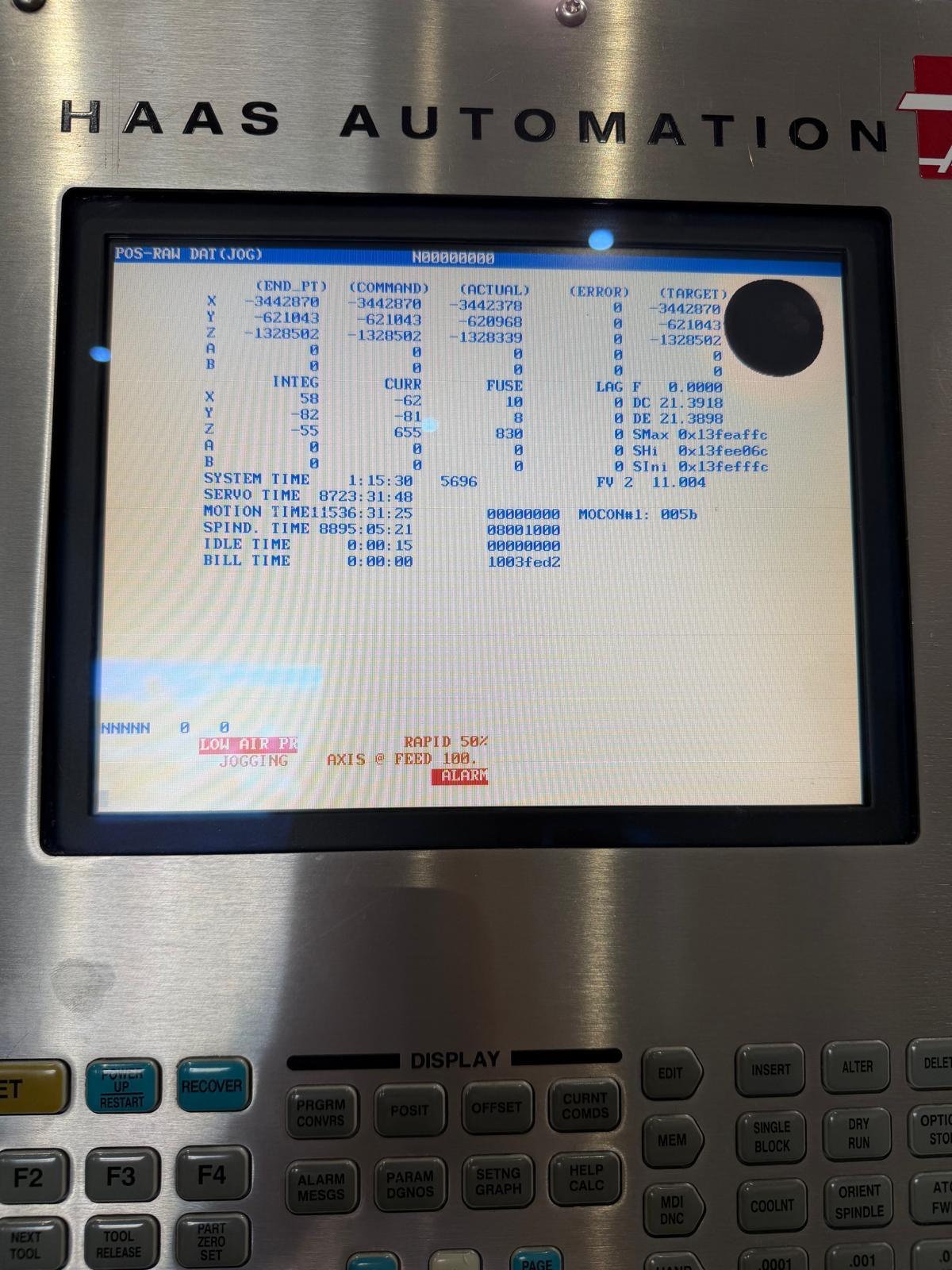

- Haas CNC Control
- 15,000 RPM High-Speed Spindle (Upgraded $16,795 value Included)

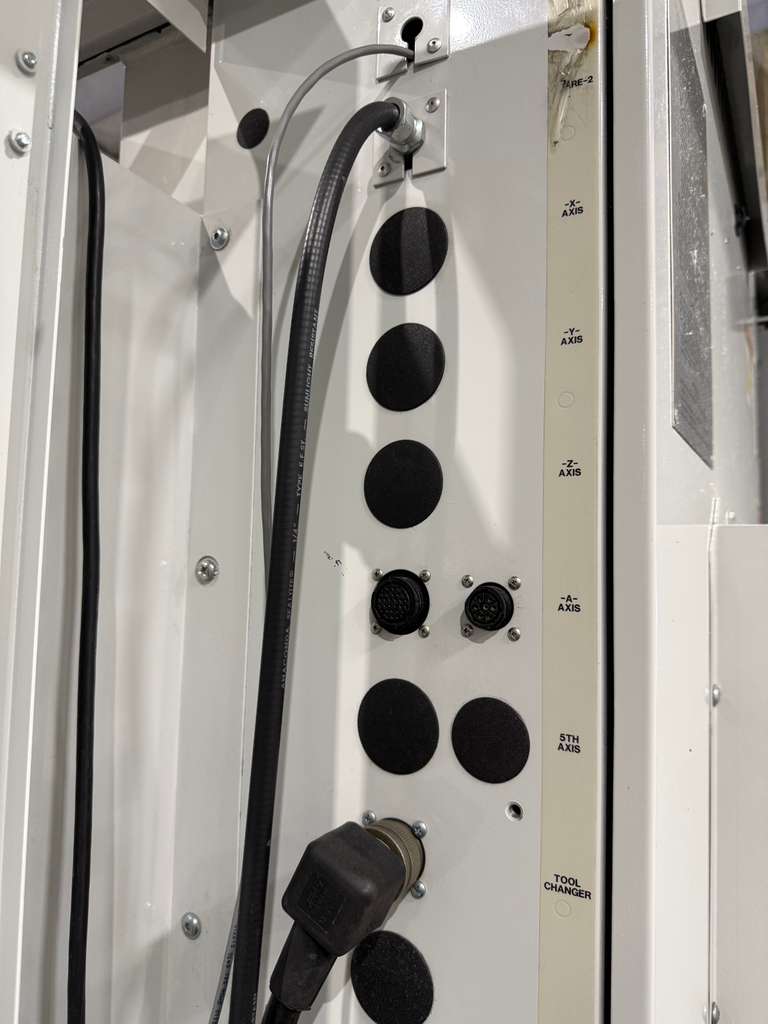

- 4th Axis Drive and Wiring (Upgraded $3,795 value Included)
- CAT-40 Taper Spindle

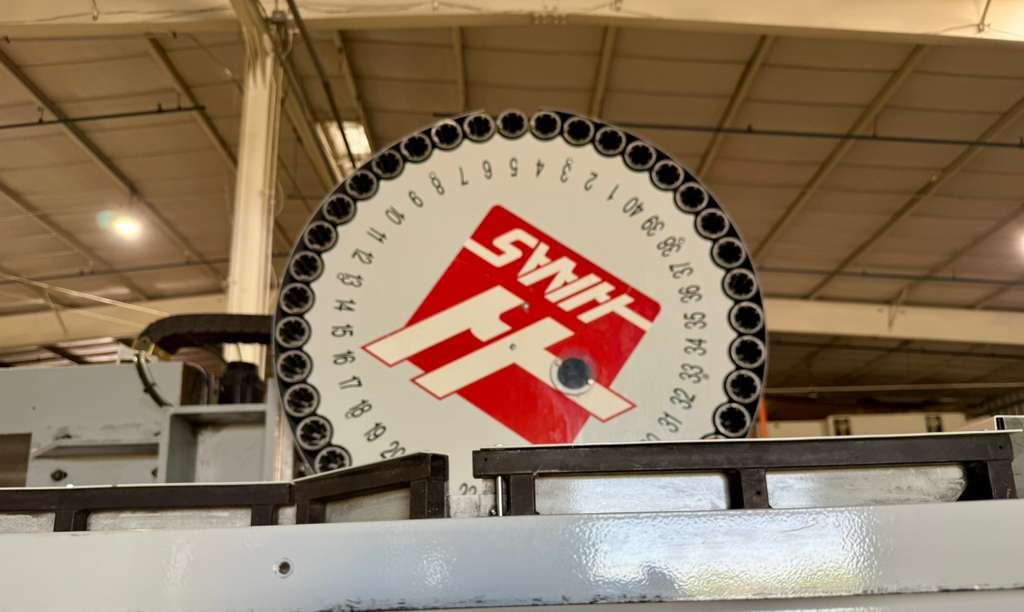

- 40 Station Side Mounted Tool Changer (Upgraded $9,595 Aprrox. value Included)

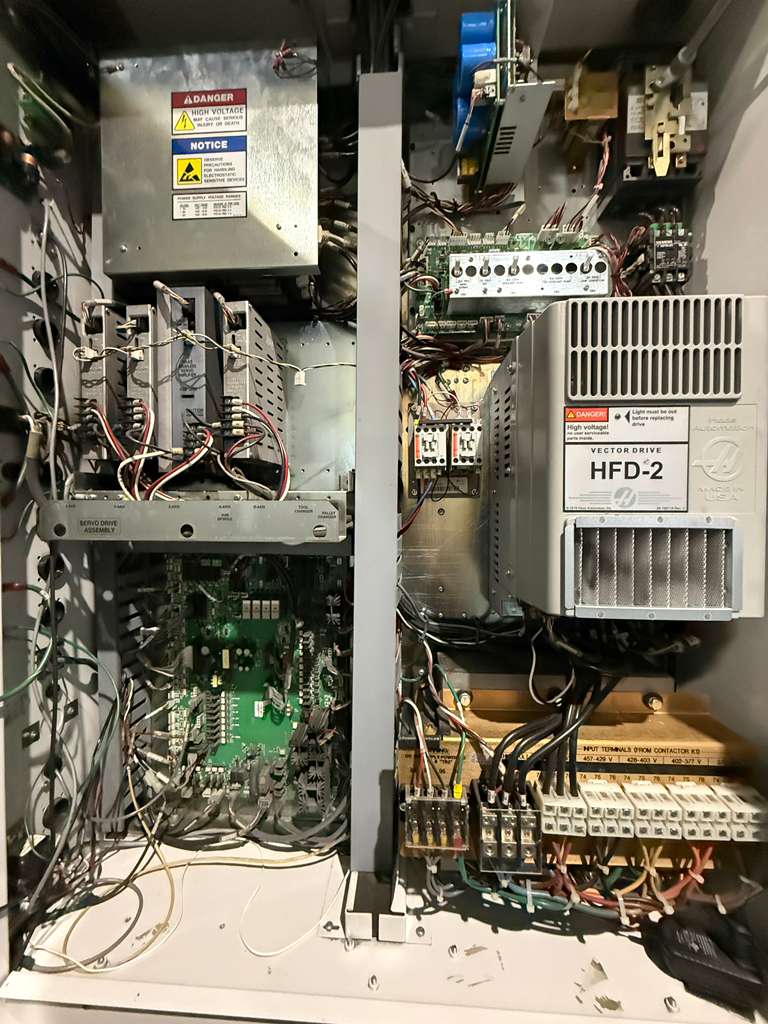

- 20 HP Vector Dual Drive

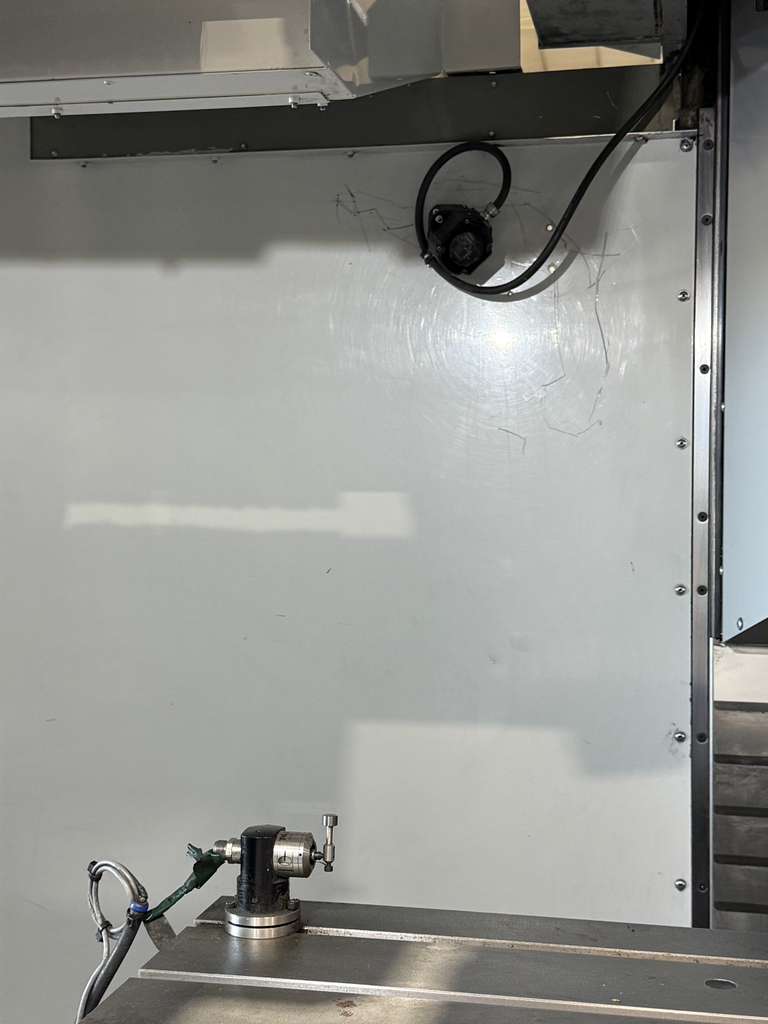

- Renishaw Probing System (Probe Needed) (Upgraded $6,795 Aprrox. value Included)
- Tool Presetter (Upgraded $595 value Included)
- Rigid Tapping
- Spindle Orientation

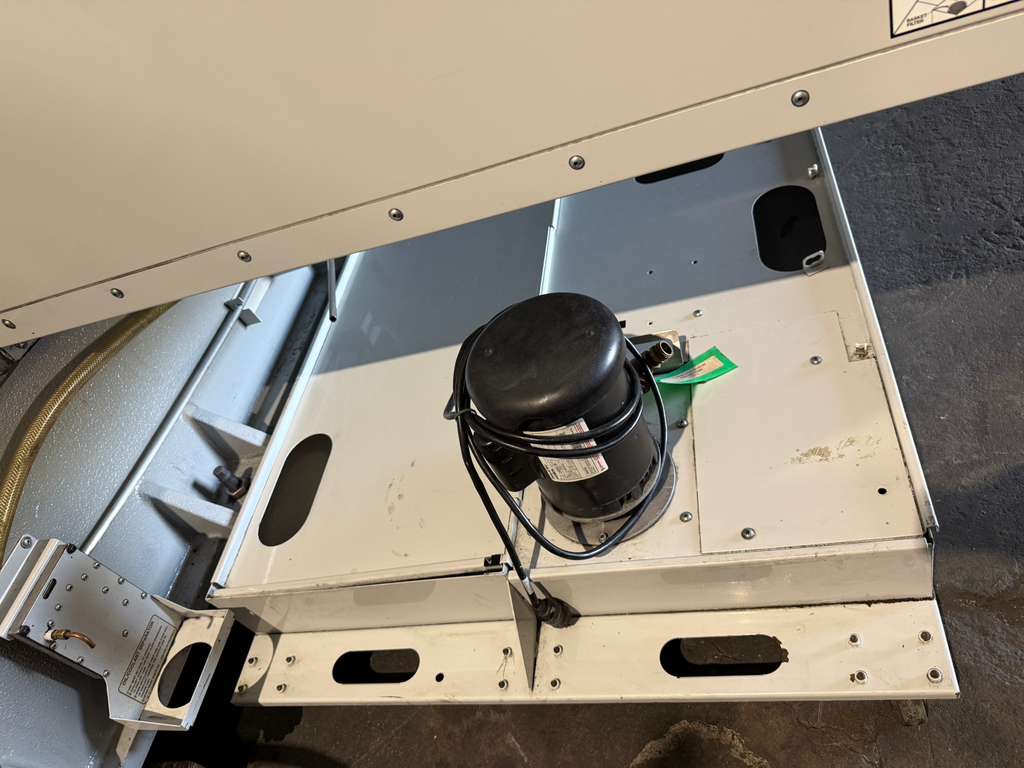

- Coolant System
- Chip Auger
-
Travel:
- X-Axis: 64″
- Y-Axis: 40″
- Z-Axis: 30″
- Rapid Traverse Rates: 600 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 34″
-

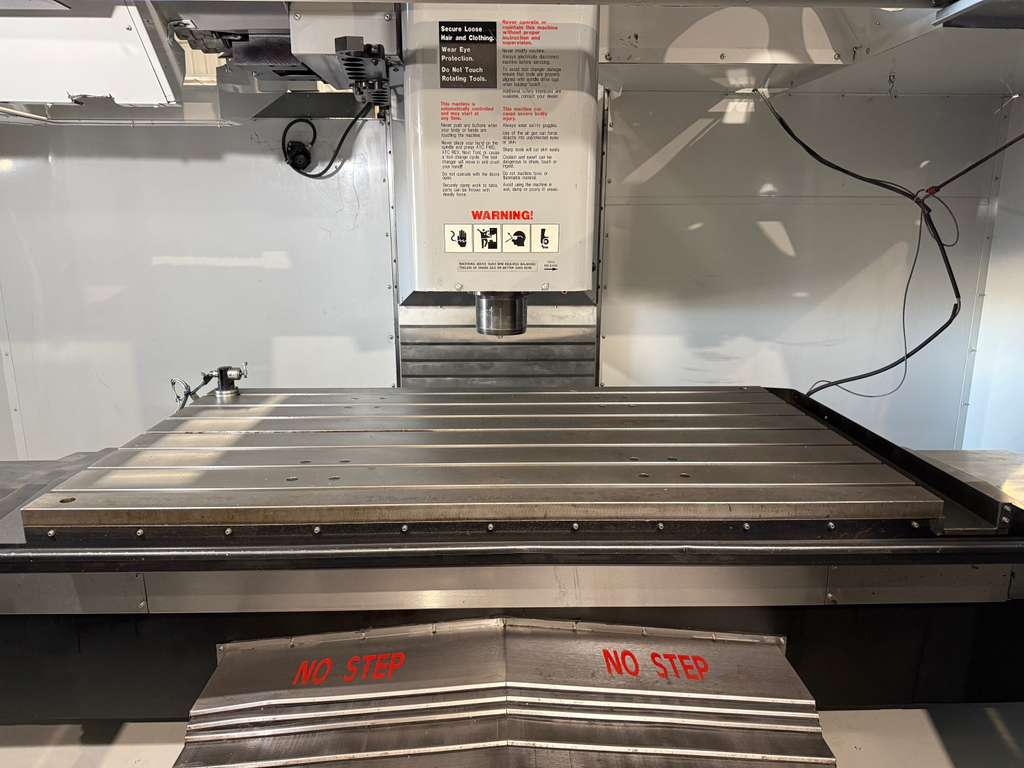

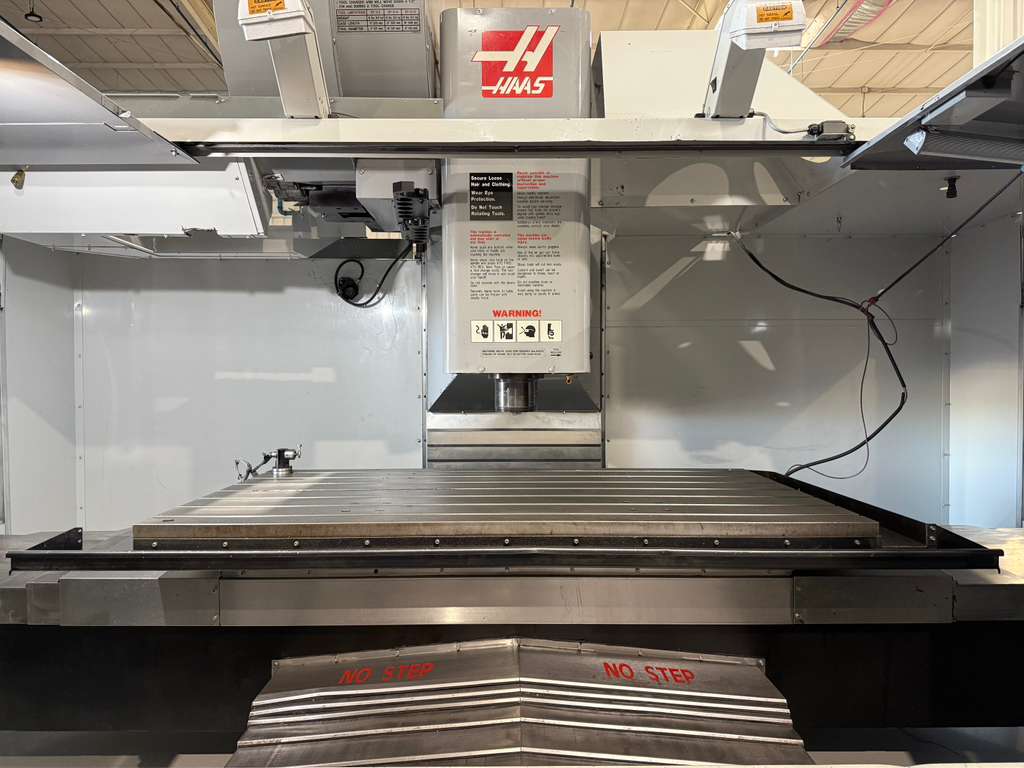

Table:
- Length: 64″
- Width: 36″
- Number of Std T-Slots: 7
- T-Slot Width: 5/8″
- Max Weight on Table: 4000 lbs
-
Spindle:
- Taper Size: CAT-40
- Speed Range: 15,000 RPM
- Spindle Power: 20 HP
-
Automatic Tool Changer:
- Capacity: 40 Tools
- Max Tool Weight: 12 lbs
- Max Tool Dia: 2.5″ – 5.0″
- Max Tool Length: 16″
- Tool Changing Time: 2.8 Seconds
-
General:
- Air Required: 100 psi 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 193″ x 120″ x 130″ High
- Weight: 24,800 lbs Approx.
