*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model No.: | VF-9/40 |
| Year: | 2017 |
| Condition: | Used |
| Machine Type: | CNC Vertical Machining Center |
| Control: | Haas CNC Control |
| Country of Origin: | USA |
| Features: |
|---|
| Haas CNC Control |
| 40 Position Side-Mount Automatic Tool Changer |

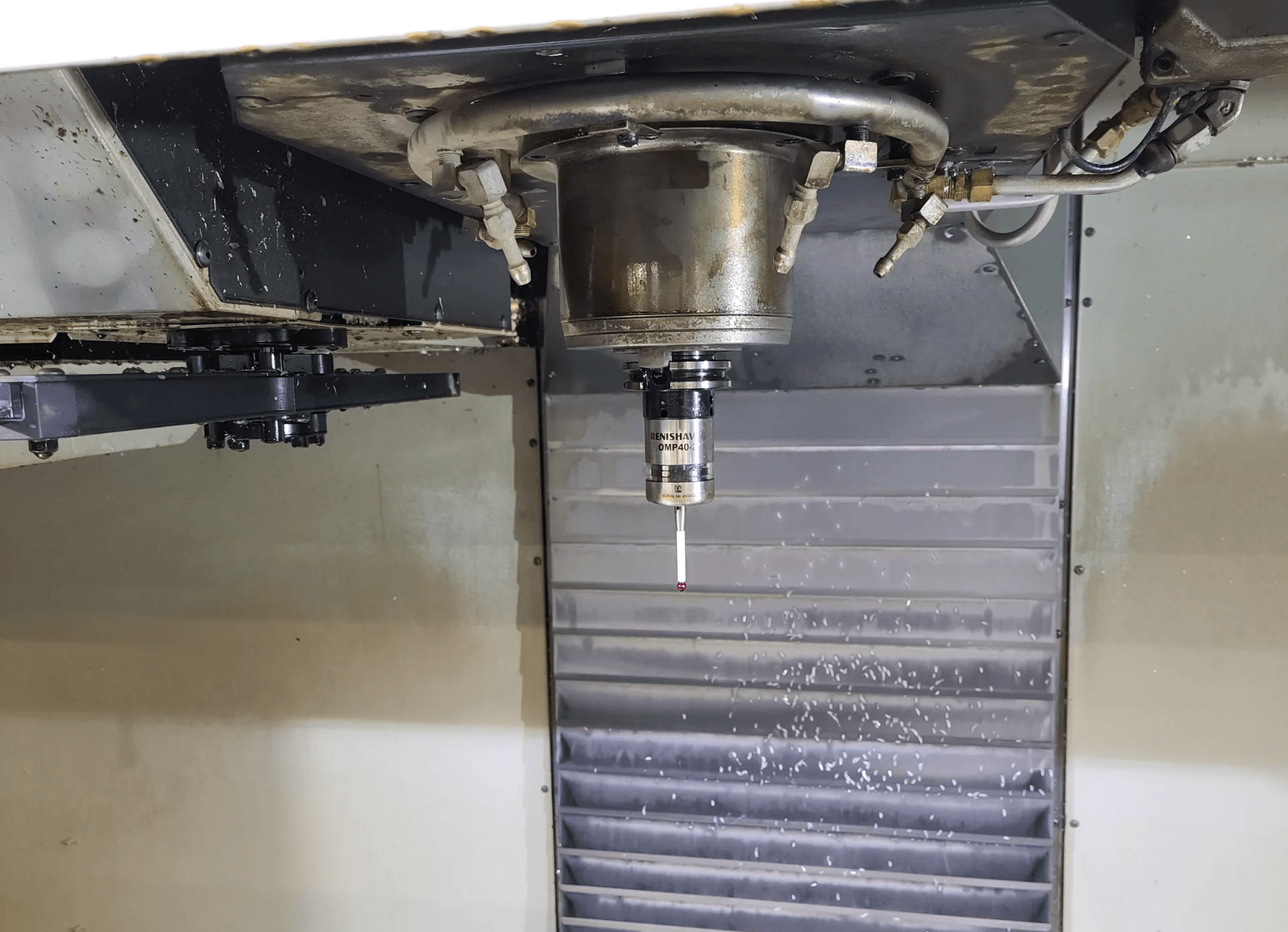

| Renishaw OMP40 Wireless Probe |
| Programmable Coolant Nozzle |
| Rigid Tapping |
| CAT 40 Spindle |
| High Speed Machining |
| Chip Auger System |
| Flood Coolant System |
| USB Port |
| Remote Jog Handle |
| Work Light |
| Way Covers |
| Automatic Lubrication System |
| Full Enclosure |
| Travels: |
|---|
| X-Axis Travel: 84″ |
| Y-Axis Travel: 40″ |
| Z-Axis Travel: 30″ |
| Table: |
|---|
| Table Size: 84″ x 36″ |
| Maximum Table Load: 4,000 lbs |
| T-Slot Width: 5/8″ |
| Number of T-Slots: 7 |
| Spindle: |
|---|
| Spindle Speed: 8,100 RPM |
| Spindle Taper: CAT 40 |
| Spindle Motor: 30 HP Vector Drive |
| Tool Changer: |
|---|
| Tool Capacity: 40 Position Side-Mount ATC |
| Maximum Tool Diameter: 5″ |
| Maximum Tool Weight: 12 lbs |
| Feeds: |
|---|
| Rapid Traverse Rate: 1,000 IPM |
| Cutting Feed Rate: 650 IPM |
| General: |
|---|

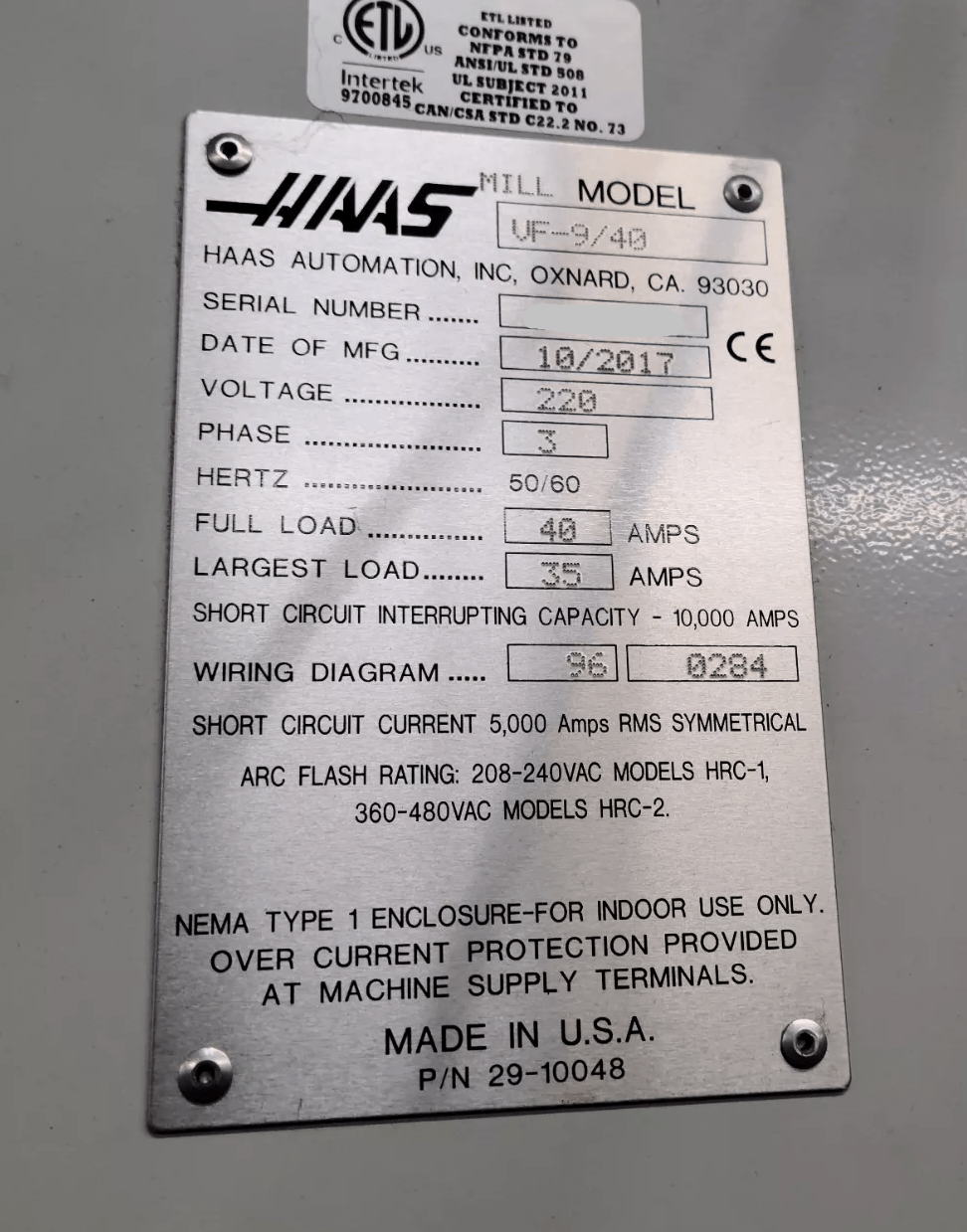

| Power Requirement: 220V / 3 Phase |
| Machine Weight: Approx. 28,000 lbs |
| Machine Dimensions: Approx. 205″ x 140″ x 135″ |
