*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

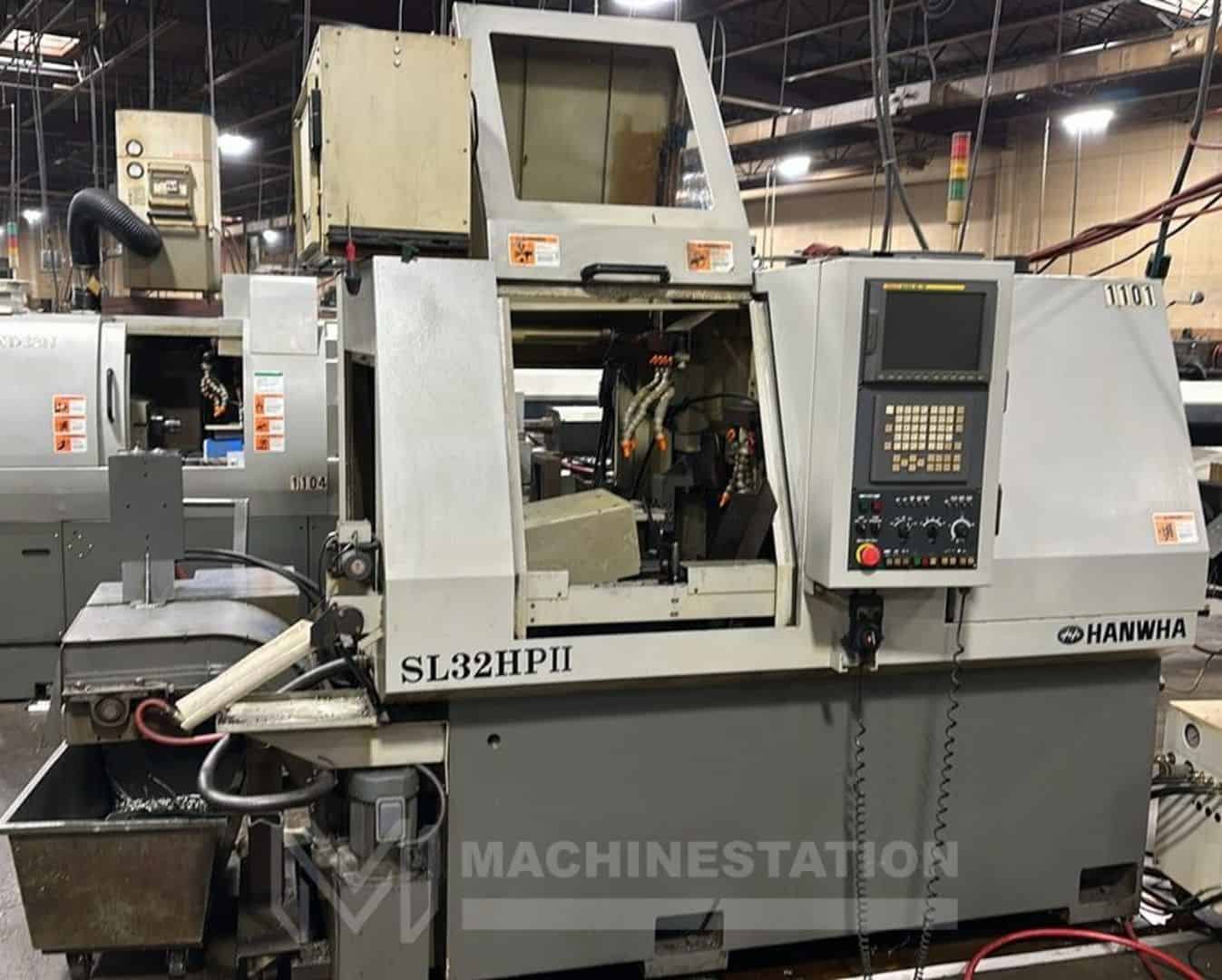

| Make: | Hanwha |
| Model: | SL32HPII |
| Year: | 2007 |
| Condition: | Used – Good |
| Equipped With: |
|---|

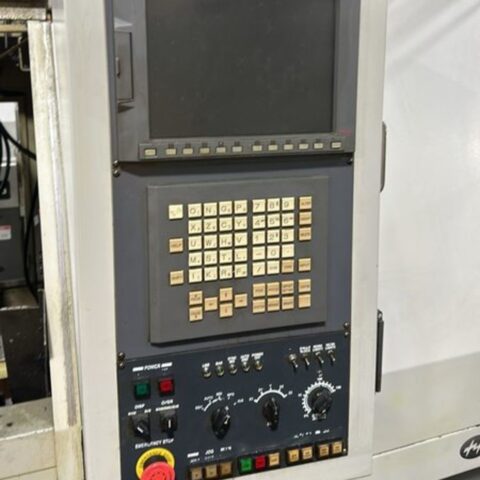

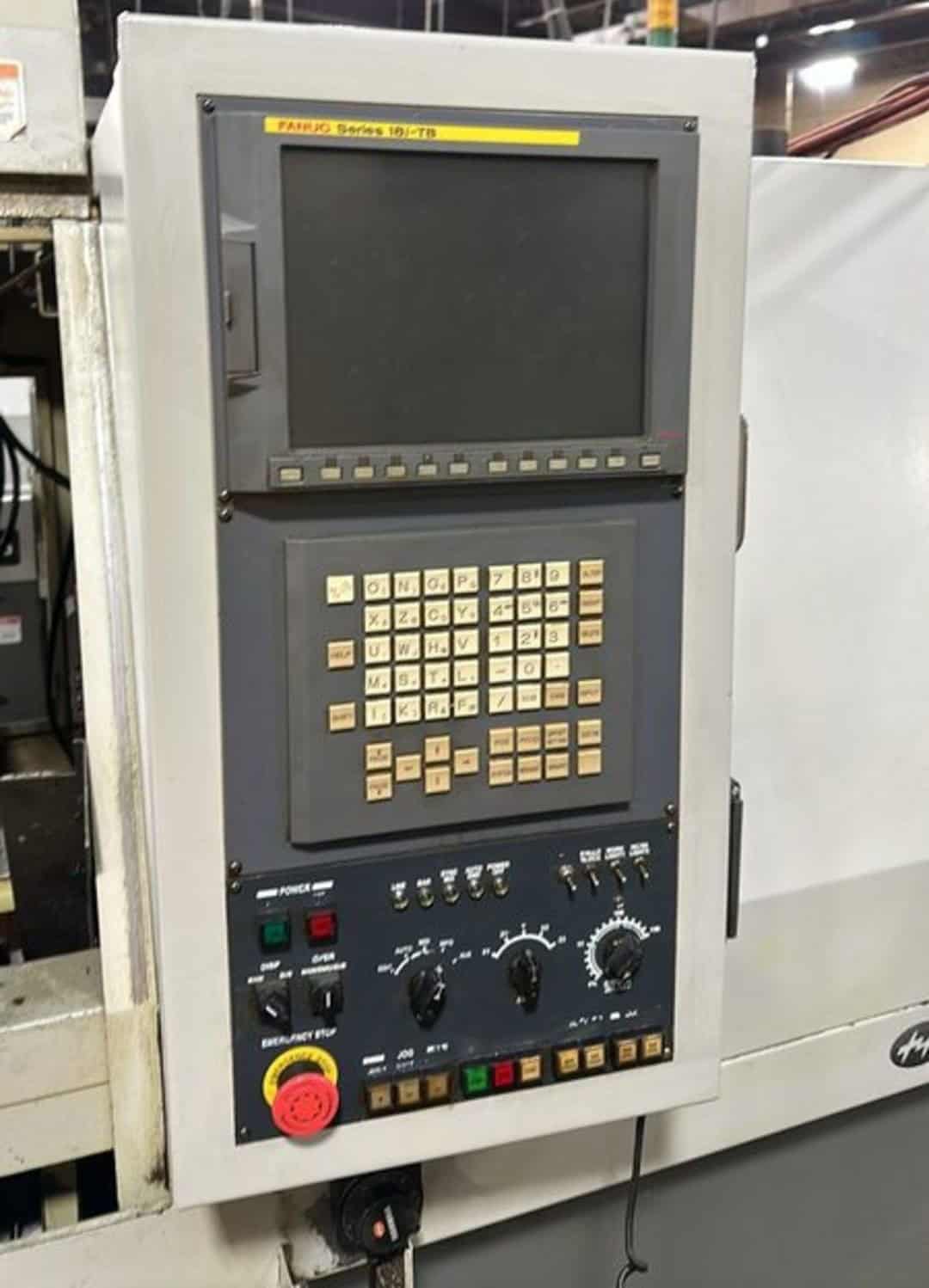

| Fanuc 18i-TB CNC Control |

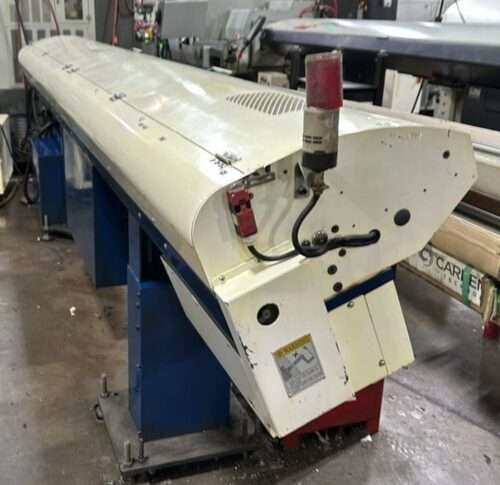

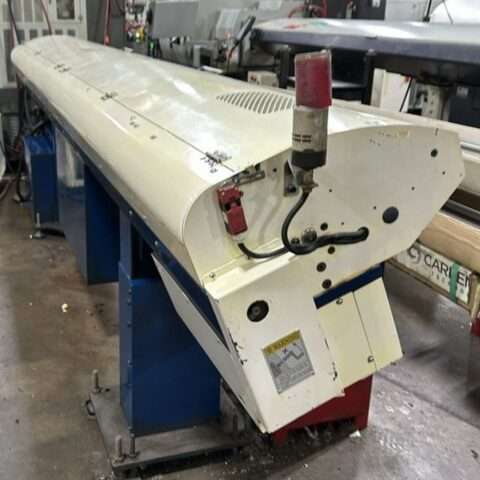

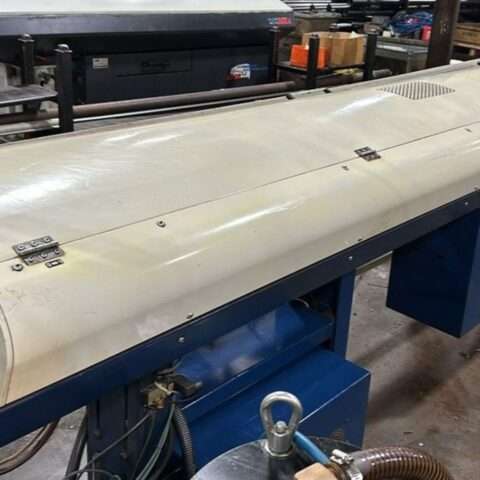

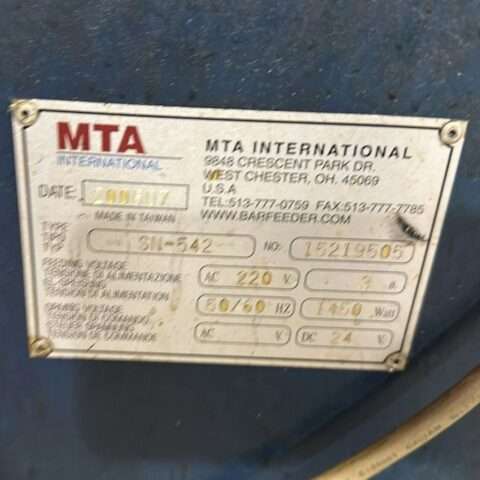

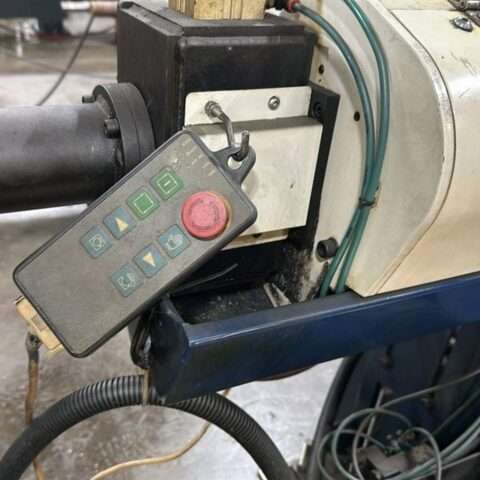

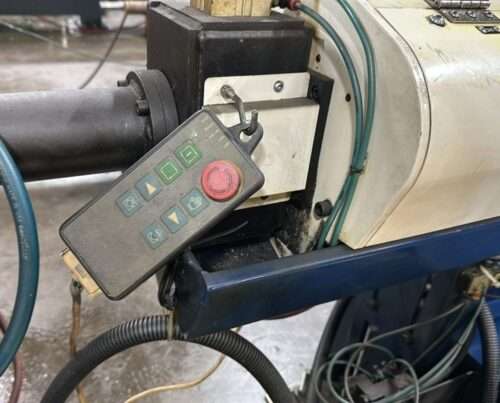

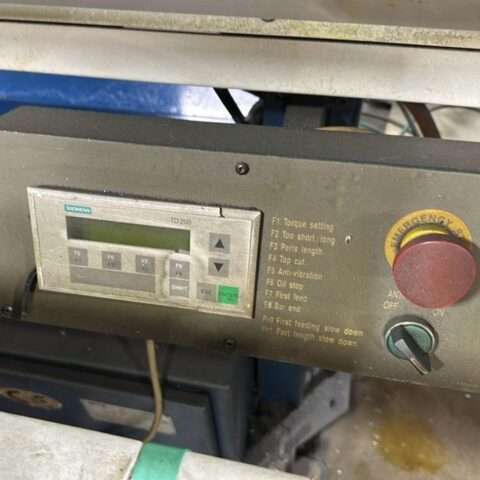

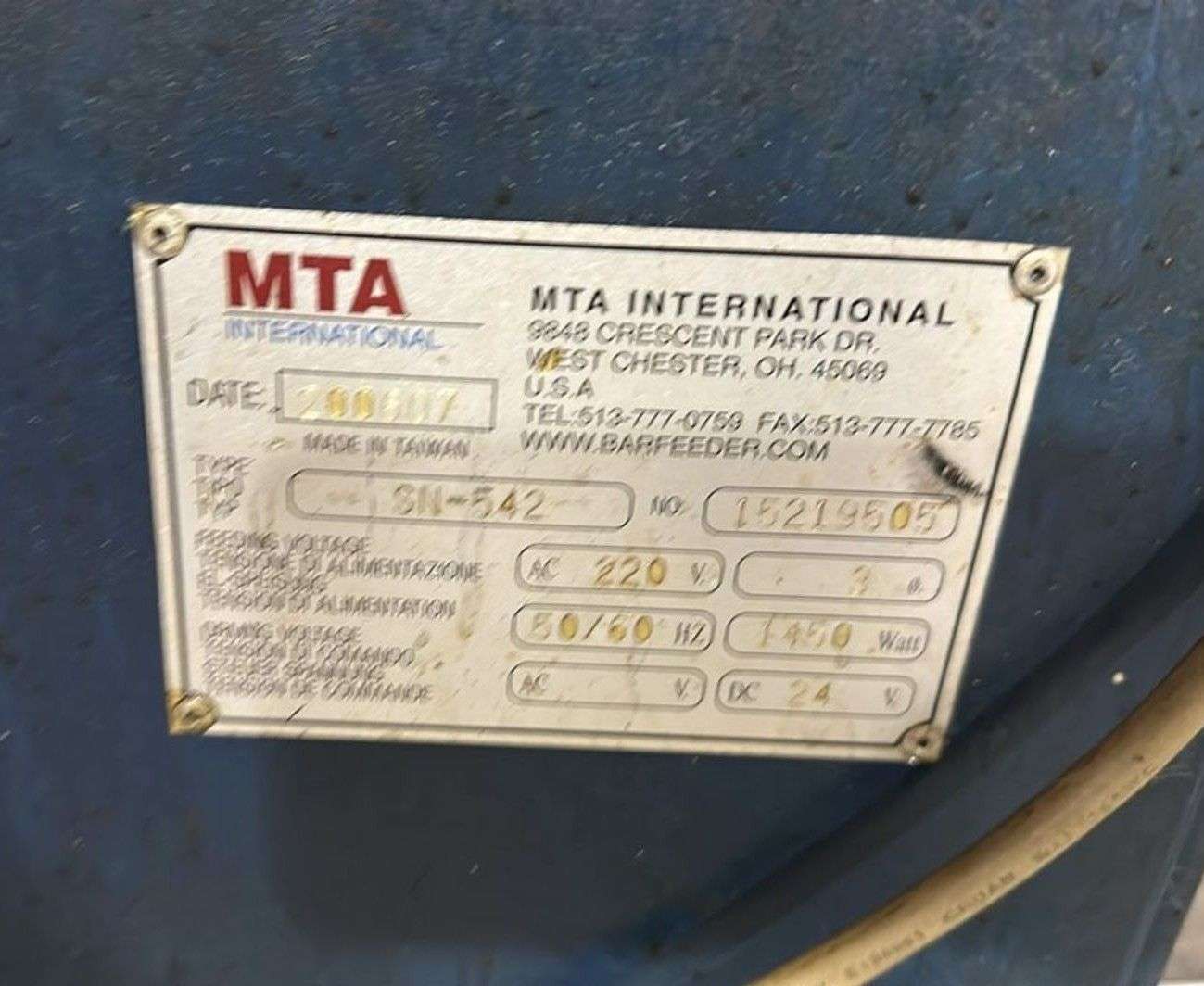

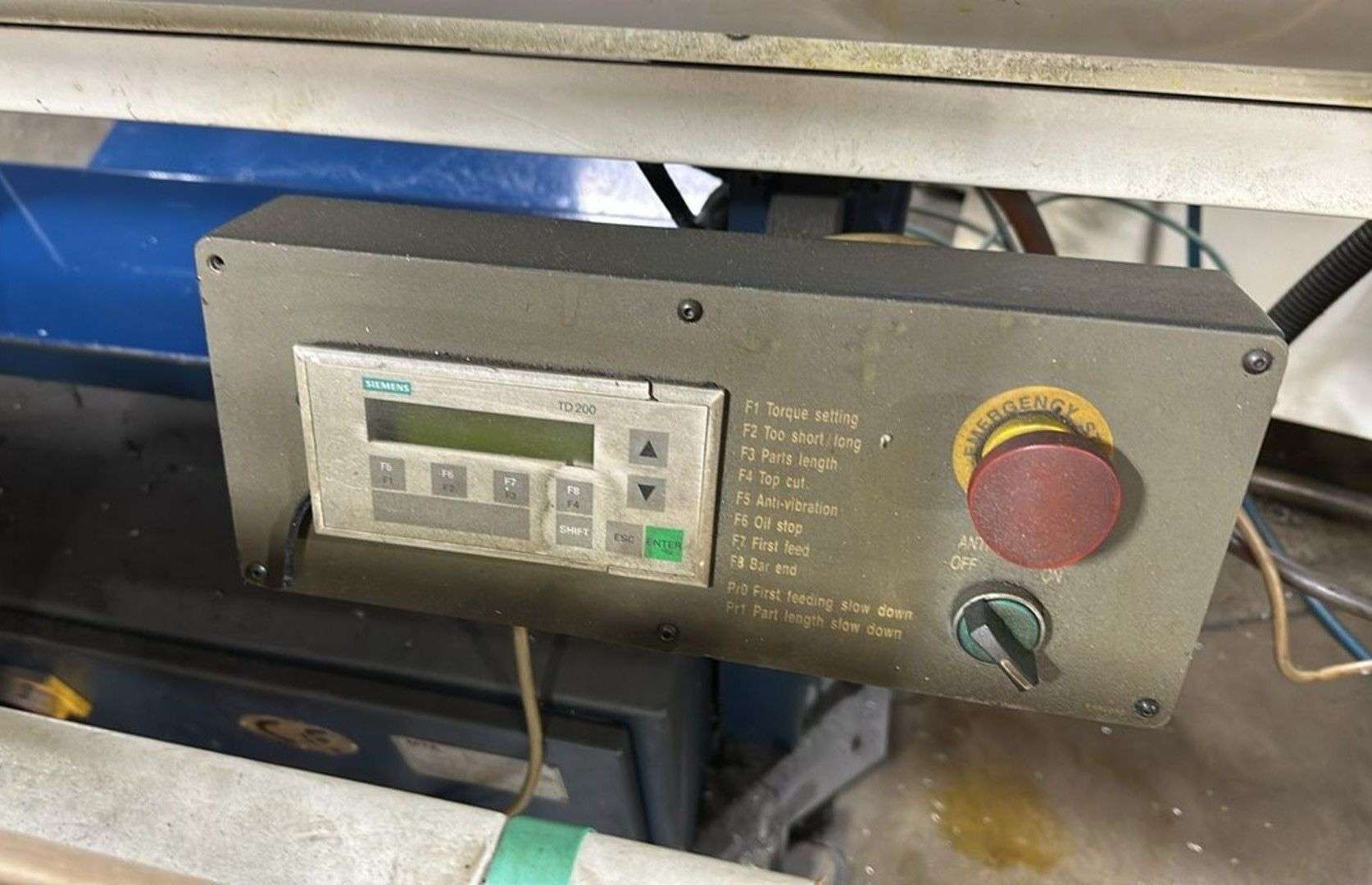

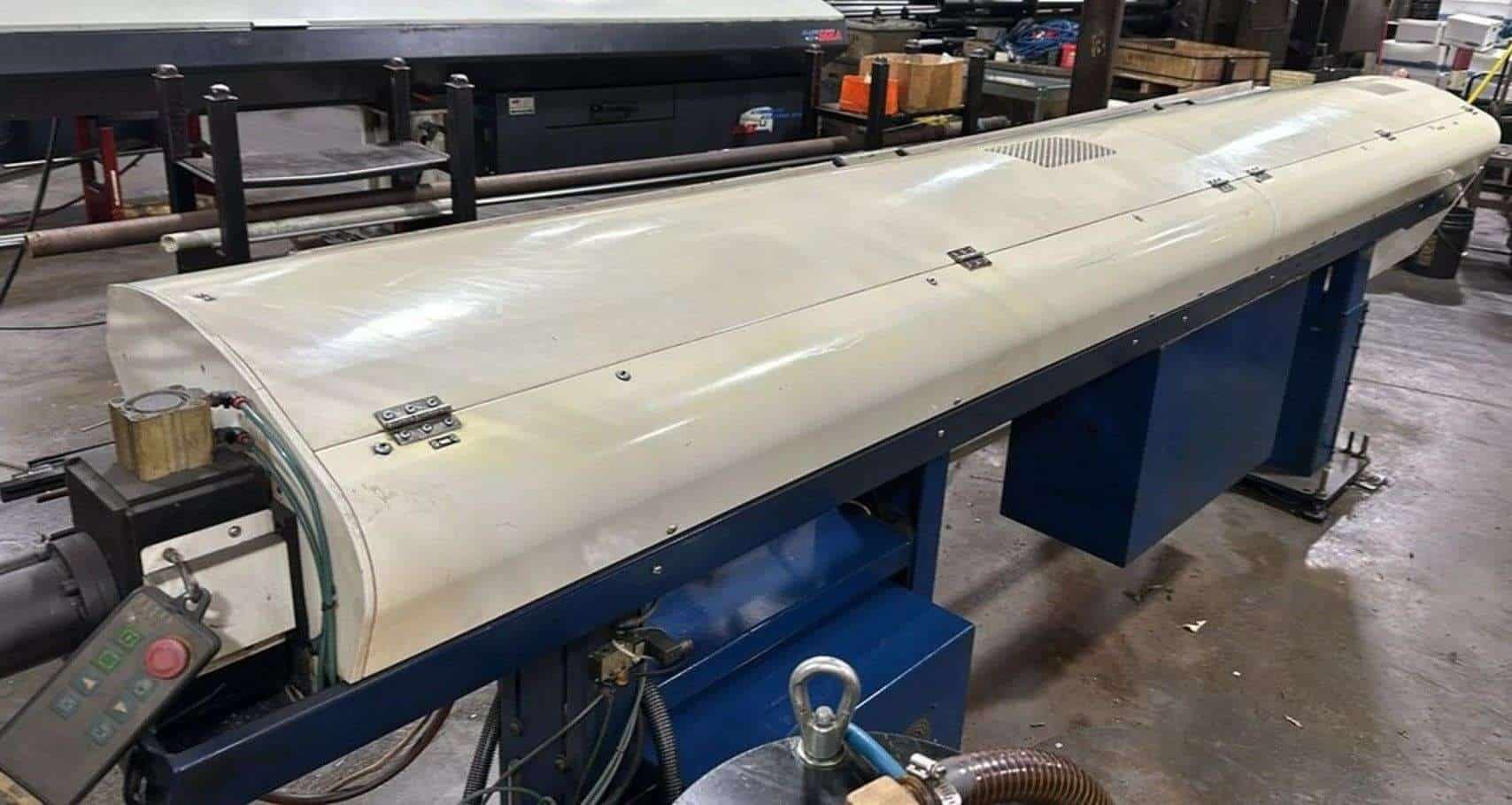

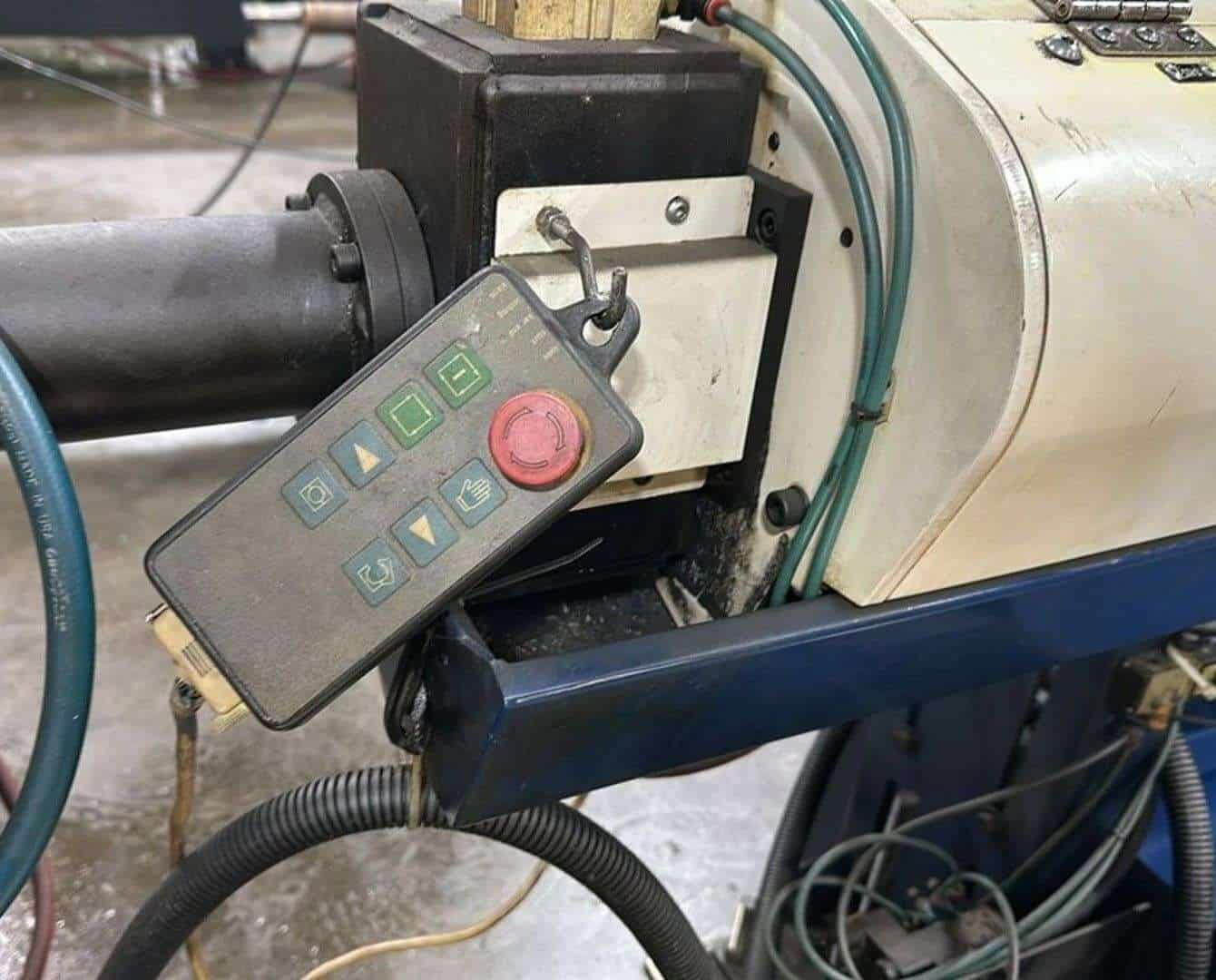

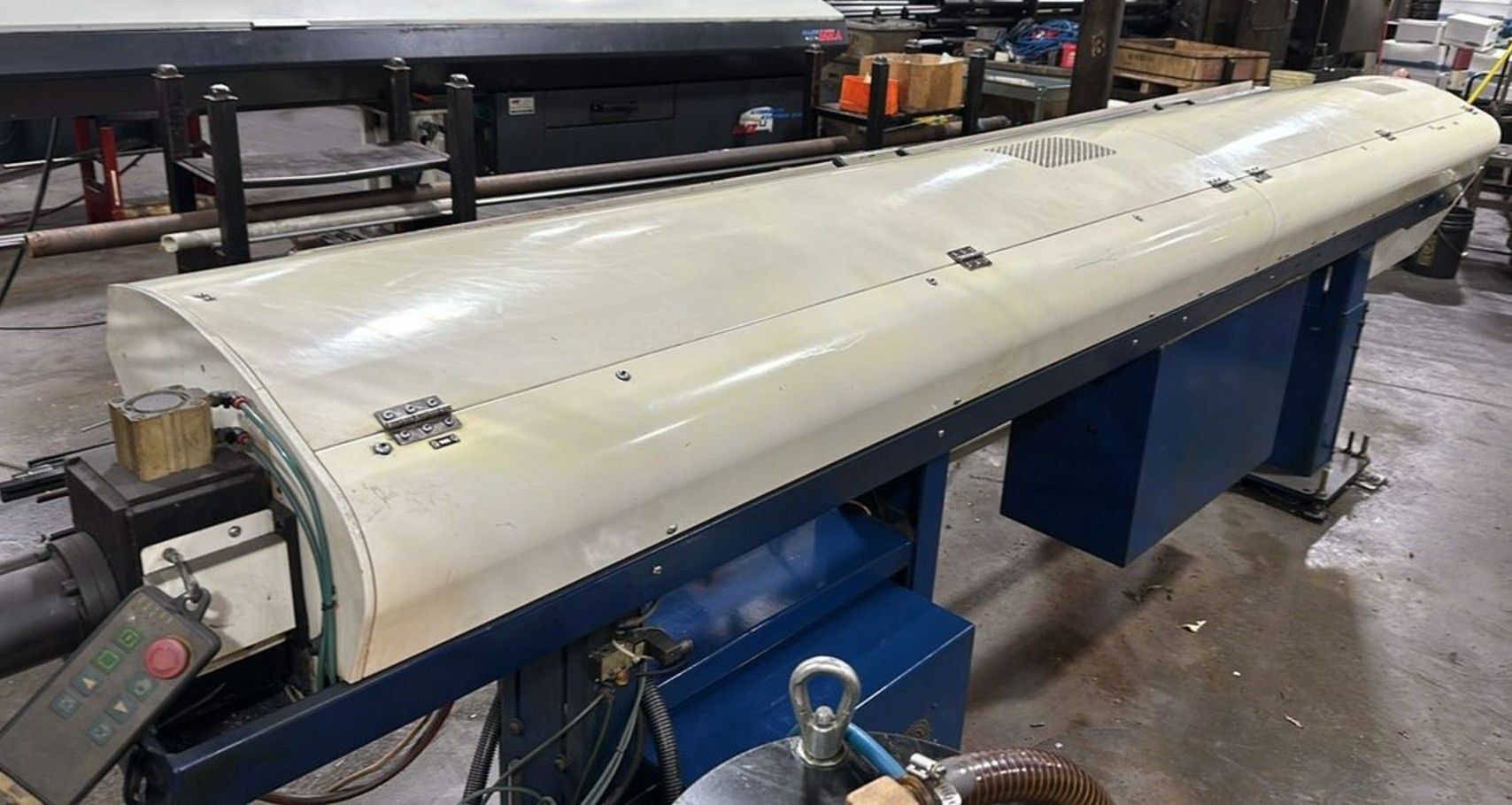

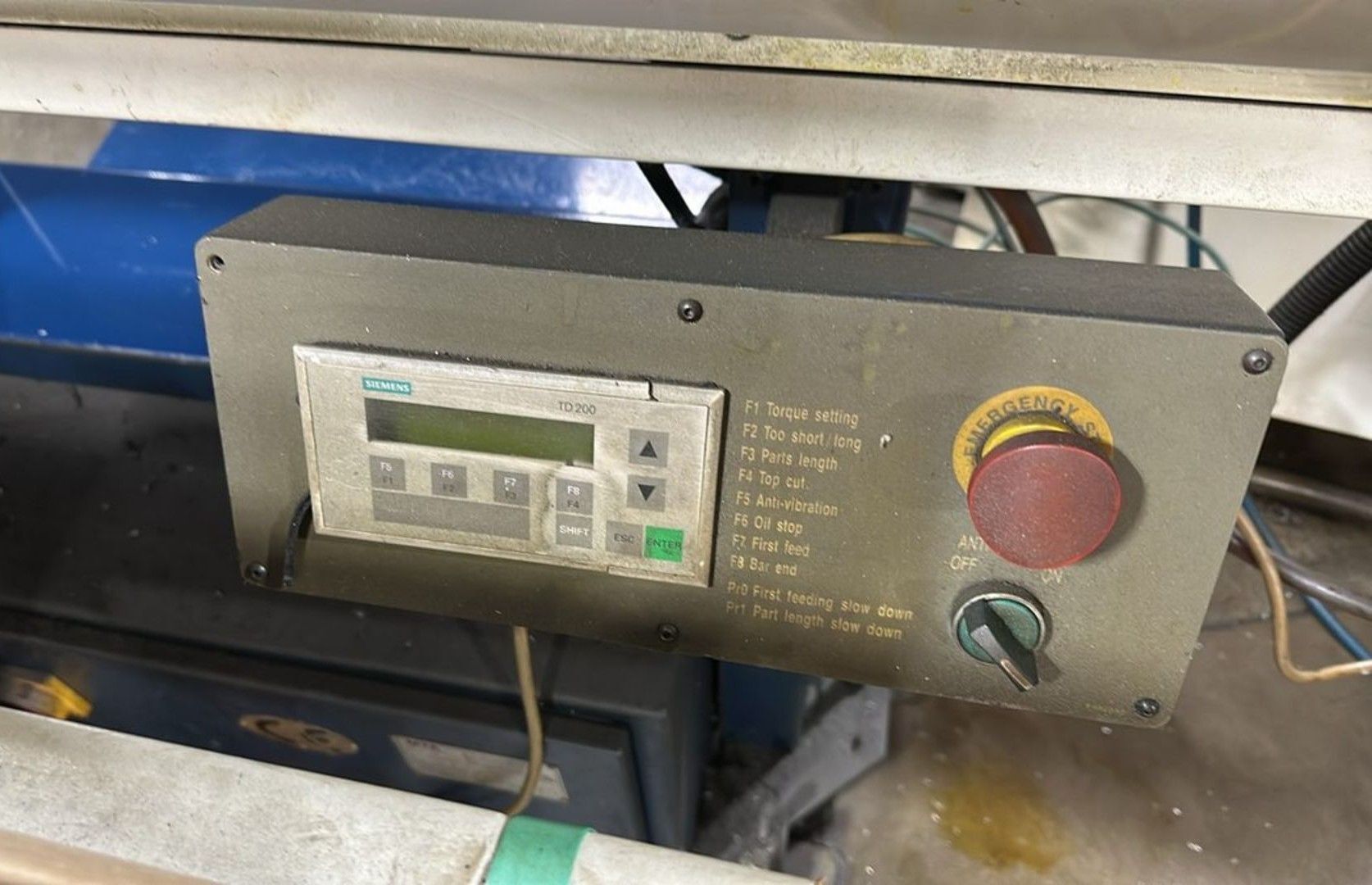

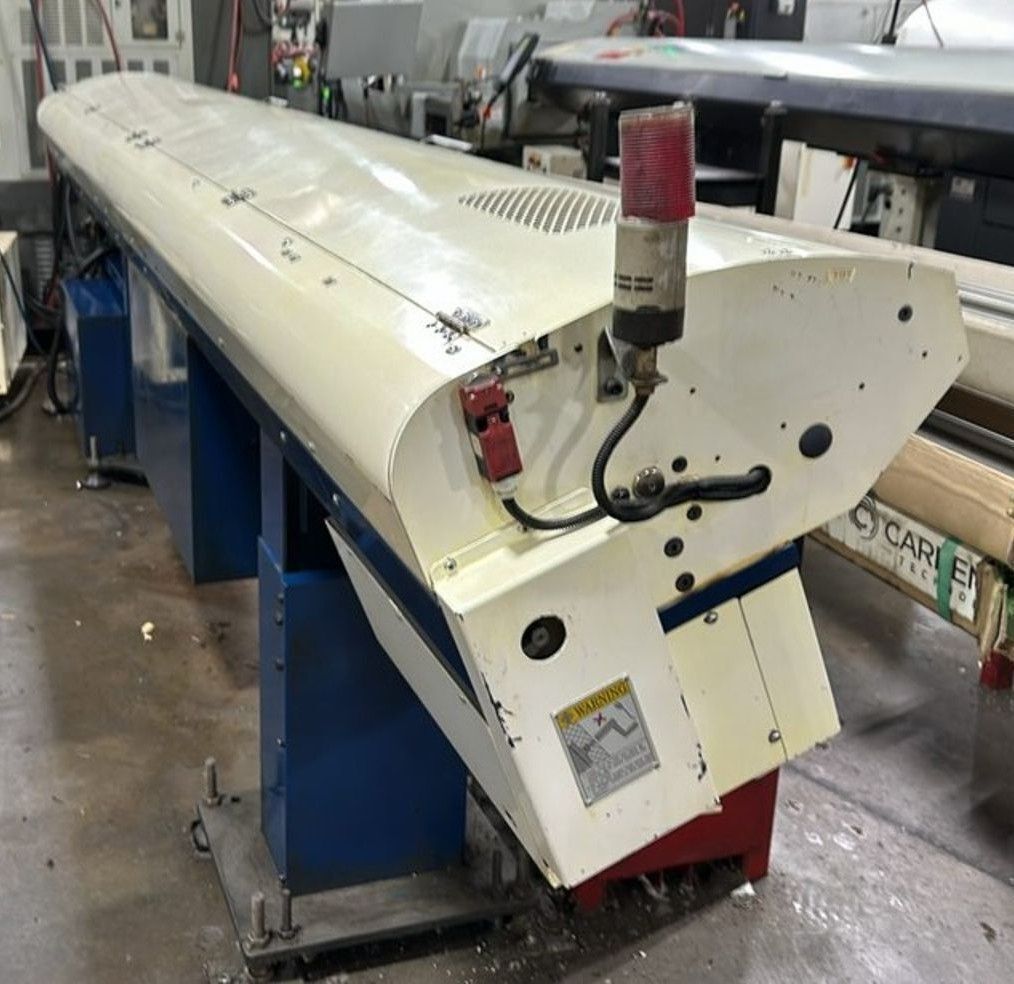

| Comes with MTA International 12′ Magazine Style Bar Feeder |
| (7) Controlled Axis |

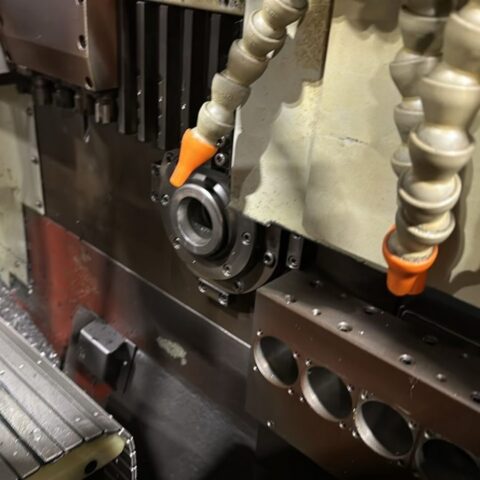

| Back Spindle |
| C & Y Axis Capable |
| Live Tools Capable |
| Long Parts Capable |
| MPG Handwheel Control |
| Part Catcher |
| Main & Back Spindle Synchronization |
| High Speed Rapid Travers: 1200 IPM |
| High Speed Program Processing |
| Automatic Lubrication System |
| High Pressure Coolant System |
| Mist Buster |

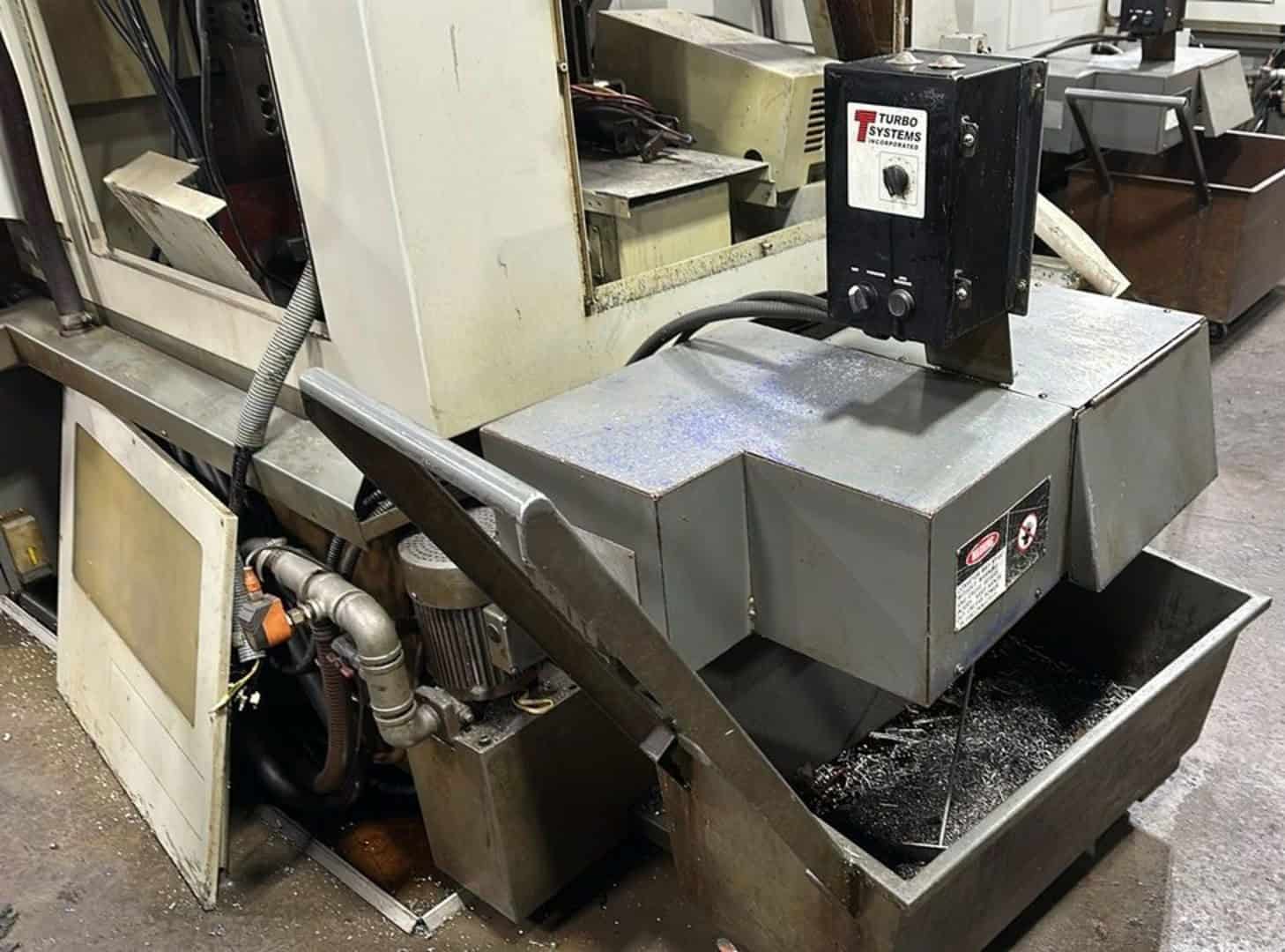

| Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter: 1.25″ (32 mm) |
| Max Turning Length: 8.66″ (220 mm) |
| Max Bar Capacity: 1.25″ (32 mm) |
| Max Tool Positions: 23 |
| Max. Main Spindle Drilling Diameter: 0.39″ (10 mm) |
| Max. Main Spindle Tapping Diameter: M10 |
| Max. Back Spindle Chucking Diameter: 1.25″ (32 mm) |
| Max. Back Spindle Drilling Diameter: 0.39″ (10 mm) |
| Max. Back Spindle Tapping Diameter: M8 |
| Max. Cross Drilling Diameter: 0.255 ( 6.5 mm) |
| Max. Cross Tapping Diameter: M5 |
| Spindle: |
|---|
| Main Spindle Indexing: 360° (Full C-Axis) |
| Main Spindle Bore: 1.25″ (32 mm) |
| Main Spindle Speed: 8000 RPM |
| Main Spindle Motor: 7.5 HP |
| Back Spindle Indexing: 360° (Full C-Axis) |
| Back Spindle Speed: 8000 RPM |
| Back Spindle Motor: 5 HP |
| Standard Tools: |
|---|
| OD Turning Tools: 5 |
| Stationary Tools For Main/Back Spindle: 5×5 |

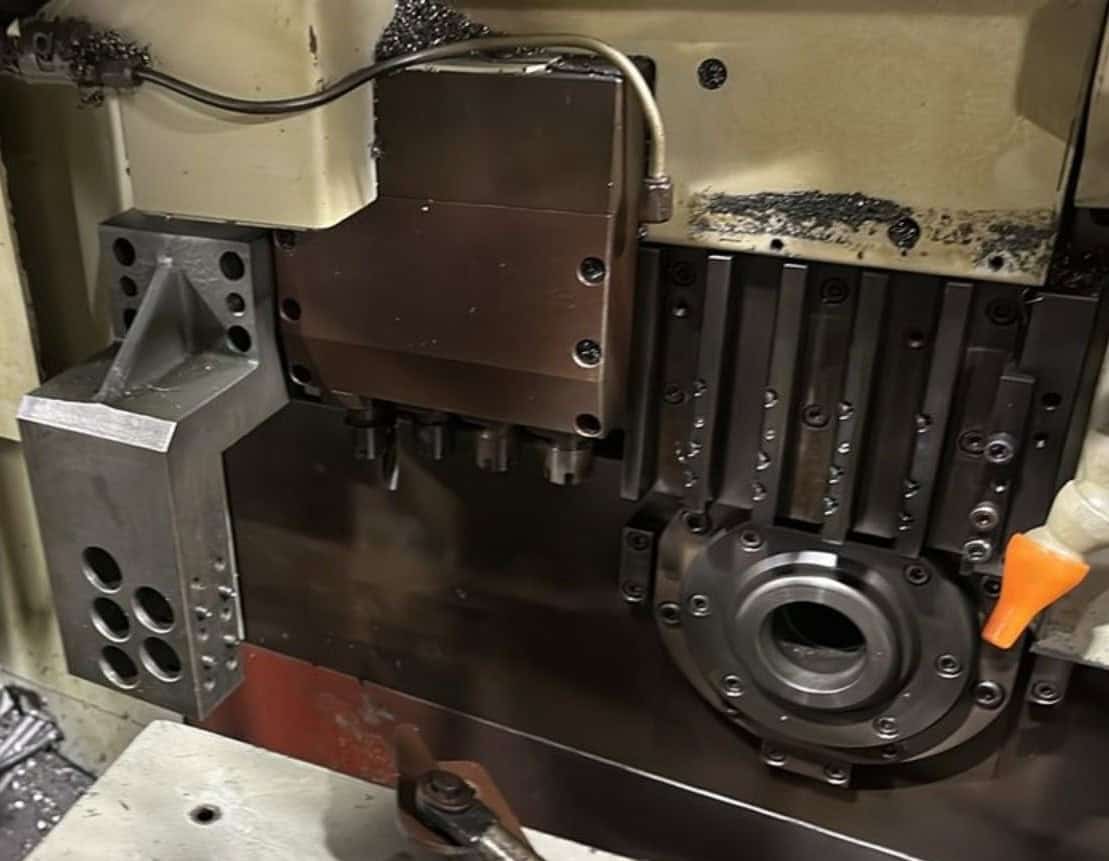

| Power Driven Tools Attachment: |
|---|

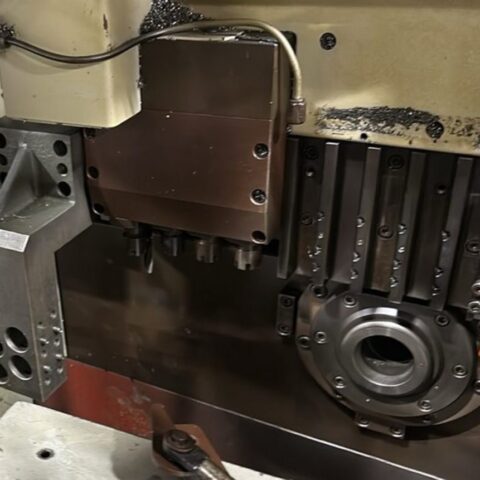

| Vertical Powered Drilling Tools: 4 |
| Drilling Tools For Back Spindle : 4 (2 Powered Drilling Tools) |
| Driven Tool Speed: 6000 RPM |
| Driven Tool Motor: 3 HP ? |
| General: |
|---|
| Power Source: AC 220v / 3-Phase /60 Hz |
| Power Requirement: kva |
| Overall Dimensions: ″ X ″ X ″ High without Bar Feeder |
| Weight: lbs. Approx. |
