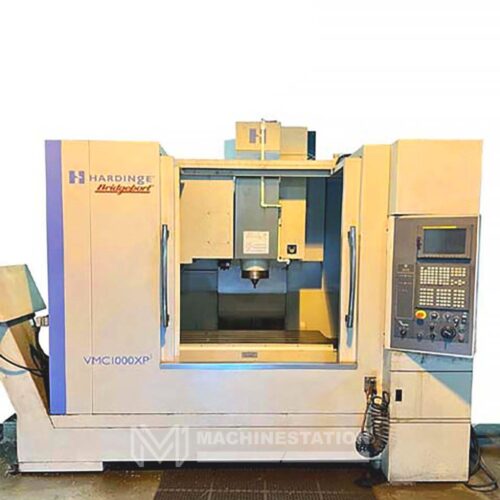

Hardinge Bridgeport 1000 XP3 CNC VMC

Out of stock

Used Hardinge Bridgeport 1000 XP3 CNC VMC for Sale. This Hardinge Bridgeport 1000 has minimal cutting hours and is in almost new condition.

Location: Lake Elsinore, CA
SKU: 2333
Make/Model: Hardinge Bridgeport 1000 XP3
Video:
SKU: 2333

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 2333
Make: Hardinge Bridgeport
Model: 1000-XP3

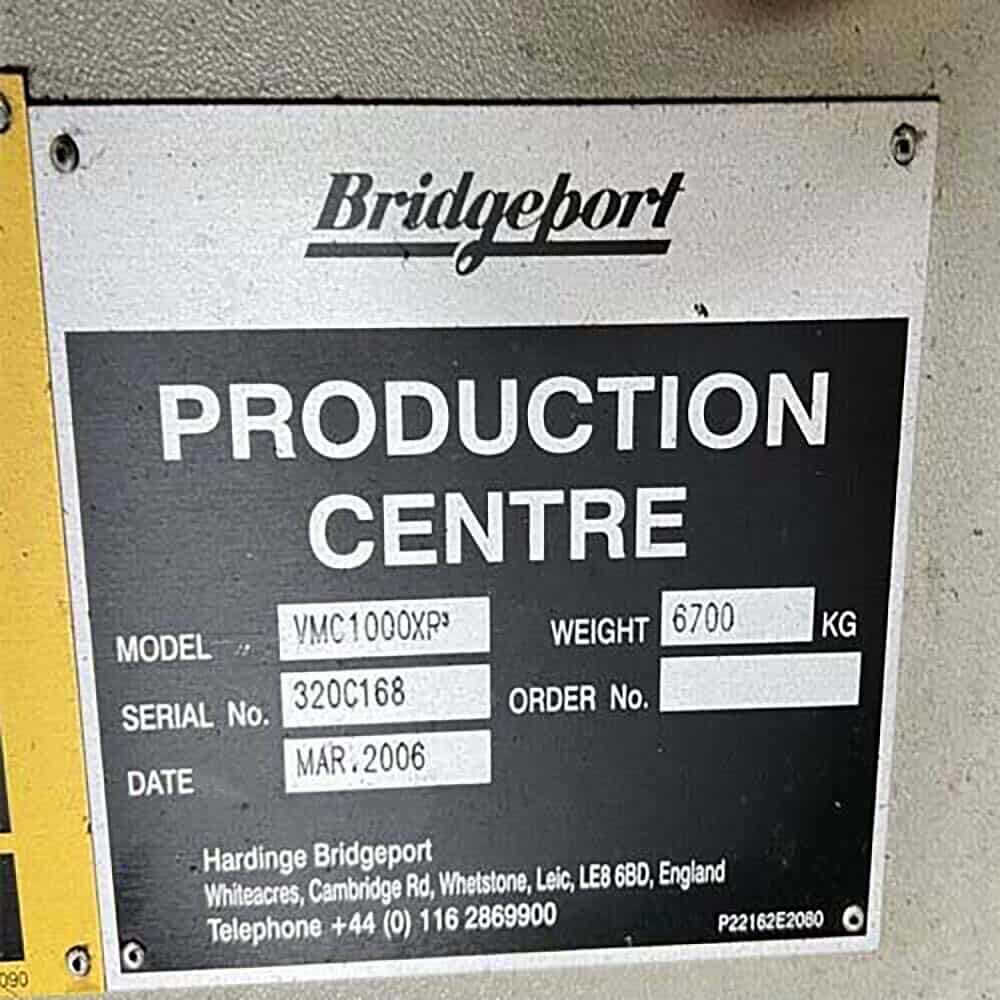

Serial: 320C168
Year: 2006
Condition: Very Good
Cutting Hours: 5376



Features:

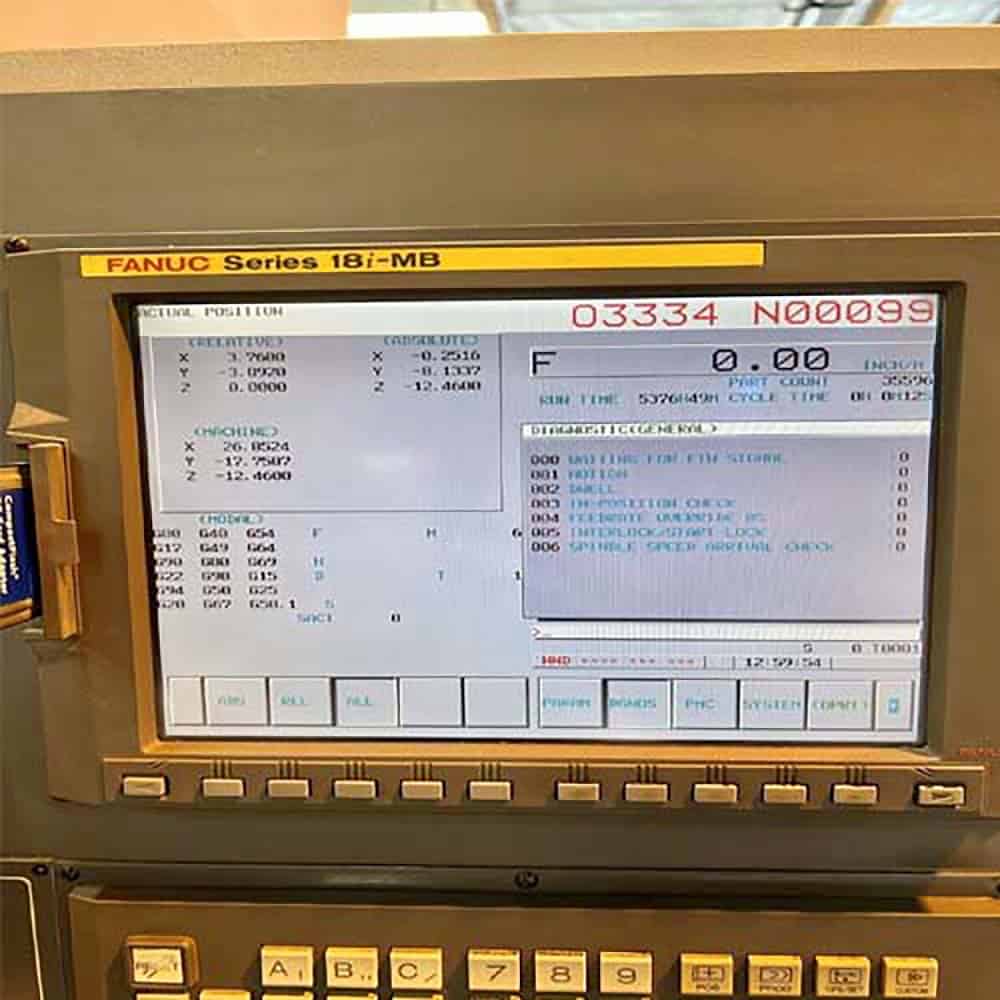

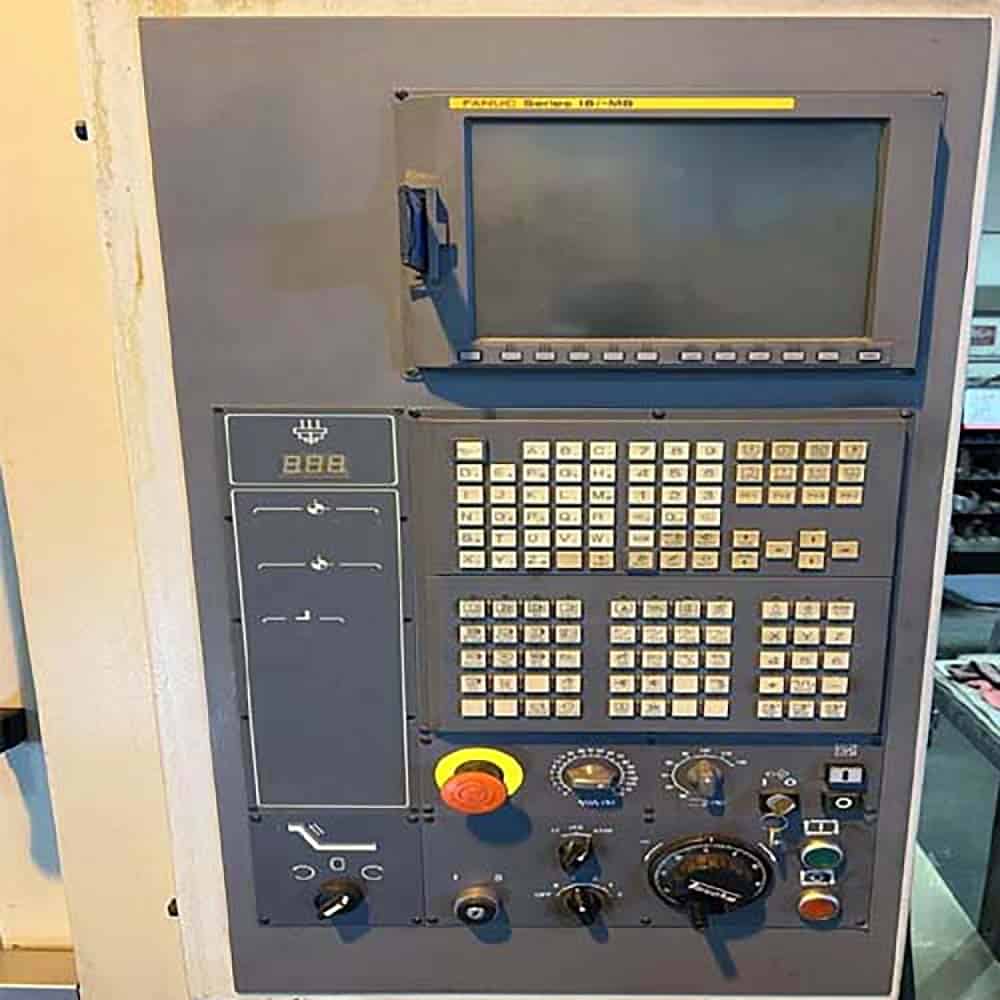

Fanuc 18i-MB Series CNC Control
12000 RPM High Precision Spindle
30 Station Side Mounted Automatic Tool changer
Thru Spindle Coolant
PCMCIA Card Slot
RS-232 Port
Hand Wheel MPG Control
Rigid Tapping
Telescopic way covers
Coolant Tank
Chip Conveyor
Books & Manuals

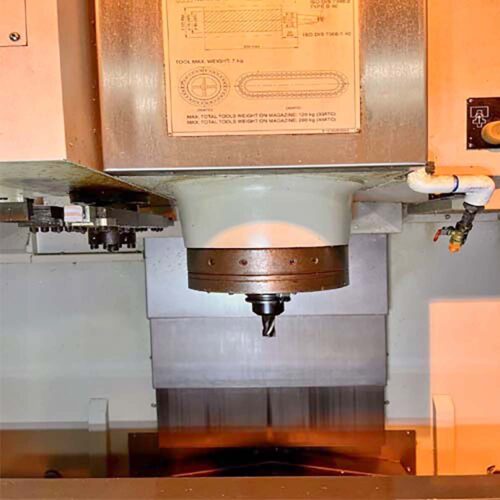

Spindle:
Taper Size: Big Plus 40
Speed Range: 12000 RPM
Spindle Power: 15 HP

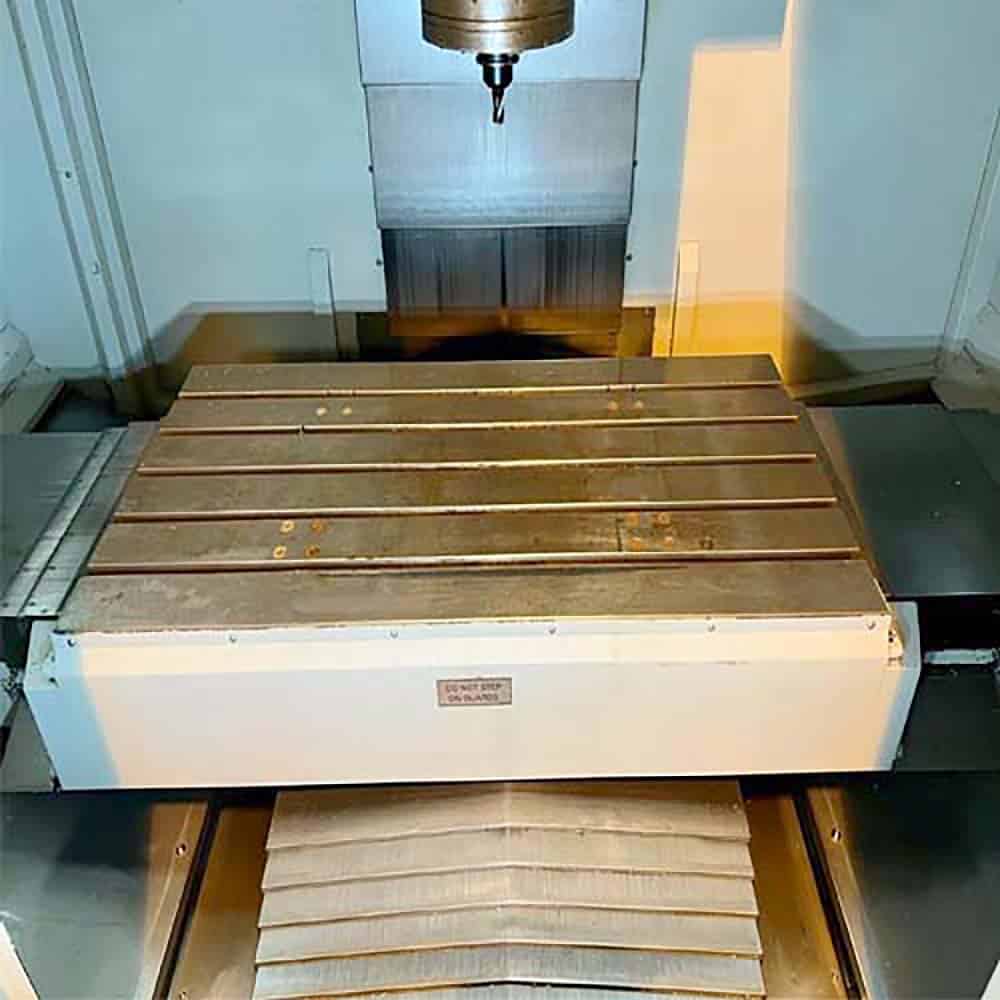

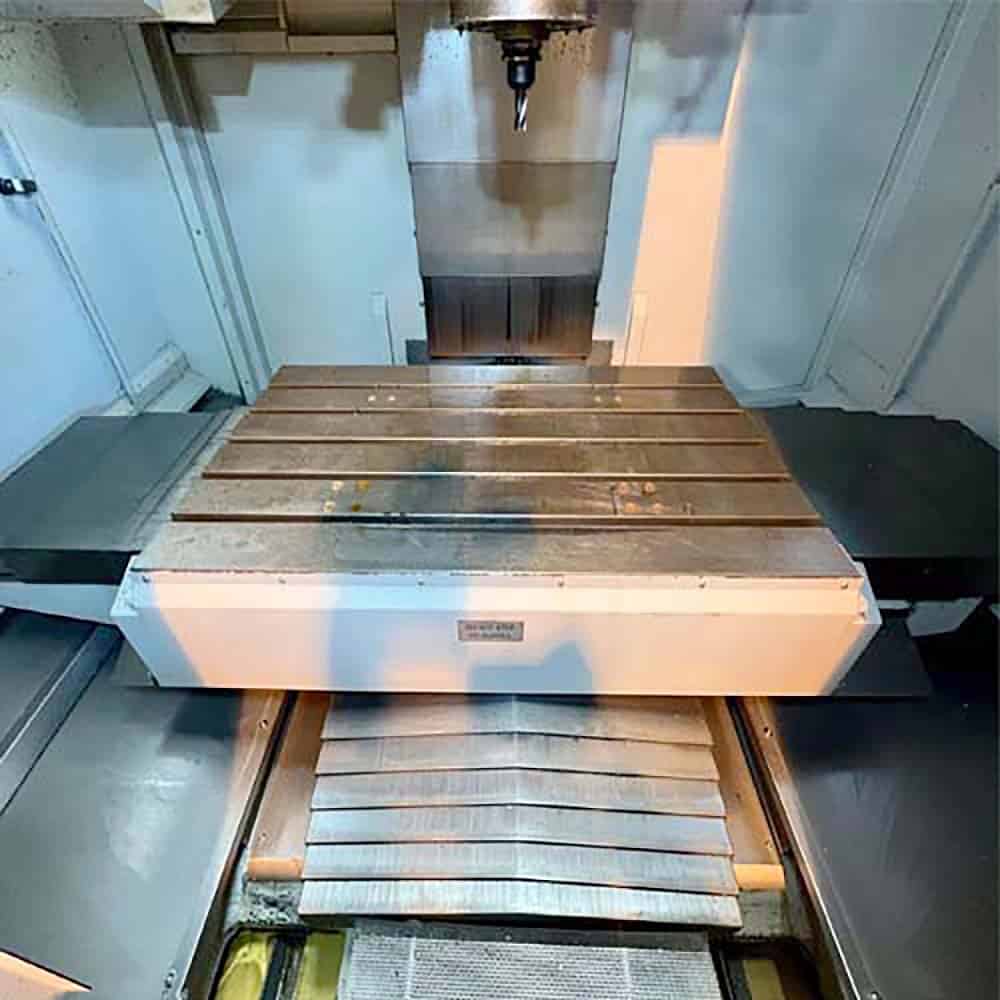

Table:
Length: 47.2″
Width: 23.6″
Number of Std T-Slots: 5
T-Slot Width: 0.7″X 4.72″
Max Weight on Table: 1763 lbs



Travels:
X-Axis: 41″
Y-Axis: 24″
Z-Axis: 24″
Rapid Traverse Rates X & Y Axis: 1692 IPM
Rapid Traverse Rates Z Axis: 1417 IPM
Cutting Feed Rates: 787 IPM
Spindle Nose to Table (Min.- Max.): 3.93″ – 27.95″



Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 15 lbs
Max Tool Dia: 3.38″
Max Tool Length: 11.81″
Tool Changing Time (Chip to Chip): 4 Seconds





General:
Air Required: 80 psi, 4 scfm
Power: 220v / 25 kva / 3-Phase
Overall Dimensions: 126″ x 112″ x 115″ High
Weight: 14770 lbs
