All specifications are approximations and are subject to verification.
“Machine with Live Tools, Hydraulic Tailstock. On Our Floor fully powered / tested & is in Great working condition.”
-

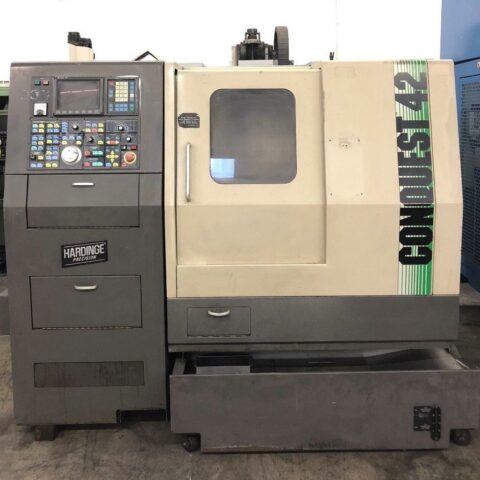

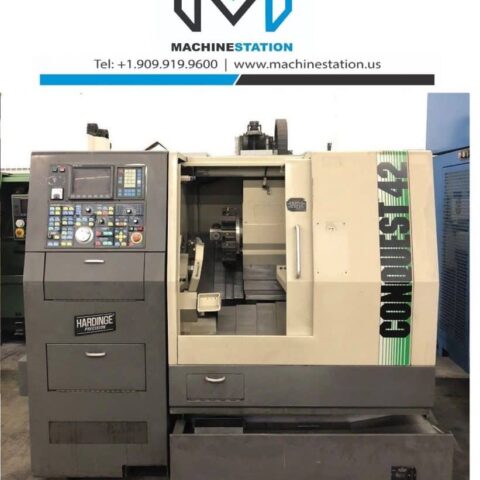

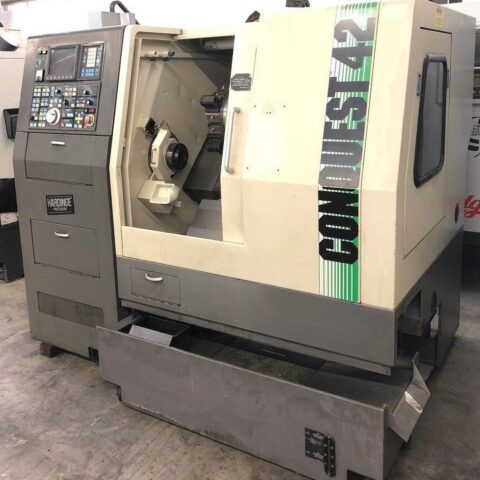

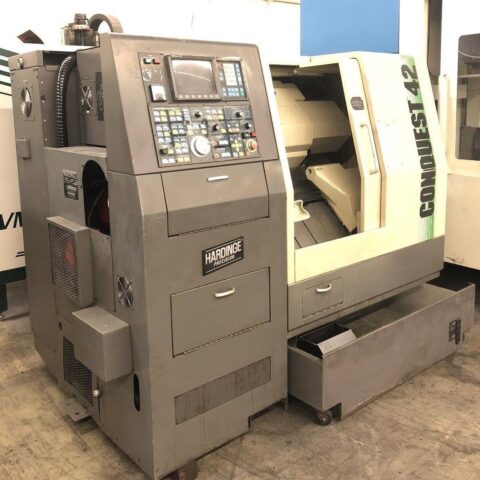

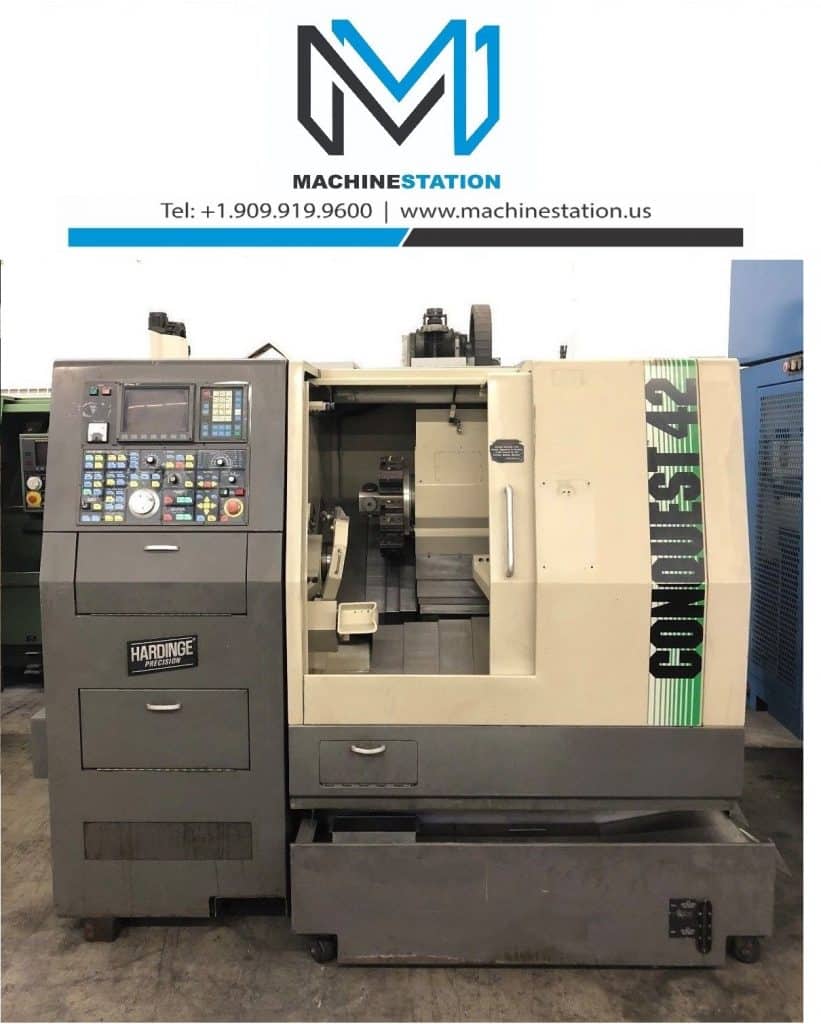

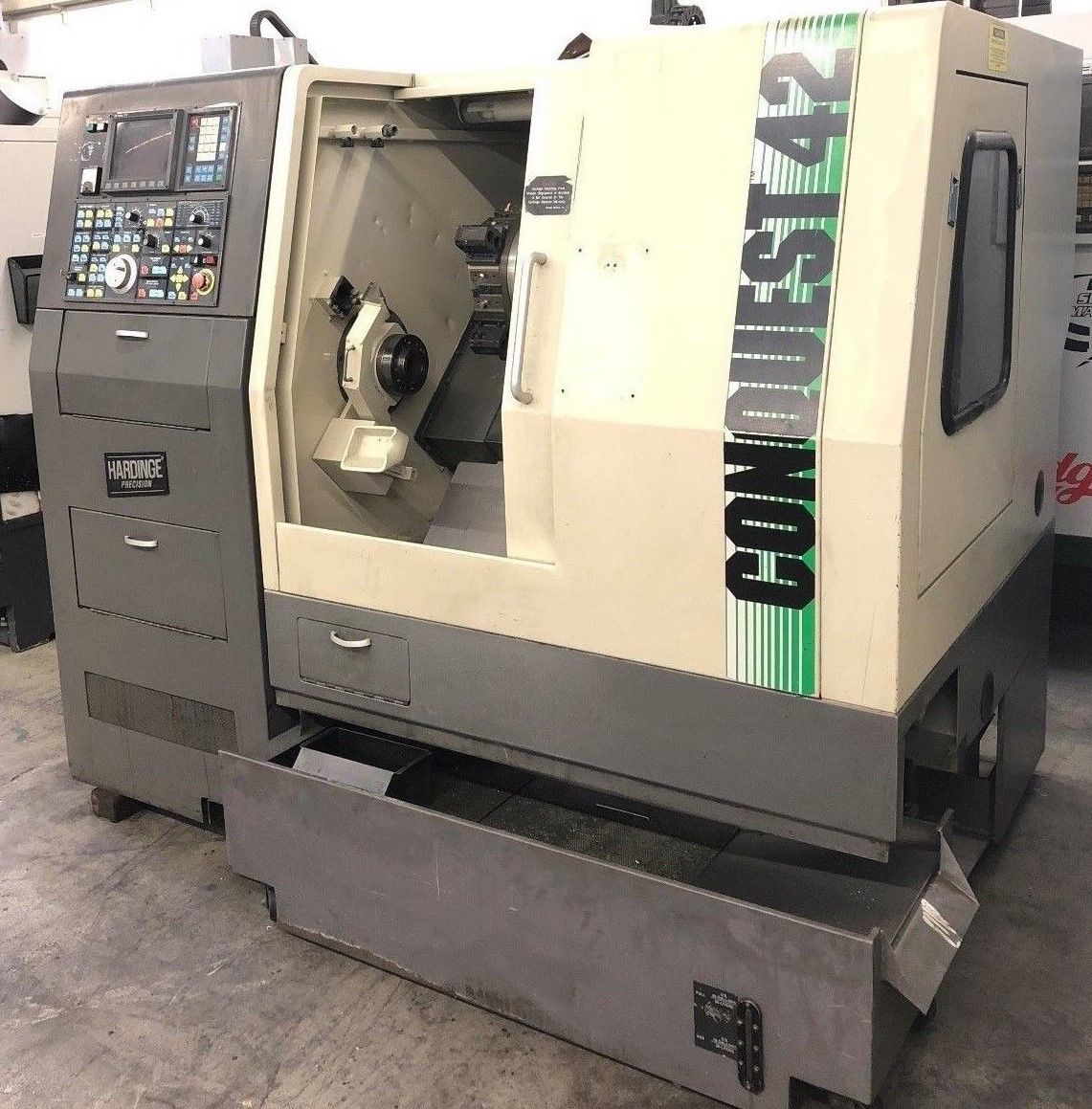

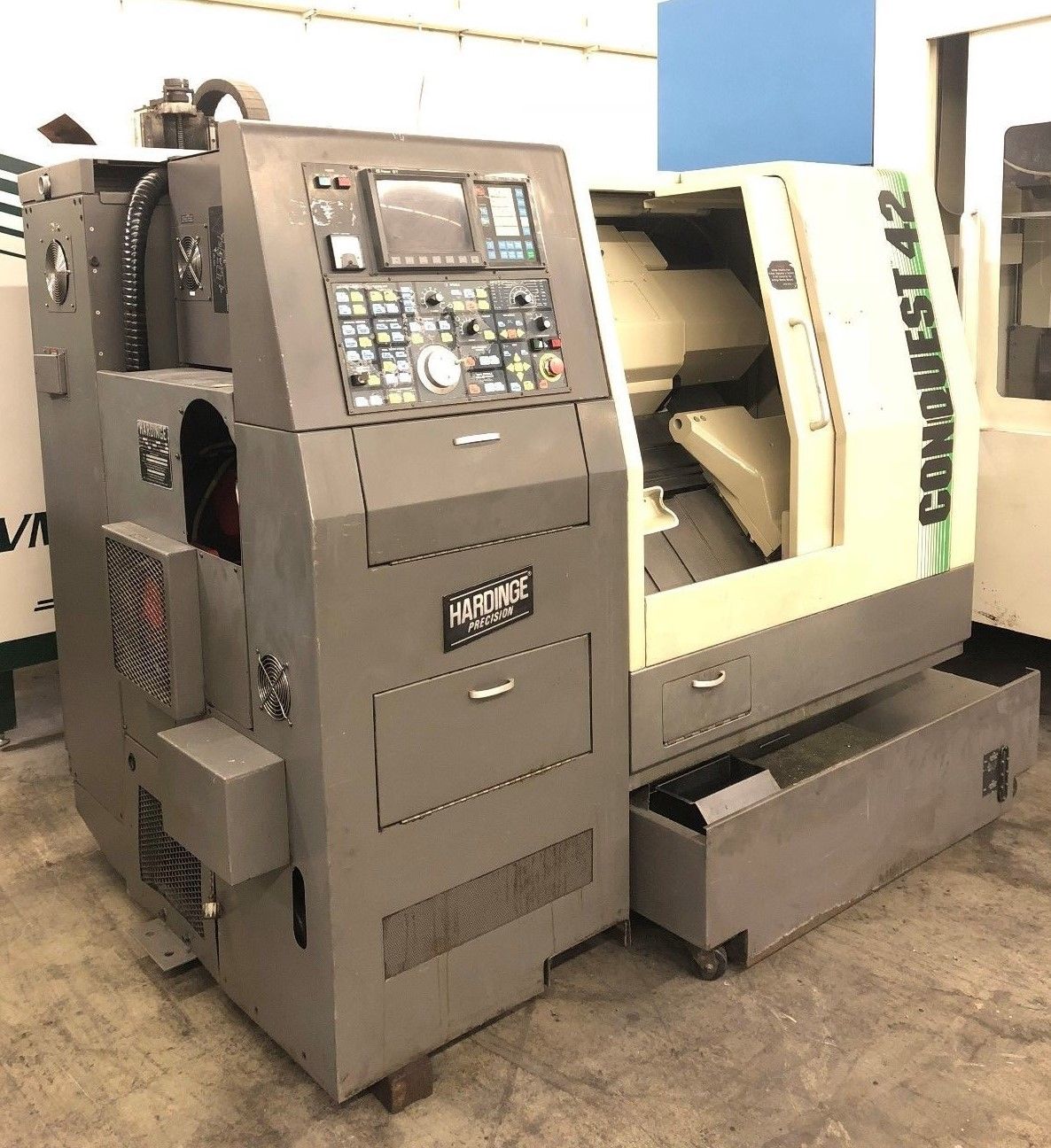

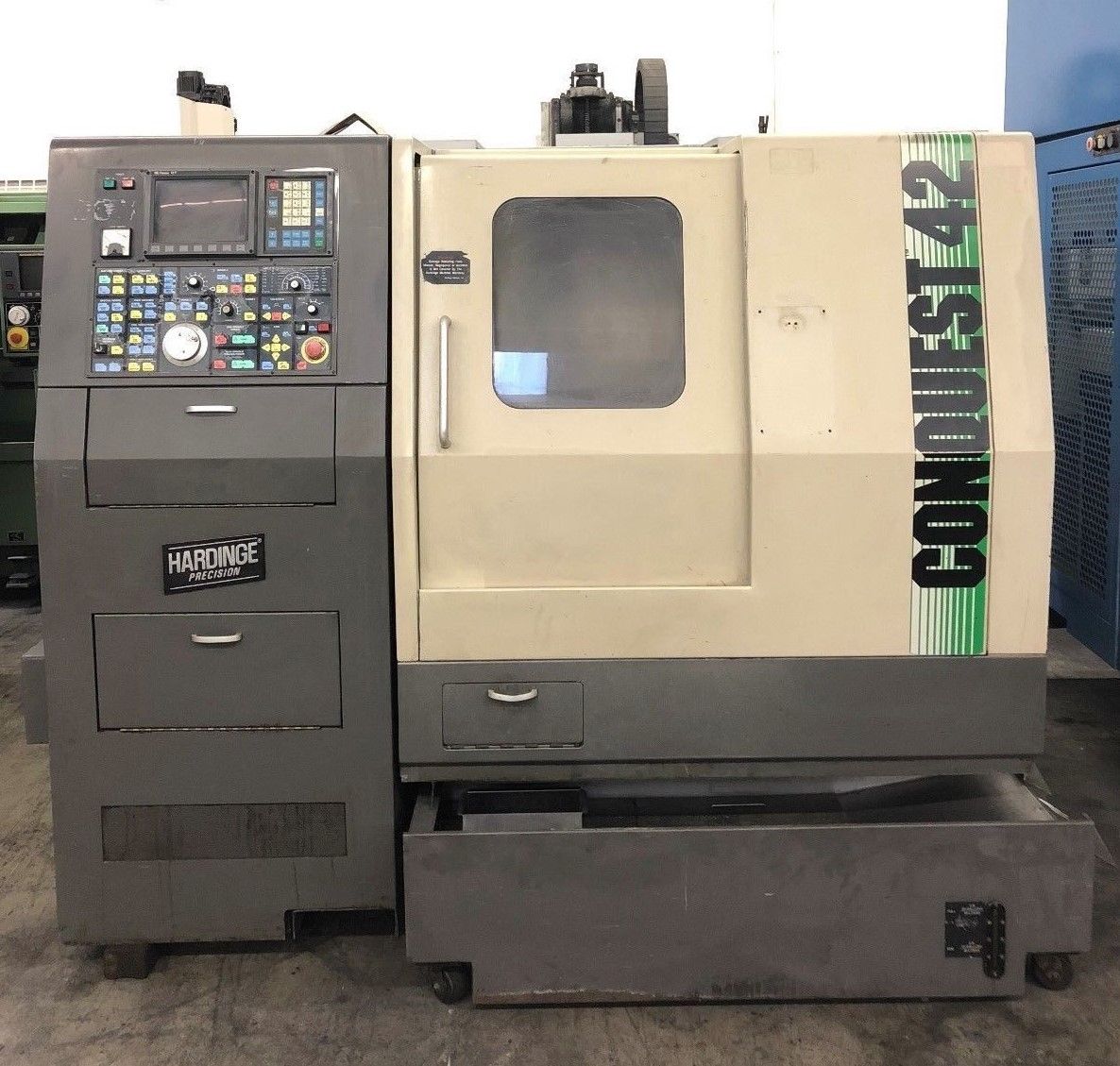

Hardinge Conquest 42 Equipped With:

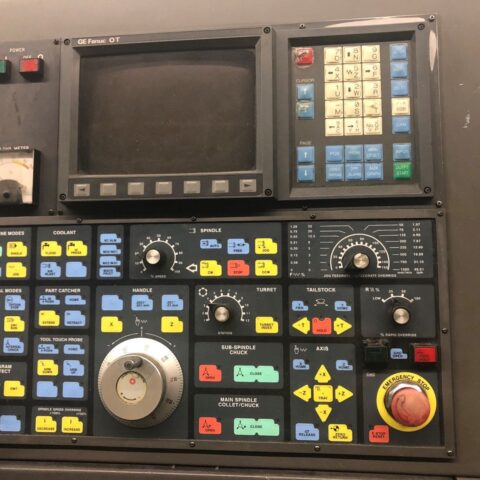

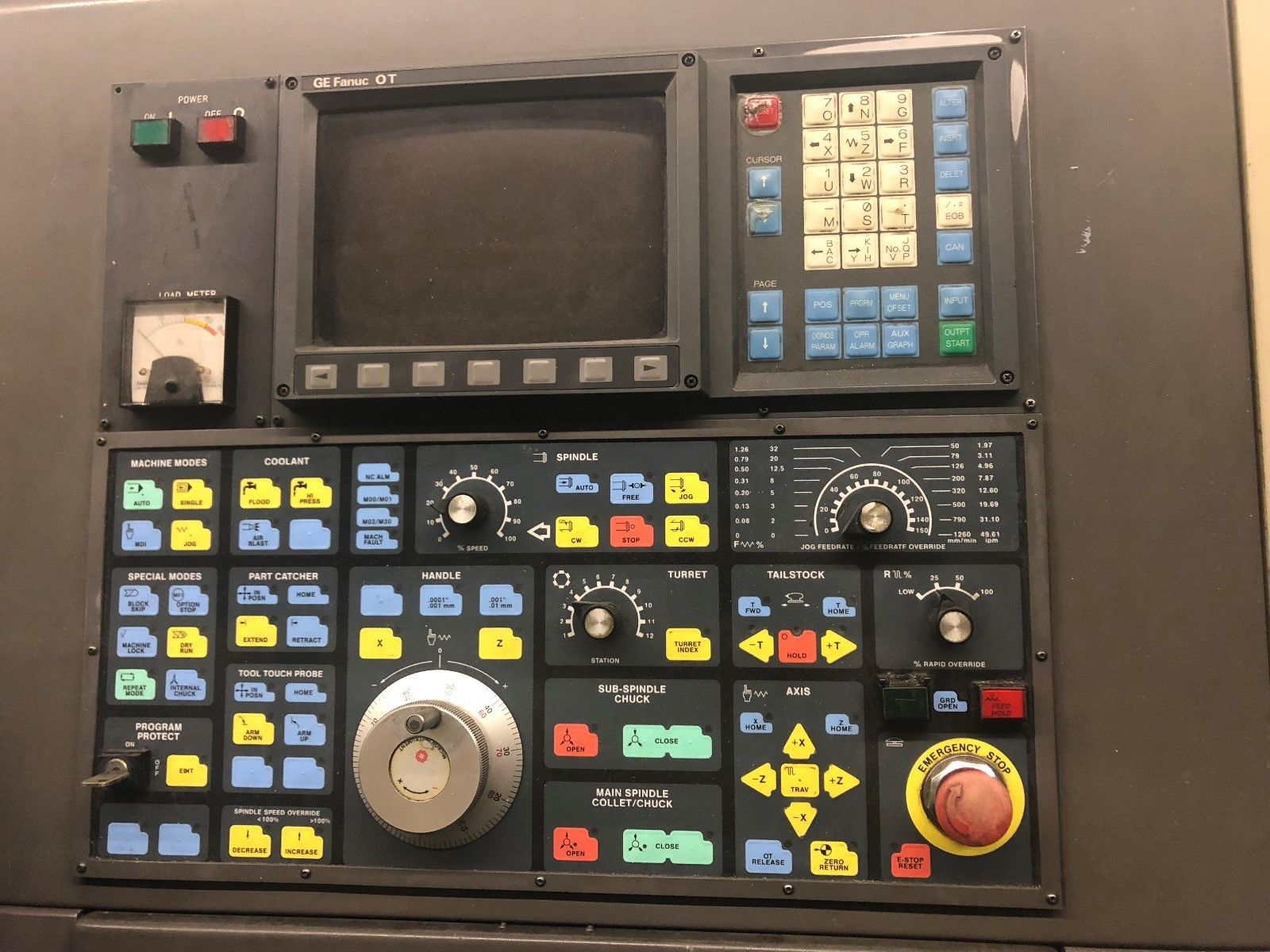

- Fanuc OTC CNC Control

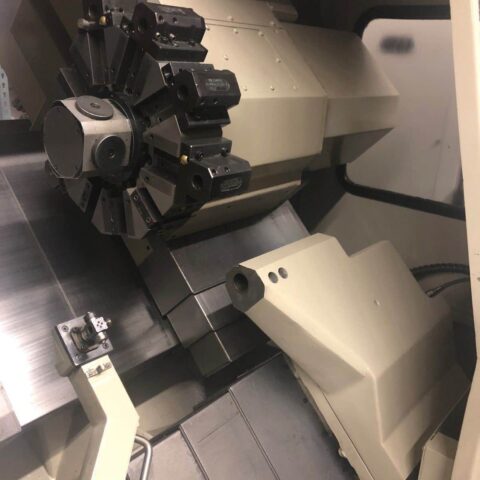

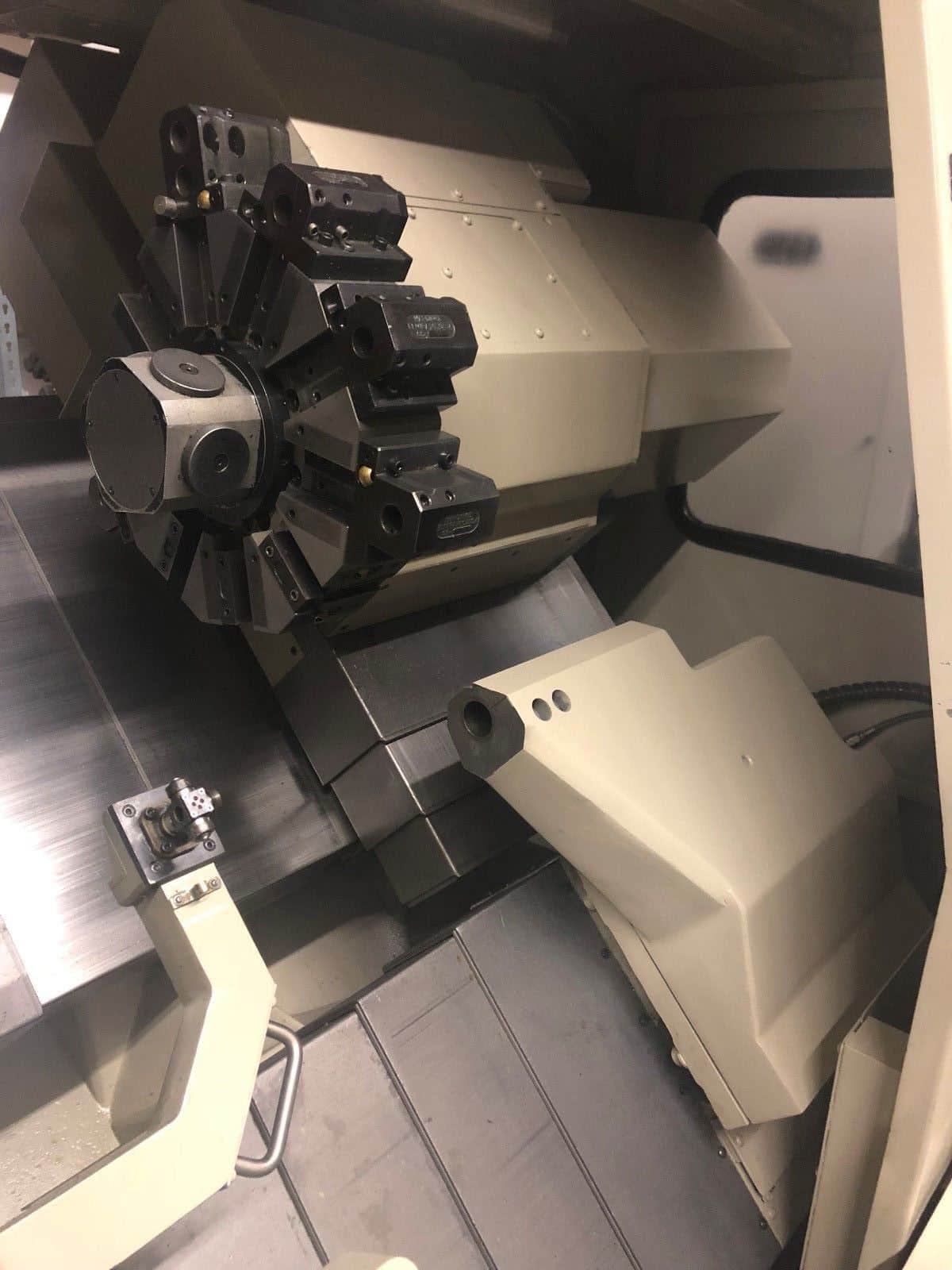

- 10 Station Turret with 5 Live Tooling Station
- C Axis on Spindle 2-1/2 Degree Indexing
- ATS Collet Hydraulic Chuck
- A2-5 Gear head Spindle
- Hydraulic Tailstock
- Parts Catcher
- Coolant System
- Barfeed Interface
- RS-232 ports
- Chip Pan
- Foot Switch
-
Hardinge Conquest 42 Specifications:
- Capacity:
- Max Turning Diameter: 16C Collet Capacity
- Max Turning Length: 13.6″
- Max Bar Capacity: 1.625″
- Swing Over Bed: 14.47″
- X Axis Travel: 5.31″
- Z Axis Travel: 13.9″
- Rapid Traverse X Axis: 472 IPM
- Rapid Traverse Z Axis: 630 IPM
- Spindle Nose: A2-5, 16C
- Spindle Bore: 1.625″
- Spindle Speed: 50 – 5000 RPM
- Spindle Motor: 10 HP
- Turret Capacity: 10 Station
- Live Tools Capacity: 5 Station
- Live Tool Speed : 40-4000 RPM
- Turret Index Time: 1 Second
- Tailstock Taper: MT-3
- Tailstock Quill Dia.: 3.15″
- Tailstock Quill Travel: 4″
-
General:
- Power: 220v / 3-Phase
- Overall Dimensions: 120″ x 70″ x 70″ High
- Weight : 8500 lbs Approx.
