*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

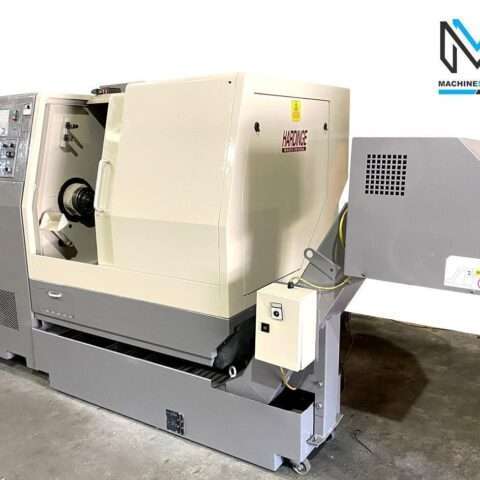

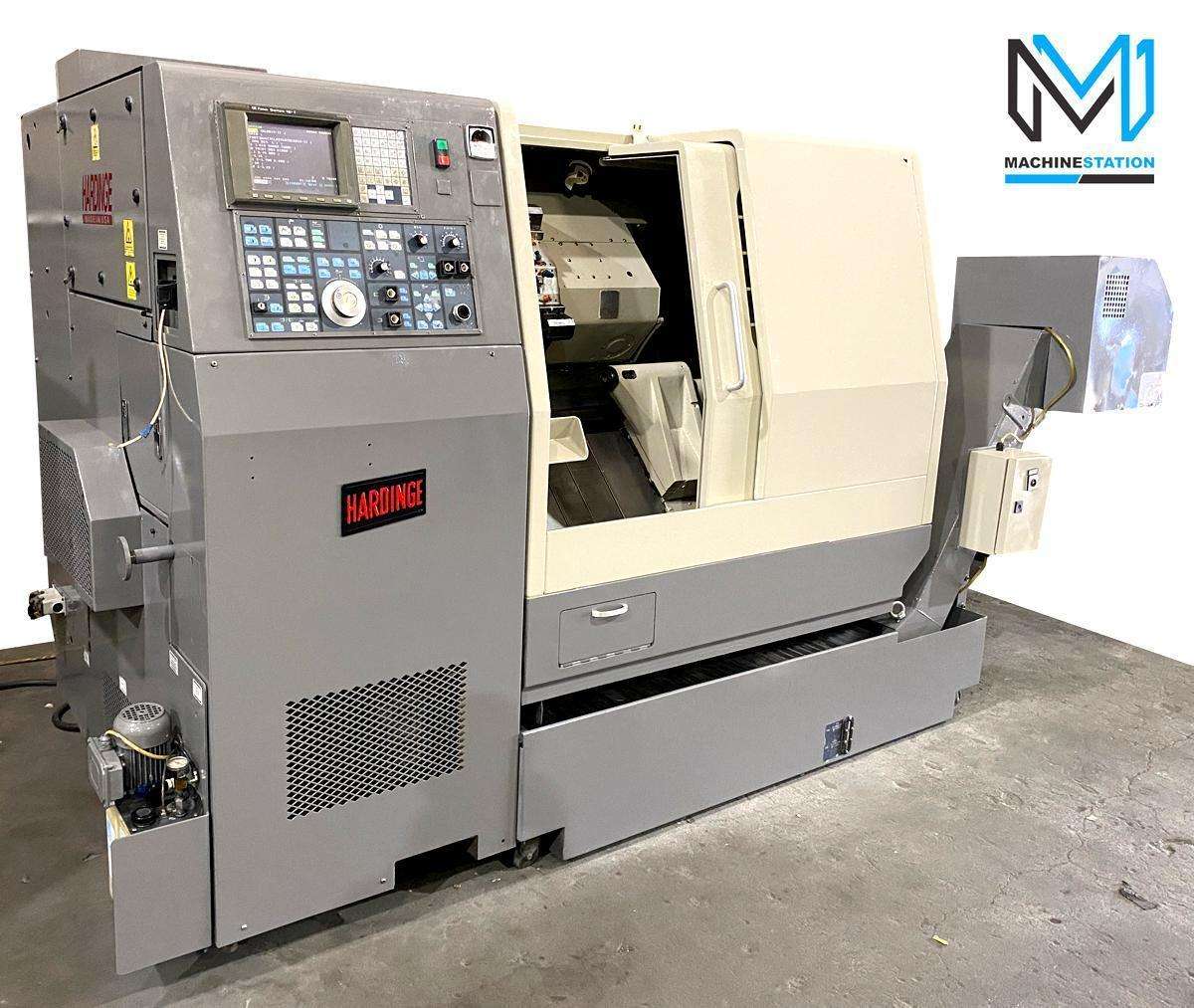

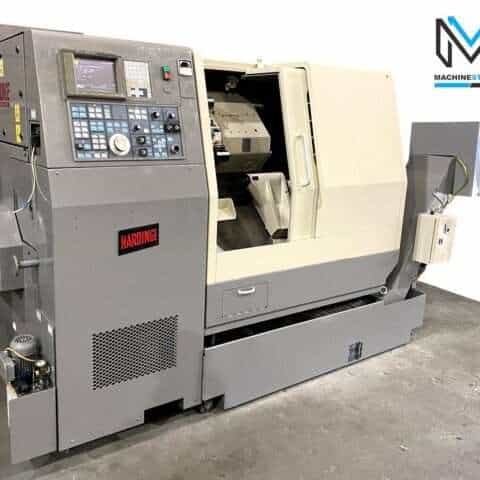

| Make: | HARDINGE |
| Model: | SG-42 CONQUEST T42 |
| Condition: | Used – Good |
| Equipped With: |
|---|

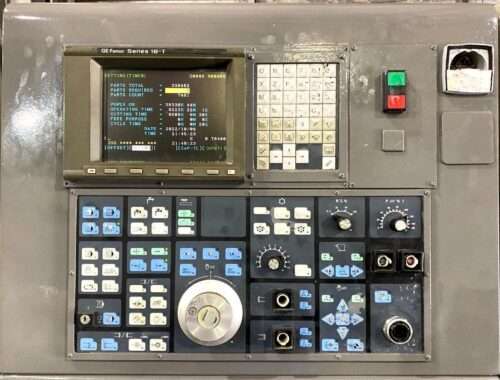

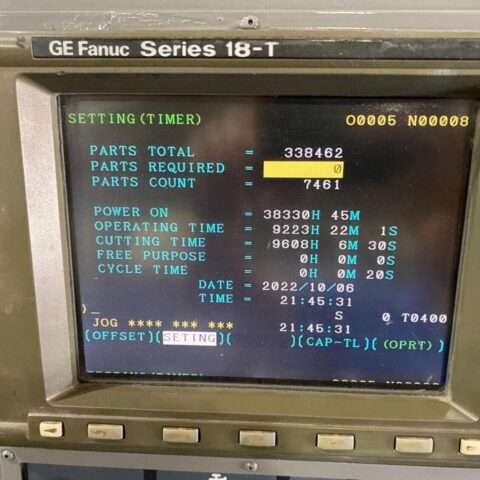

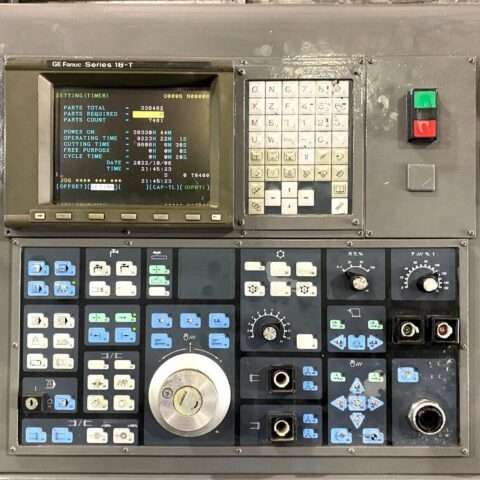

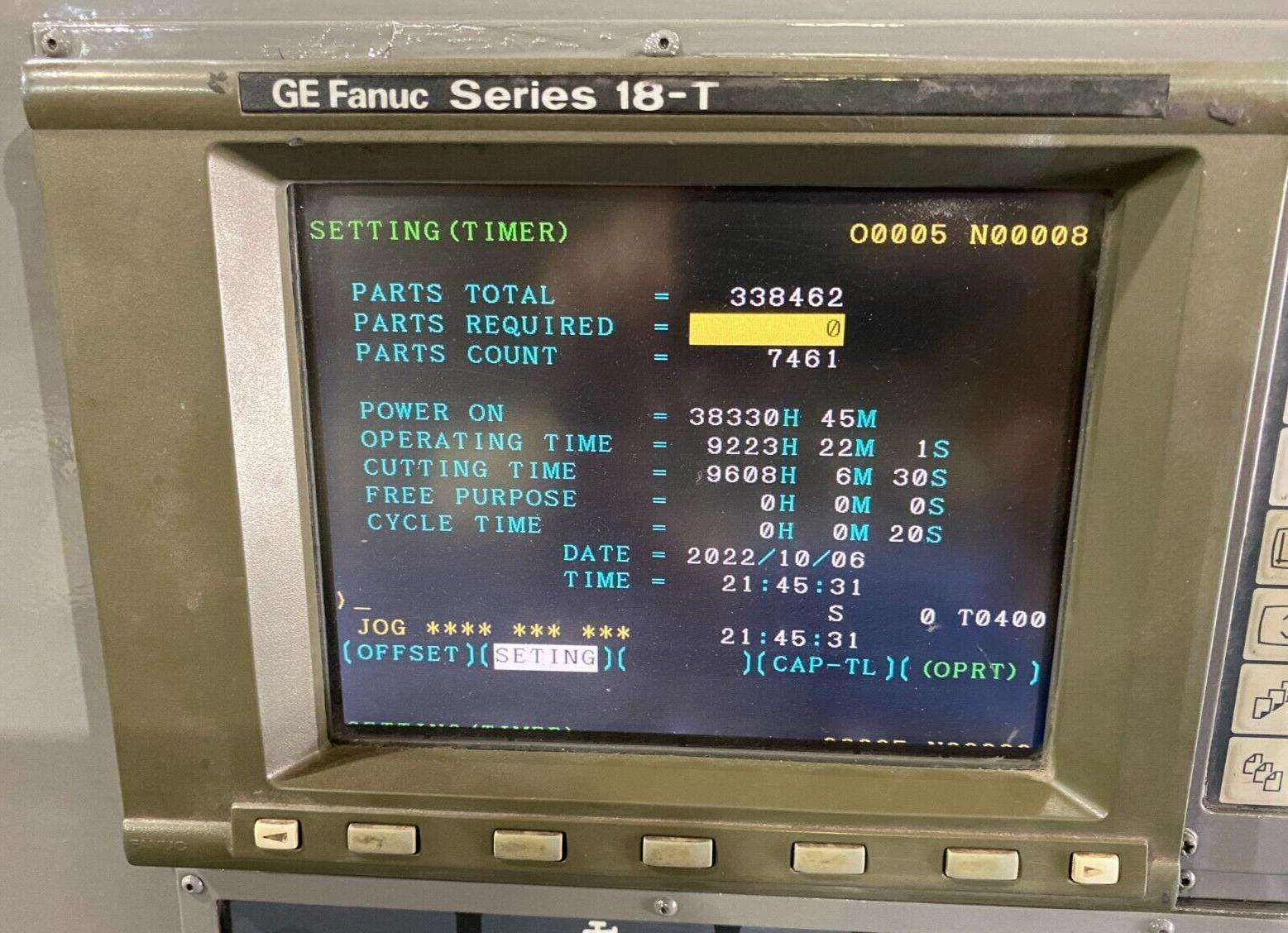

| GE Fanuc 18-T CNC Control |

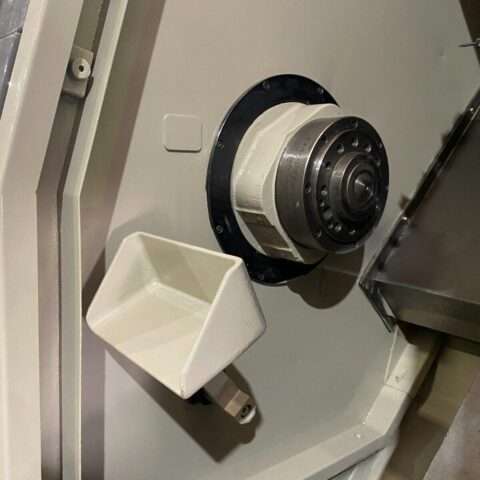

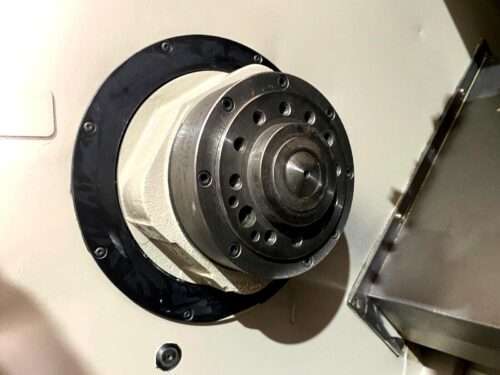

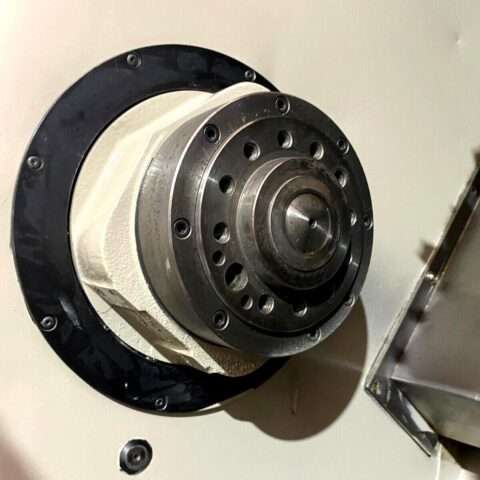

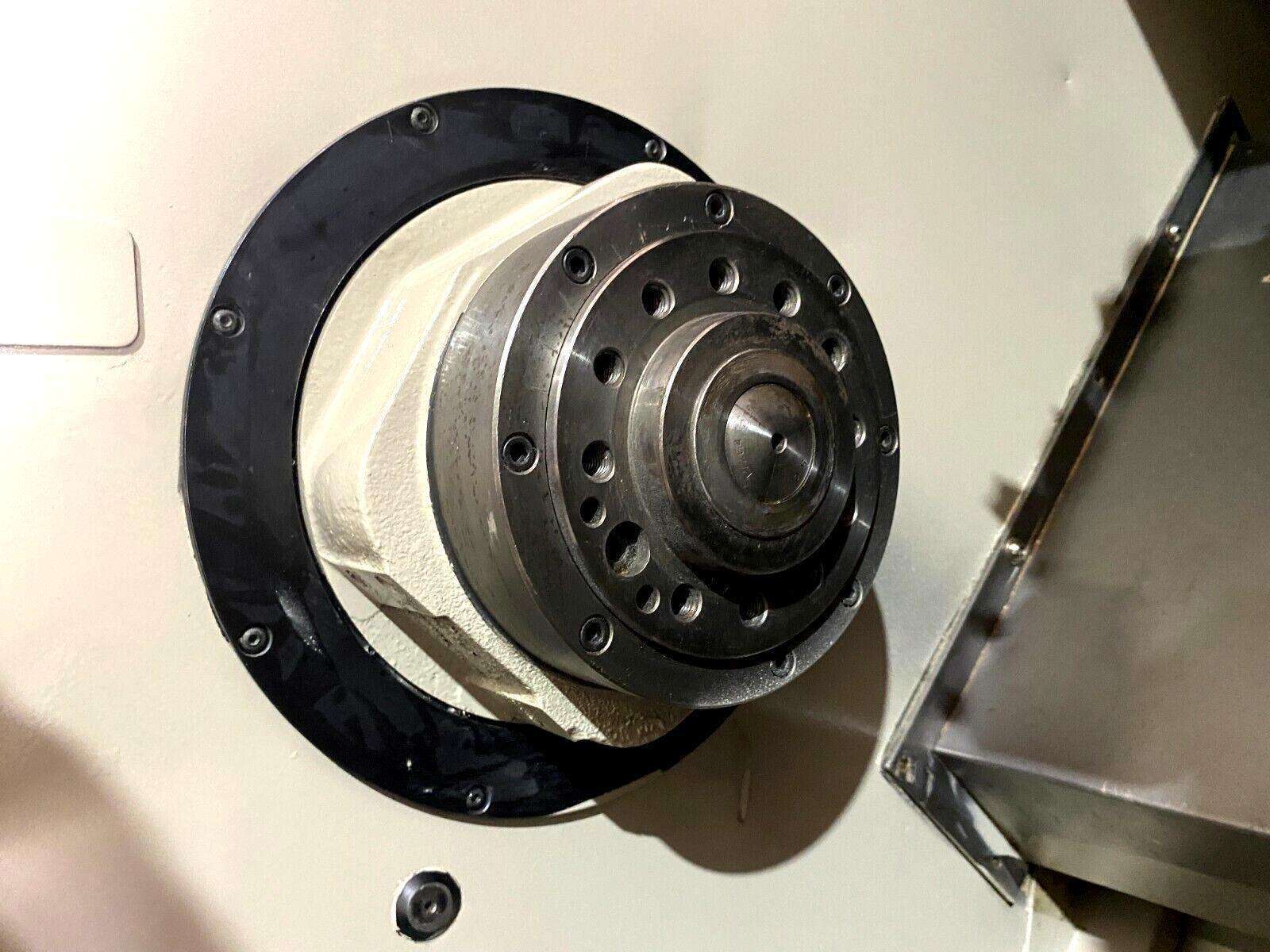

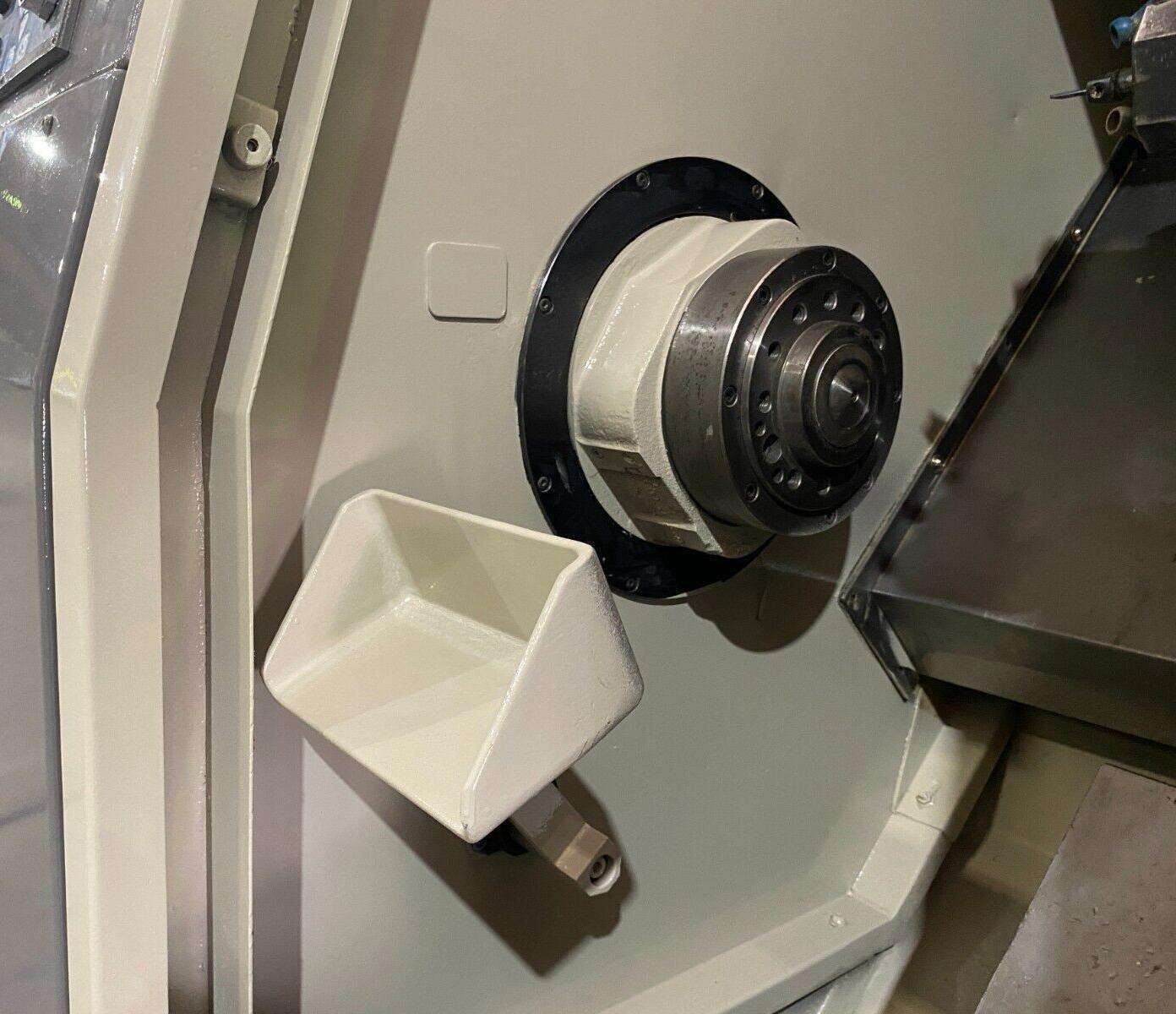

| Collet Chuck |

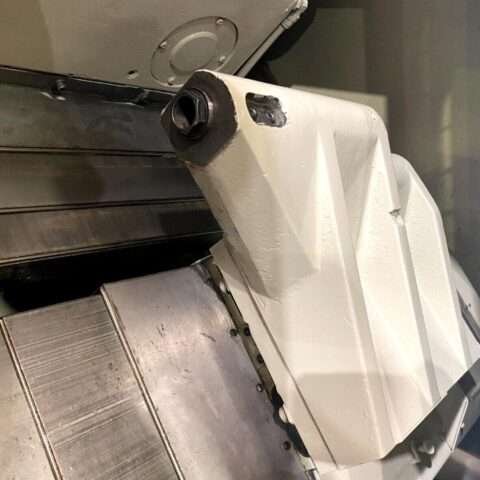

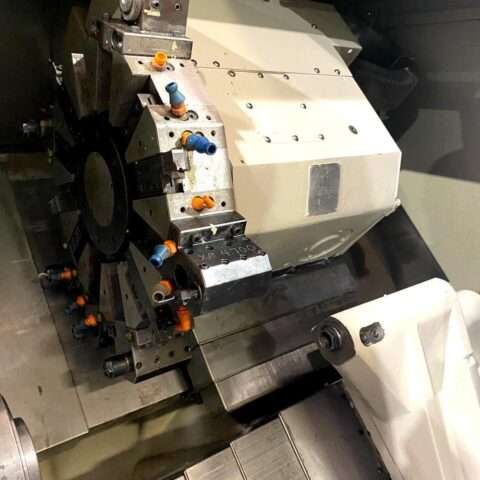

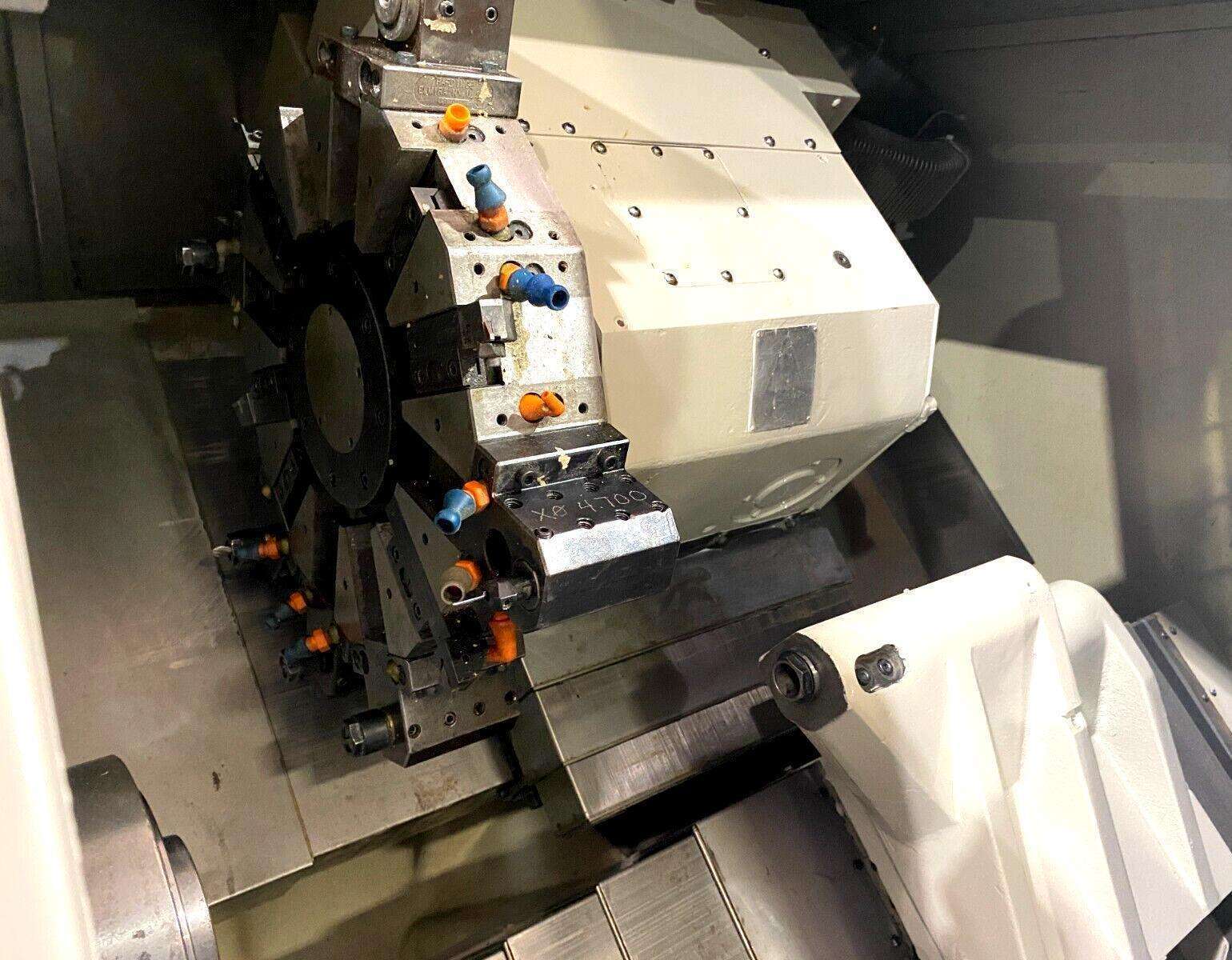

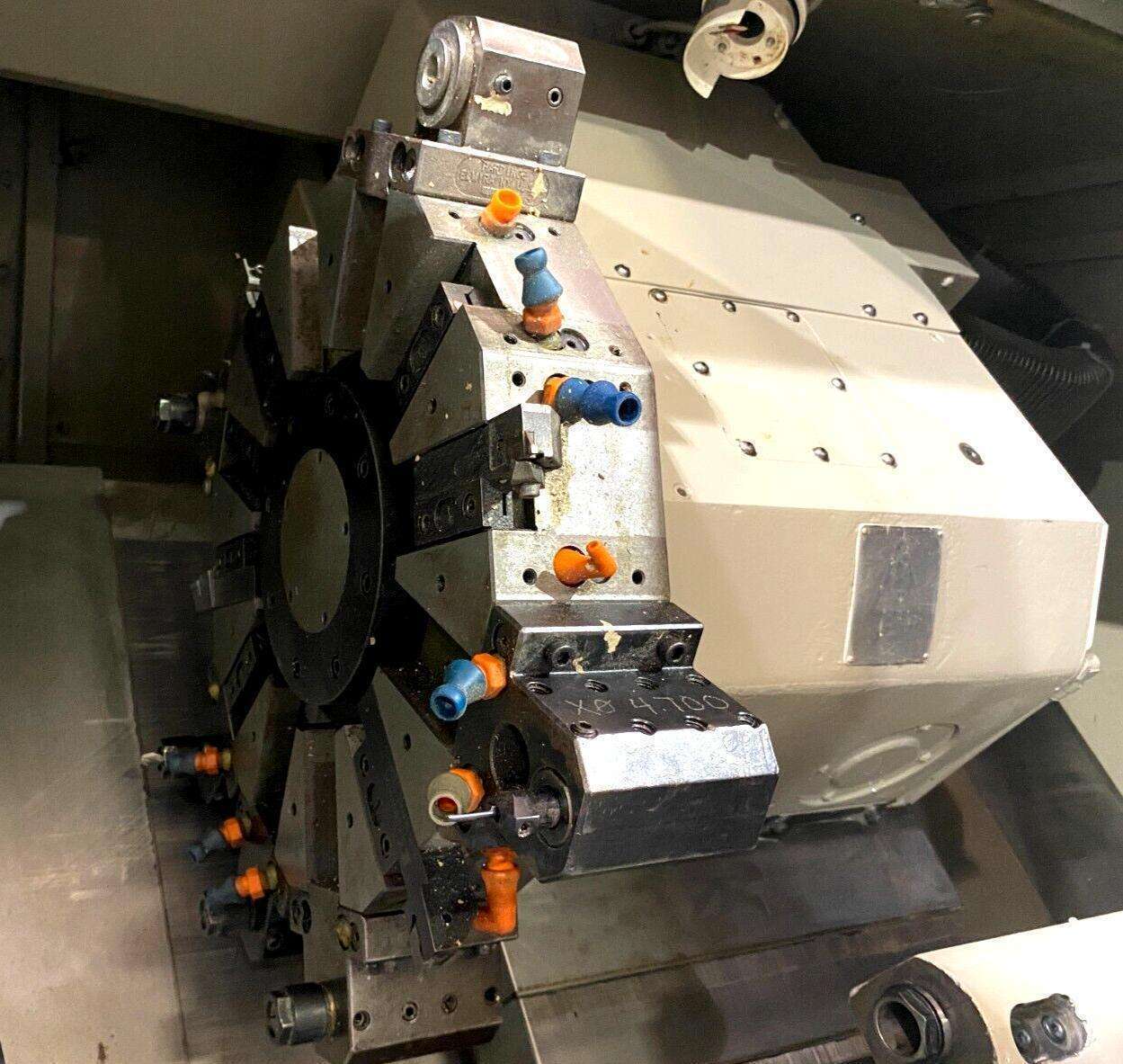

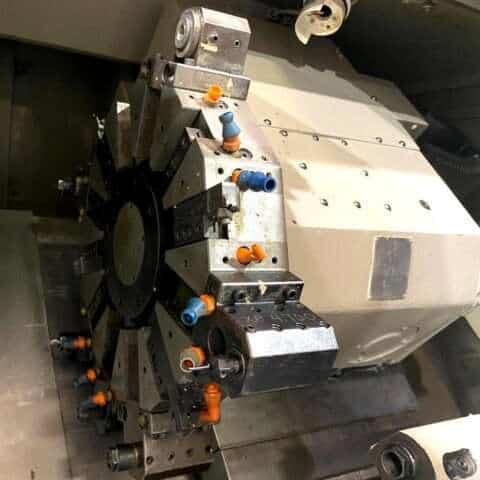

| 12-Station Turret |
| 15 HP Spindle for Powerful Torque |

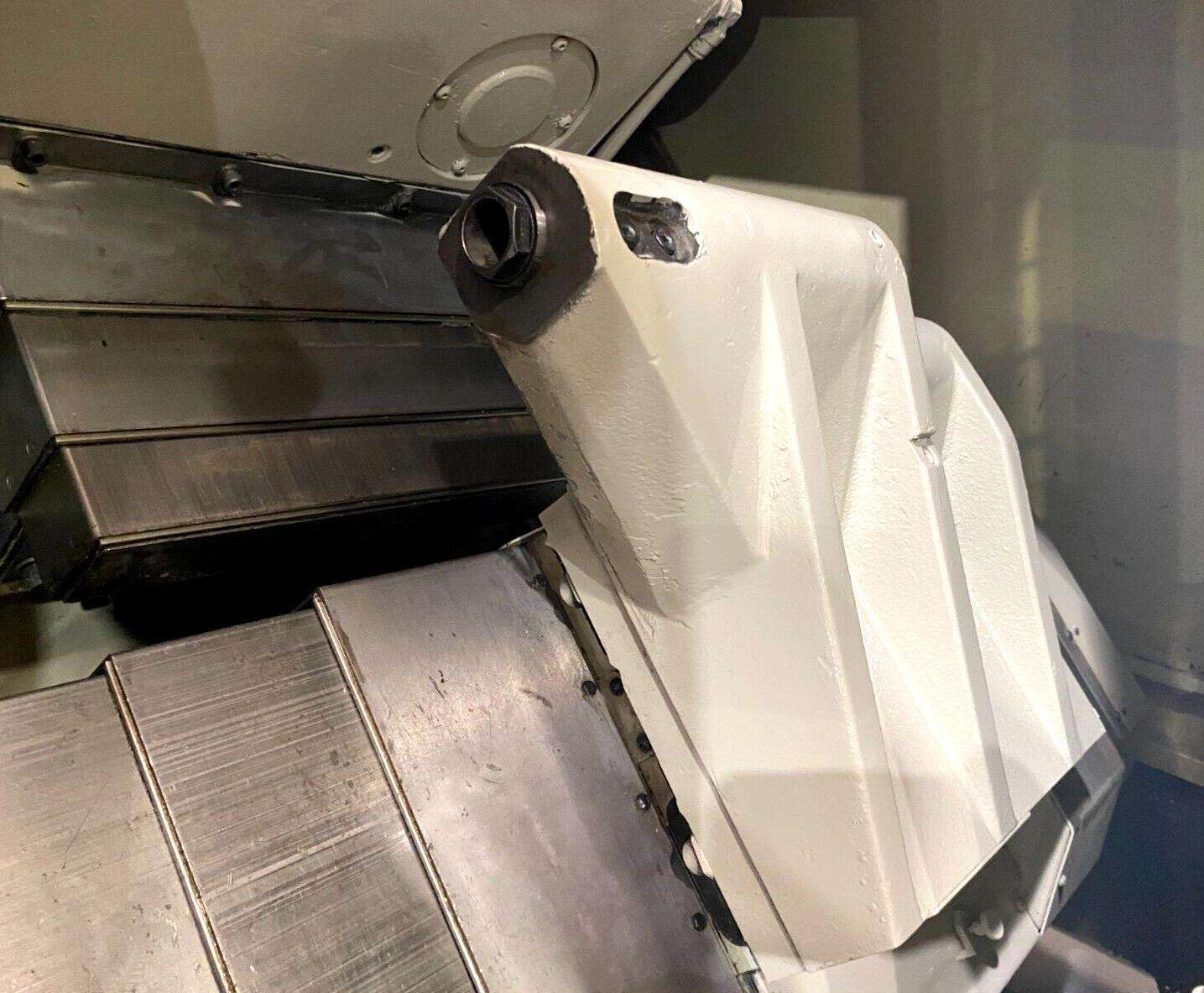

| Programmable Tailstock |
| Part Catcher |
| RS-232 Port |
| Automatic Lubrication system |
| Coolant System |
| Chip Pan and Chip Conveyor |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 9.5″ |
| Max Turning Length: 13.9″ |
| Max Bar Capacity: 1.62″ |
| Swing Over Bed: 14.47″ |
| Distance Between Centers: 14″ |
| Travels: |
|---|
| X Axis Travel : 5.31″ |
| Z1 Axis Travel : 13.9″ |
| Rapid Traverse X Axis: 472 IPM |
| Rapid Traverse Z Axis: 630 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Bore: 2.0″ |
| Spindle Speed: 44-4400 RPM |
| Spindle Motor: 15 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.5 Second |
| Tailstock: |
|---|
| Tailstock Body Travel: 10.2″ |
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 3.1″ |
| Tailstock Quill Travel: 3.1″ |
| General: |
|---|

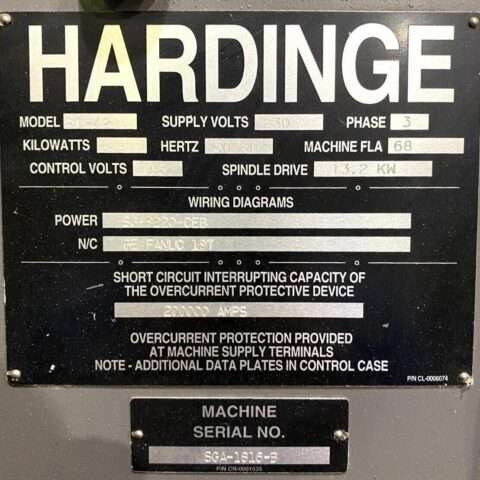

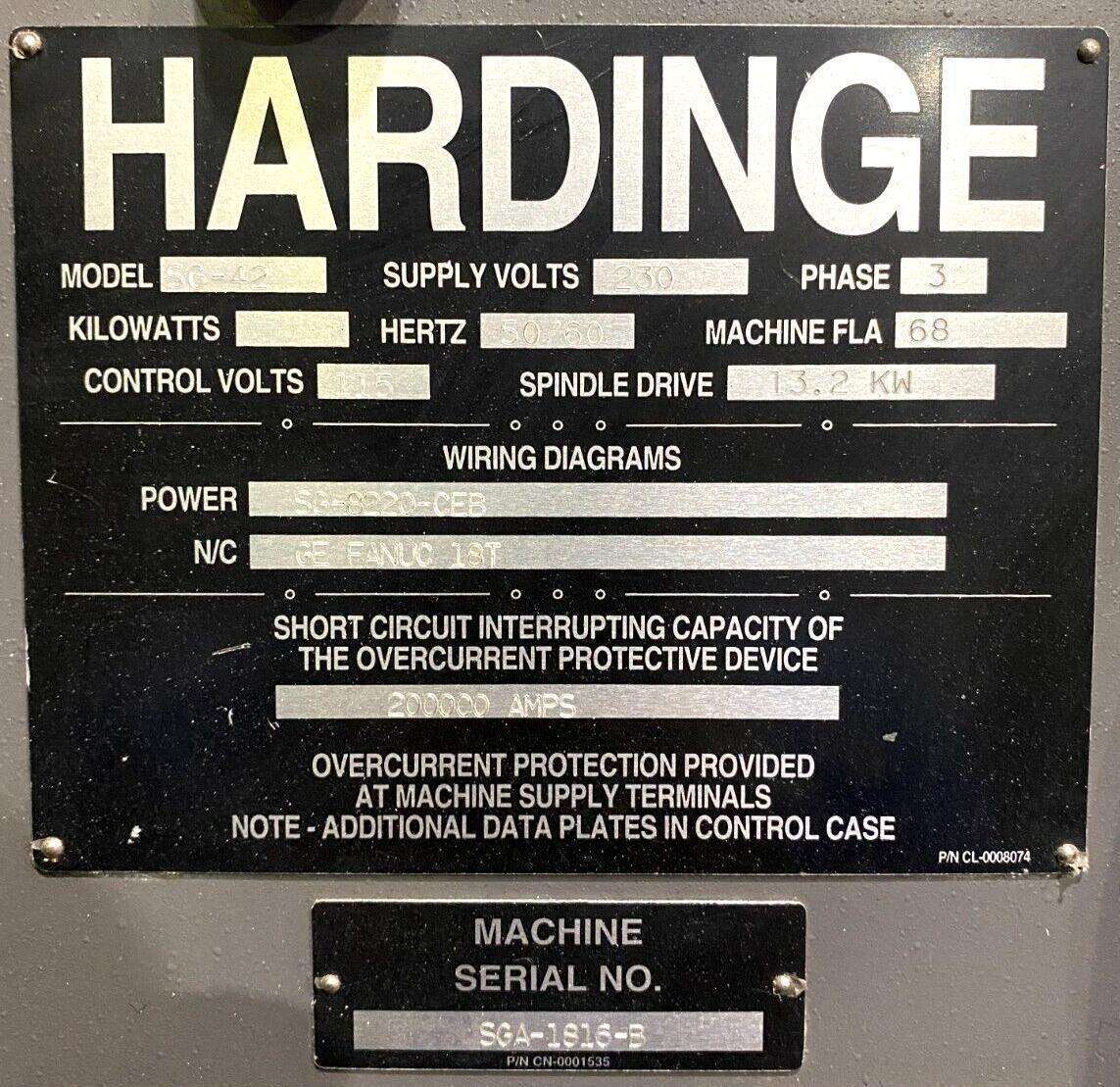

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Power Requirement: 15 kva |
| Machine Dimensions: 88″ x 68″ x 67″ High |
| Machine Weight: 9,000 lbs Approx. |
