All specifications are approximations and are subject to verification.
-

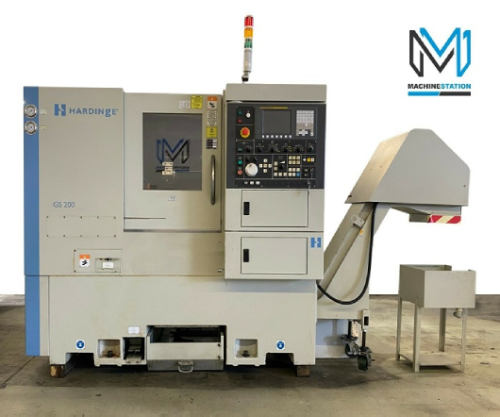

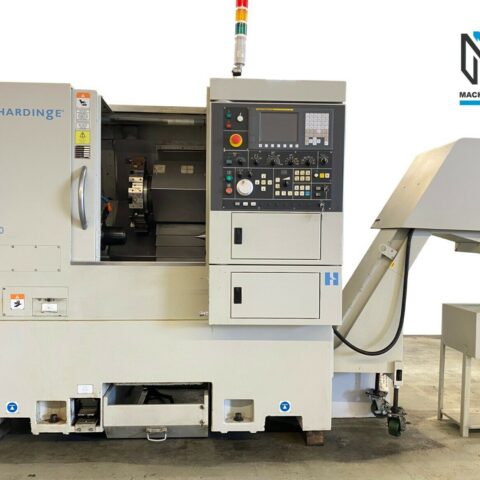

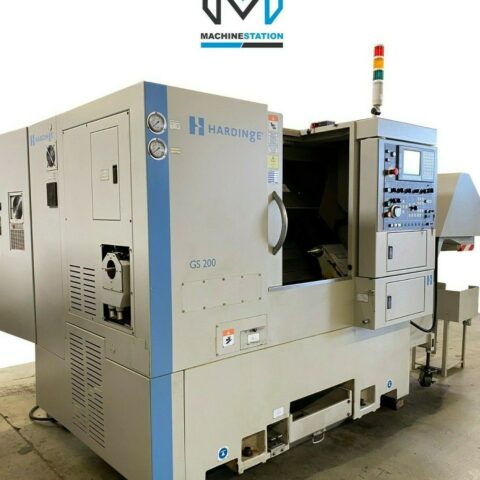

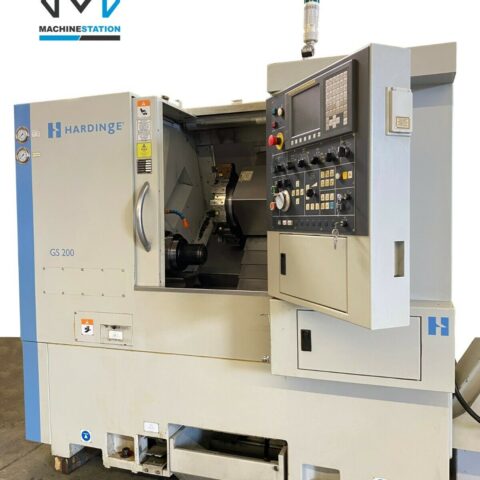

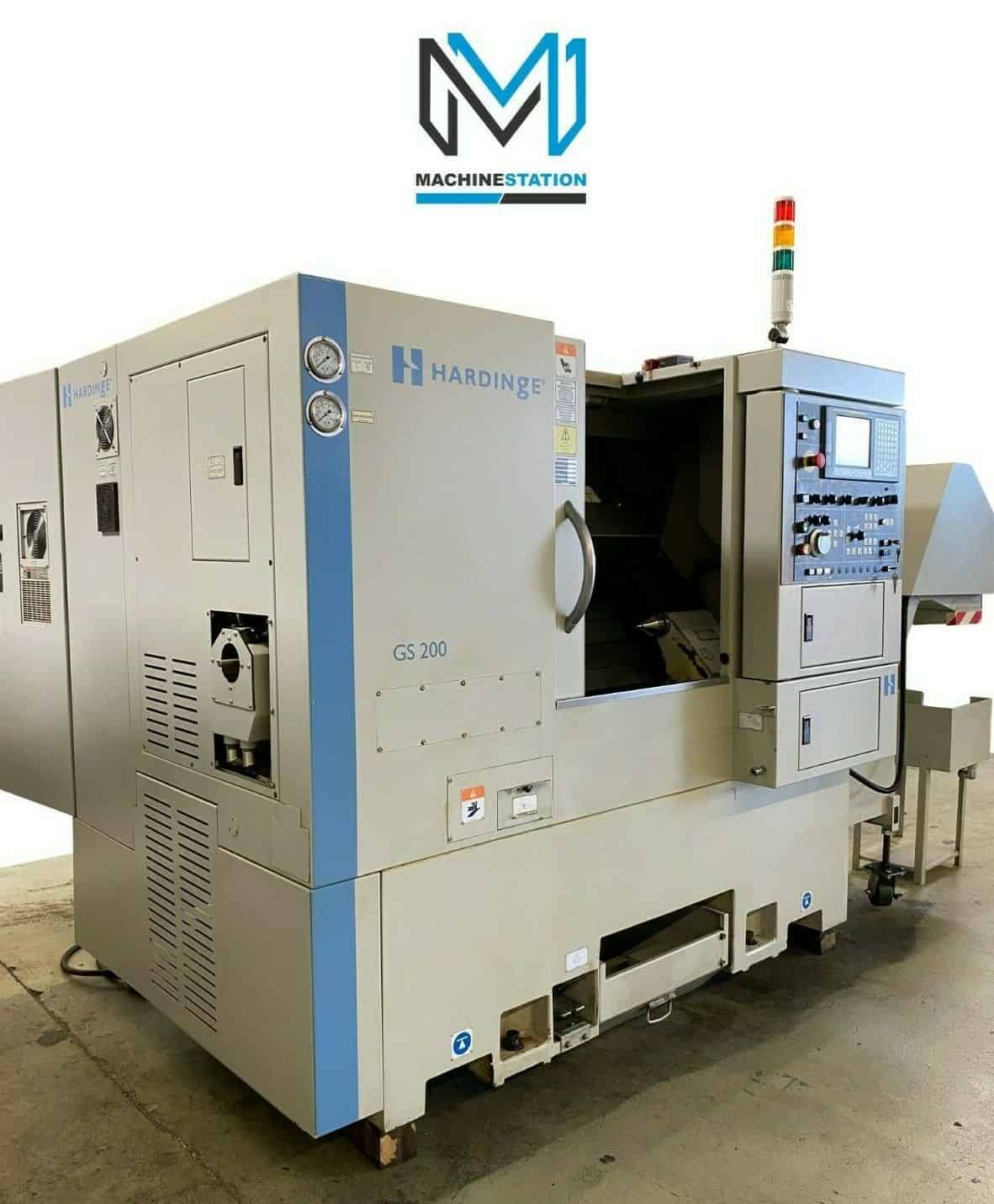

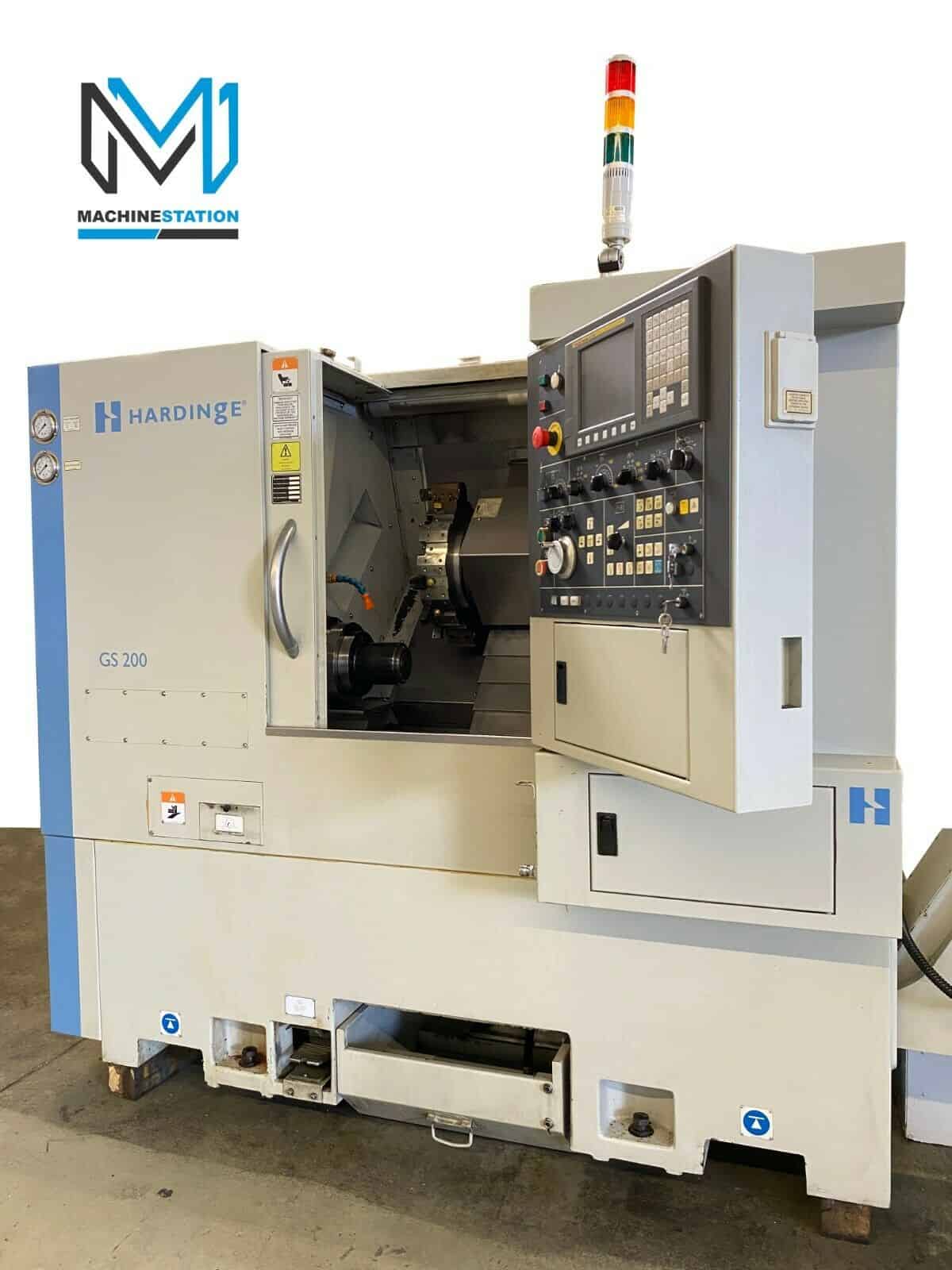

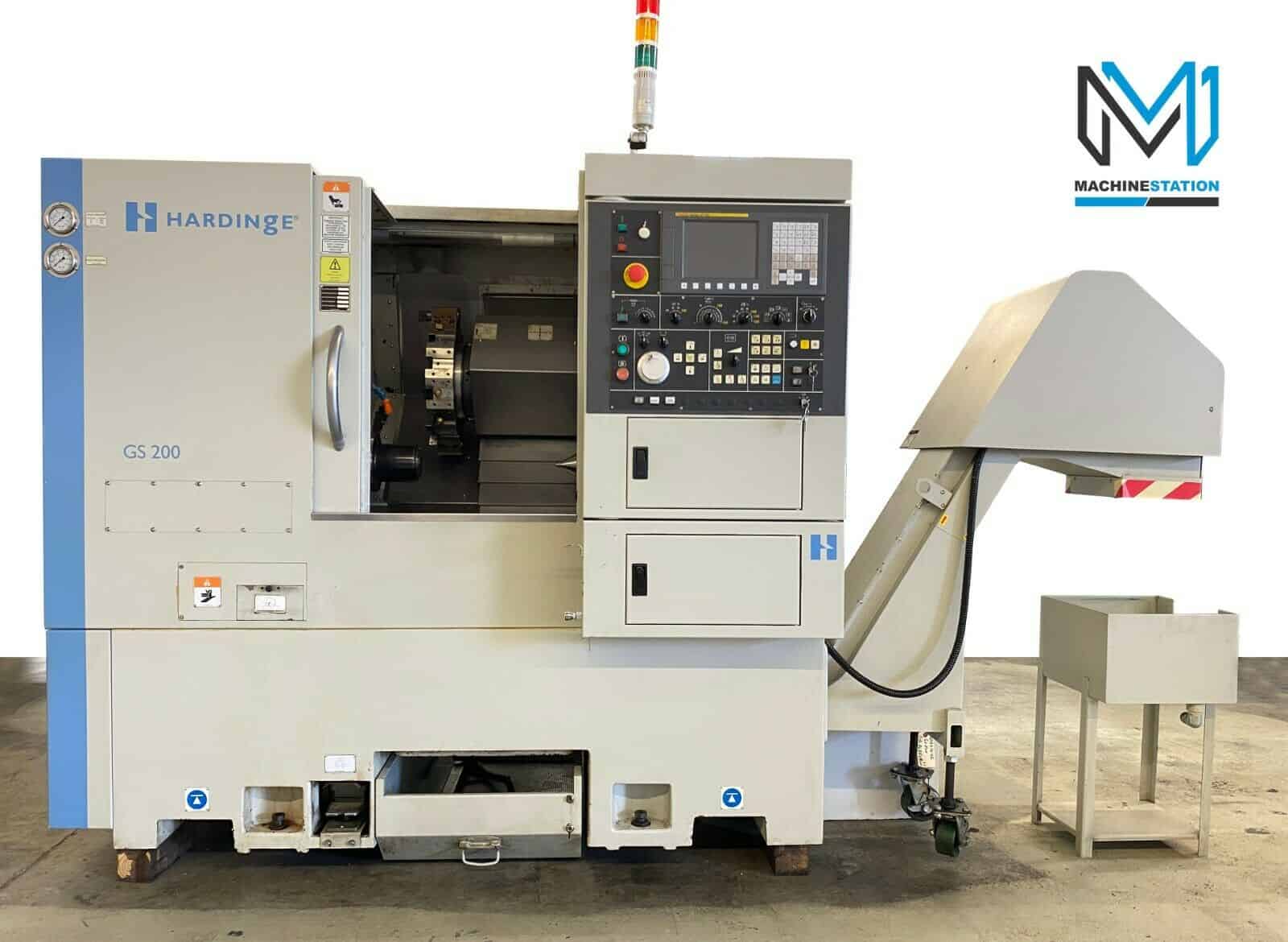

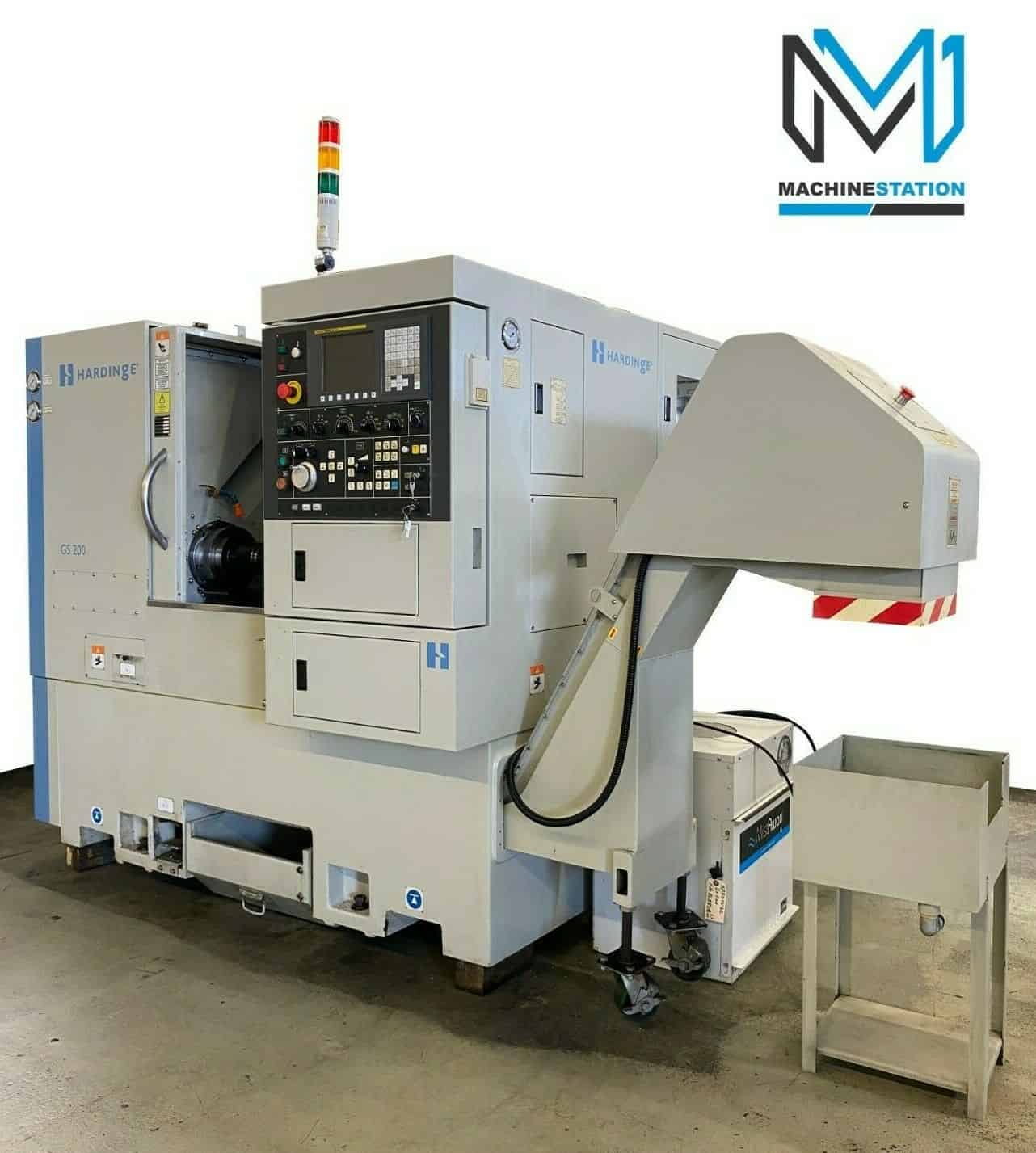

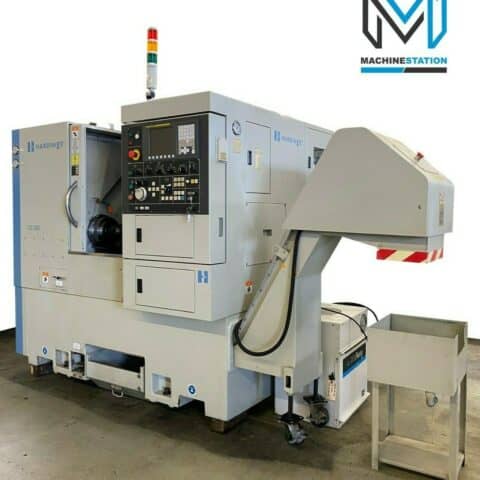

Hardinge GS-200 CNC Turning Center Lathe Equipped With:

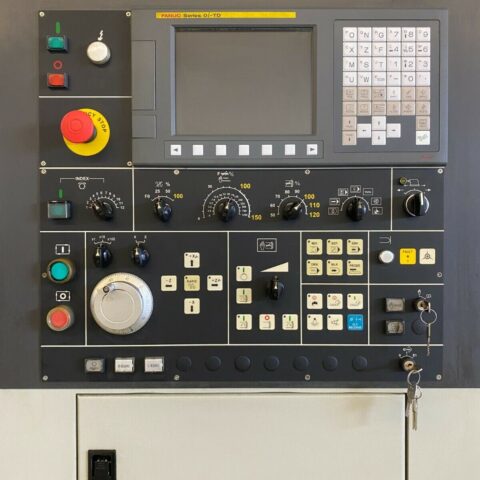

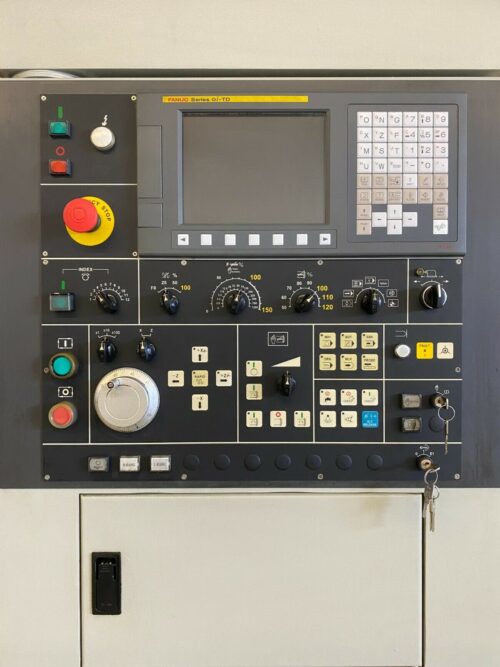

- Fanuc oiTD CNC Control
- A2-6, 5000 RPM Spindle
- Hardinge A6-S20 Collet Nose ( $1800 Value )
- 8″ 3 Jaw Hydraulic Chuck

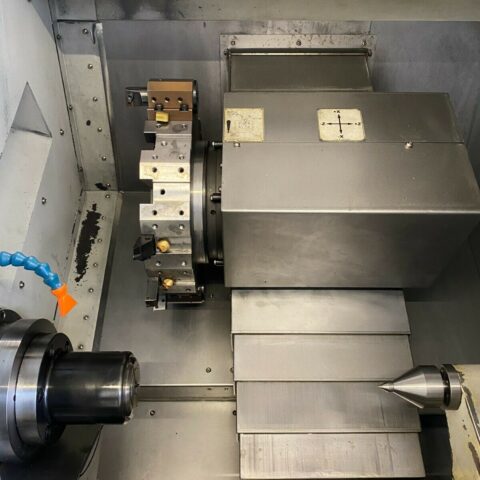

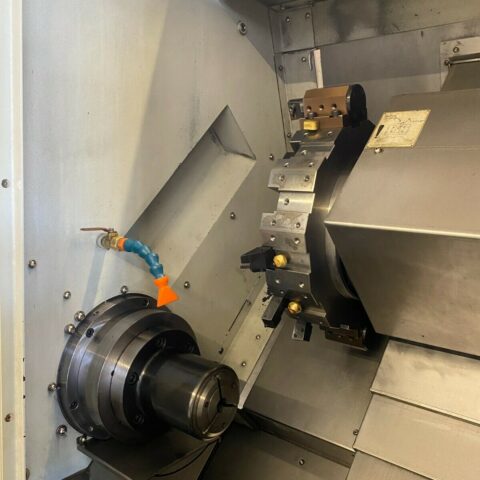

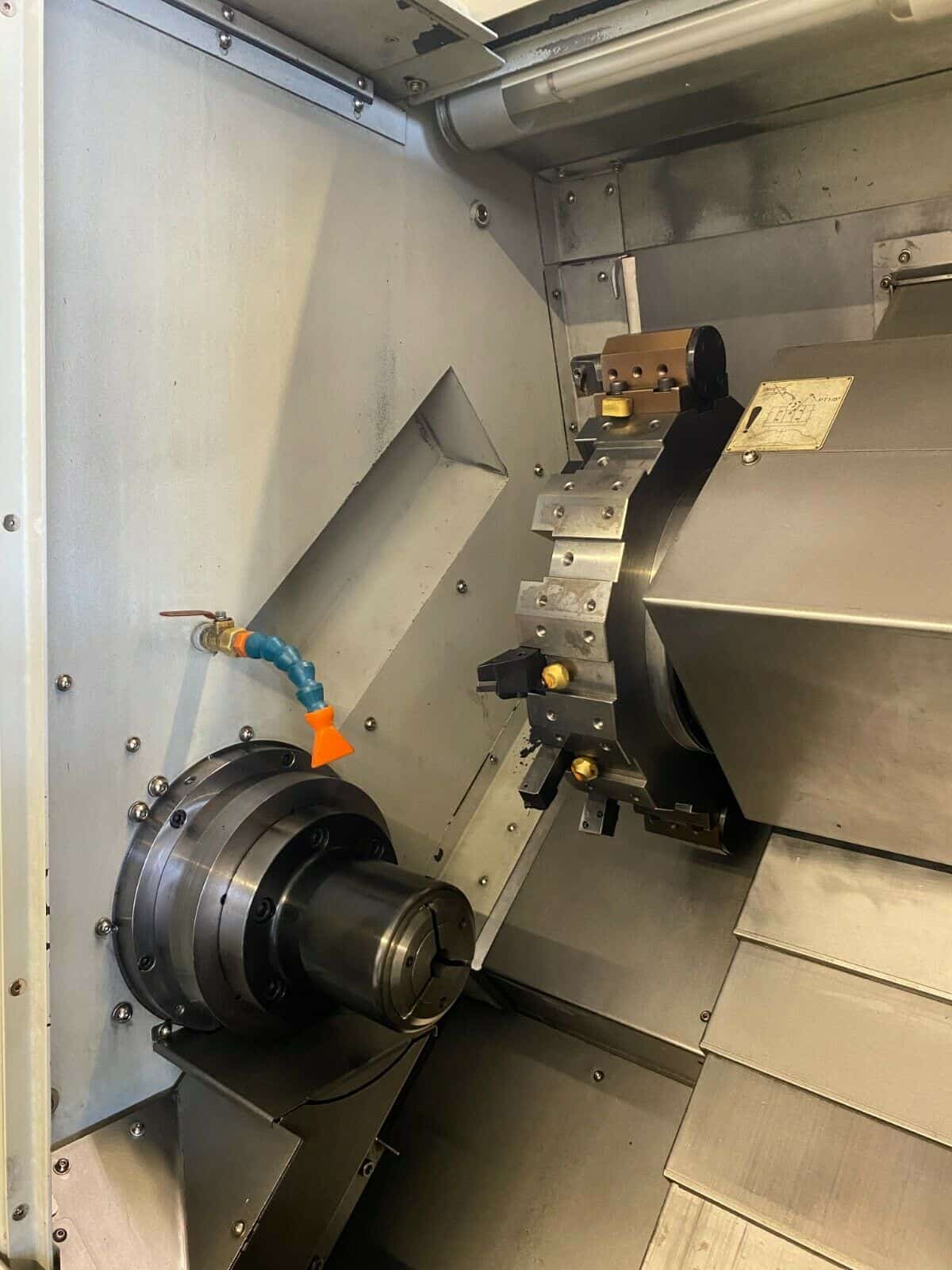

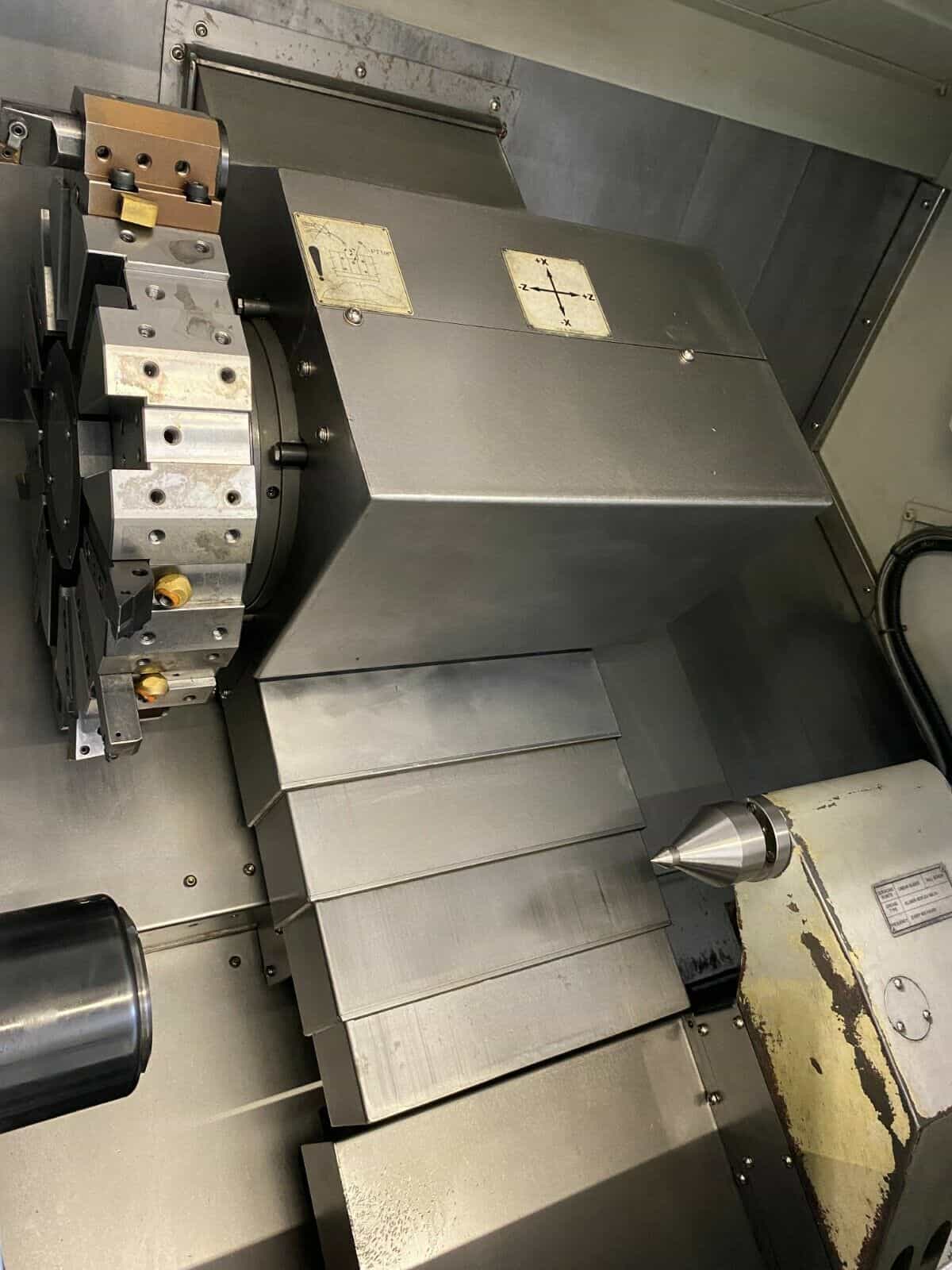

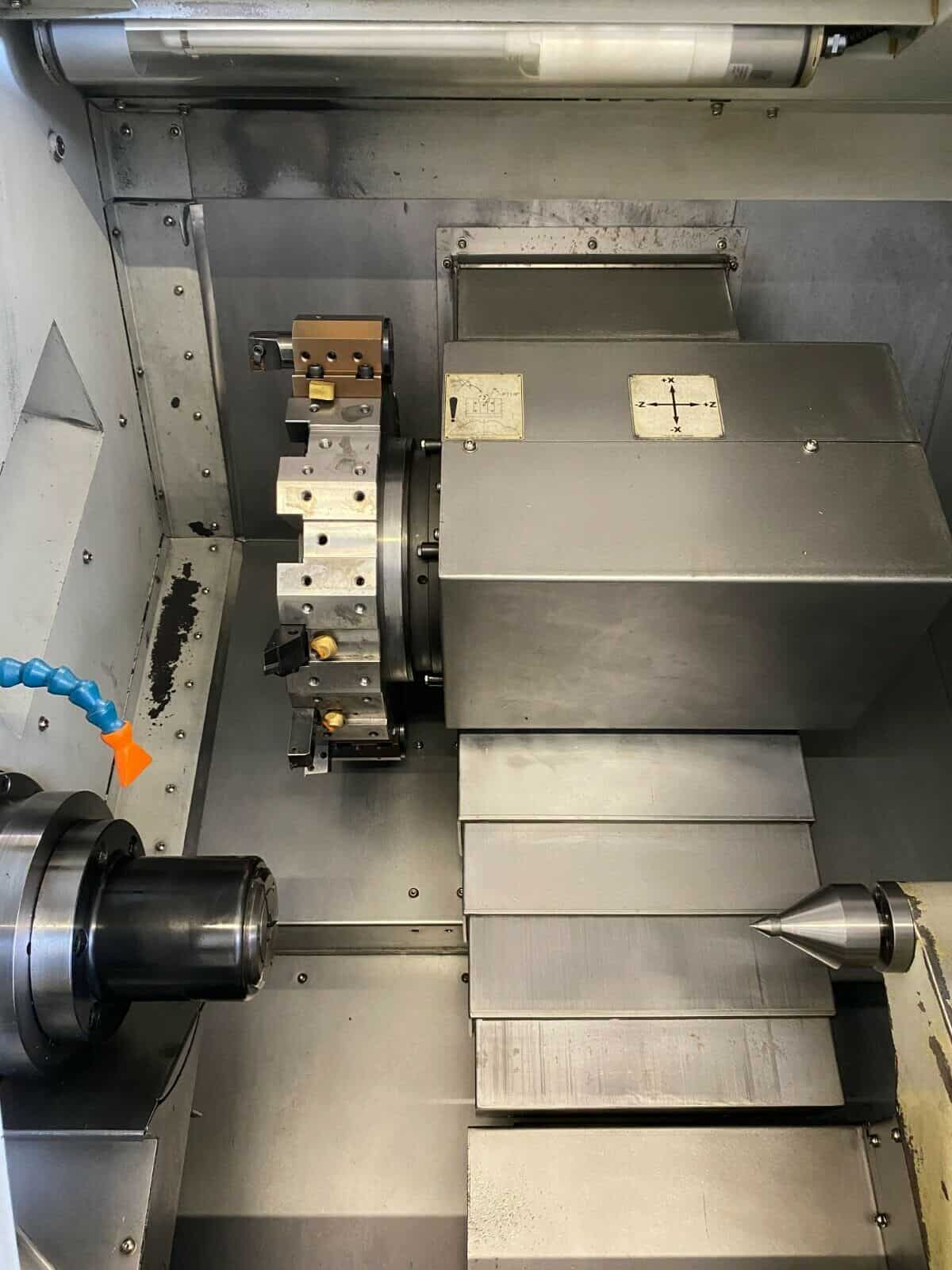

- 12 Station Automatic Turret

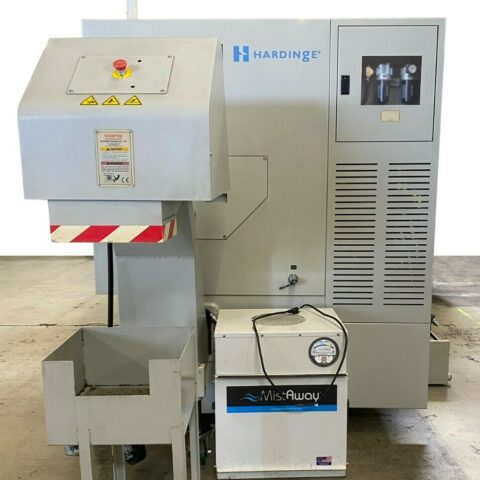

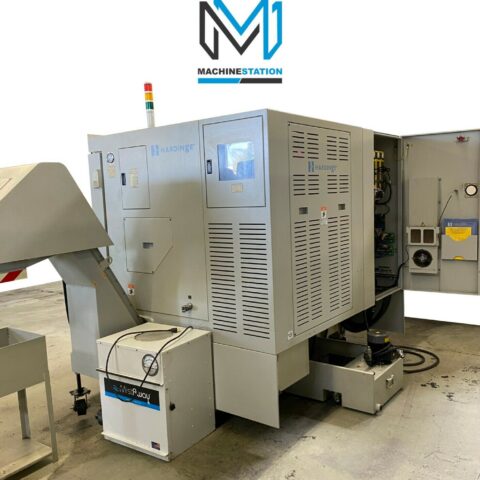

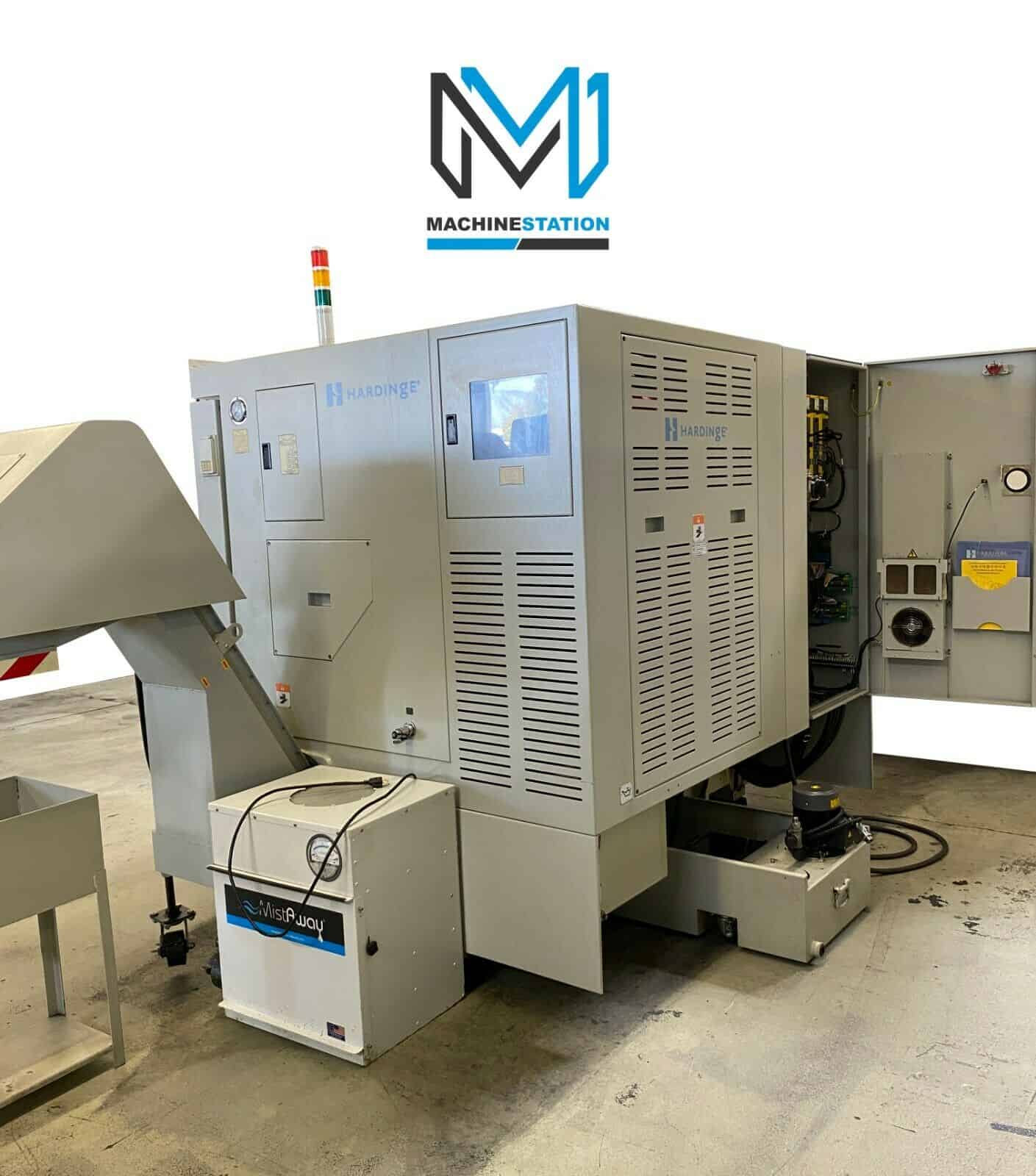

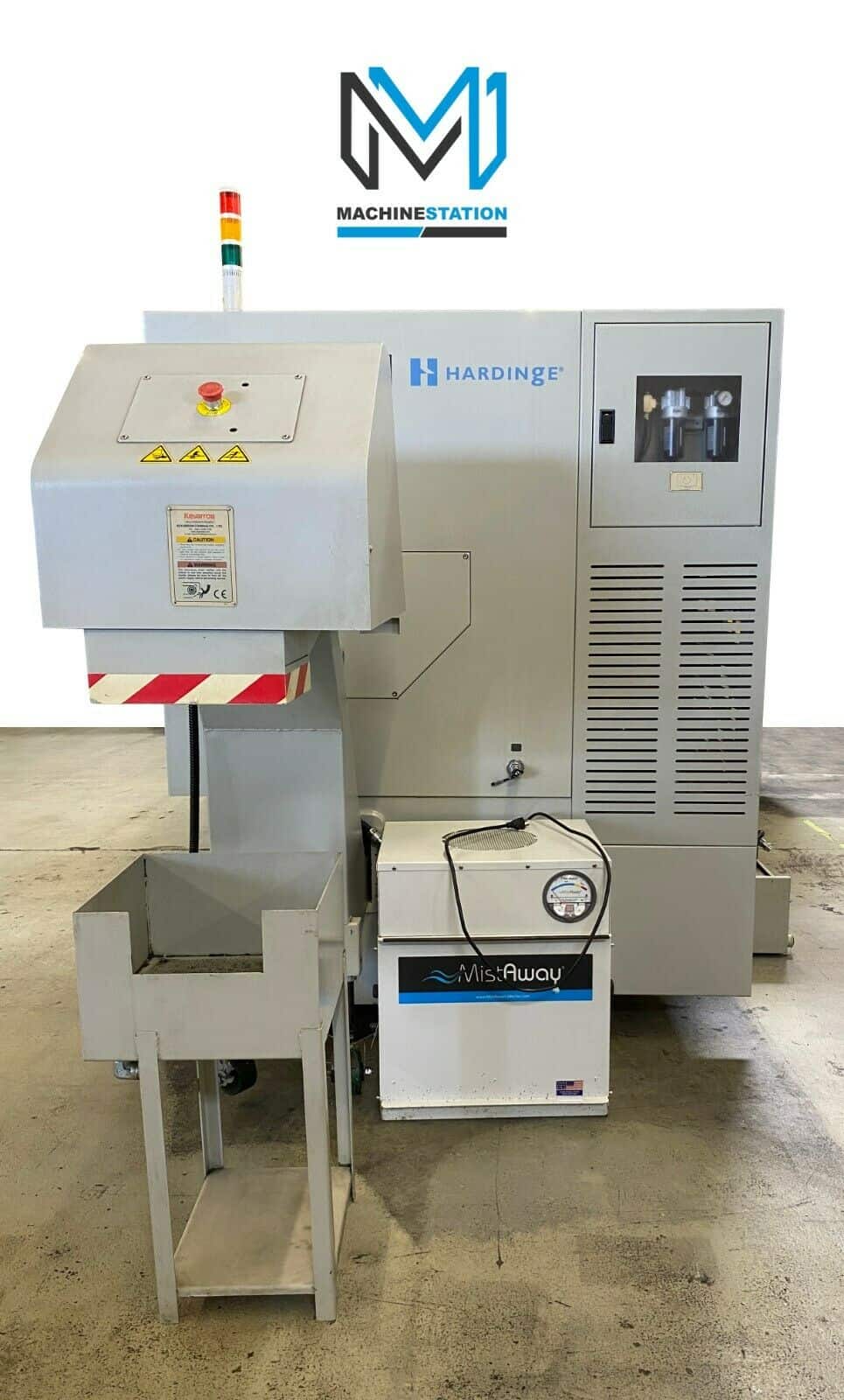

- Mist Away Mist Collector ( $4500 Value )
- USB Drive
- PCMCIA Card
- Parts Catcher ( $3600 Value )
- Rigid Tapping

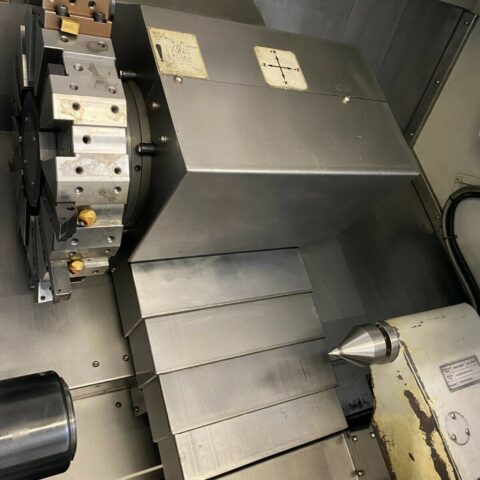

- Programmable Tailstock
- Coolant System
- Foot Switch
- Chip Conveyor
- Levelling Pads
-
Hardinge GS-200 CNC Turning Center Lathe Specifications:
- Capacity:
- Max Turning Diameter: 11.1″
- Max Turning Length: 16.0″
- Max Bar Capacity: 2.05″
- Swing Over Bed: 18.5″
-
Travels:
- X Axis Travel: 6.02″
- Z Axis Travel: 16.0 “
- Rapid Traverse X Axis: 1181 IPM
- Rapid Traverse Z Axis: 1181 IPM
-
Spindle:
- Spindle Nose: A2-6
- Spindle Bore: 2.31″
- Spindle Speed: 5000 RPM
- Spindle Motor: 15 HP
-
Turret:
- Turret Capacity: 12 Stations
- Turret Index Time: 0.15 Second
- Max. Tool Size: 0.8″ Square X 1.26″ Round
-
TailStock:
- Body Travel: 15.98″
- Quil Taper: MT-4
- Quil Travel: 3.98″
-
General:

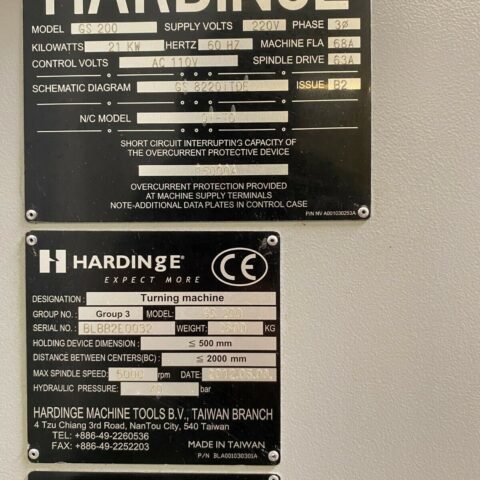

- Power: 45 kva, 220v / 3-Phase
- Overall Dimensions: 80″ X 70″ X 80 ” High
- Overall Dimensions: 120″ X 70″ X 80 ” High with Chip Conveyor
- Weight: 6,000 lbs
