*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*

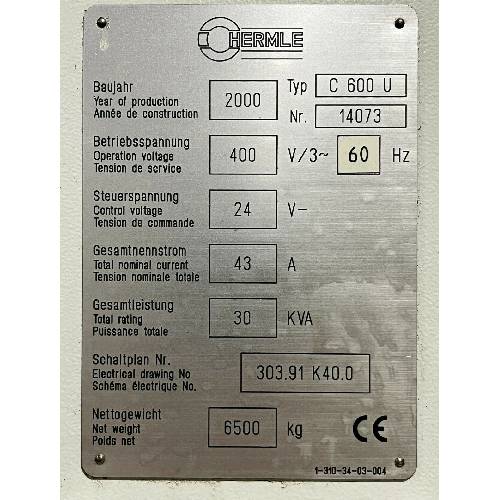

| SKU | 2169 |

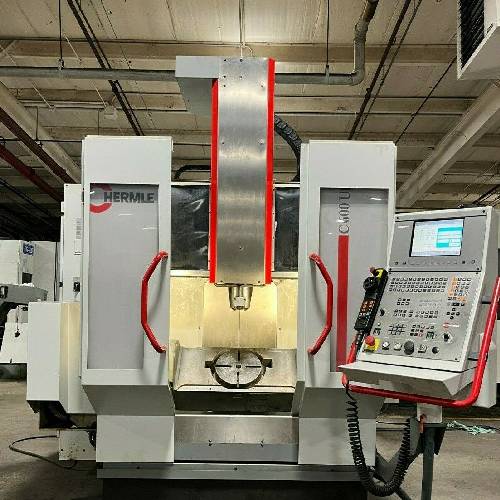

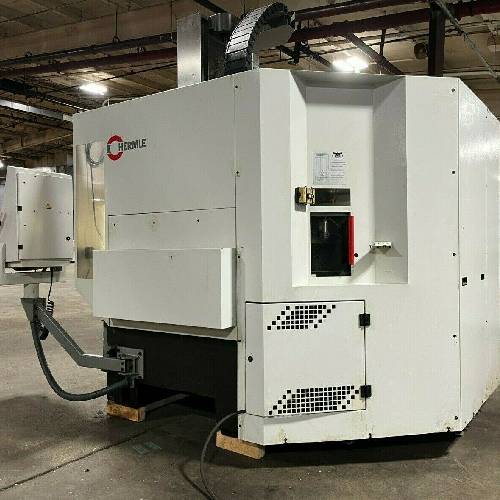

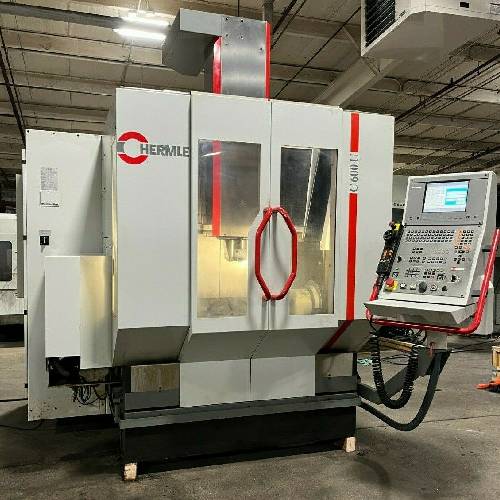

| Make | Hermle |
| Model No. | C600U |
| Serial # | 14073 |
| Year | 2000 |
| Condition | Very Good |

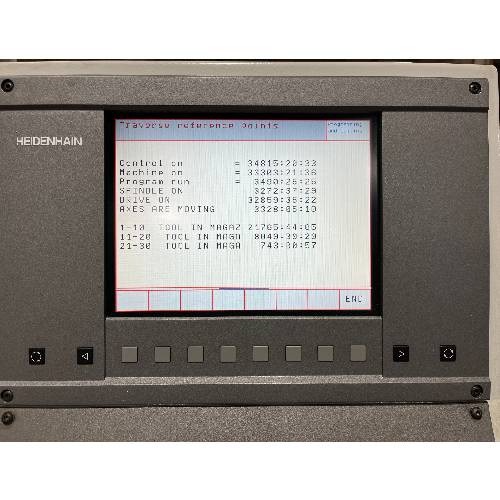

| Cutting Hours: | 3272 |
| Features: |
|---|

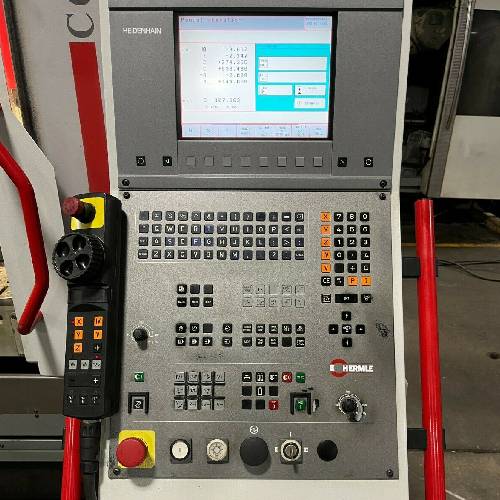

| Heidenhain TNC 430M CNC Control |
| Simultaneous 5-Axis Cutting |

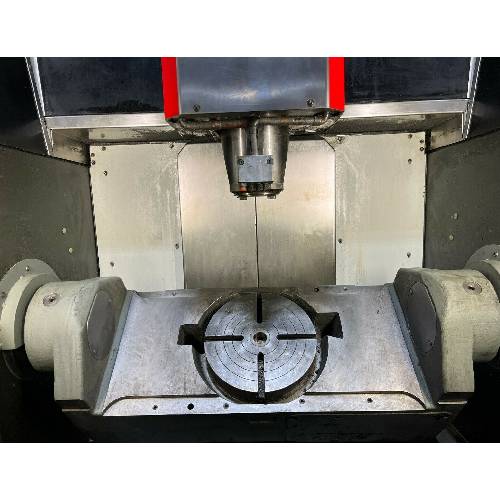

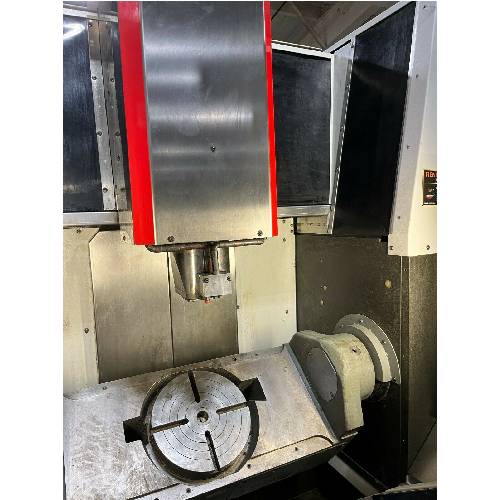

| Programmable Swivelling Trunnion Table 11″ Diameter |
| 16000 RPM High Precision Spindle |

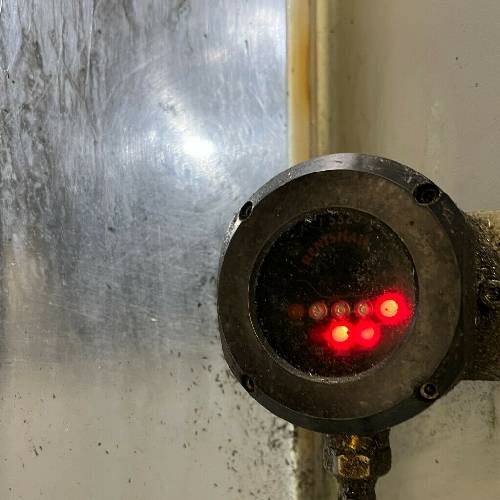

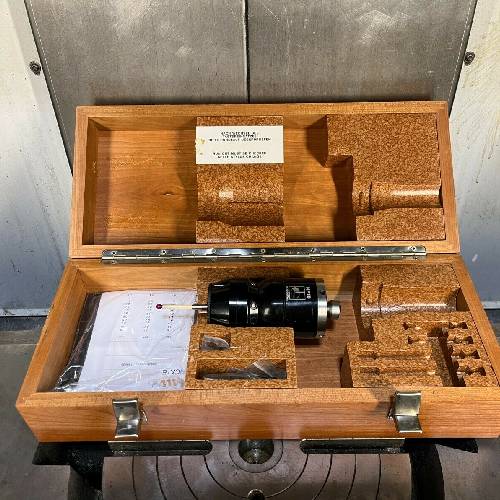

| Renishaw Probing System with MP10 Tool Probe |
| Coolant through Spindle |
| 32 Tool Changer |
| MPG Controller |
| Glass Scales on the Axis |
| PCMCIA Card Slot |
| 128 MB Memory |
| Spindle Chiller |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| Absolute Incremental Programming |
| Fast Rapid Traverse Rate |
| Flood Coolant with Large Separate Coolant Tank |
| Work light |
| Books and Manuals |
| Specifications: |
|---|
| Travels |
| X-Axis: 23.6″ |
| Y-Axis: 17.7″ |
| Z-Axis: 17.7″ |
| A Axis: +/- 110° |
| C Axis: 360° (Table Rotate) |
| Table: |
|---|
| Length: 24.8″ |
| Width: 19.7″ |
| Max Weight on Table: 617 lbs |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 20-16000 RPM |
| Spindle Power: 20 HP |
| Feed rates: |
|---|
| Rapid X, Y & Z: 1181 inch/P.M |
| Rapid A: 2000 Degree per Minute |
| Rapid C: 6000 Degree per Minute |
| Cutting Feed Rate: 984 inch per Minute |
| Tool Changer: |
|---|
| Taper: 40 |
| Capacity: 32 Tools |
| Max Tool Weight: 13.2 lbs |
| Max Tool size: 3.15″ X 9.84″ |
| Tool Change Time: 5.5 sec |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 35kva |
| Overall Dimensions: 124″ x 98″ x 94″ High |
| Weight: 15700 lbs |
