Hitachi Hi-Tech Turn 23J CNC Turning Center

SKU 11746
Make/Model Hitachi Hi-Tech Turn 23J
Video On Request
Out of stock
SKU: 11746
Make/Model: Hitachi Hi-Tech Turn 23J
Video: On Request
SKU: 11746

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Hitachi
Model: Hi-Tech Turn 23J
Machine Type: CNC Turning Center

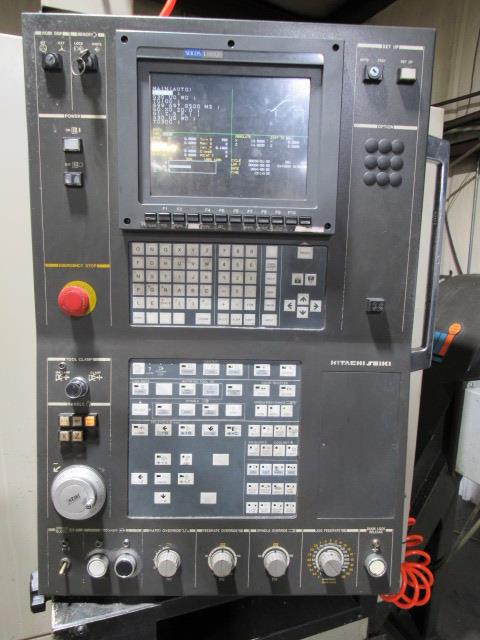

Control: Seicos L Multi CNC
Equipped With:
Seicos L Multi CNC Control

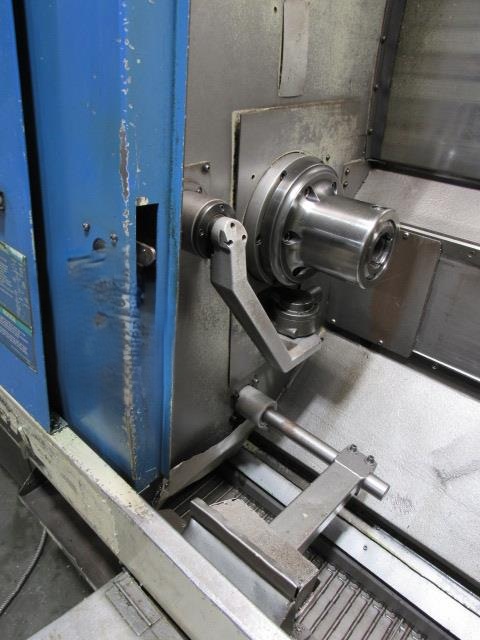

10″ 3-Jaw Hydraulic Chuck
10-Station Automatic Turret
Tool Presetter
Programmable Center
Hydraulic Tailstock
Parts Catcher
Chip Conveyor
Coolant System
Capacity:
Swing Over Bed: 17.7″
Maximum Turning Diameter: 13.38″
Maximum Turning Length: 23.6″
Bar Capacity: 2.6″
Chuck Size: 10″
Travels:
X-Axis Travel: 9.0″
Z-Axis Travel: 24.83″
Rapid Traverse X-Axis: 1,181 IPM
Rapid Traverse Z-Axis: 1,181 IPM
Spindle:
Spindle Speed: 35–4,000 RPM
Spindle Nose: A2-8
Spindle Bore: 3.0″
Spindle Motor: 20 HP

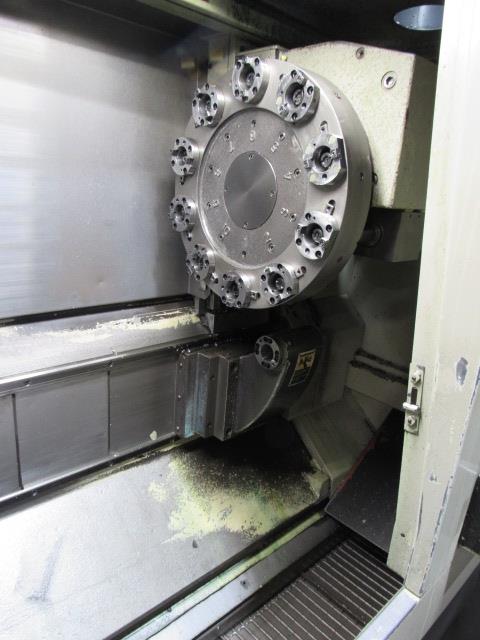

Turret:
Turret Capacity: 10 Stations
Turret Type: 10-Position KV Automatic Turret
Indexing Time: 0.1 Second
Tailstock:
Type: Hydraulic
Taper: MT-5
Tailstock Travel: 20.4″
Quill Diameter: 2.95″
Quill Travel: 3.15″
General:
Machine Dimensions (Approx.): 110″  × 64″ × 69″
Machine Weight (Approx.): 10,560 lbs
Equipped With:
Seicos L Multi CNC Control
254 mm 3-Jaw Hydraulic Chuck
10-Station Automatic Turret
Tool Presetter
Programmable Center
Hydraulic Tailstock
Parts Catcher
Chip Conveyor
Coolant System
Capacity:
Swing Over Bed: 450 mm
Maximum Turning Diameter: 340 mm
Maximum Turning Length: 599 mm
Bar Capacity: 66 mm
Chuck Size: 254 mm
Travels:
X-Axis Travel: 229 mm
Z-Axis Travel: 631 mm
Rapid Traverse X-Axis: 1,181 IPM
Rapid Traverse Z-Axis: 1,181 IPM
Spindle:
Spindle Speed: 35–4,000 RPM
Spindle Nose: A2-8
Spindle Bore: 76 mm
Spindle Motor: 20 HP
Turret:
Turret Capacity: 10 Stations
Turret Type: 10-Position KV Automatic Turret
Indexing Time: 0.1 Second
Tailstock:
Type: Hydraulic
Taper: MT-5
Tailstock Travel: 518 mm
Quill Diameter: 75 mm
Quill Travel: 80 mm
General:
Machine Dimensions (Approx.): 2,794 mm  × 1,626 mm × 1,753 mm
Machine Weight (Approx.): 10,560 lbs
