All specifications are approximations and are subject to verification.
“Its been fully powered / tested & is in Great working condition.”

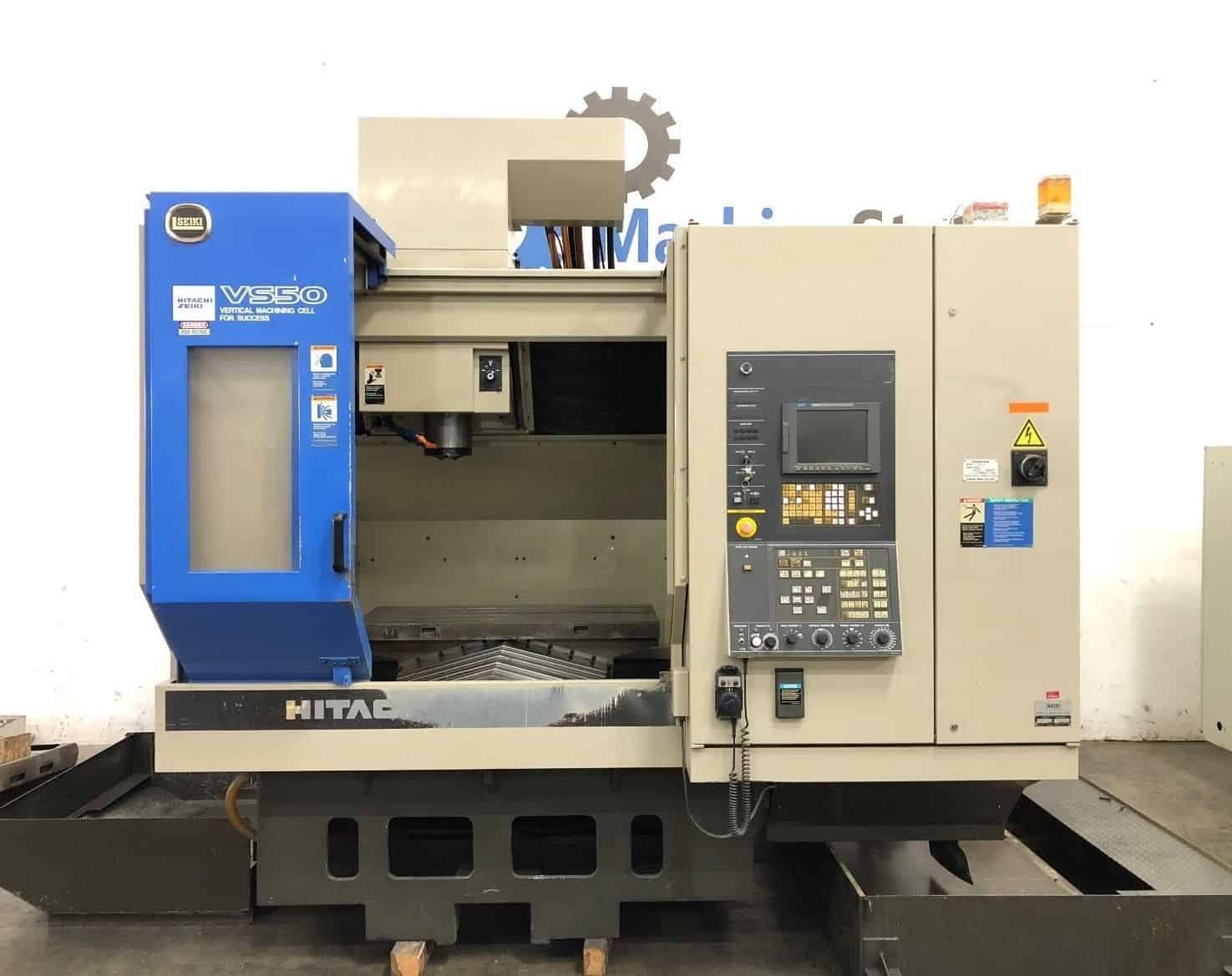

| Make | Hitachi Seiki |
| Model No. | VS-50 |
| Serial # | 50165 |
| Condition | Very Good |
Hitachi Seiki VS50 Equipped With:

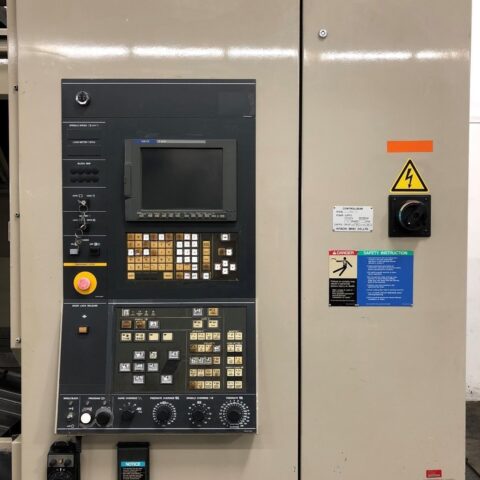

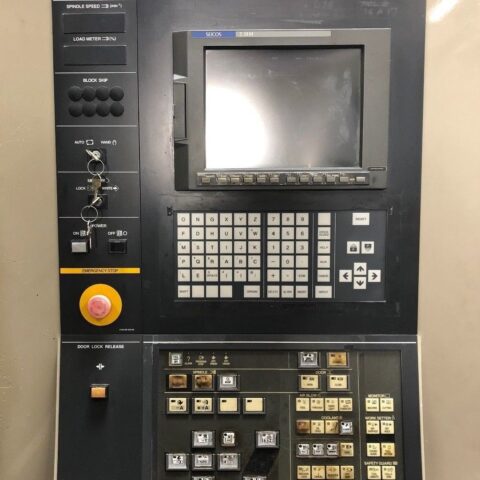

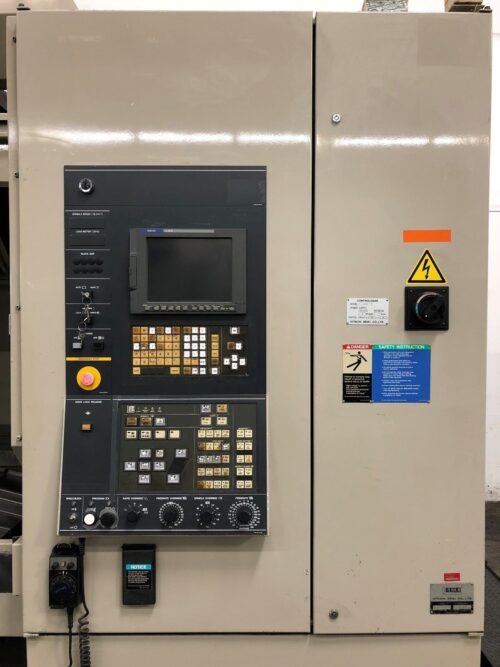

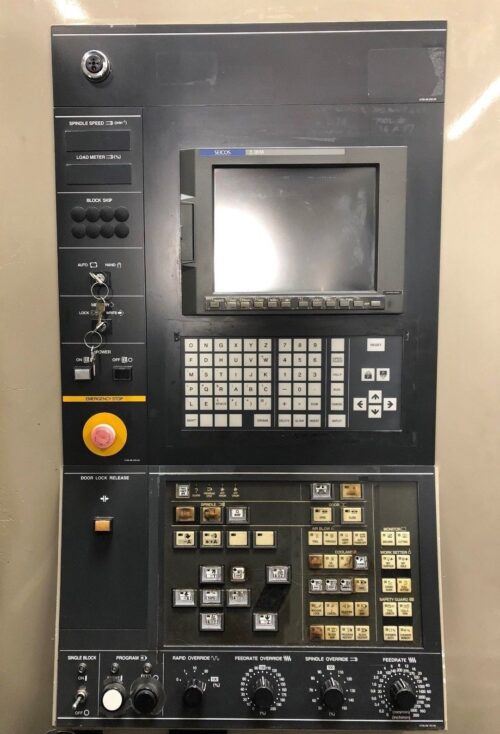

- Seicos 18M ( Fanuc 18-iM) CNC Control
- Bridge Type Contsructions for Heavy Cutting
- PCMCIA Card Slot
- MPG Control
- 20 Tools High Speed Tool Changer
- High precision 10,000 RPM Spindle
- Powerful 30 hp high torque spindle motor
- Spindle Chiller
- RS-232 Port
- Direct Tapping
- Fast Rapid Traverse Rate
- High Pressure Coolant System with Tank
- Chip Conveyor
- Work light
- Books and Manuals
Hitachi Seiki VS50 Specifications:
- Travels:
- X-Axis: 40.1″
- Y-Axis: 20.1″
- Z-Axis: 17.7″

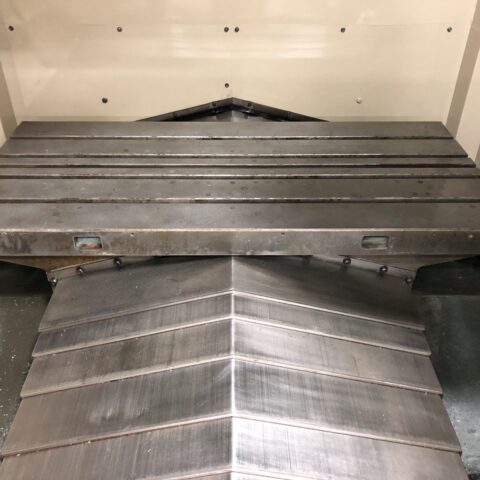

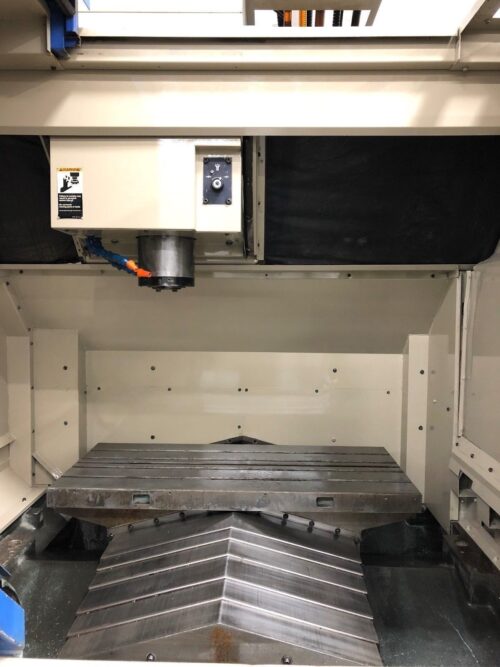

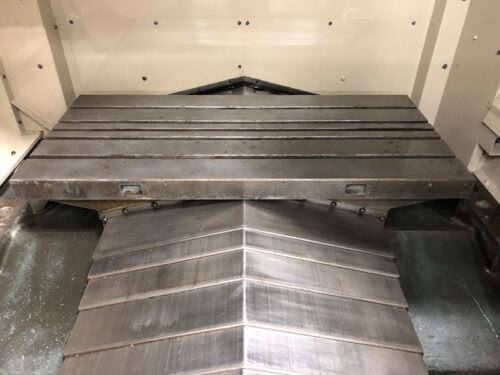

Table:
- Length: 44″
- Width: 20″
- Max Weight on Table: 1700 lbs

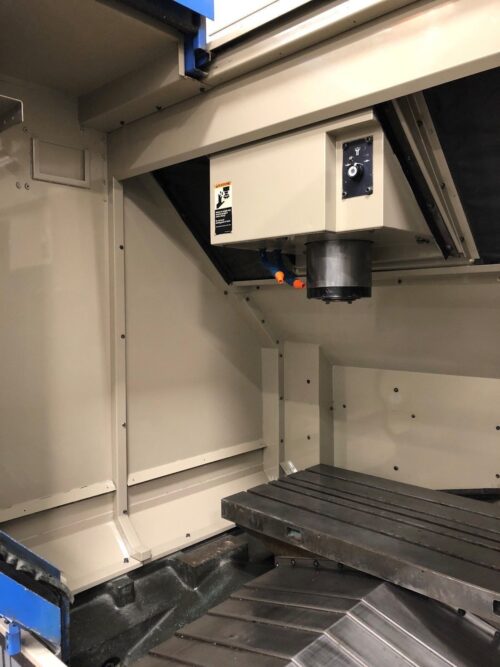

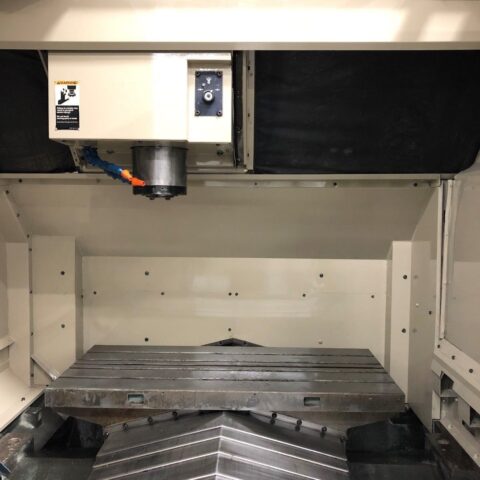

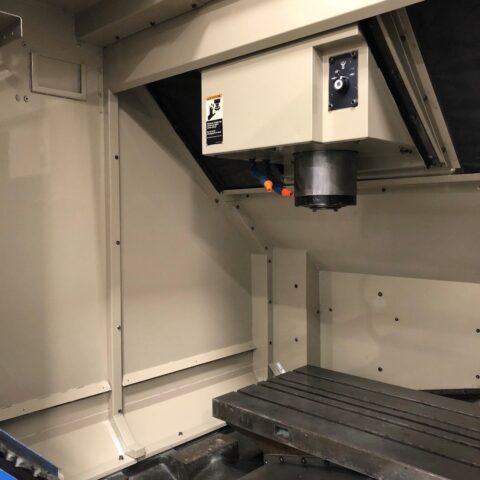

Spindle:
- Taper Size: 40
- Speed Range: 60 – 10,000 RPM
- Spindle Power: 30 HP
Feed rates:
- Rapid X,Y & Z: 1570 inch/P.M
- Cutting Feedrate: 945″ inch/ P.M
Automatic Tool Changer:
- 40 Taper
- Capacity: 20
- Max Tool Weight: 31 lbs
- Max Tool Length: 11.8″
- Max Tool Dia.: 4.90″
General:
- Air Required: 80 psi, 4 scfm

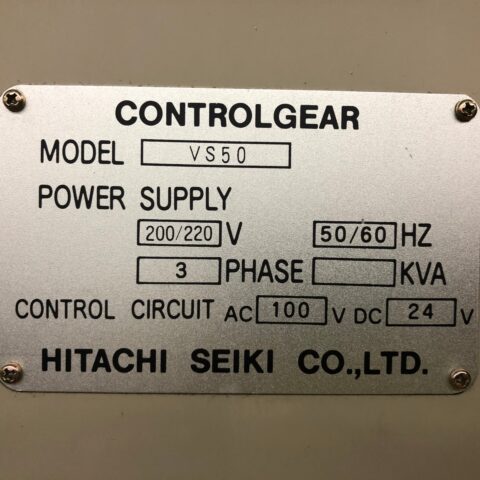

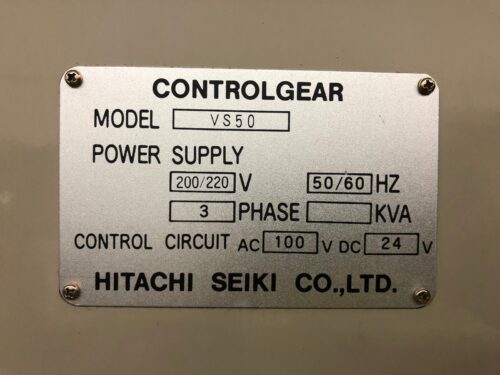

- Power: 205-220v / 66FLA / 3-Phase
- Overall Dimensions: ” High
- Weight: 18000 lbs
