*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hurco |
| Model: | BMC 30M |
| Year: | 1991 |
| Features: |
|---|
| Hurco Ultimax 3 Dual-Screen CNC Control |
| Automatic Tool Changer |
| CAT 40 Spindle |
| Sargensen Chip Conveyor |
| Coolant System |
| Flood Coolant |
| Full Enclosure |
| Work Light |
| Manual Pulse Generator / Handwheel |
| Travels: |
|---|
| X-Axis Travel: 30.0″ |
| Y-Axis Travel: 18.0″ |
| Z-Axis Travel: 24.0″ |
| Rapid Traverse X-Axis: 945 IPM |
| Rapid Traverse Y-Axis: 945 IPM |
| Rapid Traverse Z-Axis: 591 IPM |
| Table: |
|---|
| Table Size: 40″ × 16″ |
| Maximum Table Load: 1,100 lbs |
| Spindle: |
|---|
| Spindle Speed: Up to 8,000 RPM |
| Spindle Taper: CAT 40 |
| Spindle Motor: 15 HP |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 24 Tools |
| Tool Taper: CAT 40 |

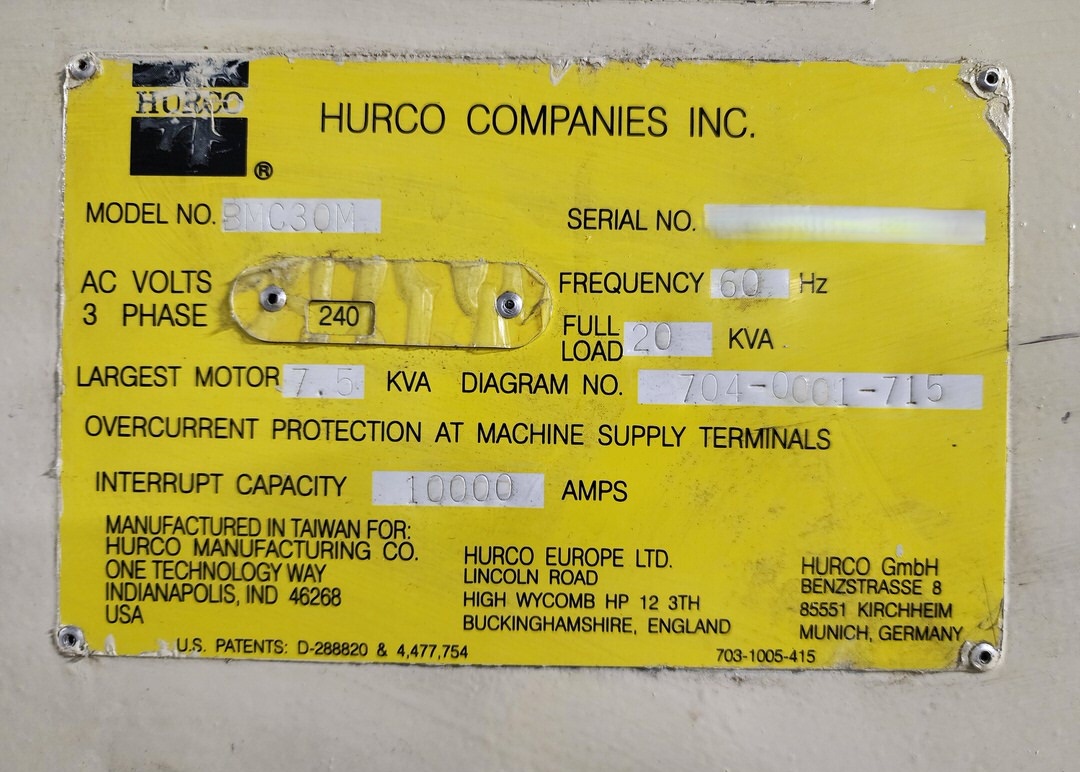

| Electrical: |
|---|
| Voltage: 240 V AC |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Full Load: 20 kVA |
| General: |
|---|
| Machine Dimensions (Approx.): 86″ × 87″ × 106″ |
| Machine Weight (Approx.): 9,000 lbs |
