*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hurco |
| Model: | VM10 |
| Year: | 2011 |
| Machine Type: | CNC Vertical Machining Center |

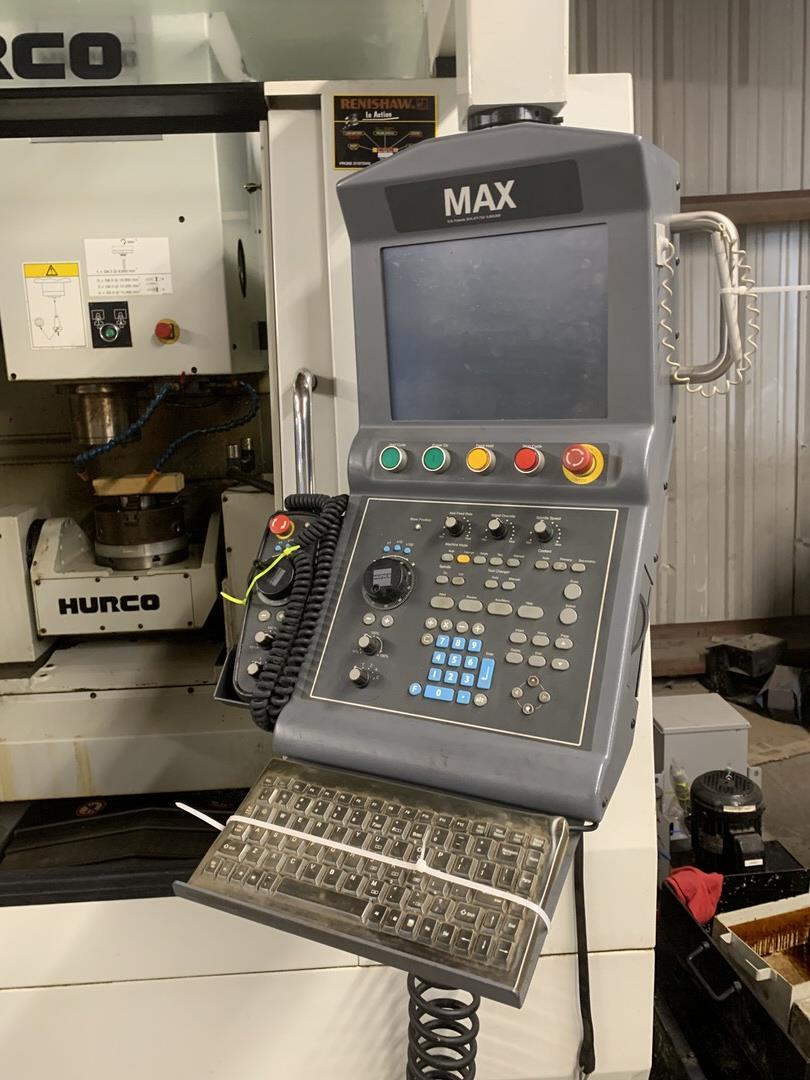

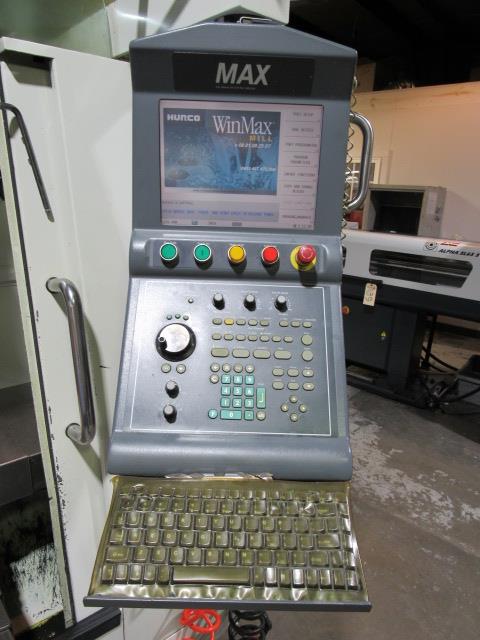

| Control: | Hurco MAX / WinMax CNC Control |
| Features: |
|---|
| Hurco MAX / WinMax CNC Control |
| 20-Station Automatic Tool Changer |
| Side-Mount Swing-Arm Tool Changer |
| CAT 40 Spindle |
| Automatic Central Lubrication |
| Coolant System |
| Enclosed Work Area |
| Travels: |
|---|
| X-Axis Travel: 26″ |
| Y-Axis Travel: 16″ |
| Z-Axis Travel: 20″ |
| Rapid Traverse X/Y/Z: 945 IPM |

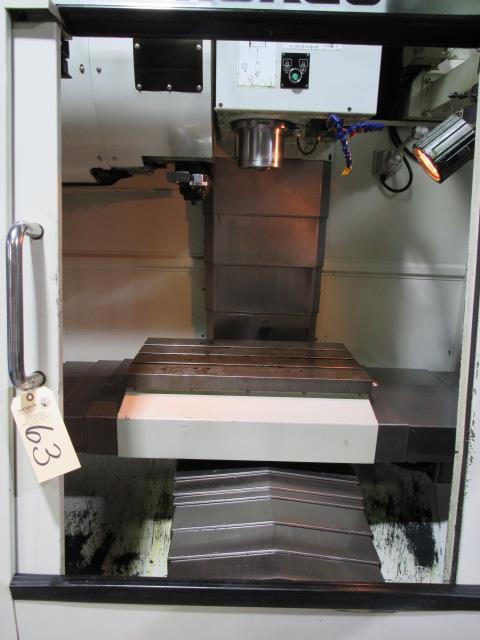

| Table: |
|---|
| Table Size: 30″ × 14″ |
| Maximum Table Load: 750 lbs |
| T-Slots: 3 |
| T-Slot Spacing: 3.94″ |
| Spindle: |
|---|
| Spindle Speed: 10,000 RPM |
| Spindle Taper: CAT 40 |
| Spindle Motor: 15 HP |
| Automatic Tool Changer: |
|---|
| ATC Capacity: 20 Stations |
| ATC Type: Side-Mount Swing-Arm |
| Tool Taper: CAT 40 |
| General: |
|---|
| Machine Dimensions (Approx.): 95″ L × 118″ W × 100″ H |
| Machine Weight (Approx.): 6,400 lbs |
