*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Hurco |
| Model No.: |
VM10HSi |
| Year of Manufacture: |
2016 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Vertical Machining Center (VMC) |
| CNC Control: |

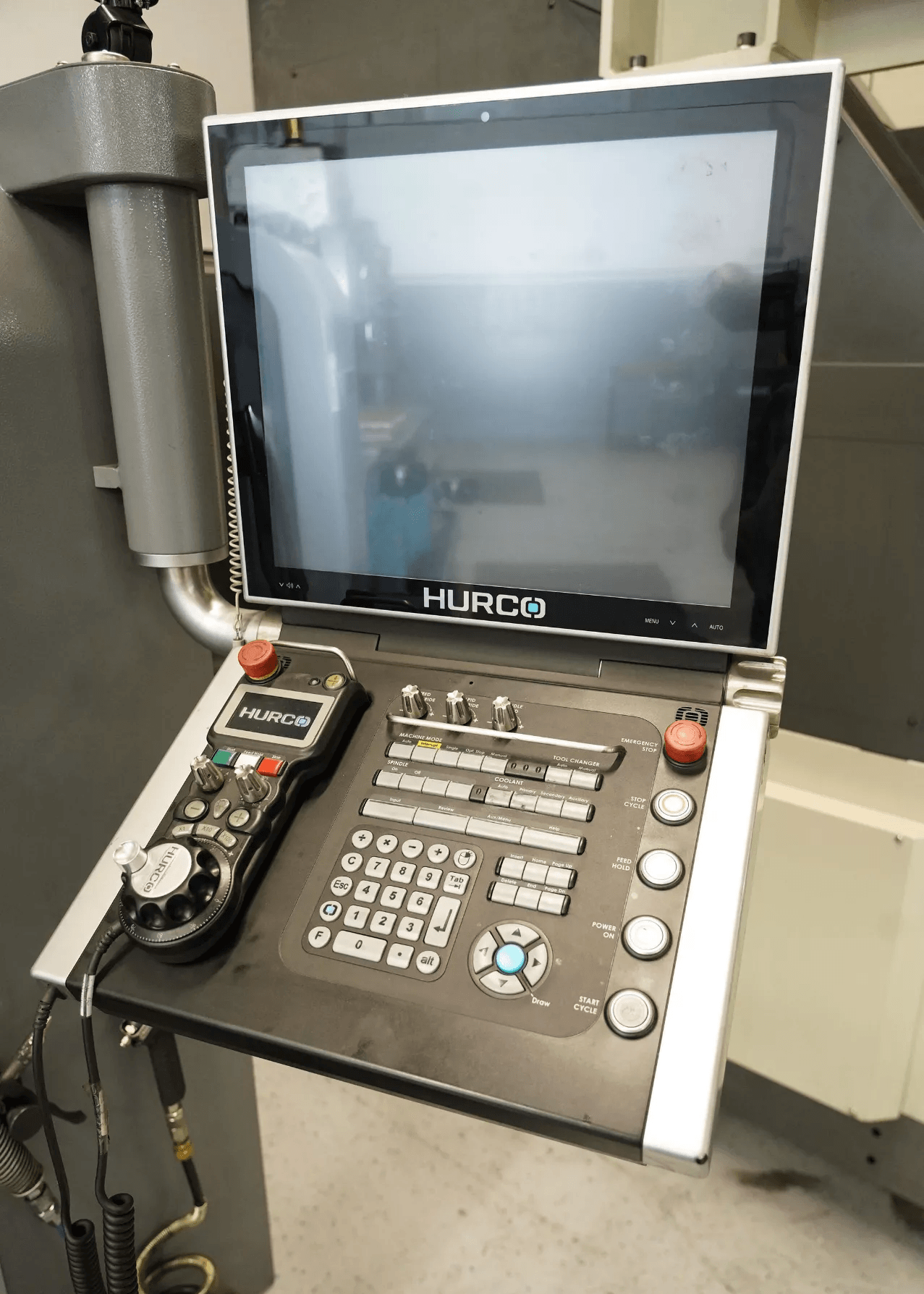

Hurco WinMax CNC Control |
| Equipped With: |
| Hurco WinMax Conversational CNC Control |
| 20 Position Automatic Tool Changer (ATC) |
| BT30 High-Speed Spindle |
| Spindle Chiller |
| Chip Conveyor |
| Rigid Tapping Capability |
| Programmable Coolant System |
| Fully Enclosed Splash Guard |
| Automatic Lubrication System |
| Electronic Handwheel (MPG) |
| Transformer |
| High-Speed Machining Capability (HSI Series) |
| Capacity: |
| Table Size: 762 × 406 mm (30″ × 16″) |
| Max Table Load: 1,500 kg (3,300 lbs) |
| T-Slots: 3 × 18 mm (.71″) |
| Spindle Nose to Table: 102 mm (4″ approx.) |
| Travels: |
| X-Axis Travel: 660 mm (26″) |
| Y-Axis Travel: 406 mm (16″) |
| Z-Axis Travel: 508 mm (20″) |
| Rapid Traverse (X/Y/Z): 28 m/min (1,102 IPM approx.) |
| Programmable Feed Rate: 1,102 IPM |
| Spindle: |
| Maximum Spindle Speed: 20,000 RPM |
| Spindle Motor Power: 8.5 kW / 11.4 HP |
| Spindle Taper: BT30 |
| Spindle Torque: 4.0 ft-lbs @ 15,000 RPM |
| High-Speed Inline Direct Drive Spindle |
| Tool Changer: |
| Tool Changer Type: Automatic Tool Changer (ATC) |
| Capacity: 20 Tools |
| Max Tool Diameter: 79 mm (3.1″) |
| Max Tool Length: 250 mm (9.8″) |
| Max Tool Weight: 3 kg (6.6 lbs) |
| Machine Construction: |
| High-Speed Linear Guideway Design |
| Rigid Cast Iron Frame Construction |
| Compact Footprint for Shop Floor Efficiency |
| High Acceleration for Fast Cycle Times |
| Designed for Precision & High-Speed Machining |
| Electrical: |
| Power Requirement: 230V / 3 Phase / 60 Hz |
| Full Load Current: Approx. 18 Amps |
| Transformer Included |
| General: |
| Floor Space: Approx. 3265 × 2930 × 2565 mm (128.5″ × 115.4″ × 101″ H) |
| Machine Weight: Approx. 3,095 kg (6,825 lbs) |
| Optional Features: |
| Through Spindle Coolant (if equipped) |
| Renishaw Probe System |
| Tool Setter |
| 4th Axis Rotary Table |
| High-Pressure Coolant System |
| Mist Collector |
