*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hurco |
| Model No.: | VM10i |
| Year of Manufacture: | 2015 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center |

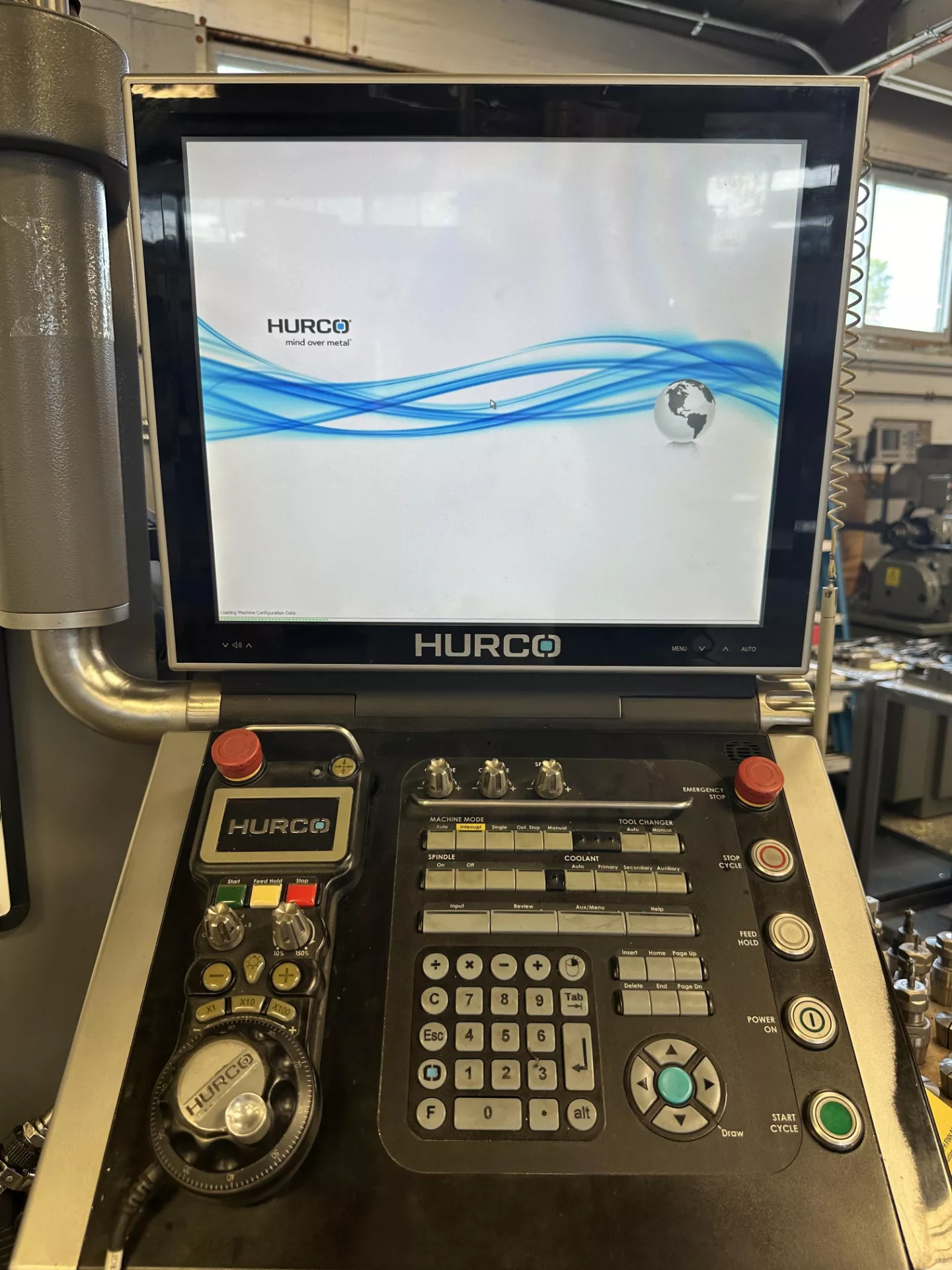

| CNC Control: | Hurco WinMax CNC Control |
| Equipped With: |
|---|
| Hurco WinMax CNC Control |
| 24-Station Automatic Tool Changer |
| CAT-40 Spindle |
| Rigid Tapping |
| USB Interface |
| Ethernet Interface |
| Coolant System |
| Chip Auger |
| Automatic Lubrication System |
| Work Light |
| Fully Enclosed Splash Guard |
| Capacity: |
|---|
| Table Size: 30″ × 16″ (762 × 406 mm) |
| Maximum Table Load: 750 lbs (340 kg) |
| T-Slots: 3 |
| Travel: |
|---|
| X-Axis Travel: 26″ (660 mm) |
| Y-Axis Travel: 16″ (406 mm) |
| Z-Axis Travel: 20″ (508 mm) |
| Spindle Nose to Table: 4″ – 24″ (102 – 610 mm) |
| Spindle: |
|---|
| Spindle Speed: Up to 10,000 RPM |
| Spindle Motor Power: 14.9 kW (20 HP) |
| Spindle Taper: CAT-40 |
| Tool Changer: |
|---|
| Tool Capacity: 24 Tools |
| Tool Change Type: Carousel Type ATC |
| Tool-to-Tool Change Time: Approx. 2.5 sec |
| Maximum Tool Diameter: 3.5″ (89 mm) |
| Maximum Tool Length: 11.8″ (300 mm) |
| Maximum Tool Weight: 15.4 lbs (7 kg) |
| Feedrates: |
|---|
| Rapid Traverse (X / Y / Z): 30 m/min (1,181 IPM) |
| Cutting Feed Rate: Up to 10 m/min |
| Electrical: |
|---|
| Power Requirement: Approx. 25 kVA |
| Voltage: 220 / 380 / 440 V |
| Phase: 3-Phase |
| General: |
|---|
| Machine Dimensions: Approx. 94.5″ × 86.6″ × 102.4″ (2400 × 2200 × 2600 mm) |
| Machine Weight: Approx. 8,380 lbs (3,800 kg) |
| Features: |
|---|
| Hurco WinMax control with conversational programming |
| Rigid cast-iron construction for high accuracy and stability |
| 10,000 RPM CAT-40 spindle for versatile machining |
| 24-tool automatic tool changer for production work |
| High rapid traverse speeds for reduced cycle times |
| User-friendly programming interface ideal for job shops |
| Ideal for general machining, aerospace components, mold work, and prototype manufacturing |
