*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Features: |
| Hurco MAX CNC Control |
| 5-Axis Machining Capability |

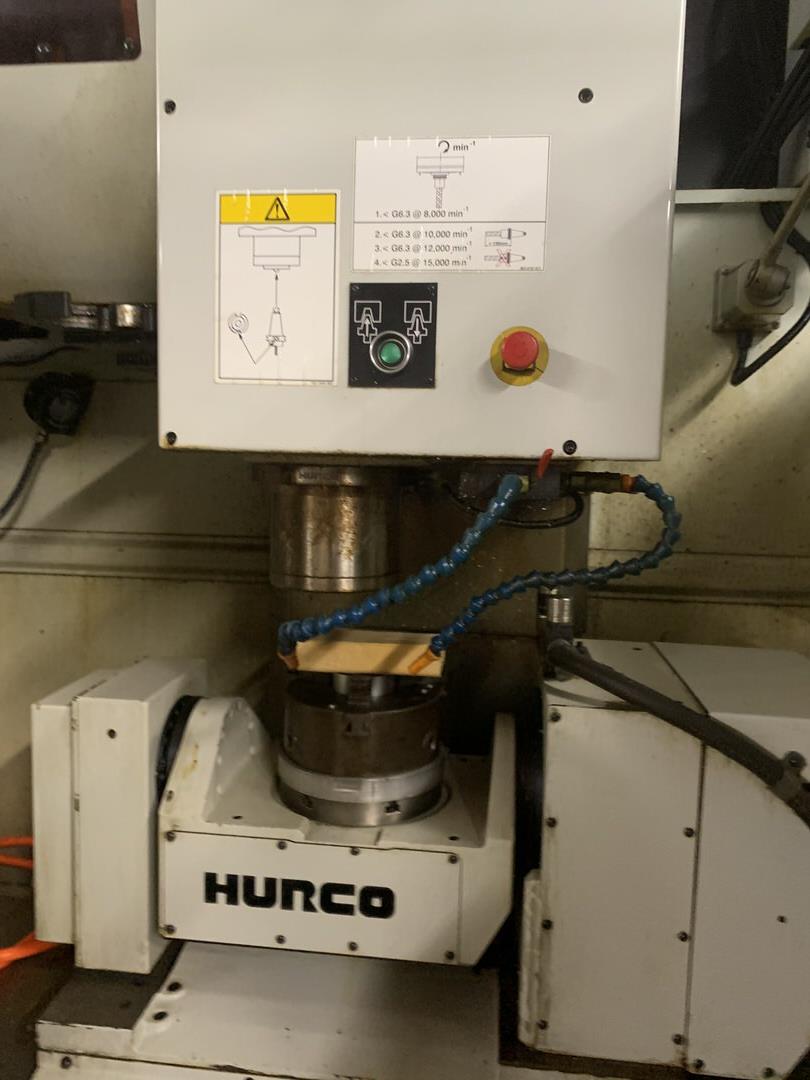

| Integrated A/C-Axis Trunnion Rotary Table |
| CAT 40 Spindle |
| 24-Position Automatic Tool Changer |
| Full Machine Enclosure |
| Coolant System |
| Remote Handwheel / Jog Control |
| Travels: |
| X-Axis Travel: 21.02″ |
| Y-Axis Travel: 16.02″ |
| Z-Axis Travel: 19.01″ |
| C-Axis Travel: 360° |
| A-Axis Travel: +30° |
| Rapid Traverse X/Y/Z: 1,102 IPM |
| Rapid Traverse A/C: 25 RPM |
| Table: |
| Table Diameter: 7.8″ |
| Maximum Table Load: 330 lbs |
| Spindle: |
| Maximum Spindle Speed: 10,000 RPM |
| Spindle Power: 10 HP |
| Spindle Taper: CAT 40 |
| Automatic Tool Changer: |
| Tool Capacity: 24 Tools |
| Maximum Tool Diameter: 3.15″ |
| Maximum Tool Length: 9.8″ |
| Maximum Tool Weight: 15.4 lbs |
| Tool-to-Tool Change Time: 2 Seconds |

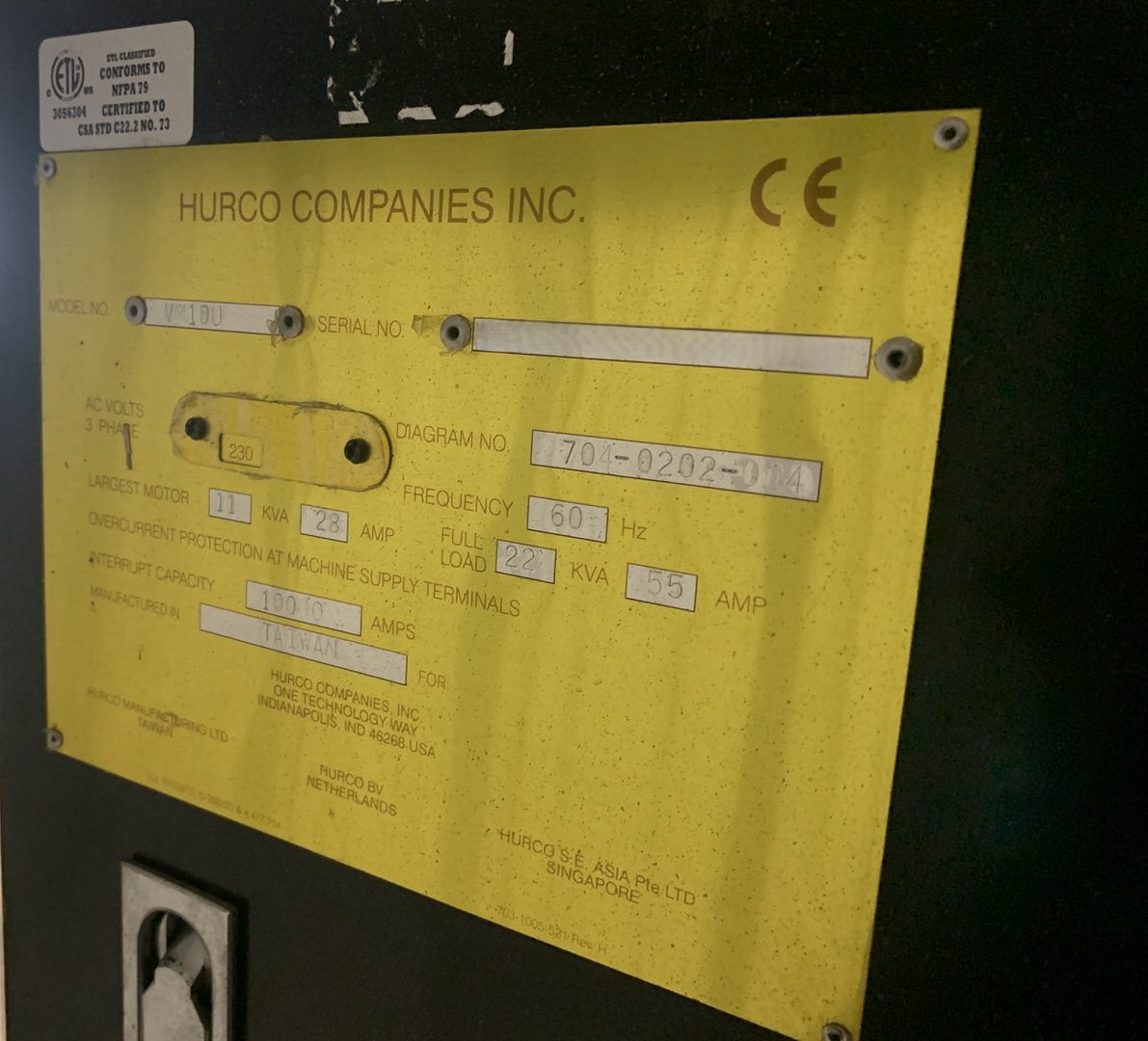

| Electrical: |
| Voltage: 230 V AC |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| General: |
| Country of Manufacture: Taiwan |
| Machine Dimensions (Approx.): 129″ × 133″ × 101″ |
| Machine Weight (Approx.): 7,392 lbs |
