*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hurco |
| Model: | VM20 |
| Year: | 2011 |
| Features: |
|---|
| Hurco MAX CNC Control |
| CAT 40 Spindle |
| 24-Position Automatic Tool Changer |
| Chip Conveyor |
| Harbor HWK-250PTSB Coolant Chiller |
| Hevi-Duty 30 kVA Transformer |
| Flood Coolant System |
| Fully Enclosed Splash Guard |
| Rigid Tapping |
| Automatic Lubrication System |
| Work Light |
| Travels: |
|---|
| X-Axis Travel: 40.0″ |
| Y-Axis Travel: 20.0″ |
| Z-Axis Travel: 20.0″ |

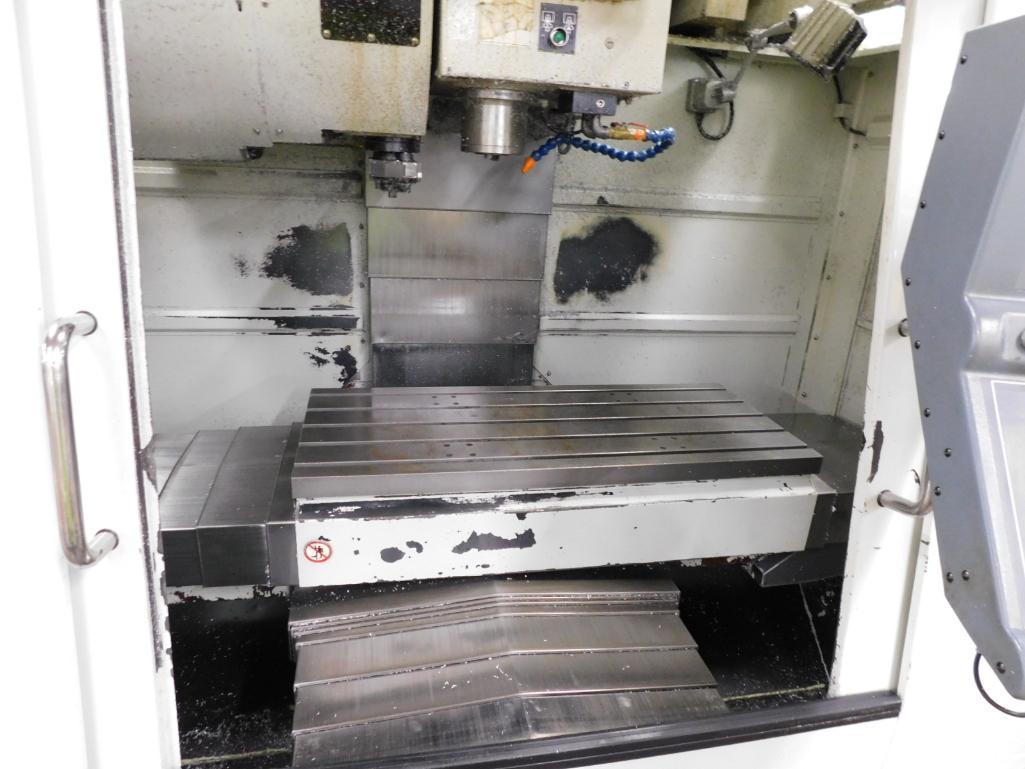

| Table: |
|---|
| Table Size: 46.0″ × 20.0″ |
| Maximum Table Load: 1,500 lbs |
| T-Slots: 5 |
| T-Slot Size: 0.63″ |
| Spindle: |
|---|
| Spindle Taper: CAT 40 |
| Spindle Speed: 10,000 RPM |
| Spindle Motor: 24 HP |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 24 Tools |
| Tool Shank: CAT 40 |
| Tool Selection: Random Bi-Directional |
| Feed Rates: |
|---|
| Rapid Traverse (X/Y): 1,260 IPM (32 m/min) |
| Rapid Traverse (Z): 945 IPM (24 m/min) |
| General: |
|---|

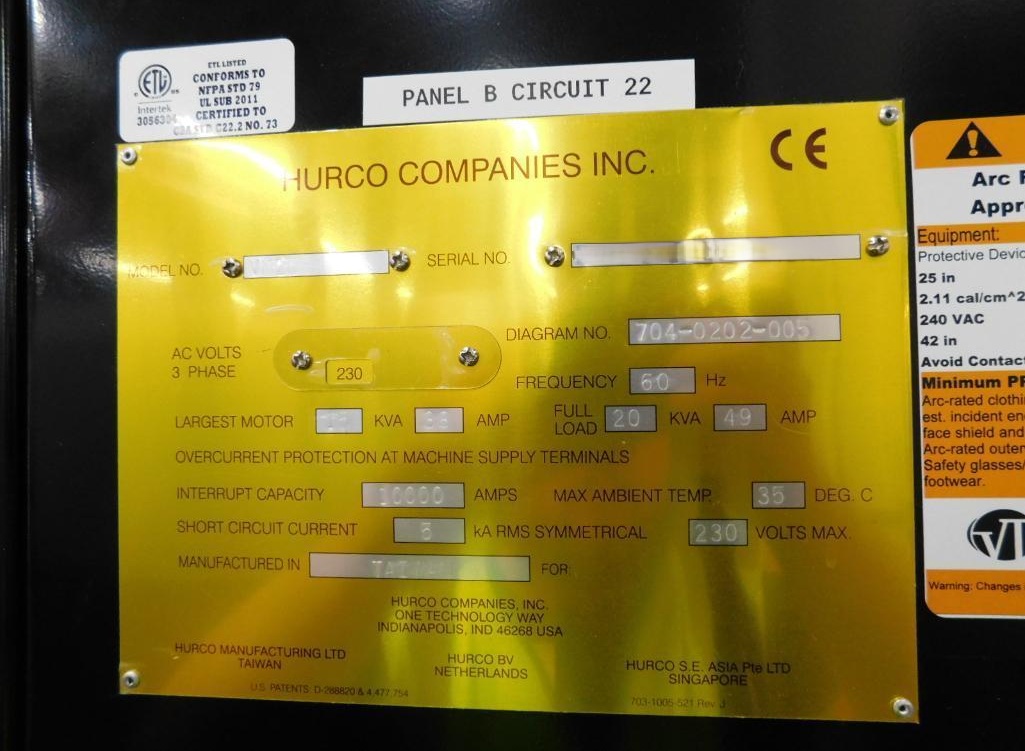

| Power Requirement: 230 V / 3 Phase / 60 Hz |
| Machine Dimensions (Approx.): 118″ × 100″ × 110″ |
| Machine Weight (Approx.): 11,000 lbs |
