*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

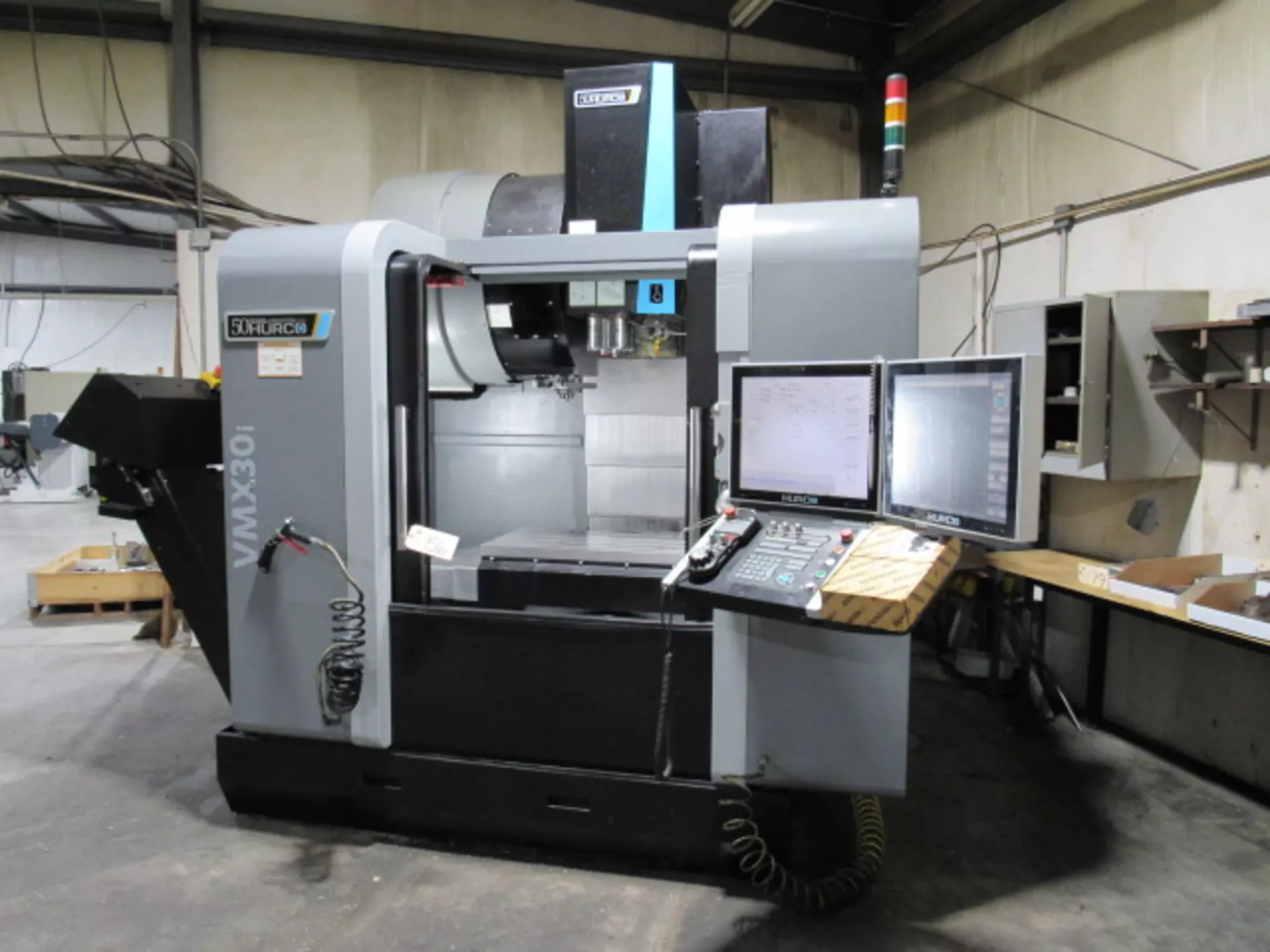

| Make: | Hurco |
| Model No.: | VMX30i |
| Year of Manufacture: | 2018 |
| Machine Type: | CNC Vertical Machining Center (3-Axis, 4-Axis Ready) |

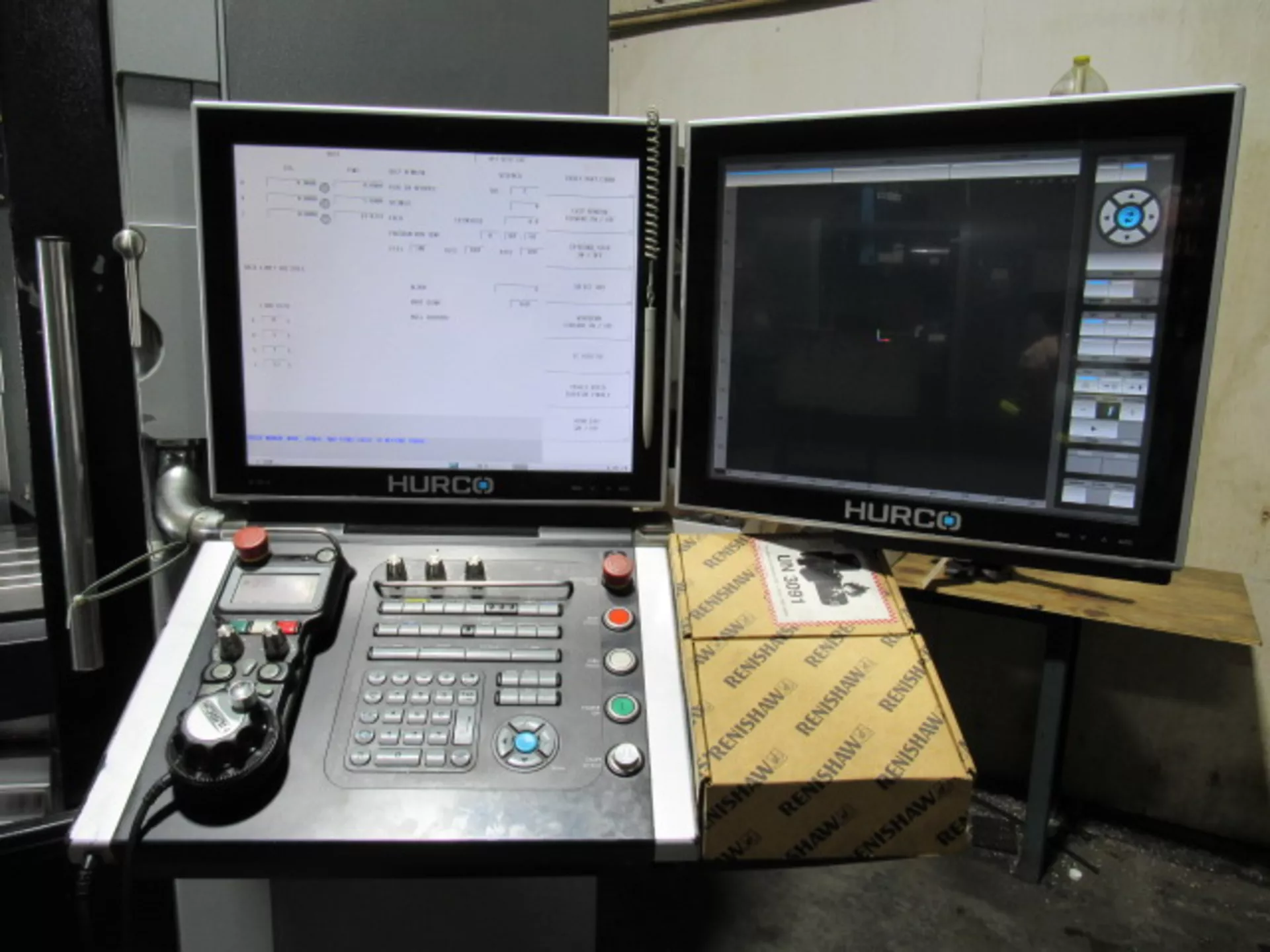

| CNC Control: | Hurco WinMax CNC Control |
| Equipped With: |
|---|
| Hurco WinMax Conversational CNC Control |
| 12,000 RPM CAT-40 Spindle |
| Automatic Tool Changer |
| Rigid Tapping Capability |
| Fully Enclosed Splash Guard |
| Automatic Lubrication System |
| Flood Coolant System with Tank and Pump |
| USB / Ethernet / RS-232 Program Input |
| 4th Axis Ready |
| Capacity: |
|---|

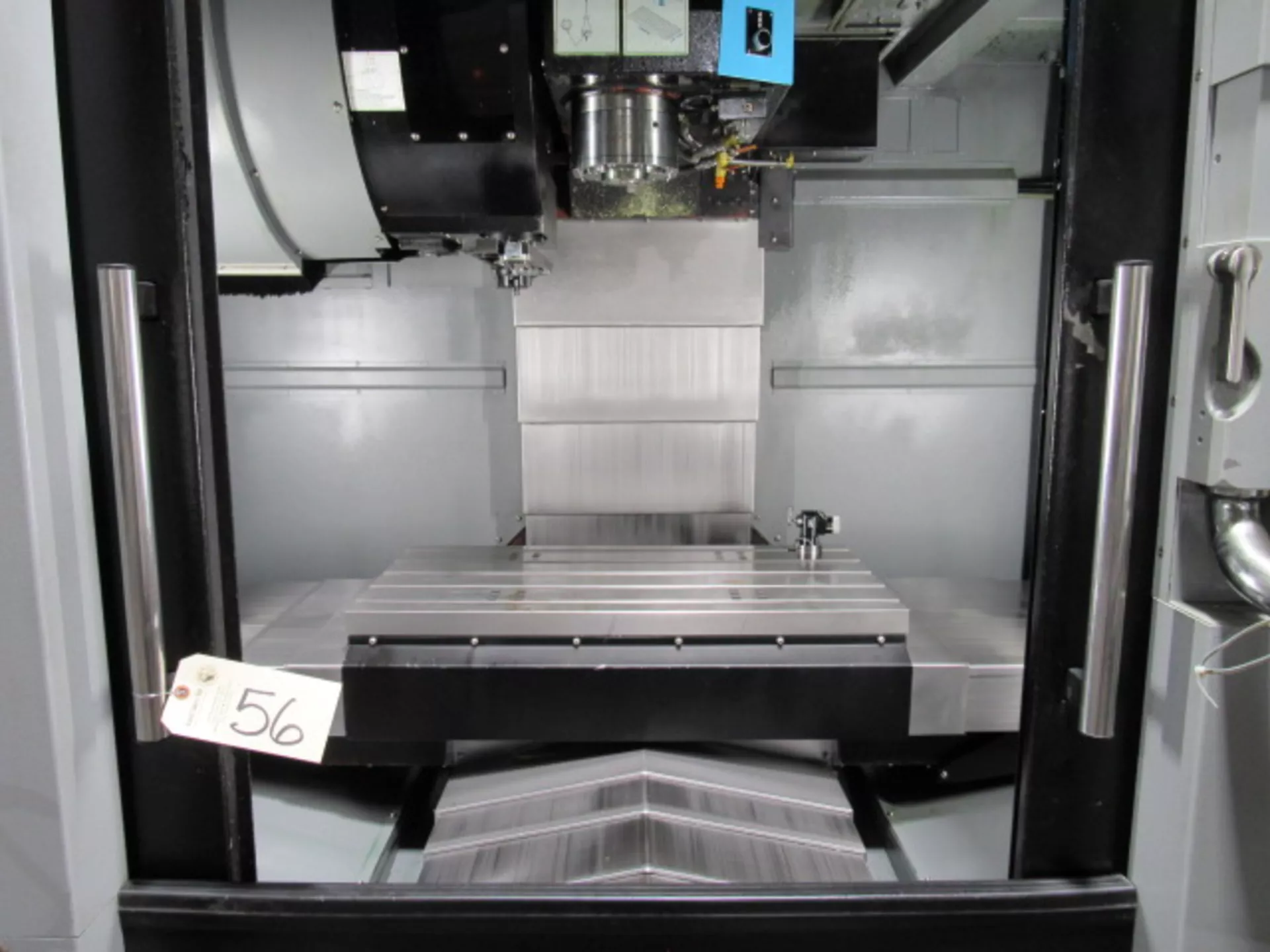

| Table Size: 40″ × 20″ (1,020 × 508 mm) |
| Maximum Table Load: 3,300 lbs |
| T-Slots: 5 × 18 mm |
| Spindle Nose to Table: 6″ |
| Travel: |
|---|
| X-Axis Travel: 30″ |
| Y-Axis Travel: 20″ |
| Z-Axis Travel: 24″ |
| Rapid Traverse X-Axis: 1,496 IPM |
| Rapid Traverse Y-Axis: 1,496 IPM |
| Rapid Traverse Z-Axis: 1,260 IPM |
| Maximum Programmable Feedrate: 1,260 IPM |
| Spindle: |
|---|
| Spindle Speed: Up to 12,000 RPM |
| Spindle Motor Power: 18 HP (13.4 kW Peak) |
| Spindle Torque: Approx. 157 ft-lb (213 Nm) |
| Spindle Taper: CAT 40 / BT 40 / Big-Plus |
| Automatic Tool Changer: |
|---|
| Tool Changer Type: Automatic Tool Changer (ATC) |
| Tool Capacity: 30 – 40 Tools |
| Maximum Tool Diameter: 3.1″ (80 mm) |
| Maximum Tool Length: 11.8″ (300 mm) |
| Maximum Tool Weight: 15.4 lbs (7 kg) |
| Machine Construction: |
|---|
| Heavy Cast-Iron Machine Frame |
| High-Precision Linear Guideways |
| Double-Anchored Ball Screws for Reduced Thermal Distortion |
| 4th-Axis Ready for Rotary Table Integration |
| General: |
|---|
| Machine Weight: Approx. 11,100 lbs (5,260 kg) |
| Floor Space: Approx. 155″ × 160″ |
| Machine Height: Approx. 107″ |
| Optional Features: |
|---|
| 4th-Axis Rotary Table |
| Renishaw Tool & Part Probing |
| Chip Conveyor |
| Through-Spindle Coolant (CTS) |
| High-Pressure Coolant System |
| Tool Presetter |
| Automation / Robot Interface |
