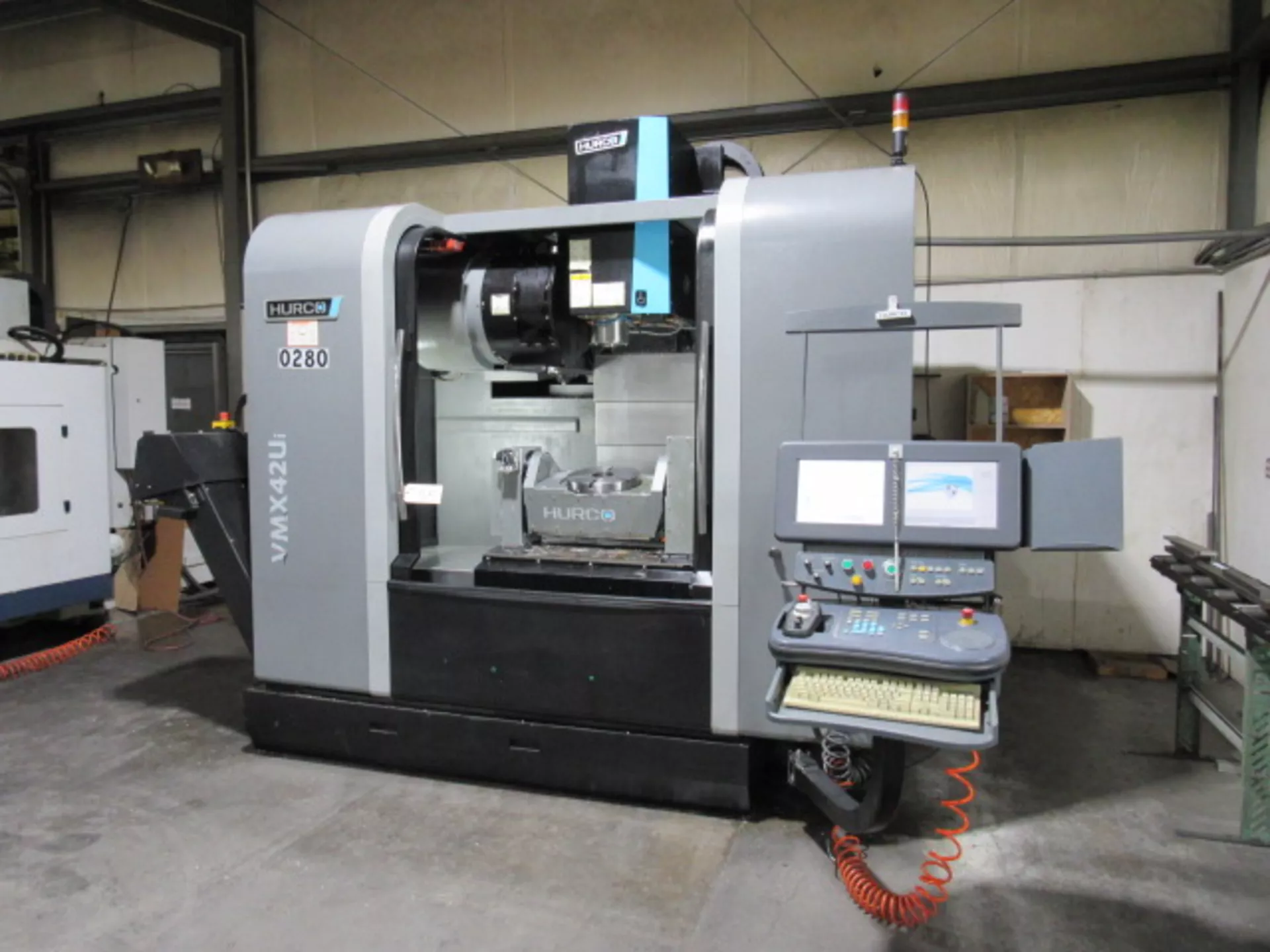

Hurco VMX42UI 5-Axis Trunnion CNC Vertical Machining Center – 2014
Out of stock
| SKU: | 11157 |
| Make/Model: | Hurco VMX42UI |
| Year: | 2014 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Hurco |
| Model No.: | VMX42UI |
| Year of Manufacture: | 2014 |
| Machine Type: | 5-Axis Trunnion CNC Vertical Machining Center |
| CNC Control: | Hurco WinMax CNC Control |
| Equipped With: |
|---|
| Hurco WinMax Conversational CNC Control |

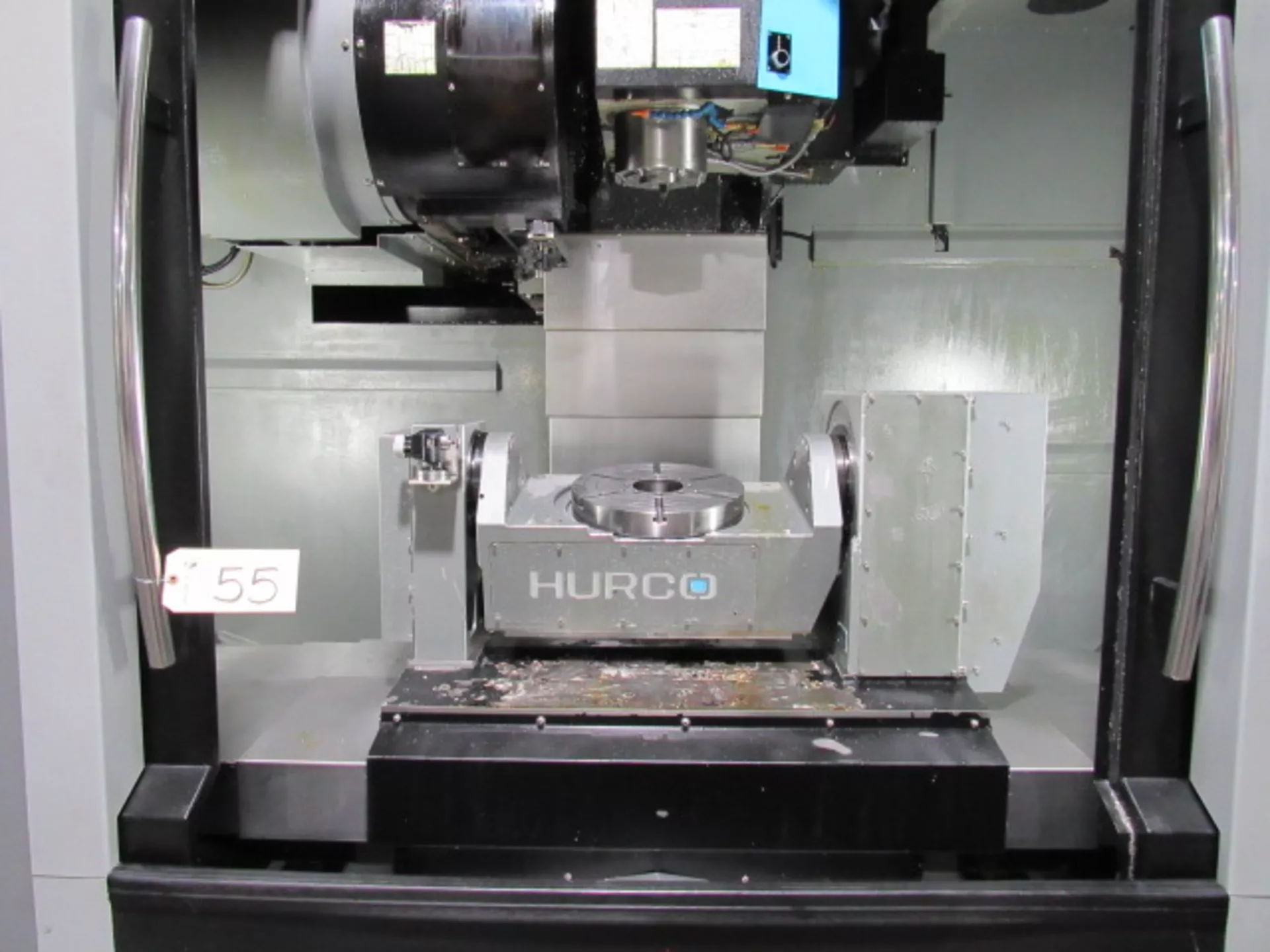

| 5-Axis Trunnion Table (B-Axis Tilt & C-Axis Rotation) |
| 12,000 RPM CAT-40 Spindle |
| Automatic Tool Changer |
| Rigid Tapping Capability |
| Thermal Spindle Stabilization |
| Fully Enclosed Machining Area |
| Automatic Lubrication System |
| Flood Coolant System |
| Capacity: |
|---|
| Table Size: 50″ × 24″ (1270 × 610 mm) |
| Maximum Table Load: Approx. 3,850 lbs |
| Maximum Part Weight (5-Axis Setup): Approx. 500 kg |
| T-Slots: 5 × 18 mm |
| Travel: |
|---|
| X-Axis Travel: 42″ |
| Y-Axis Travel: 24″ |
| Z-Axis Travel: 24″ |
| B-Axis Tilt: ±92° |
| C-Axis Rotation: 360° Continuous |
| Rapid Traverse (X/Y): 1496 IPM |
| Rapid Traverse (Z): 1260 IPM |
| Maximum Programmable Feedrate: Approx. 20 m/min |
| Spindle: |
|---|
| Spindle Speed: Up to 12,000 RPM |
| Spindle Motor Power: Approx. 18 kW (24 HP Peak) |
| Spindle Taper: CAT 40 / BT 40 / Big-Plus |
| Spindle Torque: Approx. 237 Nm Peak |
| Automatic Tool Changer: |
|---|
| Tool Changer Type: Side Mount Twin Arm ATC |
| Tool Capacity: 30 – 40 Tools |
| Maximum Tool Diameter: 3.1″ (80 mm) |
| Maximum Tool Length: 11.8″ (300 mm) |
| Maximum Tool Weight: 15.4 lbs (7 kg) |
| Machine Construction: |
|---|
| Rigid Cast Iron Machine Frame |
| High-Precision Linear Guideways |
| Integrated 5-Axis Trunnion Table |
| Thermal Stabilization System for Spindle Headstock |
| CNC Control: |
|---|
| Hurco WinMax CNC Control |
| Conversational Programming Capability |
| DXF File Import & Editing |
| Tool & Material Library |
| Ultimotion Advanced Motion Control |
| General: |
|---|
| Machine Weight: Approx. 14,000 – 15,700 lbs |
| Floor Space Required: Approx. 4.6 × 3.7 m |
| Coolant Tank Capacity: Approx. 484 L |
| Optional Features: |
|---|
| Renishaw Tool & Part Probing |
| Through-Spindle Coolant (CTS) |
| Chip Conveyor |
| 4th / 5th Axis Upgrades |
| Workholding Systems / Vises |
| Automation Integration |
| Categories | CNC Vertical Machining Center |
|---|---|
| Make | |
| Model | VMX42UI |
