Sold

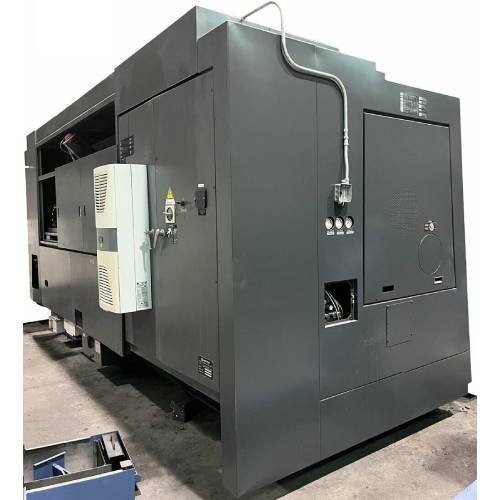

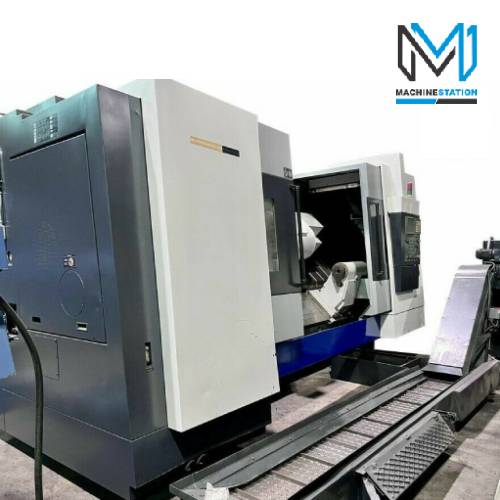

Hwacheon HI-TECH 700 CNC Turning Long Bed Lathe
Out of stock
| SKU |
2204 |
| Make |
Hwacheon |
| Model No. |
Hi-Tech 700 |
| Serial No. |
1073356331 |
| Year: |
2008/2010 |
| Condition: |
Very Good |
| Cutting Hours: |
2790 Only |
-
Features:

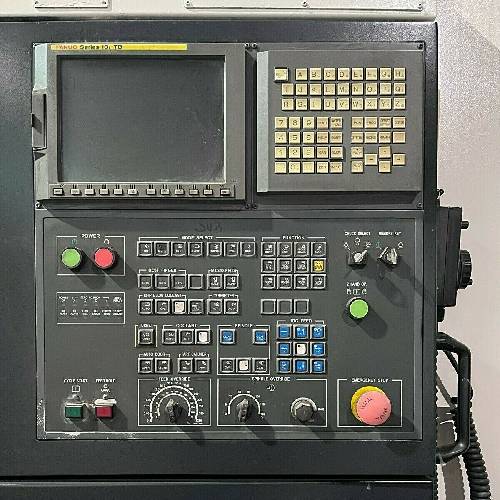

- Fanuc Oi-TD CNC Control

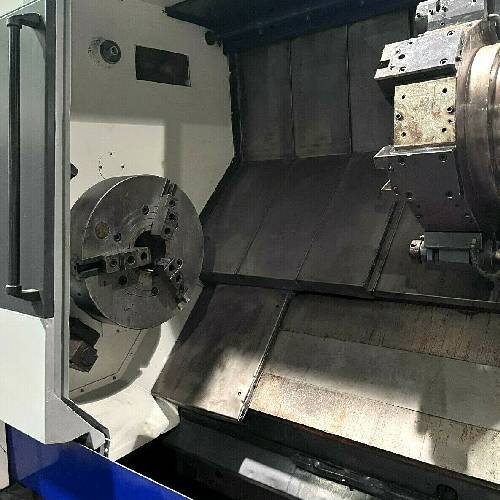

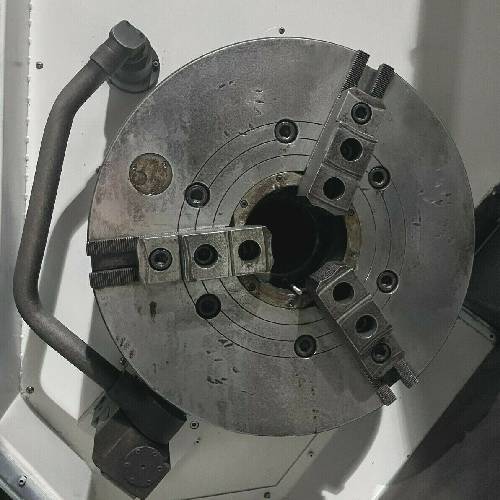

- 18″ Hydraulic Chuck

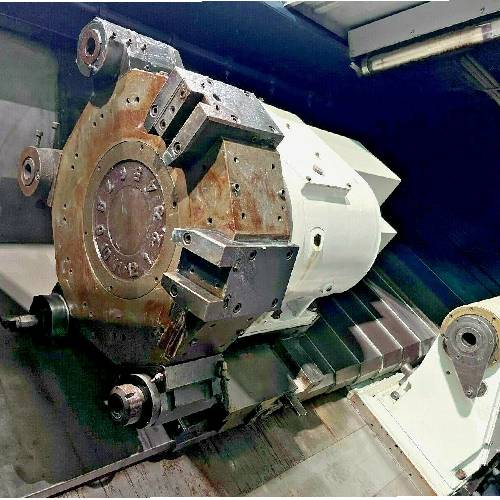

- 12 Station Turret
- Tool Prester
- High Precision Geared Head Spindle for powerful Torque
- Oil-Cooled Spindle and Spindle Bearings
- Hydraulic Tailstock and Power Quill
- Box Way Heavy Duty Construction
- Coolant System
- Chip Conveyor
- Foot Switches
-
Specifications:
- Capacity:
- Max Turning Diameter: 27.56″
- Max Turning Length: 78.18″
- Max Bar Capacity: 4.56″
- Max Swing Over Bed: 35.43″
- Distance Between Centers: 78.74″
-
Travels:
- X-Axis: 14.17″
- Z-Axis: 80.7″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 787 IPM
-
Spindle:
- Spindle Nose: A2-11
- Spindle Bore: 5.9″
- Speed Range: 0 – 1800 RPM
- Spindle Motor: 37 kw
-
Turret:
- Capacity: 12 Stations
- Turret Index Time: 0.2 Seconds
-
Tailstock:
- Tailstock Body Travel: 73.94″
- Tailstock Quill Dia: 5.90″
- Tailstock Quill Stroke: 5.90″
- Tailstock Taper: MT-5
-
General:
- Power Source: AC 220v / 3-Phase / 60 Hz
- Overall Dimensions: ” x ” x ” High
- Weight: 33070 lbs
