*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

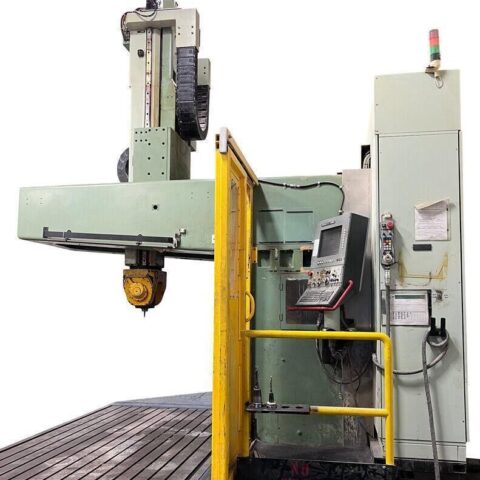

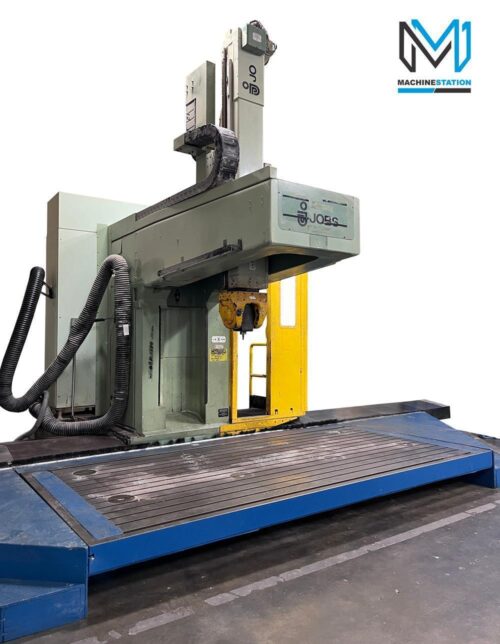

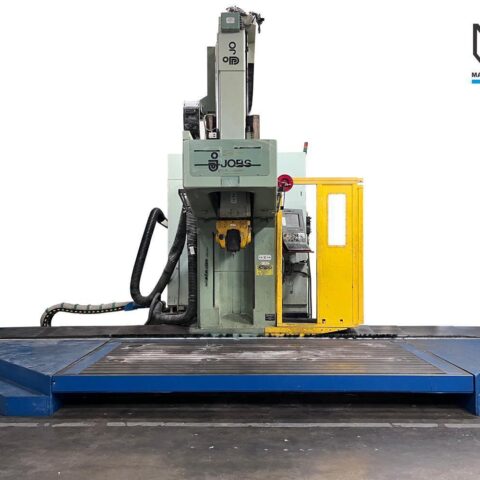

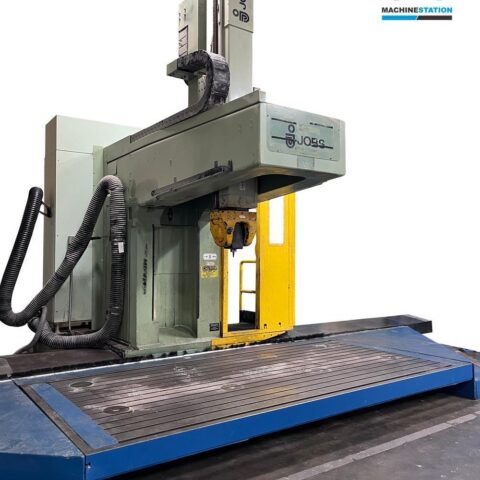

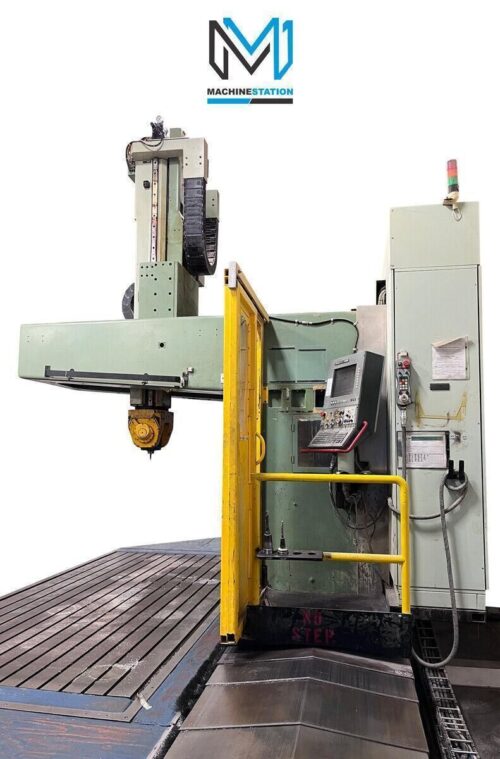

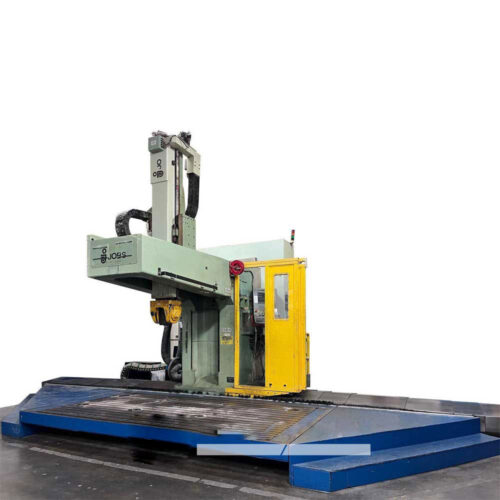

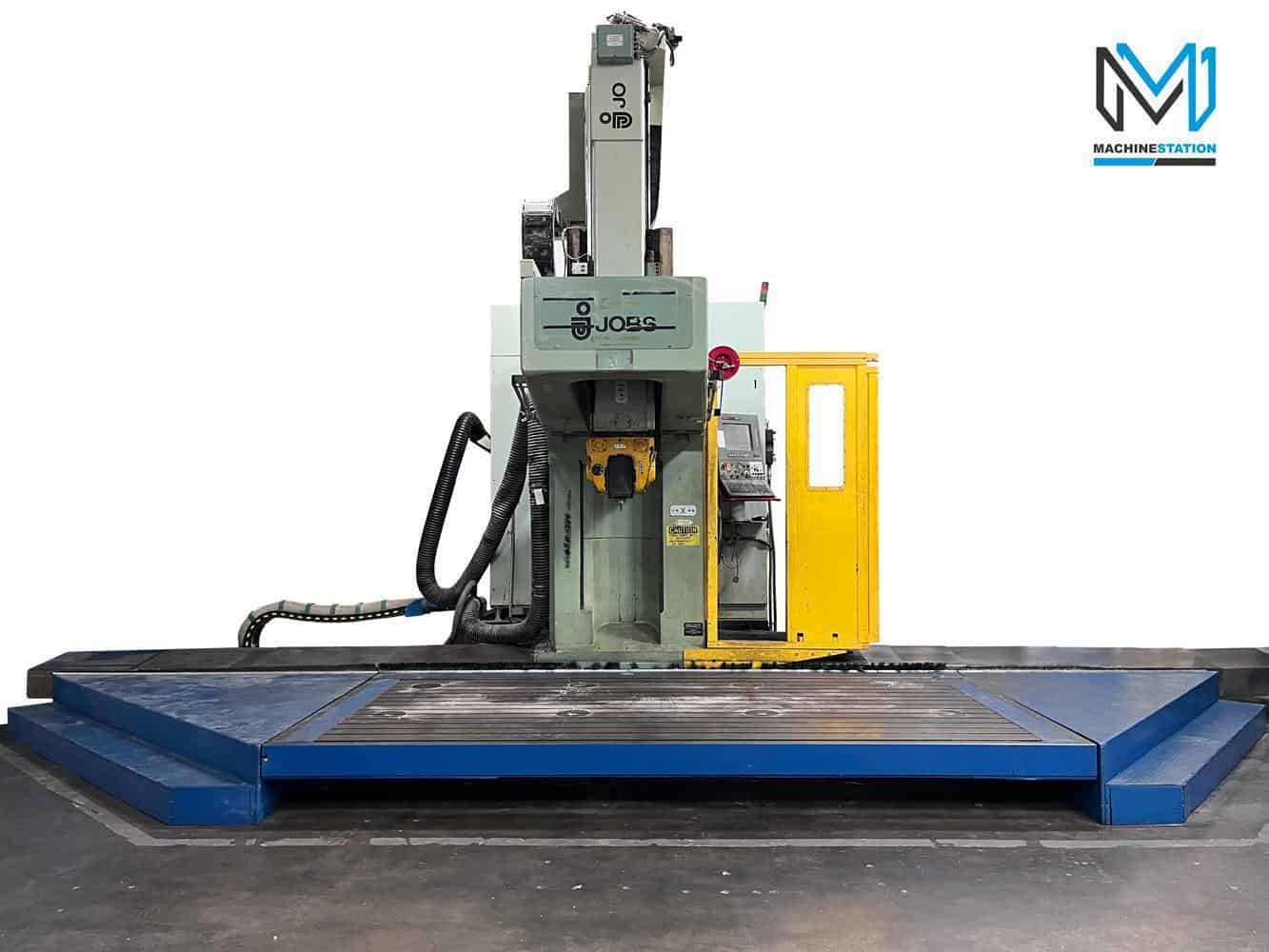

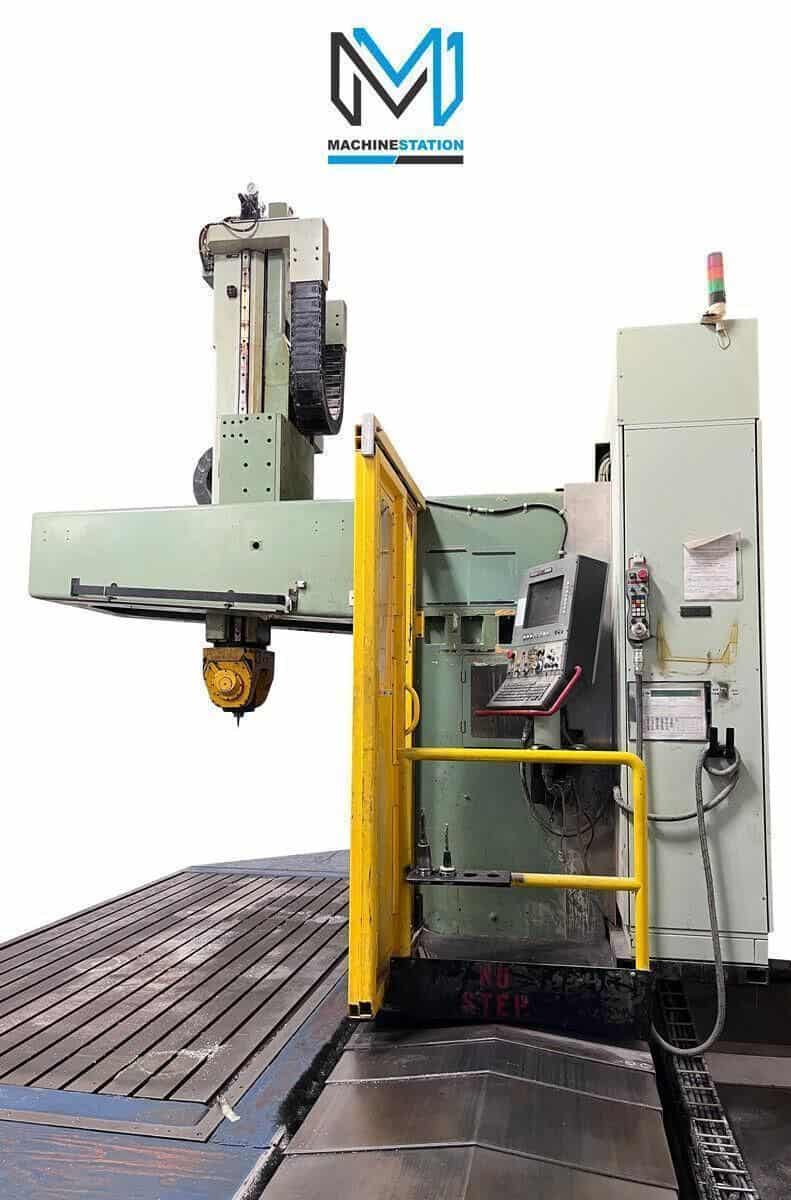

| Make: | JOBS |
| Model: | JOMACH 32 |
| Year: | 2001 |
| Condition: | Used – Good |
| Equipped With: |
|---|

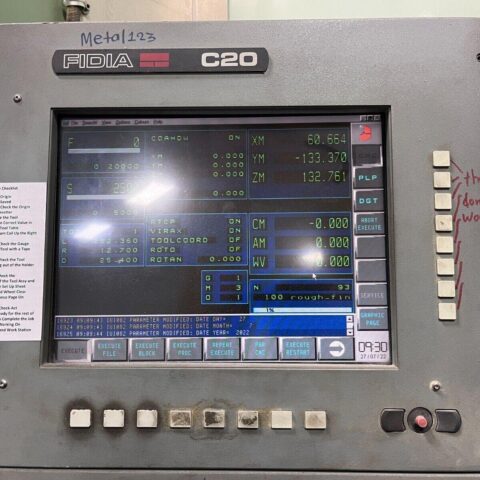

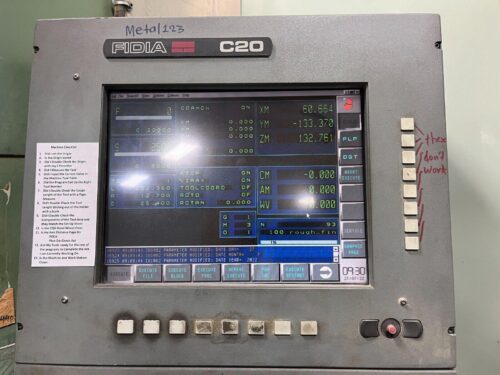

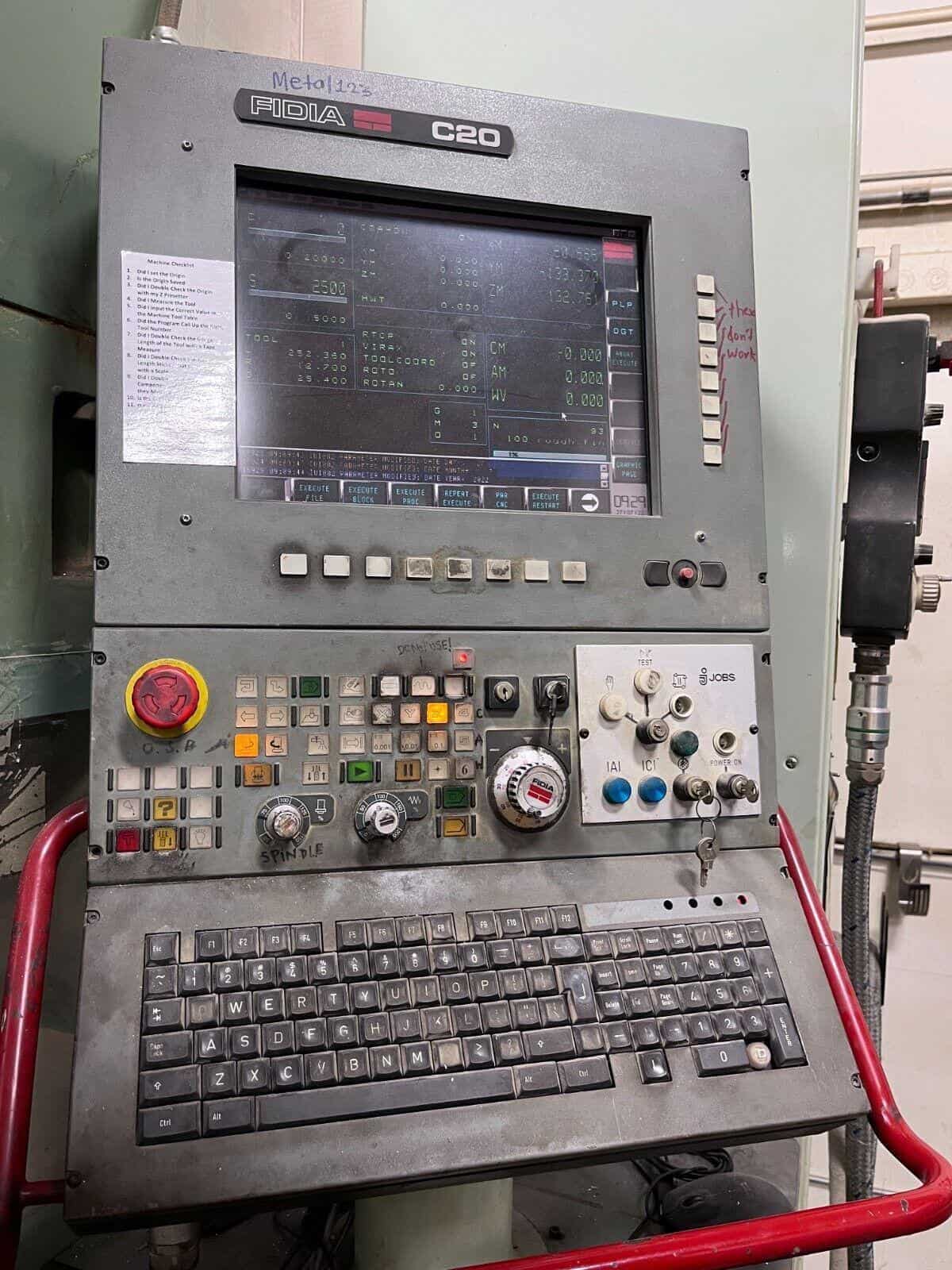

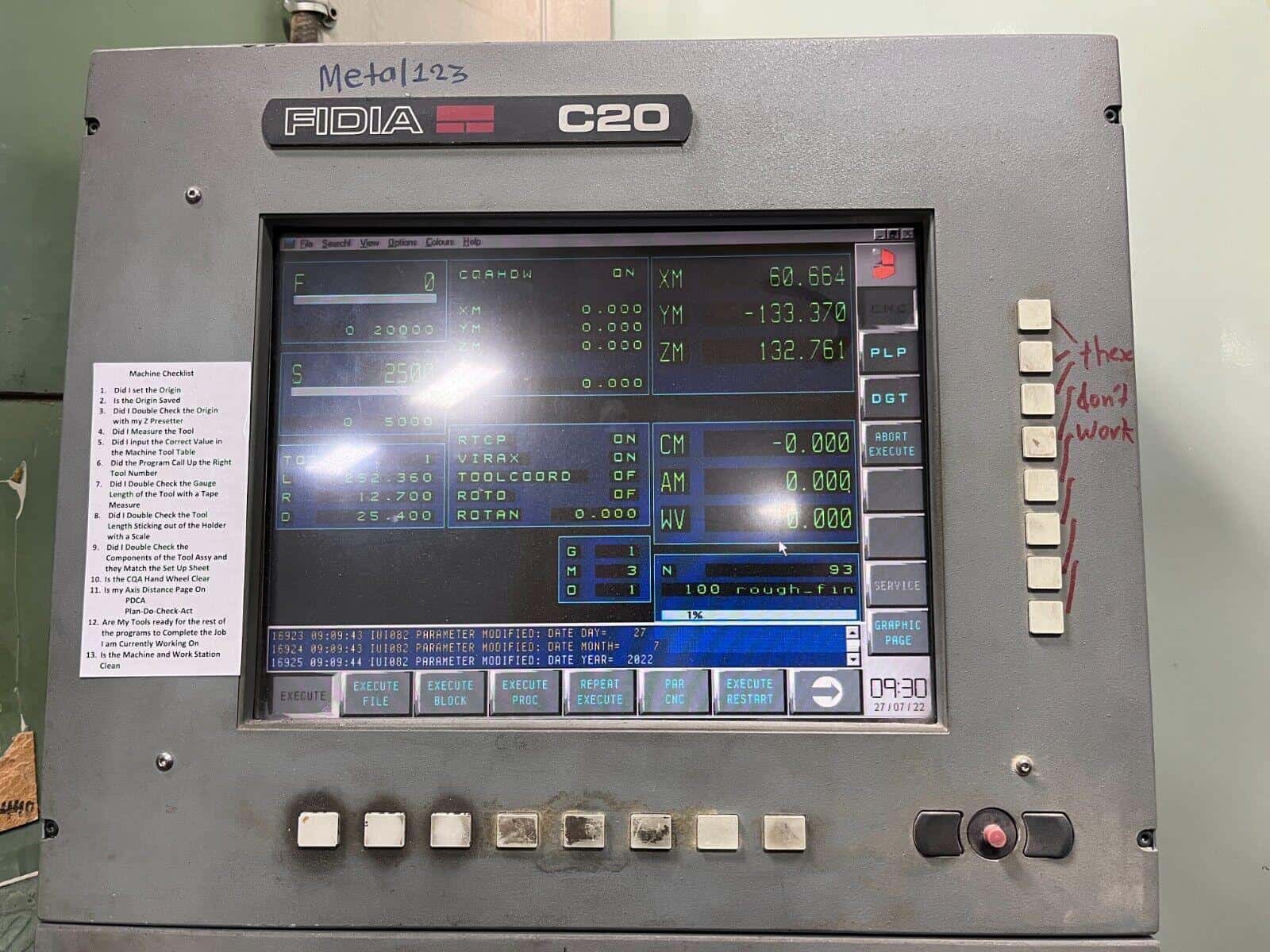

| FIDIA C-20 Series CNC Control |
| Simultaneous 5 Axis Cutting |

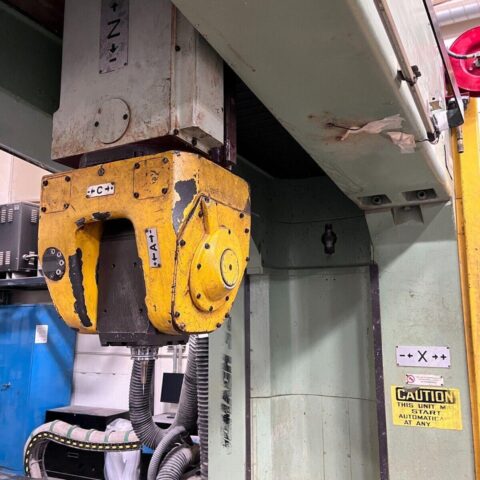

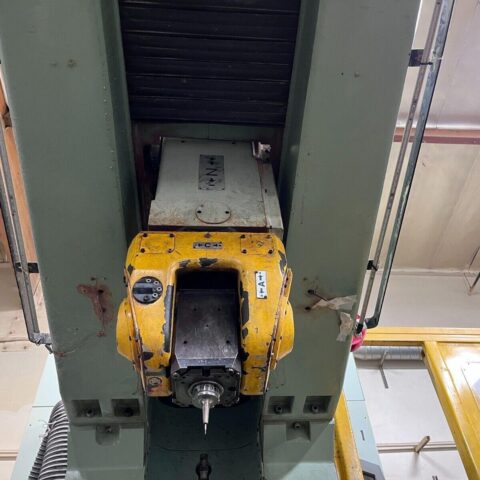

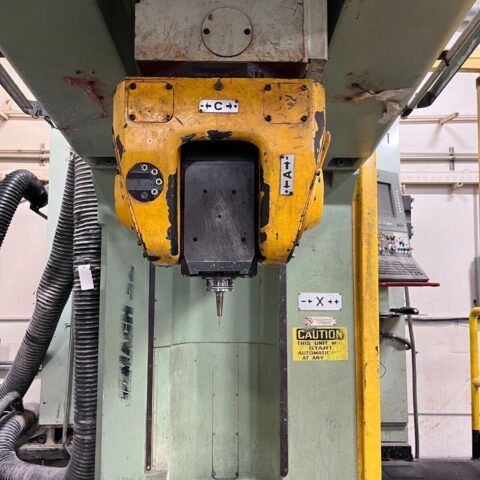

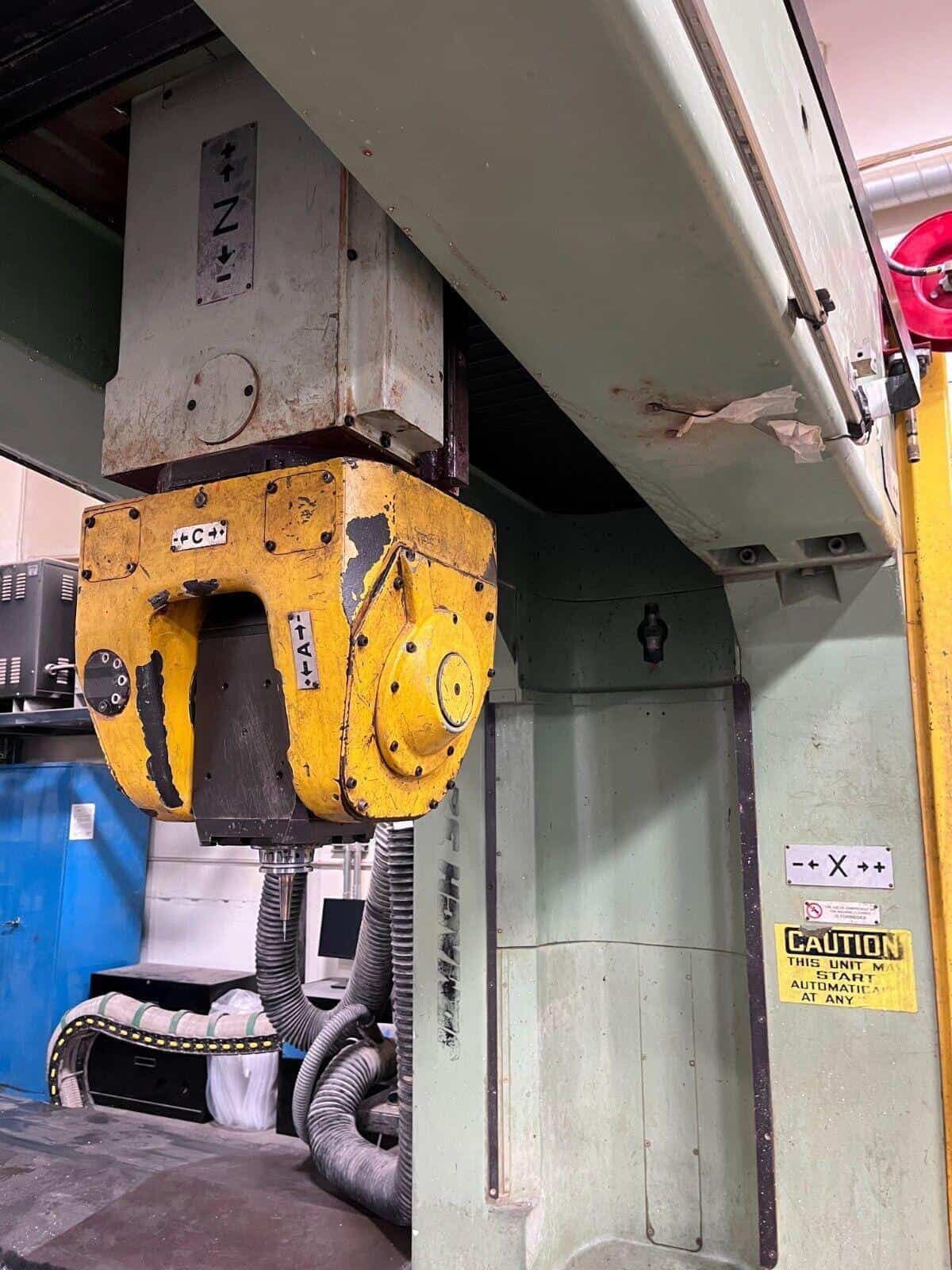

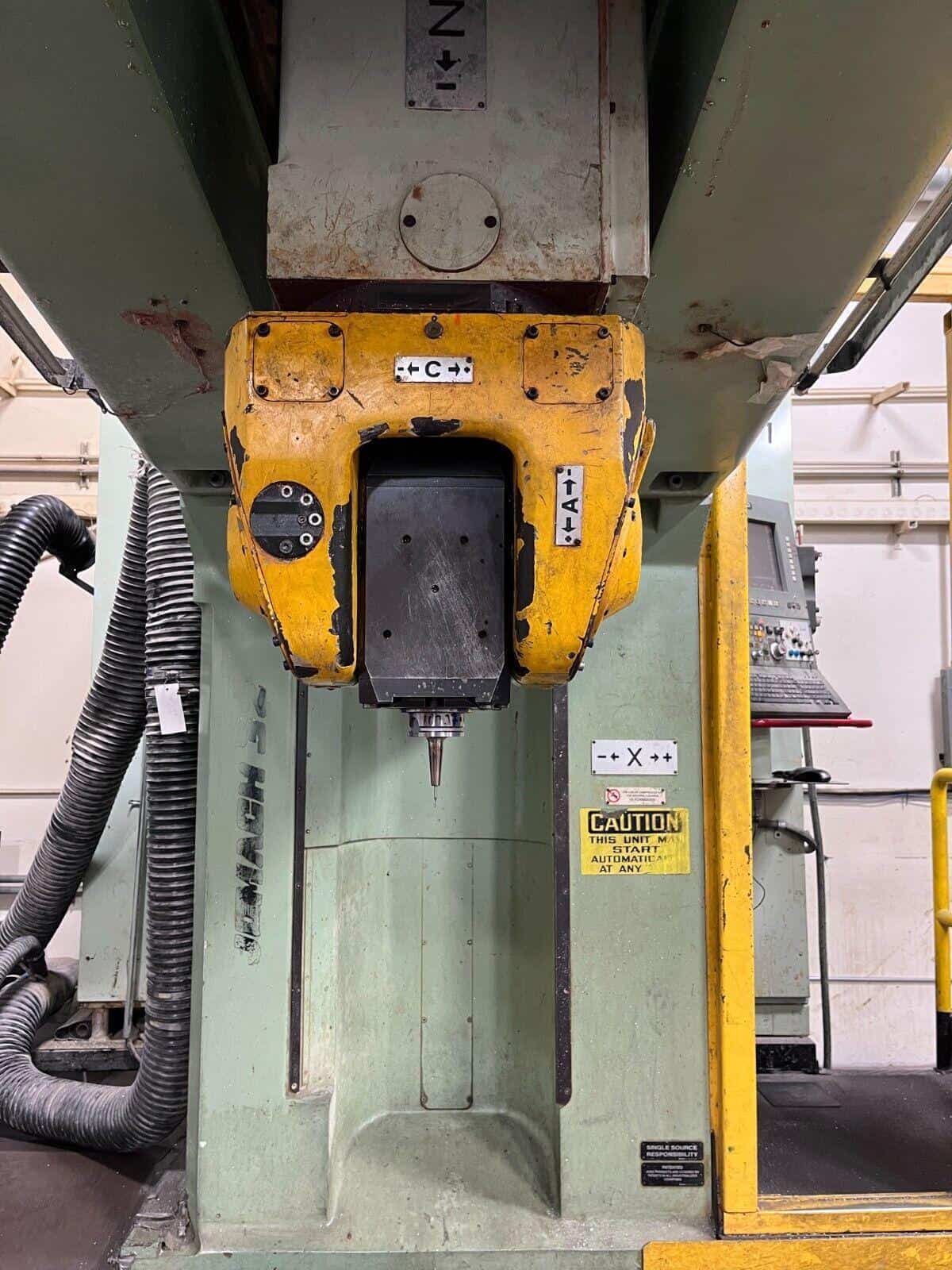

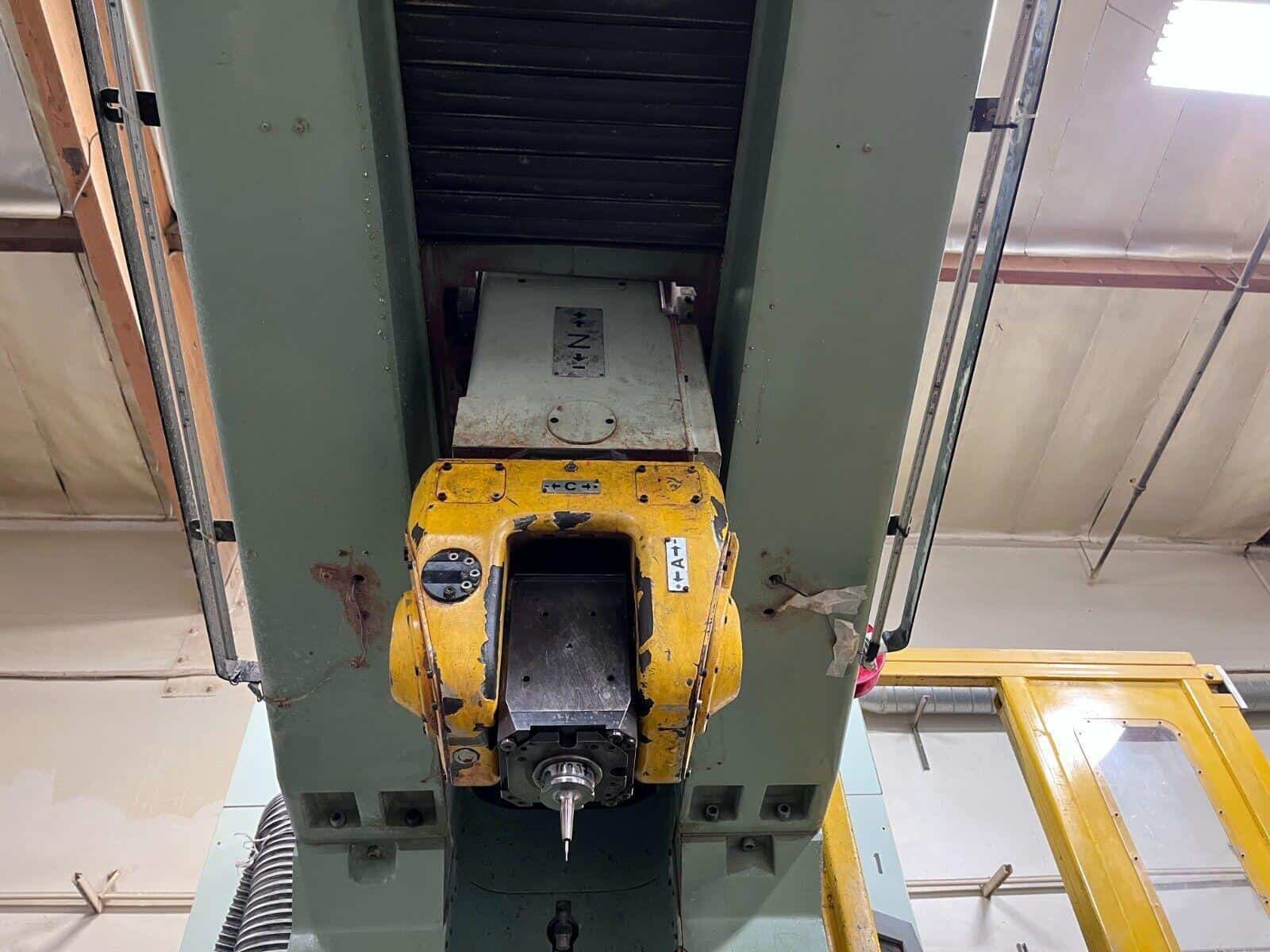

| Swivel Milling Head (A & C Axis) |
| Three-Dimensional Milling |
| Three-Dimensional Measuring System |
| 24000 RPM High Speed Spindle |
| ” X ” Floor Plate |
| Fast Rapid Traverse Rate |
| Hand Wheel MPG Control |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| Telescopic Way Covers |
| Books & Manuals |
| Travels: |
|---|
| X Axis: 256″ |
| Y Axis: 70″ |
| Z Axis: 55″ |
| A Axis: +100˚/ -100˚ (Swivelable) |
| C Axis: +200° / – 200° (Rotate) |
| Min. Increment: 0.001° |
| Table: |
|---|
| Length: 157.5″? |
| Width: 59.05″ |
| Number of Std T-Slots: 14 |
| T-Slot Width: 5″/8″ |
| Max Weight on Table: lbs |
| Table to Spindle Nose: 3.9″ – 57.82″ |
| Spindle: |
|---|
| Taper Size: HSK 63A |
| Speed Range: 24000 RPM? |
| Spindle Power: 15 HP |
| Feed rates: |
|---|
| Rapid X Y Z Axis: 1181 IPM |
| Rapid A: 3.240˚ / min |
| Rapid C: 3.240˚ / min |
| Cutting Feed rate: 394 IPM |
| General: |
|---|
| Air Required: 80 psi 4 scfm |
| Power: 70 kva /480v / 3-Phase |
| Overall Dimensions: ” x ” x ″ High |
| Weight: 48501 lbs |
| “No Charges for loading at list Price” |
