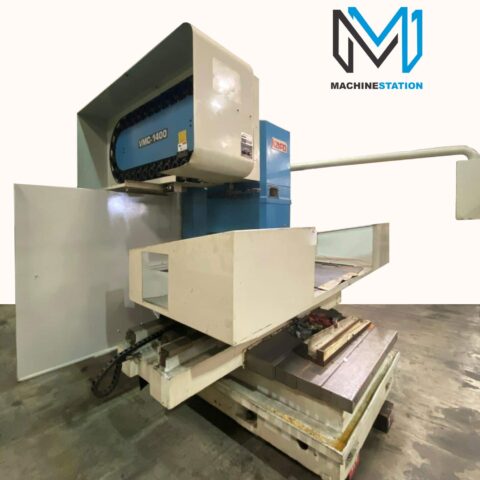

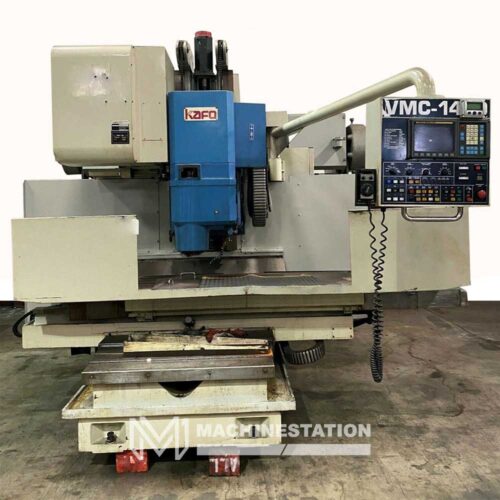

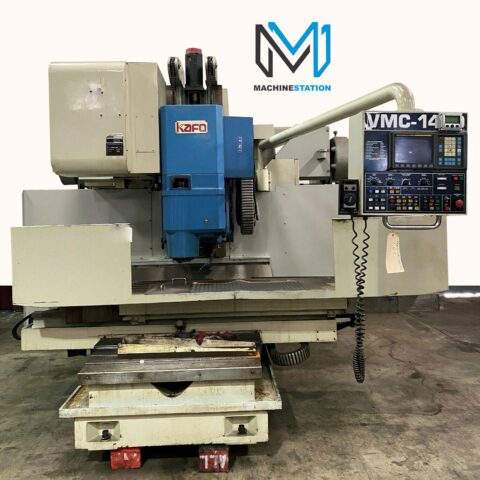

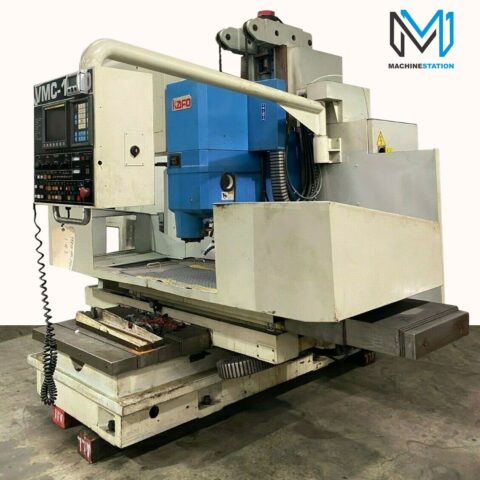

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

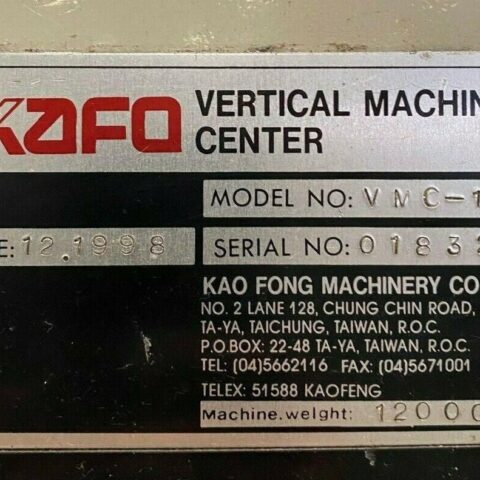

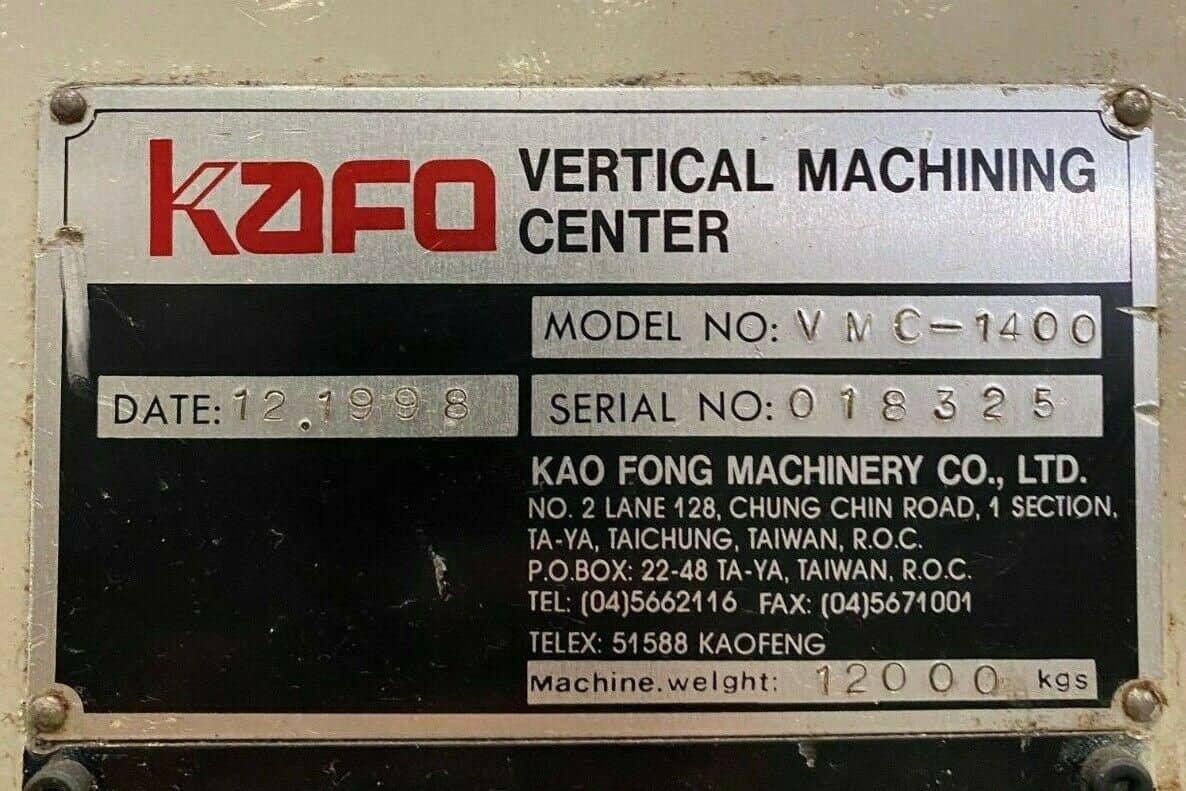

| Make: | KAFO |
| Model: | VMC-1400 |
| Year: | |
| Condition: | Used – Good |

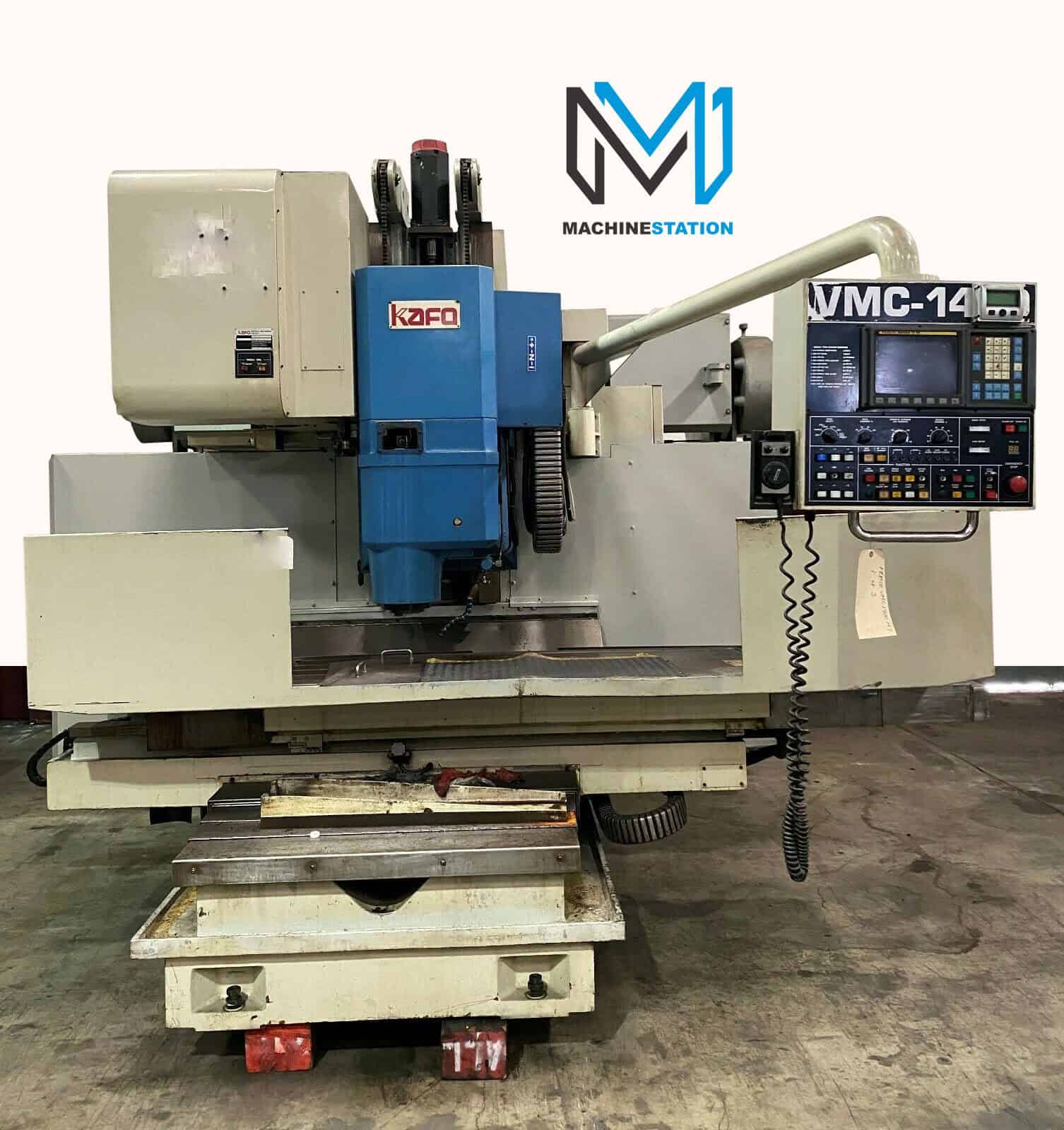

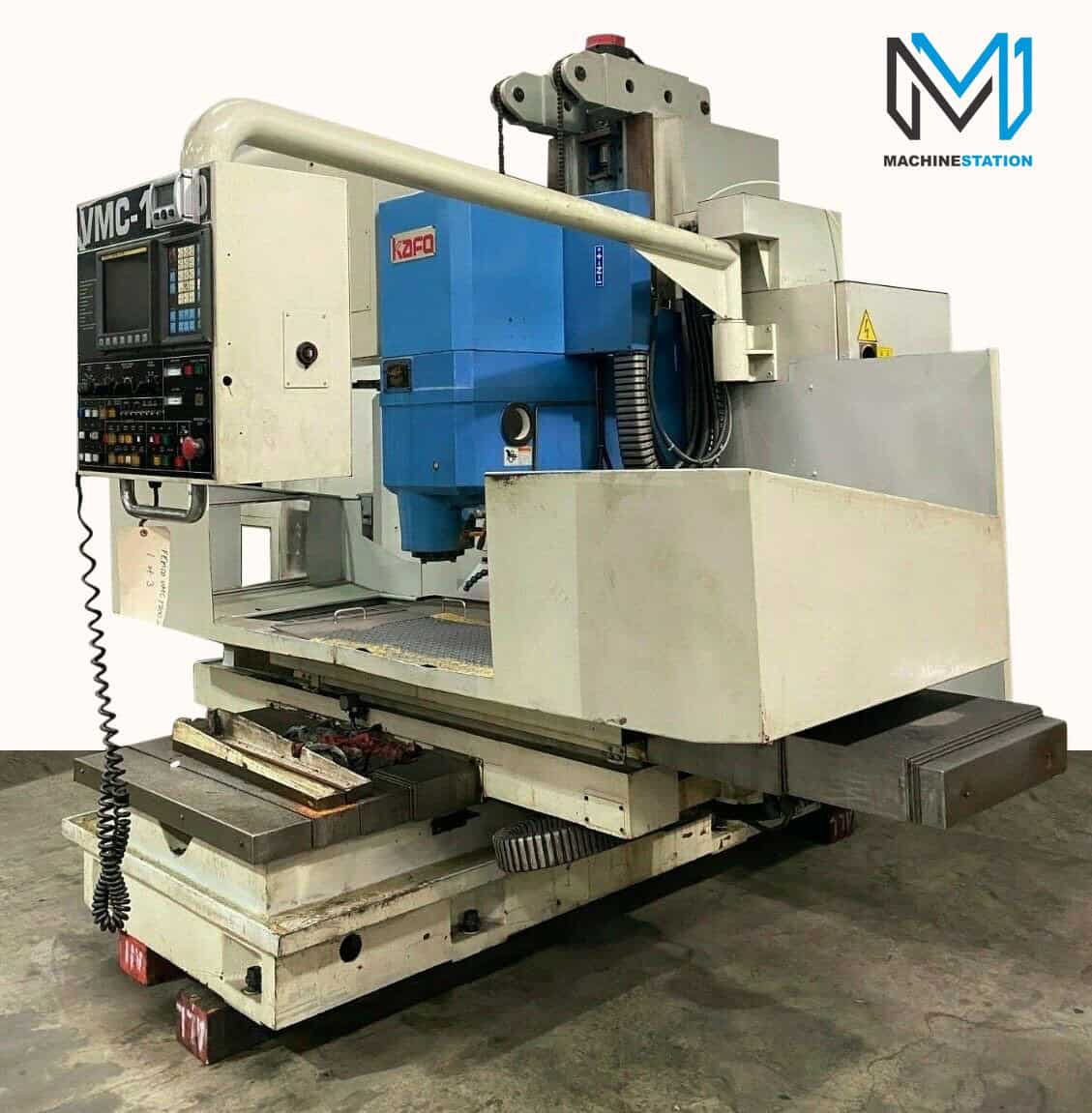

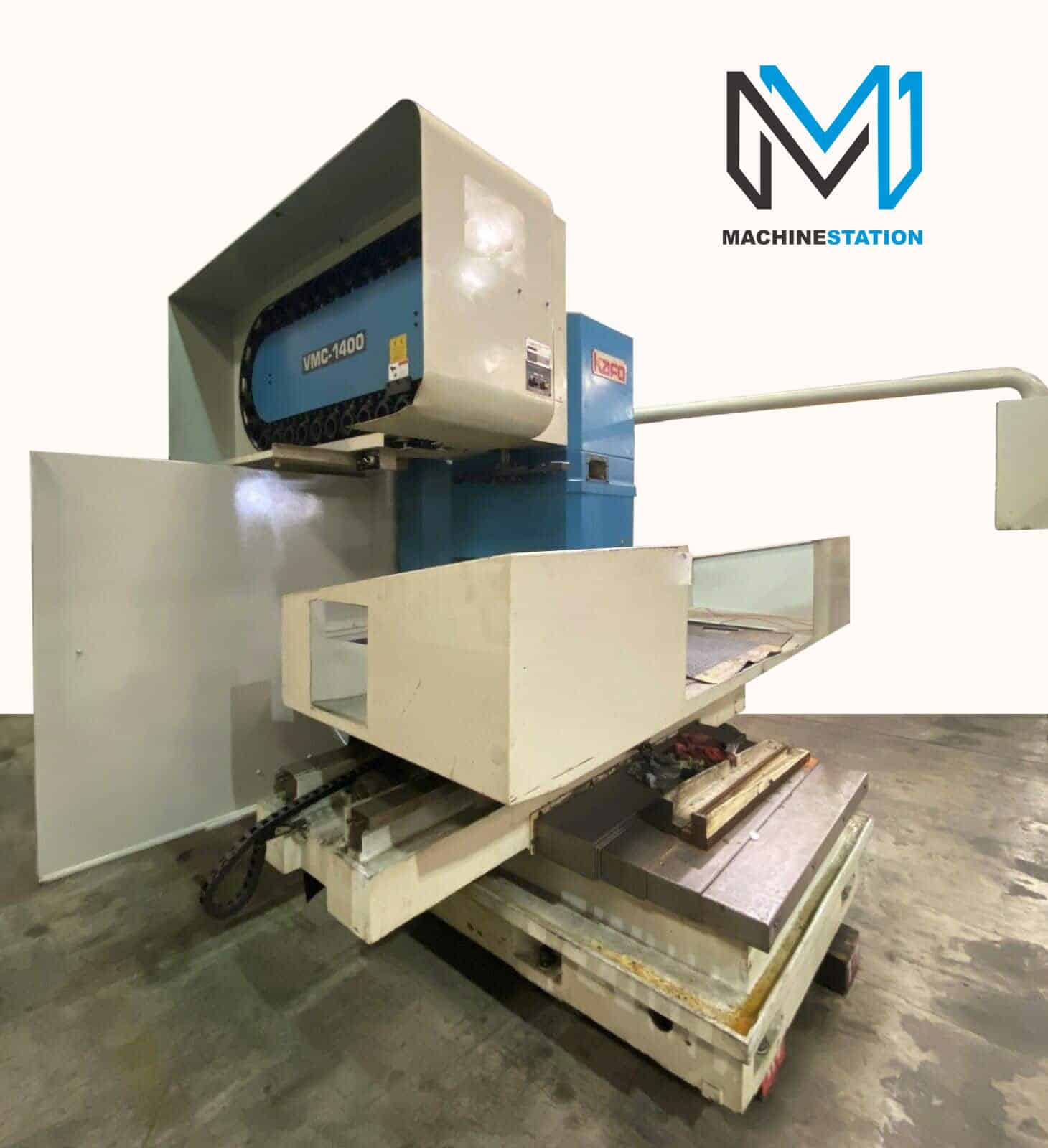

| Kafo Femco VMC-1400 Features: |
|---|

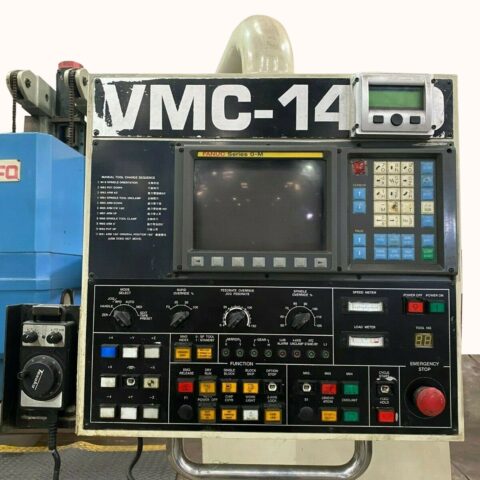

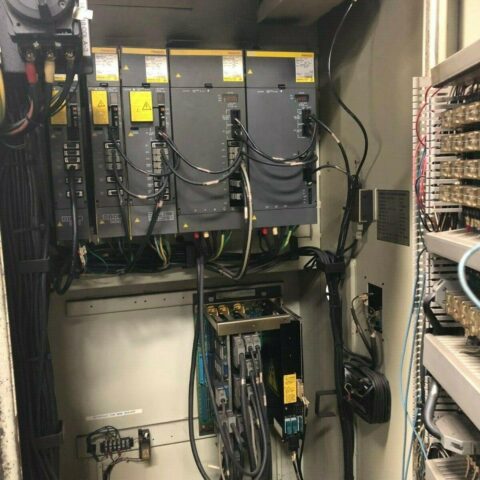

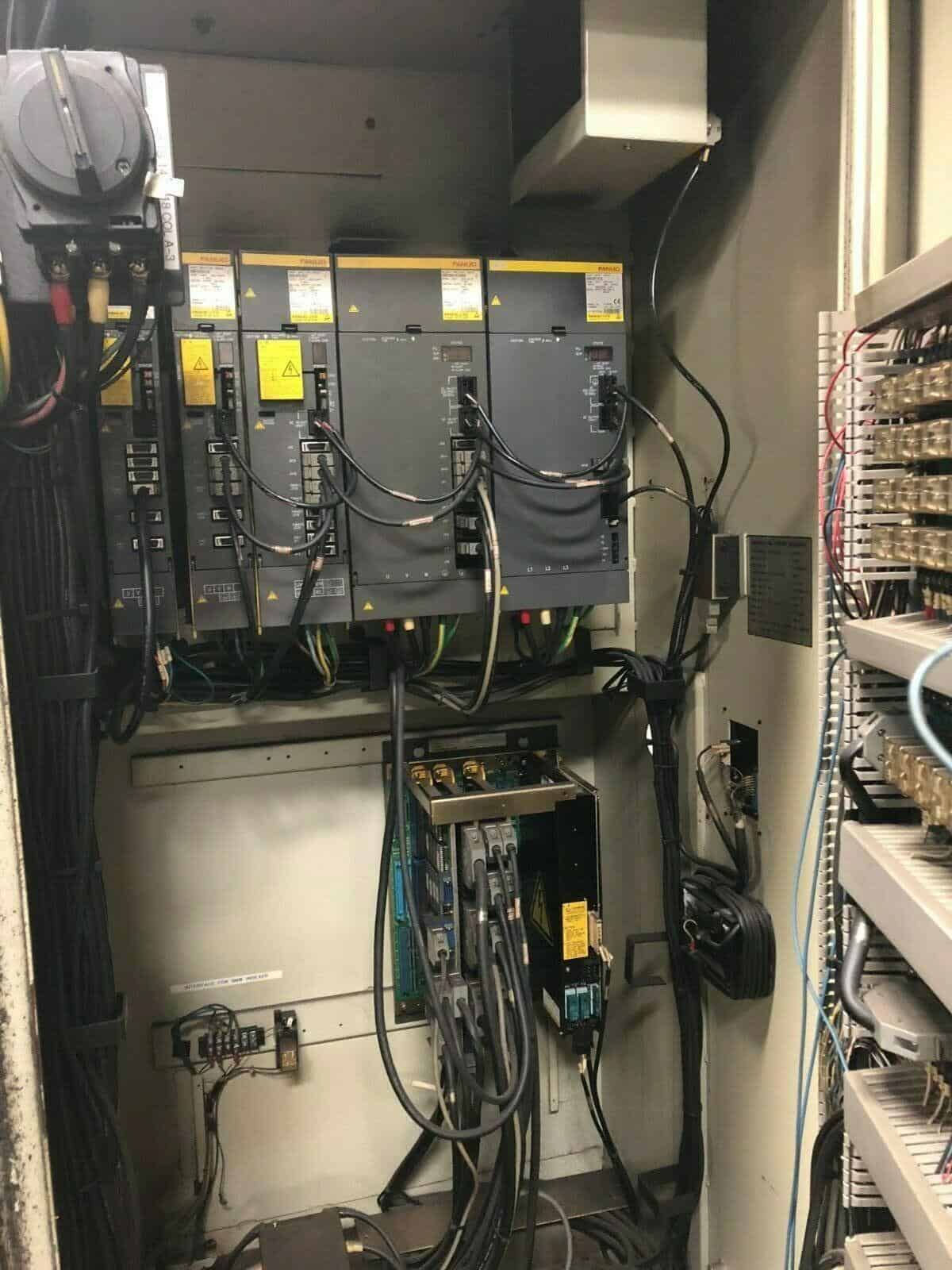

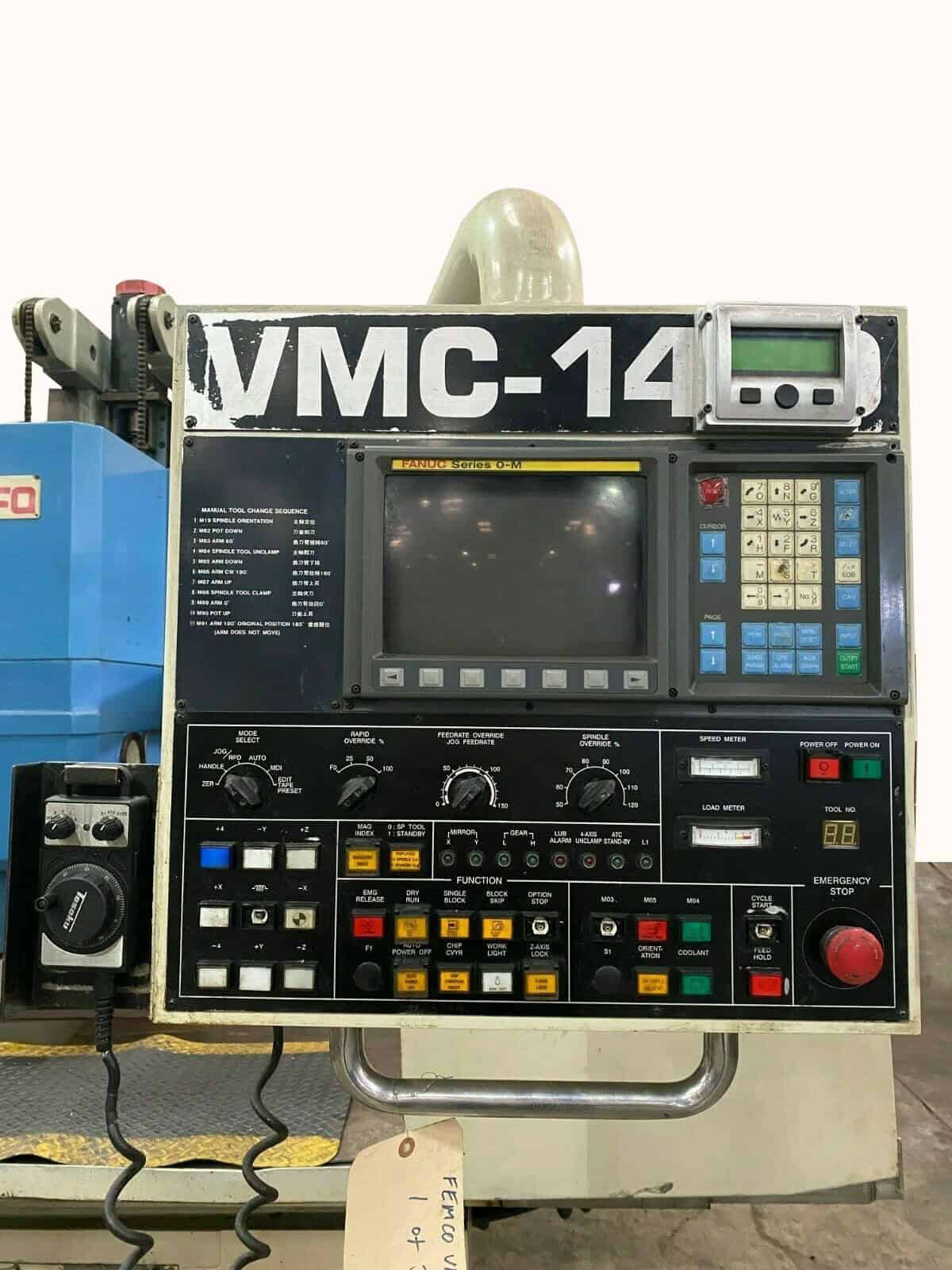

| Fanuc 0MC CNC Control |
| Box Way Heavy Construction |
| 30 HP High Torque Spindle Motor |
| 50 Taper 4500 RPM Geared Head Spindle |
| USB Drive |
| MPG Control |

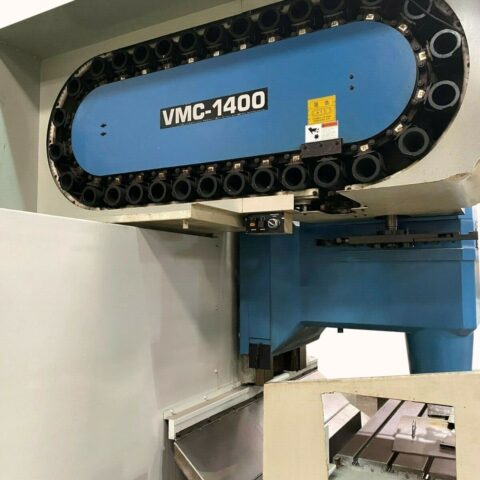

| 30 Automatic tool changer |
| Rigid Tapping |
| Spindle Orientation |
| Telescopic way covers |

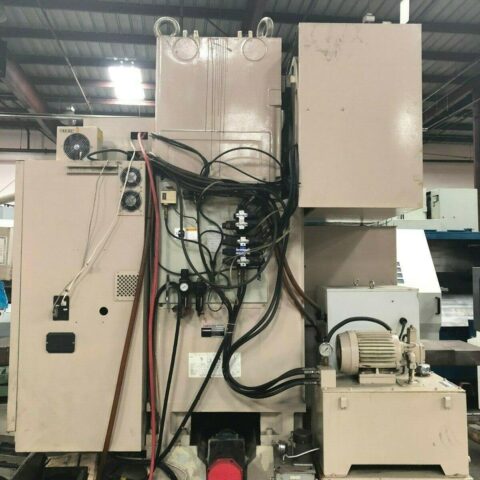

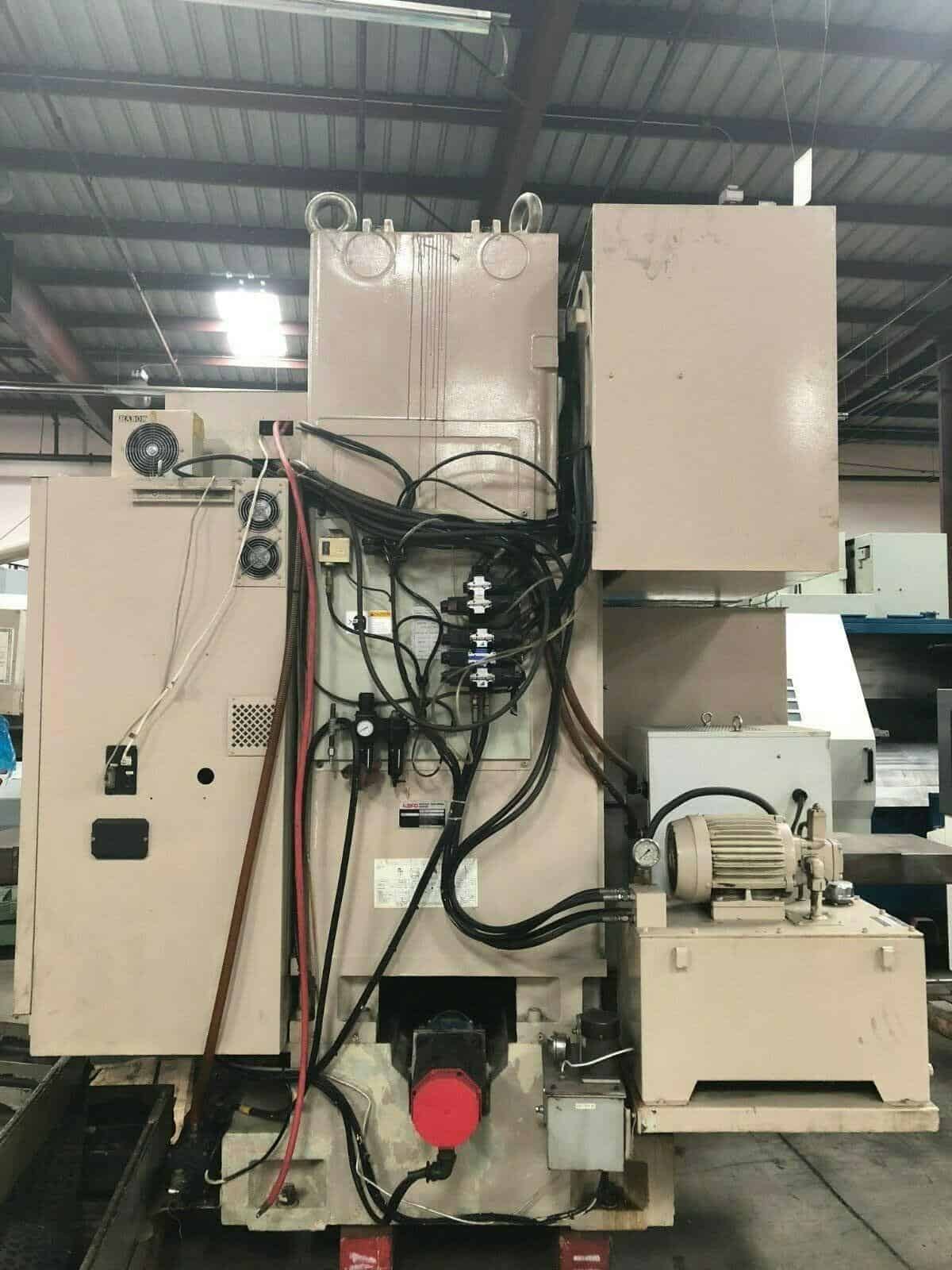

| Coolant Tank |
| Travels: |
|---|
| X-Axis: 55.9″ |
| Y-Axis: 30.4″ |
| Z-Axis: 30.3″ |
| Rapid Traverse Rates: 590 Inch Per Minute |
| Cutting Feed Rates: 360 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.5″ – 35.79″ |

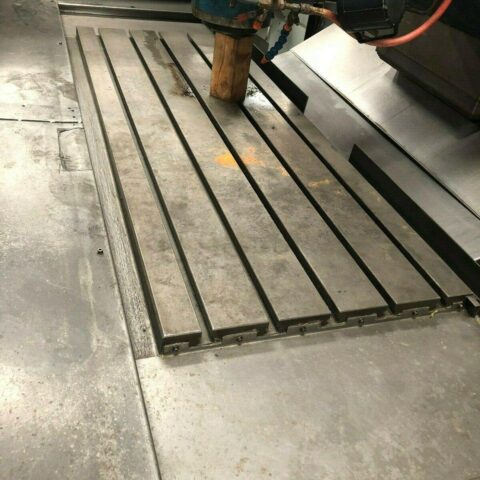

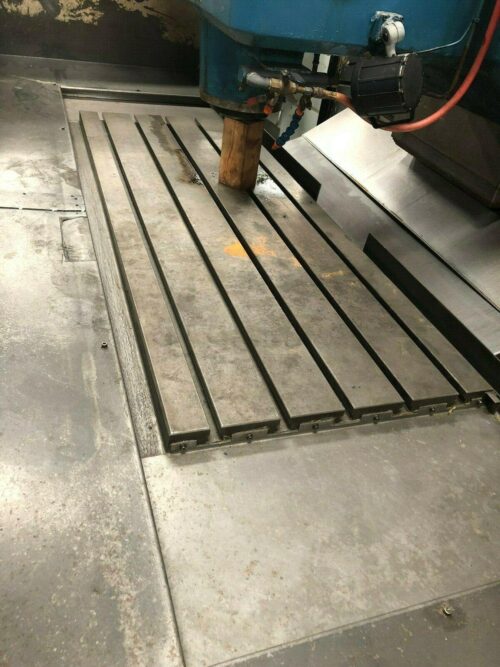

| Table: |
|---|
| Length: 67.0″ |
| Width: 29.4″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 4400 lbs |
| Spindle: |
|---|
| Taper Size: CAT-50 |
| Speed Range: 4500 RPM |
| Spindle Power: 30 HP |

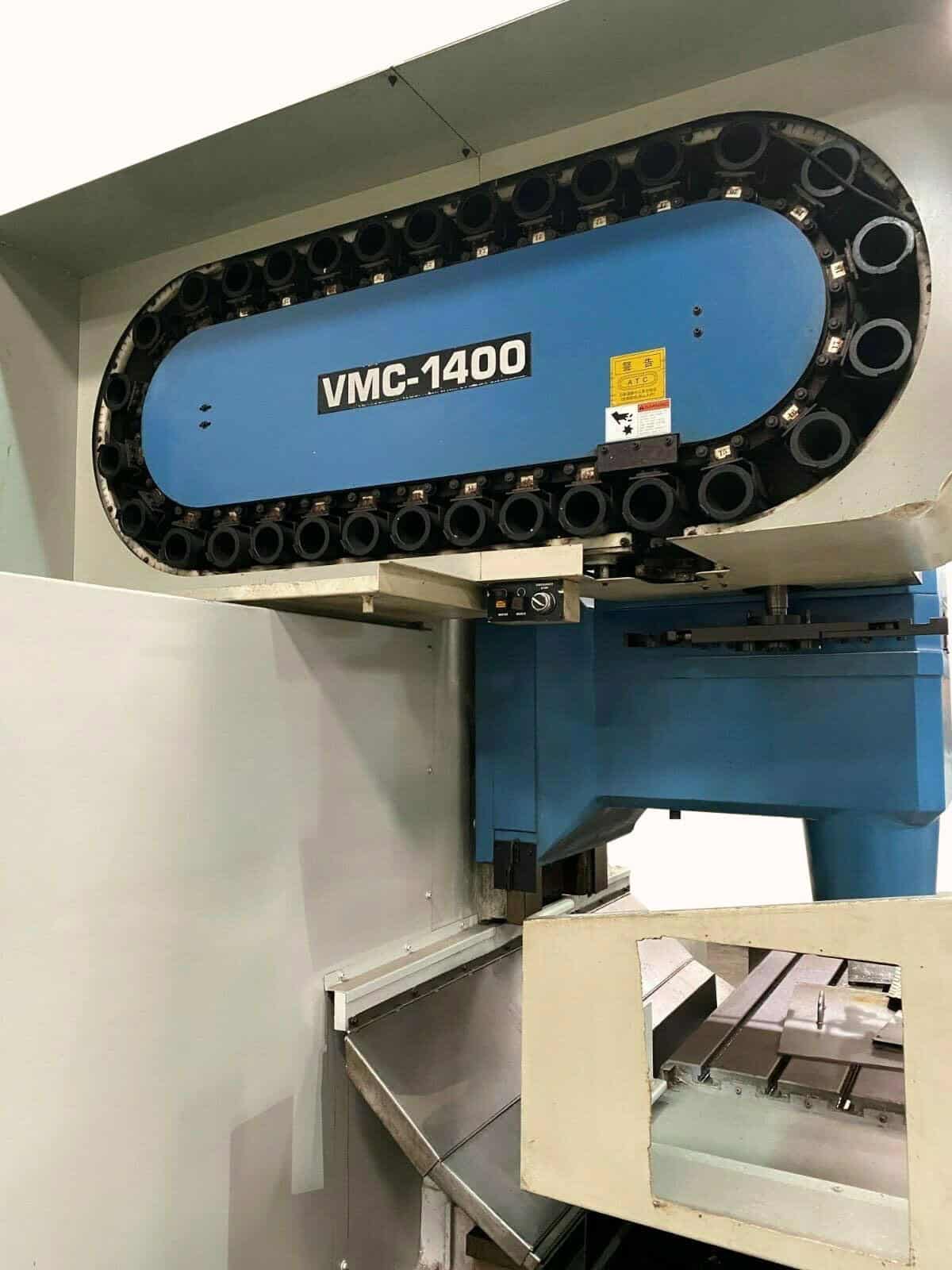

| Automatic Tool Changer: |
|---|
| Capacity: 30 |
| Max Tool Weight: 33 lbs |
| Max Tool Dia: 5.2″ |
| Max Tool Length: 11.8″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 115″ x 110″ x 108″ High |
| Weight: 25000 lbs |
| “No Charges for loading at list Price” |
