Haas ST-20SSY CNC Turning Center – 2017 Y Axis Lathe

Location ON
SKU 113523
Make HAAS
Model ST-20SSY
Year 2017
Condition Used

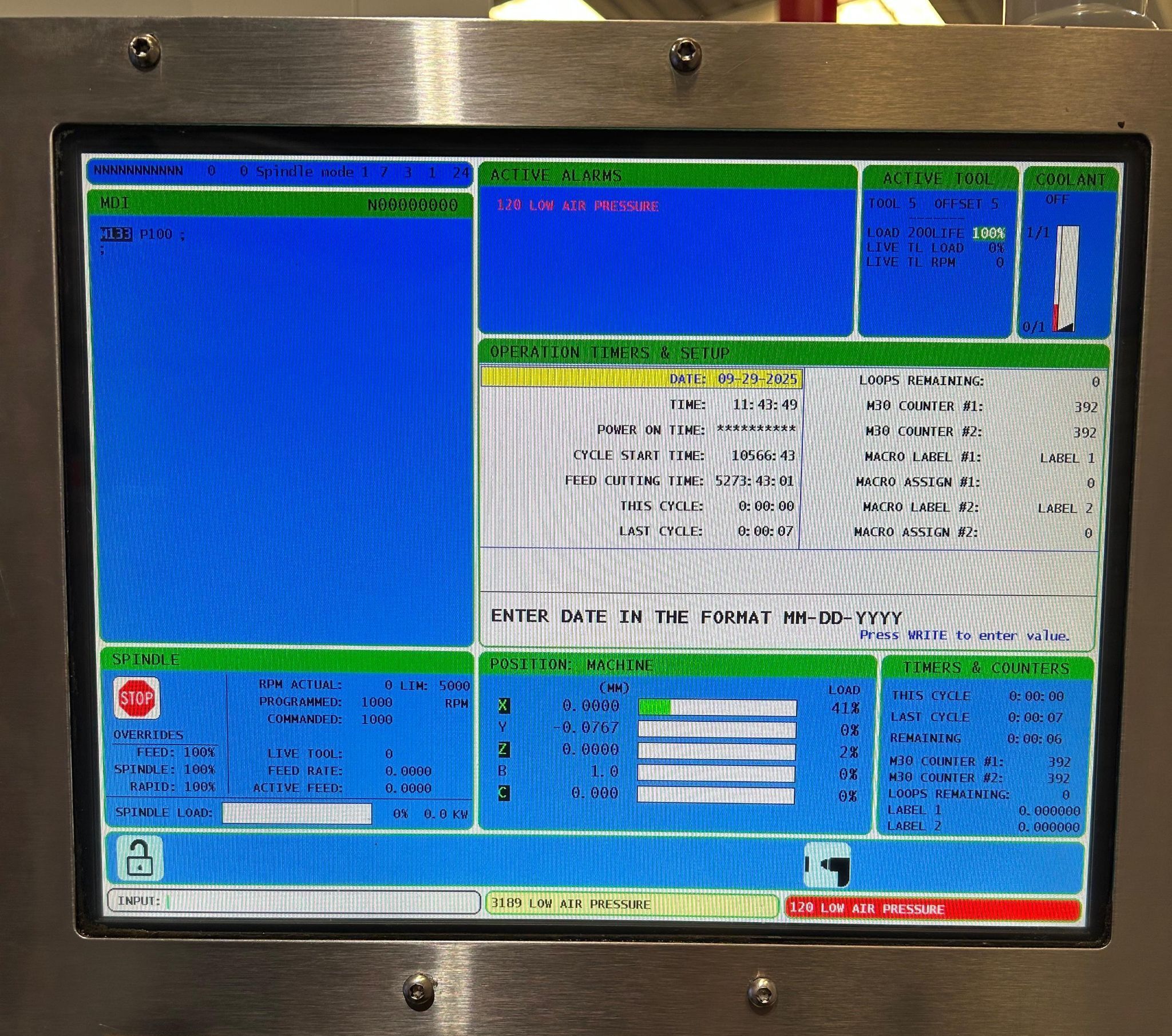

Cutting Time 5,273 Hours
Video On Request
Out of stock
Location: ON
SKU: 113523
Make: HAAS
Model: ST-20SSY
Year: 2017
Condition: Used
Cutting Time: 5,273 Hours
Video: On Request
SKU: 113523
Brand:
Make: Haas
Model: ST20SSY
Year: 2017
Equipped With:

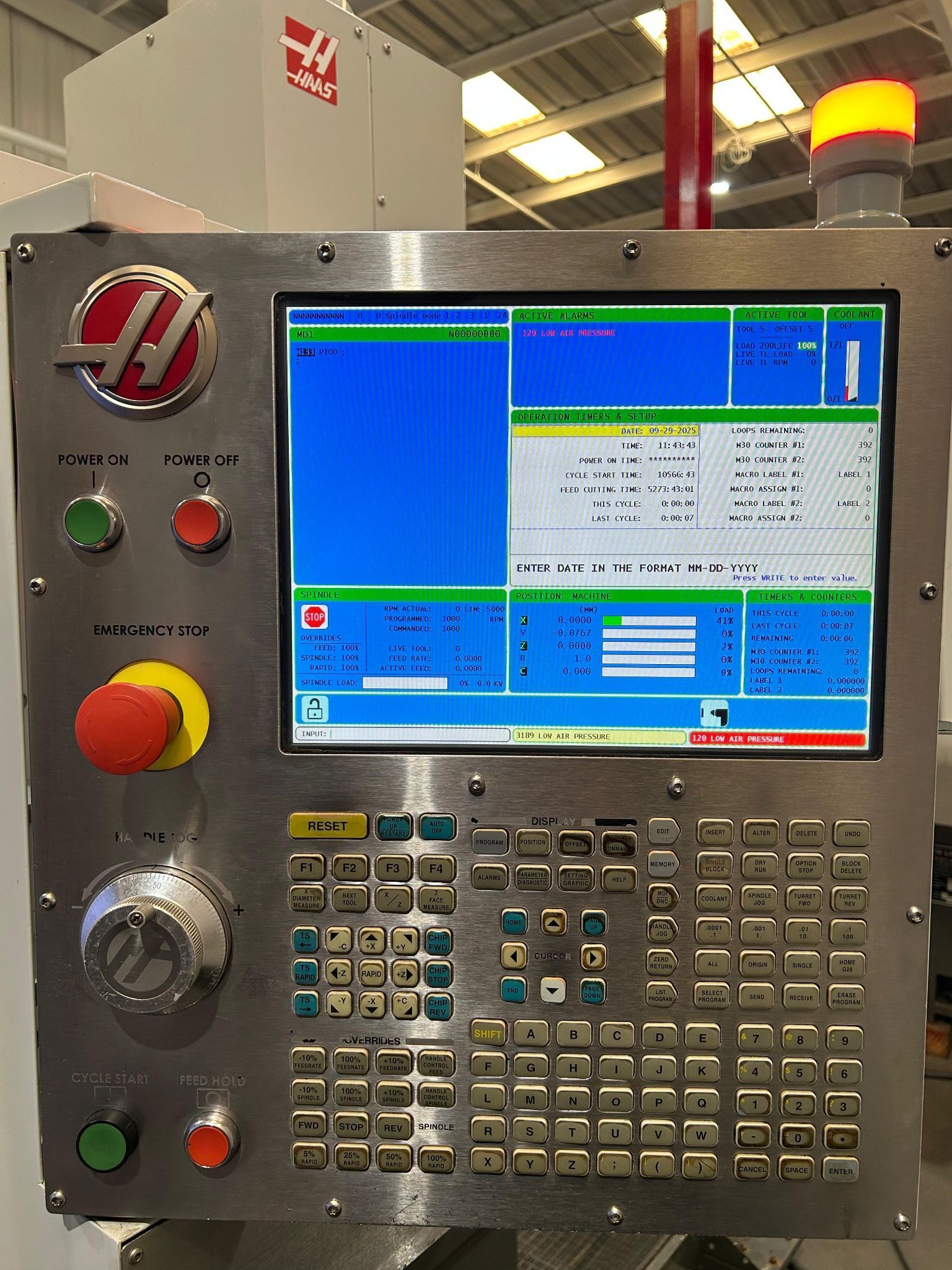

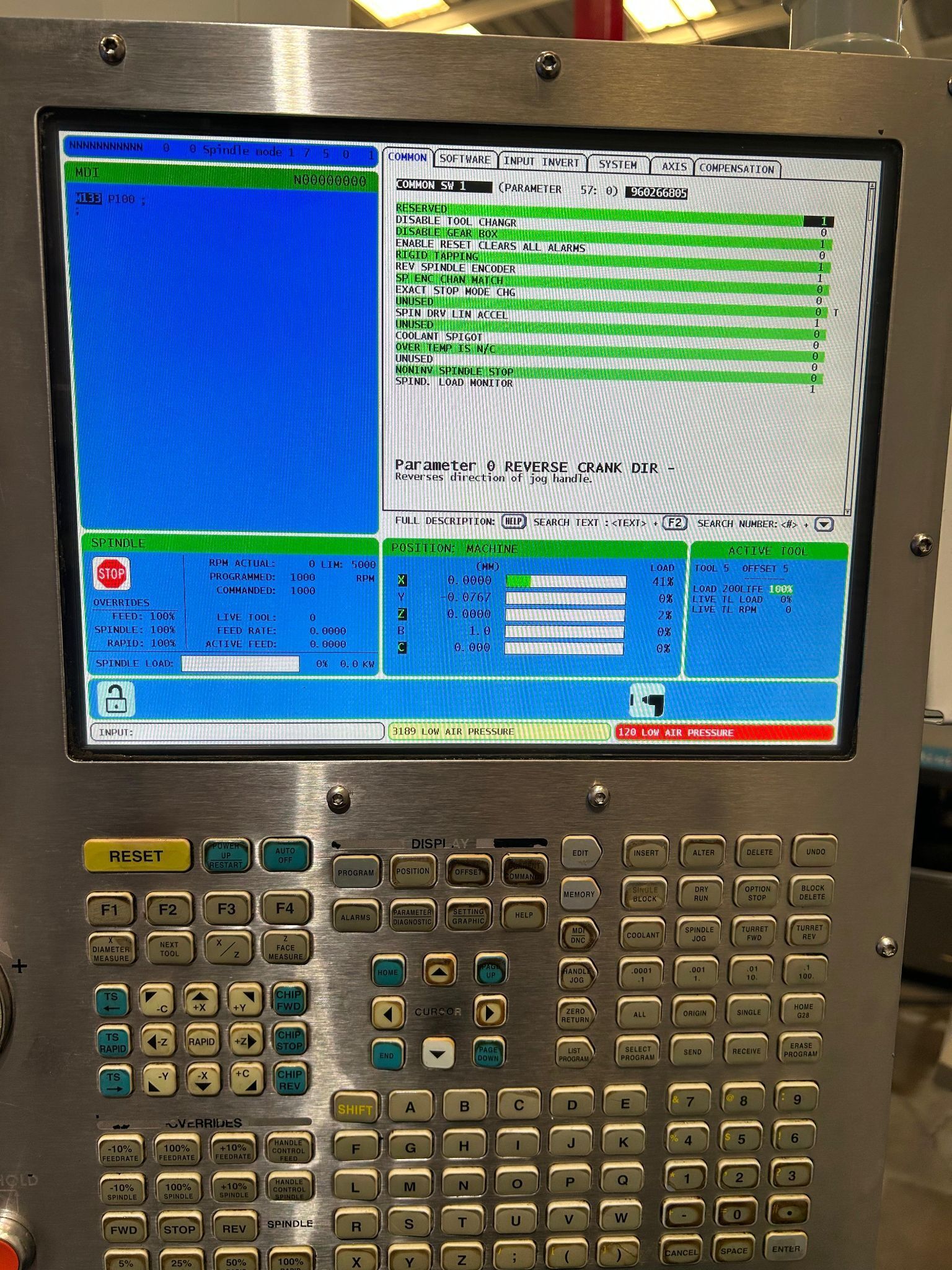

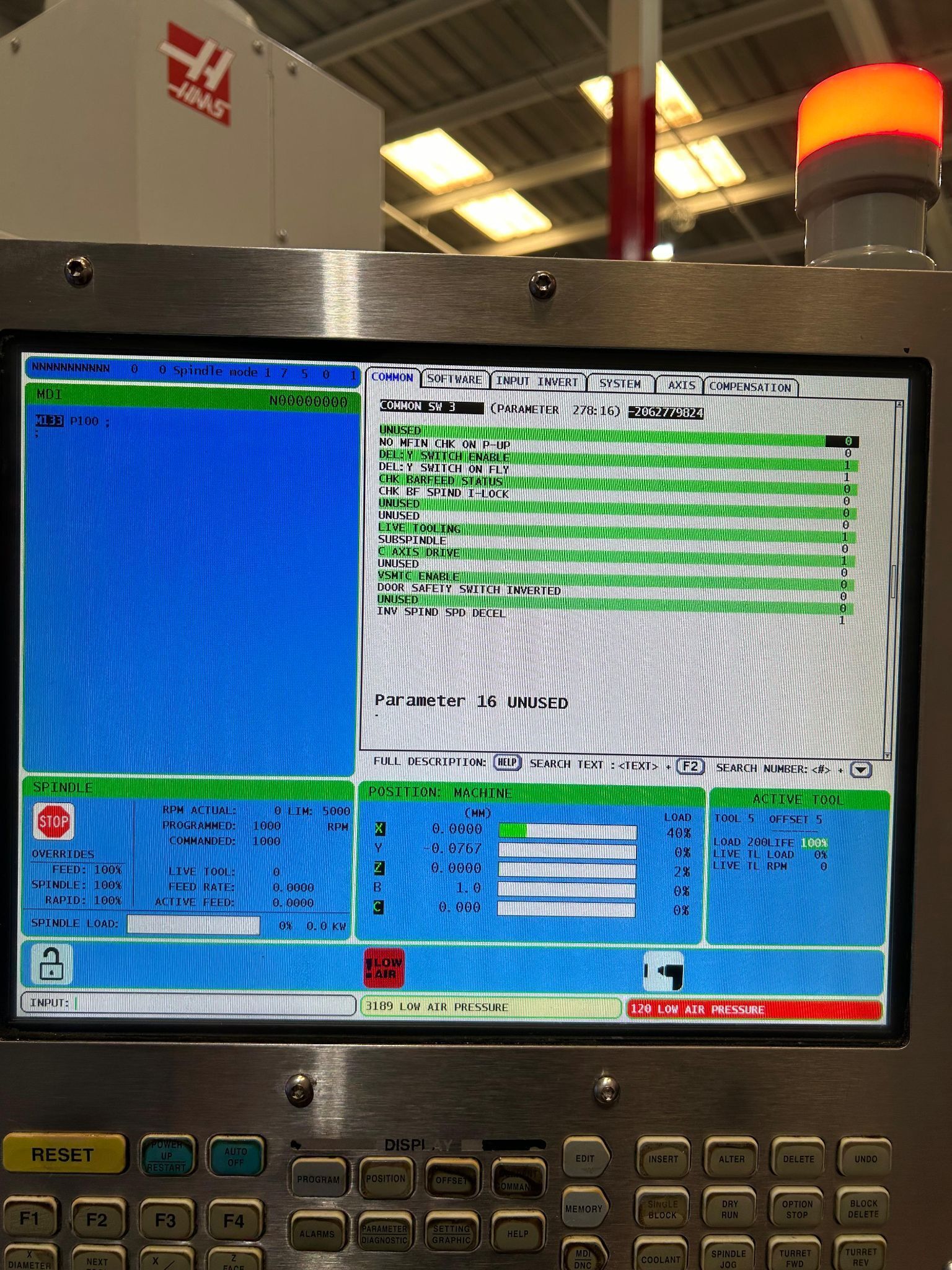

Haas CNC Control
Royal AL 16C A2-6 Collet Nose (Capable 8” Chuck)
12 Station Live Tool Turret – 24 Positions (Upgraded $5,895 value Included)
Y Axis On Turret
C Axis On Spindle
Quick Code Programming
DNC Enabled
Visual Part Programming System & User-Definable Macro
Rigid Tapping
Spindle Orientation
Coolant System
Programmable Hydraulic Tailstock (Upgraded $8,195 value Included) – Excellent For Longer Parts

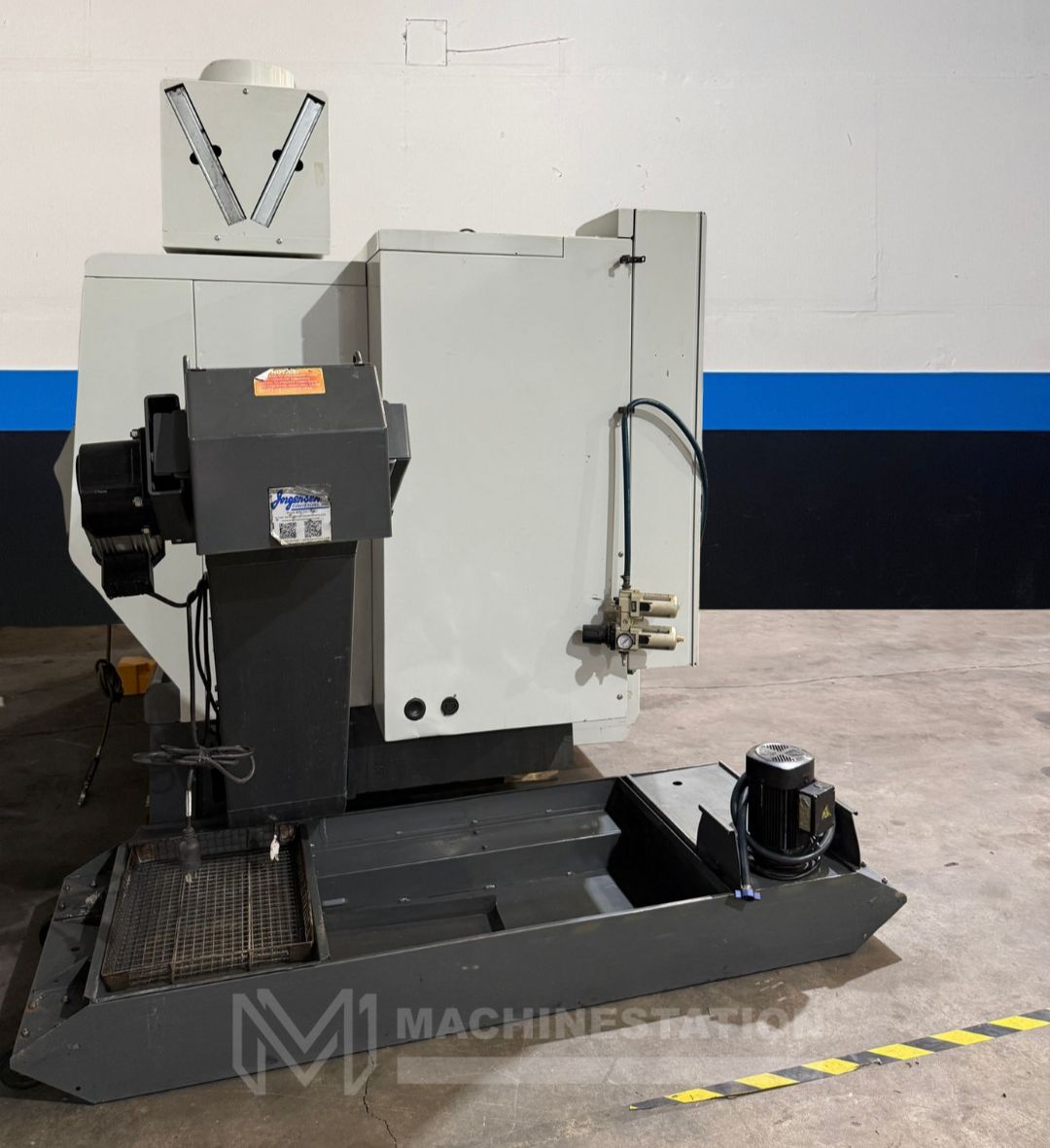

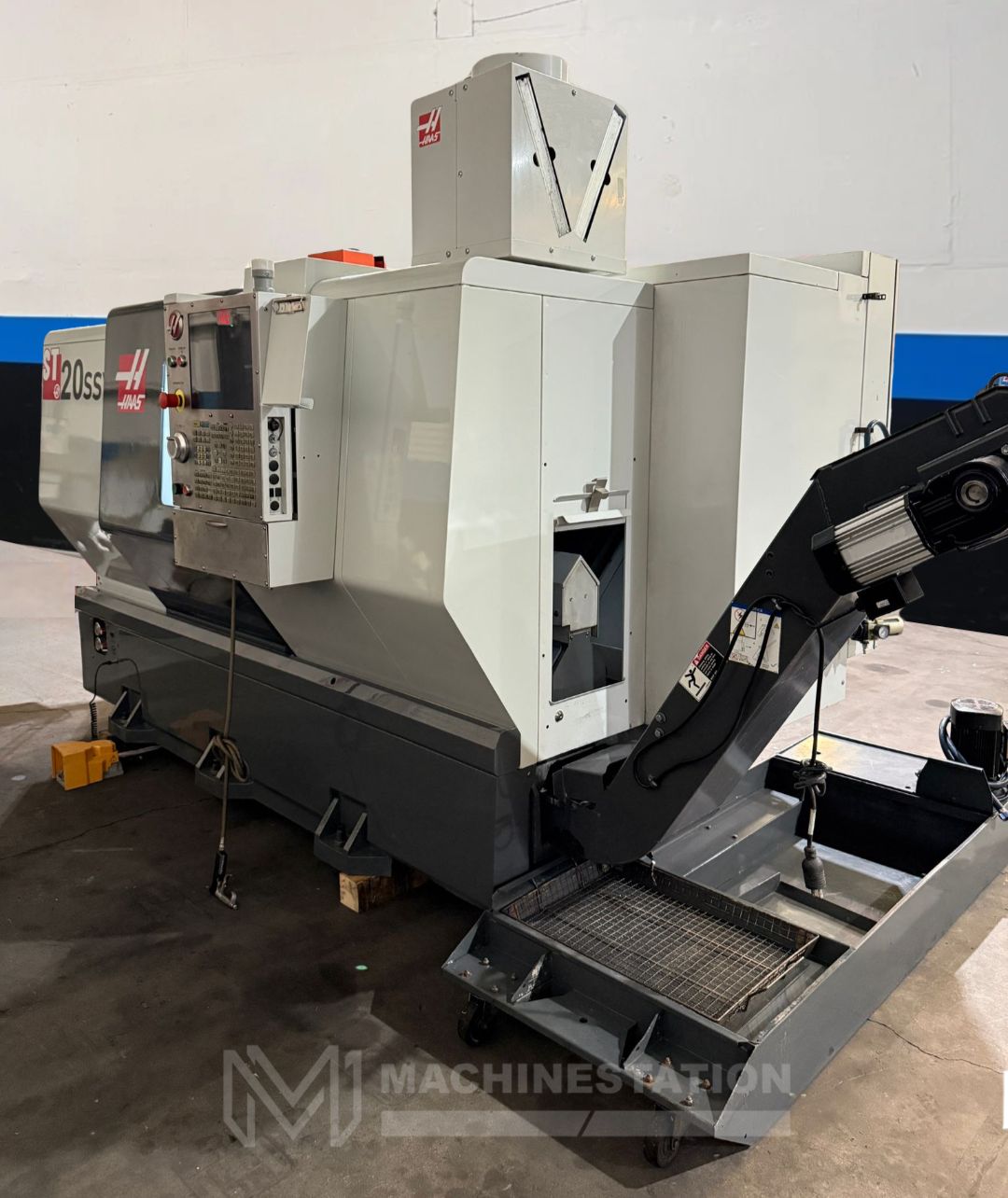

Belt Type Chip Conveyor (Upgraded $5,895 value Included) – For Efficient Chip Removal

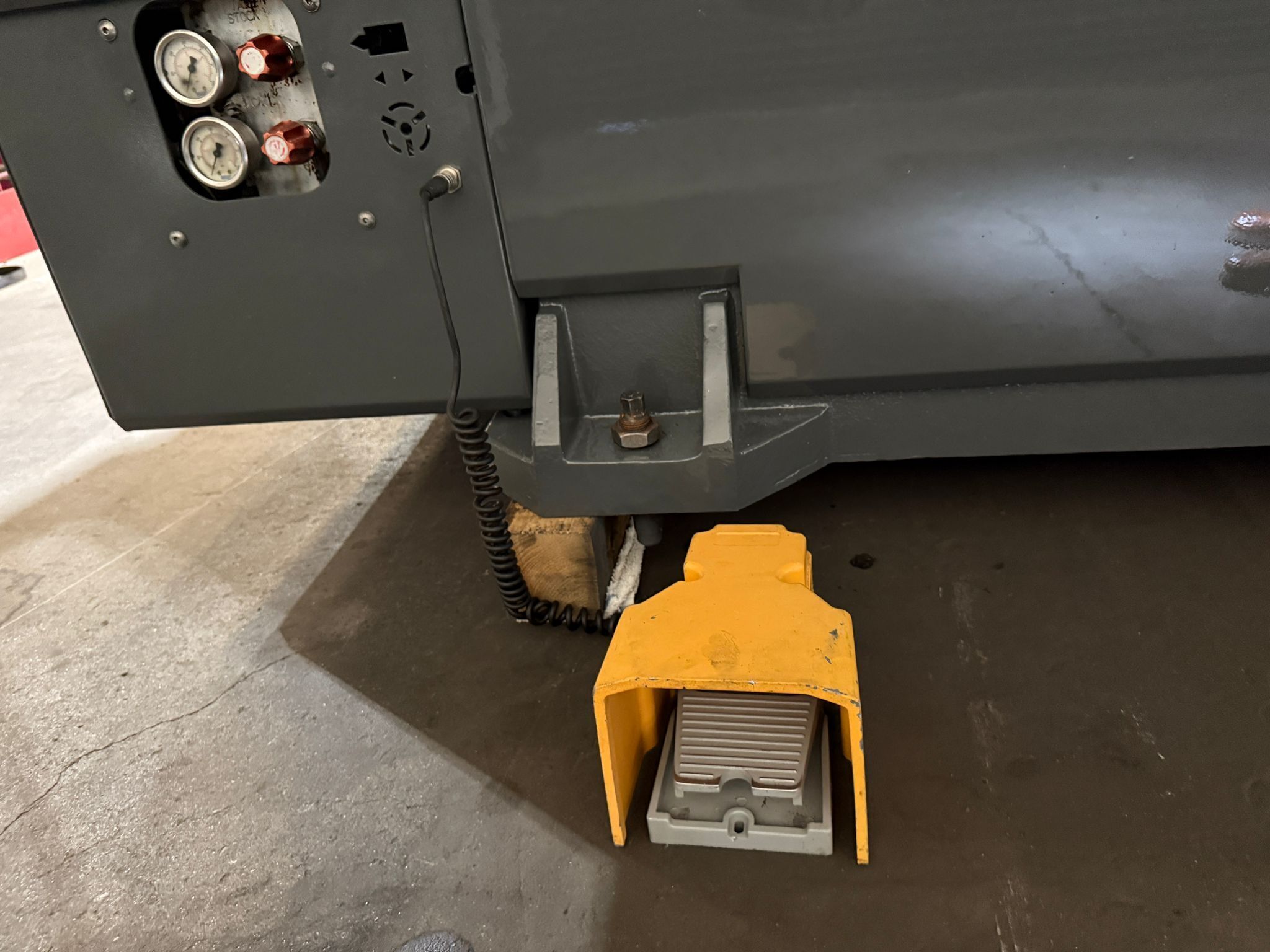

Foot Switch

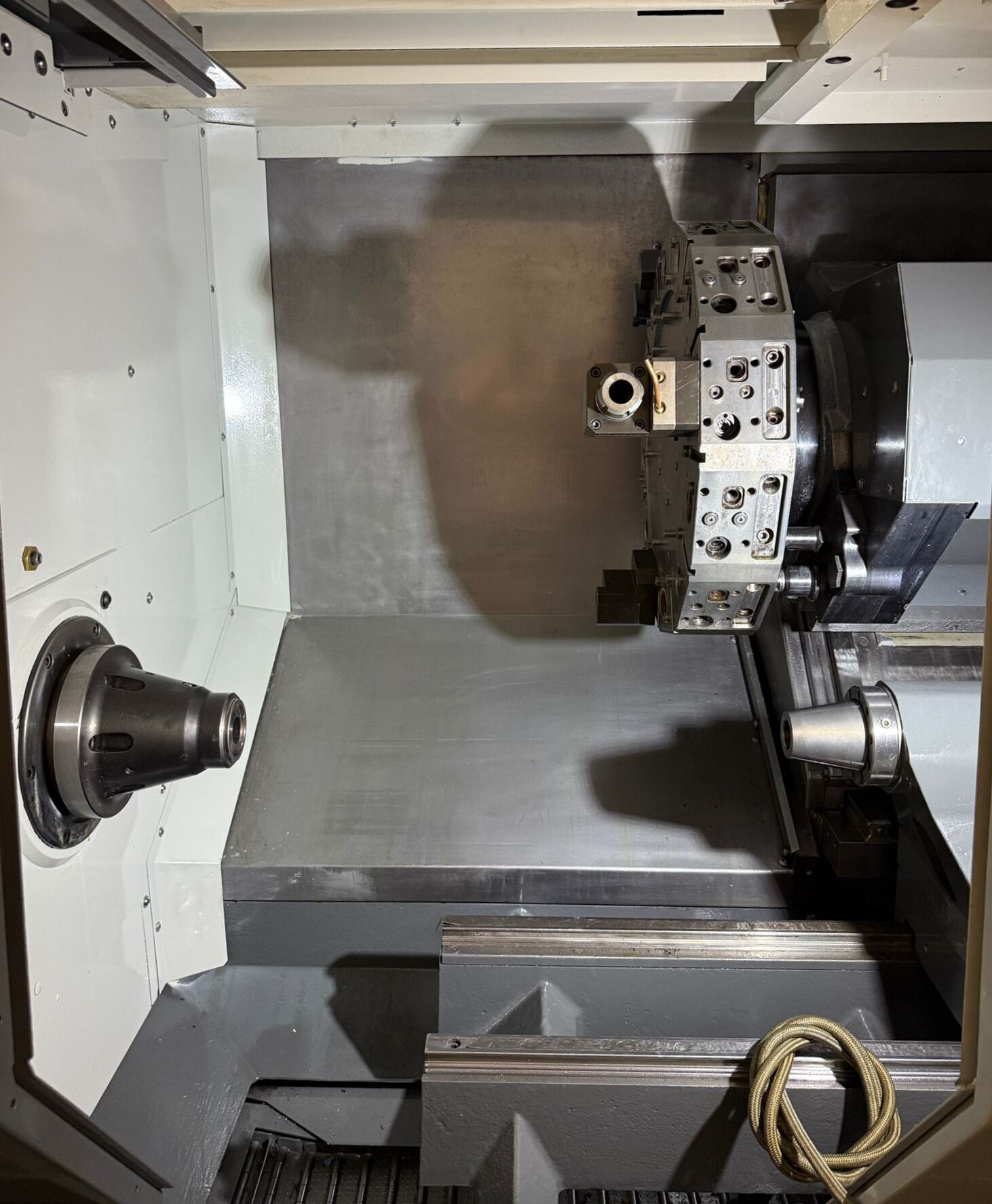

(1) Live Tool Holder, (2) Statics Tool Holders are Mounted on Turret (As shown in the images)
Note: Enclosure Exhaust System is not included with Machine
Capacity:
Max Turning Diameter : 11.75″
Max Swing Over Bed : 21.0″
Max Turning Length: 22.5″
Max Bar Capacity : 2.0″
Travels:
X Axis Travel : 8.4″
Y Axis Travel : ± 2.0″
Z Axis Travel : 22.5″
Feedrate:
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Y Axis: 472 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 2.5″
Spindle Speed: 5000 RPM
Spindle Motor: 30 HP
Turret:
Turret Capacity: 12 Stations – 24 Positions
Turret Holders Type: BMT
Live Tool Speed: 4000 RPM
Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 2.6″
Tailstock Quill Travel: 3.1″
General:
Air Requirement: 4 scfm @ 100 psi
Power Source: AC 400v / 3-Phase / 60 Hz
Machine Dimensions: 143″ x 90″ x 92″ High
Machine Weight: 10,480 lbs Approx.
Equipped With:
Haas CNC Control
Royal AL 16C A2-6 Collet Nose (Capable 8” Chuck)
12 Station Live Tool Turret - 24 Positions (Upgraded $5,895 value Included)
Y Axis On Turret
C Axis On Spindle
Quick Code Programming
DNC Enabled
Visual Part Programming System & User-Definable Macro
Rigid Tapping
Spindle Orientation
Coolant System
Programmable Hydraulic Tailstock (Upgraded $8,195 value Included) - Excellent For Longer Parts
Belt Type Chip Conveyor (Upgraded $5,895 value Included) - For Efficient Chip Removal
Foot Switch
(1) Live Tool Holder, (2) Statics Tool Holders are Mounted on Turret (As shown in the images)
Note: Enclosure Exhaust System is not included with Machine
Capacity:
Max Turning Diameter : 298 mm
Max Swing Over Bed : 533 mm
Max Turning Length: 572 mm
Max Bar Capacity : 51 mm
Travels:
X Axis Travel : 213 mm
Y Axis Travel : ± 51 mm
Z Axis Travel : 572 mm
Feedrate:
Rapid Traverse X Axis: 472 IPM
Rapid Traverse Y Axis: 472 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle:
Spindle Nose: A2-6
Spindle Bore: 64 mm
Spindle Speed: 5000 RPM
Spindle Motor: 30 HP
Turret:
Turret Capacity: 12 Stations - 24 Positions
Turret Holders Type: BMT
Live Tool Speed: 4000 RPM
Tailstock:
Tailstock Taper: MT-4
Tailstock Quill Dia.: 66 mm
Tailstock Quill Travel: 79 mm
General:
Air Requirement: 4 scfm @ 100 psi
Power Source: AC 400v / 3-Phase / 60 Hz
Machine Dimensions: 3,632 mm x 2,286 mm x 2,337 mm High
Machine Weight: 10,480 lbs Approx.
