*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

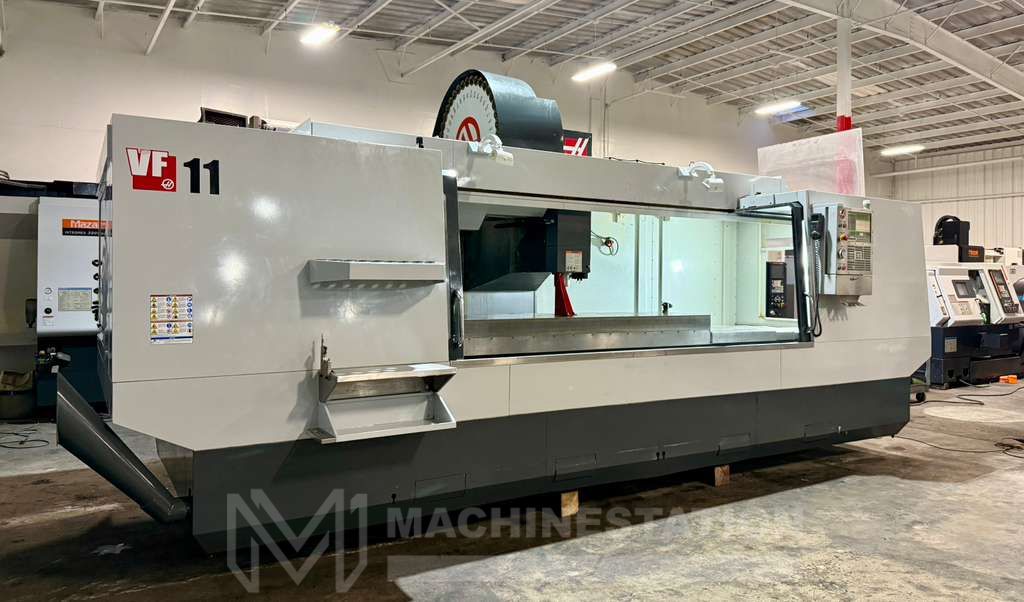

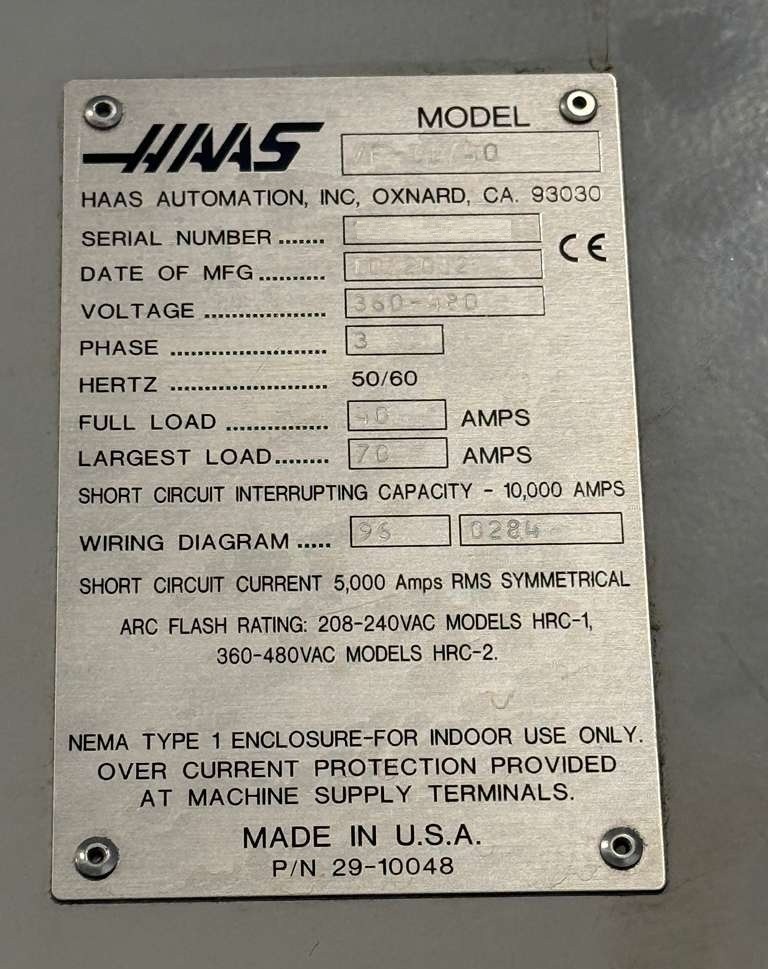

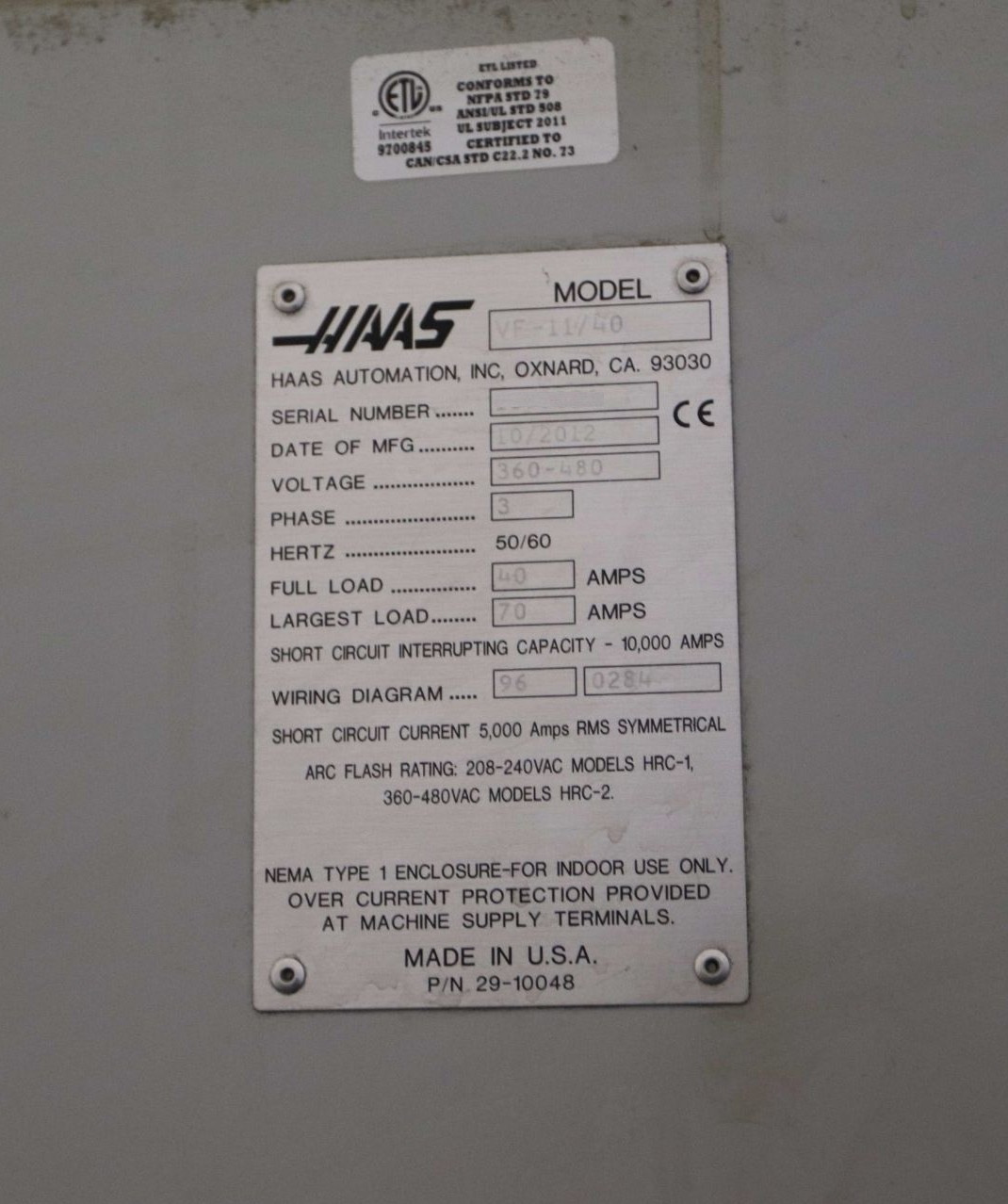

| Make: | Haas |
| Model: | VF-11/40 |
| Year: | 2012 |
| Features: |
|---|

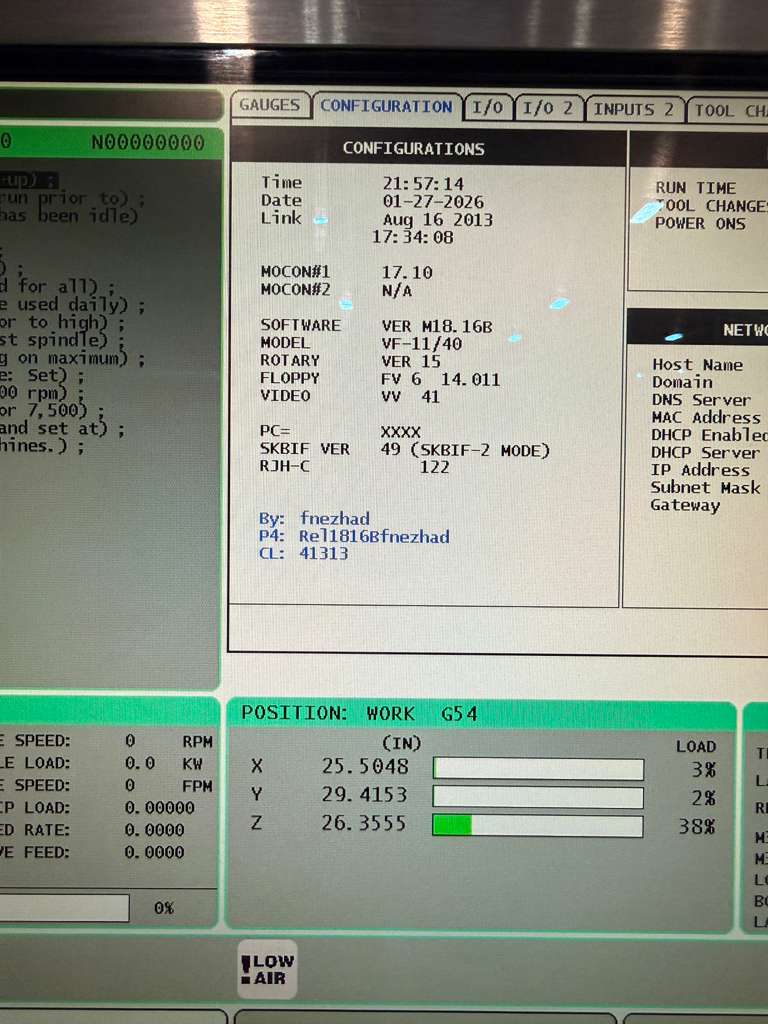

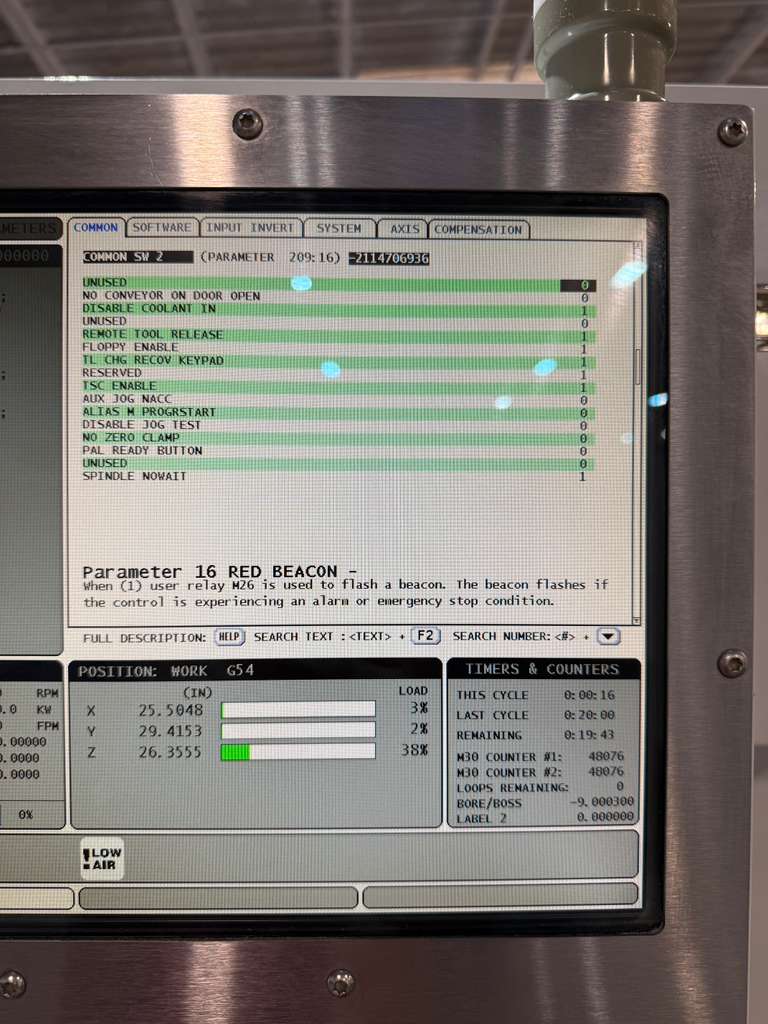

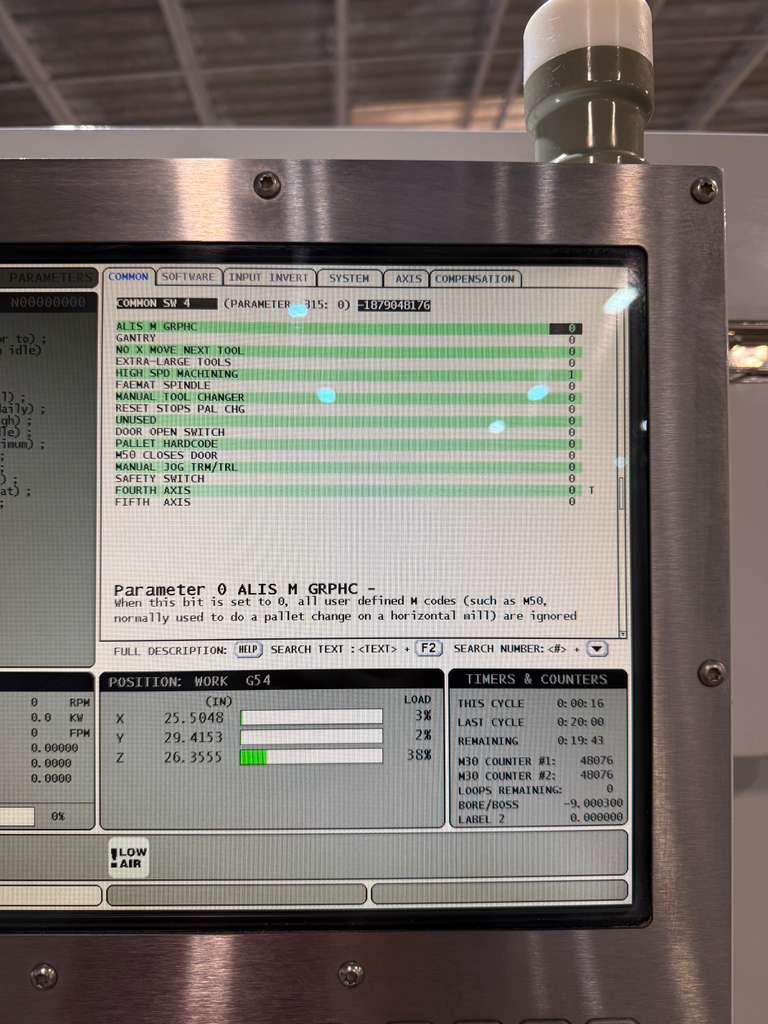

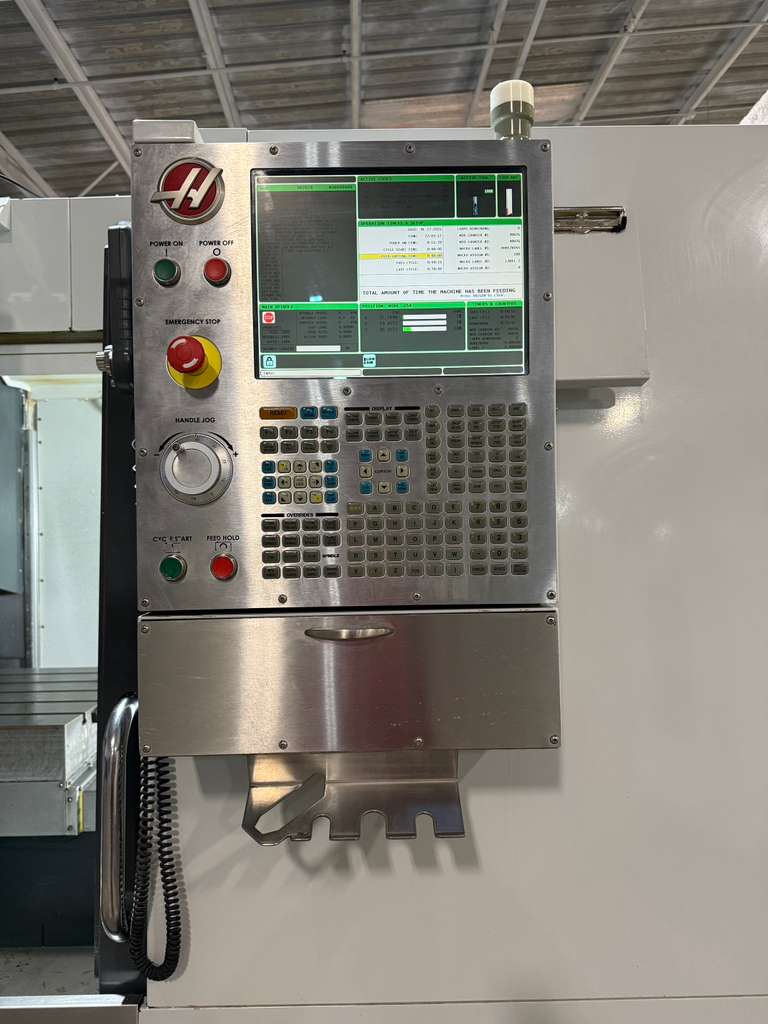

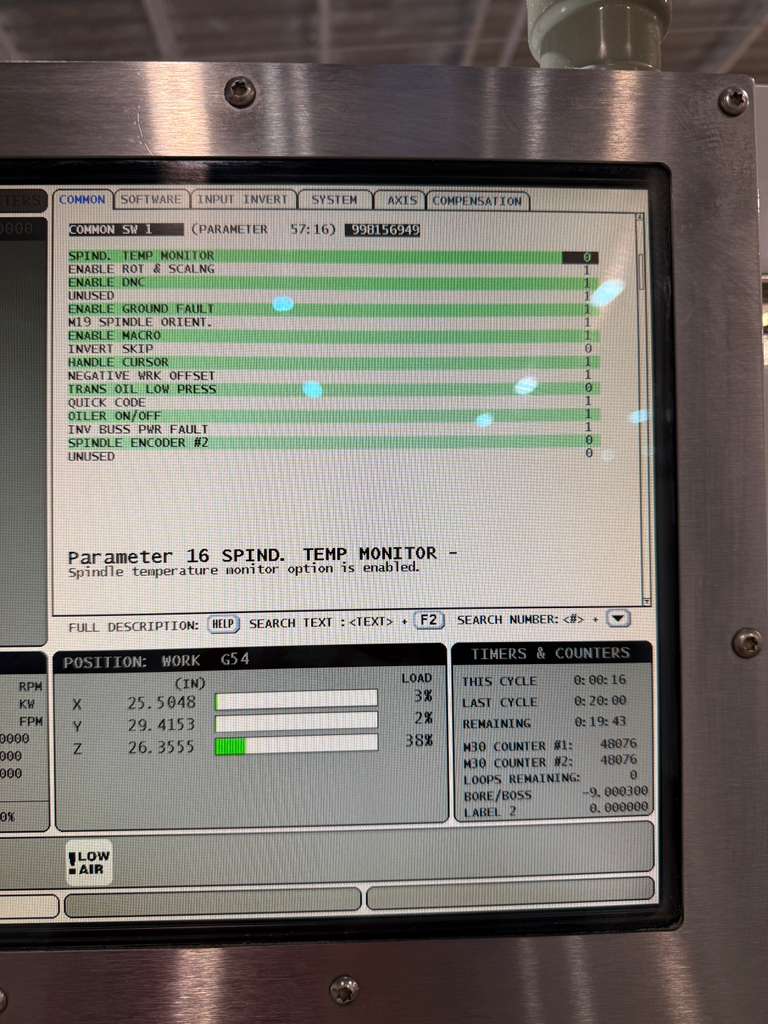

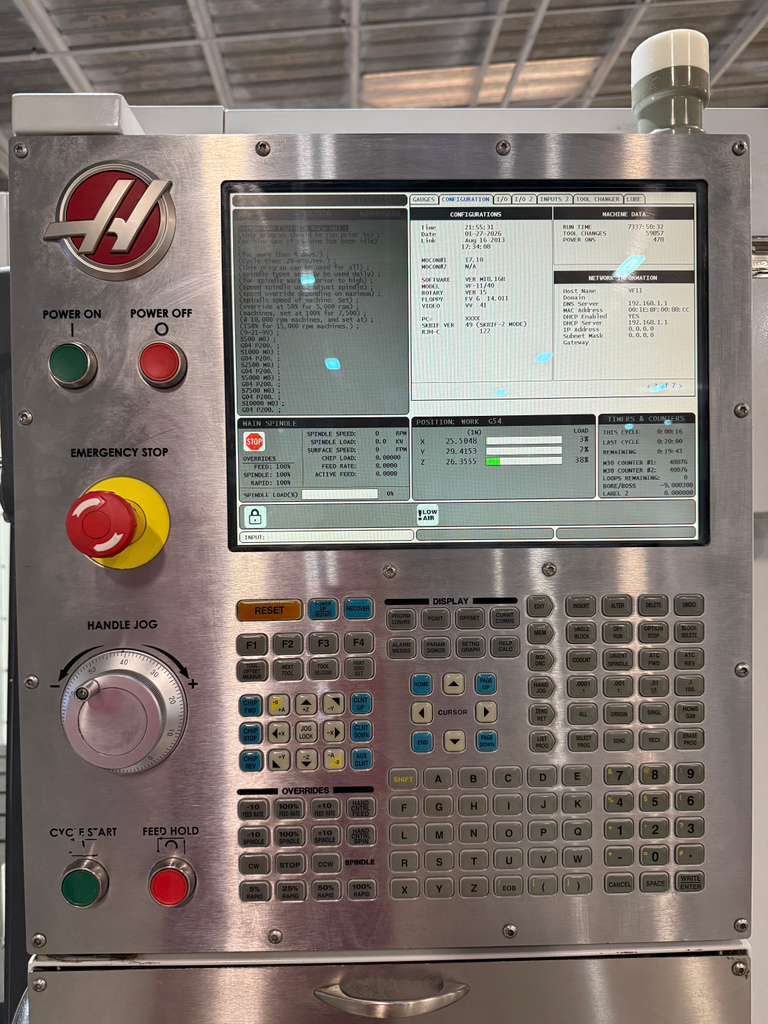

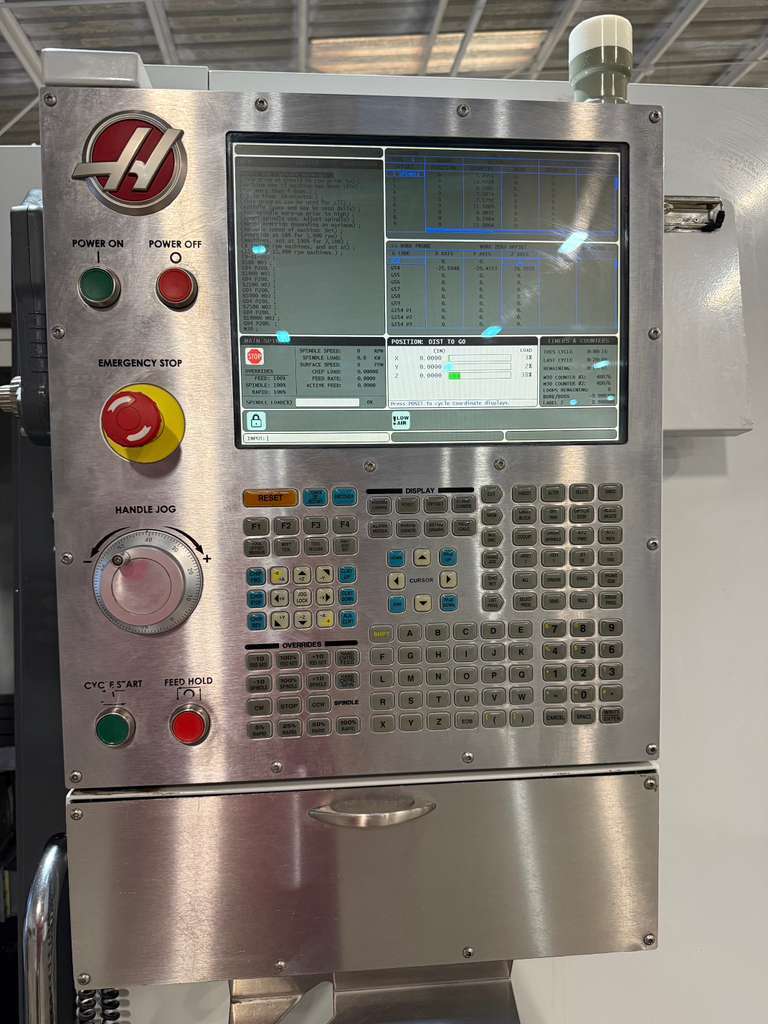

| Haas CNC Control |
| 10,000 RPM High Torque Spindle (Upgraded $7,195 value Included) |

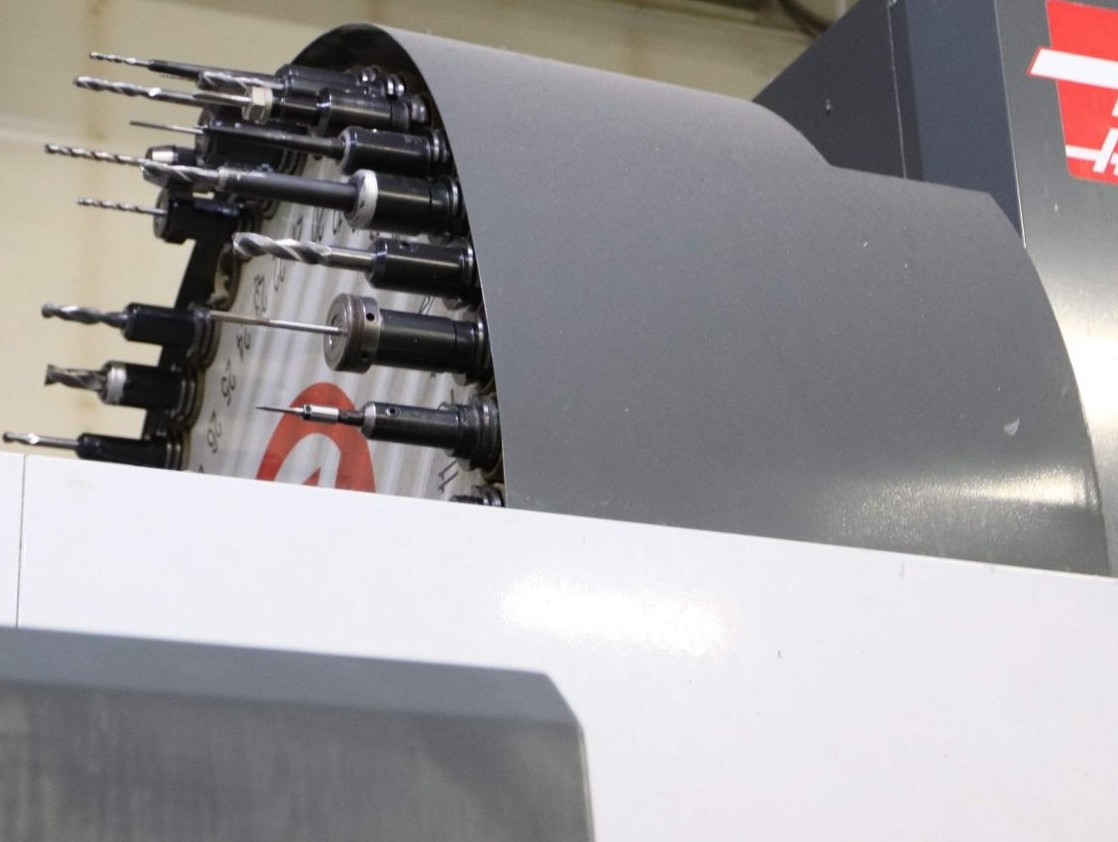

| 30 Station Automatic Tool Changer |
| CAT-40 Taper Spindle |
| 30 HP Haas Vector Drive |
| Renishaw Probing System (Probe needed) (Upgraded $6,395 value Included) |
| Probe Riser Block (Upgraded $495 value Included) |
| Through Spindle Coolant – 300 psi (Upgraded $7,095 value Included) |
| High Speed Machining (Upgraded $3,895 value Included) |
| MPG Handwheel Control |
| Floppy Enabled |
| DNC Enabled |
| Rotation & Scaling |
| Macros |
| Quick Code Programming |
| Advance Tool Management |
| Spindle Orientation |
| Rigid Tapping |

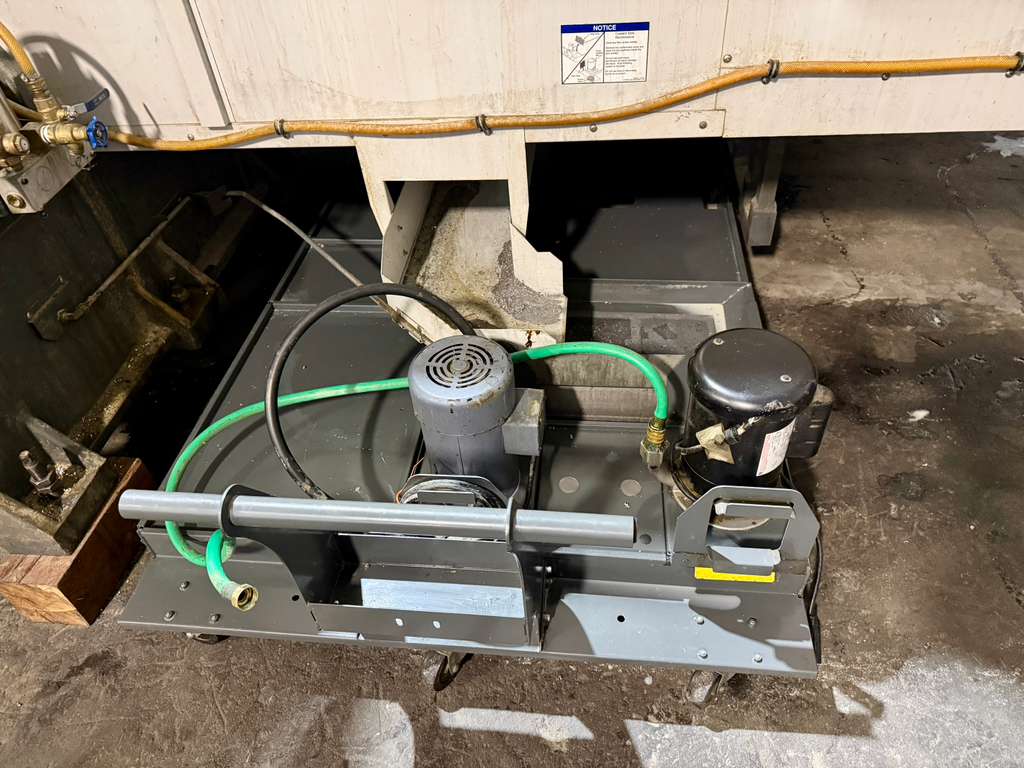

| Coolant System |
| Chip Auger |
| Travels: |
|---|
| X-Axis: 120″ |
| Y-Axis: 40″ |
| Z-Axis: 30″ |
| Rapid Traverse Rates X Axis: 360 IPM |
| Rapid Traverse Rates Y & Z Axis: 600 IPM |
| Cutting Feed Rates: 360 IPM |
| Spindle Nose to Table (Min.- Max.): 4″ – 34″ |
| Table: |
|---|

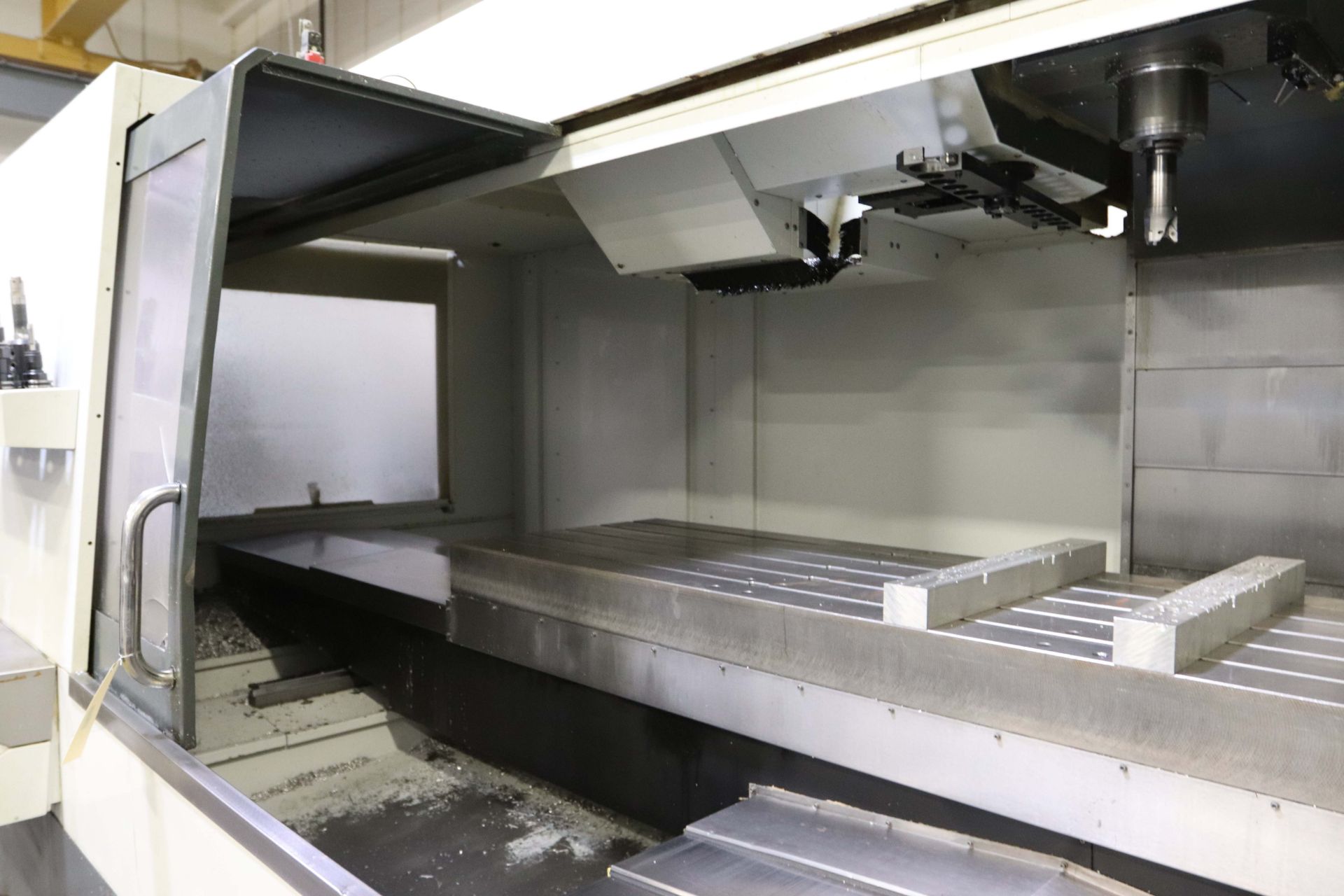

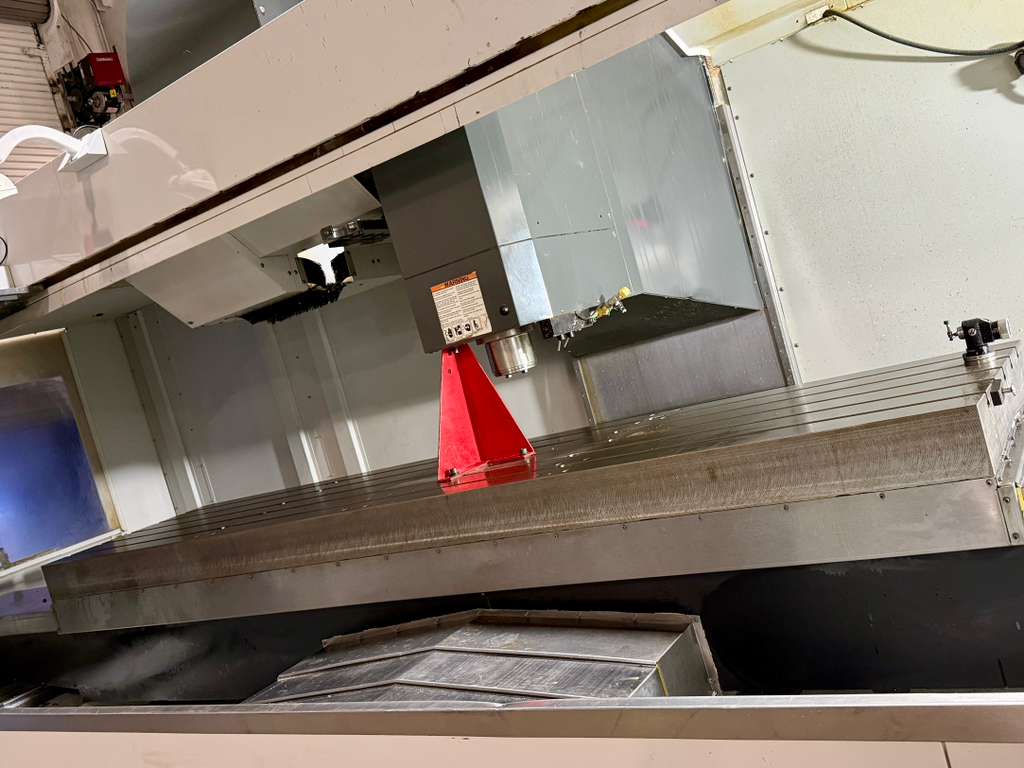

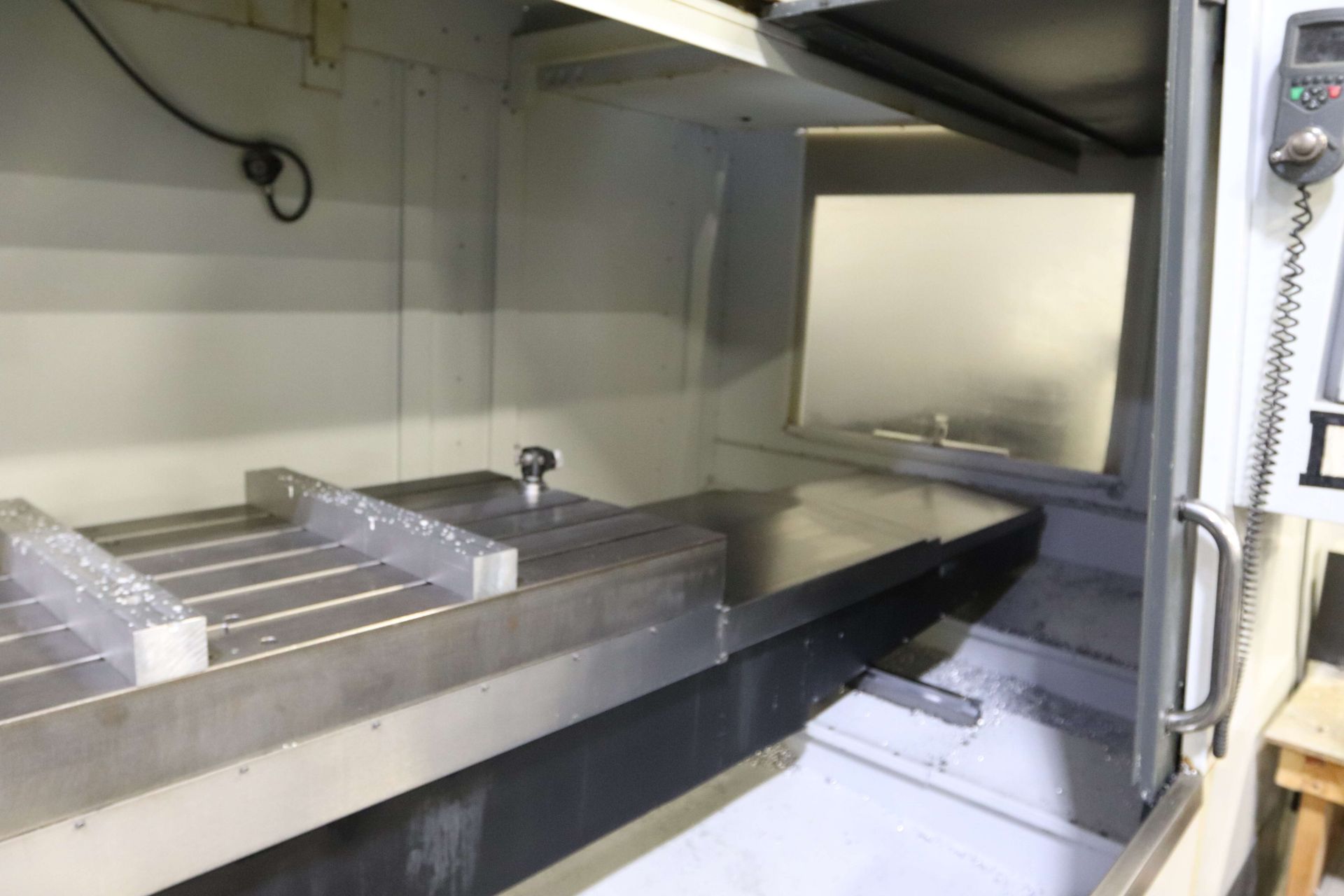

| Length: 120″ |
| Width: 28″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 4000 lbs |

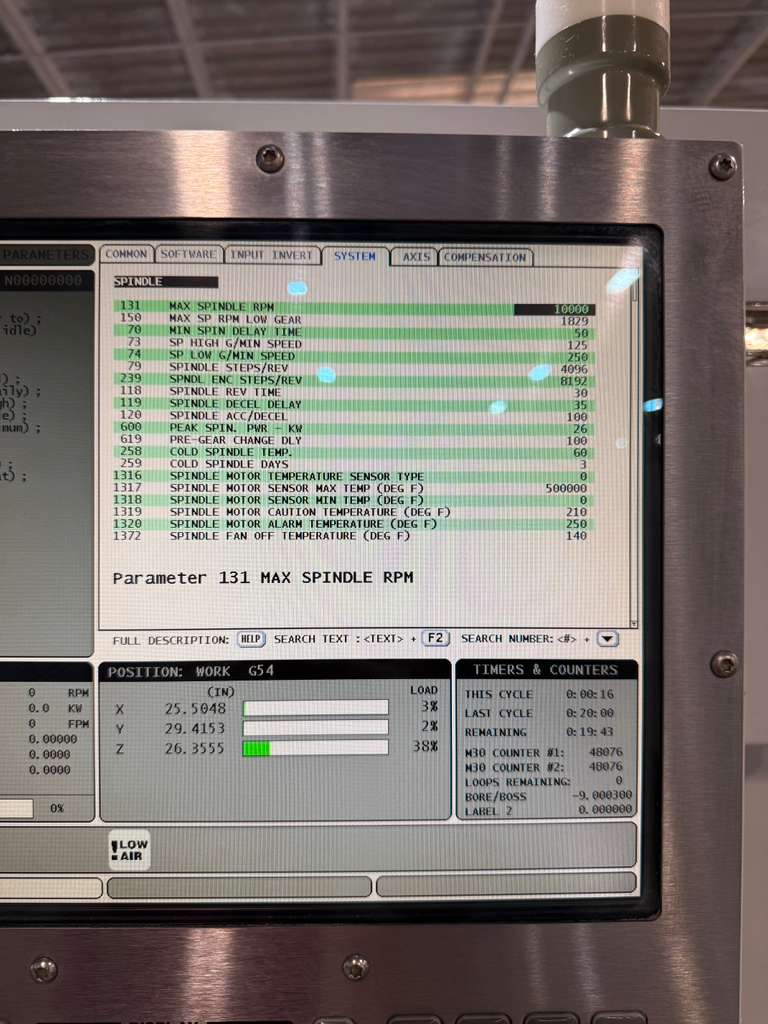

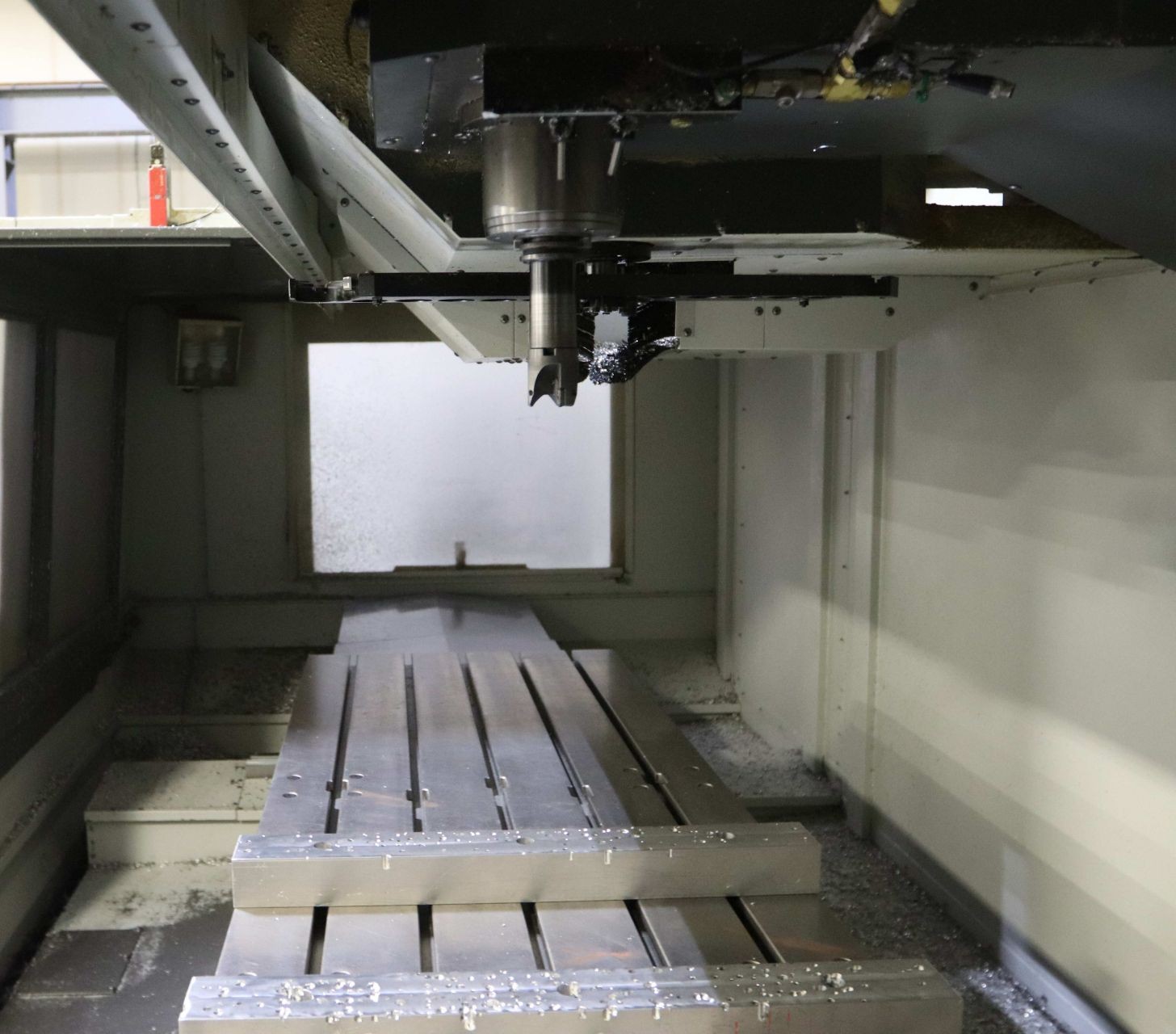

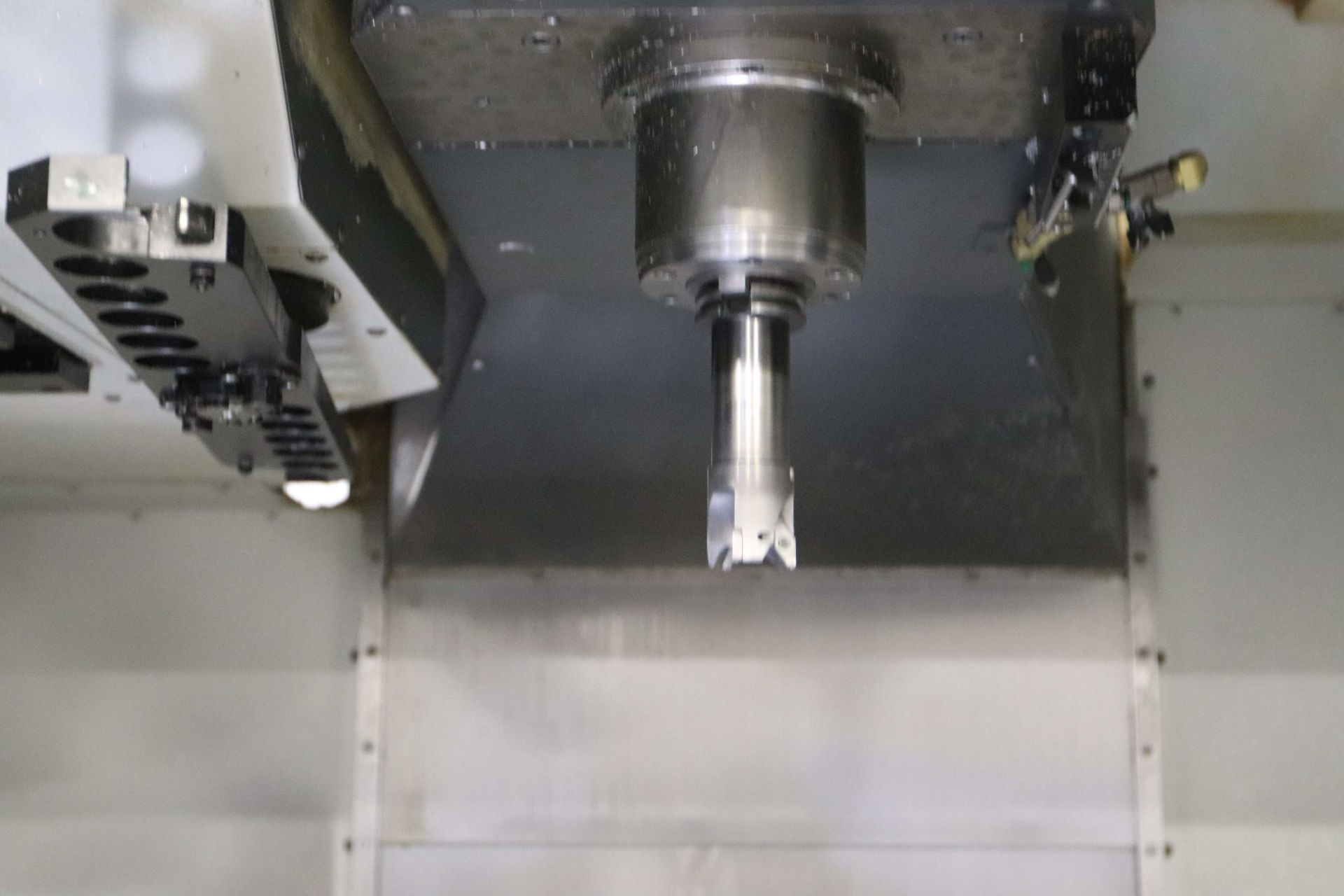

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Tools |
| Max Tool Diameter (Full): 2.5″ |
| Max Tool Diameter (adjacent empty): 6.0″ |
| Max Tool Length: 16″ |
| Max Tool Weight: 12 lbs |
| Tool Changing Time: Seconds: 3.6 seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 360v – 480v / 3-Phase |
| Overall Dimensions: 288″ x 120″ x 128″ High Approx. |
| Weight: 33,400 lbs Approx. |
