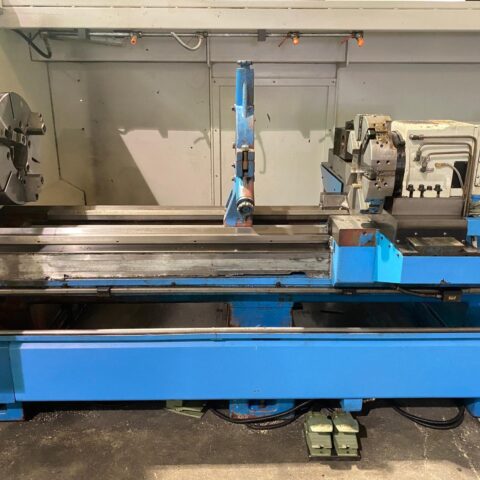

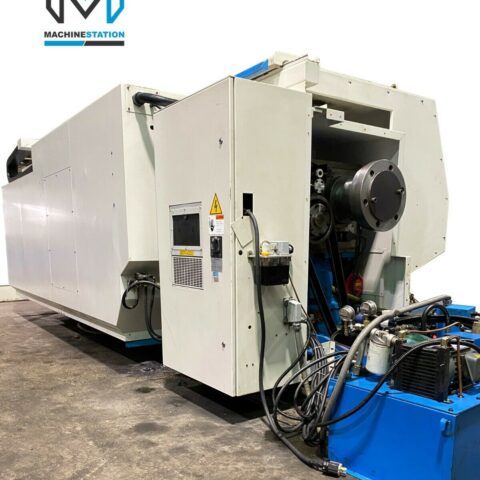

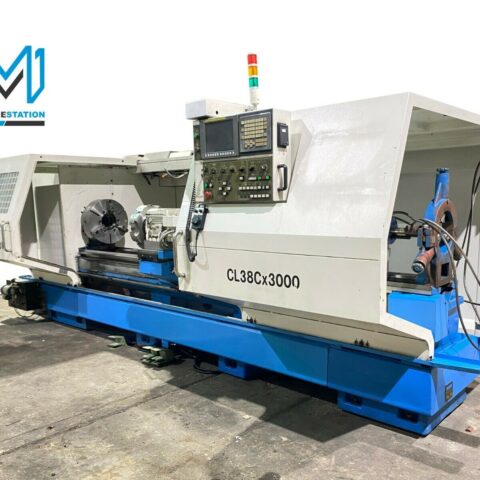

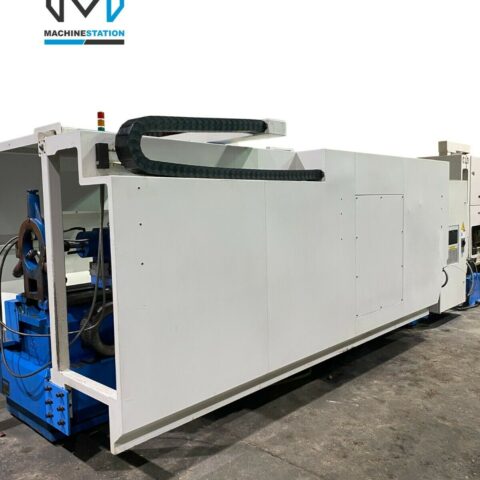

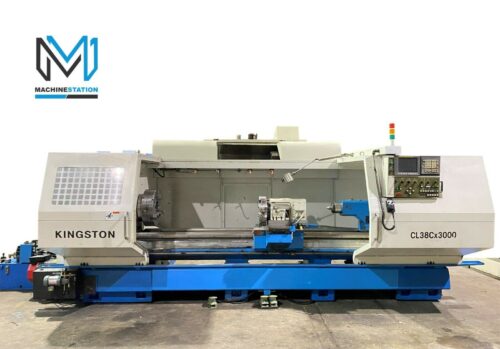

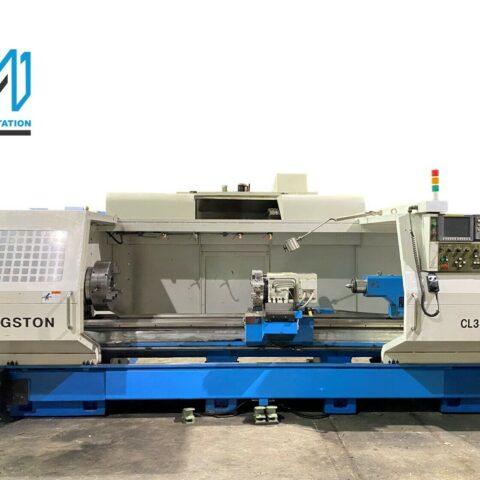

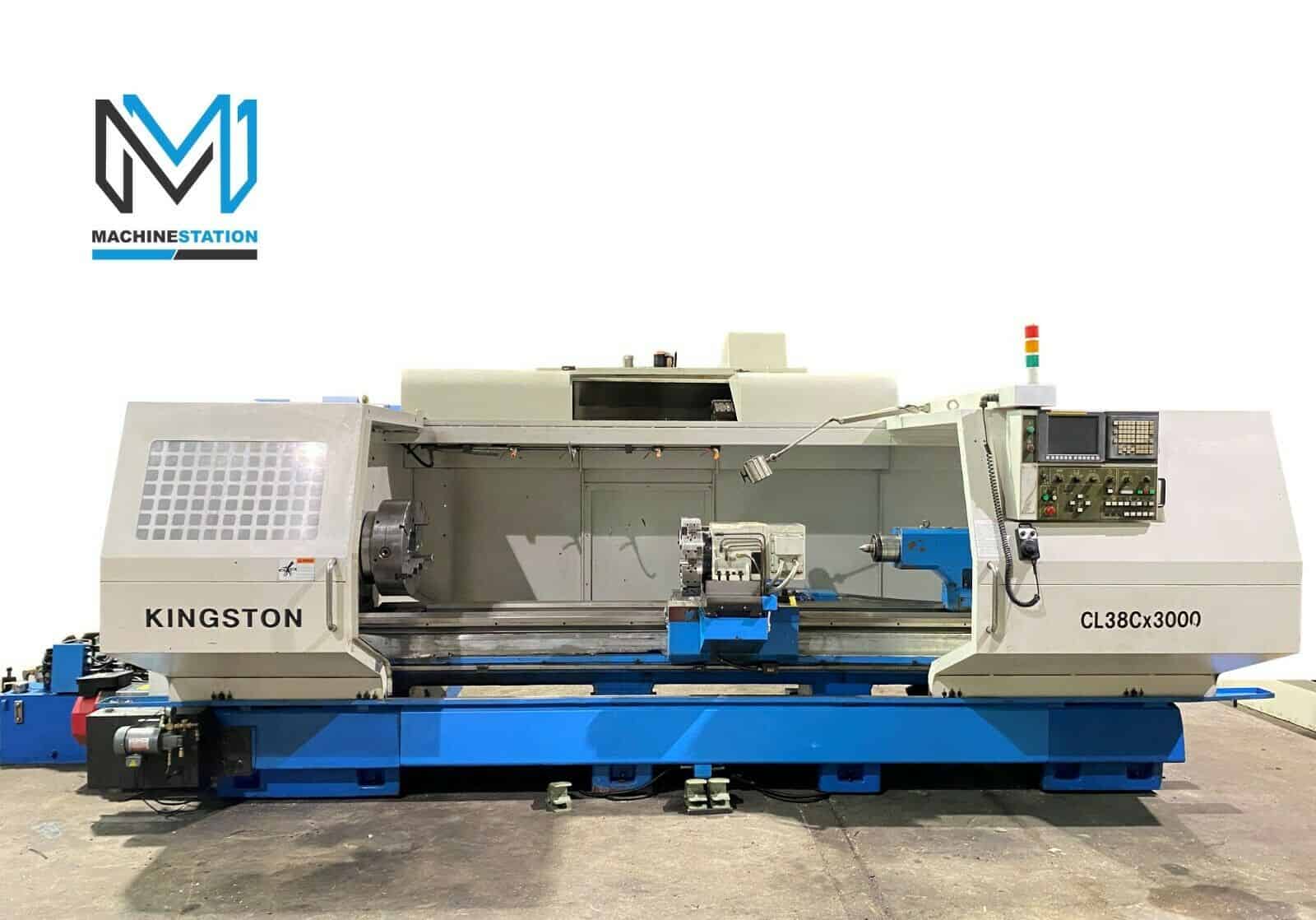

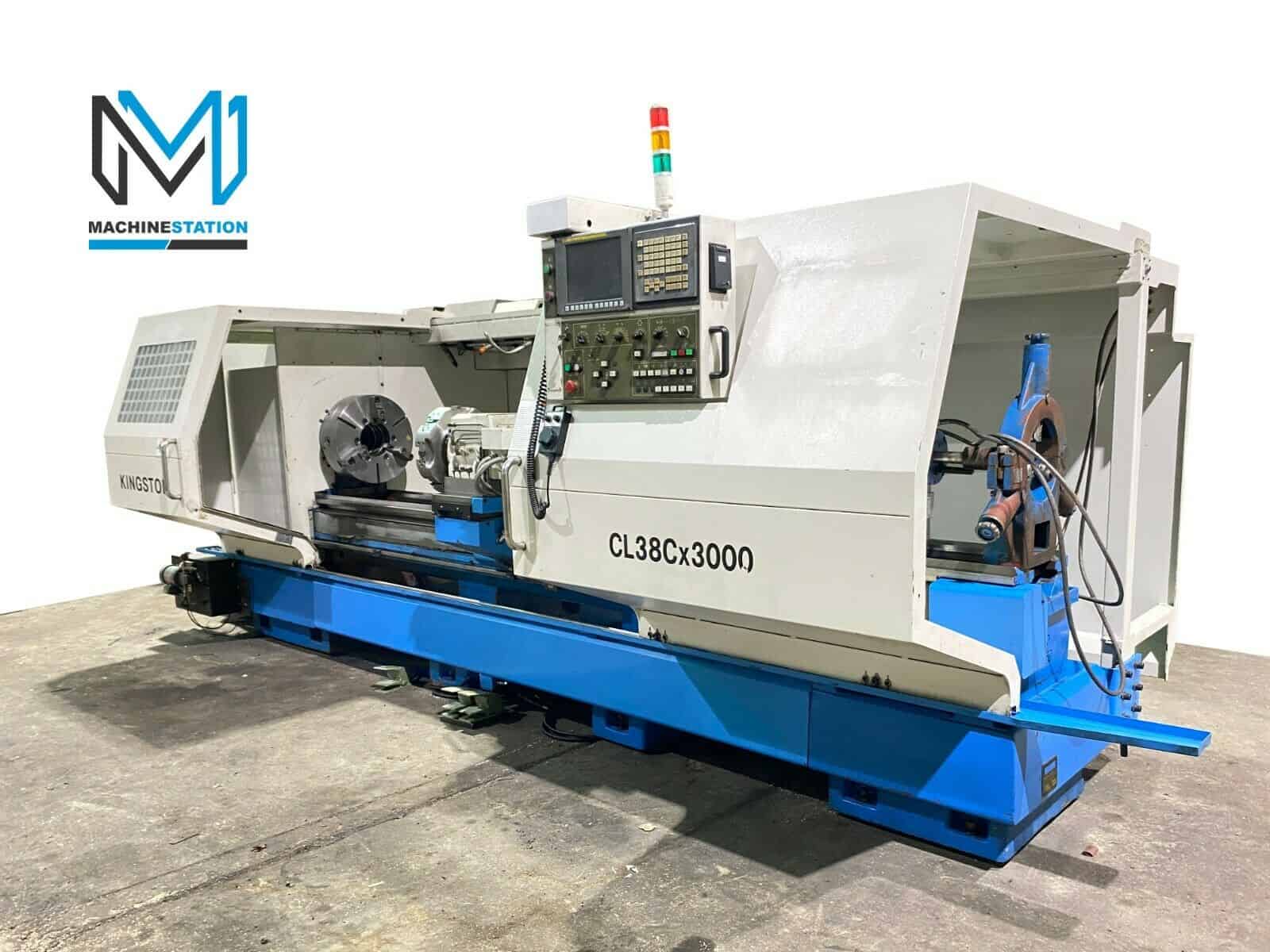

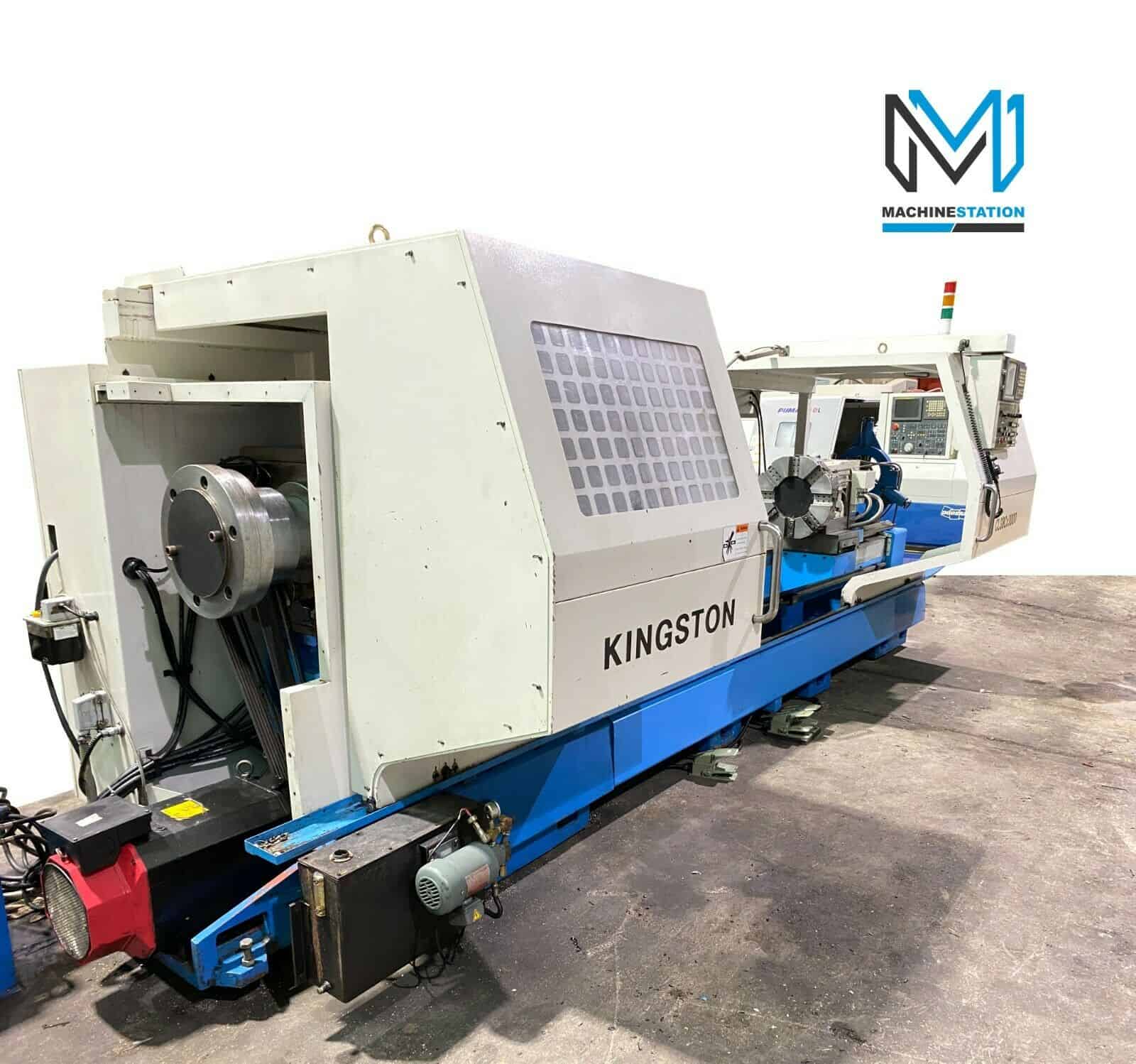

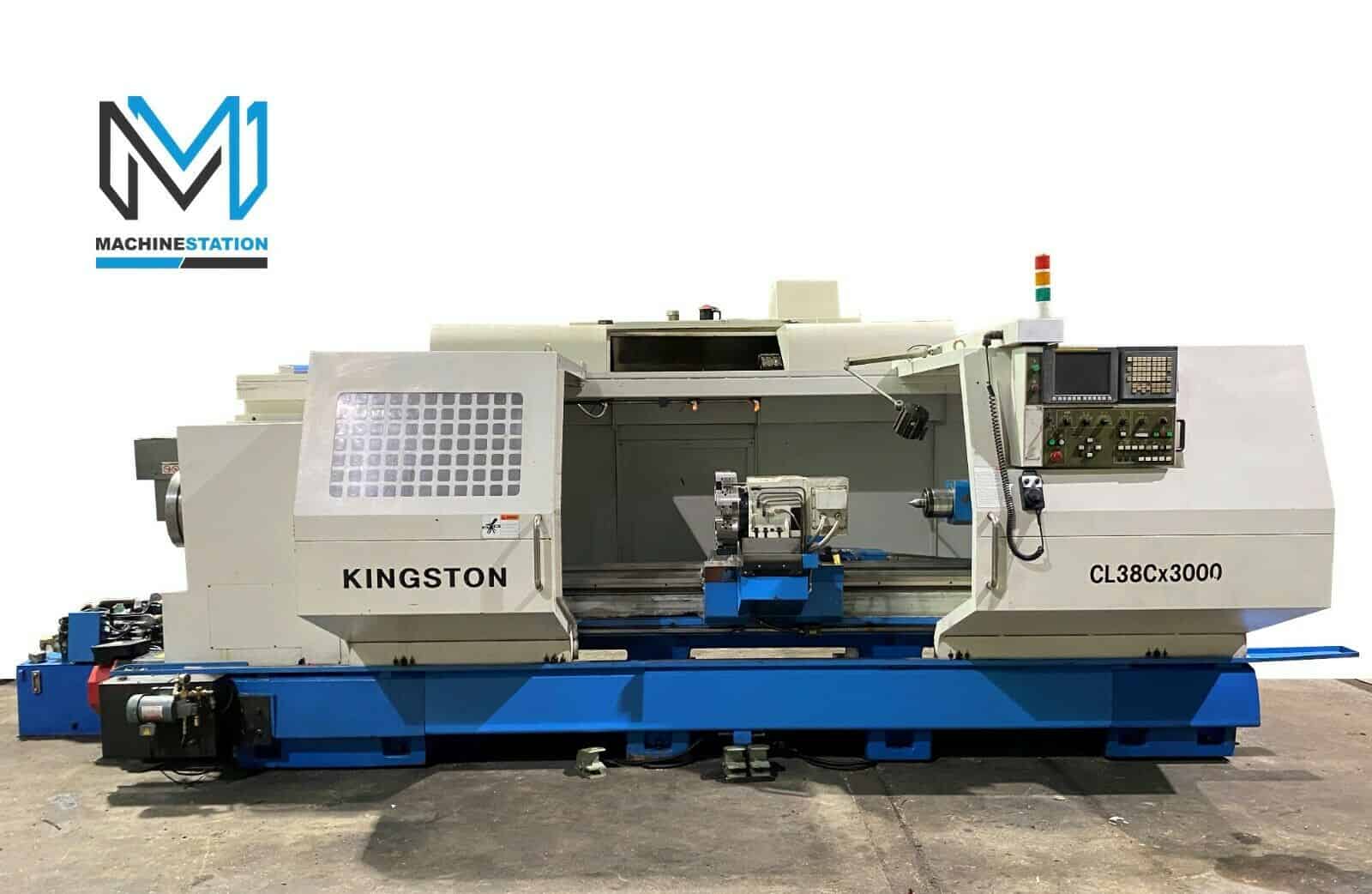

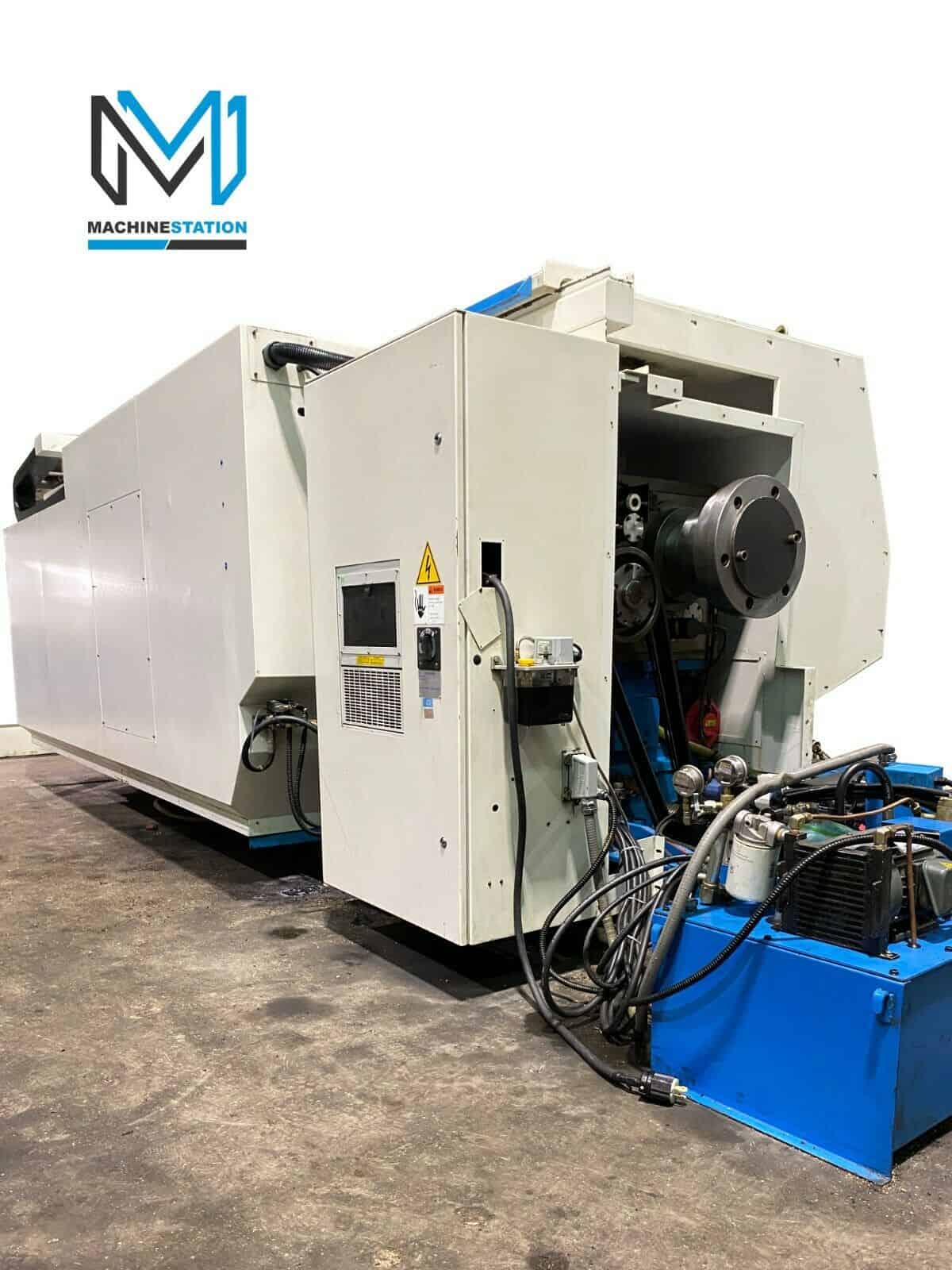

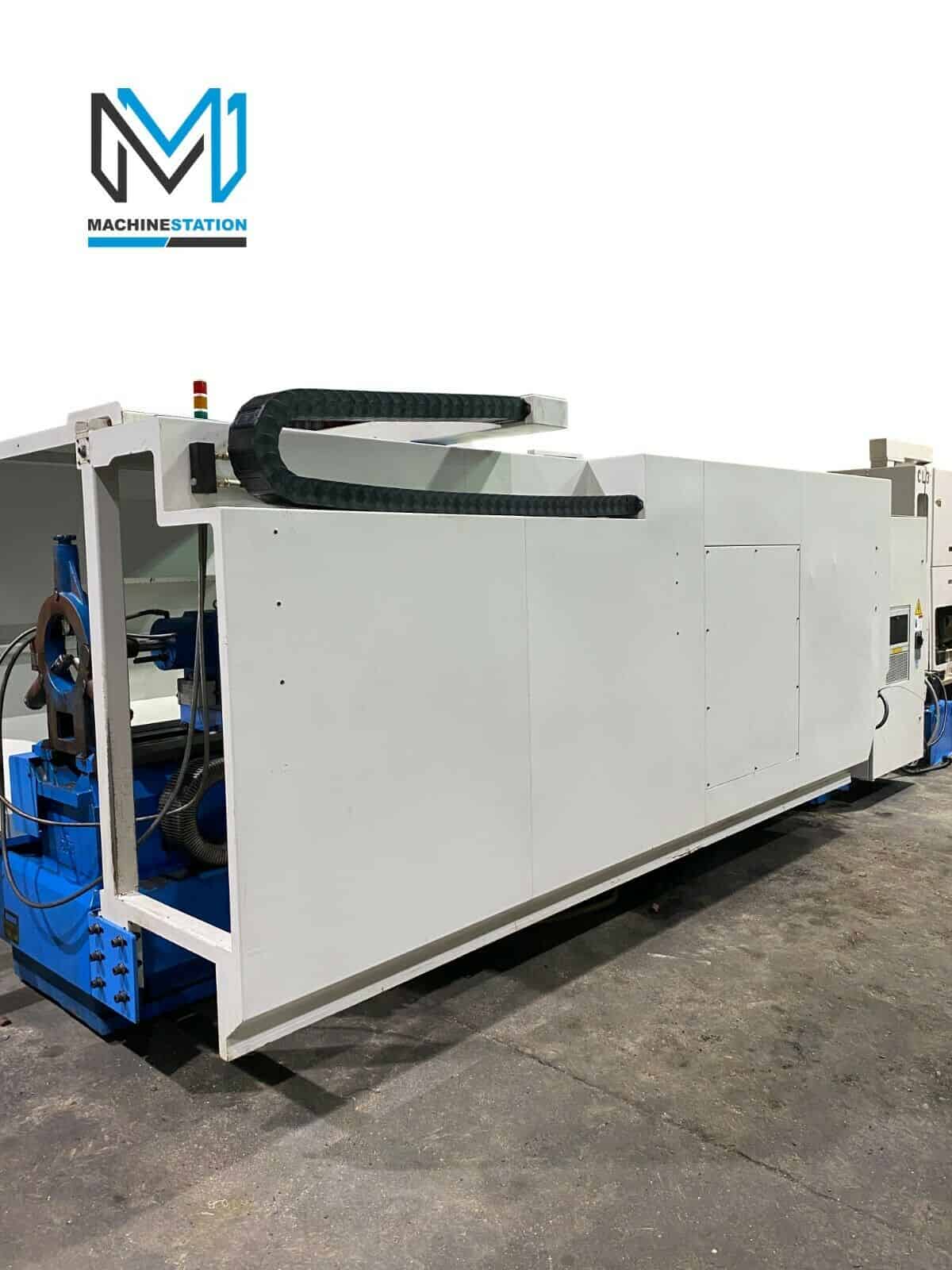

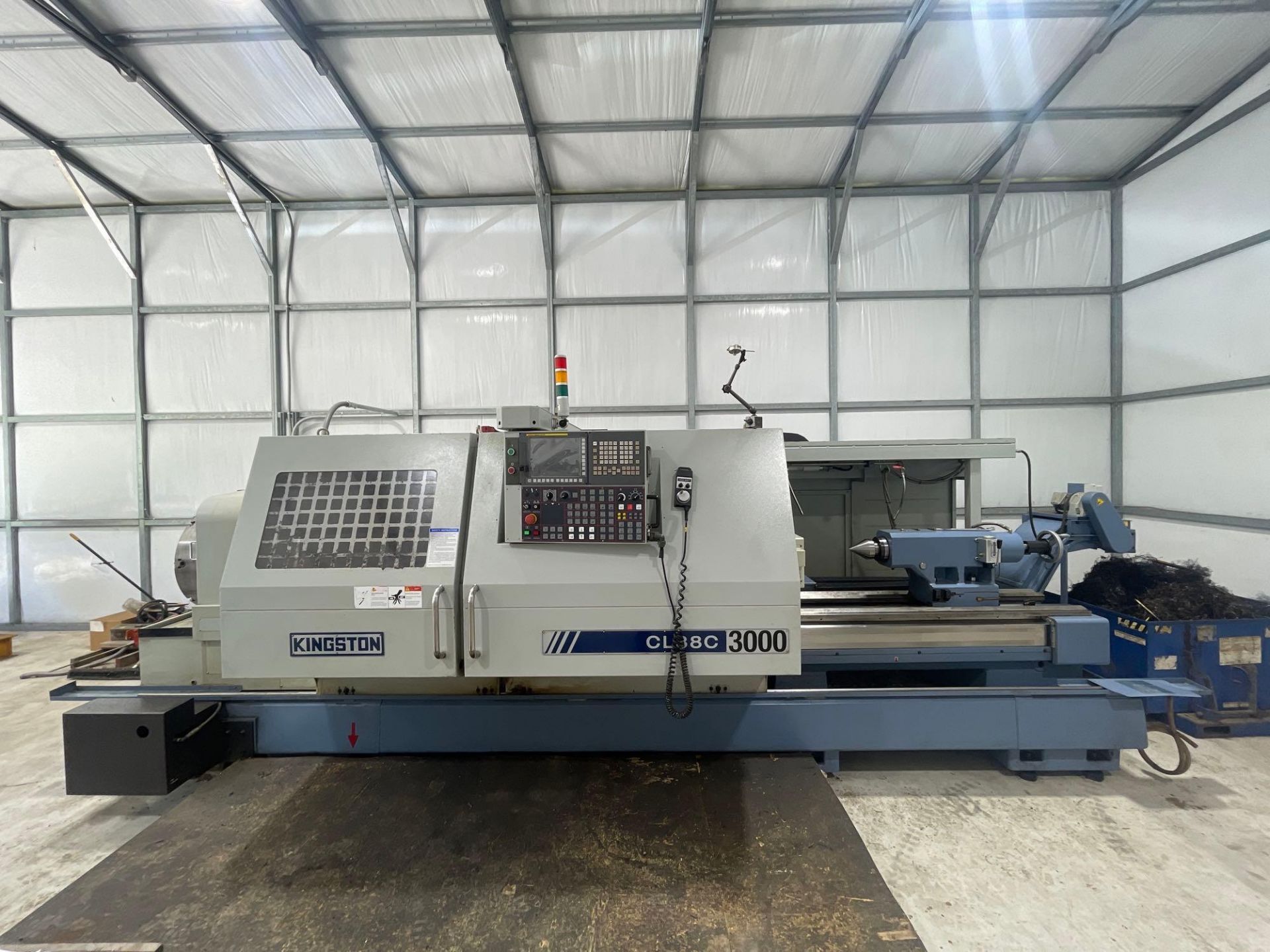

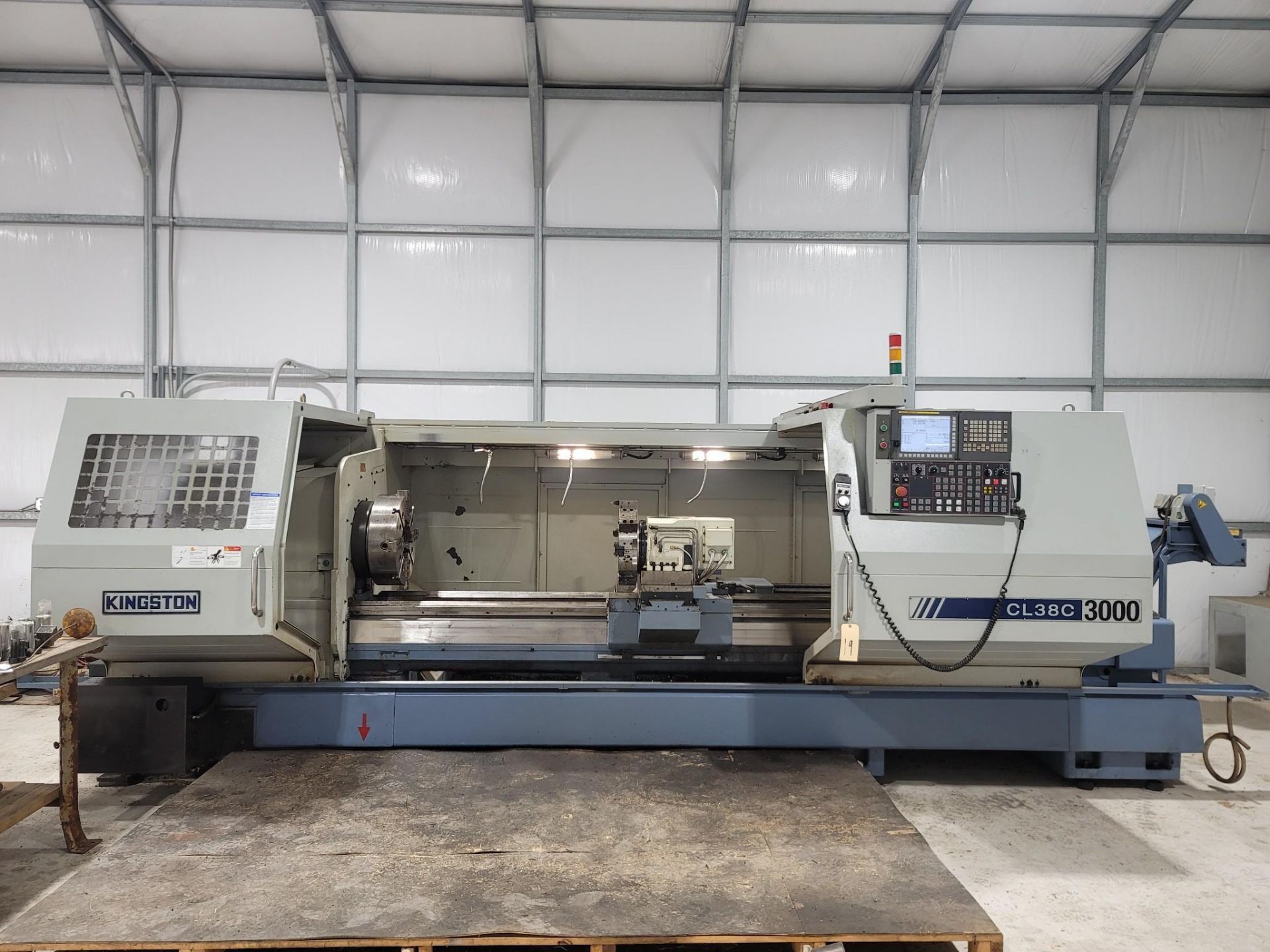

Used Kingston CL38C/3000 CNC Oil Country Long Bed Lathe

*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*

Equipped With:

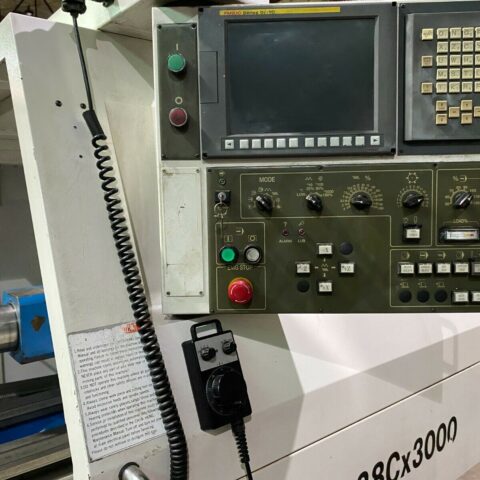

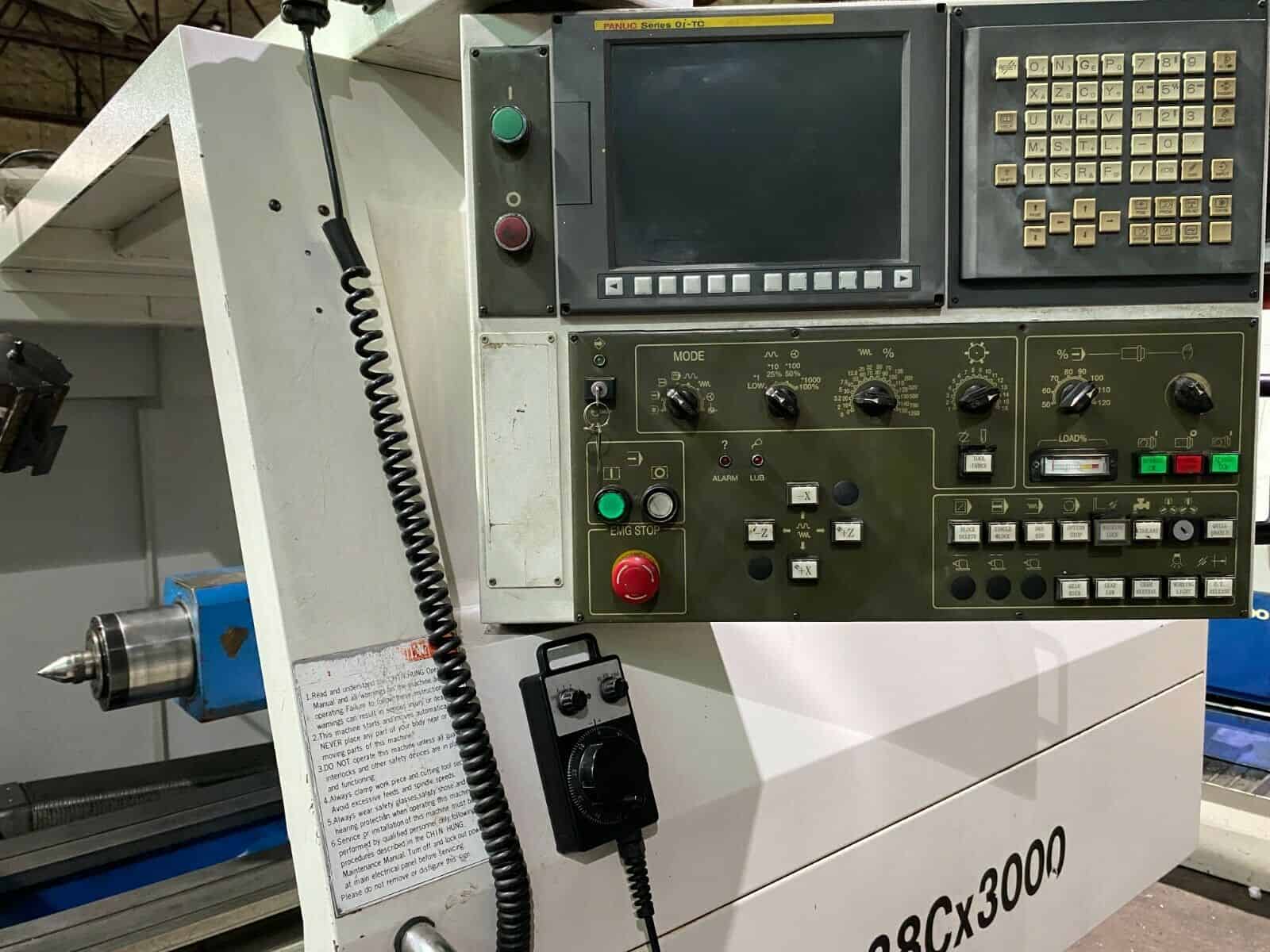

Fanuc Oi T CNC Control

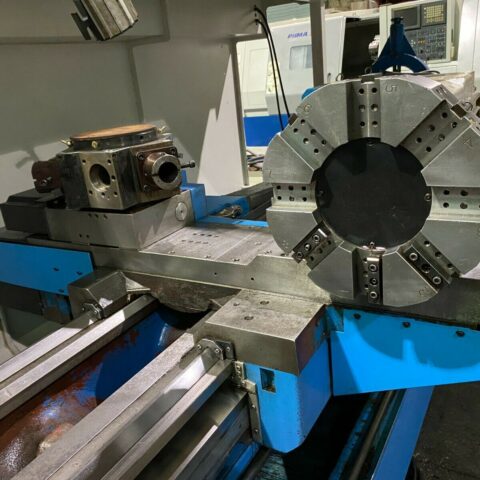

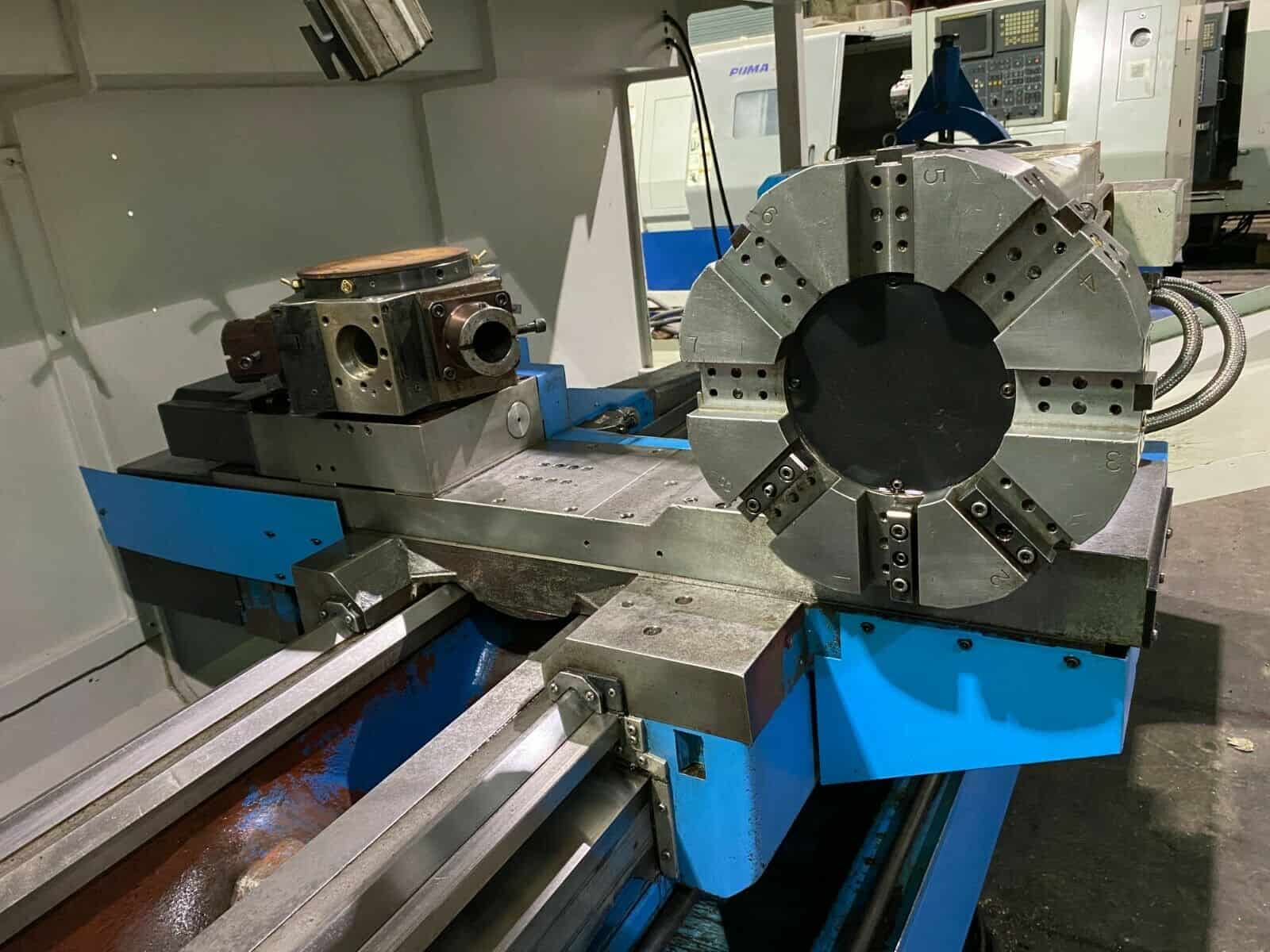

Dual Station Turret
One Touch IGF Programming
Floppy Drive

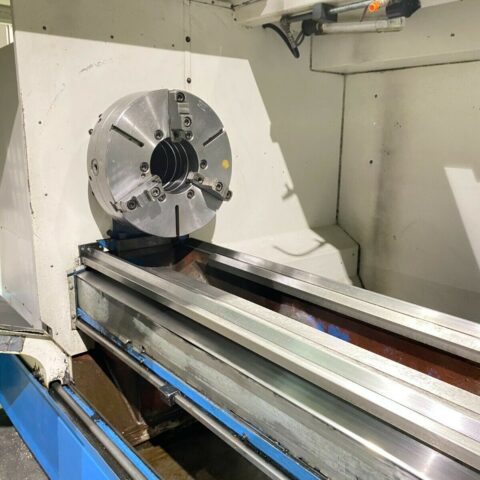

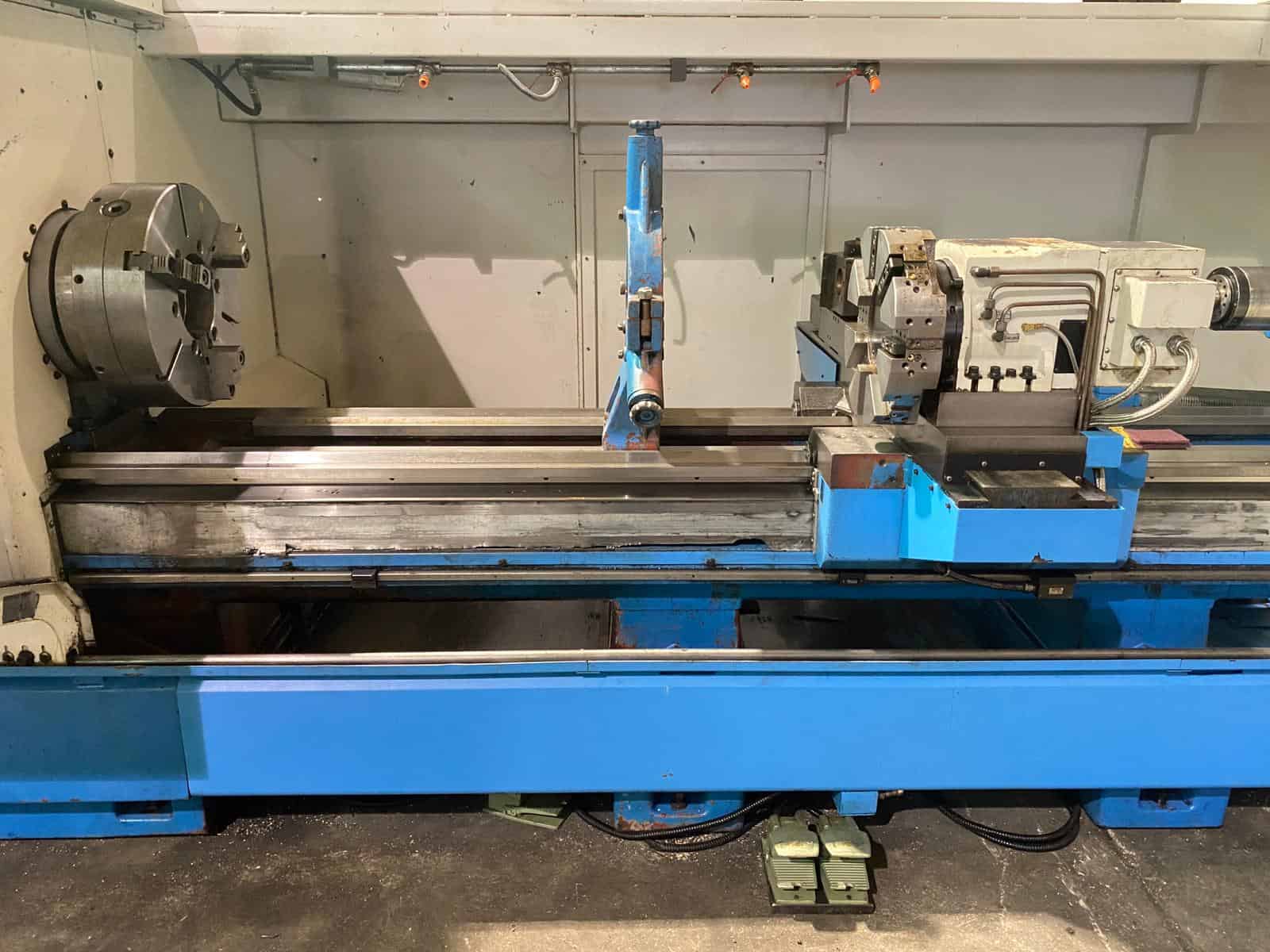

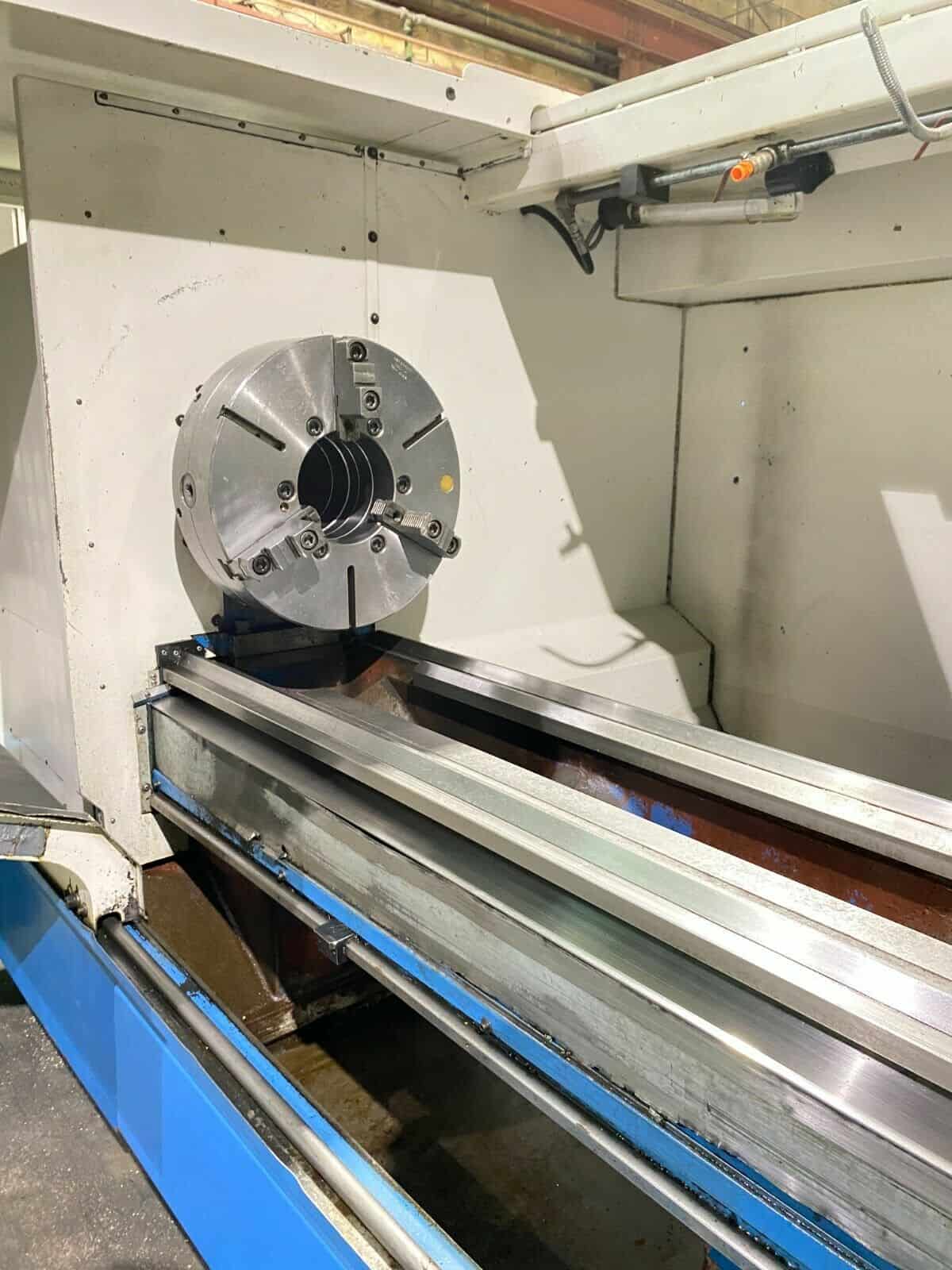

20″ 3 Jaw Manual Chuck

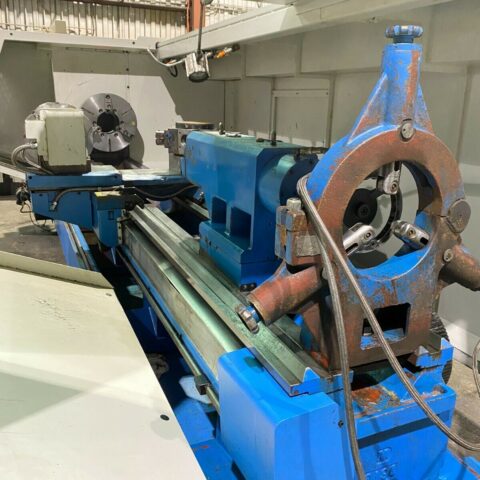

Hydraulic Tailstock with Power Quill
Chip Pan and Chip Conveyor
Coolant System
Automatic Lubrication system
Foot Operated Control for Chuck and Tailstock
Books and Manuals
3 X Boring bar holders
Levelling pads

Specifications:
Max Turning Diameter: 14.17″
Max Turning Length: 49.21″
Max Bar Capacity: 7.2″
Swing Over Slide: 15.78″
Swing Over Bed: 24.41″
Distance Between Centers: 120″″

Travel:
X Axis Travel: 9.1″
Z Axis Travel: 126.8″
Rapid Traverse X Axis: 591 IPM
Rapid Traverse Z Axis: 787 IPM

Spindle:
Spindle Nose: A2-11
Spindle Bore: 7.5
Spindle Speed: 3500 RPM
Spindle Motor: 30 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 1 Second

Tailstock:
Tailstock Body Travel: 34.3″
Tailstock Quill Dia.: 3.94″
Tailstock Quill Stroke: 4.72″
Tailstock Taper: MT-5

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 42 kva
Overall Dimensions: 140″ x 76″ x 80″ High
Overall Dimensions: 160″ x 76″ x 80″ High with Chip Conveyor
Weight : 13,500 lbs Approx.
