*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Kitamura |
| Model: |
Mycenter HX400iSII |
| Year of Manufacture: |
2010 |
| Condition: |
Used |
| Machine Type: |
CNC Horizontal Machining Center (HMC) |

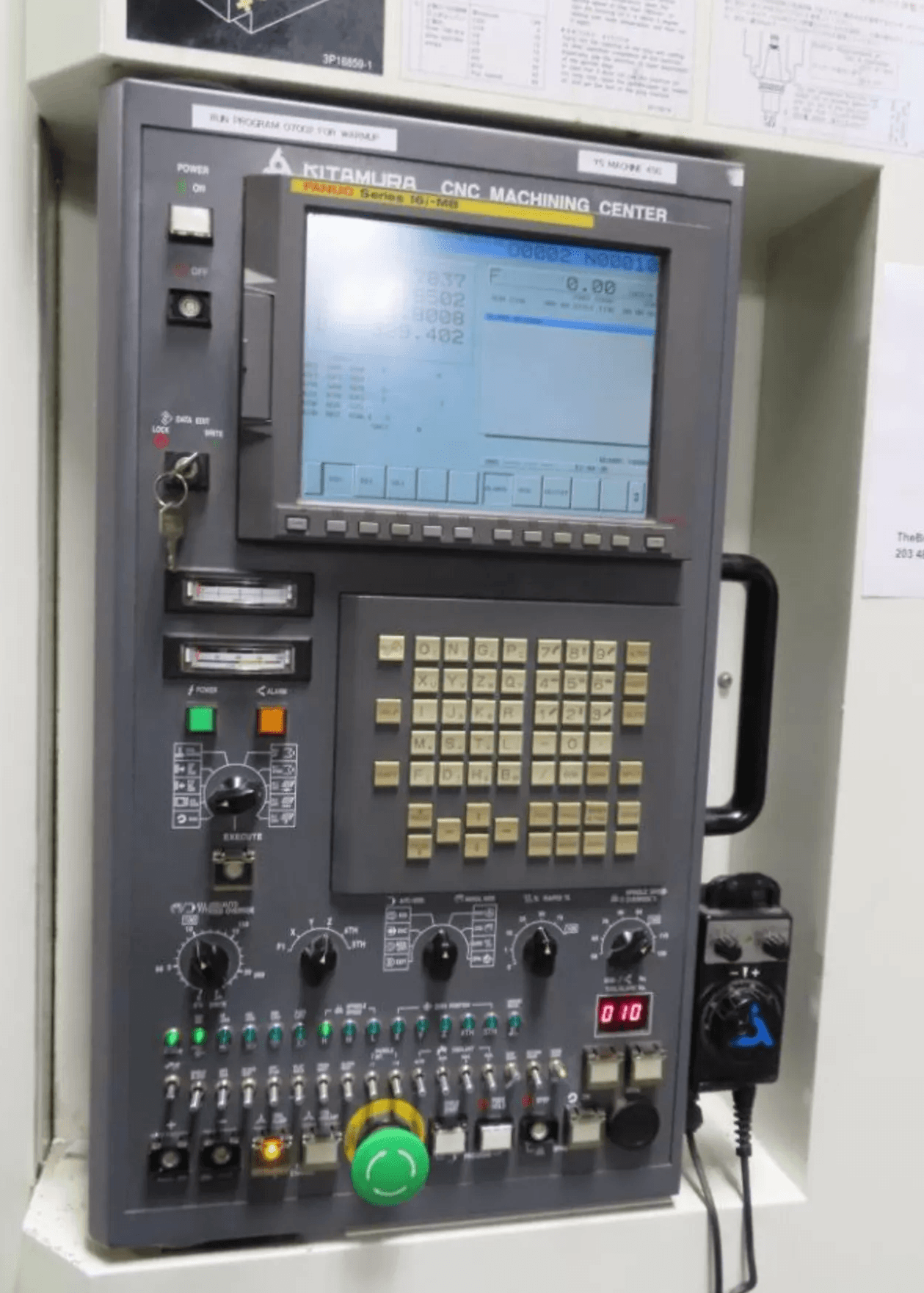

| CNC Control: |
Fanuc 16i |
| Country of Origin: |
Japan |
| Equipped With: |

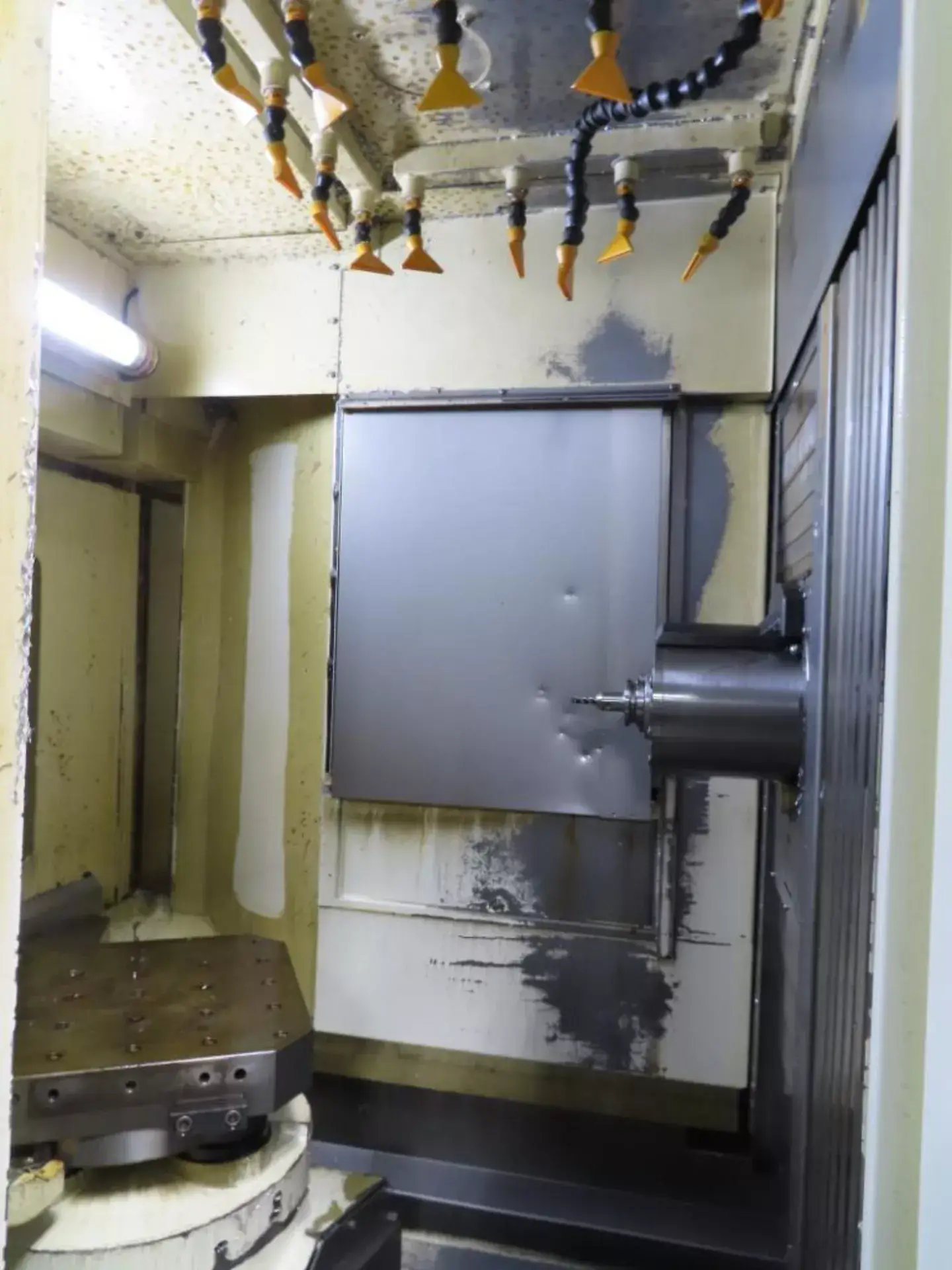

| 4th Axis Rotary Table (Full B-Axis) |
| Dual Pallet Automatic Pallet Changer (APC) |
| 15,000 RPM High-Speed Spindle |
| BT40 Dual Contact Spindle |
| 50 Tool Automatic Tool Changer |
| High-Speed 60 m/min Rapids |
| Chip Conveyor |
| Coolant System |
| Rigid Tapping |
| Linear Scale Feedback (High Accuracy) |
| Fully Enclosed Splash Guard |
| Fanuc CNC Control |
| Heavy Duty Cast Iron Construction |
| Thermal Compensation System |
| Capacity: |
| Pallet Size: 15.75″ × 15.75″ (400 × 400 mm) |
| Number of Pallets: 2 (APC) |
| Pallet Load Capacity: 350 – 400 kg (770 – 880 lbs) |
| Max Workpiece Diameter: 24.8″ (630 mm) |
| Max Workpiece Height: 29.3″ (745 mm) |
| Travels: |
| X-Axis Travel: 24.0″ (610 mm) |
| Y-Axis Travel: 24.0″ (610 mm) |
| Z-Axis Travel: 24.0″ (610 mm) |
| Rapid Traverse (X/Y/Z): 60 m/min (~2,362 IPM) |
| Cutting Feed Rate: Up to 60 m/min |
| Spindle: |
| Spindle Speed: 15,000 RPM |
| Spindle Taper: BT40 / CAT40 |
| Spindle Motor: 30 HP (22 kW) |
| Spindle Type: Direct Drive |
| Tooling System: |
| Tool Capacity: 50 ATC |
| Tool-to-Tool Time: ~1.3 sec |
| Chip-to-Chip Time: ~2.5 sec |
| Max Tool Diameter: 3.74″ (95 mm) |
| Max Tool Length: 14.5″ (370 mm) |
| Max Tool Weight: 22 lbs (10 kg) |
| 4th Axis (B-Axis): |
| Rotation: 360° |
| Indexing: 0.001° |
| Type: Full Rotary Table |
| Pallet System: |
| Type: Automatic Pallet Changer (APC) |
| Pallet Change Time: ~8.5 sec |
| Electrical: |
| Power Requirement: 220V, 3 Phase |
| Power Consumption: ~50 kVA |
| General: |
| Machine Weight: ~9,800 kg (21,600 lbs) |
| Floor Space: ~120″ × 160″ |
| Height: ~108″ |
