*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Laguna |
| Model: | SmartShop LD4 |
| Machine Type: | CNC Router |
| Condition: | Used – Good |
| Machine Overview: |
|---|
- 3-Axis CNC Router with Automated Drilling & Fastener Insertion
- Designed for Cabinet, Furniture & Casework Production
- PC-Based CNC Control System
|
| Work Area & Axis Configuration: |
|---|
- X-Axis Working Area: 96″
- Y-Axis Working Area: Varies by Configuration
- Z-Axis: CNC-Controlled Vertical Positioning
- Axis Configuration: X / Y / Z CNC-Controlled
|
| Drilling & Fastener Insertion System: |
|---|

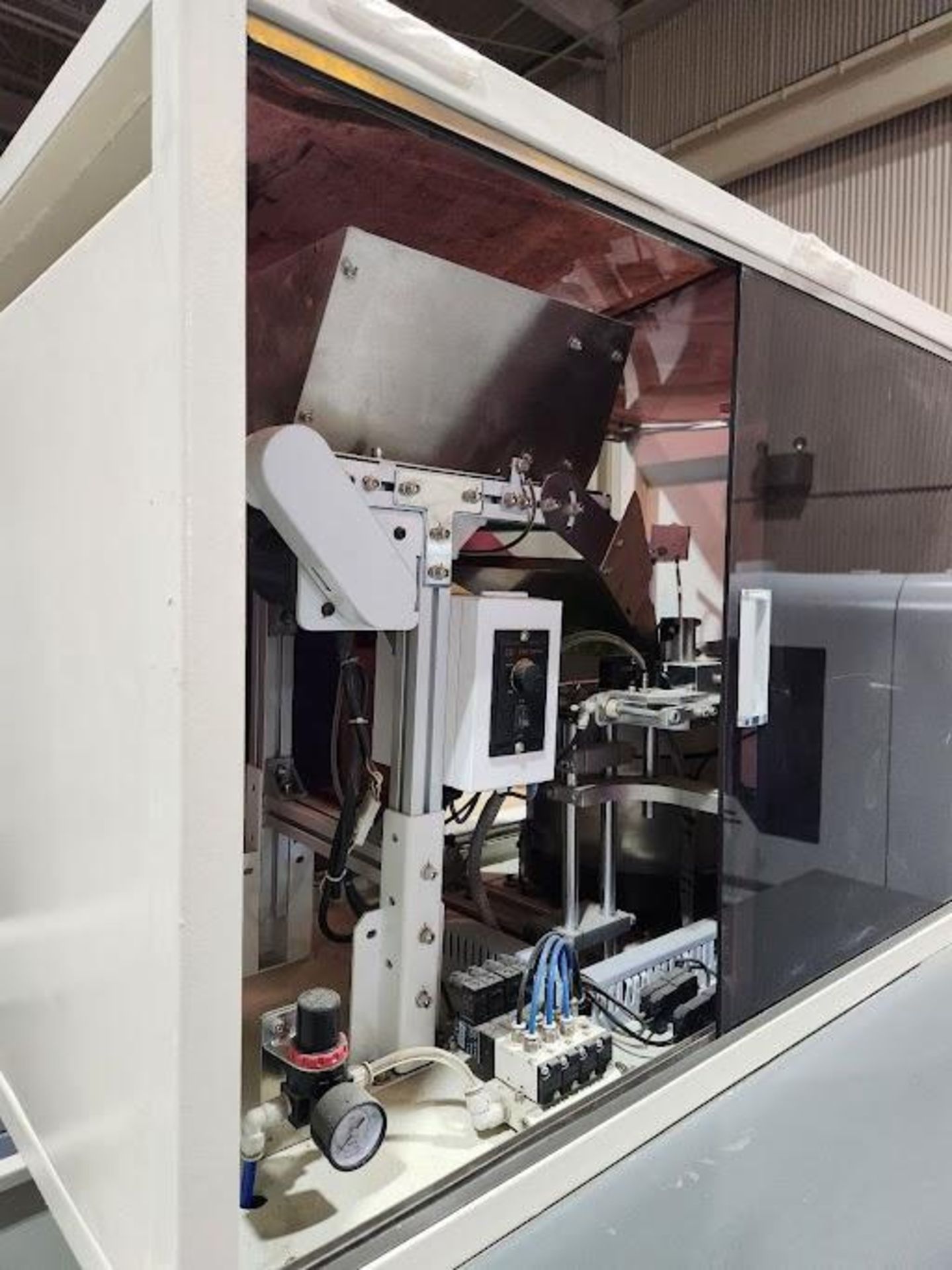

- Dual Automated Boring & Fastener Insertion Units
- 1 × 5 mm Boring & Insertion Unit with Vibratory Hopper
- 1 × 8 mm Boring & Insertion Unit with Vibratory Hopper
- Supports LockDowel Fasteners, Spring Pins, H-Clips, E-Clips & Similar Connectors
- Vibratory Hoppers for Continuous Automated Fastener Feeding
|
| Spindles: |
|---|
- Number of Spindles: 2
- Spindle Power: 2 HP Each
- Typical Spindle Speed: Approx. 2,400 RPM
- Designed for High-Speed Precision Drilling
|
| Clamping & Workholding: |
|---|
- 8 Pneumatic Adjustable Hold-Down Clamps
- Ensures Secure Workholding During Drilling & Insertion
- Provides Repeatable Accuracy for Production Runs
|
| Machine Construction: |
|---|
- One-Piece Welded Tubular Steel Frame
- High Rigidity with Minimal Vibration
- Industrial-Duty Construction for Daily Production Use
|
| Control & Software Compatibility: |
|---|
- CNC Controller with Windows PC Frontend
- Compatible with Cabinet Vision
- Compatible with Mozaik
- Compatible with KCD
- Compatible with Microvellum
- Compatible with Other Major Woodworking CAD/CAM Software
|
| Dust Collection: |
|---|
- Dust Port Size: 4″
- Integrated Dust Extraction for Clean Operation
|
| Electrical: |
|---|
- Power Supply: 208–220V
- Single-Phase or Three-Phase (Configuration Dependent)
- Amperage: Approx. 30 Amps
|
| General: |
|---|
- Machine Footprint (Approx.): 135″ L × 45″ W × 82″ H
- Machine Weight (Approx.): 6,000 lbs
- Shipping Weight (Approx.): 7,500 lbs
|
| Typical Applications: |
|---|
- Cabinet Face Frames
- Drawer Boxes
- Closets & Storage Systems
- Desks & Furniture Panels
- Hardwood & Composite Panels
- Automated Fastener Drilling & Insertion
|
