*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

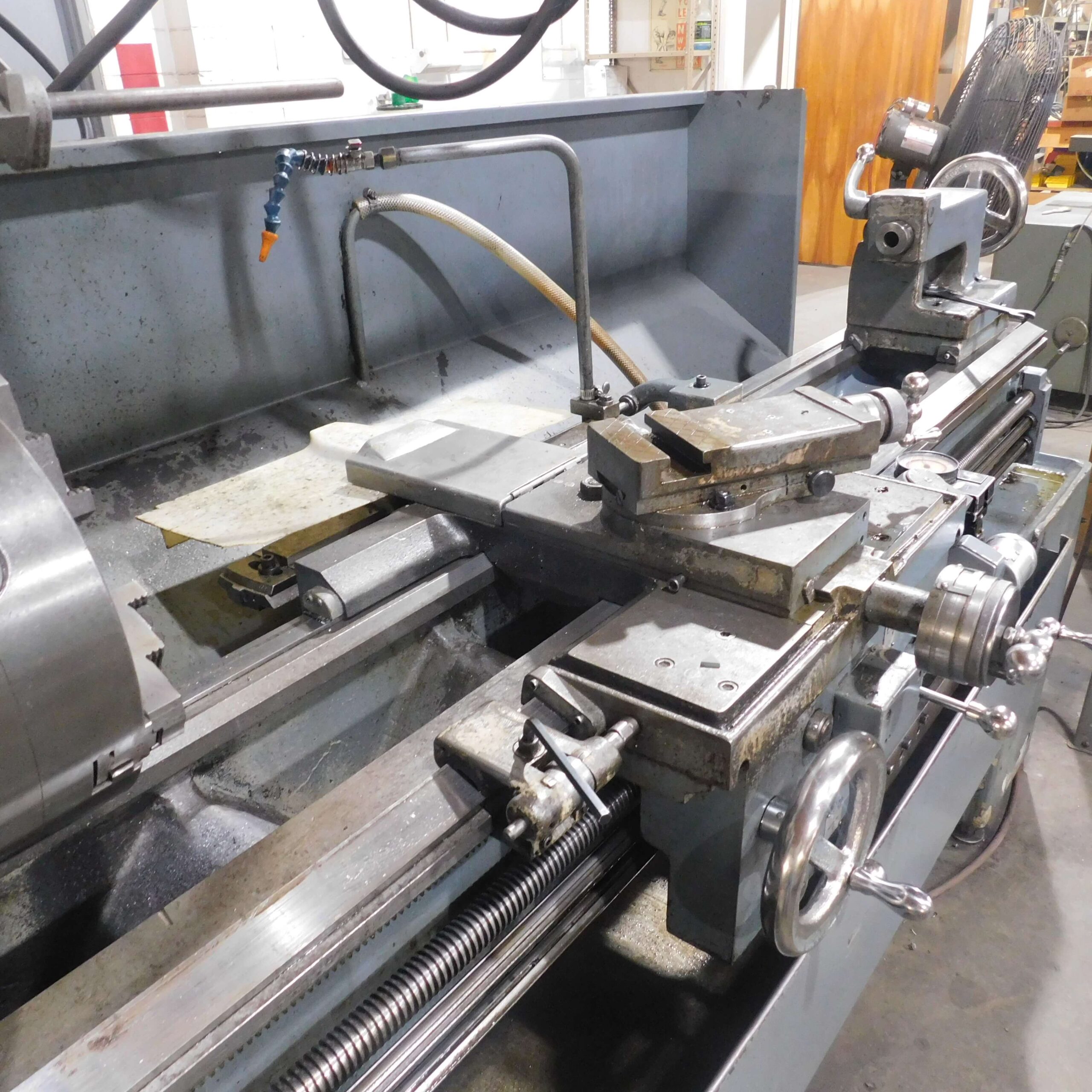

| Make: | LeBlond |
| Model: | Regal Servo Shift 15″ × 54″ |
| Machine Type: | Toolroom Lathe |
| Equipped With: |
|---|
| Servo Shift Spindle Speed Control |
| Face Plate |
| Taper Turning Attachment |
| (2) Steady Rests |
| Tailstock |
| Inch / Metric Threading |
| Threading Dial |
| Quick-Change Toolpost |
| Coolant System |
| Chip Pan / Splash Guard |
| Hardened / Ground Bedways |
| Spindle: |
|---|
| Spindle Speed Range: 45–1,800 RPM |
| Number of Spindle Speeds: 12 |
| Spindle Bore: 2.25″ |
| Spindle Nose: L-1 |
| Tailstock: |
|---|
| Spindle Taper: MT-4 |
| Spindle Travel: 5″ |
| Feeds: |
|---|
| Inch Threading: 2–112 TPI |
| Metric Threading: 0.25–14 mm |
| Longitudinal Feed Range: 0.0018–0.104 IPR |
| Tooling: |
|---|
| 10″ 3-Jaw Chuck |
| 10″ 4-Jaw Chuck |
| General: |
|---|
| Machine Dimensions (Approx.): 98″ L × 40″ W × 51″ H |
| Machine Weight (Approx.): 3,000–3,500 lbs. |
