*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Makino |
| Model: | A100E-5XR |
| Year: | 2006 |
| Condition: | Used – Good |
| Machine Type: | 5-Axis CNC Horizontal Machining Center |
| Country of Origin: | Japan |
| Equipped With: |
|---|
- Full 5-Axis Simultaneous Machining Capability
- Horizontal Spindle with Trunnion-Style 5-Axis Table
- Makino TACT (Thermal Accuracy Control Technology)
- High-Torque Horizontal Spindle
- Automatic Tool Changer (ATC)
- Rigid Tapping
- Flood Coolant System
- Chip Conveyor & Chip Auger
- Fully Enclosed Guarding
- Coolant Chiller (Optional / Installed)
- Work Light & Interior Lighting
- Operator Safety Interlocks & Emergency Stop
|
| Travels & Axis Configuration: |
|---|
- X-Axis Travel: Approx. 39.4″ (1,000 mm)
- Y-Axis Travel: Approx. 35.4″ (900 mm)
- Z-Axis Travel: Approx. 31.5″ (800 mm)
- B-Axis (4th Axis): ±110°
- C-Axis (5th Axis): 360° Continuous
- Simultaneous 5-Axis Machining
|
| Table / Work Envelope: |
|---|
- Table Size / Diameter: Approx. 31.5″ (800 mm)
- Maximum Table Load: Approx. 660 lbs (300 kg)
- High-Precision 5-Axis Trunnion Table (B & C Axes)
|
| Spindle: |
|---|
- Spindle Taper: HSK-A63
- Maximum Spindle Speed: Approx. 10,000 – 12,000 RPM
- Spindle Motor Power: Approx. 50 HP (37 kW)
- Rigid Spindle Design for High Cutting Forces
- Spindle Cooling & Thermal Control (Makino TACT)
|
| Automatic Tool Changer: |
|---|
- Tool Capacity: 60 Tools
- Tool Type: HSK-A63
- Fast Tool-to-Tool Change
- Maximum Tool Length: Approx. 11.8″ (300 mm)
- Maximum Tool Weight: Approx. 8 – 10 kg (17 – 22 lbs)
- Tool Life Management & Tool Offsets
|
| Feedrates: |
|---|
- Rapid Traverse (X / Y / Z): Approx. 1,500 – 2,000 mm/min
- Cutting Feedrate: CNC Controlled with Look-Ahead
- High-Speed 5-Axis Simultaneous Contouring
|

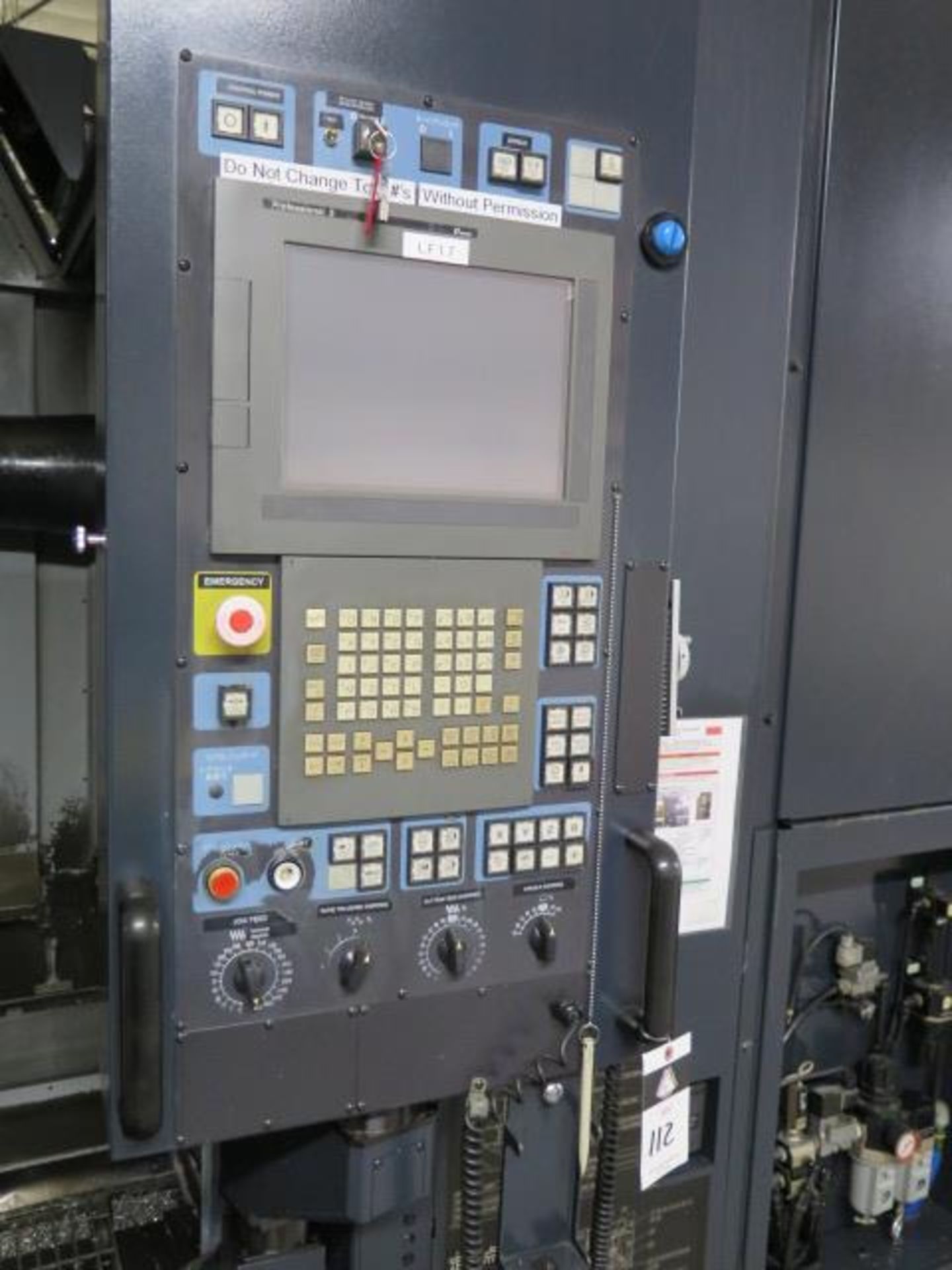

| CNC Control: |
|---|
- Makino Proprietary CNC Control
- Large Color Display
- 5-Axis Simultaneous Interpolation
- Conversational & ISO G-Code Programming
- Ethernet / USB Program Transfer
- Macro Programming & Tool Management
- Advanced Diagnostics & On-Machine Help
|
| Coolant & Chip Management: |
|---|
- Flood Coolant System
- CNC Programmable Coolant Nozzles
- Chip Auger / Screw Conveyor
- Optional Coolant Chiller Installed
|
| Construction & Accuracy: |
|---|
- Rigid Meehanite / Ductile Iron Base & Column
- Precision Ground Box Ways / Linear Guides
- Advanced Thermal Stability Design (Makino TACT)
- High-Accuracy Bearings & Encoders on Rotary Axes
- Excellent for High-Precision Contouring & Production
|
| Electrical: |
|---|
- Voltage: 400 / 480 V (Region Dependent)
- Phase: 3-Phase
- Frequency: 50 / 60 Hz
- Control Voltage: AC 100 V / DC 24 V
- Industrial Electrical Cabinet with Safety Interlocks
|
| Machine Dimensions & Weight: |
|---|
- Approx. Machine Weight: 22,000 – 24,000 lbs
- Horizontal 5-Axis HMC Class Footprint
|
| Typical Applications: |
|---|
- Aerospace Structural & Turbine Components
- Automotive Castings & Transitional Parts
- Mold & Die 5-Axis Finishing
- Medical Implants & Precision Components
- Simultaneous Machining of Complex Geometry
|
| Key Highlights: |
|---|
- True 5-Axis Simultaneous Machining
- Powerful Horizontal Spindle & Trunnion Design
- Excellent Thermal Control with Makino TACT
- High Rigidity & Accuracy for Precision Production
- Ideal for Complex Sculptured & Contoured Parts
|
