*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

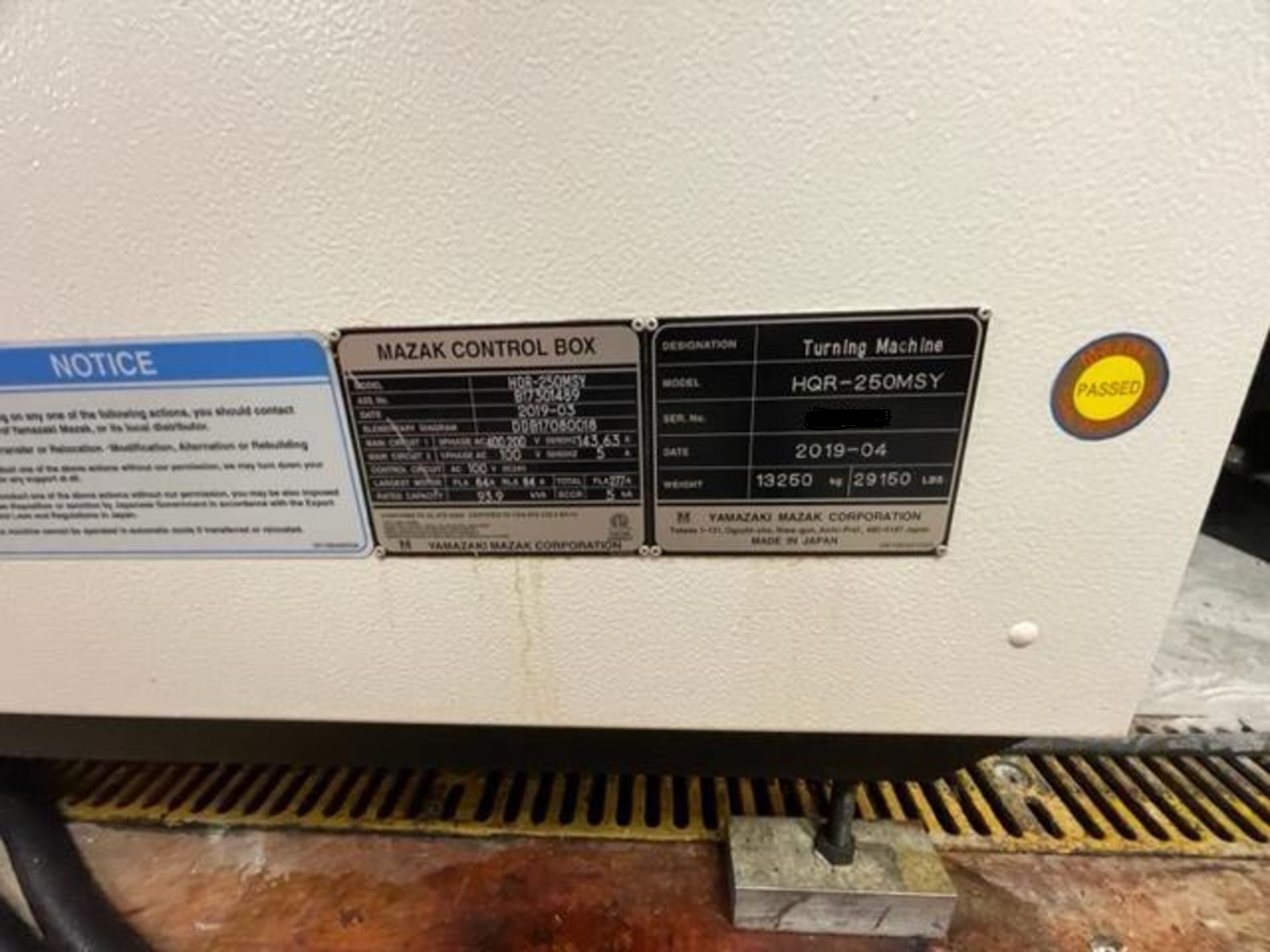

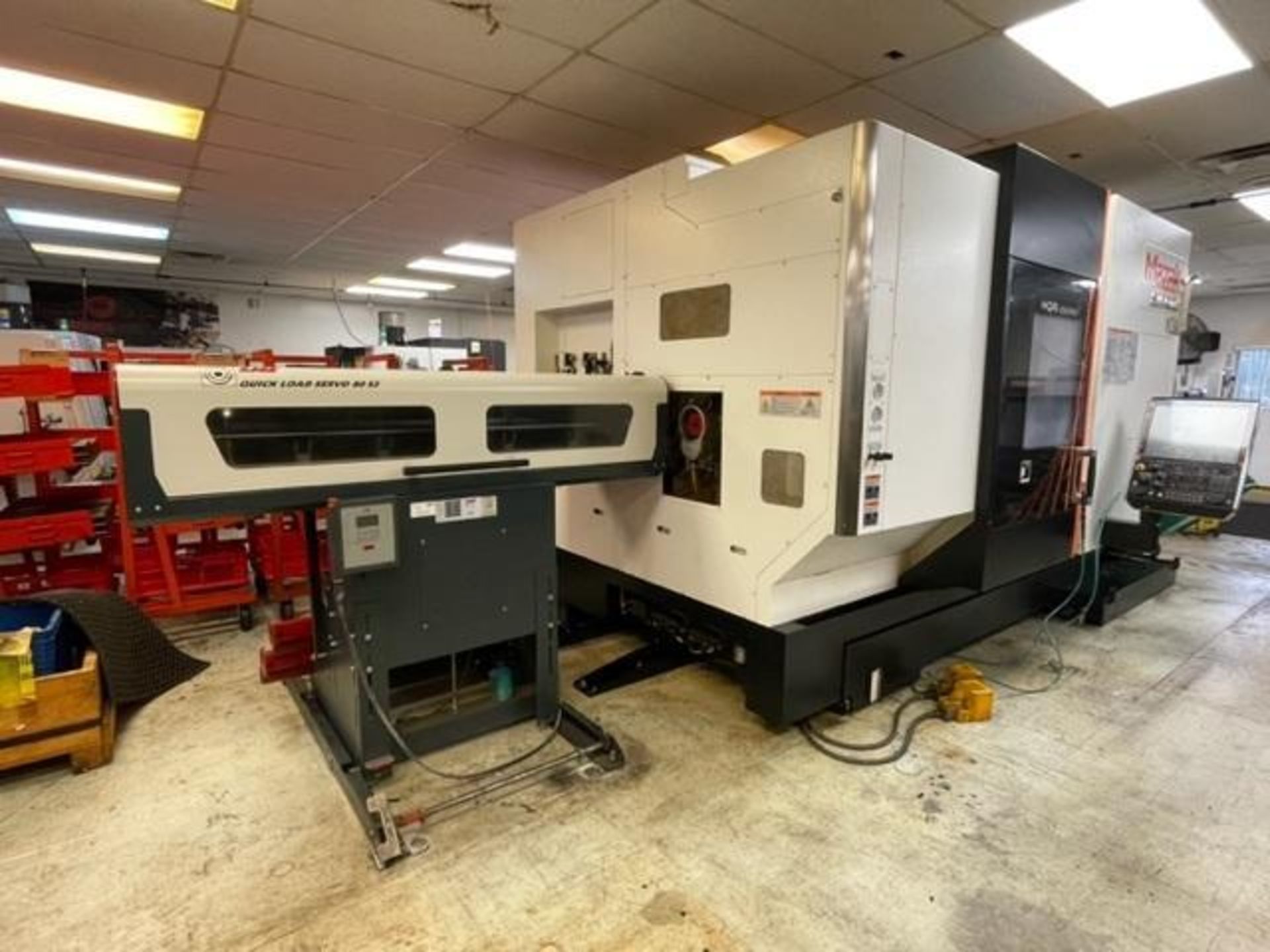

| Make: | Mazak |
| Model: | HQR-250MSY |
| Condition: | Used |
| Equipped With: |
|---|
| MAZATROL SmoothG CNC Control |
| Dual Spindle (Main & Sub) |
| Dual Turret Design (Upper & Lower) |
| Y-Axis on Both Turrets |
| C-Axis Control (Main & Sub Spindles) |
| Live Tooling on Both Turrets |
| Integral Spindle Motors |
| Automatic Lubrication System |
| Coolant System |
| Full Enclosure |
| Capacity: |
|---|
| Max Swing (Upper / Lower Turret): 14.6″ / 12.6″ |
| Max Machining Diameter (Upper / Lower): 13.5″ / 8.35″ |
| Distance Between Chuck Jaw Faces: 33.86″ – 52.17″ |
| Bar Capacity (Main / Sub Spindle): 3.15″ / 2.60″ |
| Travels: |
|---|
| X-Axis Travel (Upper / Lower): 8.2″ / 5.56″ |
| Y-Axis Travel (Upper / Lower): ±2.0″ / ±2.0″ |
| Z-Axis Travel: 29.88″ – 50.50″ |
| W-Axis Travel (Sub Spindle): 34.08″ – 52.38″ |
| Feedrates: |
|---|
| Rapid Traverse X-Axis: 1,181 IPM / 945 IPM |
| Rapid Traverse Y-Axis: 1,024 IPM / 787 IPM |
| Rapid Traverse Z-Axis: 1,417 IPM |
| C-Axis Rapid Traverse: 555 RPM |
| Main Spindle: |
|---|
| Spindle Speed: 4,000 RPM |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.58″ |
| Spindle Motor: 35 HP (30-min) / 30 HP (Cont.) |
| Sub Spindle: |
|---|
| Spindle Speed: 5,000 RPM |
| Spindle Nose: A2-6 |
| Spindle Bore: 2.99″ |
| Spindle Motor: 30 HP (30-min) / 20 HP (Cont.) |
| Turrets & Milling: |
|---|
| Turret Type: 12-Position Drum Turrets (Upper & Lower) |
| Tool Shank Size: 1.0″ |
| Boring Bar Capacity: 1.5″ |
| Turret Index Time: 0.2 sec |
| Live Tool Speed: 6,000 RPM |
| Live Tool Motor: 7.5 HP |
| General: |
|---|
| Power Requirement: 220V / 3-Phase |
| Air Required: 72.5 PSI |
| Coolant Tank Capacity: 82 – 106 Gallons |
| Machine Height: 98.3″ |
| Machine Weight (Approx.): 27,800 – 32,400 lbs |
