*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

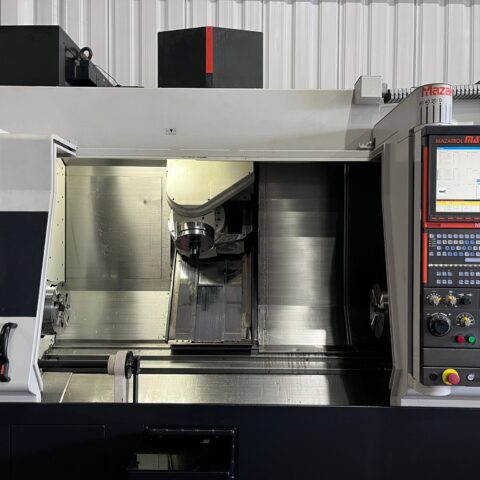

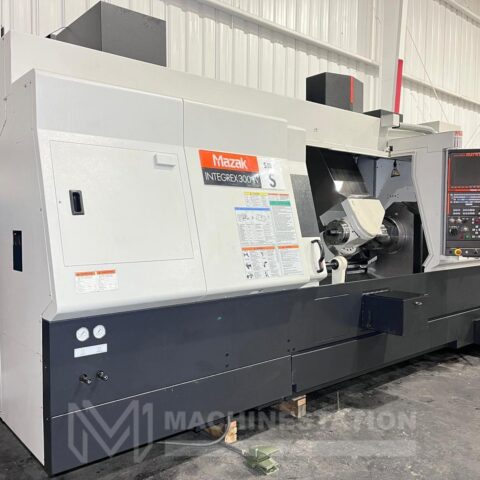

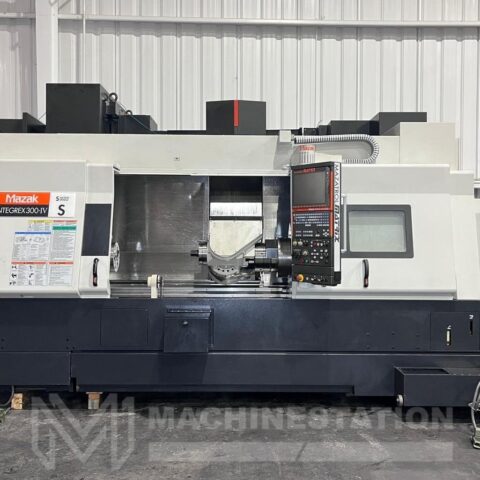

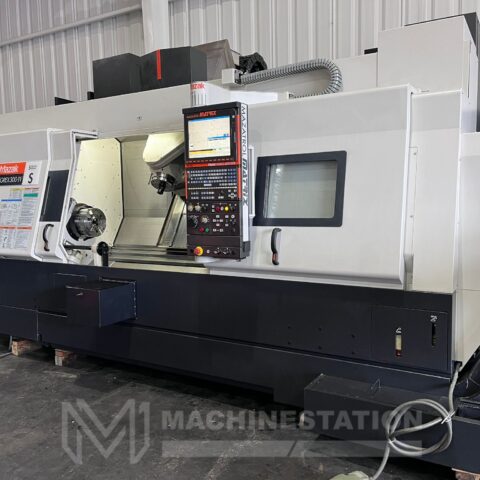

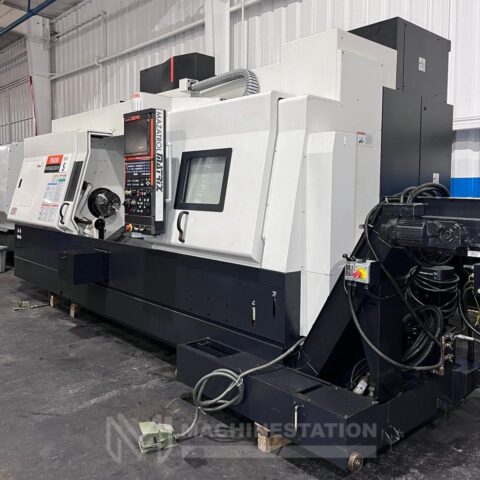

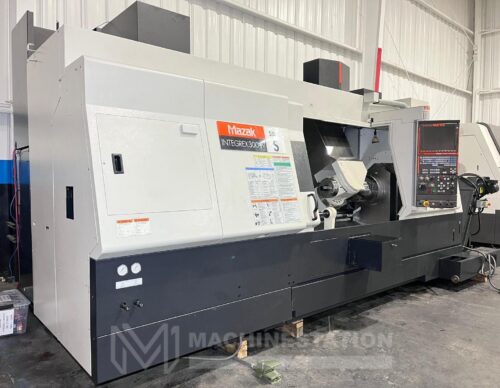

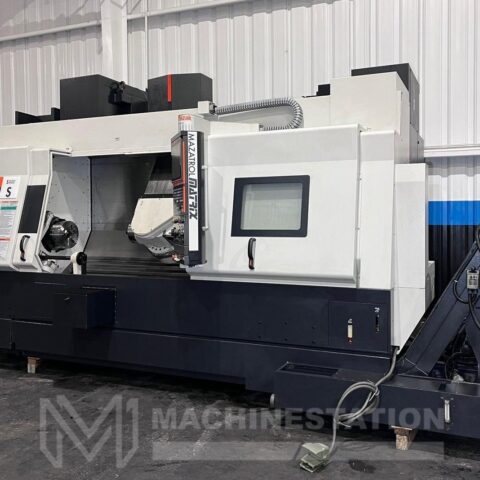

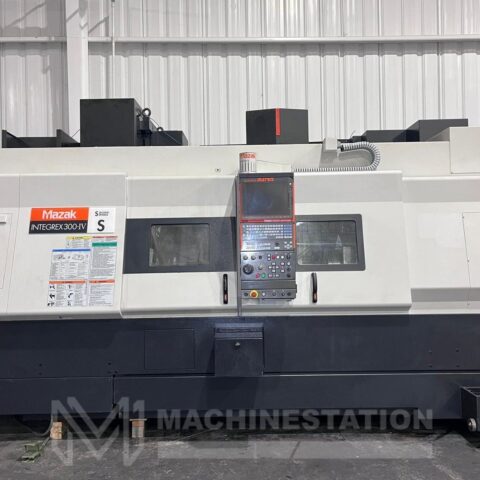

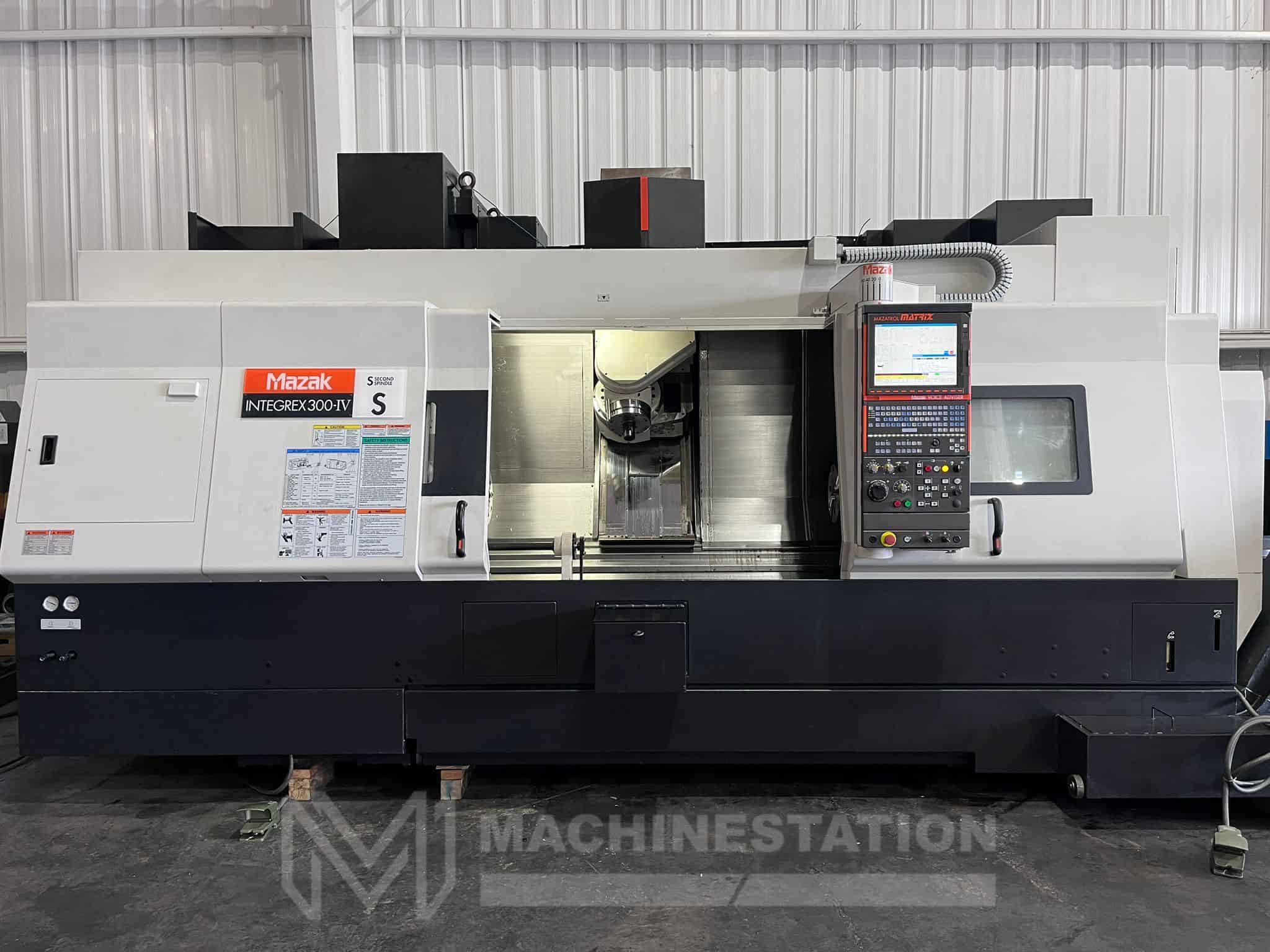

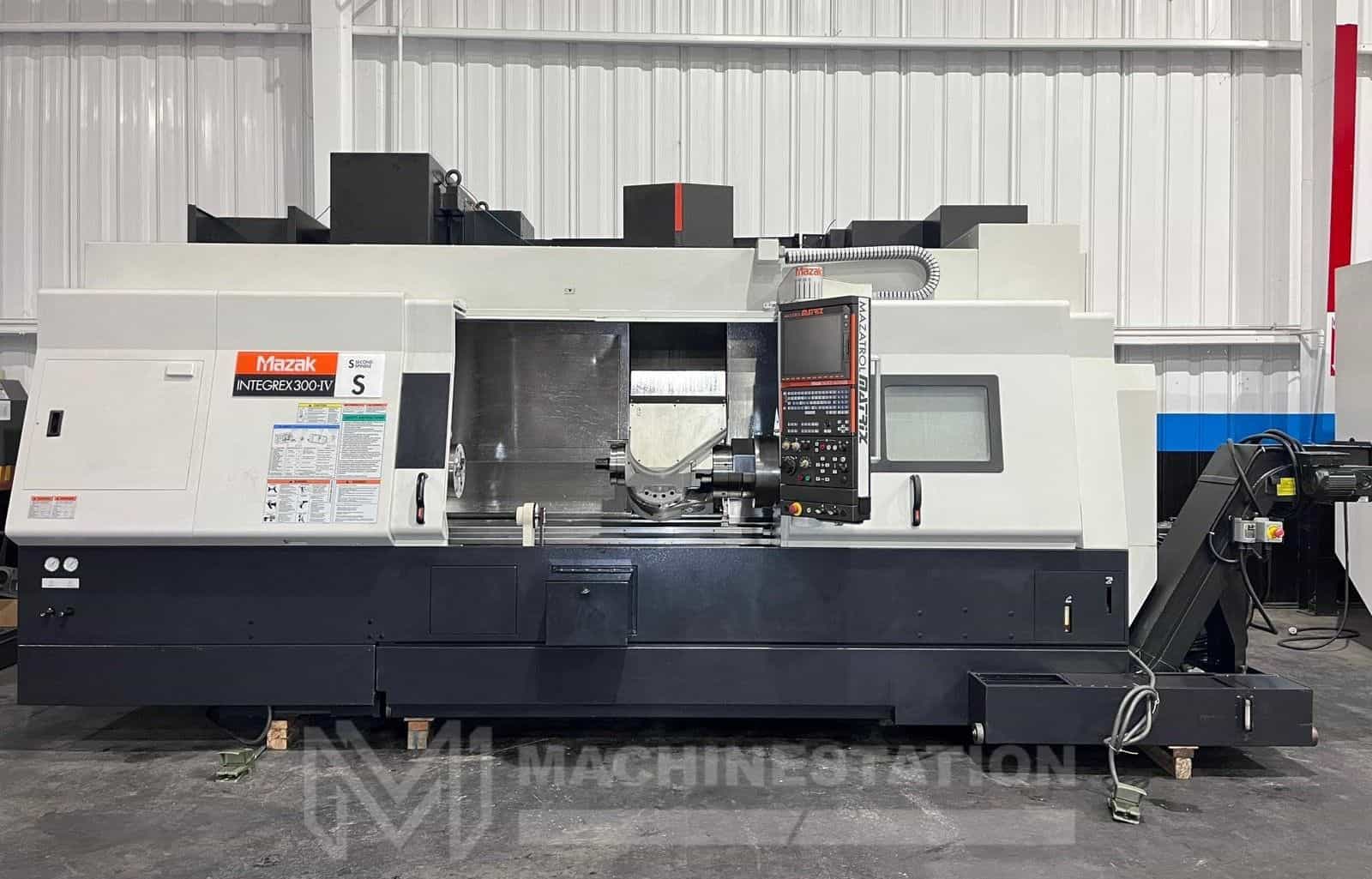

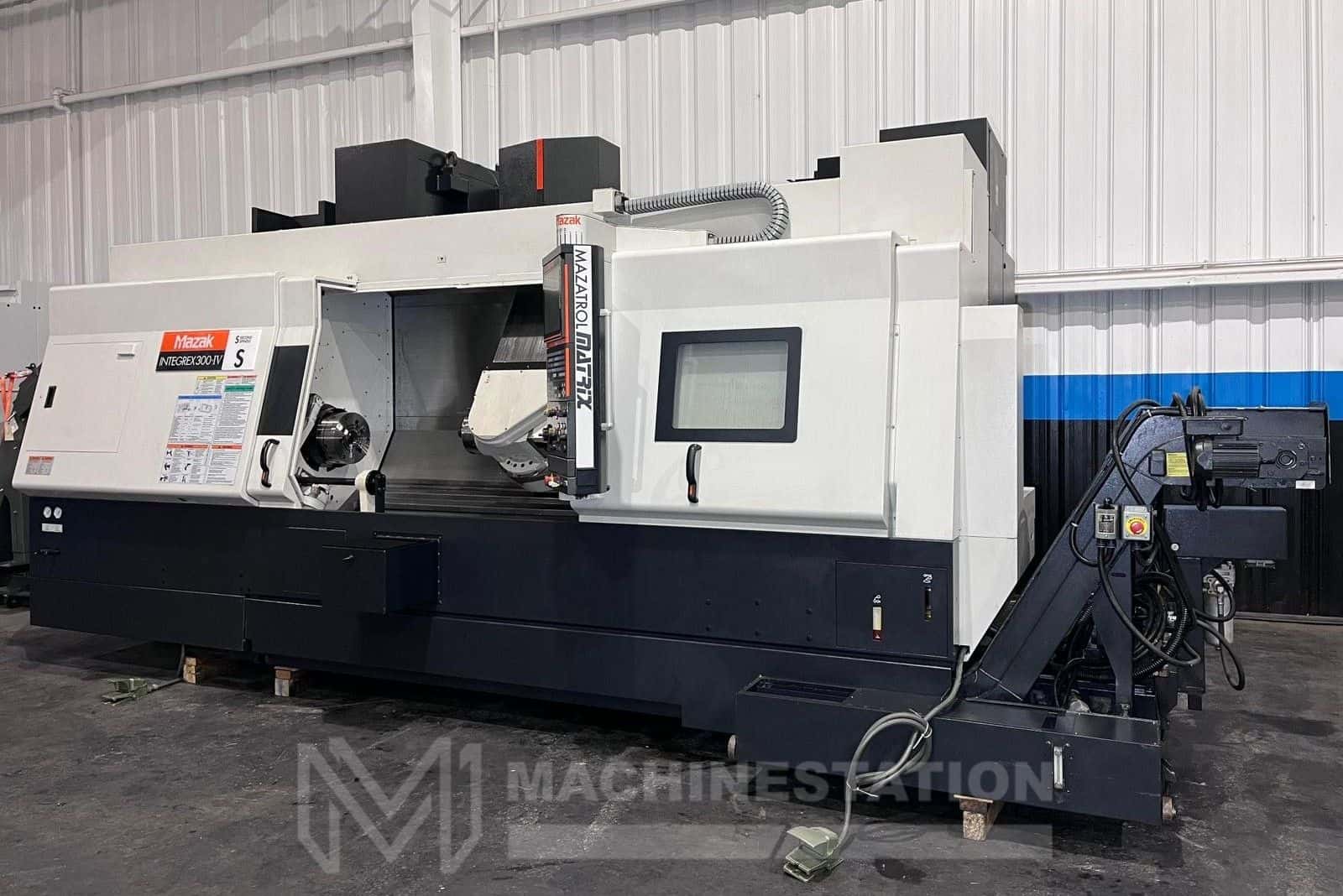

| Make: | MAZAK |

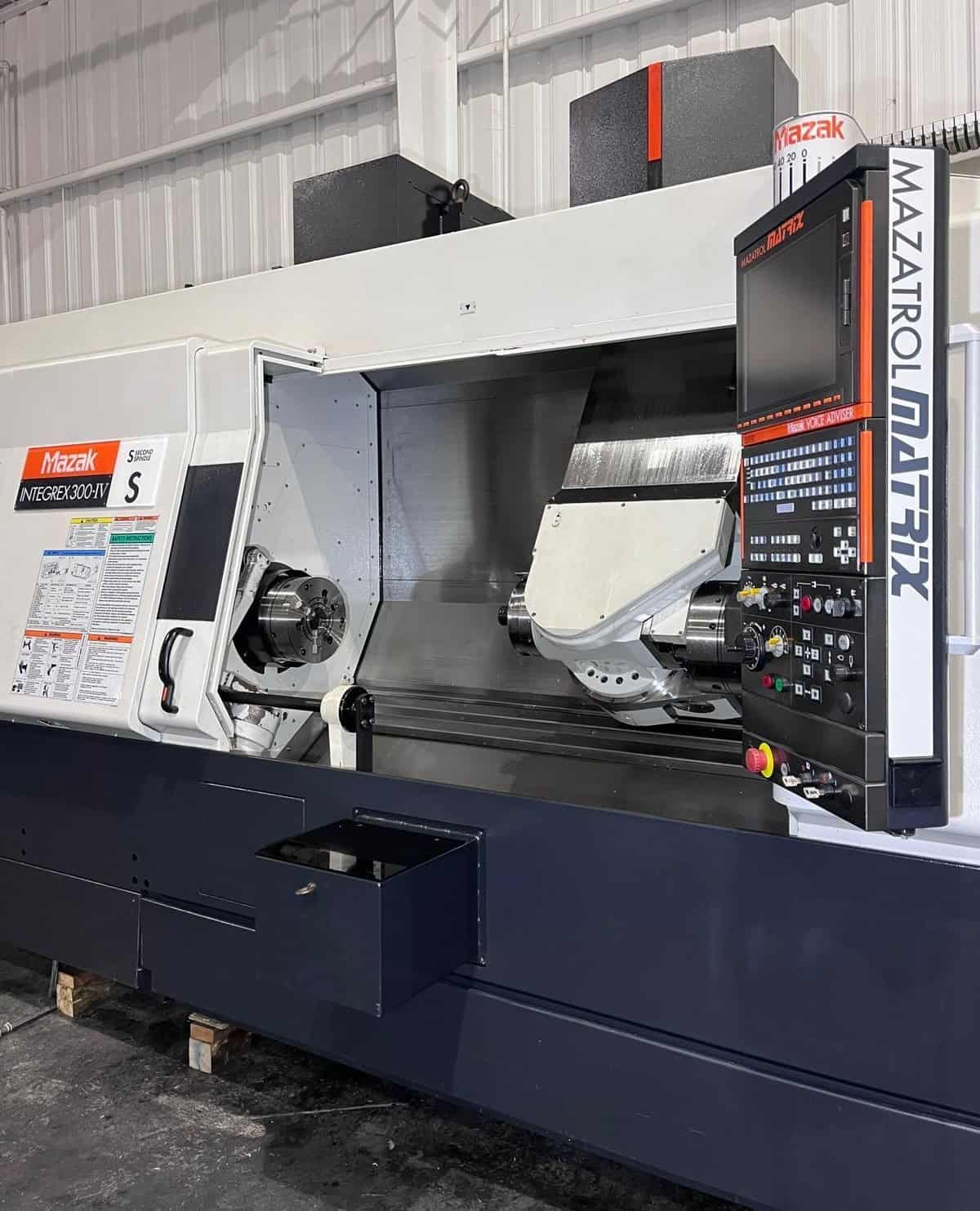

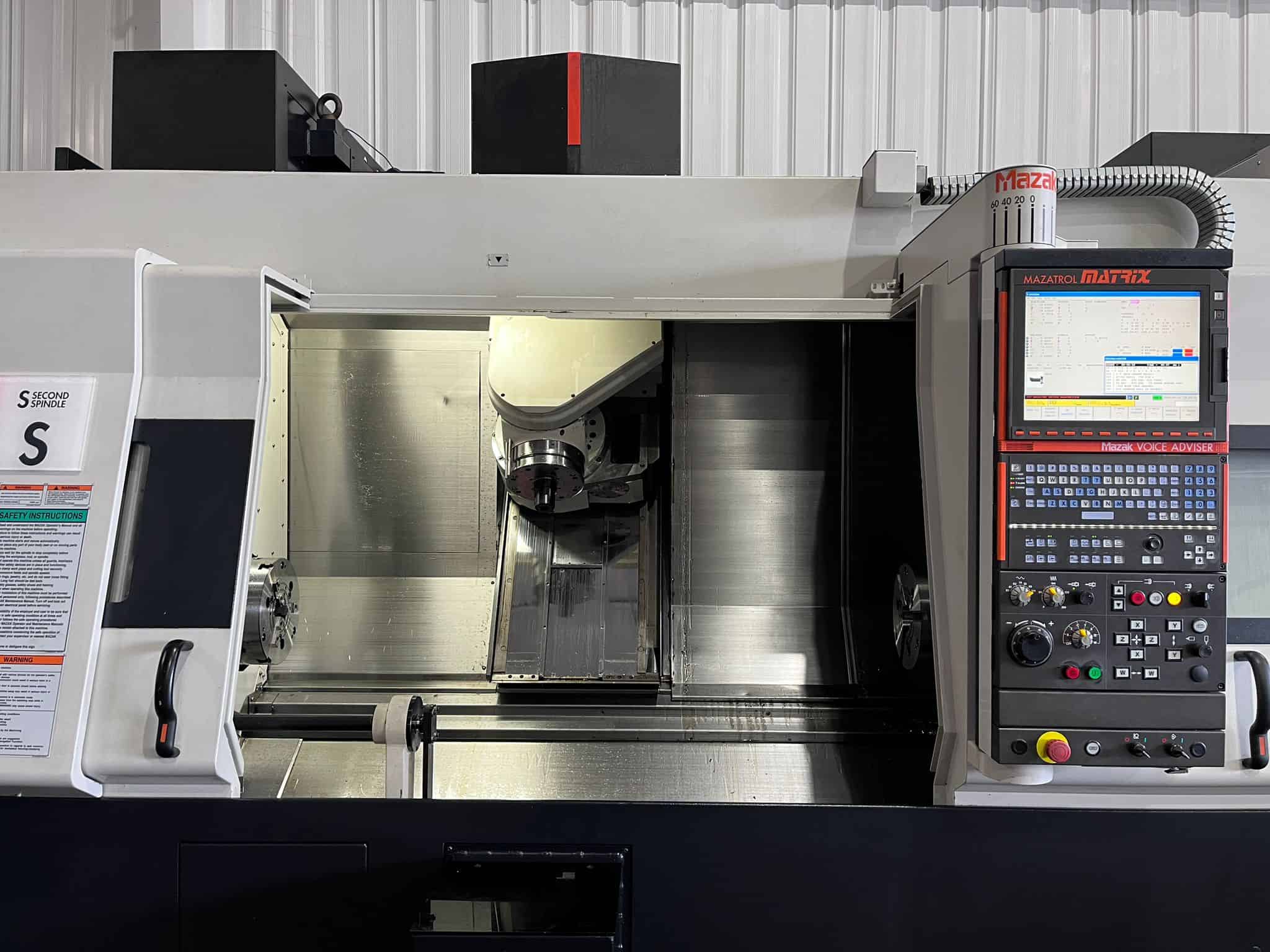

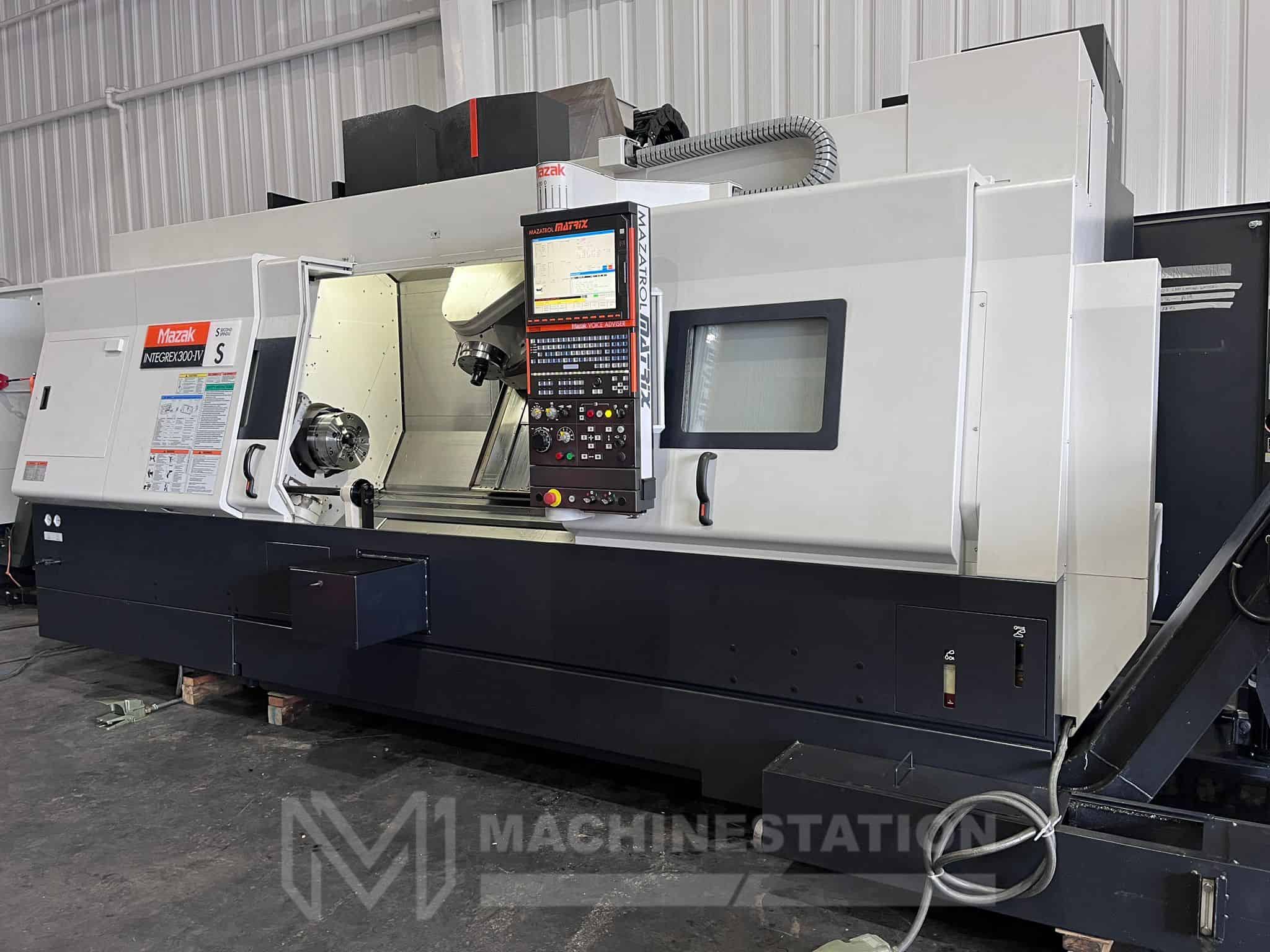

| Model No.: | INTEGREX 300-IV S |

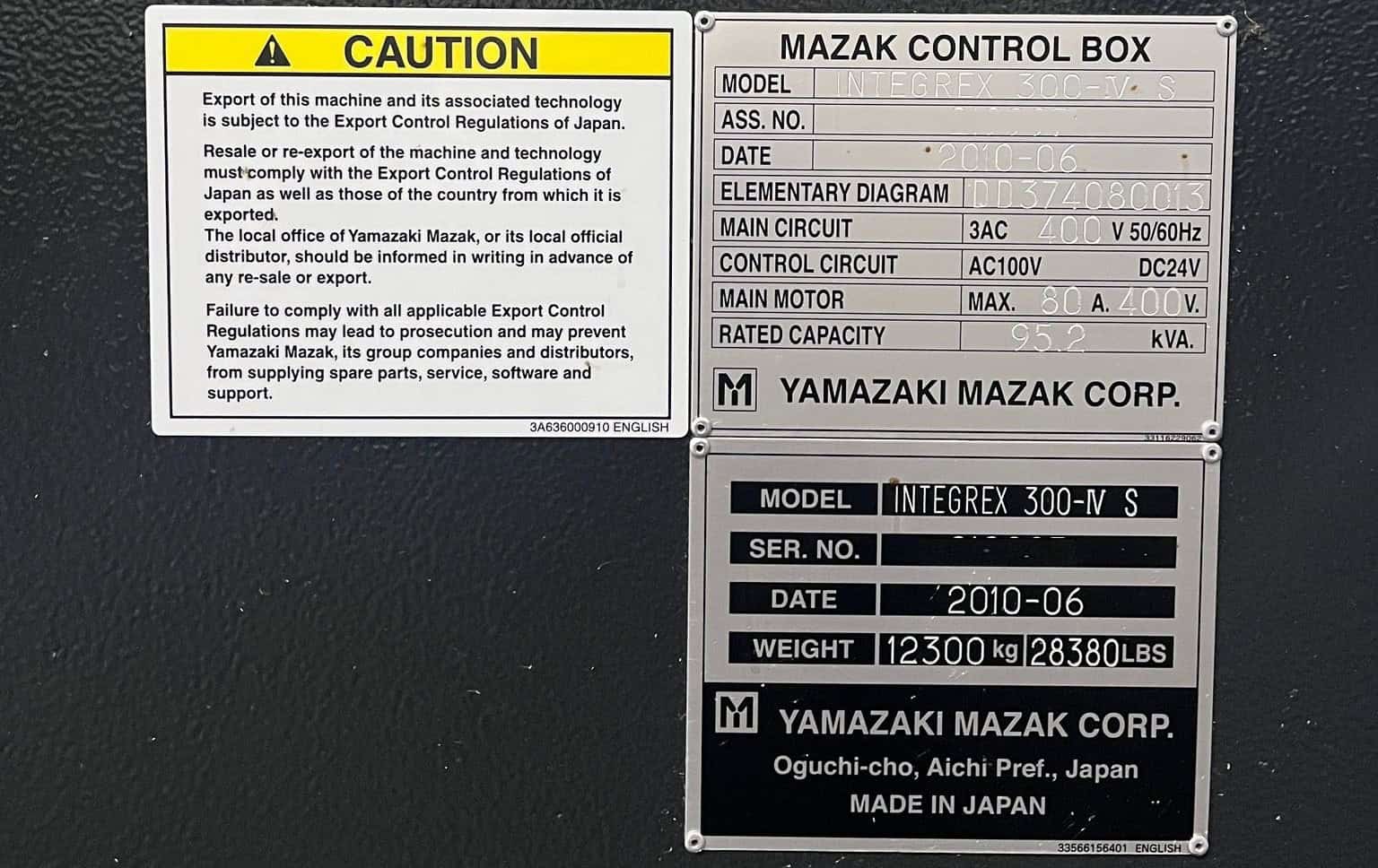

| Year of Manufacture: | 2010 |
| Condition: | Used – Good |
| Equipped With: |
|---|

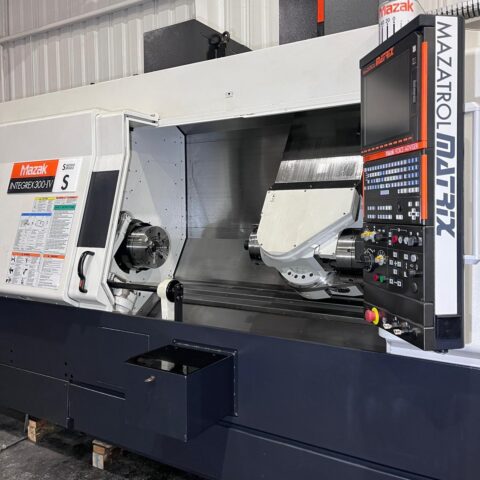

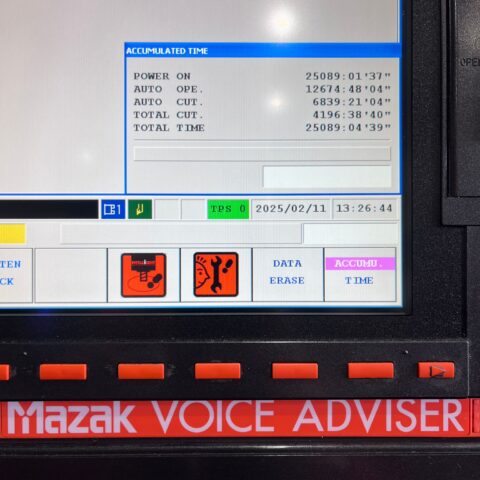

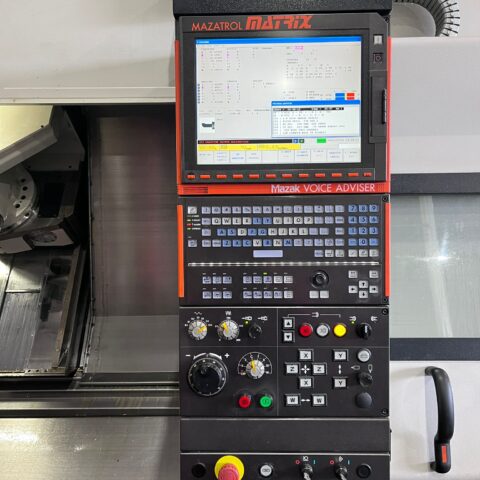

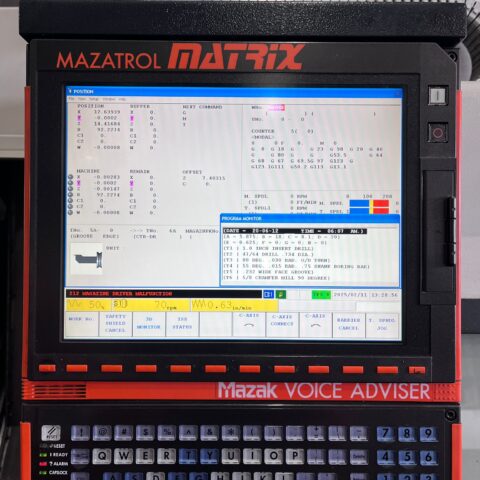

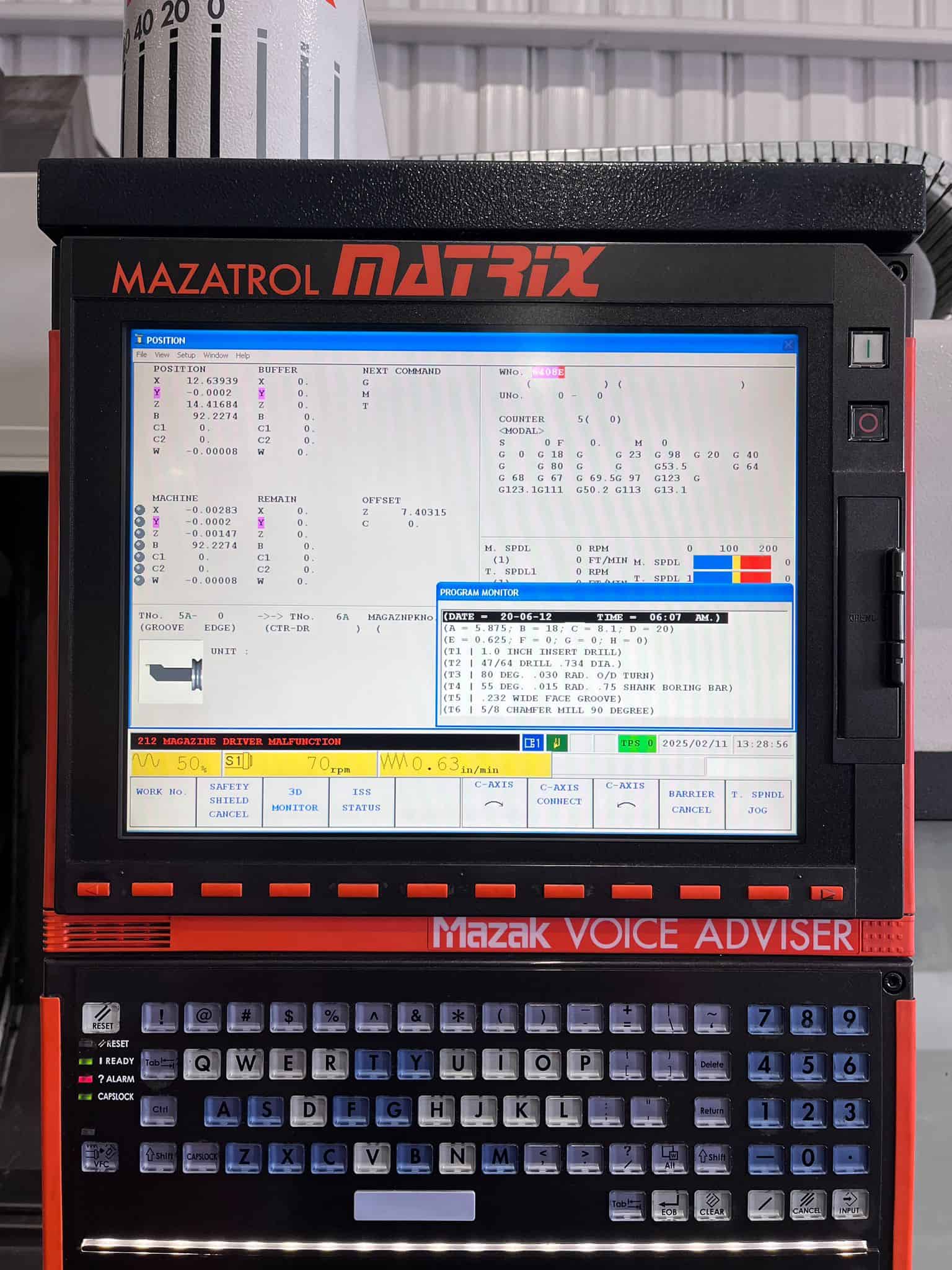

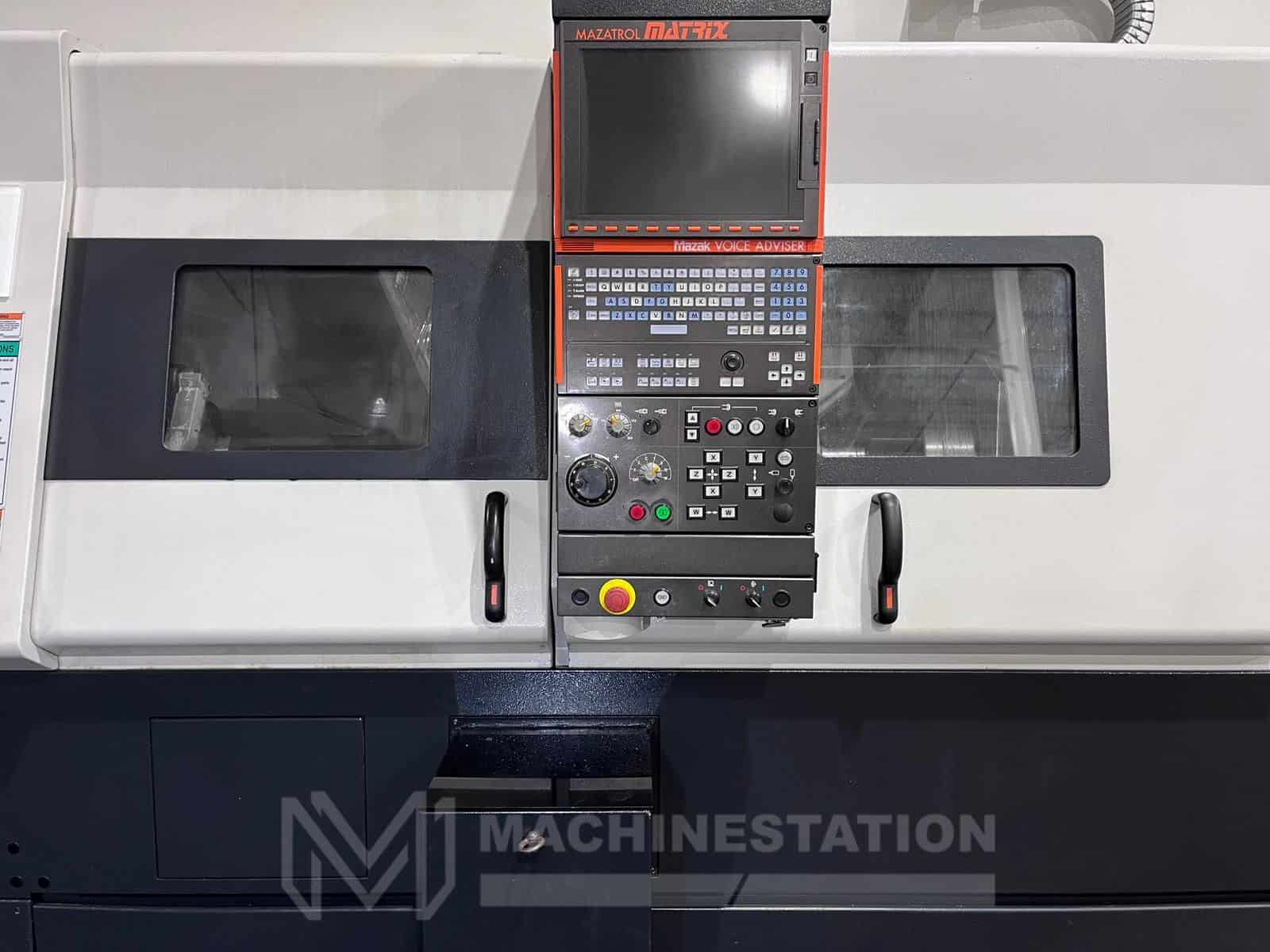

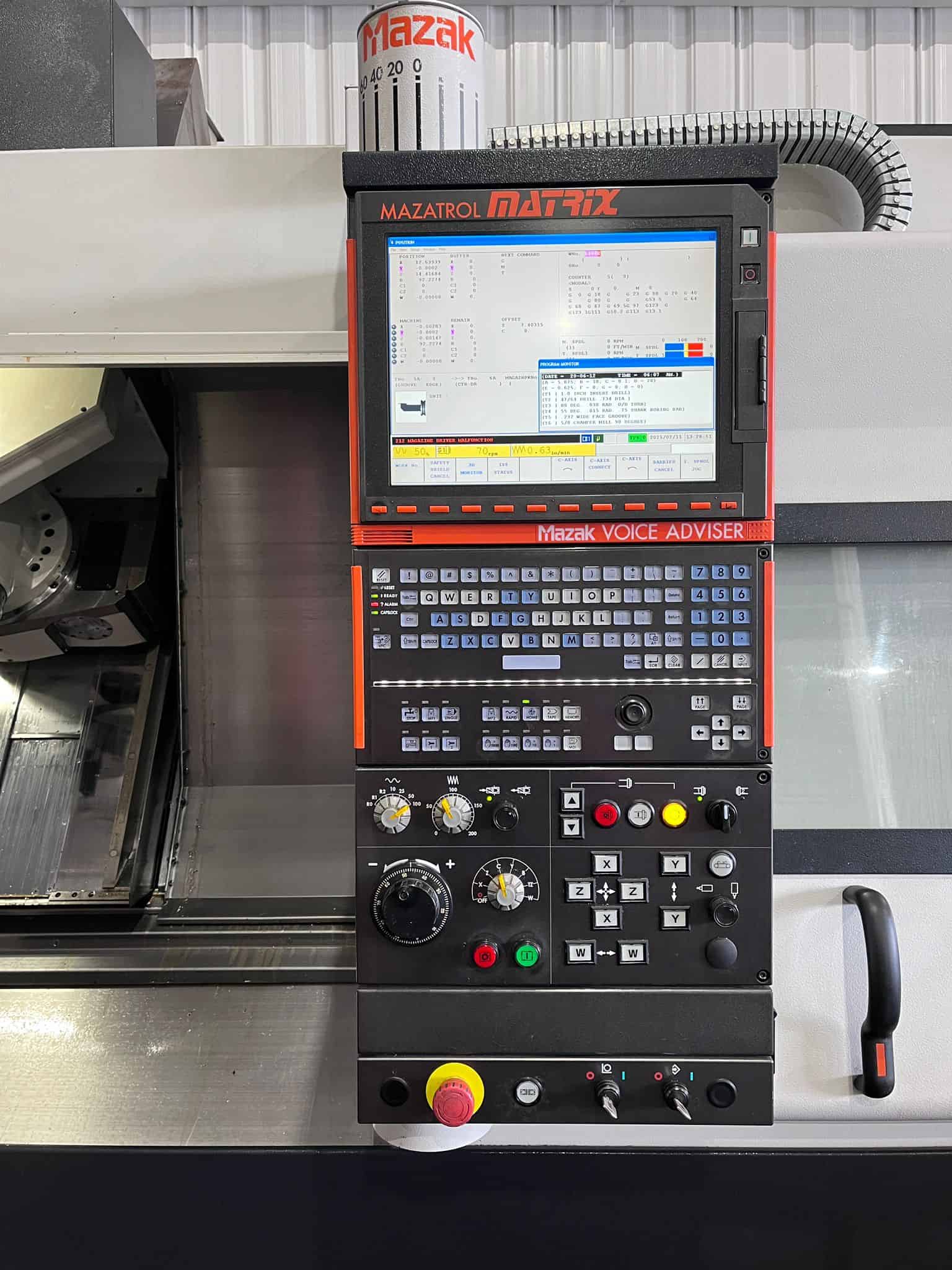

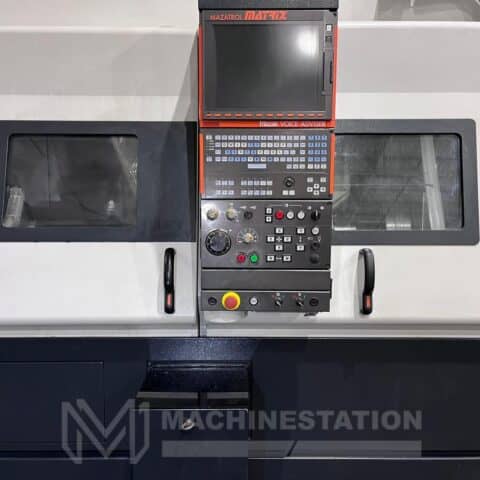

| Mazatrol Matrix CNC Control |

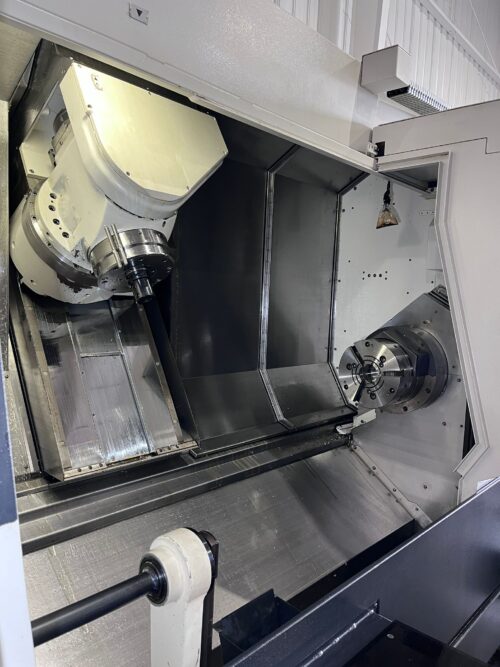

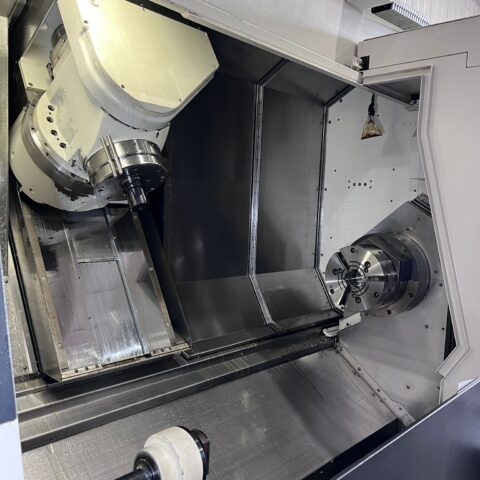

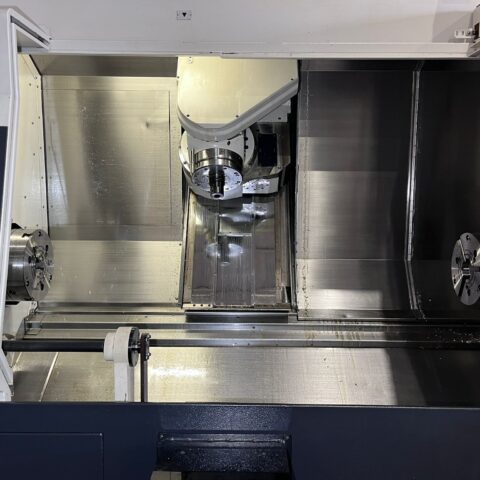

| 12,000 RPM Pendulum Milling Head |
| 40 Station Tool Magazine |

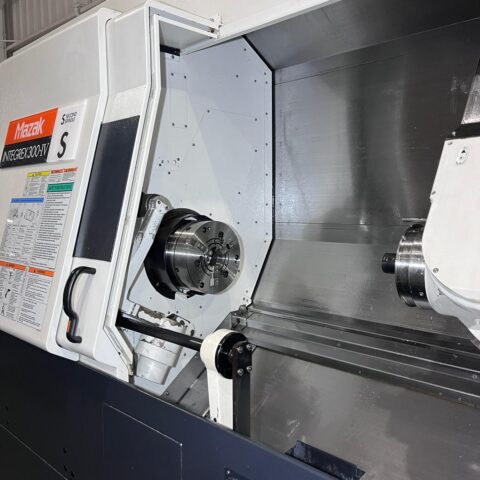

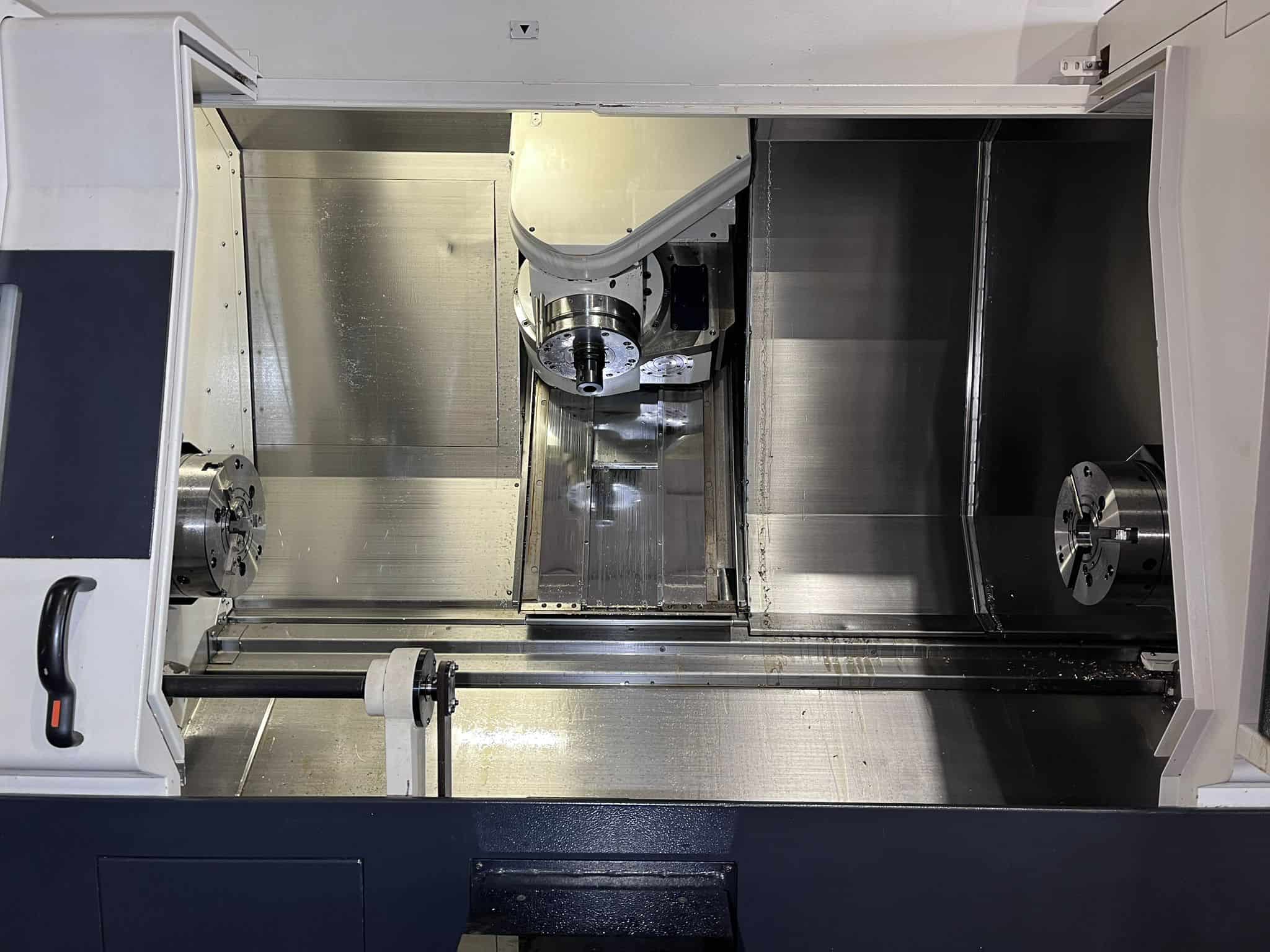

| Sub Spindle |
| Full C-Axis on Both Spindles |
| Y Axis Capability |

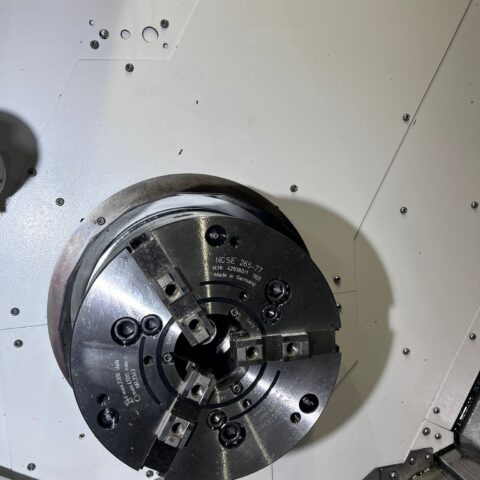

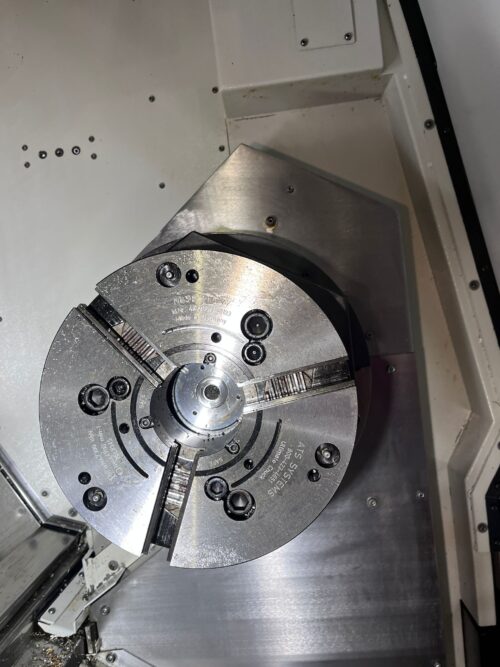

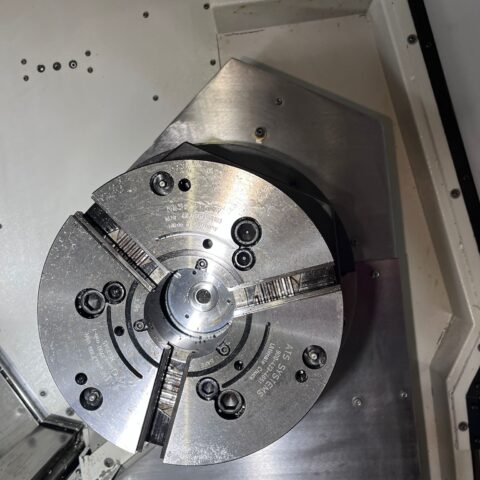

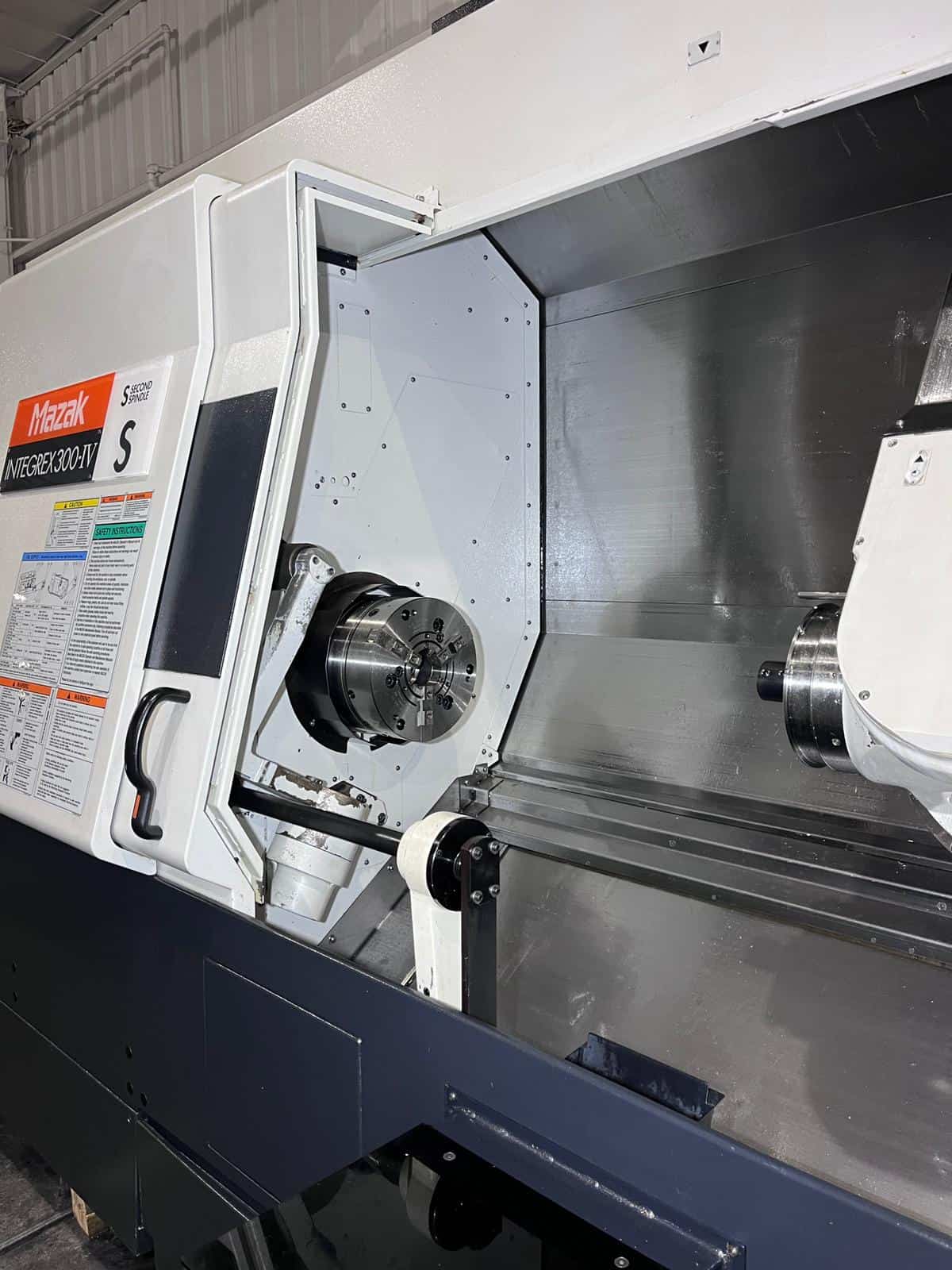

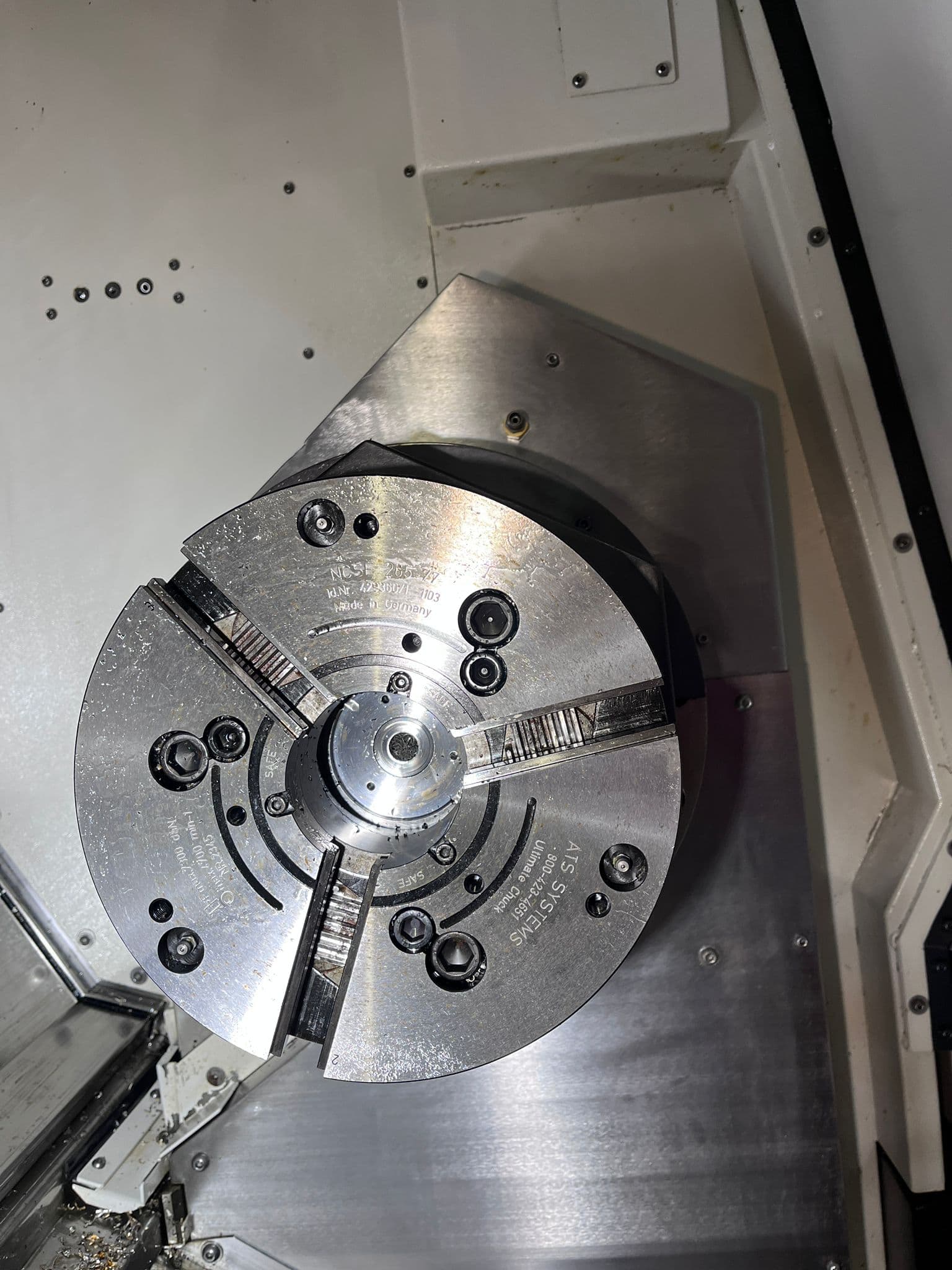

| 10″ ATS Systems Ultimate Chuck on Main Spindle (Upgraded $25,000 Approx. value Included) |

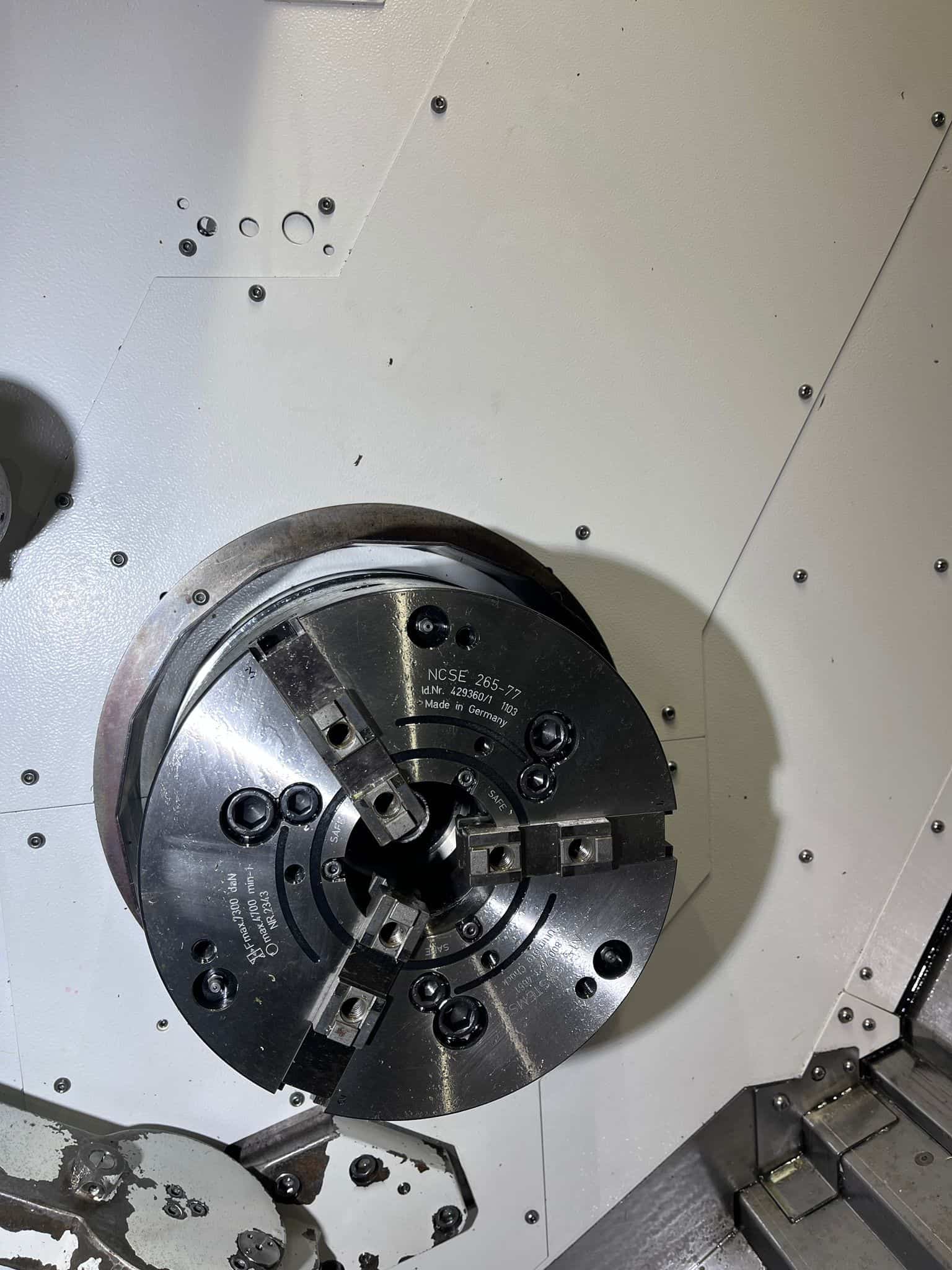

| 8″ ATS Systems Ultimate Chuck on Sub Spindle (Upgraded $20,000 Approx. value Included) |
| USB LAN Options |
| EIA/ISO Programming |
| 3DCoordinate Conversion |
| Rigid Tapping |

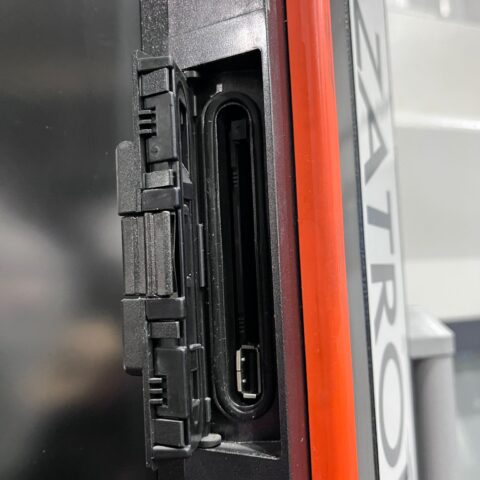

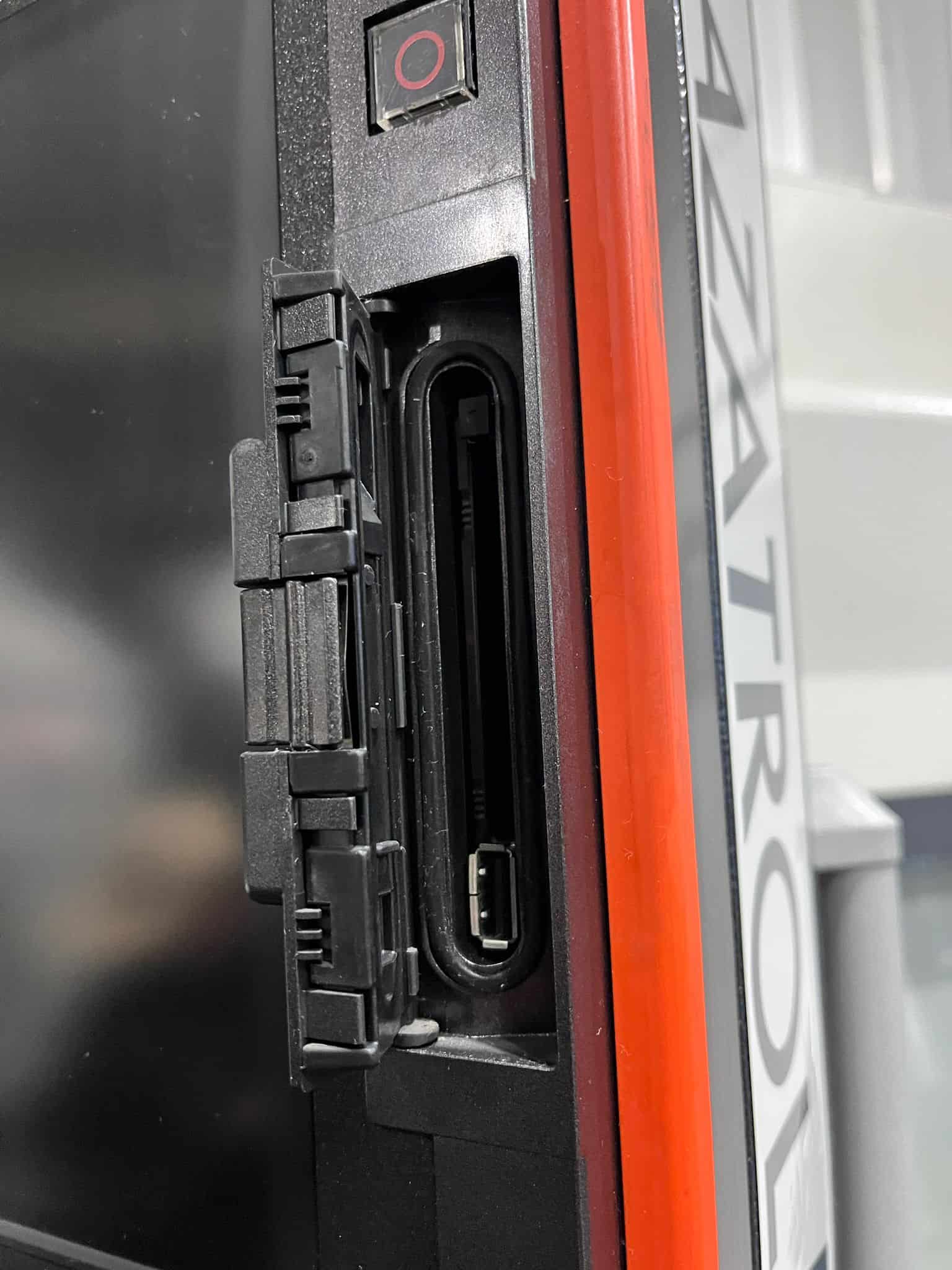

| PCMCIA Card Slot & USB Port |
| Tool Presetter |
| High Pressure Coolant System |
| Foot Operated Control for Chuck |

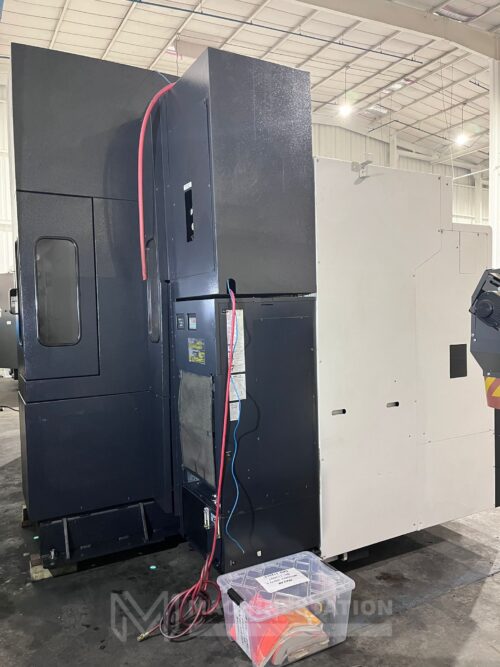

| Chiller Unit |

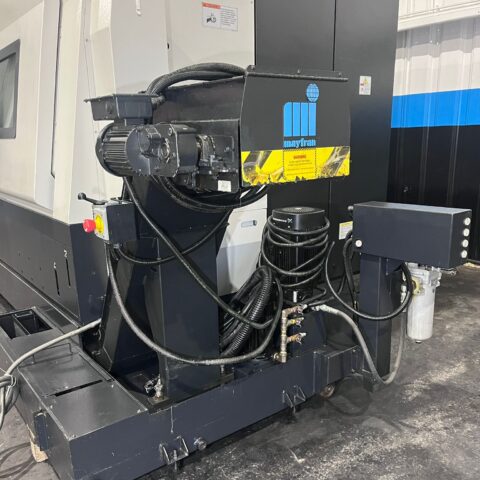

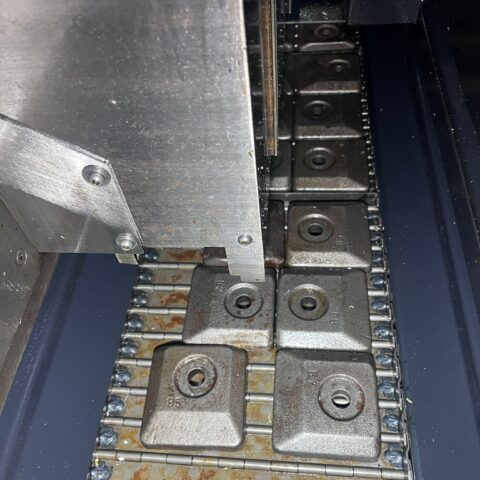

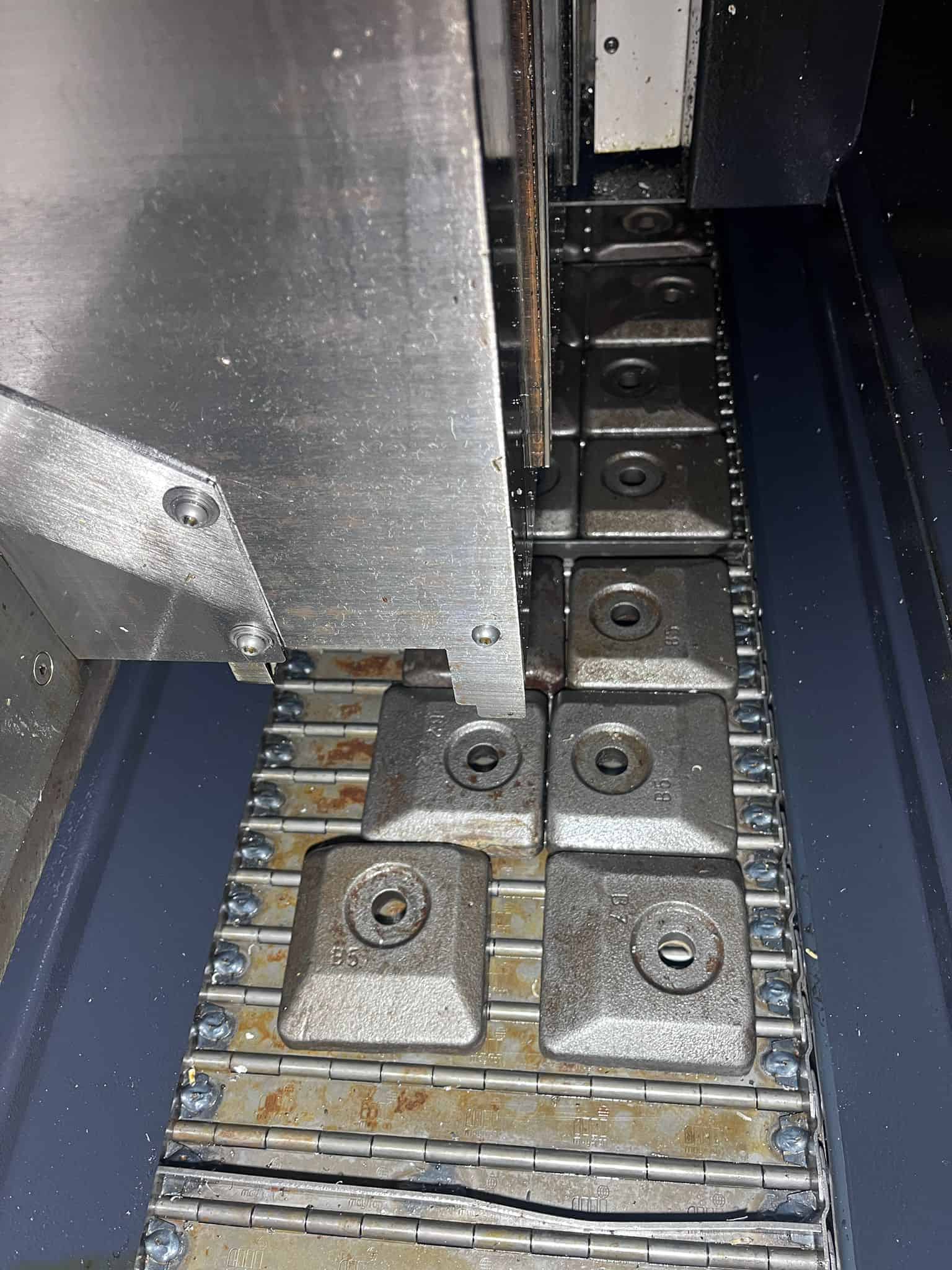

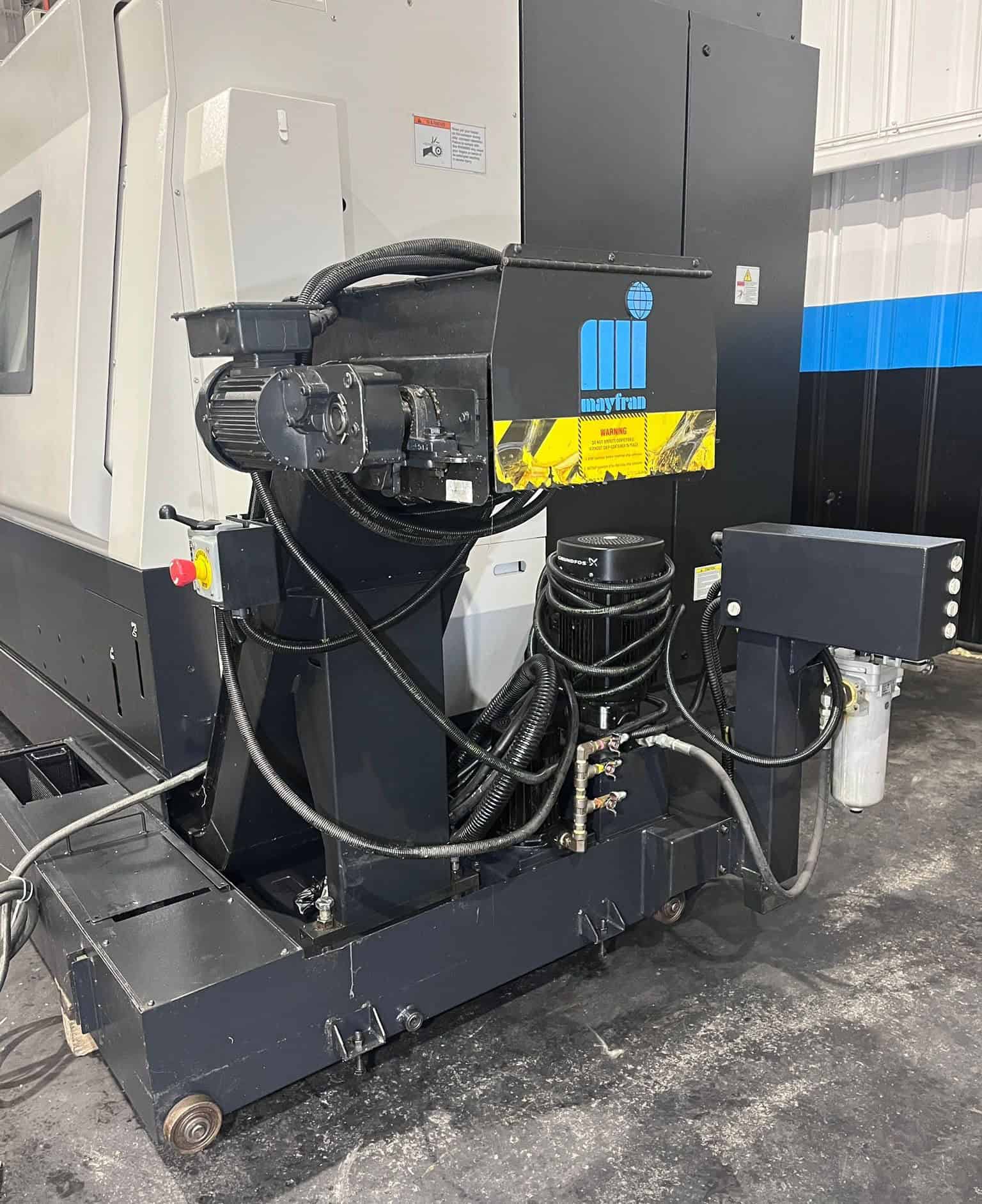

| Chip Conveyor |
| Machine Comes with (6) Tool Holders |

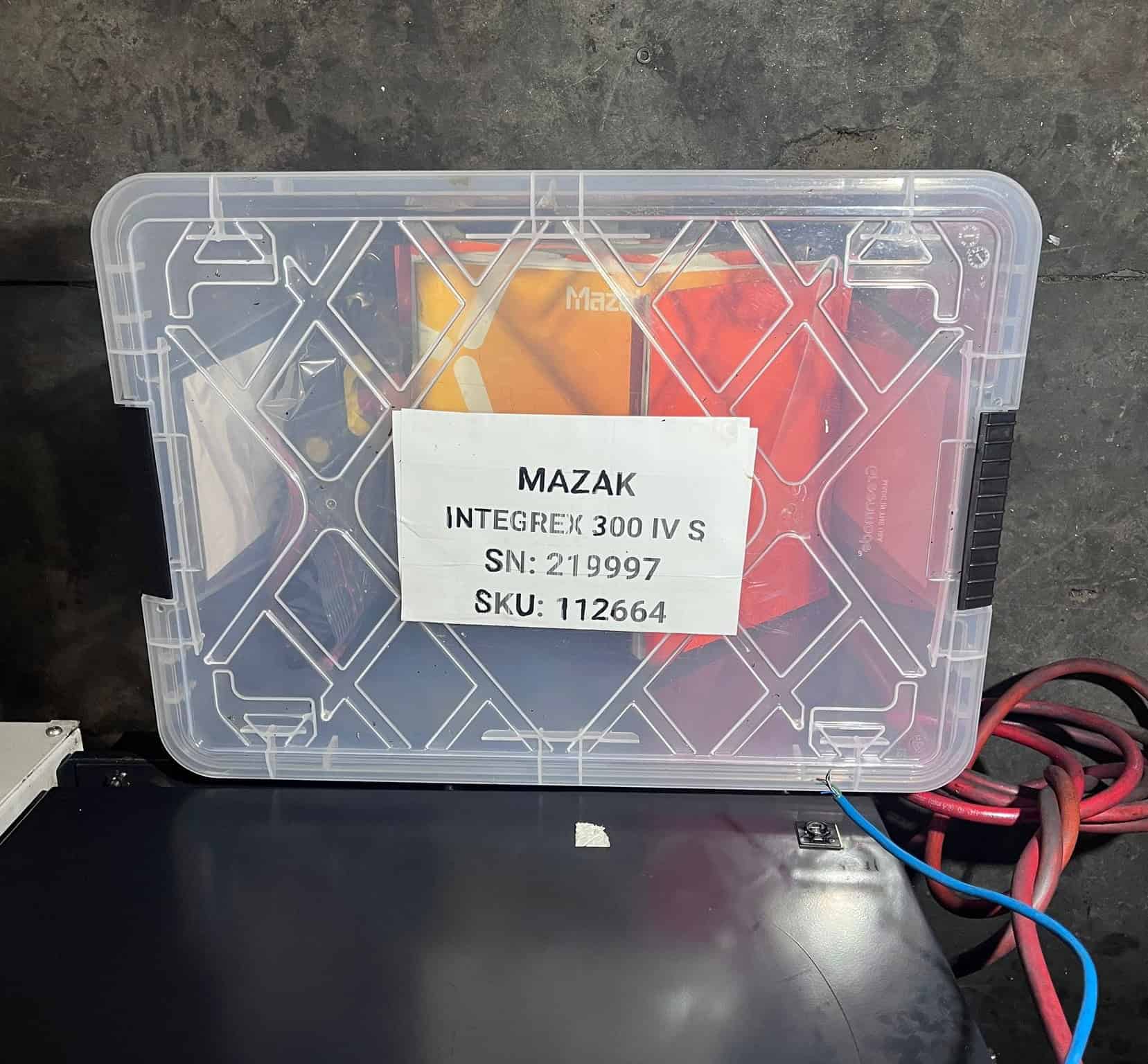

| Books & Manuals |
| Levelling Pads |
| Capacity: |
|---|
| Max Turning Diameter: 30″ |
| Max Turning Length: 60″ |
| Max Bar Capacity: 3.1″ |
| Swing Over Bed: 30.0″ |
| Distance Between Centers: 60″ |
| Travel: |
|---|
| X Axis Travel: 24.80″ |
| Y Axis Travel: 9.06″ (+/-4.53″) |
| Z Axis Travel: 62.40″ |
| W Axis Travel (Sub Spindle): 60.24″ |
| B Axis Travel: 225 Degree |
| C Axis: 360 Degree (0.001) |
| X Rapid Traverse Rate: 1496 Inch Per Minute |
| Y Rapid Traverse Rate: 1024 Inch Per Minute |
| Z Rapid Traverse Rate: 1496 Inch Per Minute |
| Spindle: |
|---|
| Main Spindle Nose: A2-8 |
| Sub Spindle Nose: A2-6 |
| Main Spindle Bore: 3.46″ |
| Sub Spindle Bore: 3.46″ |
| Main Spindle Speed: 4000 RPM |
| Sub Spindle Speed: 4000 RPM |
| Main Spindle Motor: 40 HP |
| Sub Spindle Motor: 30 HP |
| Milling Head: |
|---|
| Single Station Pendulum Head with 40 ATC |
| Tool Type: KM-63, 40 Taper |
| Spindle Speed: 15-12,000 RPM |
| Spindle Motor: 25 HP |
| Spindle 90° Index Time: 0.5 sec |
| General: |
|---|

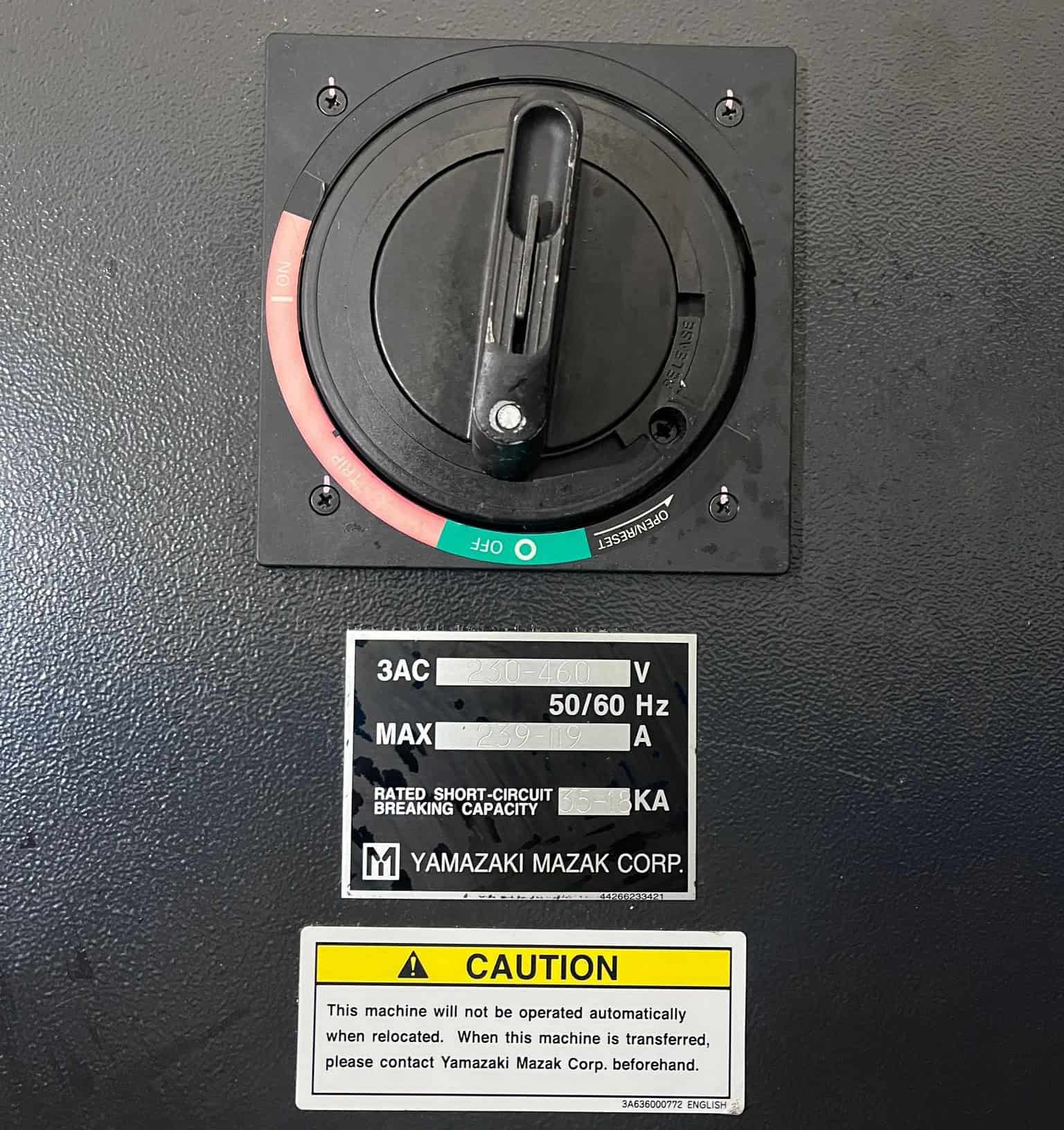

| Power Source: AC 400 V, Three Phase, 60 Hz |
| Power Requirement: 95.2 Kva |
| Overall Dimensions: 193.4″ x 93.0″ x 110.2″ High |
| Weight: 28,380 lbs Approx. |
