Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
| Make: | Mazak |

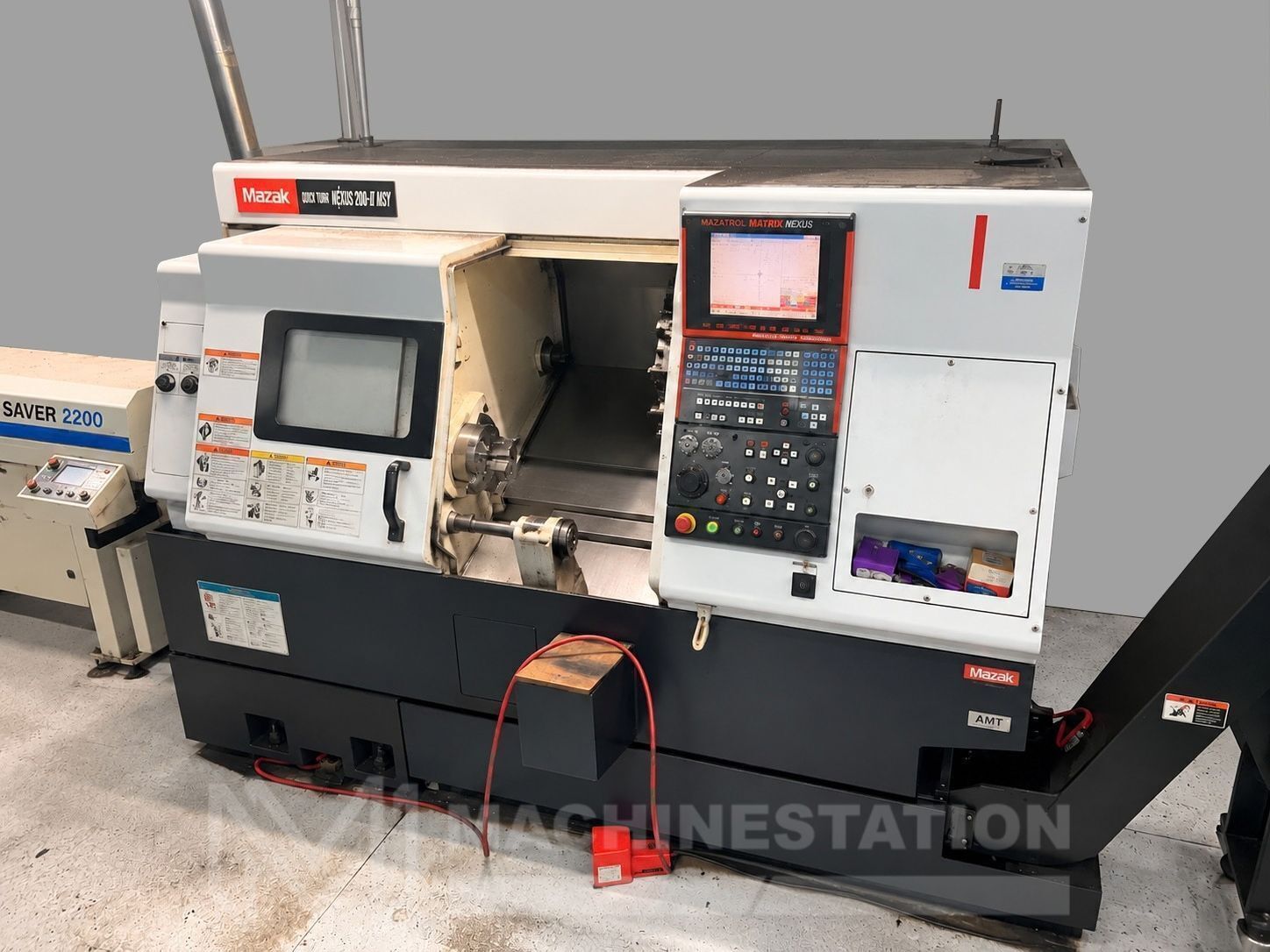

| Model: | Quick Turn Nexus 200-II MSY |
| Year: | 2007 |
| Equipped With: |
|---|

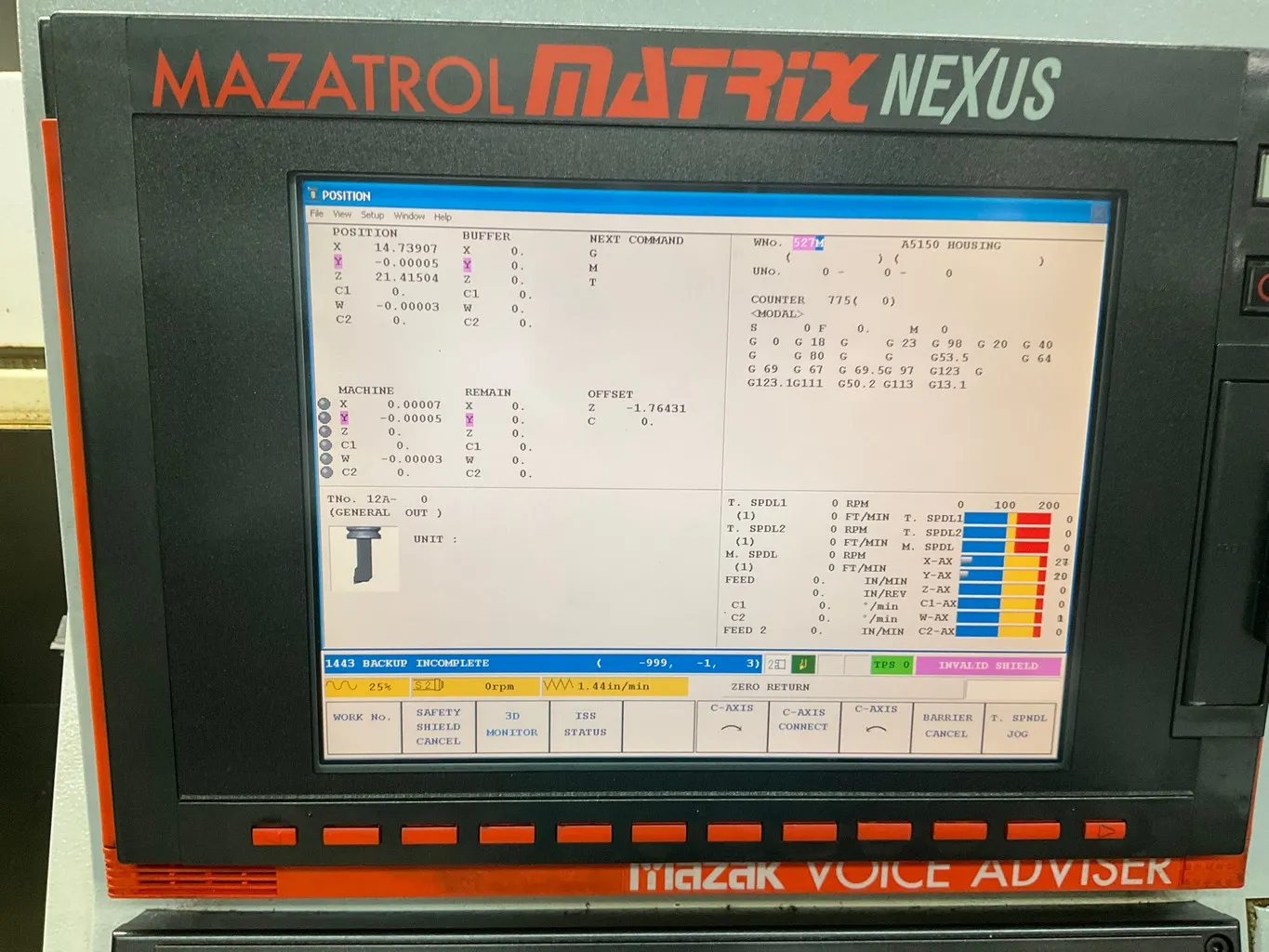

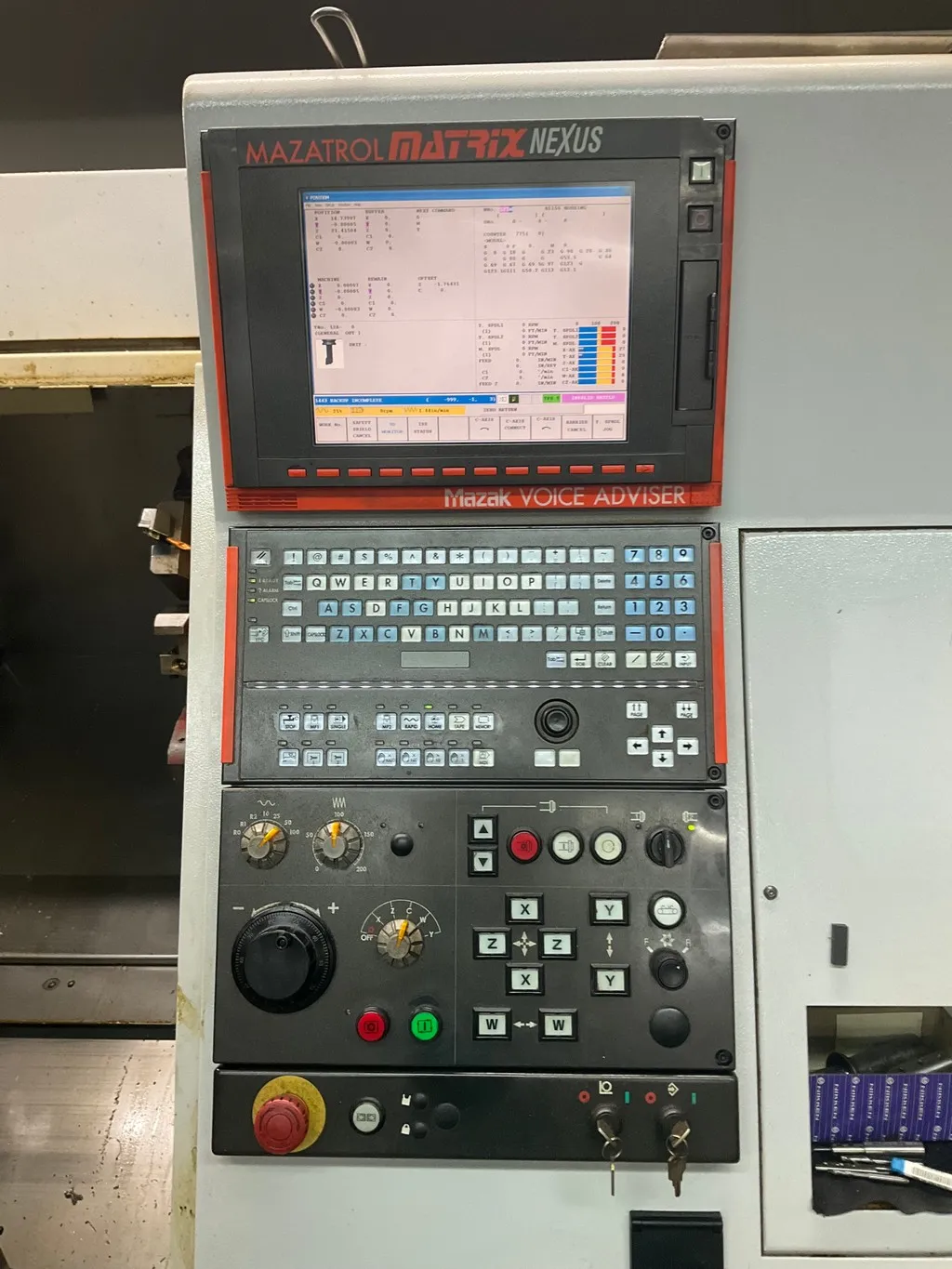

| Mazatrol Matrix Nexus CNC Control |

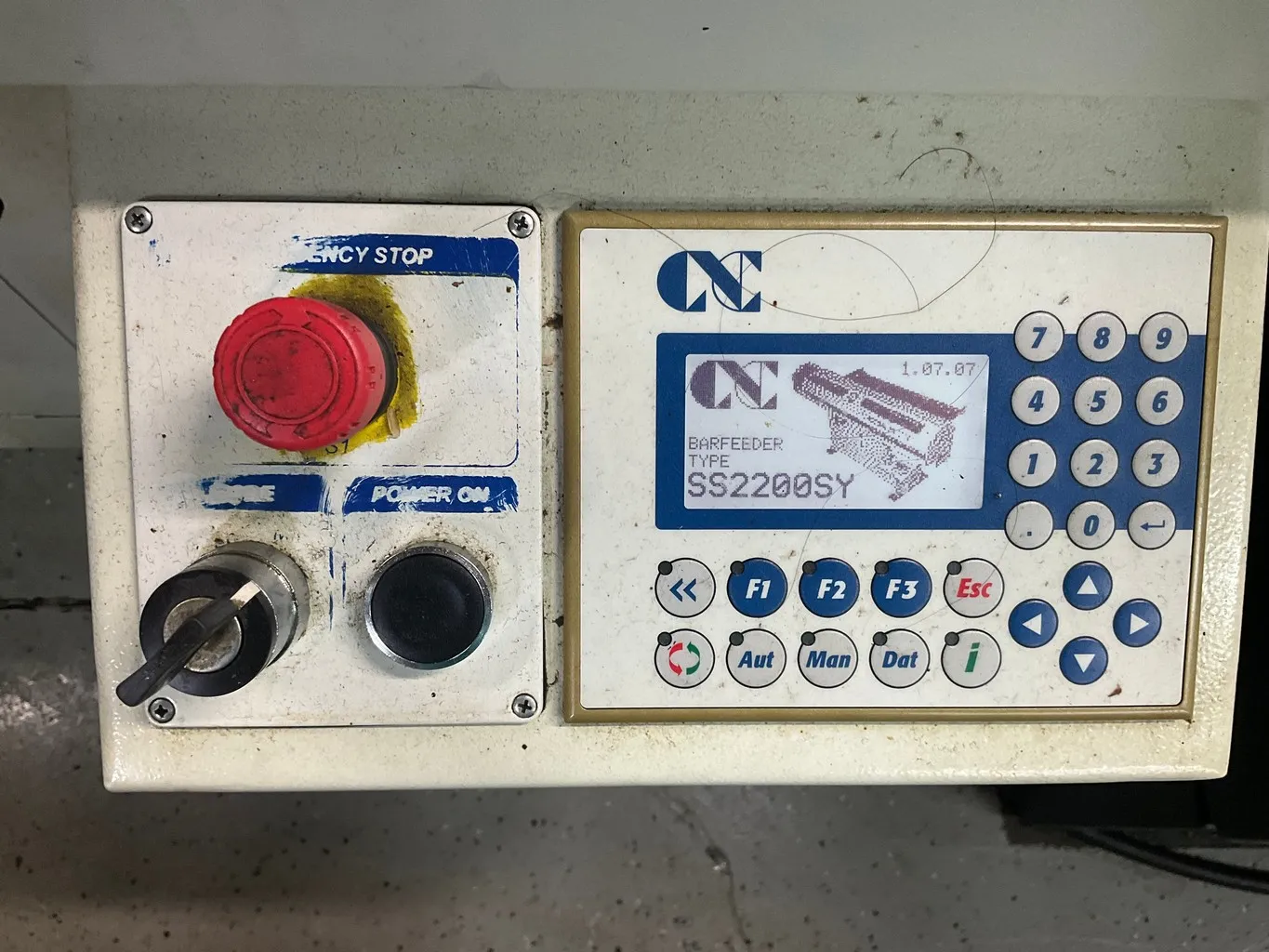

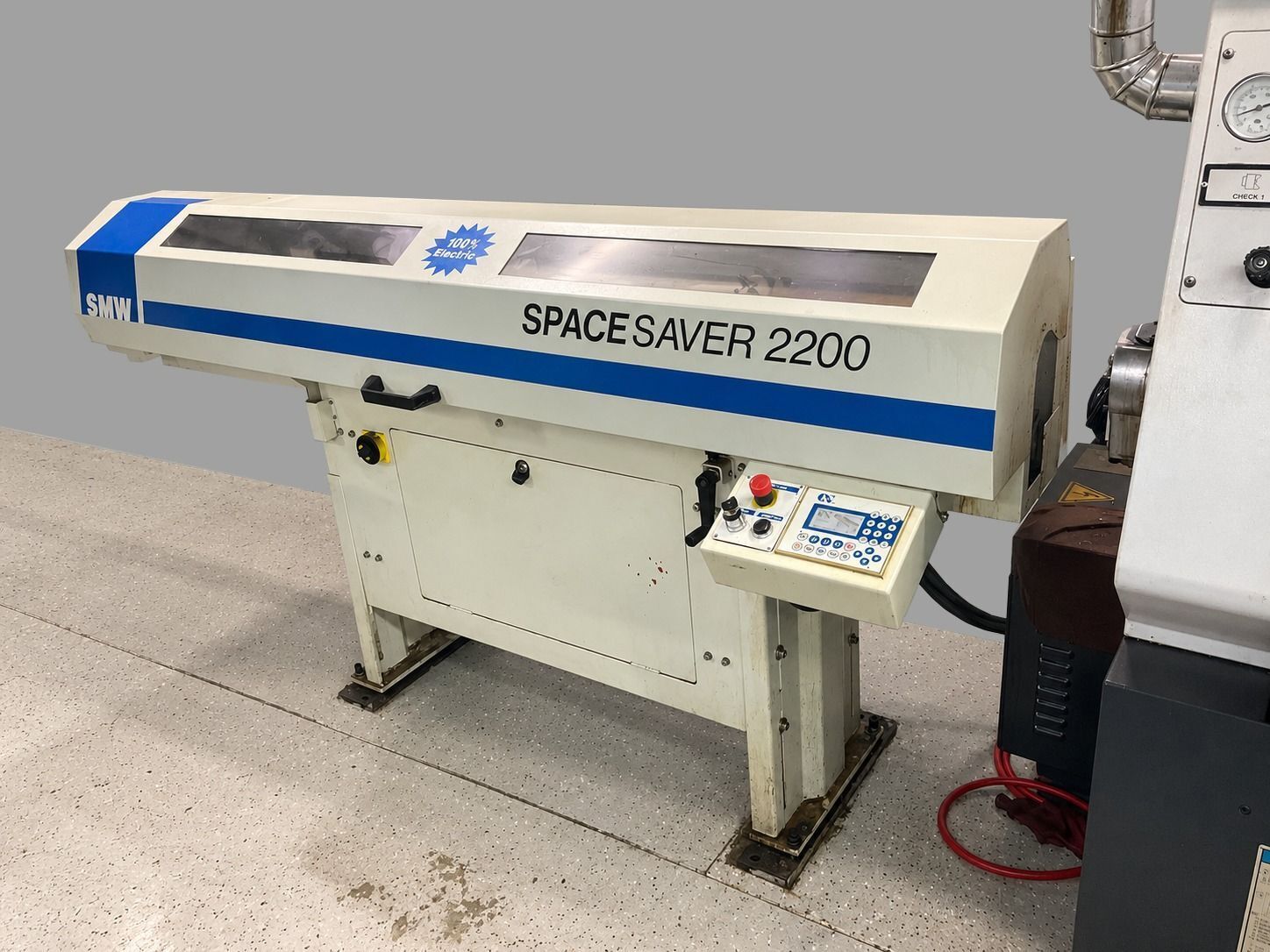

| SMW Spacesaver 2200 Bar Feeder |

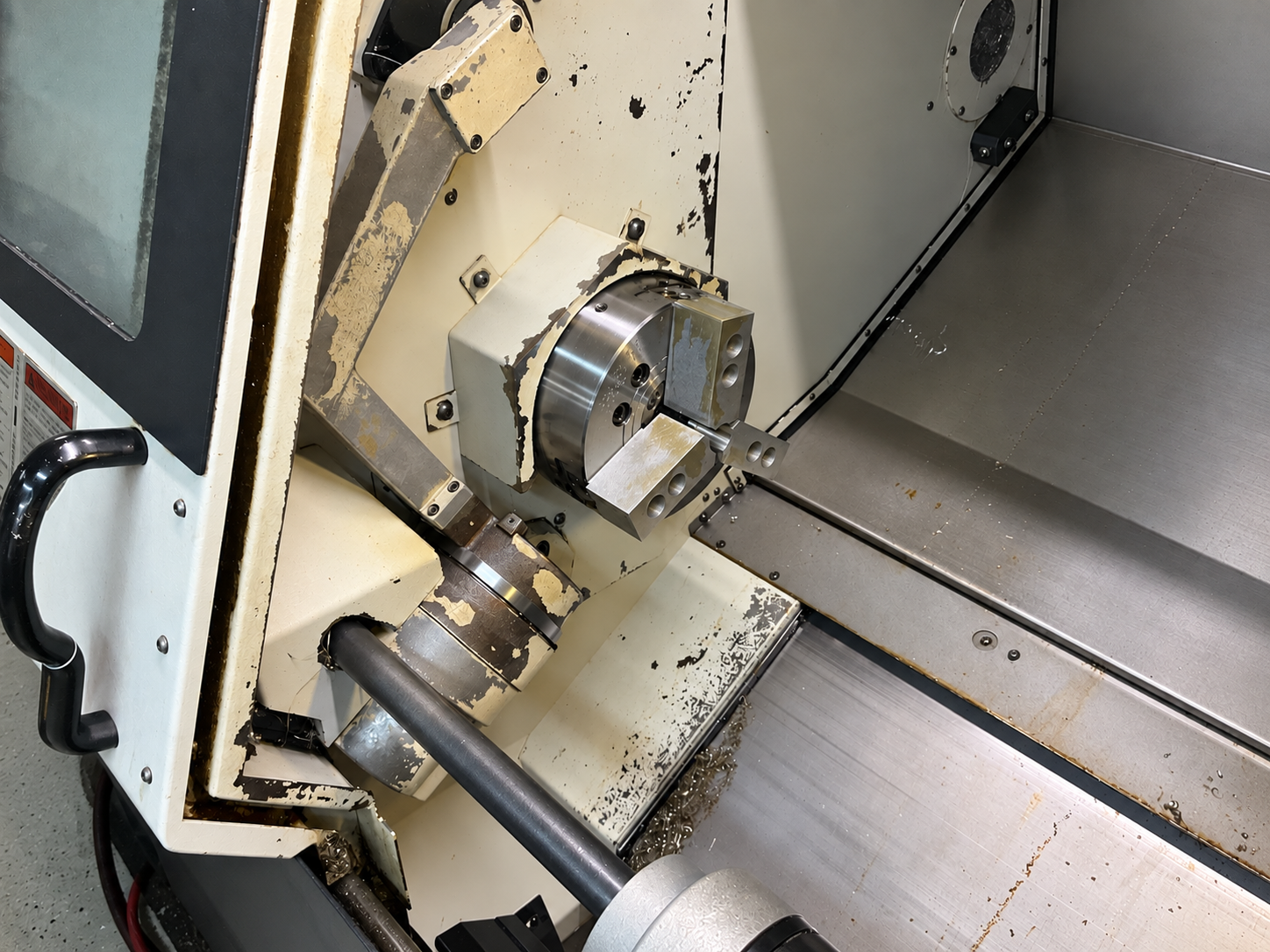

| 8″ 3-Jaw Kitagawa B-208 Chuck on Main Spindle |

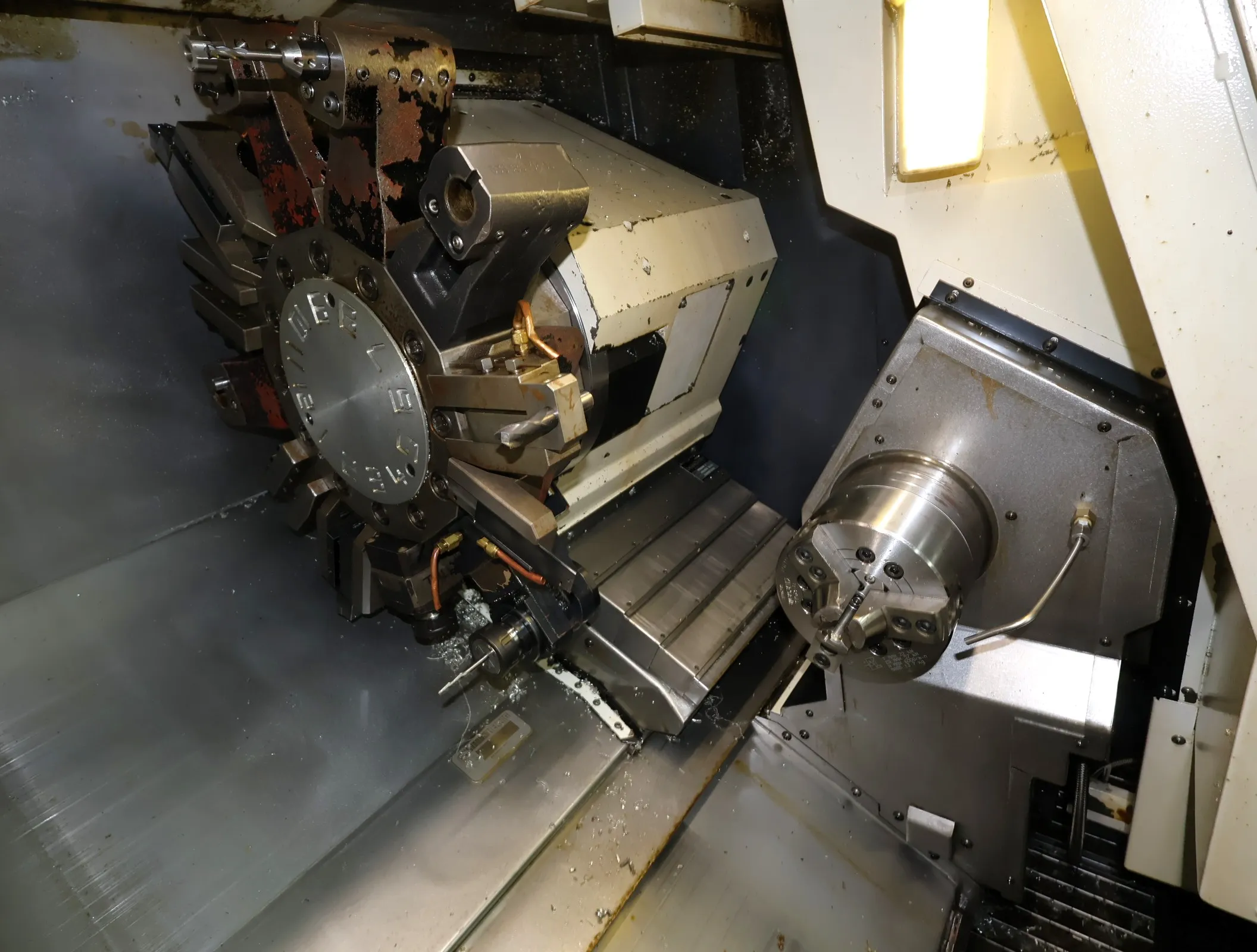

| 6″ 3-Jaw Kitagawa Chuck on Sub Spindle |
| Servo Controlled C-Axis on Both Spindles |
| 12-Station Automatic Turret |
| Live Tooling |
| Y-Axis on Turret |
| Tool Presetter |
| Parts Catcher |

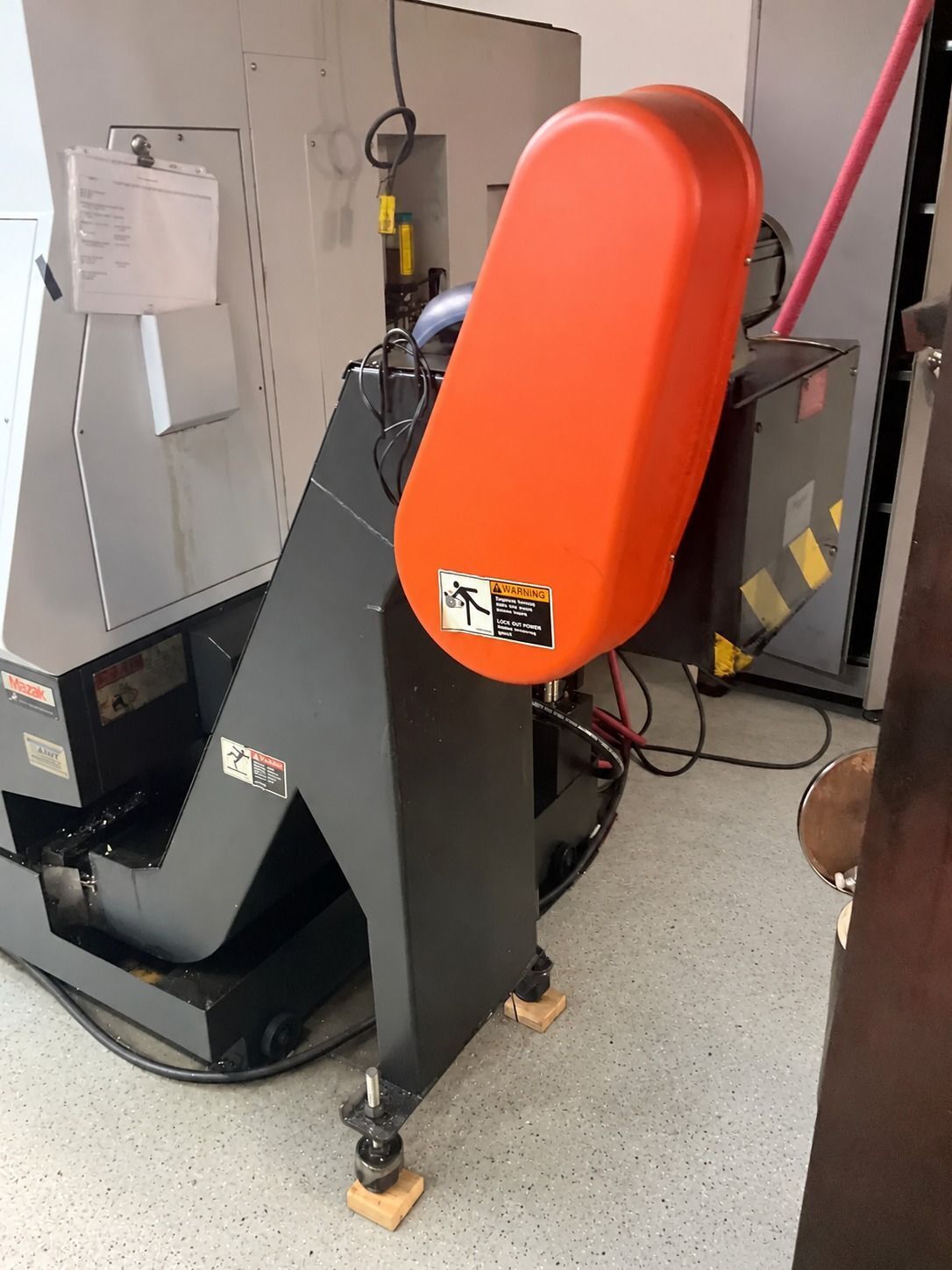

| Jorgensen Chip Conveyor |
| Coolant Tank |
| Automatic Lubrication Unit |
| Foot Switch |
| Tool Holders Are Not Included With The Machine |
| Capacity: |
|---|
| Maximum Swing: 26.57″ |
| Swing Over Carriage: 13.78″ |
| Maximum Machining Diameter: 14.96″ |
| Maximum Machining Length: 21.18″ |
| Distance Between Spindle Faces: 22.64″ |
| Maximum Bar Capacity: 2.56″ |
| Travels: |
|---|
| X-Axis Travel: 9.06″ |
| Y-Axis Travel: 3.94″ |
| Z-Axis Travel: 22.64″ |
| W-Axis Stroke (Sub Spindle): 23.03″ |
| Feedrate: |
|---|
| Rapid Traverse X-Axis: 1,181 IPM |
| Rapid Traverse Y-Axis: 827 IPM |
| Rapid Traverse Z-Axis: 1,299 IPM |
| Rapid Traverse C-Axis: 555 RPM |
| Main Spindle: |
|---|
| Chuck Size: 8″ |
| Spindle Nose: A2-6 |
| Spindle Bore: 3.0″ |
| Maximum Spindle Speed: 5,000 RPM |
| Spindle Motor: 35 HP / 30 HP (30-Minute / Continuous) |
| Second Spindle: |
|---|
| Chuck Size: 6″ |
| Maximum Spindle Speed: 6,000 RPM |
| Spindle Motor: 15 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turning Tool Shank: 1″ |
| Boring Bar Shank Diameter: 1.57″ |
| Turret Indexing Time: 0.2 Sec. |
| Maximum Rotary Tool Speed: 4,500 RPM |
| Rotary Tool Spindle Motor: 7.5 HP |
| General: |
|---|
| Power Source: 41.6 kVA / 50/60 Hz / 3-Phase |
| Overall Dimensions: 112.8″ × 70.1″ × 72.44″ High |
| Machine Weight: 12,500 lbs |
