*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

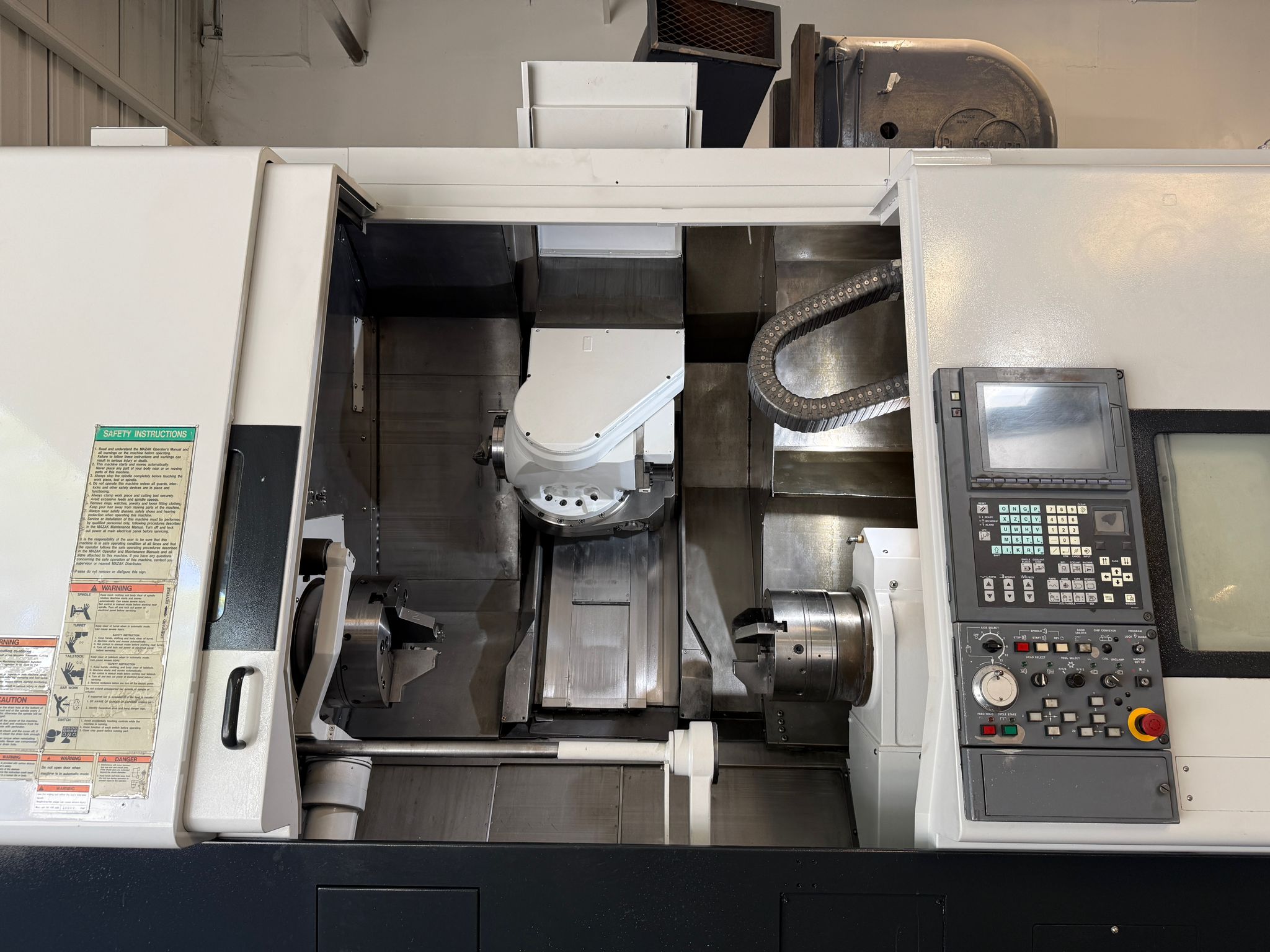

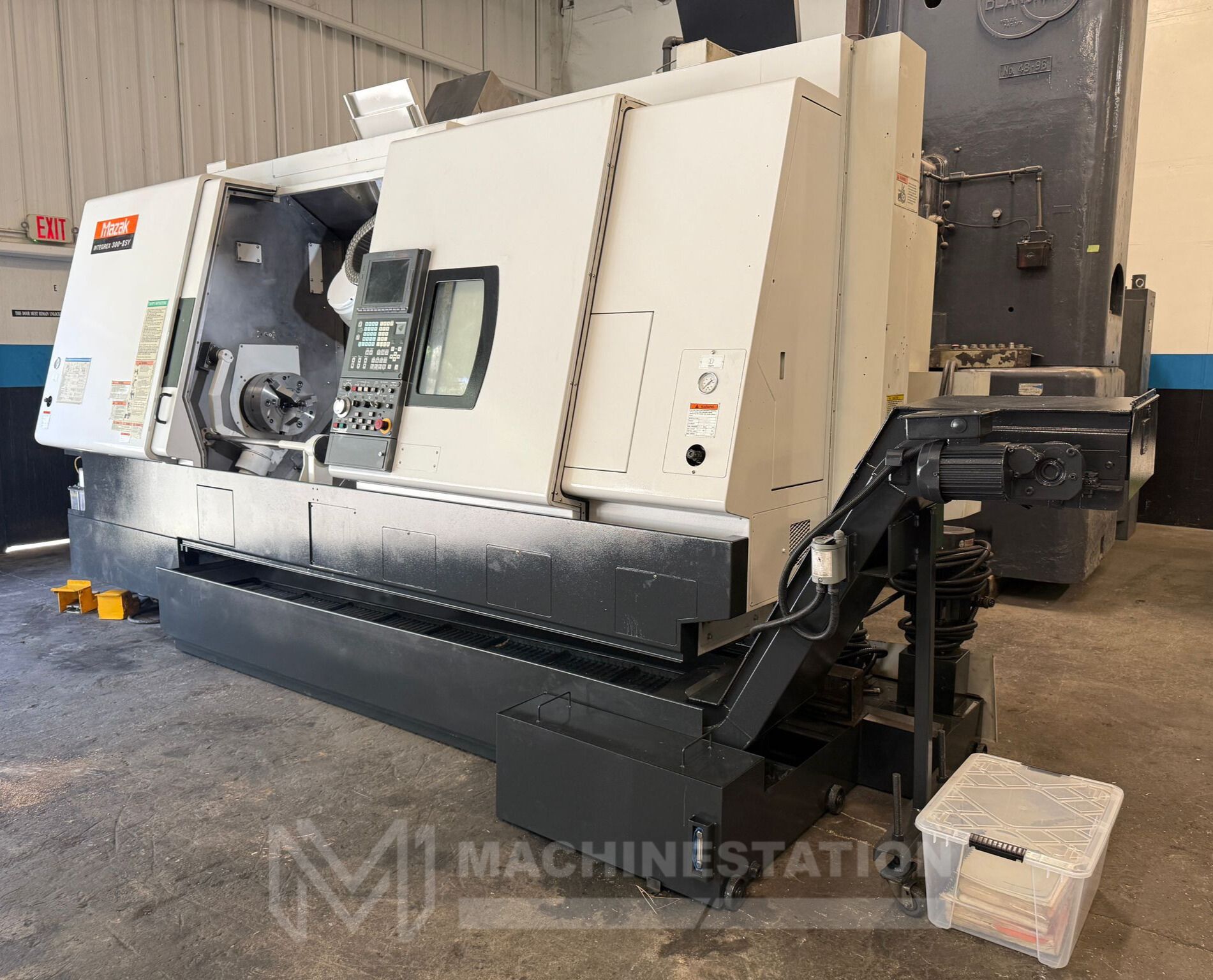

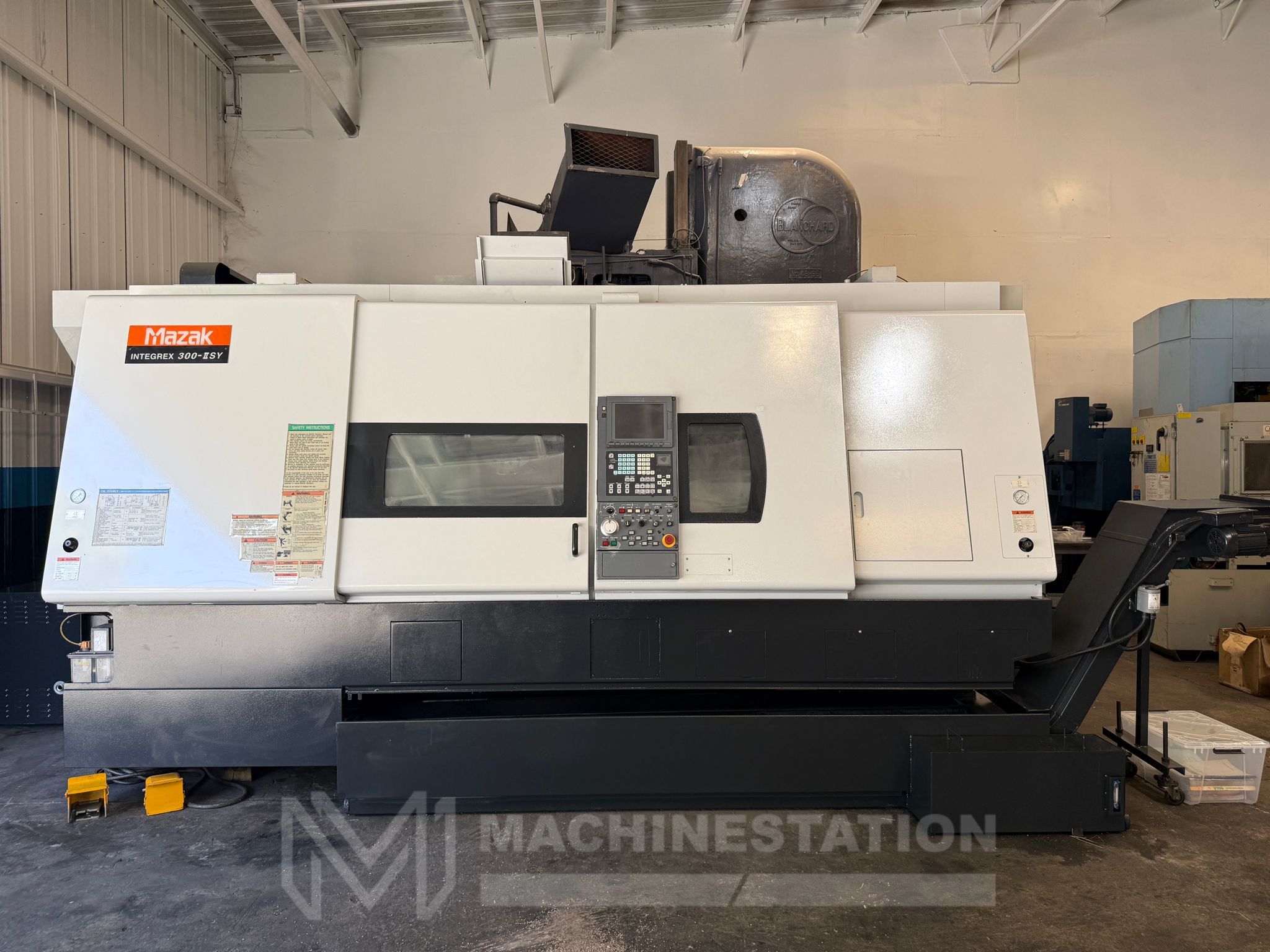

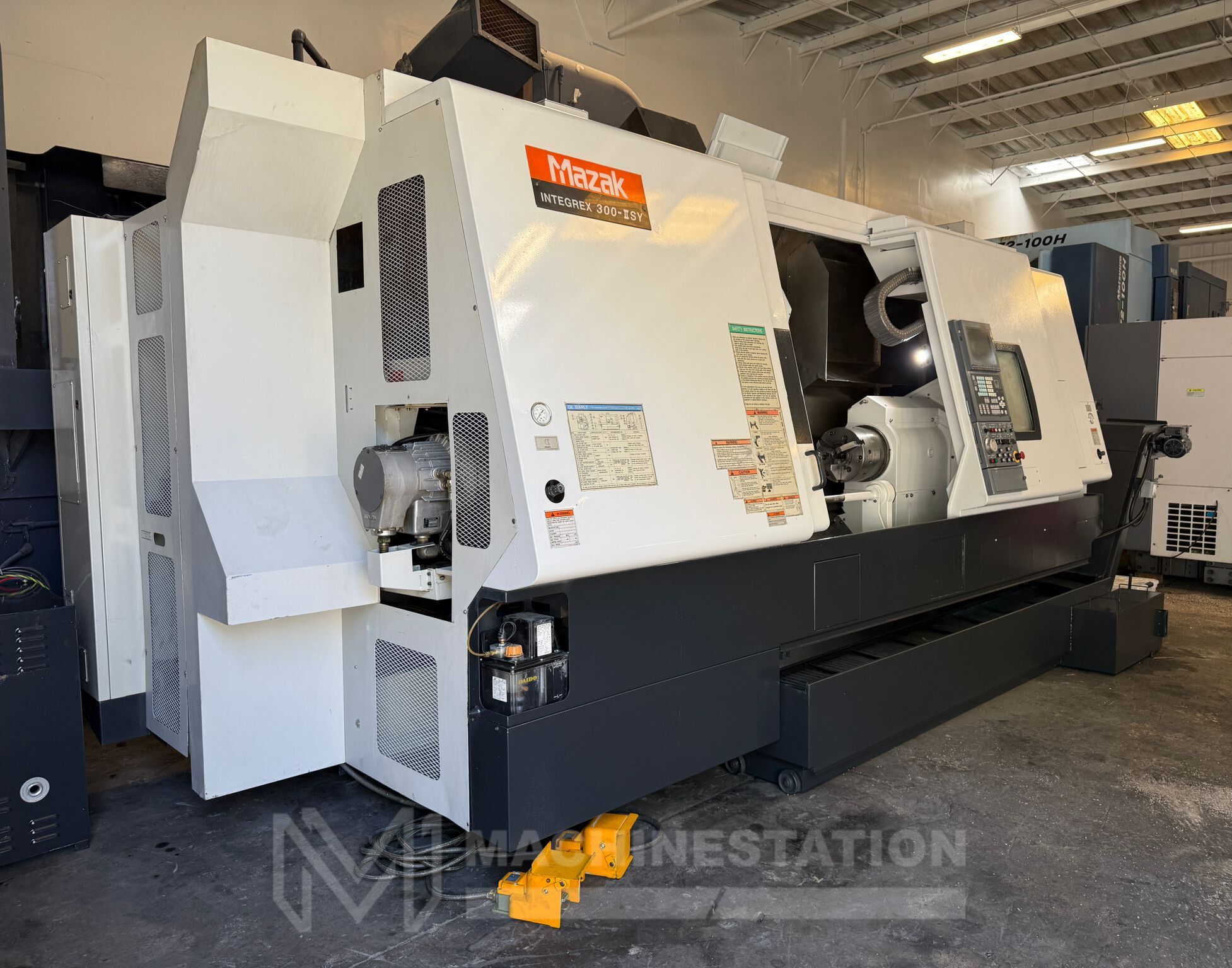

| Make: | Mazak |

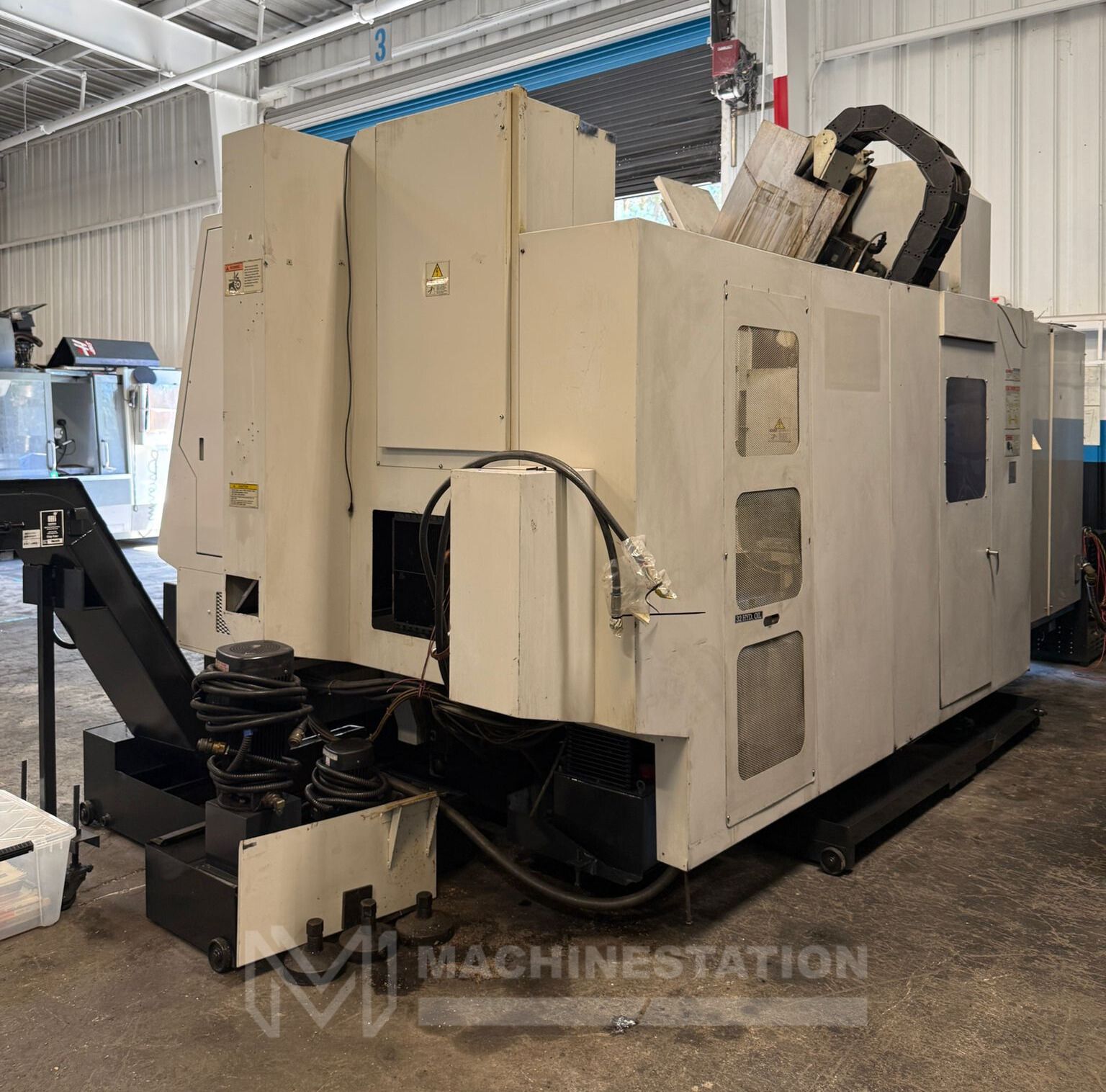

| Model: | Integrex 300II-SY |
| Year: | 2002 |
| Condition: | Used – Good |
| Equipped With: |
|---|

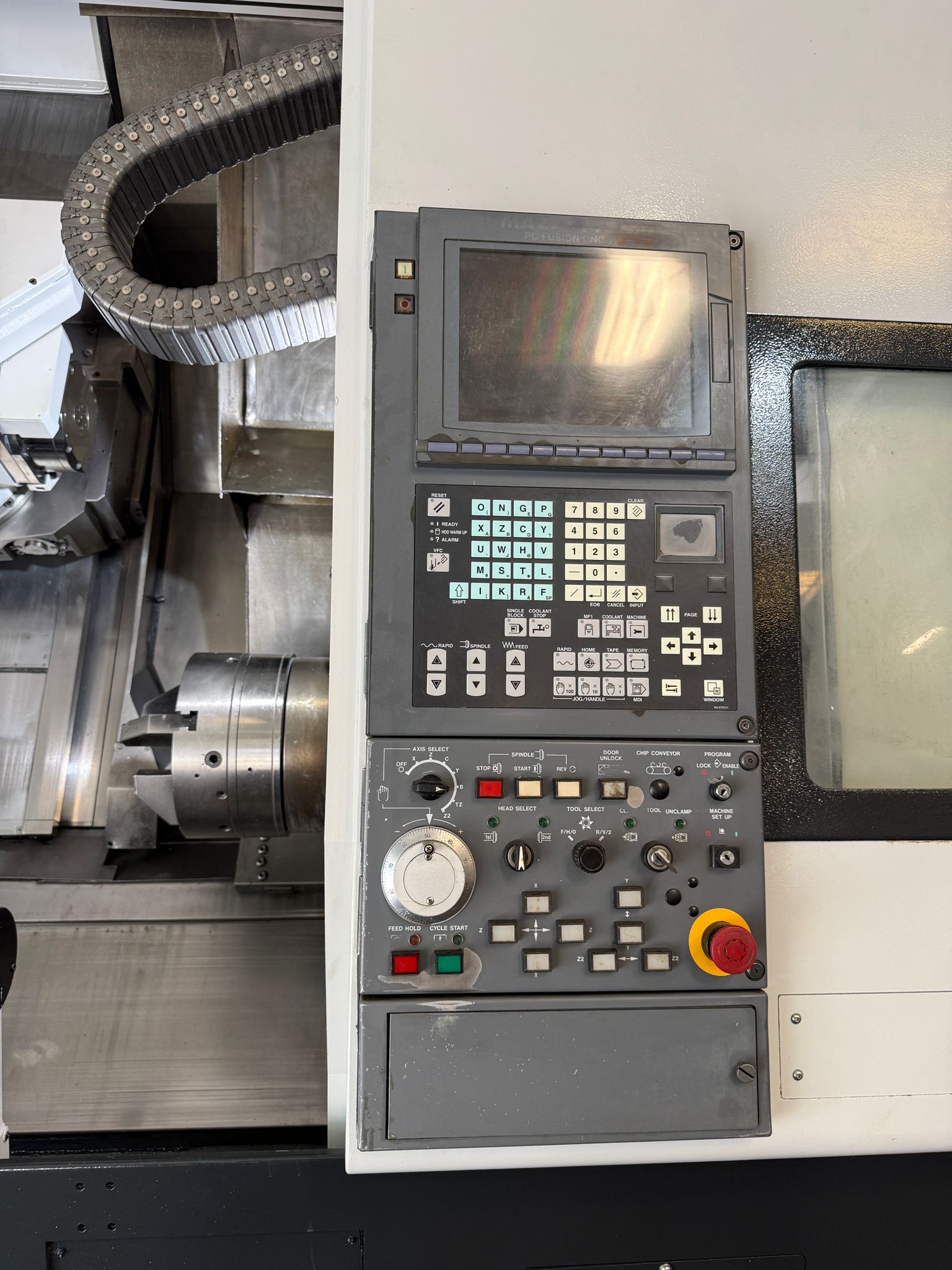

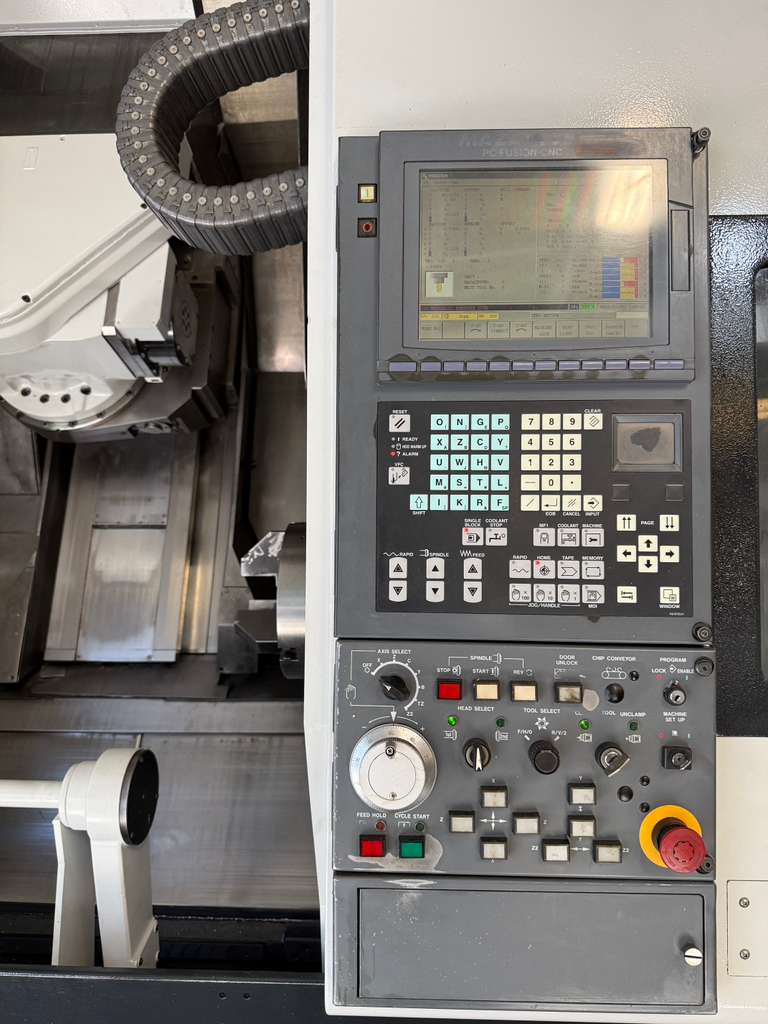

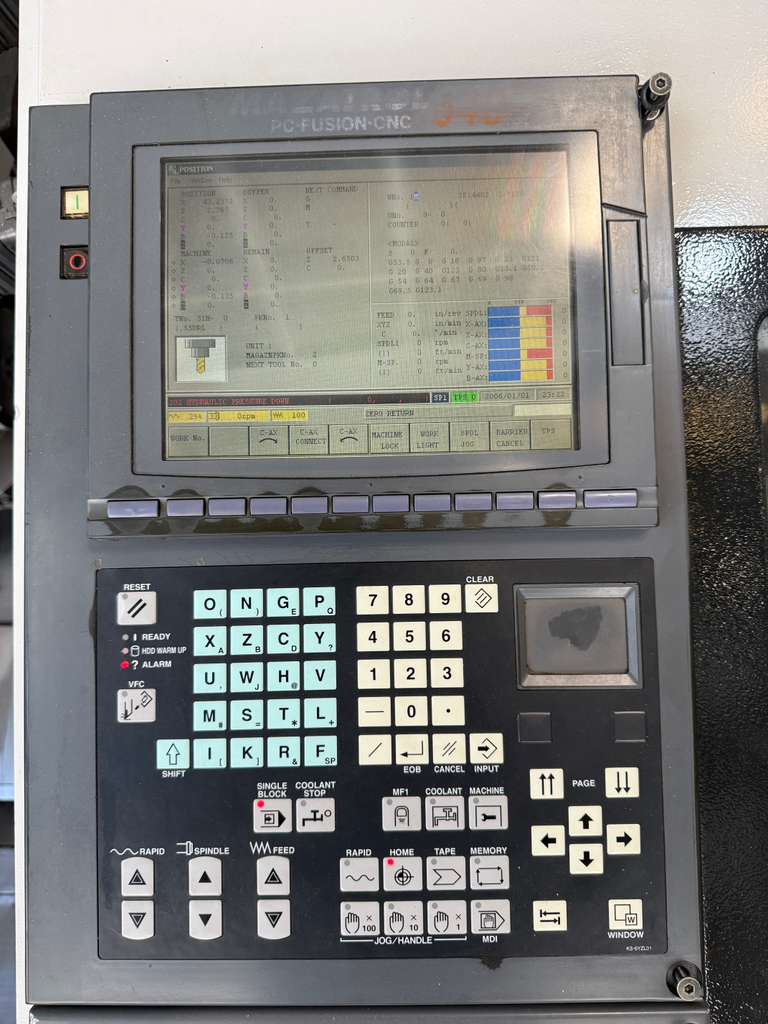

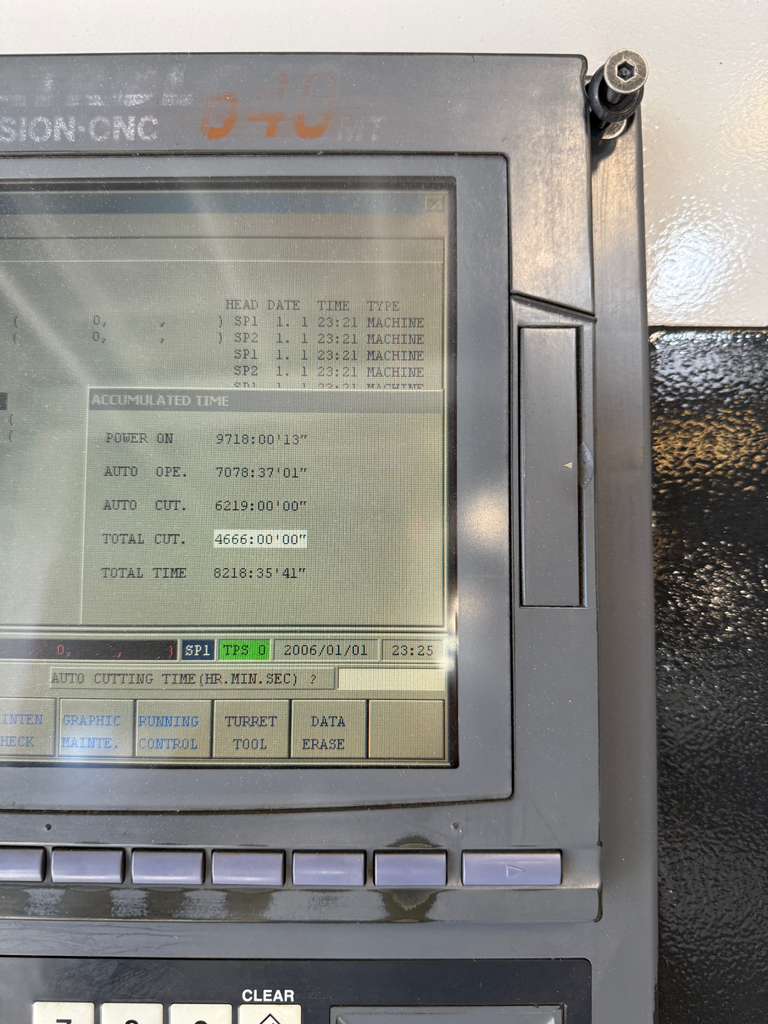

| Mazatrol Fusion 640MT CNC Control |
| 10,000 RPM Pendulum Milling Head |
| 40 Station Tool Magazine |

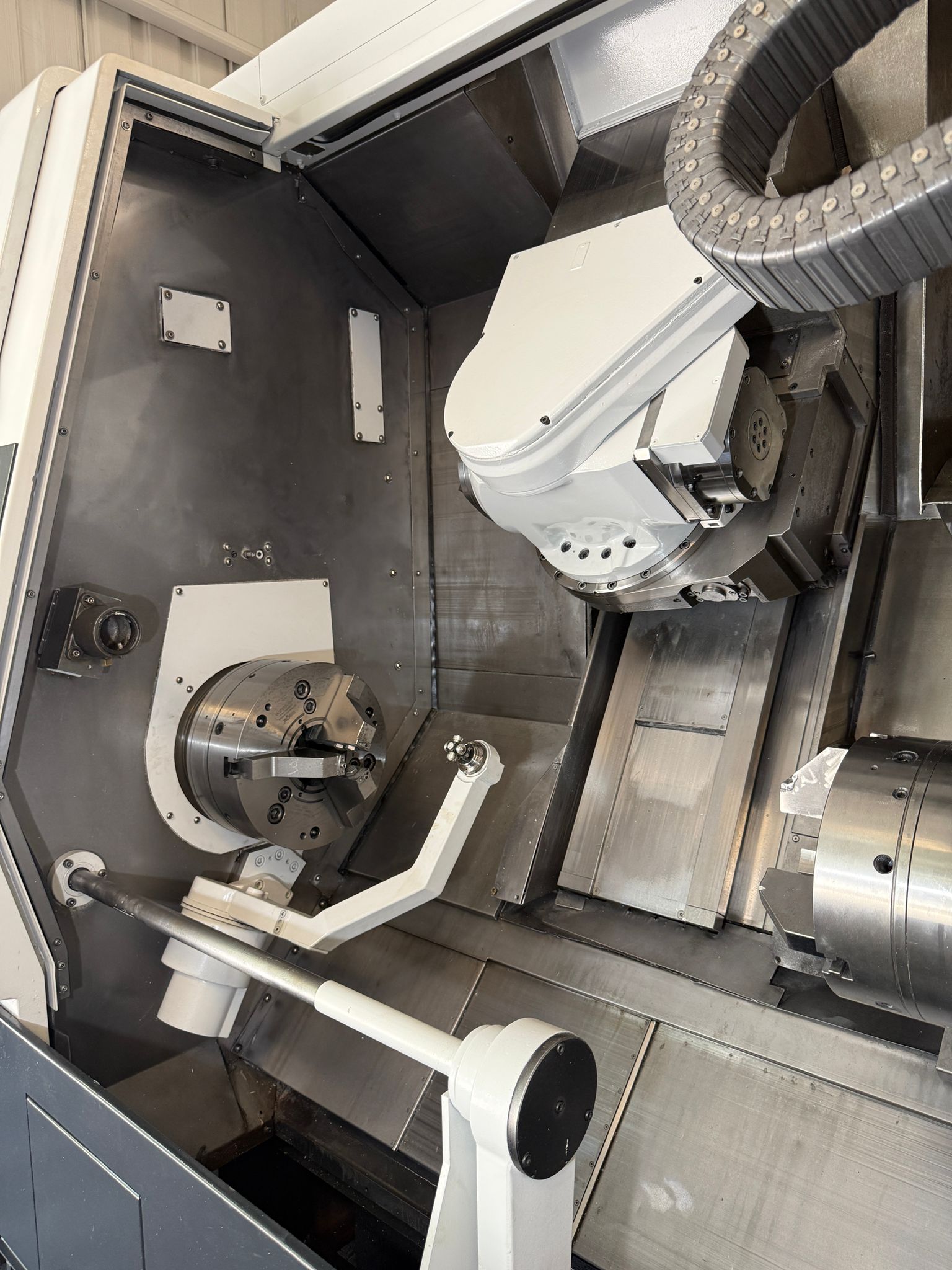

| Sub Spindle |
| Full C-Axis on Both Spindles |
| Y Axis Capability |

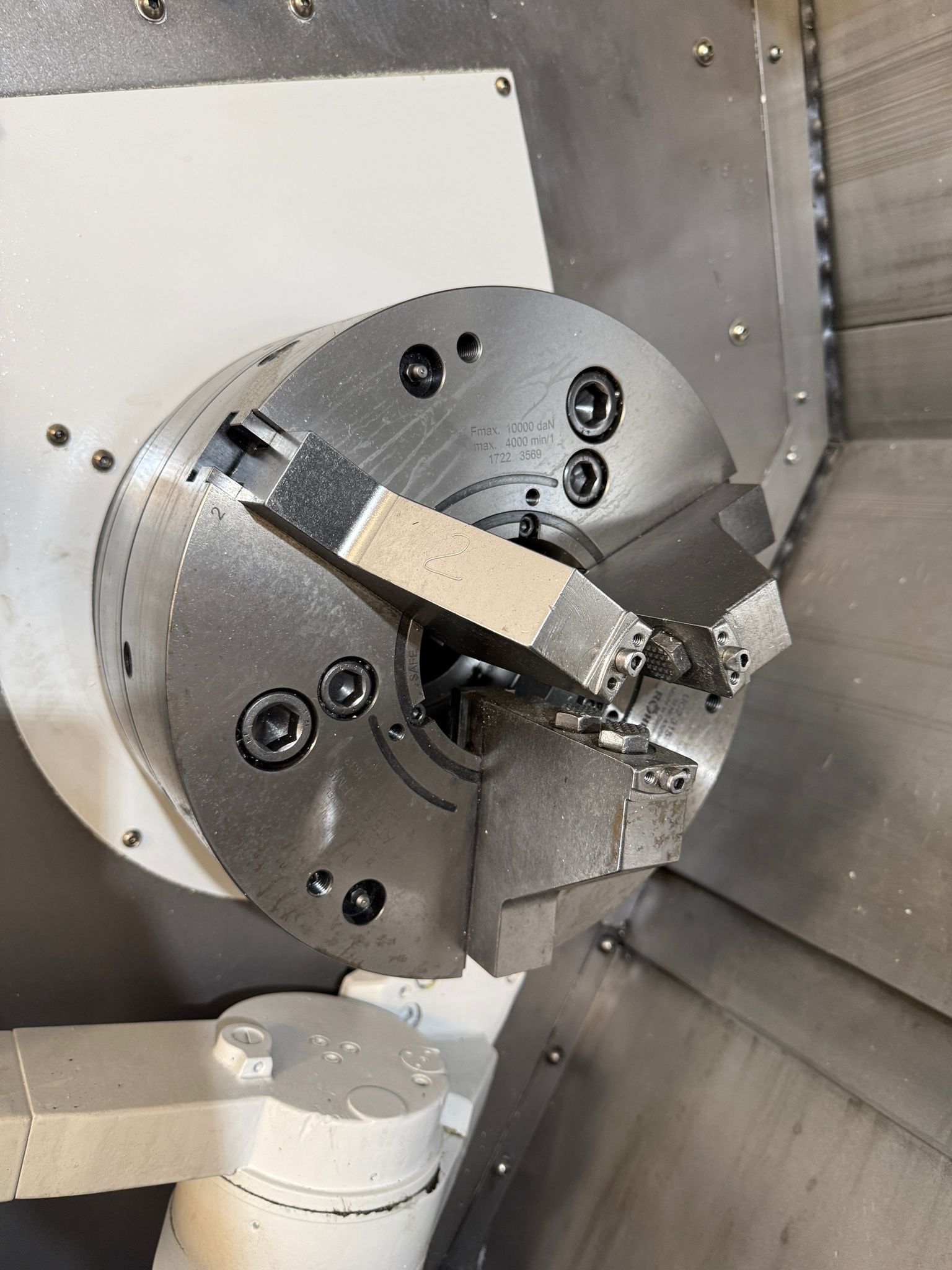

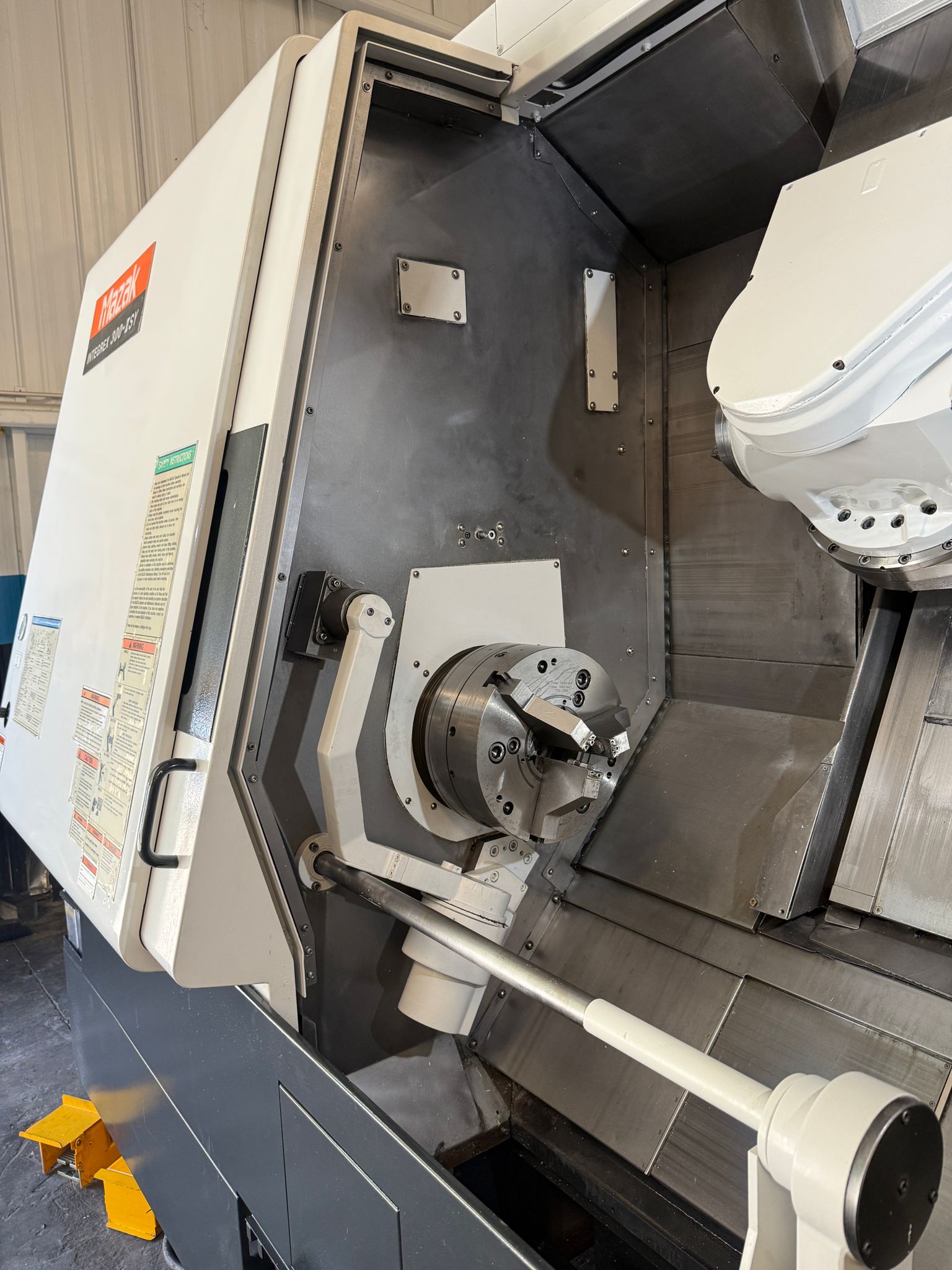

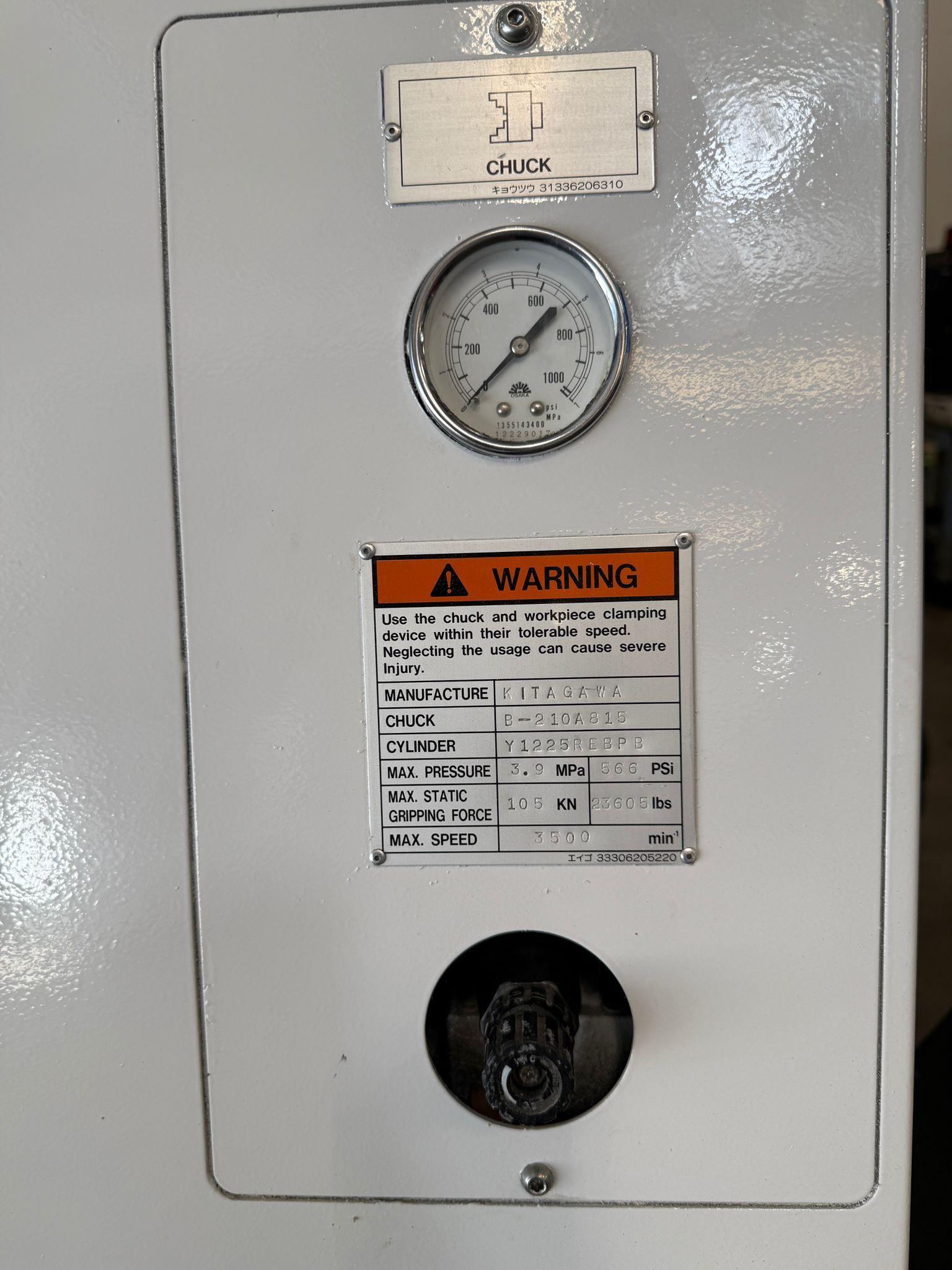

| 12.4″ 3-Jaw Chuck on Main Spindle |

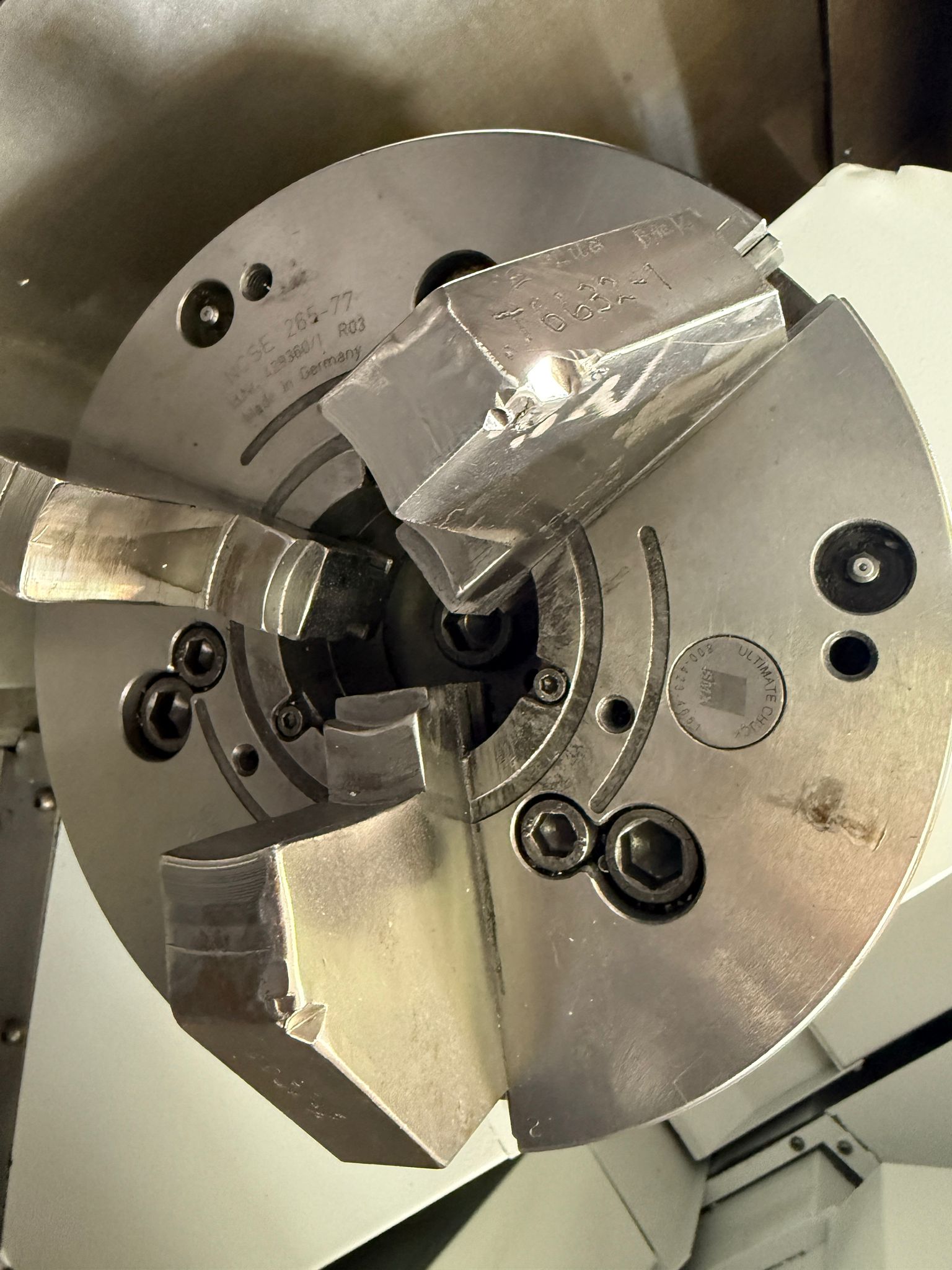

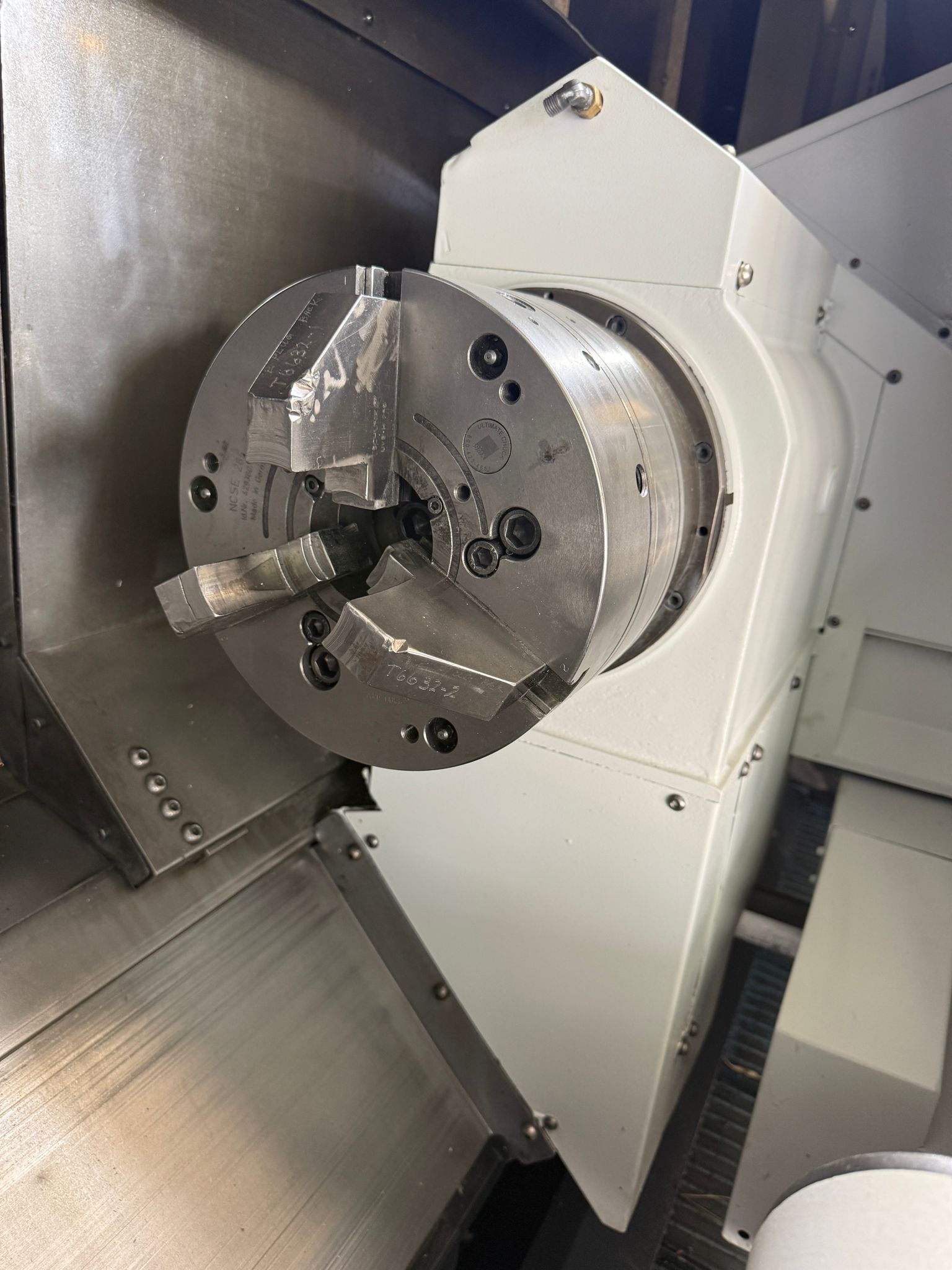

| 10.4″ 3-Jaw Chuck on Sub Spindle |
| Tool Presetter |
| Part Cather |
| Rigid Tapping |
| Coolant System |

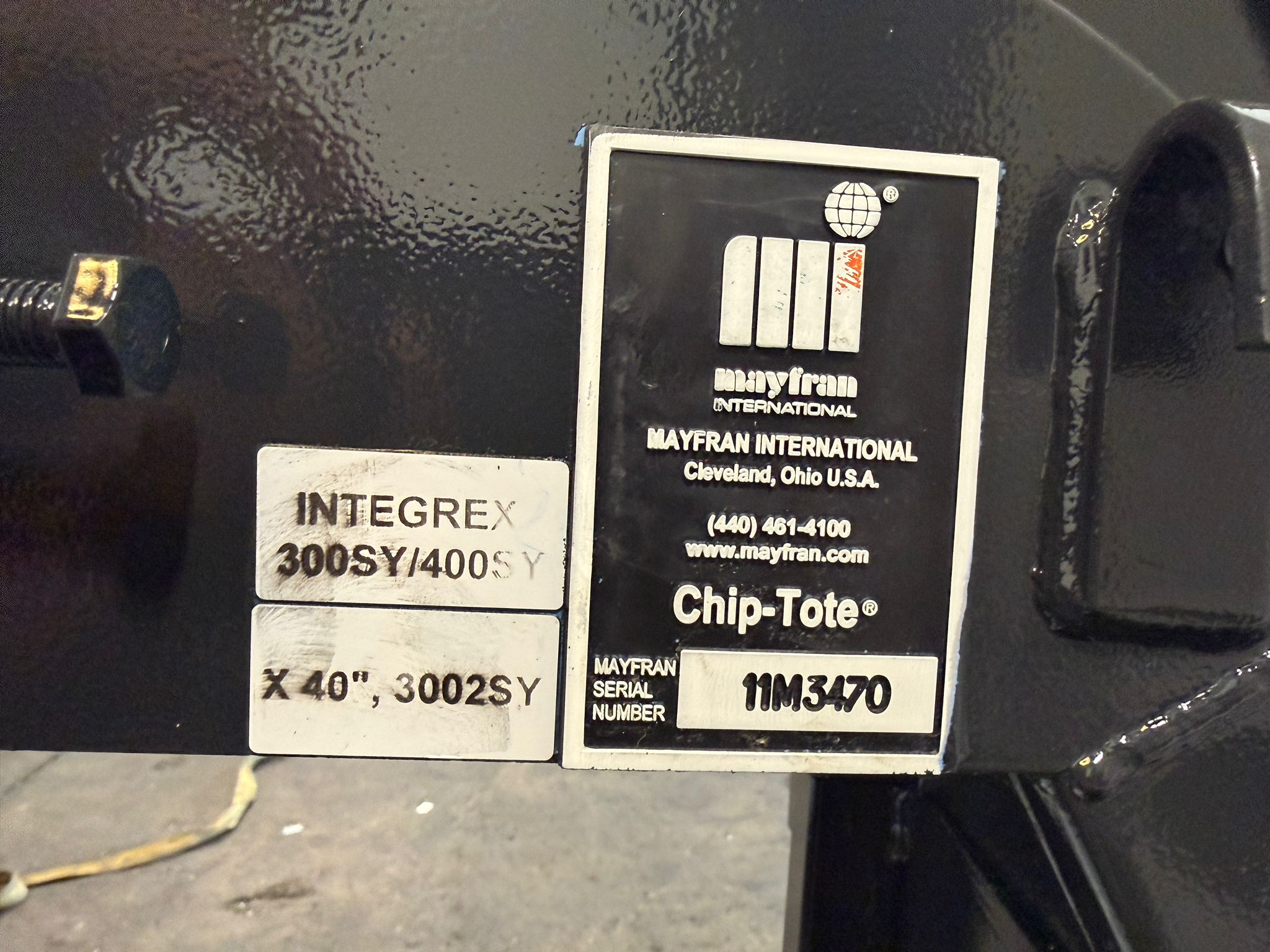

| Chip Conveyor |

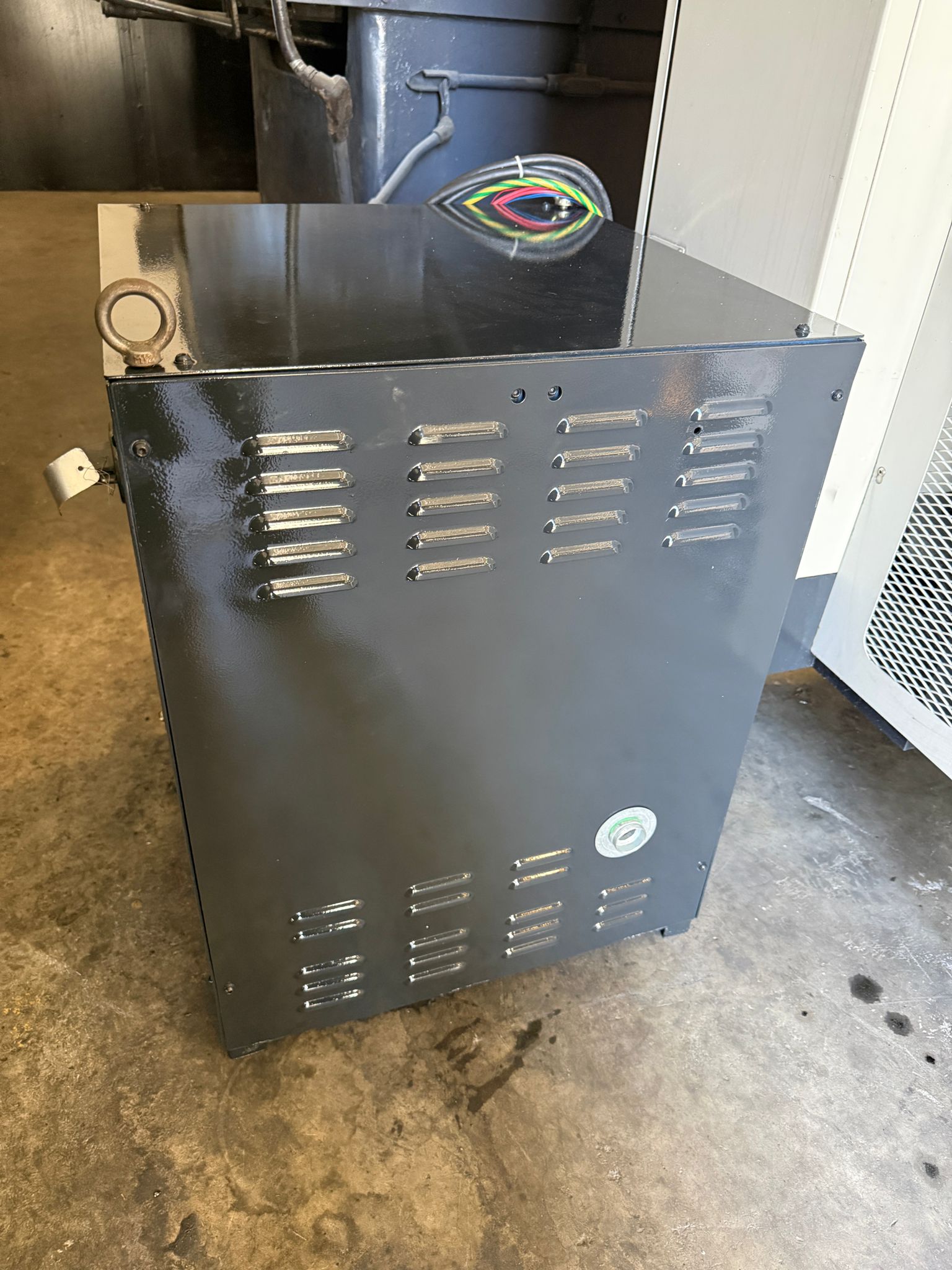

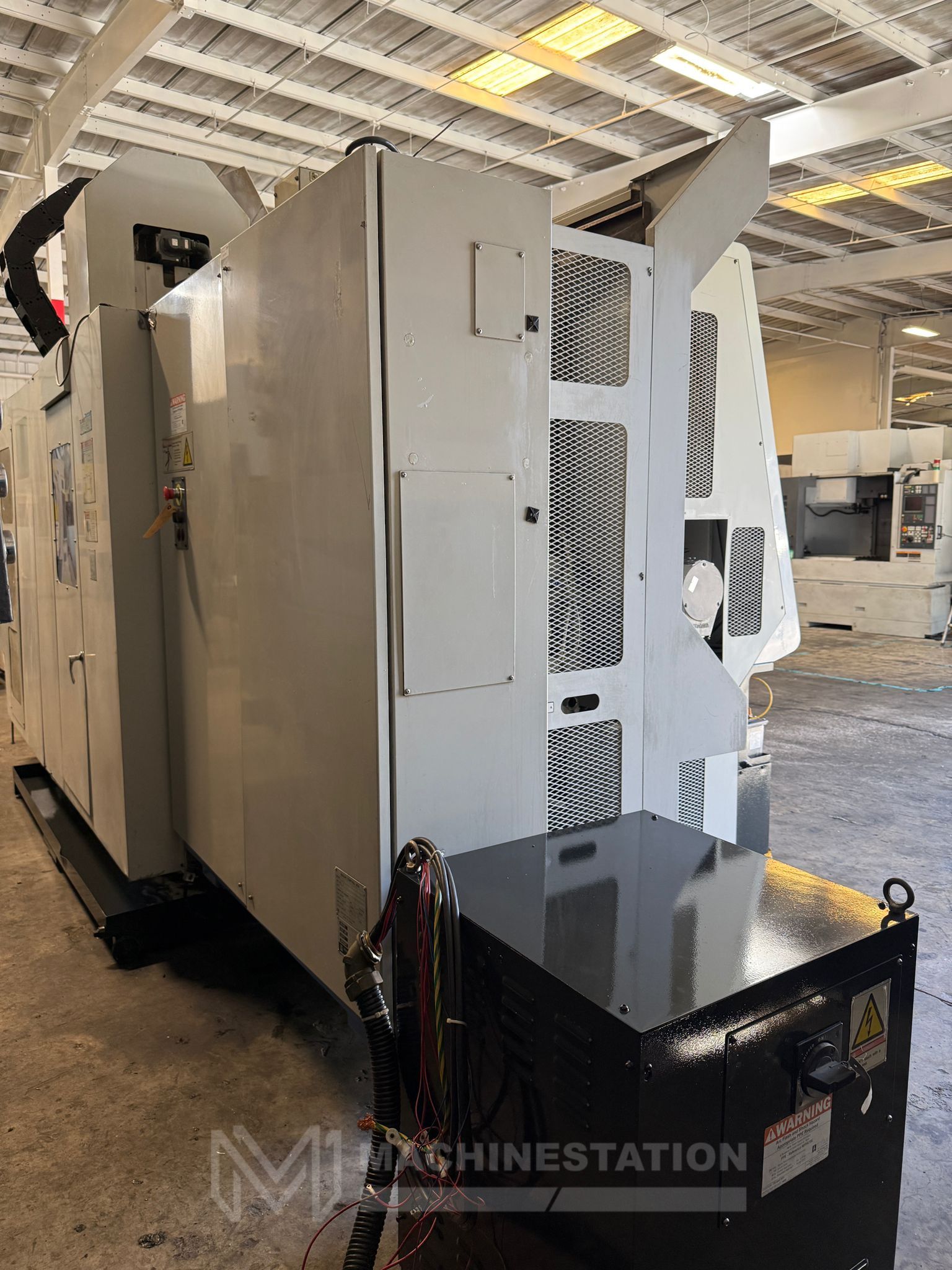

| Transformer |
| Foot Switches |
| Books and Manuals |
| Capacity: |
|---|
| Max Turning Diameter: 30″ |
| Max Turning Length: 60″ |
| Max Bar Capacity: 3.46″ |
| Swing Over Bed: 30.0″ |
| Distance Between Centers: 60″ |
| Travels: |
|---|
| X Axis Travel: 24.80″ |
| Y Axis Travel: 9.06″ (+/-4.53″) |
| Z Axis Travel: 62.40″ |
| W Axis Travel (Sub Spindle): 60.24″ |
| B Axis Travel: 225 Degree |
| C Axis: 360 Degree (0.001 Degree) |
| X Rapid Traverse Rate: 1181 Inch Per Minute |
| Y Rapid Traverse Rate: 591 Inch Per Minute |
| Z Rapid Traverse Rate: 1181 Inch Per Minute |
| Main Spindle: |
|---|
| Main Spindle Nose: A2-8 |
| Main Spindle Bore: 4.1″ |
| Main Spindle Speed: 35 – 3500 RPM |
| Main Spindle Motor: 40 HP |
| Sub Spindle: |
|---|
| Sub Spindle Nose: A2-8 |
| Sub Spindle Bore: 3.1″ |
| Sub Spindle Speed: 35 – 3500 RPM |
| Sub Spindle Motor: 30 HP |
| Milling Head: |
|---|

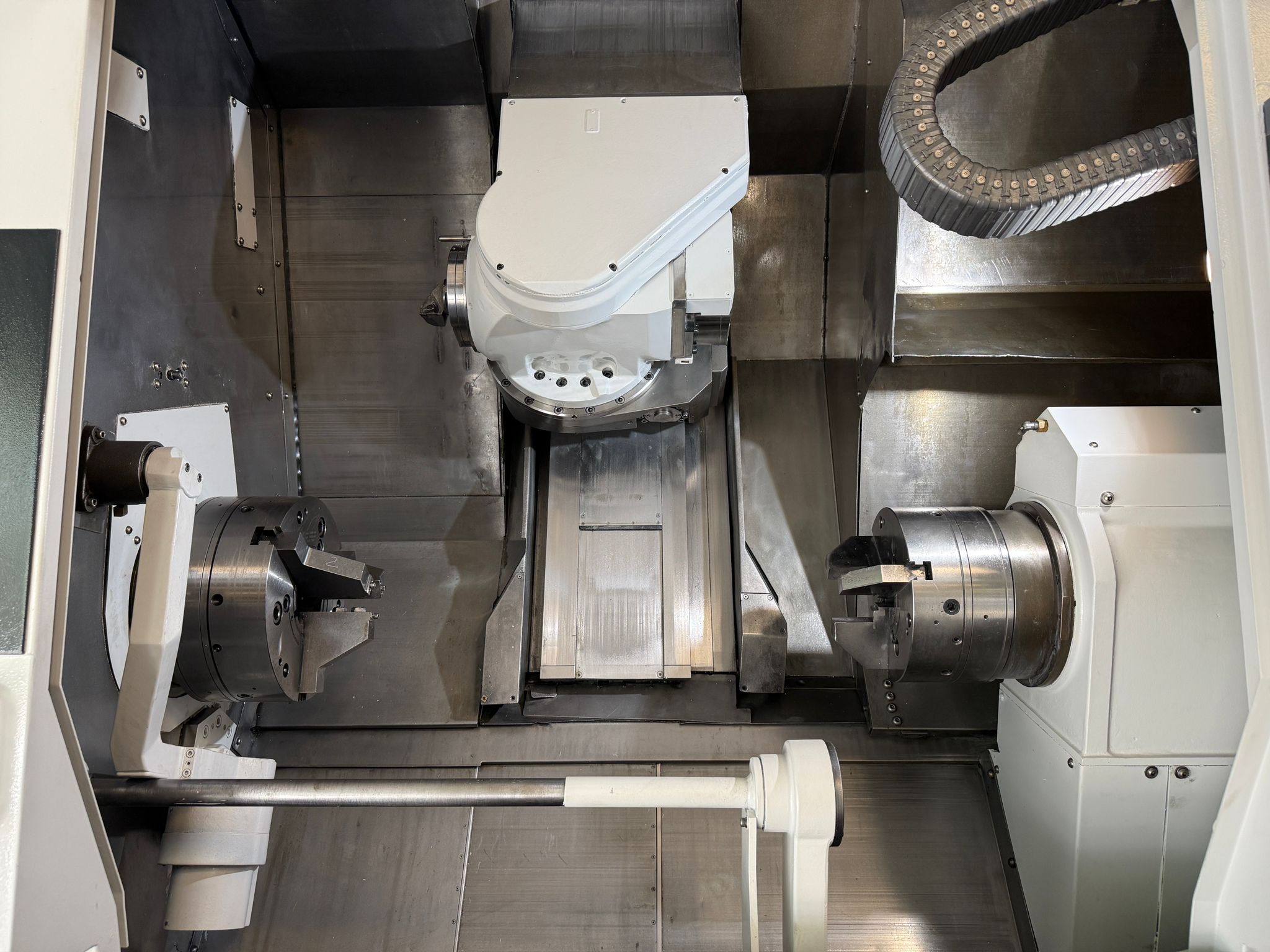

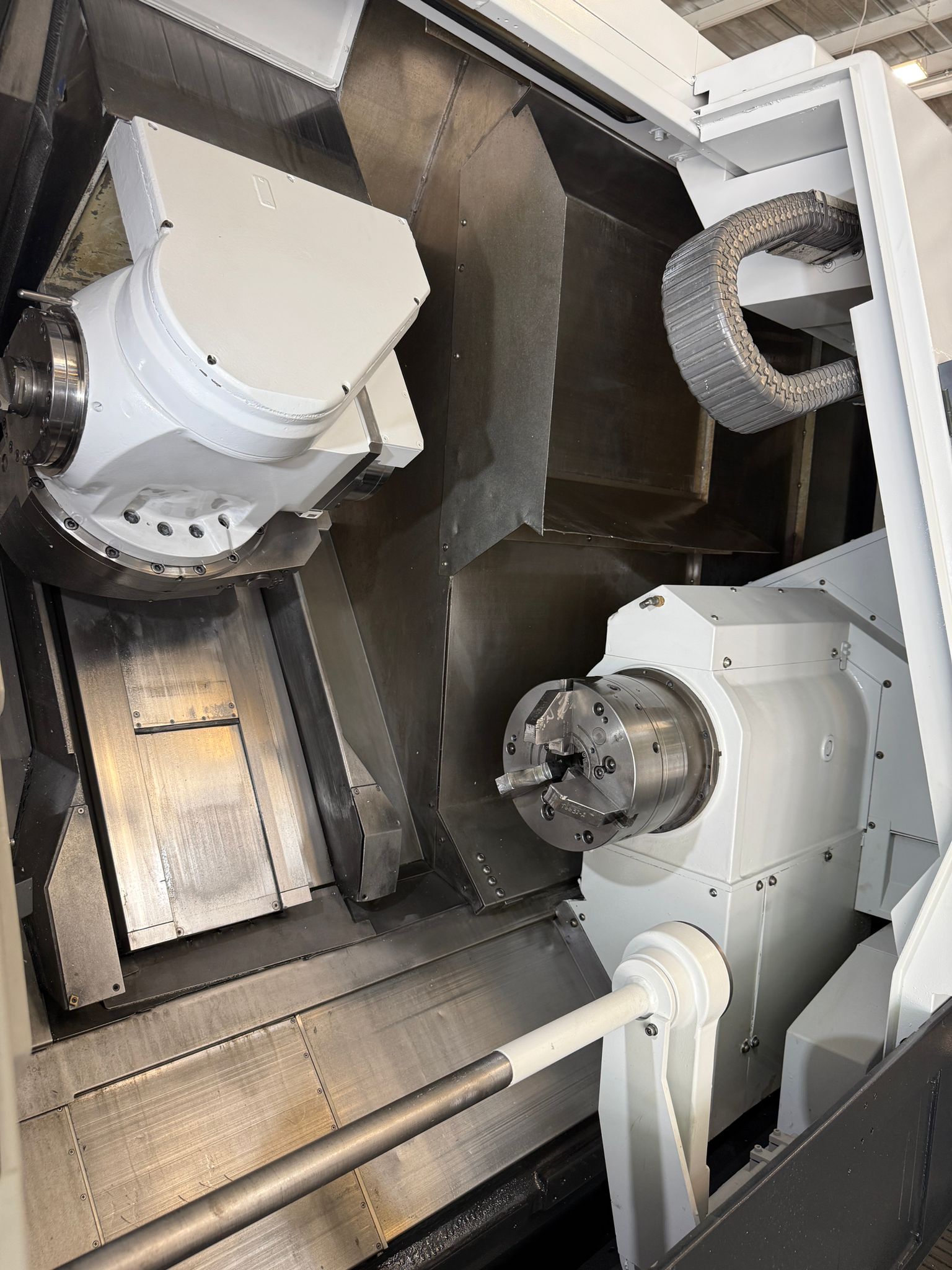

| Single Station Pendulum Head with 40 ATC |
| Tool Type: Capto C6 |
| Spindle Speed: 15-10,000 RPM |
| Spindle Motor: 25 HP |
| Spindle 90° Index Time: 0.5 sec |
| General: |
|---|

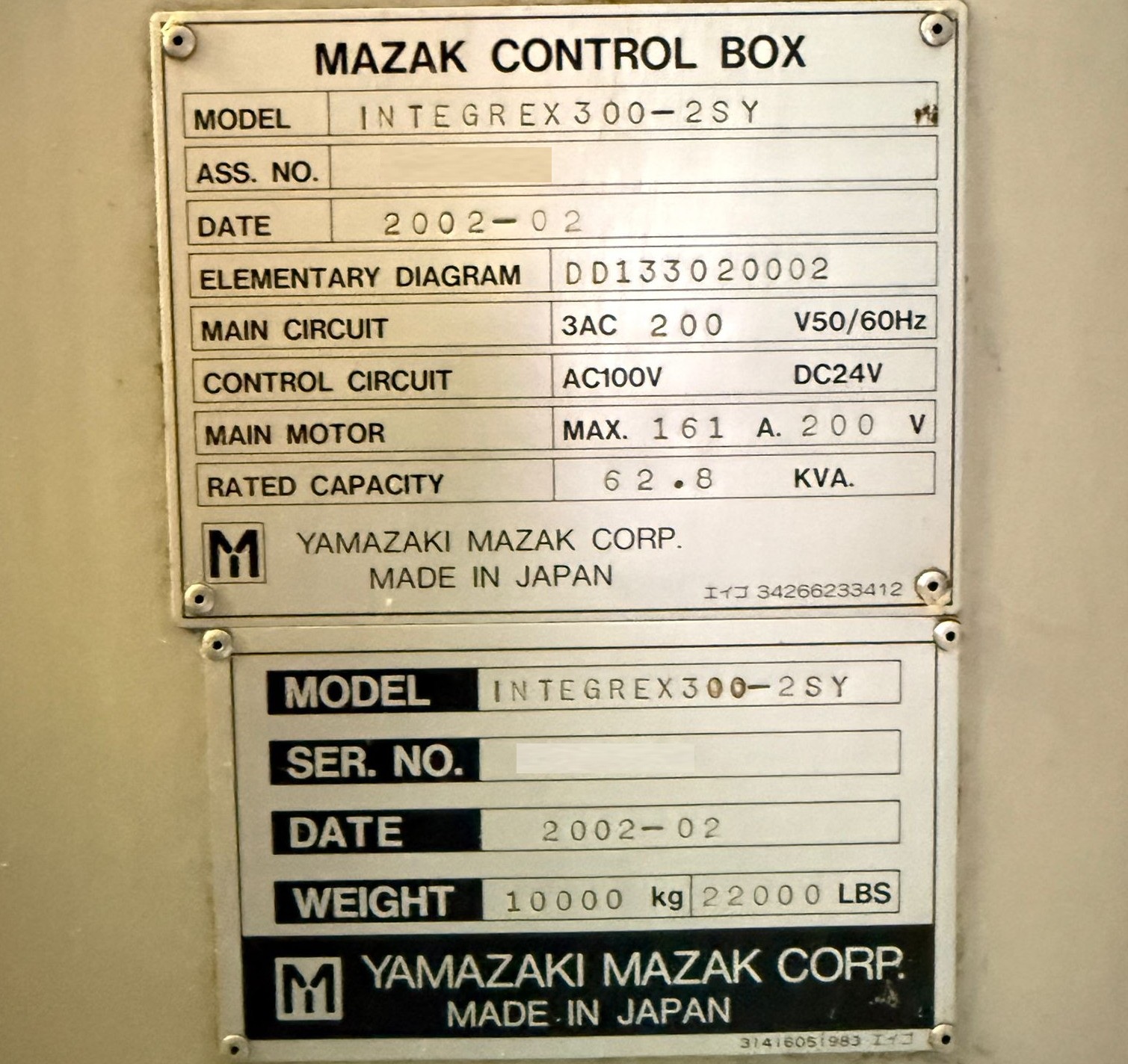

| Power Source: AC 200 V, Three Phase, 50/60 Hz |
| Power Requirement: 62.8 Kva |
| Overall Dimensions: 193.4″ x 93.0″ x 110.2″ High Approx. |
| Weight: 22,000 lbs Approx. |
