*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

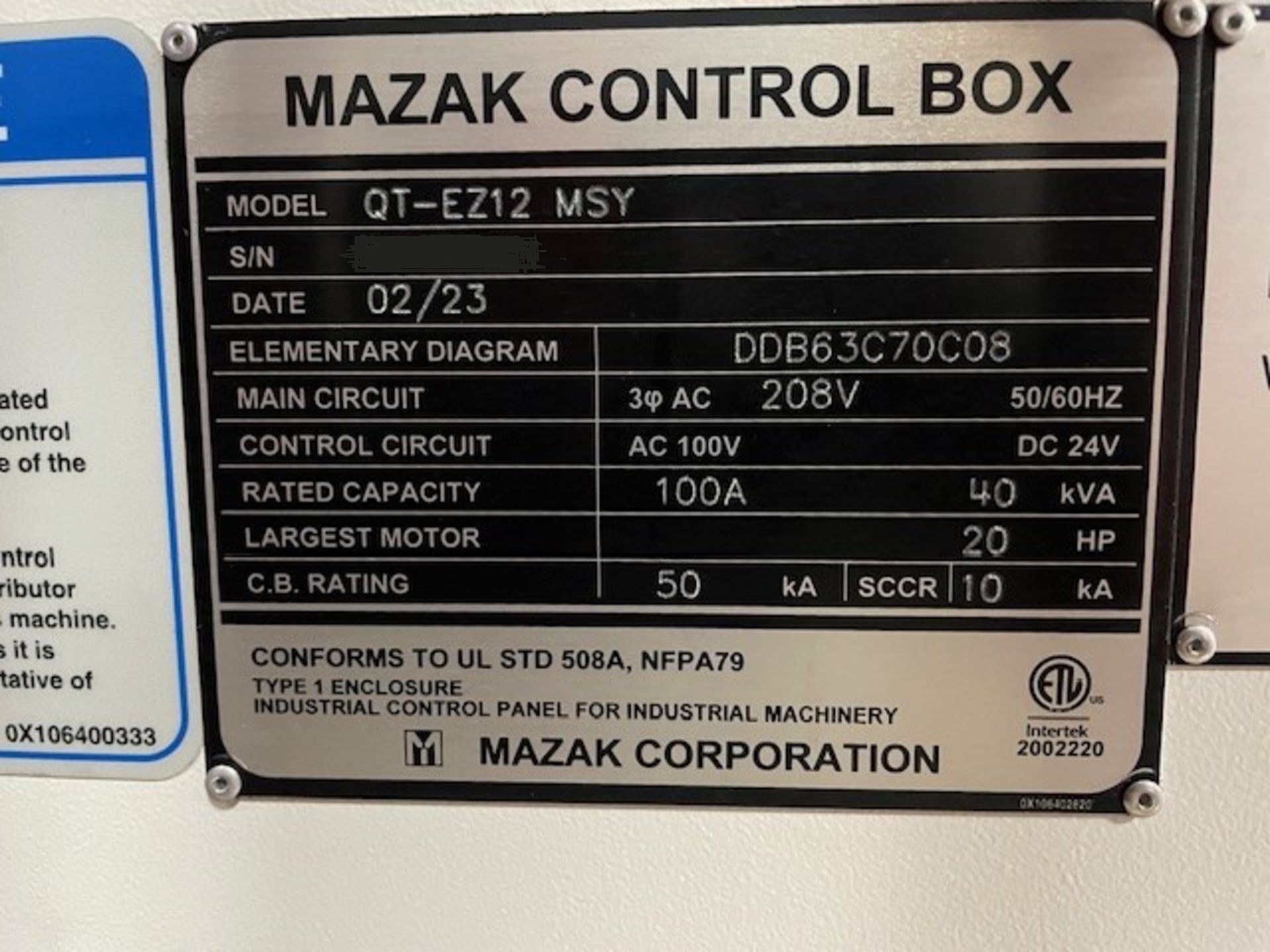

| Make: | Mazak |
| Model: | QT-EZ 12MSY |
| Condition: | Used |
| Equipped With: |
|---|

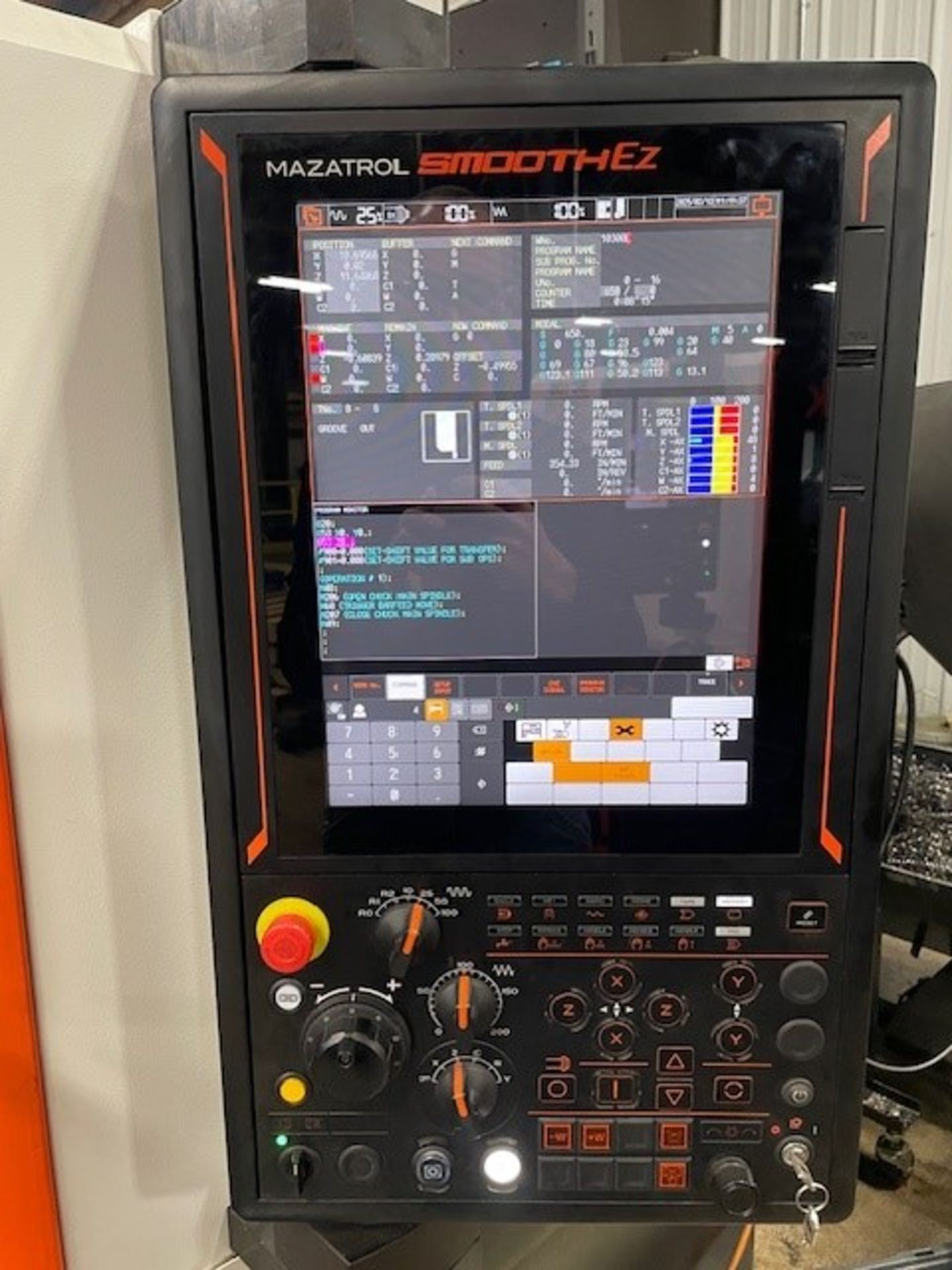

- MAZATROL SmoothEz CNC Control
- Main & Sub Spindles
- Y-Axis Milling Capability
- C-Axis Control (Main & Sub)
- Live Tooling
- 12-Station Turret
- Automatic Tool Presetter
- Coolant System
- Chip Conveyor
- Full Enclosure
|
| Capacity: |
|---|
- Max Turning Diameter: 11.8″
- Max Turning Length: 20.1″
- Swing Over Bed: 20.1″
- Swing Over Saddle: 14.6″
- Bar Capacity: 2.0″
|
| Travels: |
|---|
- X-Axis Travel: 7.9″
- Y-Axis Travel: ±2.0″
- Z-Axis Travel: 21.3″
- W-Axis Travel (Sub-Spindle): 19.7″
|
| Main Spindle: |
|---|
- Spindle Nose: A2-6
- Spindle Speed: 5,000 RPM
- Spindle Motor: 20 HP
- Spindle Bore: 2.95″
|
| Sub-Spindle: |
|---|
- Spindle Speed: 6,000 RPM
- Spindle Motor: 10 HP
- Spindle Bore: 2.44″
|
| Milling: |
|---|
- Milling Spindle Speed: 5,000 RPM
- Milling Motor Power: 7.5 HP
- Live Tooling on All Stations
|
| Feedrates: |
|---|
- Rapid Traverse X/Z: 1,181 IPM
- Rapid Traverse Y: 630 IPM
- Cutting Feedrate: 0 – 472 IPM
|
| Turret: |
|---|
- Turret Capacity: 12 Stations
- Tool Size (OD): 1.0″ × 1.0″
- Boring Bar Capacity: 1.57″
|
| General: |
|---|
- Power Requirement: 220V / 3-Phase
- Machine Dimensions (Approx.): 104″ × 70″ × 67″
- Machine Weight (Approx.): 11,200 lbs
|
