*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

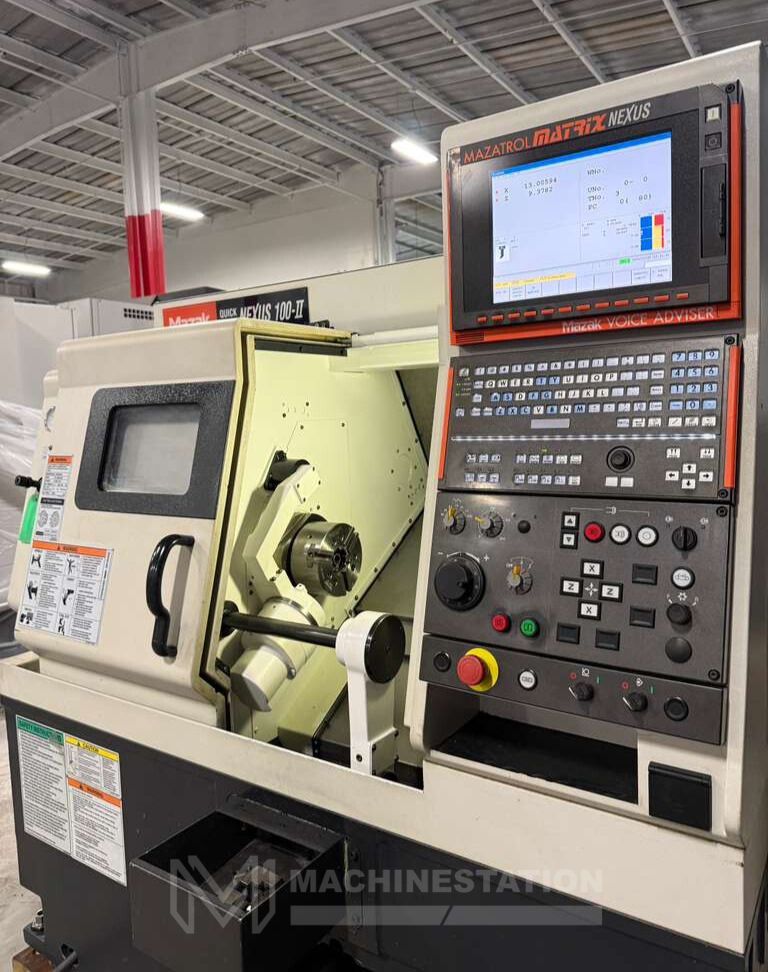

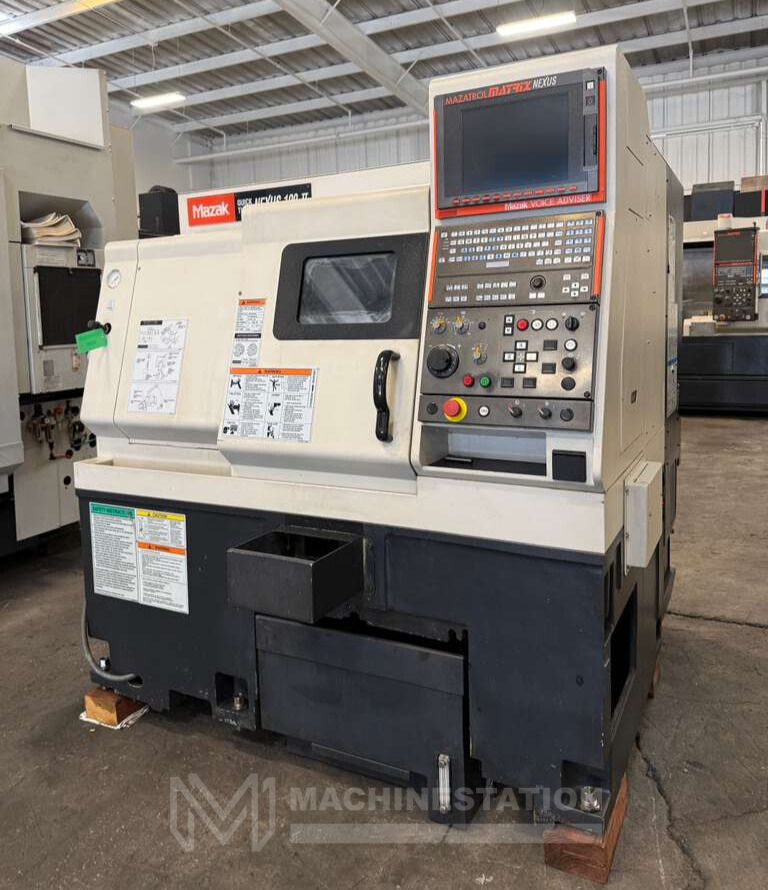

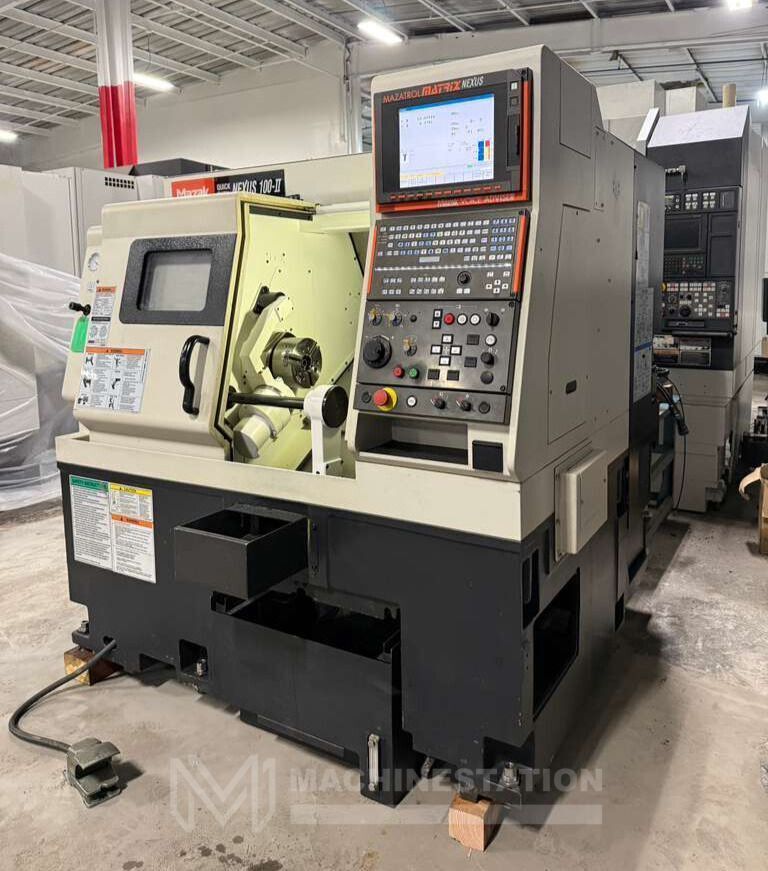

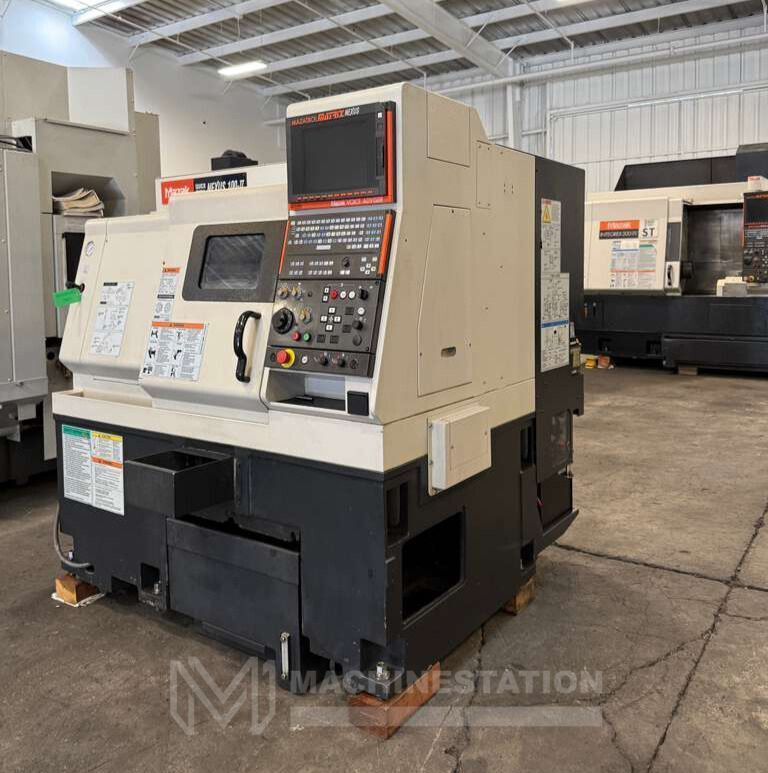

| Make: | Mazak |
| Model: | QTN 100-II |
| Year: | 2007 |
| Condition: | Used – Good |
| Equipped With: |
|---|

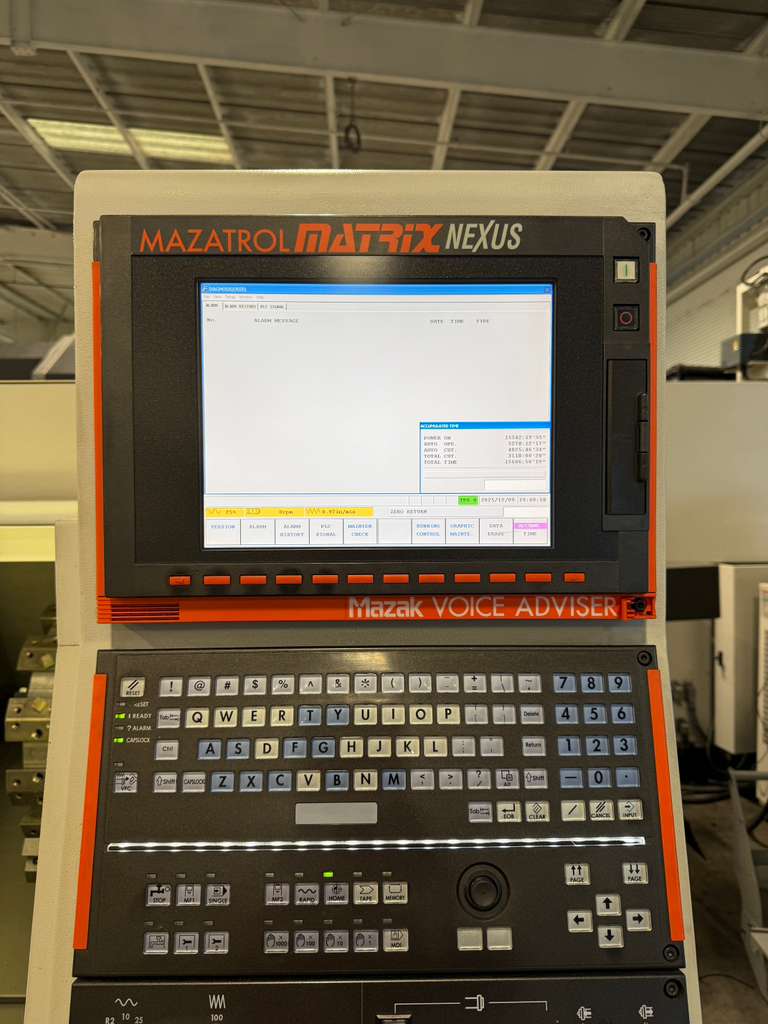

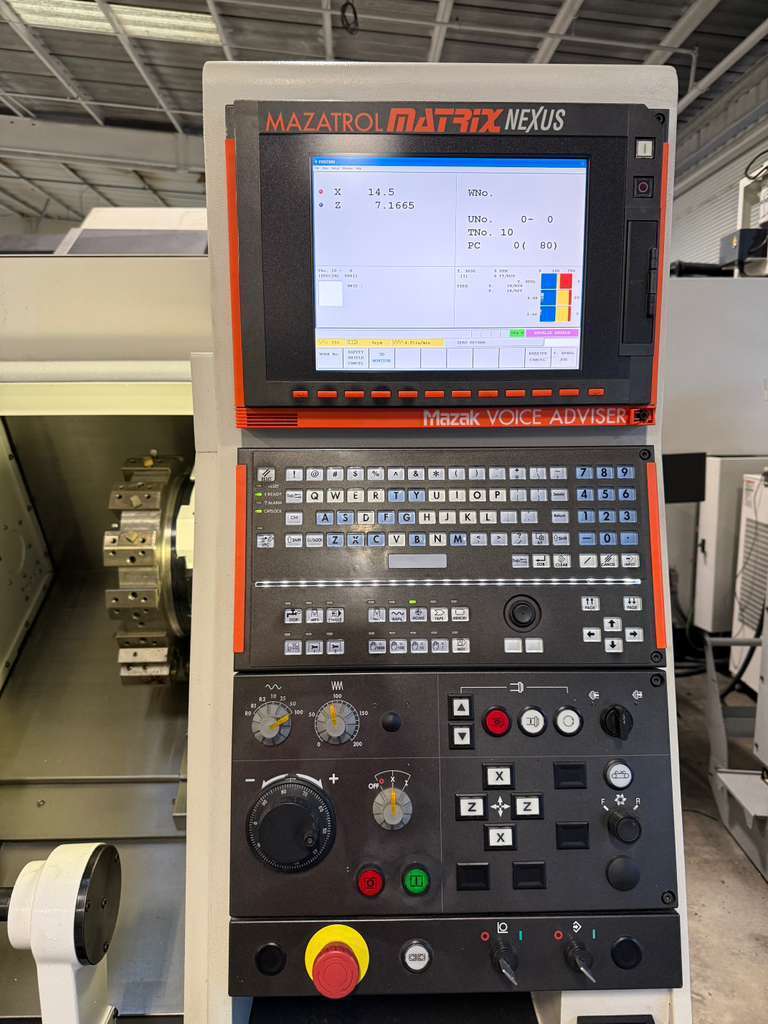

| Mazatrol Matrix Nexus CNC Control |

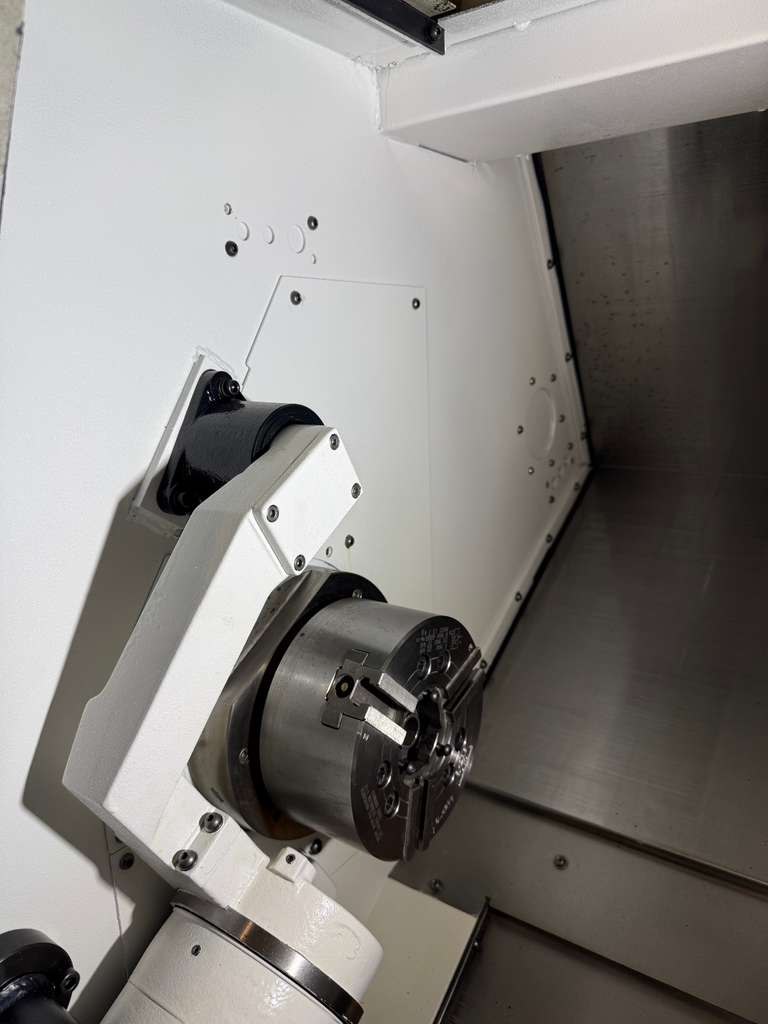

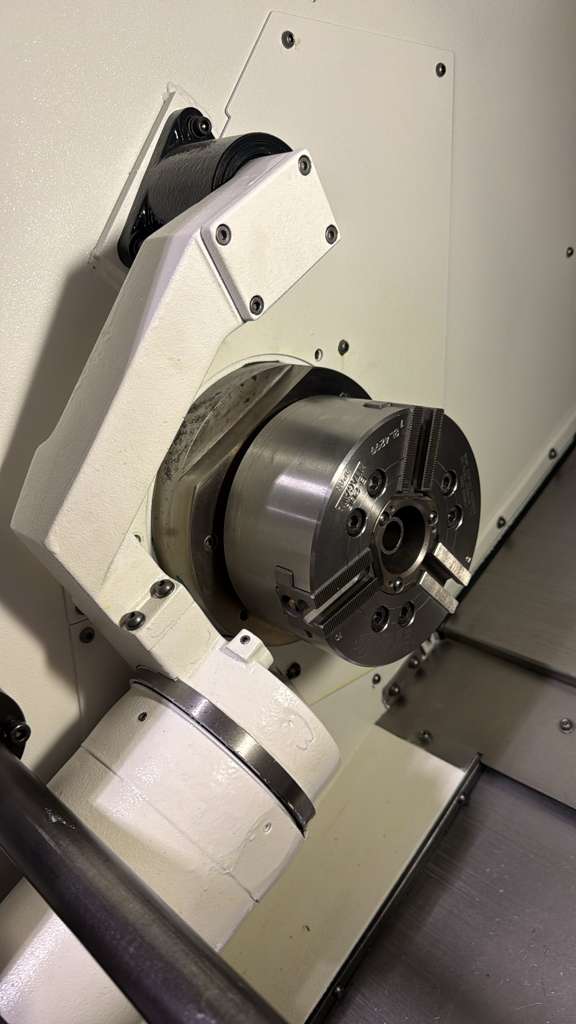

| 6″ 3-Jaw Kitagawa B-206 Chuck |

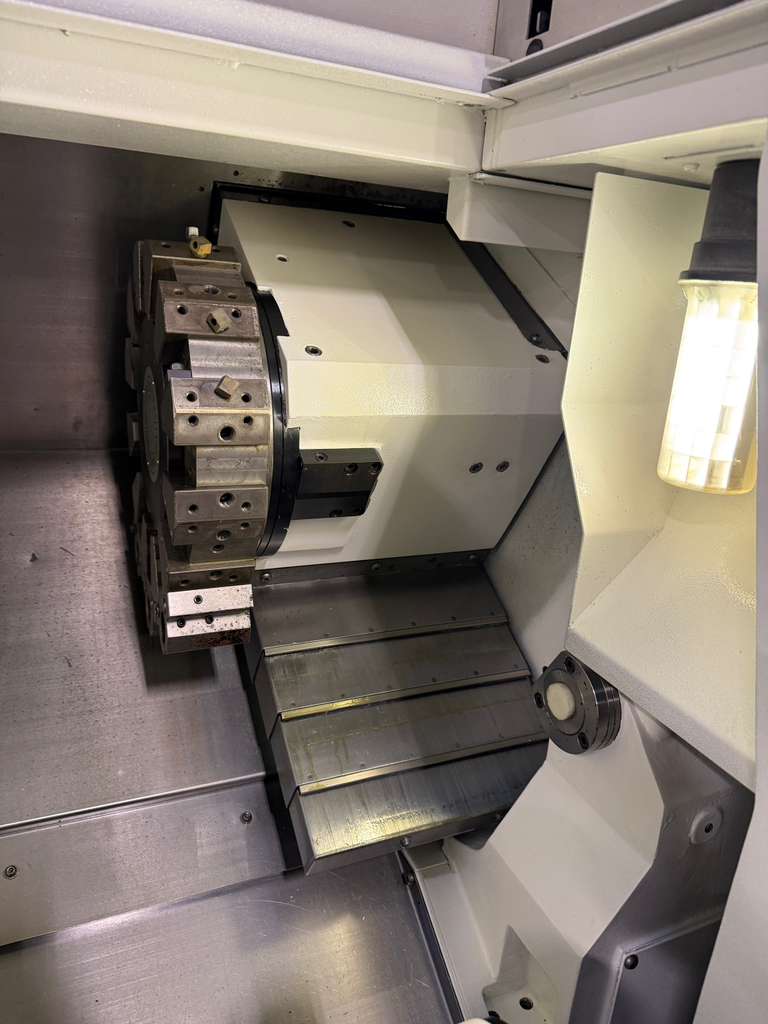

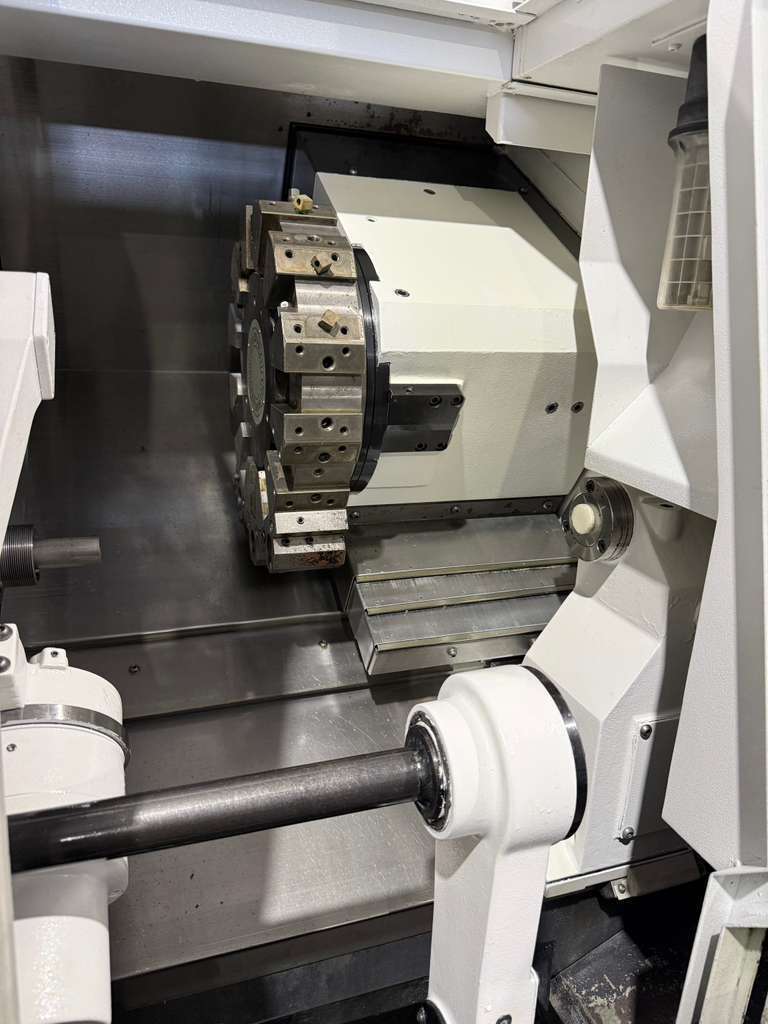

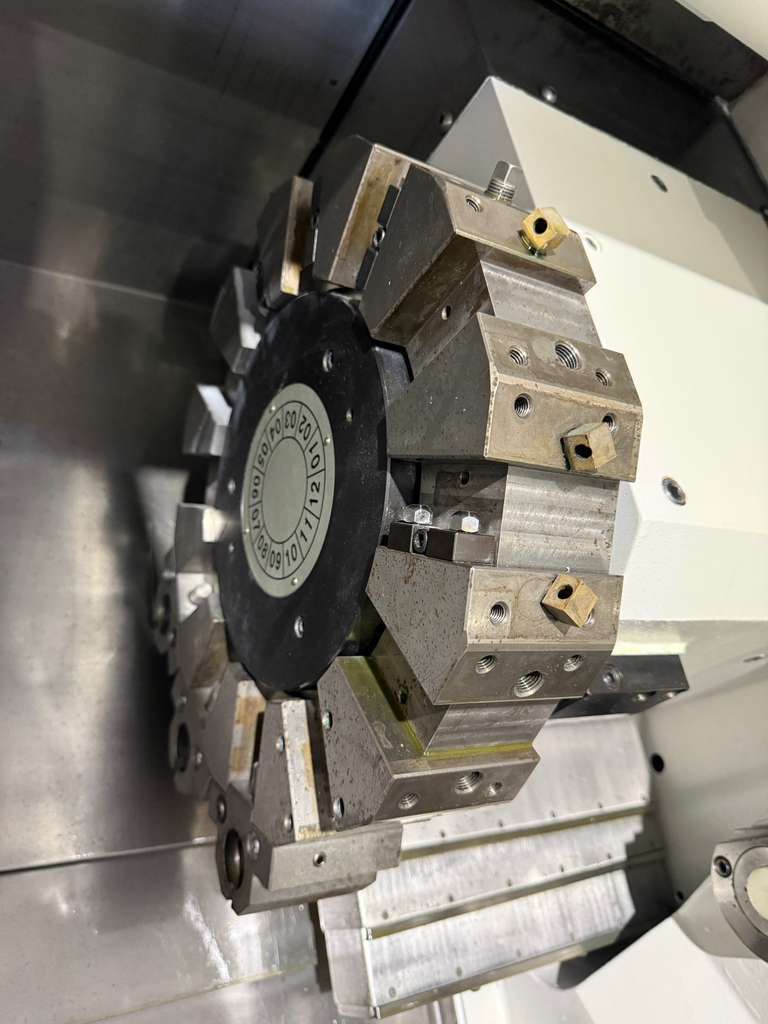

| 12 Stations Automatic Turret |
| Automatic Tool Presetter |
| Parts Catcher |
| Tailstock |

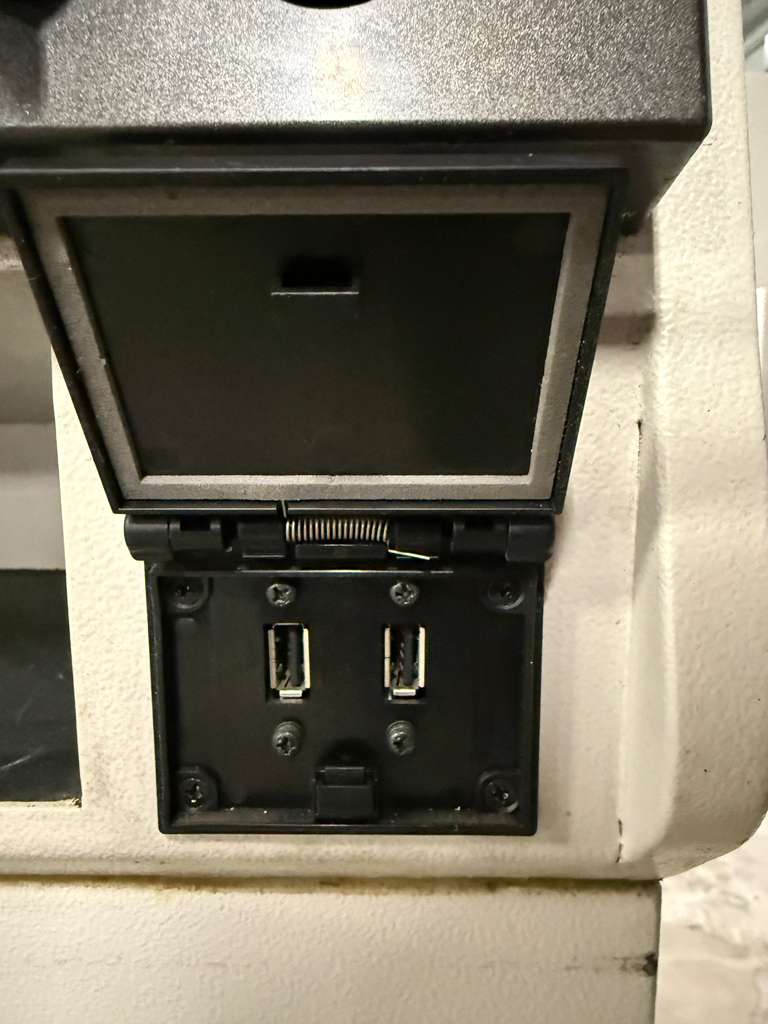

| USB Ports |
| Rigid Tapping |
| Automatic Lubrication System |
| Foot Operated Control for Chuck |
| Coolant System |
| Books & Manuals |
| (3) Boring Tool Holders (Mounted on Turret as Shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter : 11.00″ |
| Max Turning Length : 15.82″ |
| Max Swing Over Bed: 21.65″ |
| Max Bar Capacity : 2.00″ |
| Travels: |
|---|
| X Axis Travel : 7.25″ |
| Z Axis Travel : 17.88″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1299 IPM |
| Spindle: |
|---|
| Spindle Bore: 2.50″ |
| Spindle Nose: A2-6 |
| Spindle Speed: 6,000 RPM |
| Spindle Power: 15 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.2 Seconds |
| General: |
|---|
| Power Source: 22.5 kva / 400v / 50/60 Hz / 3-Phase |
| Overall Dimensions: 83″ X 67″ X 79″ High Approx. |
| Weight: 7,700 lbs. Approx. |
