*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

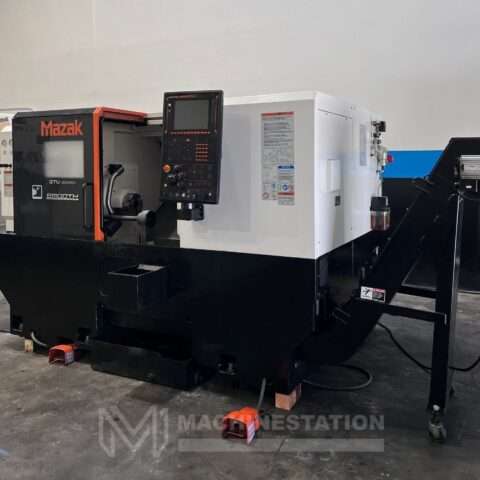

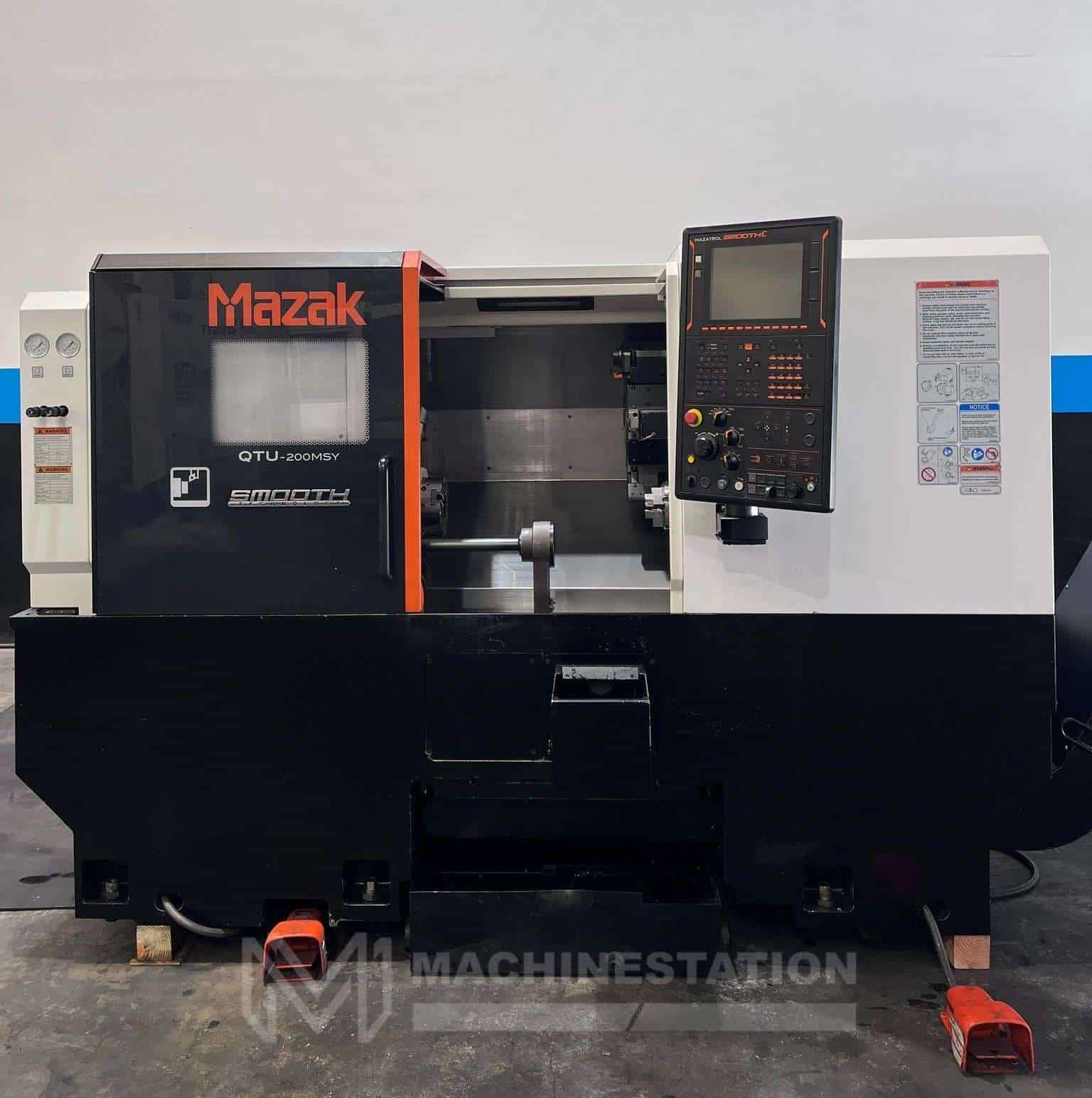

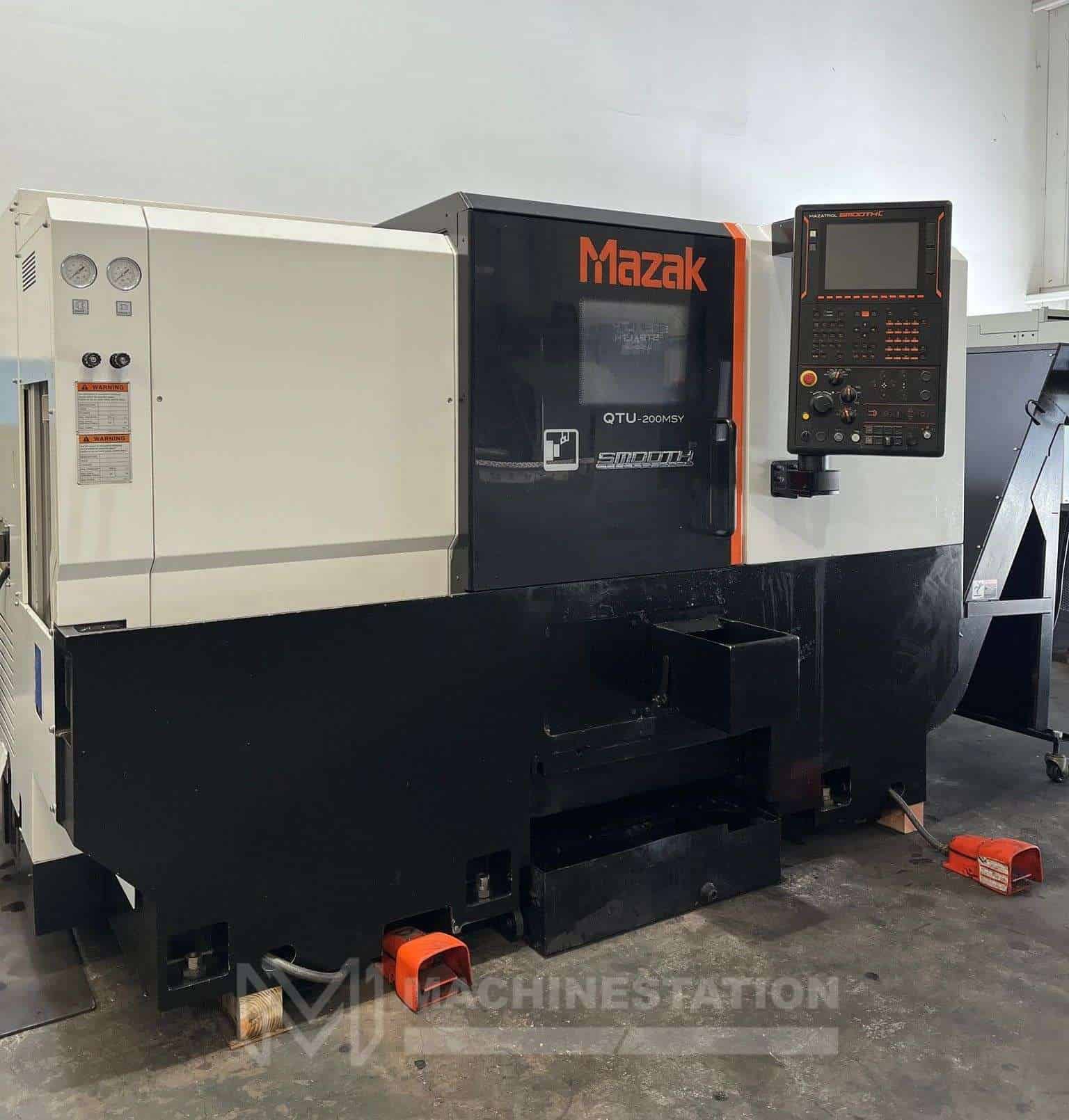

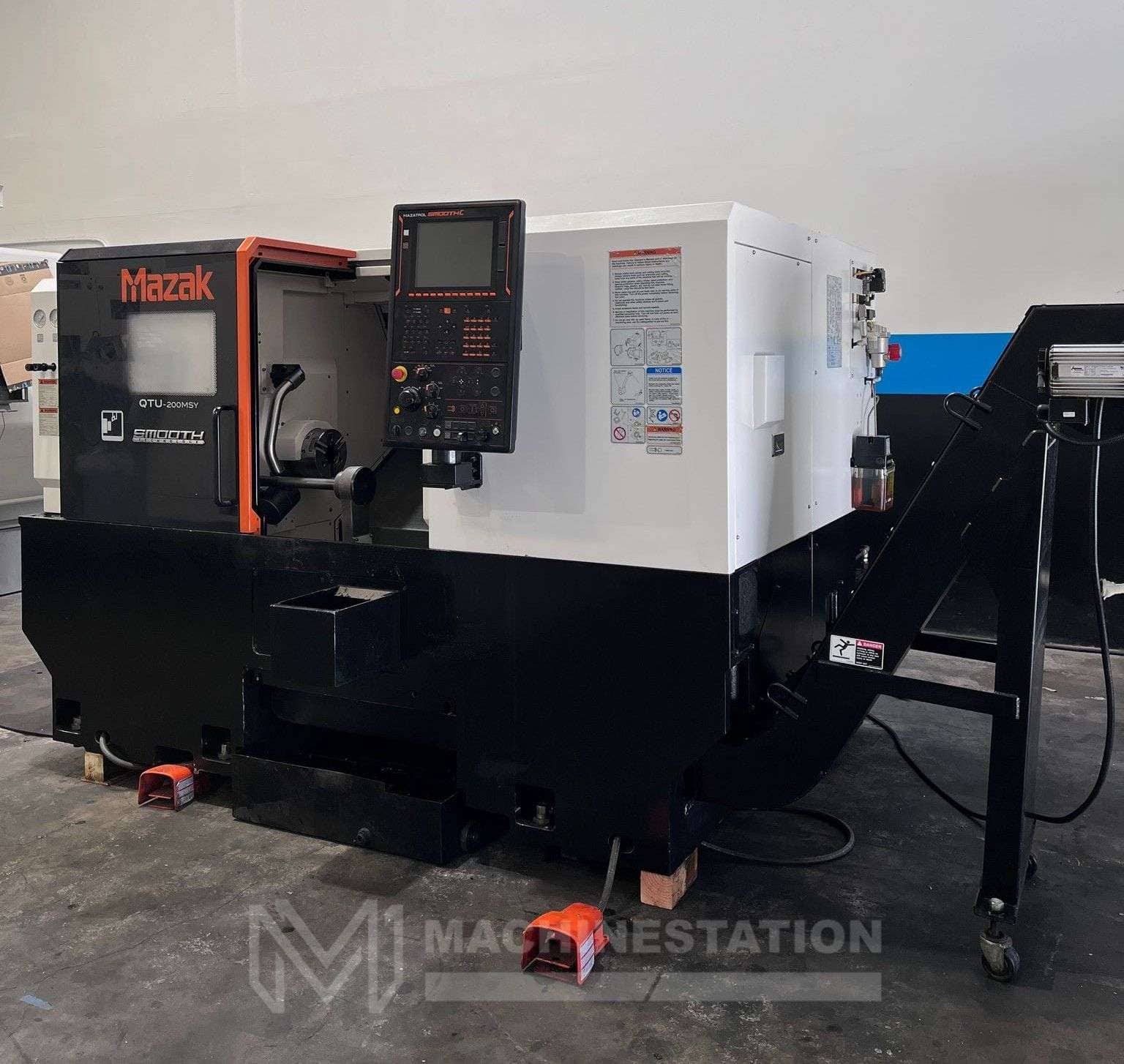

| Make: | Mazak |

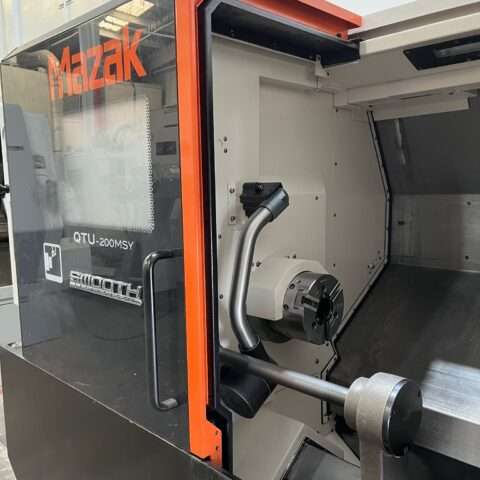

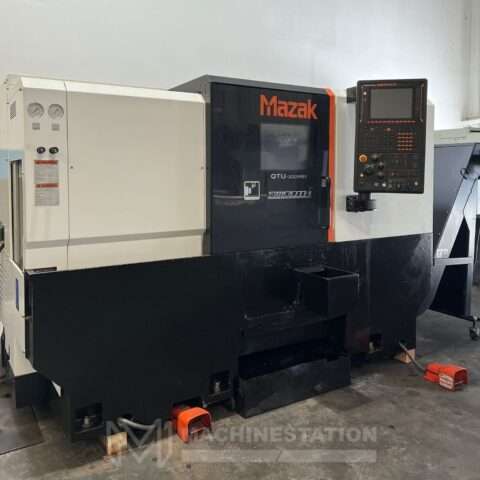

| Model: | QTU-200MSY |
| Year: | 2017 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

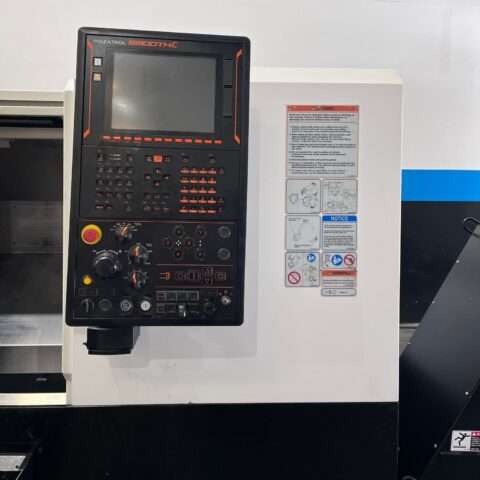

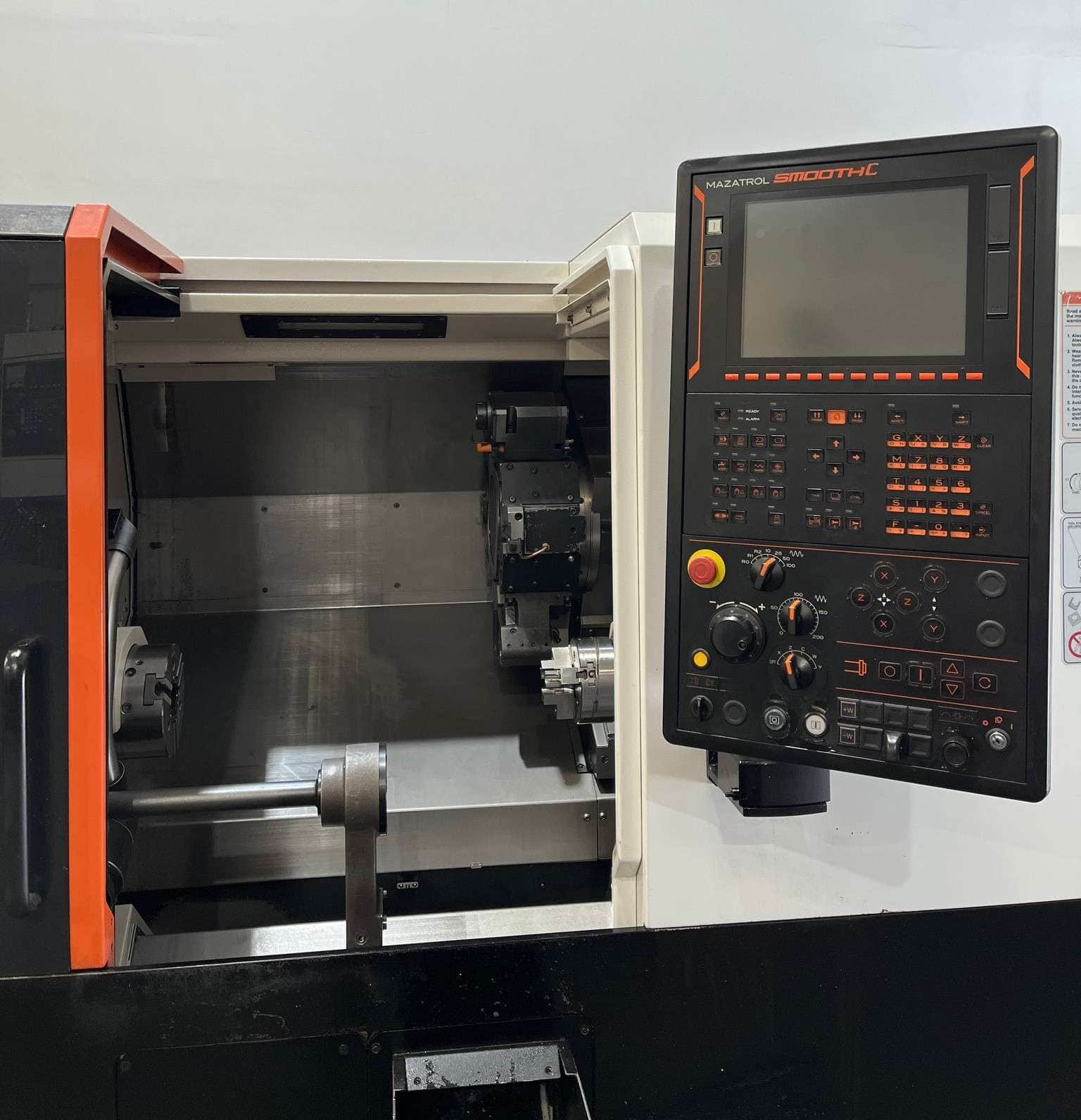

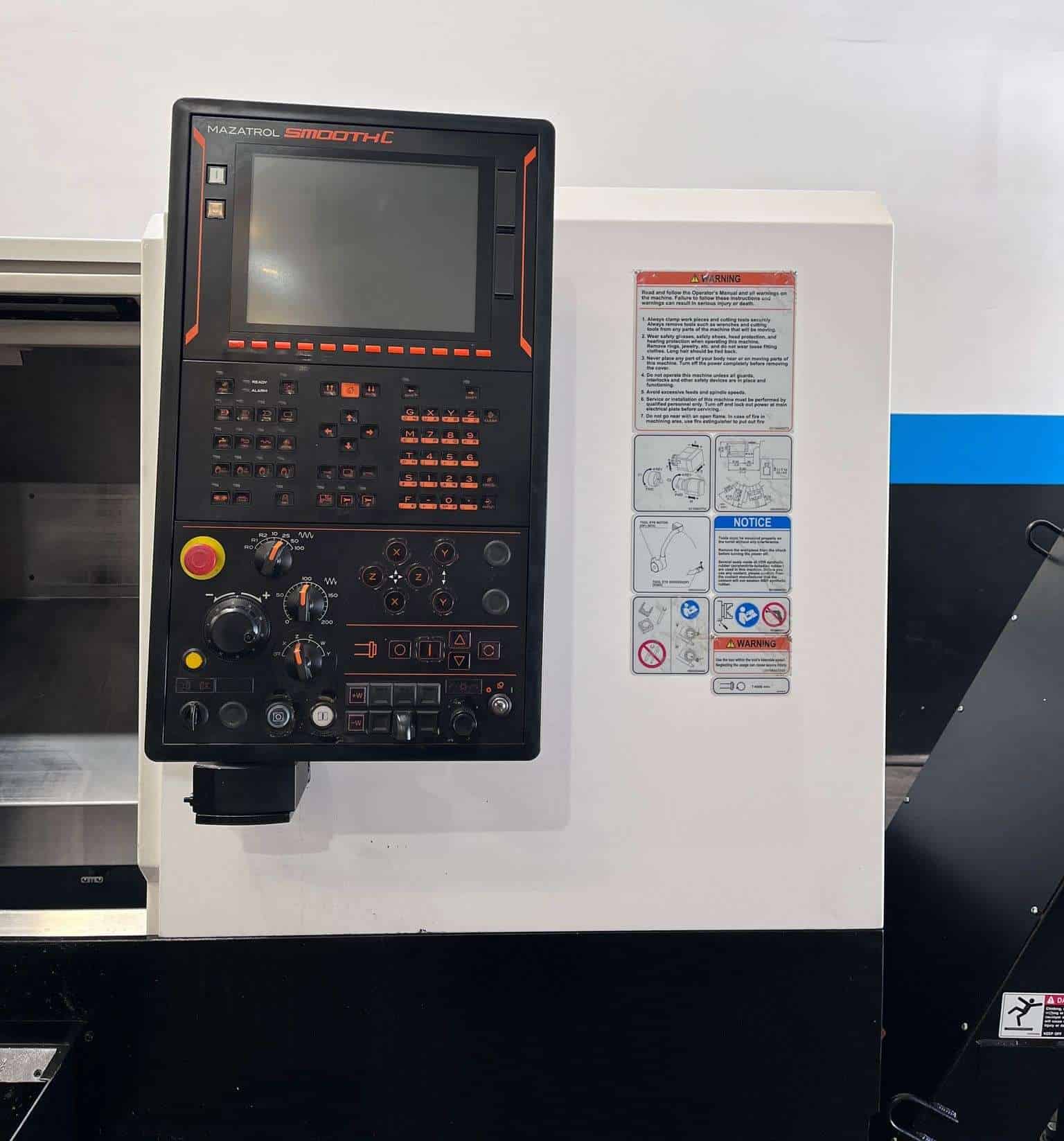

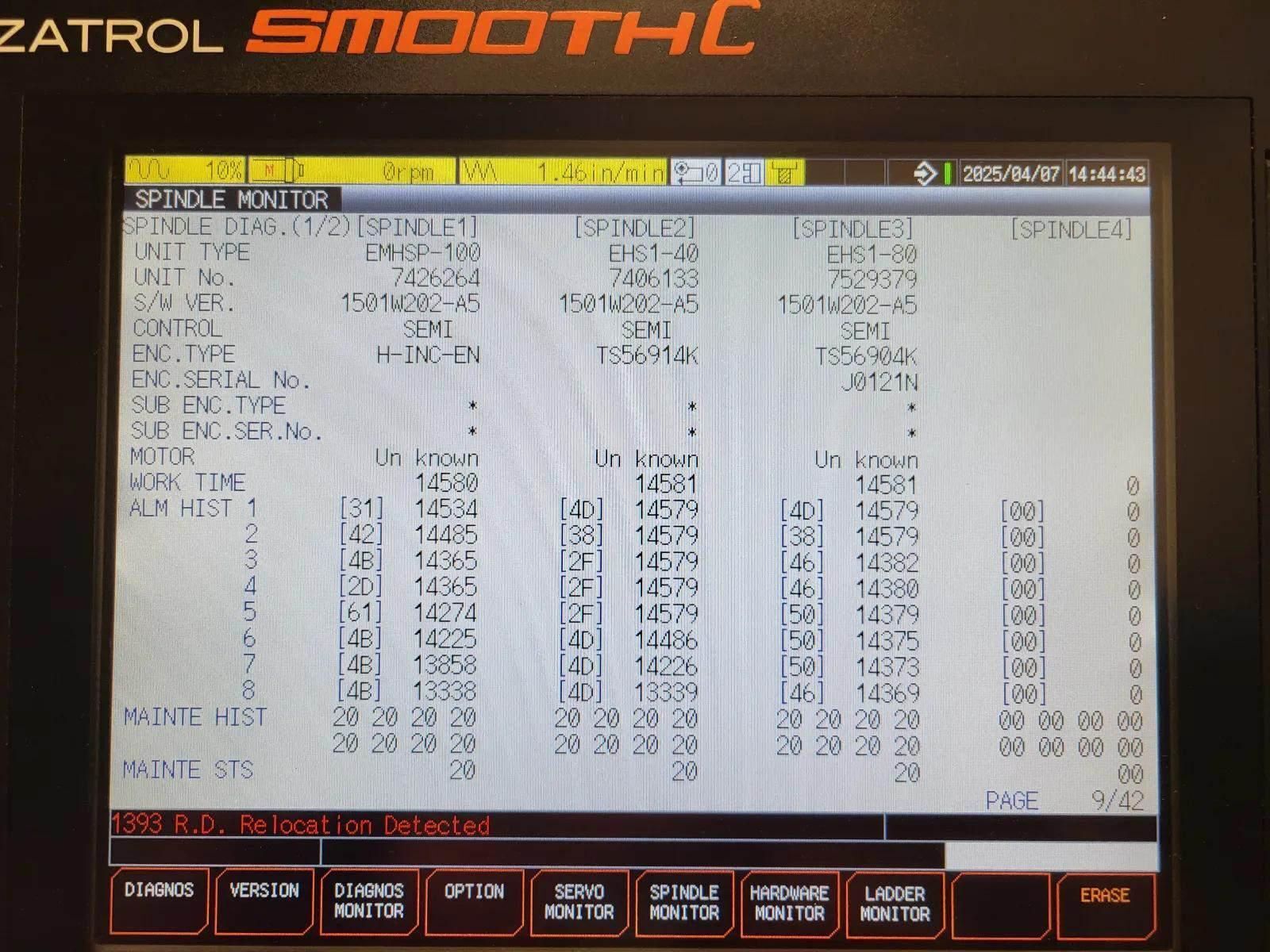

| Mazak SmoothC CNC Control |

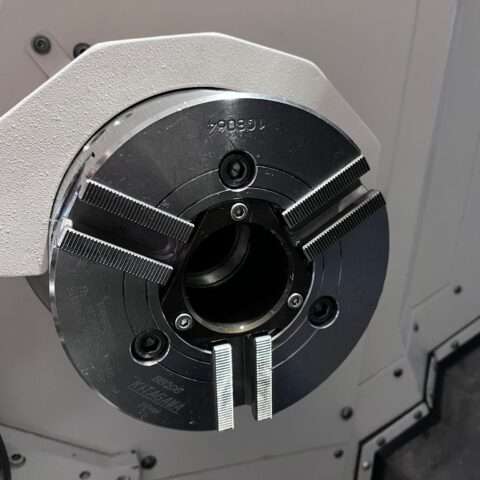

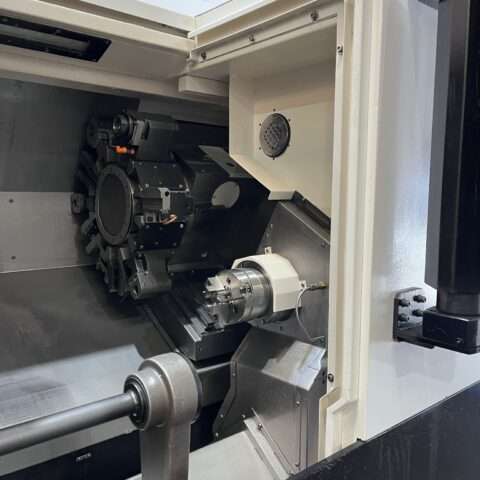

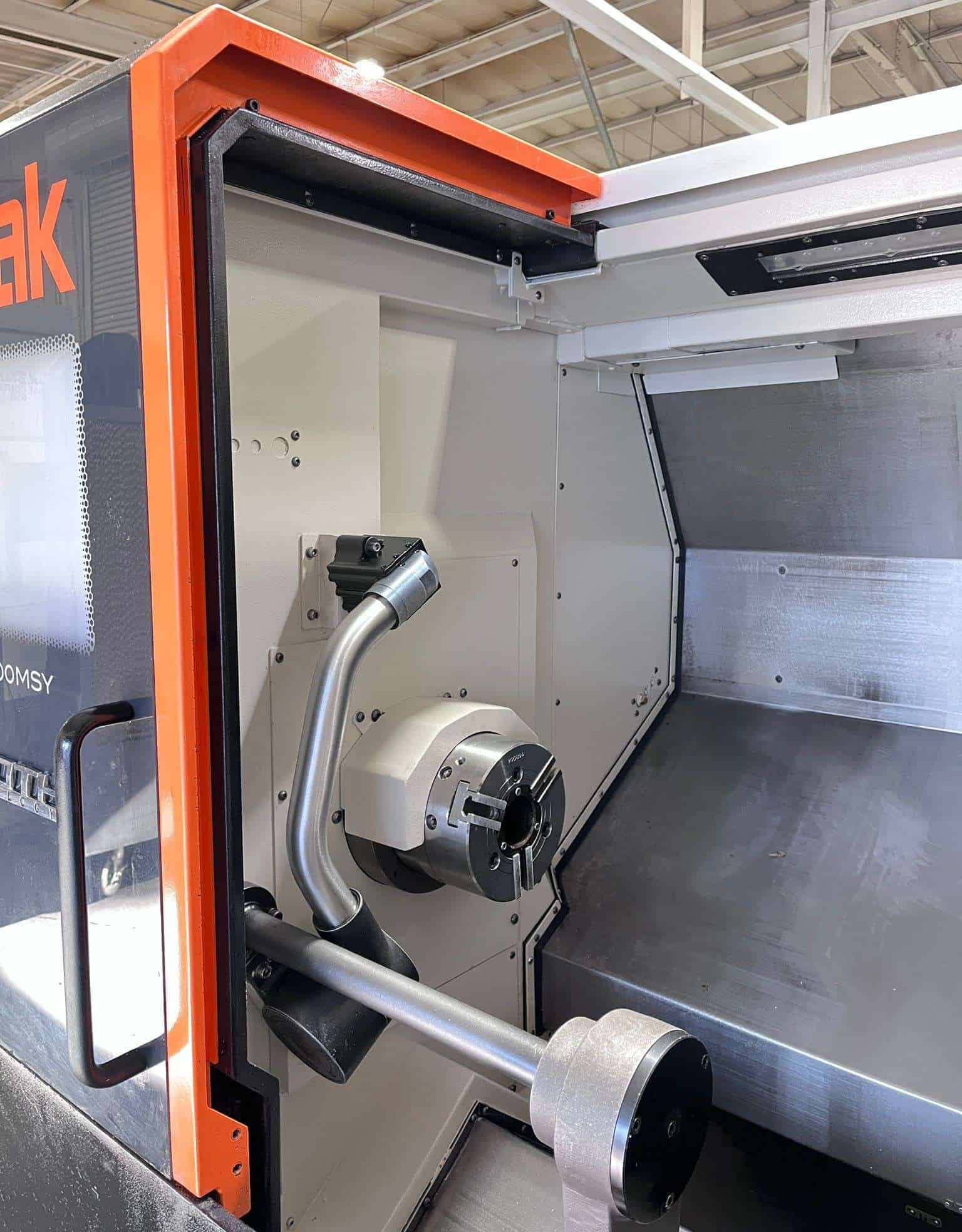

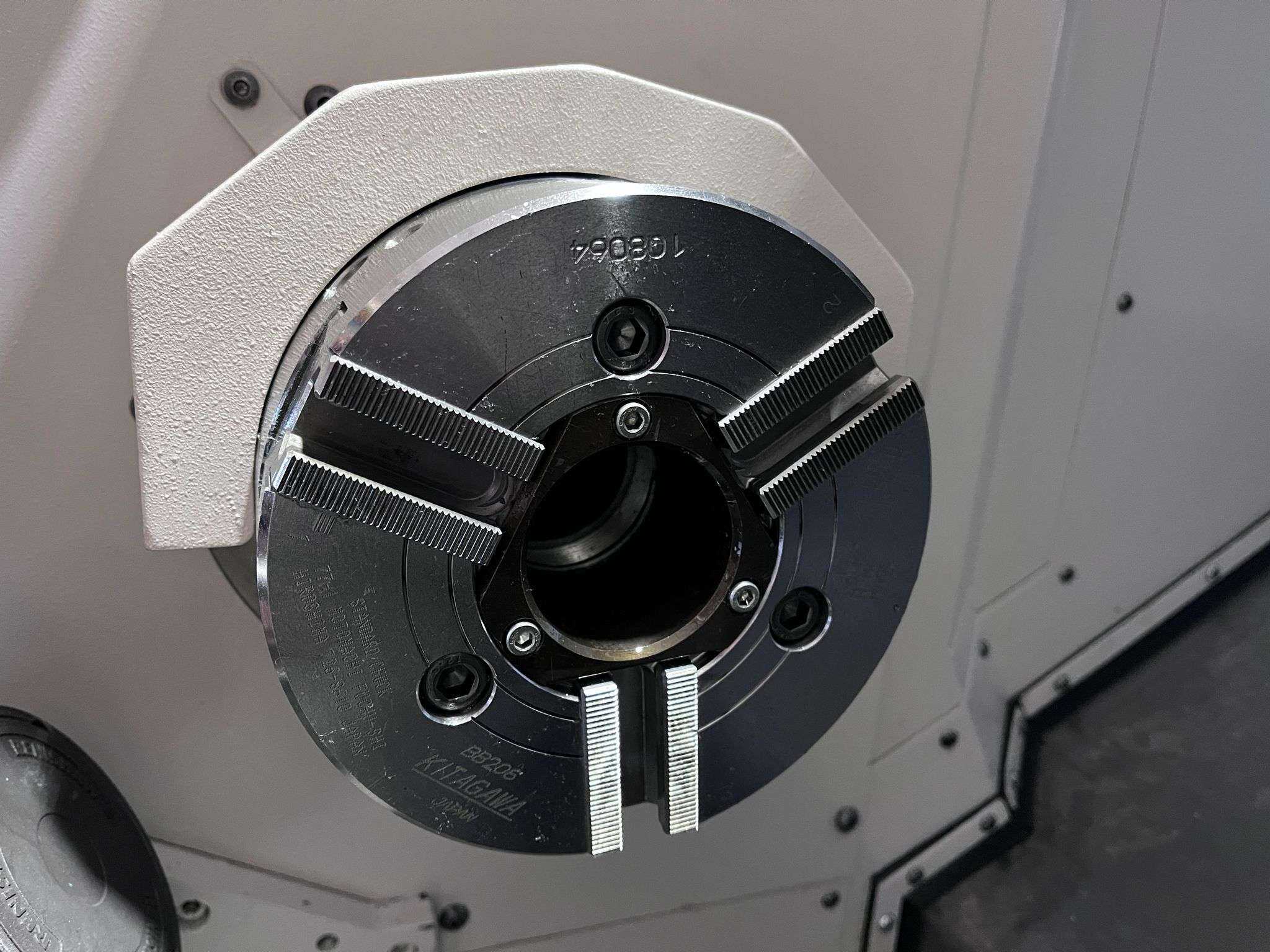

| 6.70″ 3- Jaw Kitagawa BB206 Chuck On Main Spindle |

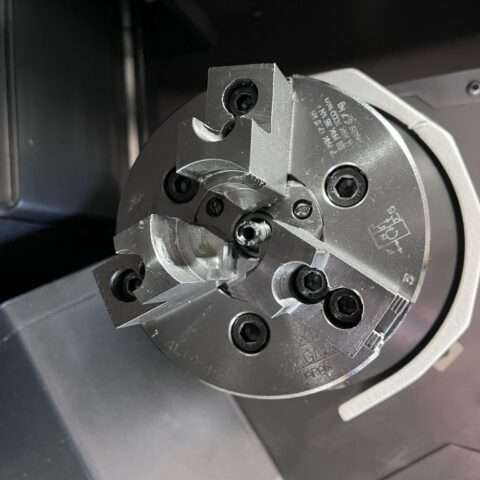

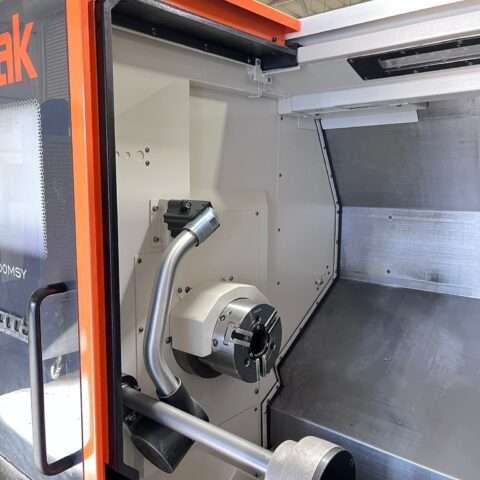

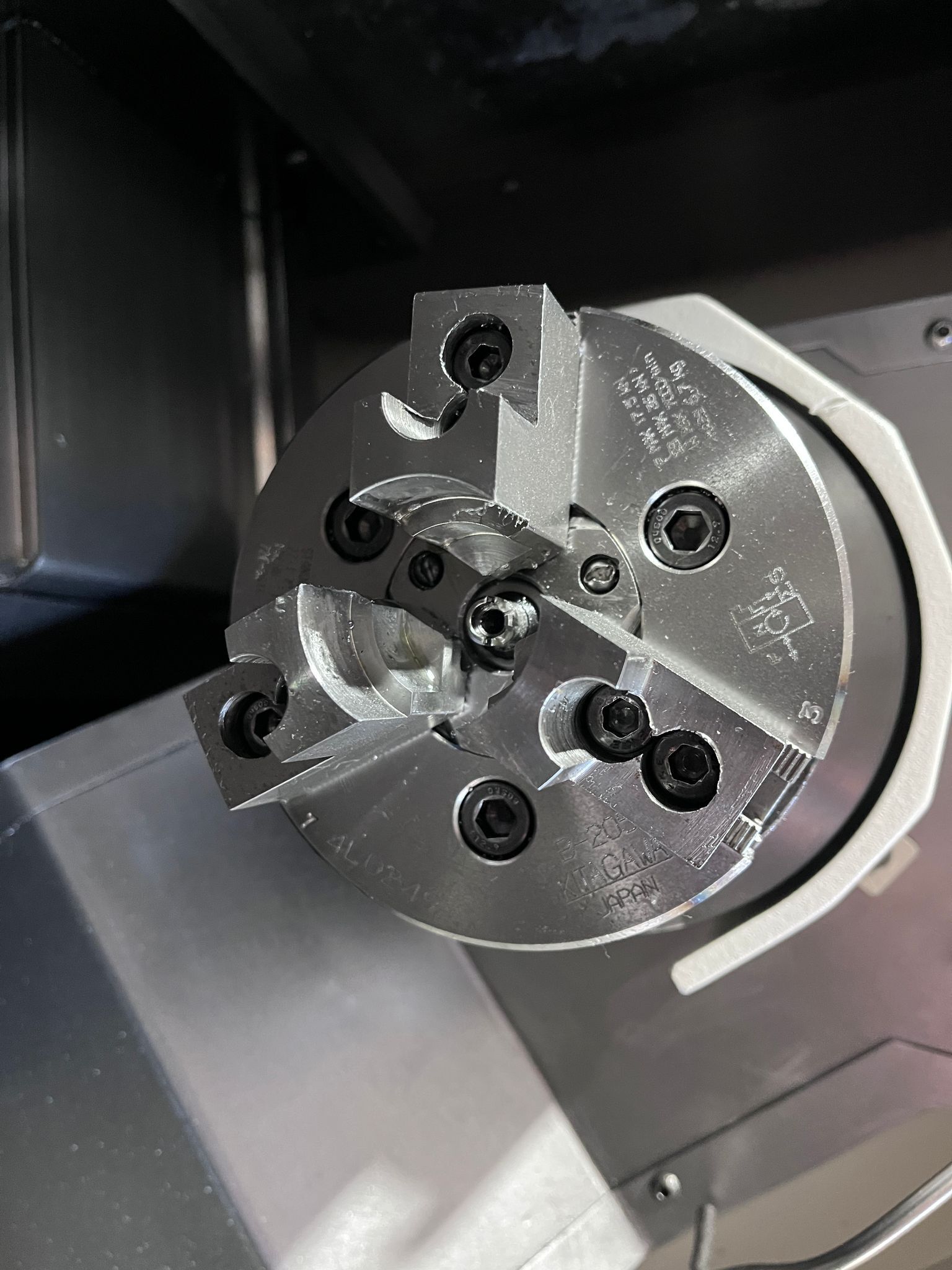

| 5.30″ 3- Jaw Kitagawa B205 Chuck On Sub Spindle |
| Sub Spindle |
| Servo Controlled Full C-Axis on Both Spindles |

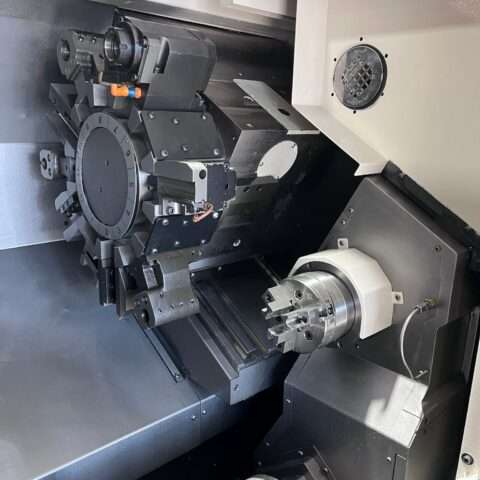

| Y Axis On Turret |

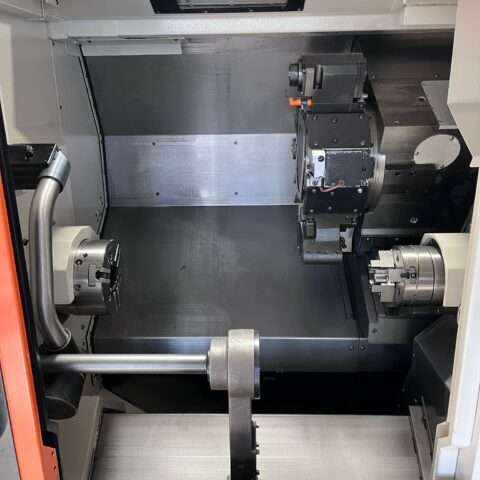

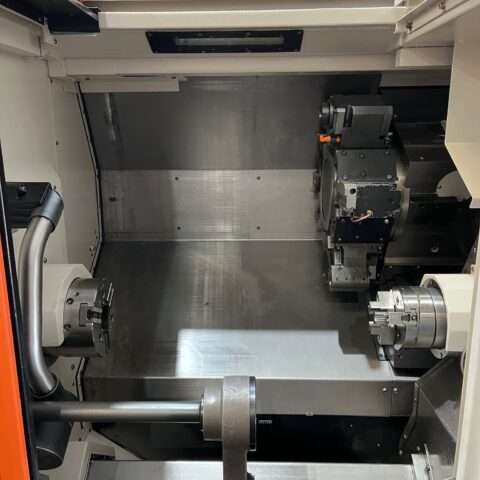

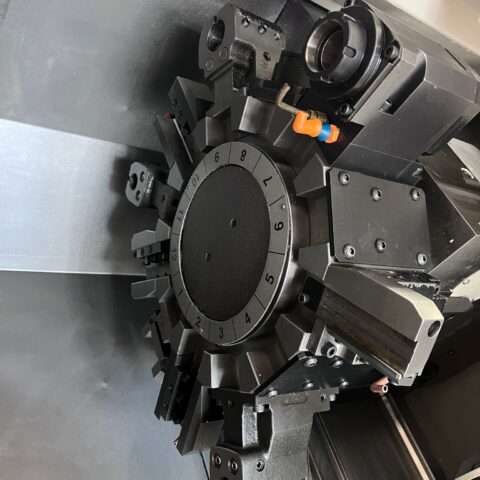

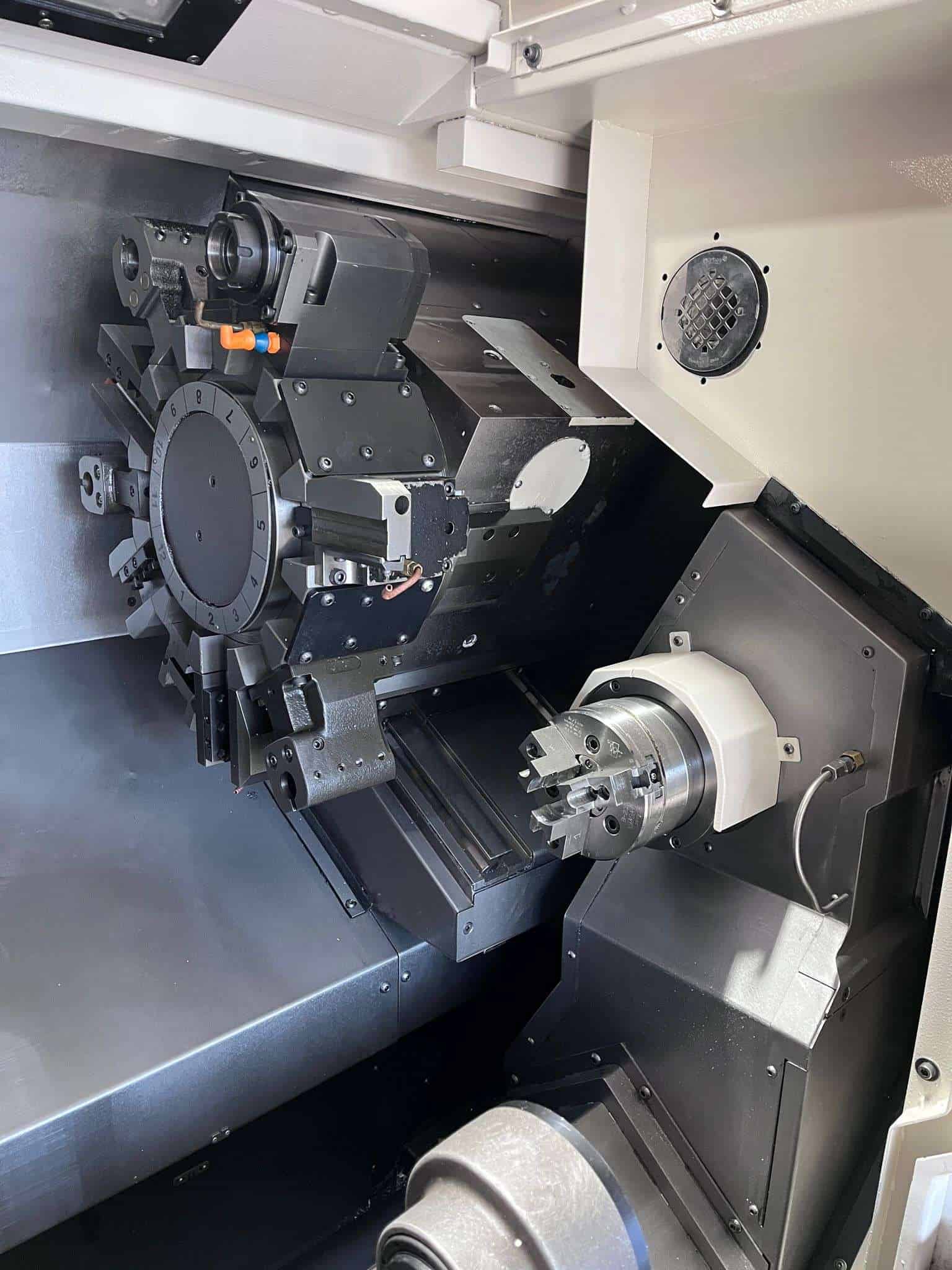

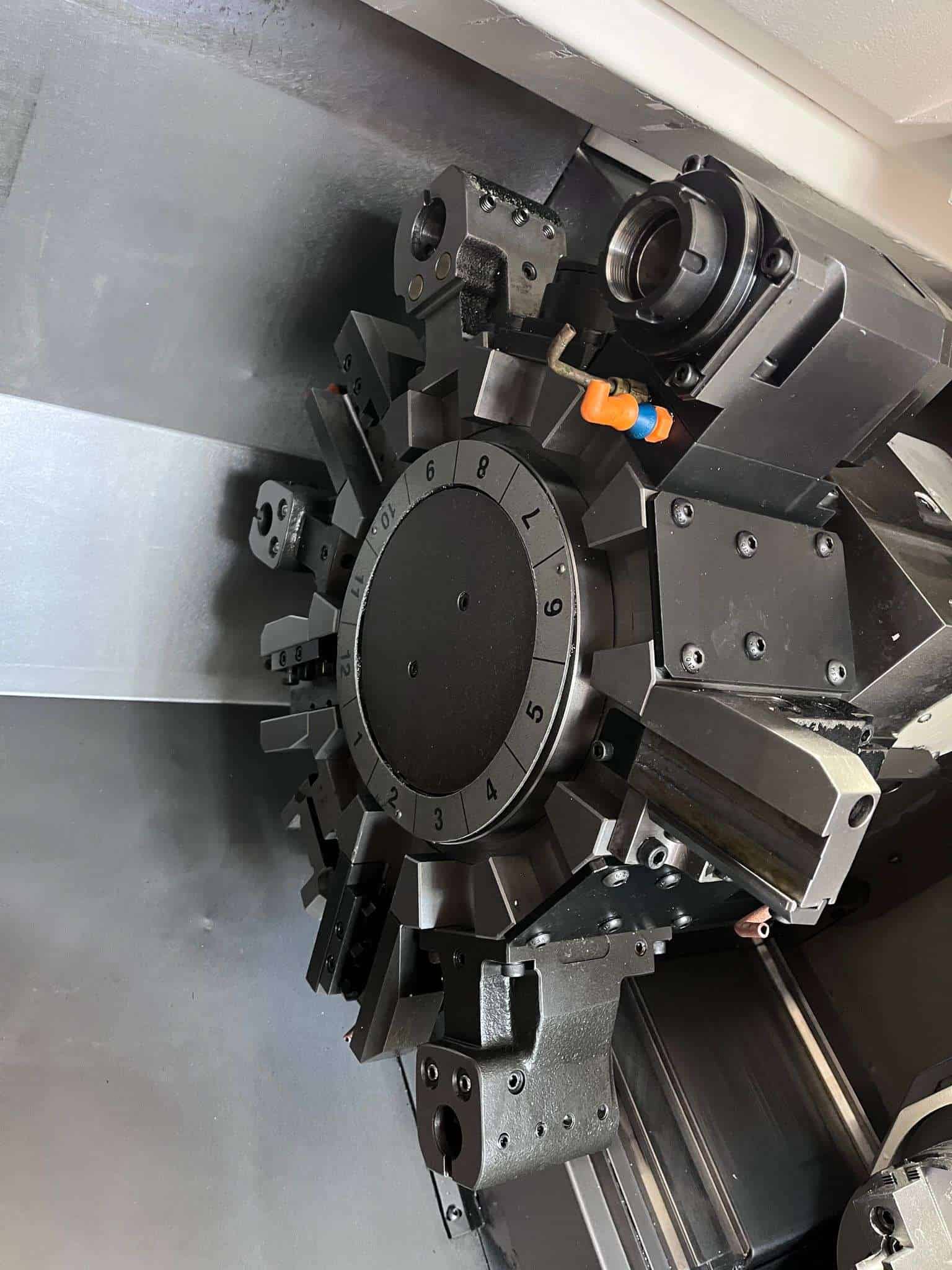

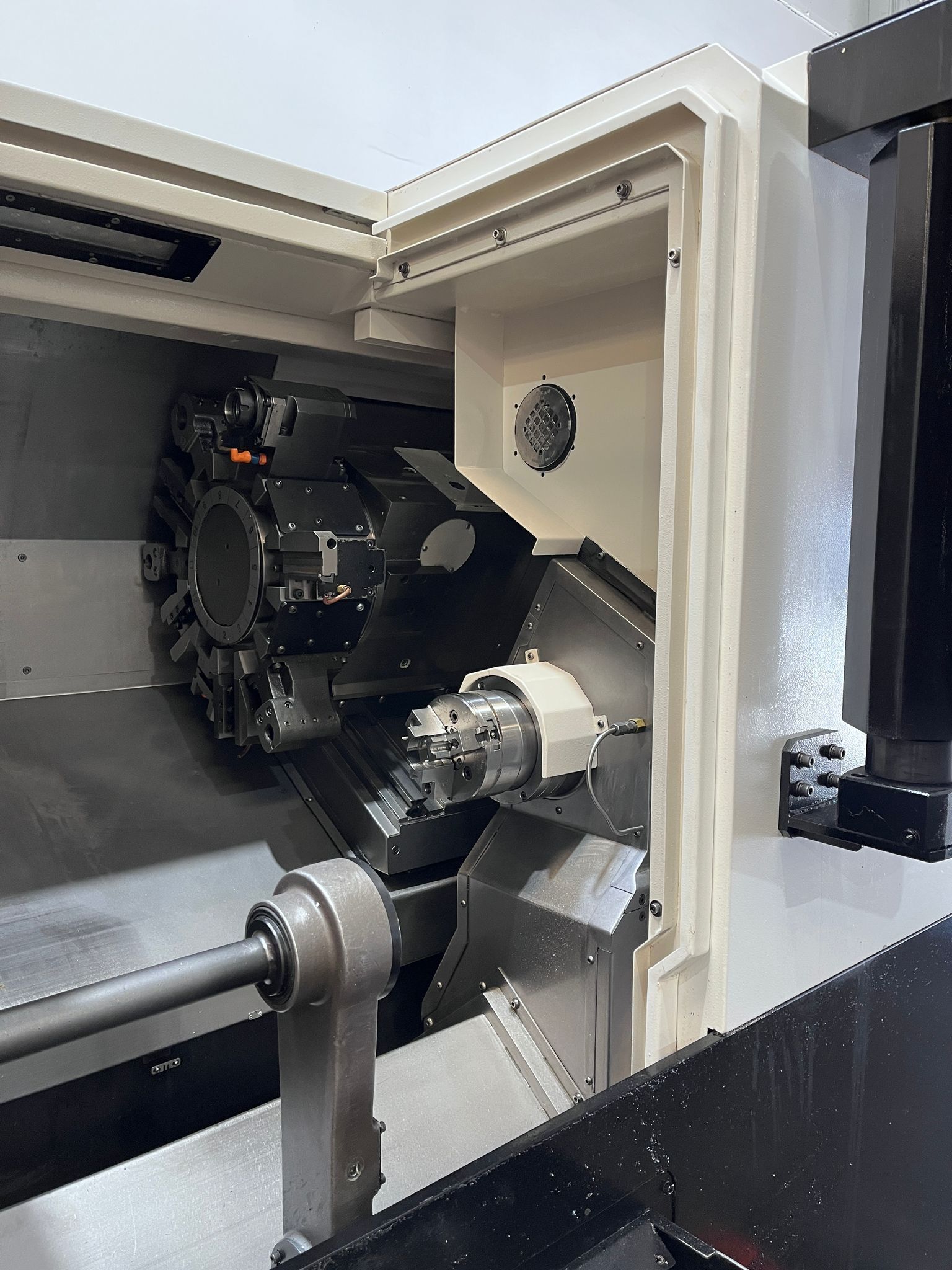

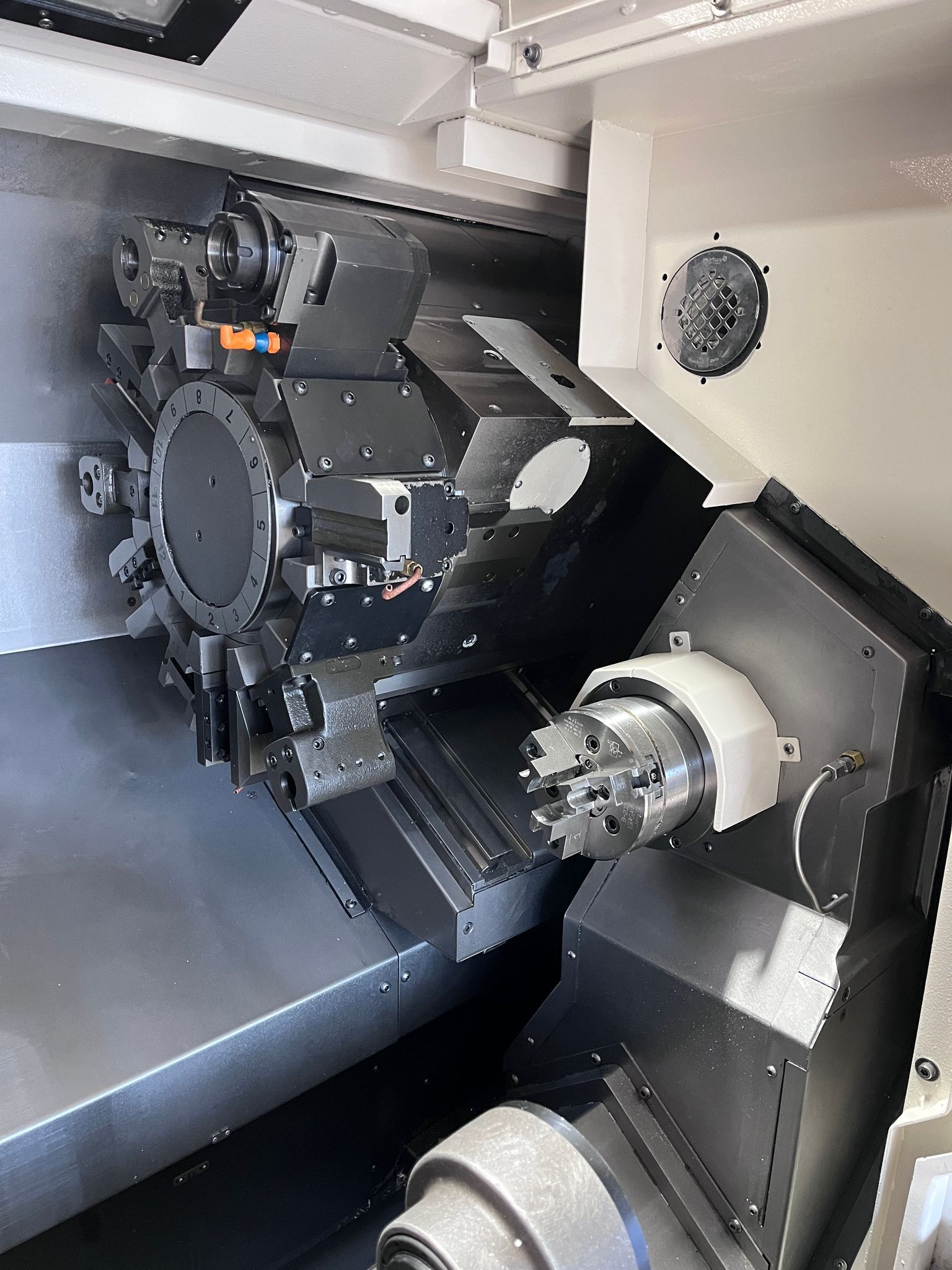

| 12 stations Live Tool Turret |
| Automatic Tool Presetter |
| Part Catcher |
| 25 HP Spindle Power on Main Spindle |
| 20 HP Spindle Power on Main Spindle |
| USB Drive |
| Rigid Tapping on Both Spindles |
| Foot Operated Control for Chuck |
| Coolant System |

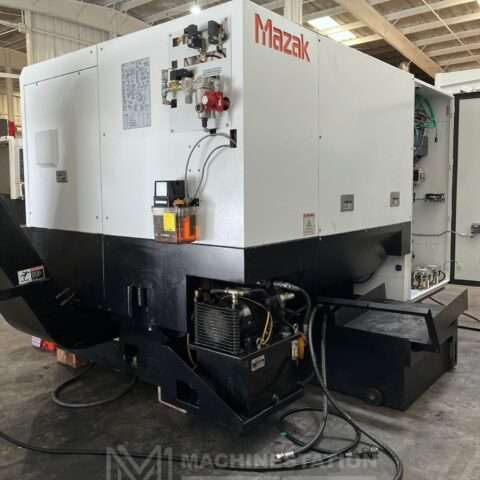

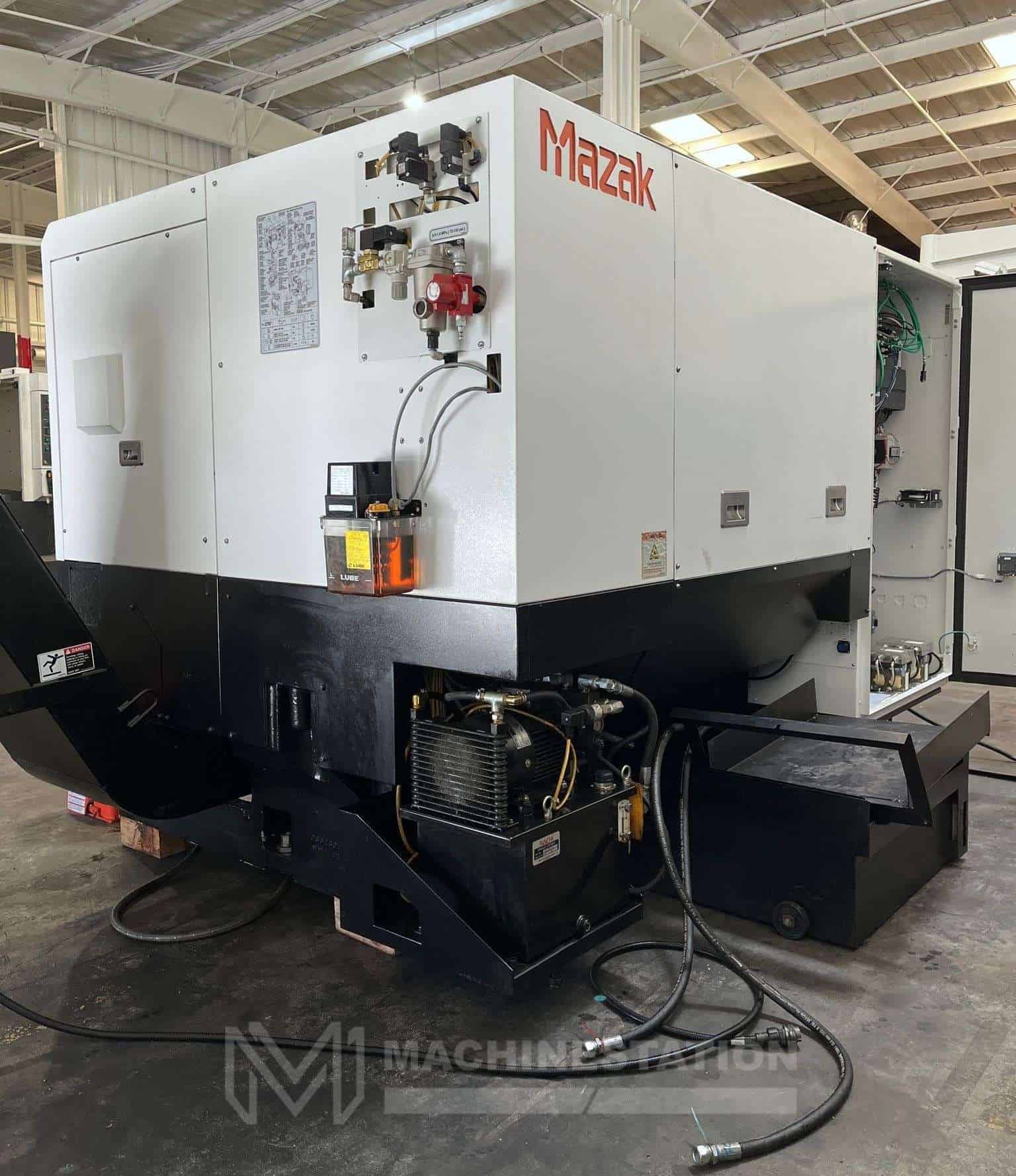

| Automatic Lubrication System |

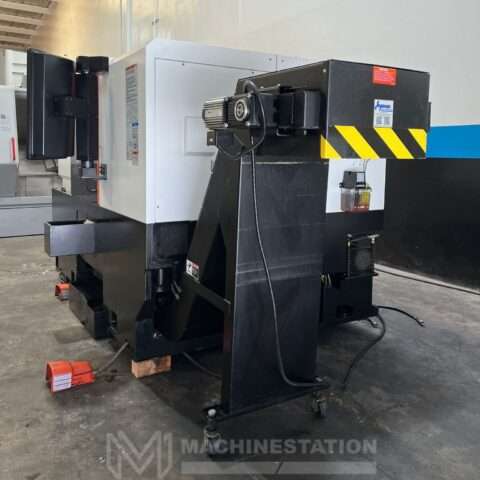

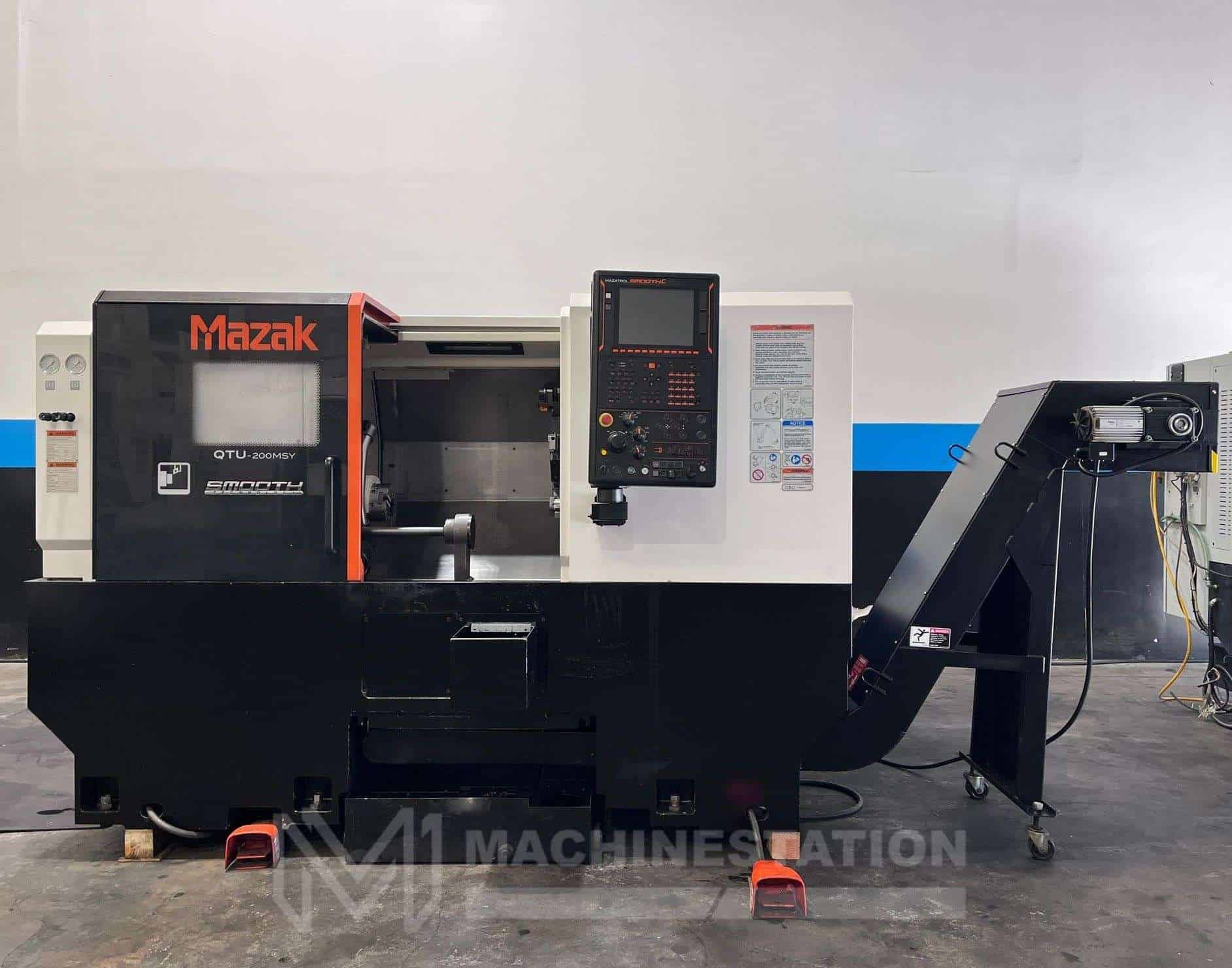

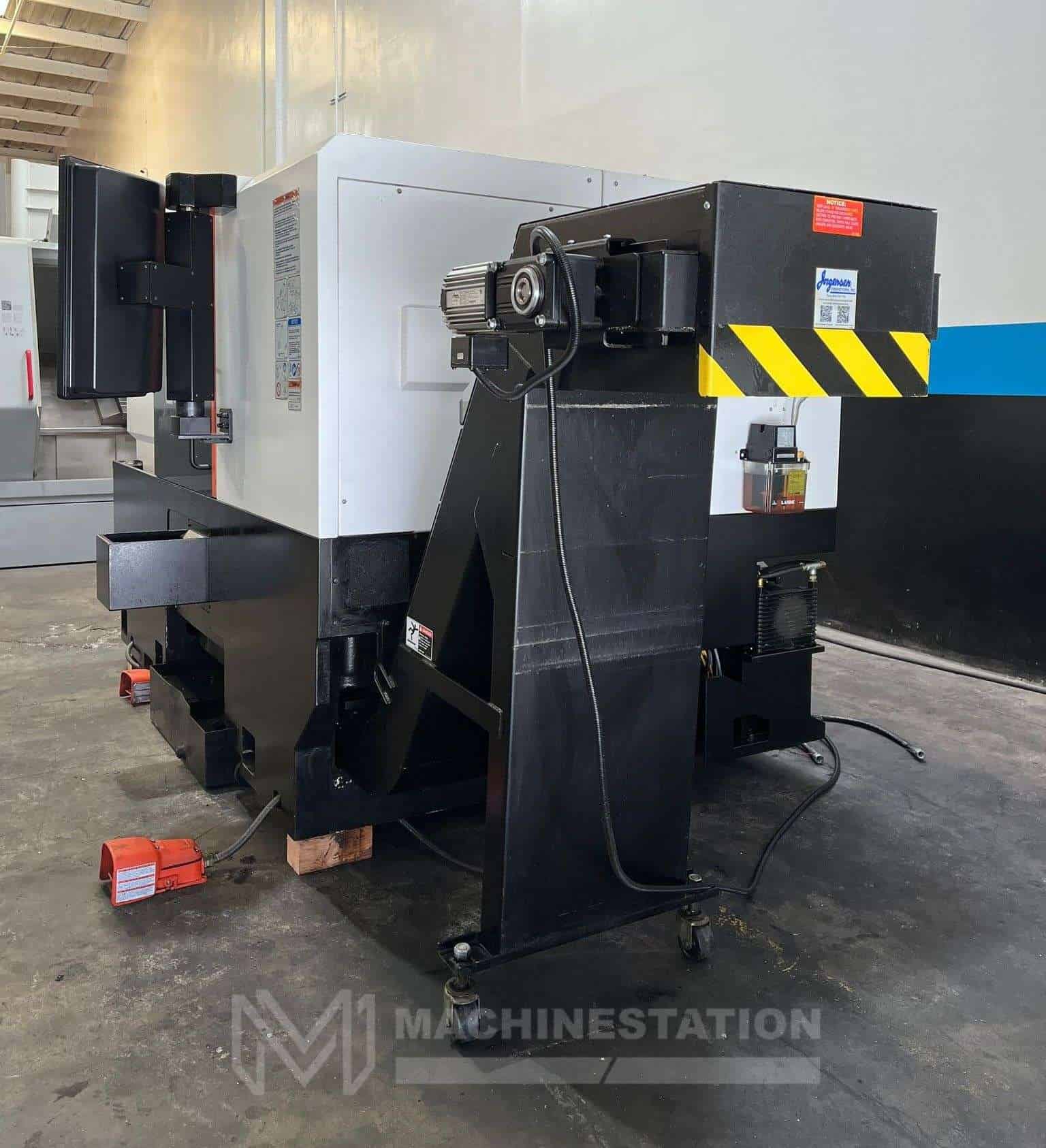

| Chip Conveyor |

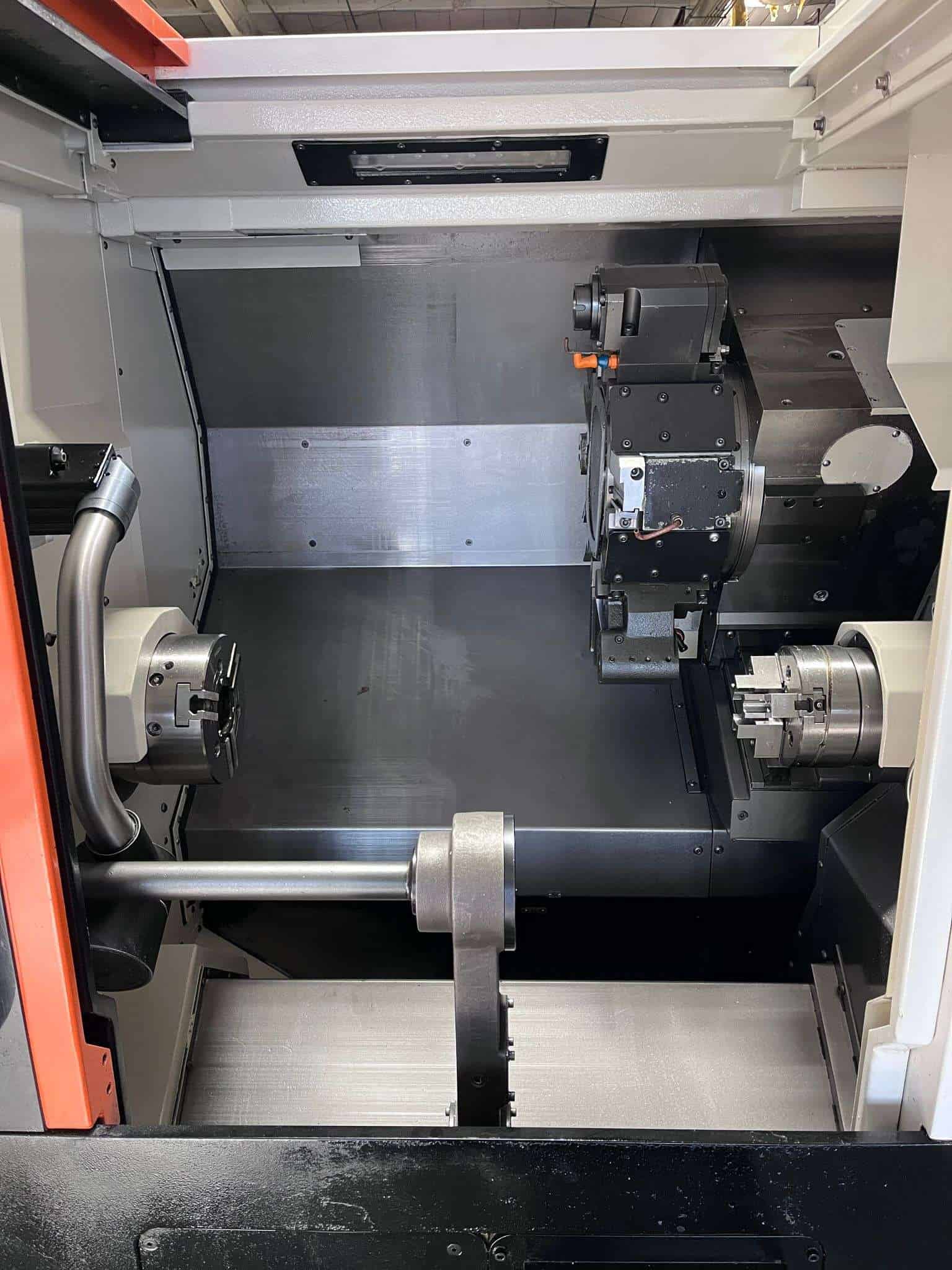

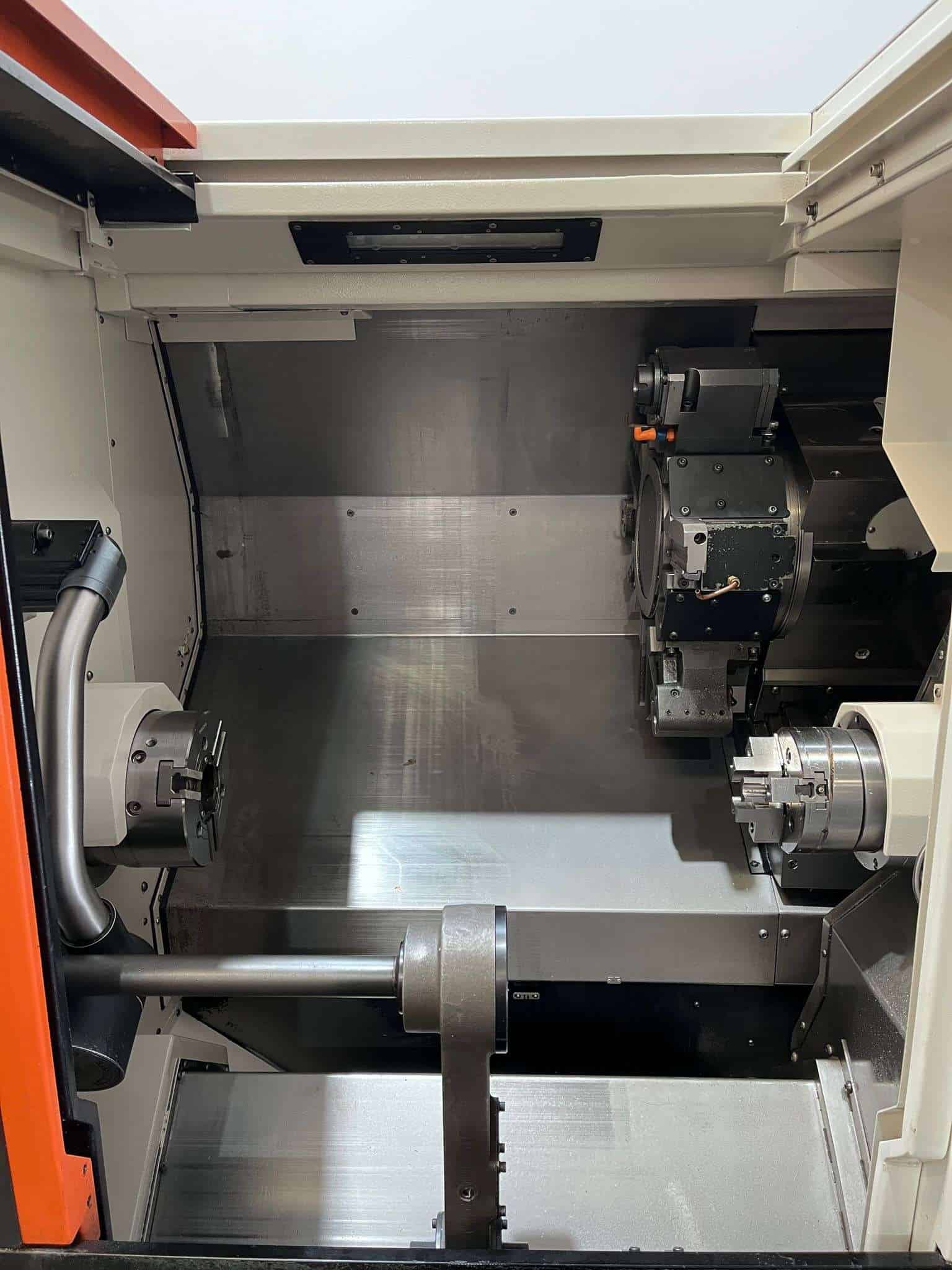

| (5) Turning Tool Holder (3) Boring Tool Holder (1) Live Tool Holder (Mounted on Turret as Shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter : 13.4″ |
| Max Turning Length : 19.70″ |
| Max Swing Over Bed: 27.4″ |
| Max Bar Capacity Main Spindle : 1.65″ |
| Distance Between Spindles : 23.50″ |
| Travels: |
|---|
| X Axis Travel : 8.50″ |
| Z Axis Travel : 23.75″ |
| Y Axis Travel: 4.00″ |
| W Axis Travel ( Sub Spindle ): 22.12″ |
| C Axis: 360° (0.001°) Both Spindle |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1417 IPM |
| Rapid Traverse Y Axis: 394 IPM |
| Main Spindle: |
|---|
| Main Spindle Bore: 2.06″ |
| Main Spindle Speed: 6,000 RPM |
| Main Spindle Power: 25 HP |
| Sub Spindle: |
|---|
| Sub Spindle Bore: 1.29″ |
| Sub Spindle Speed: 6,000 RPM |
| Sub Spindle Power: 20 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Live Tool Speed: 4,500 RPM |
| Live Tools Motor: 7.3 HP |
| General: |
|---|

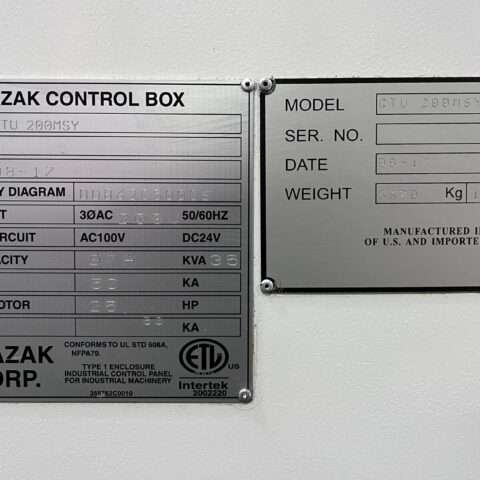

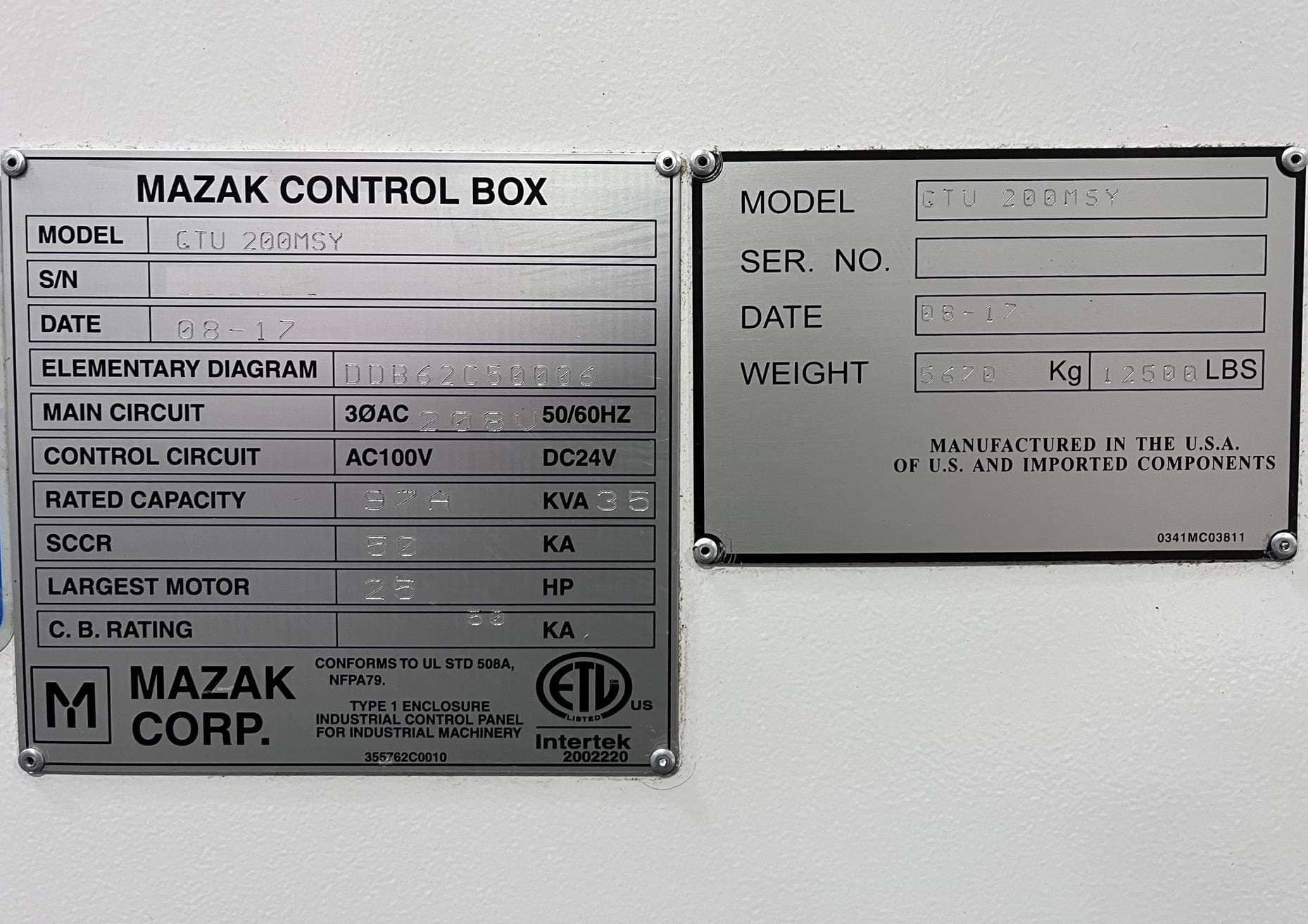

| Power Source: 35 kva / 208v / 50/60 Hz / 3-Phase |
| Overall Dimensions: 102″ X 66.5″ X 67.9″ High Approx. |
| Weight: 12,500 lbs. Approx. |
