All specifications are approximations and are subject to verification.
-
Equipped With:

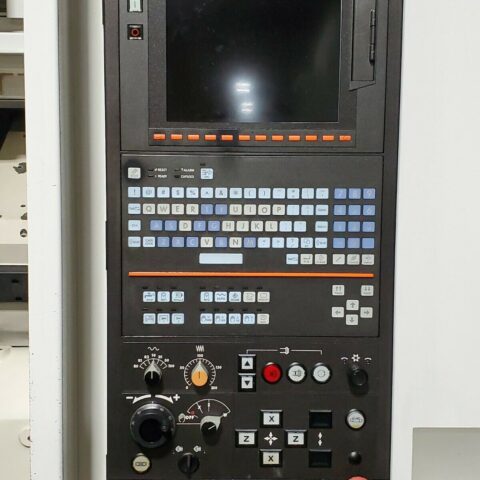

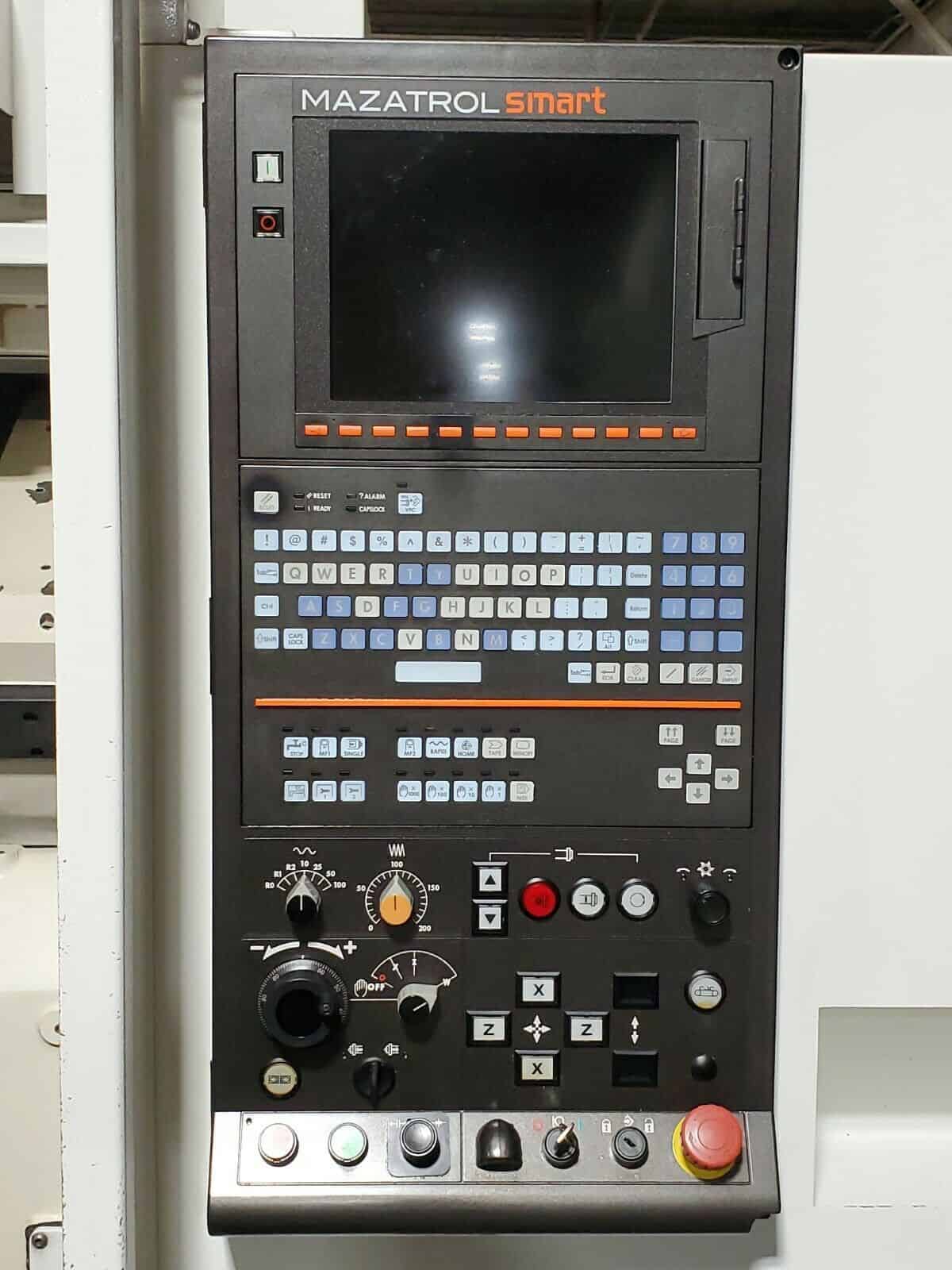

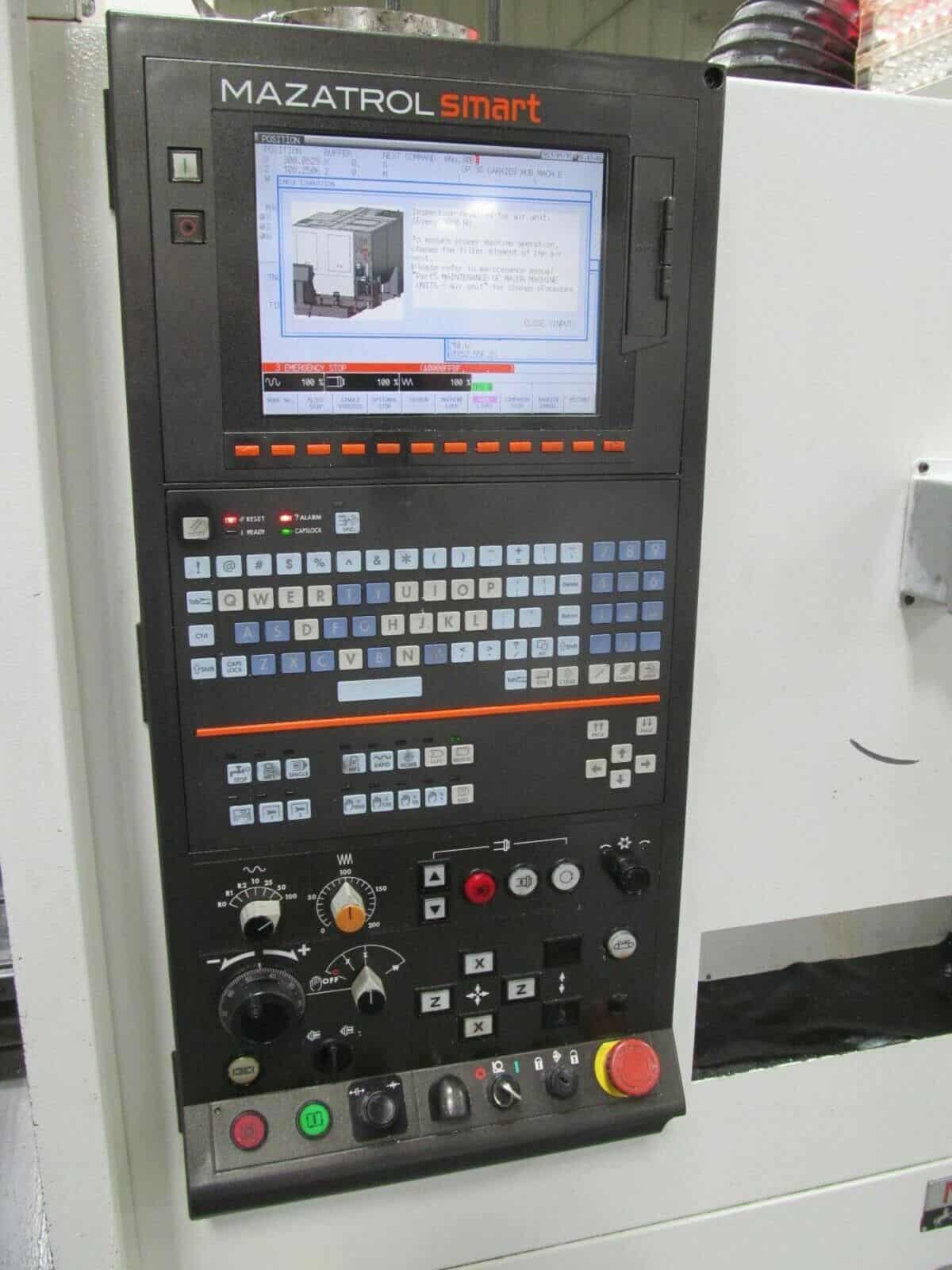

- Mazatrol Smart CNC Control
- EIA-ISO Conversational programming
- 10″ Hydraulic Chuck (Capable)
- A2-8, 4000 RPM Spindle
- Tool Presetter
- Hydraulic Tailstock and Quill
- PCMCIA Card Interface
- 12 Station Automatic Turret
- Foot Switch
- High Pressure Coolant System
- Chip conveyor
- 10GB Hard Disk
-
Specifications:
- Capacity:
- Max Turning Diameter: 13.78″
- Max Turning Length: 18.73″
- Max Bar Capacity: 3.0″
- Swing Over Bed: 24.04″
- Swing Over Carriage: ″
- Distance Between Centers: 22.08”
-
Travels:
- X Axis Travel: 8.76″
- Z Axis Travel: 20.26″
- Rapid Traverse X Axis: 1181 IPM
- Rapid Traverse Z Axis: 1181 IPM
-
Spindle:
- Spindle Nose: A2-8
- Spindle Bore: 3.2″
- Spindle Speed: 4000 RPM
- Spindle Motor: 35 hp
-

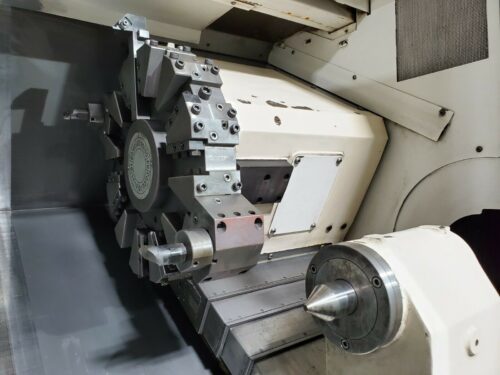

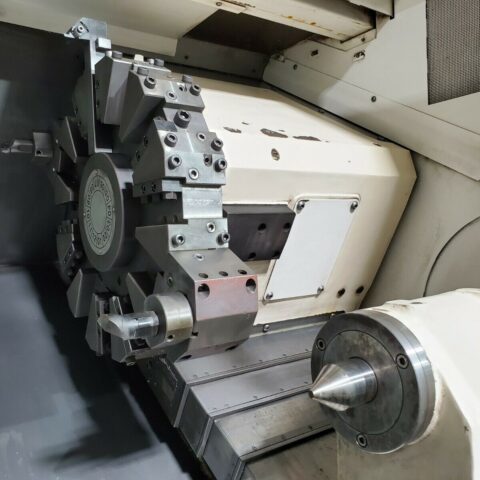

Turret:
- Turret Capacity: 12 Stations
- Turret Index Time: 0.15 Second
- Tool Size: 2″
-
Tailstock:
- Tailstock Taper: MT-4
- Tailstock Body Travel: 20.65″
- Tailstock Quill Dia.: 3.7″
- Tailstock Quill Travel: 3.7″
-
General:

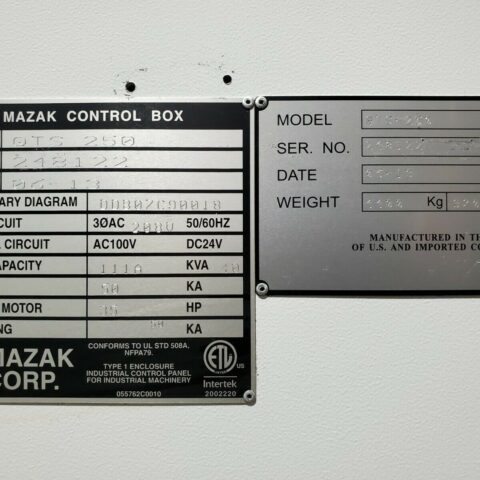

- Power: 55 kva, 220v / 3-Phase
- Overall Dimensions: 120″ x 87″ x 90″ High
- Weight: 11,000 lbs
