*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: |
Mazak |
| Model: |
VARIAXIS 730-5X II |
| Condition: |
Used |
| Equipped With: |

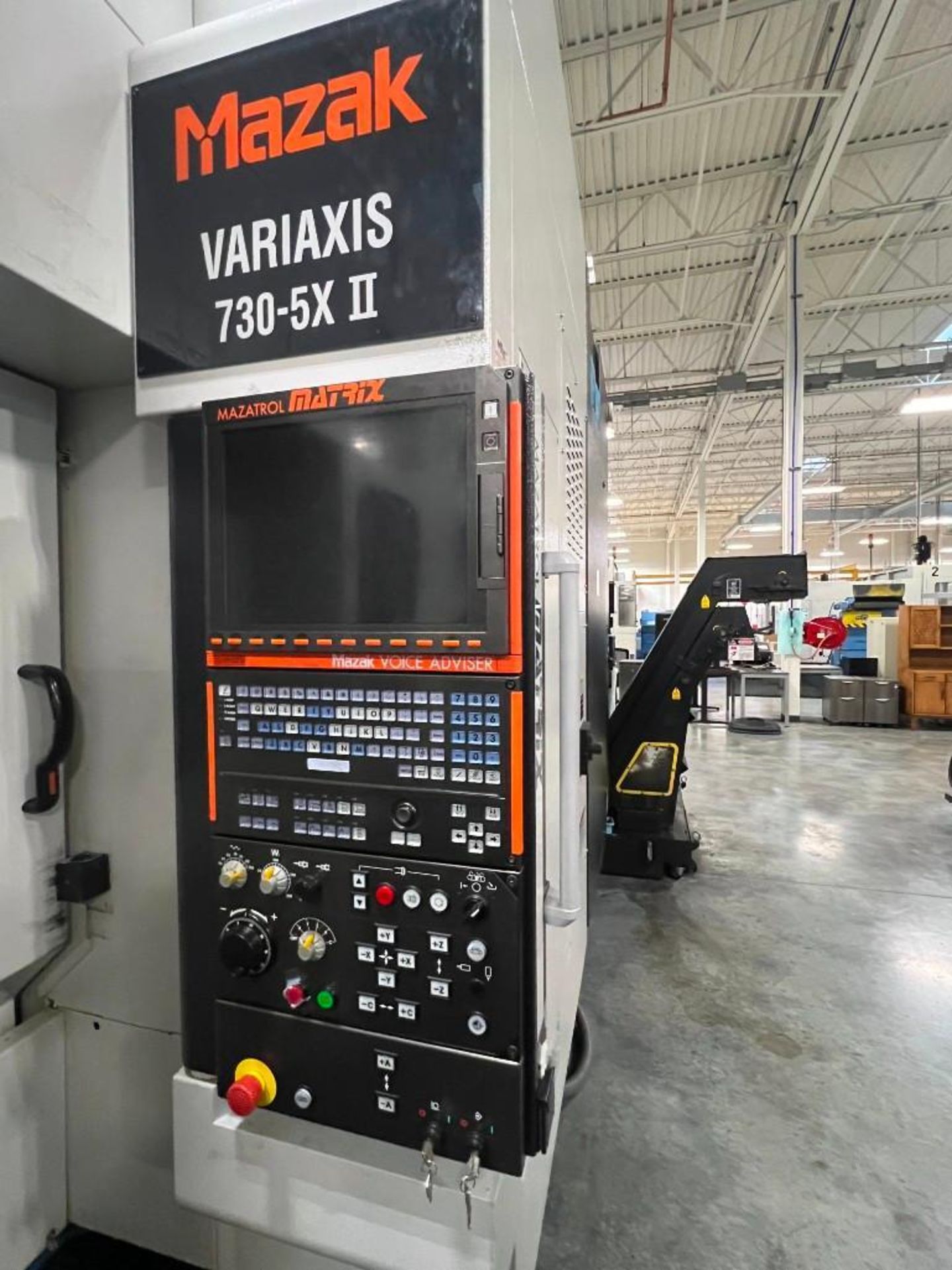

- MAZATROL SmoothX CNC Control
- Simultaneous 5-Axis Machining
- Direct Drive Rotary Table
- High-Speed Spindle
- Automatic Tool Changer
- Renishaw Touch Probe Ready
- Through-Spindle Coolant Ready
- Coolant System

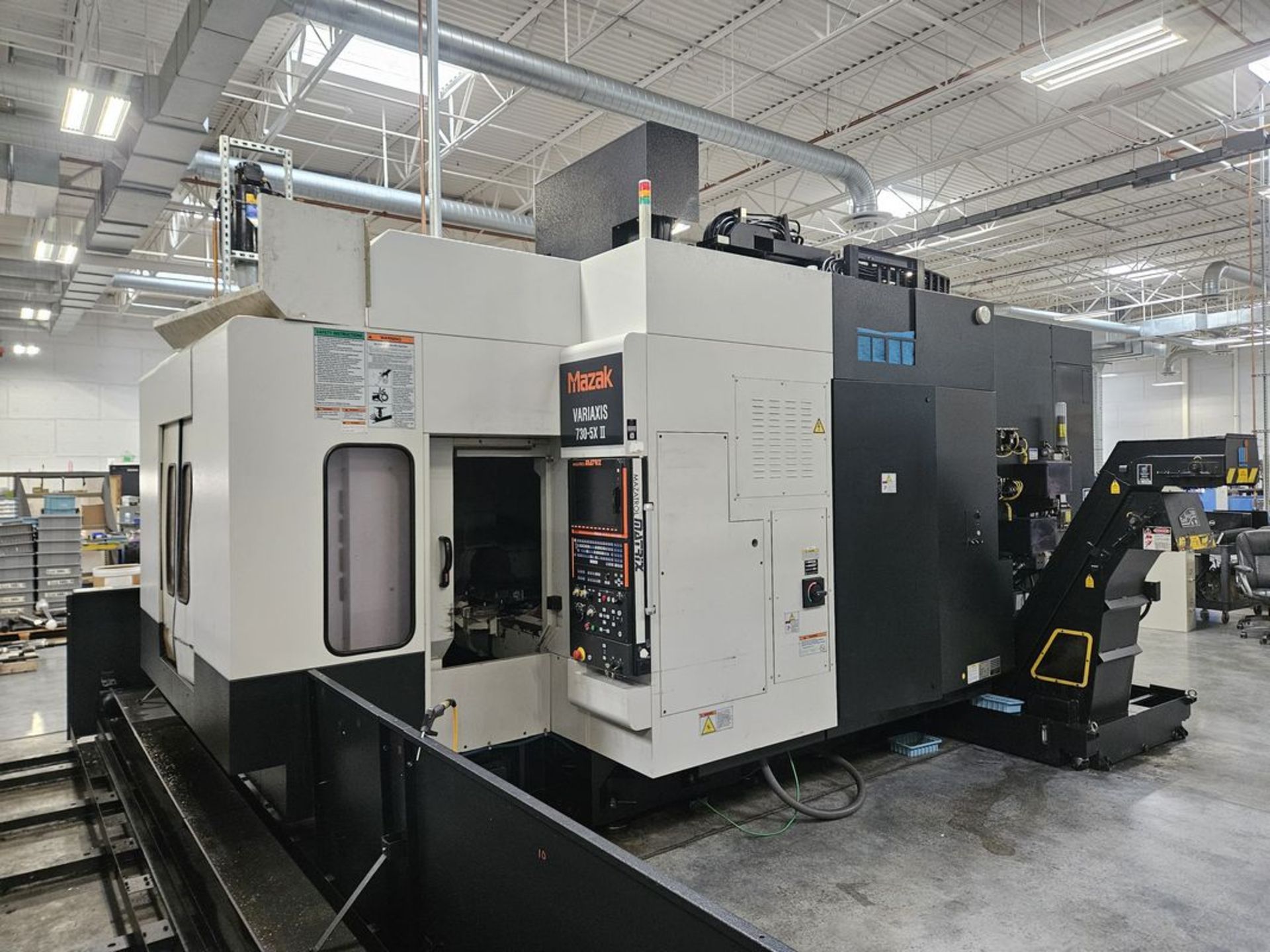

- Chip Conveyor

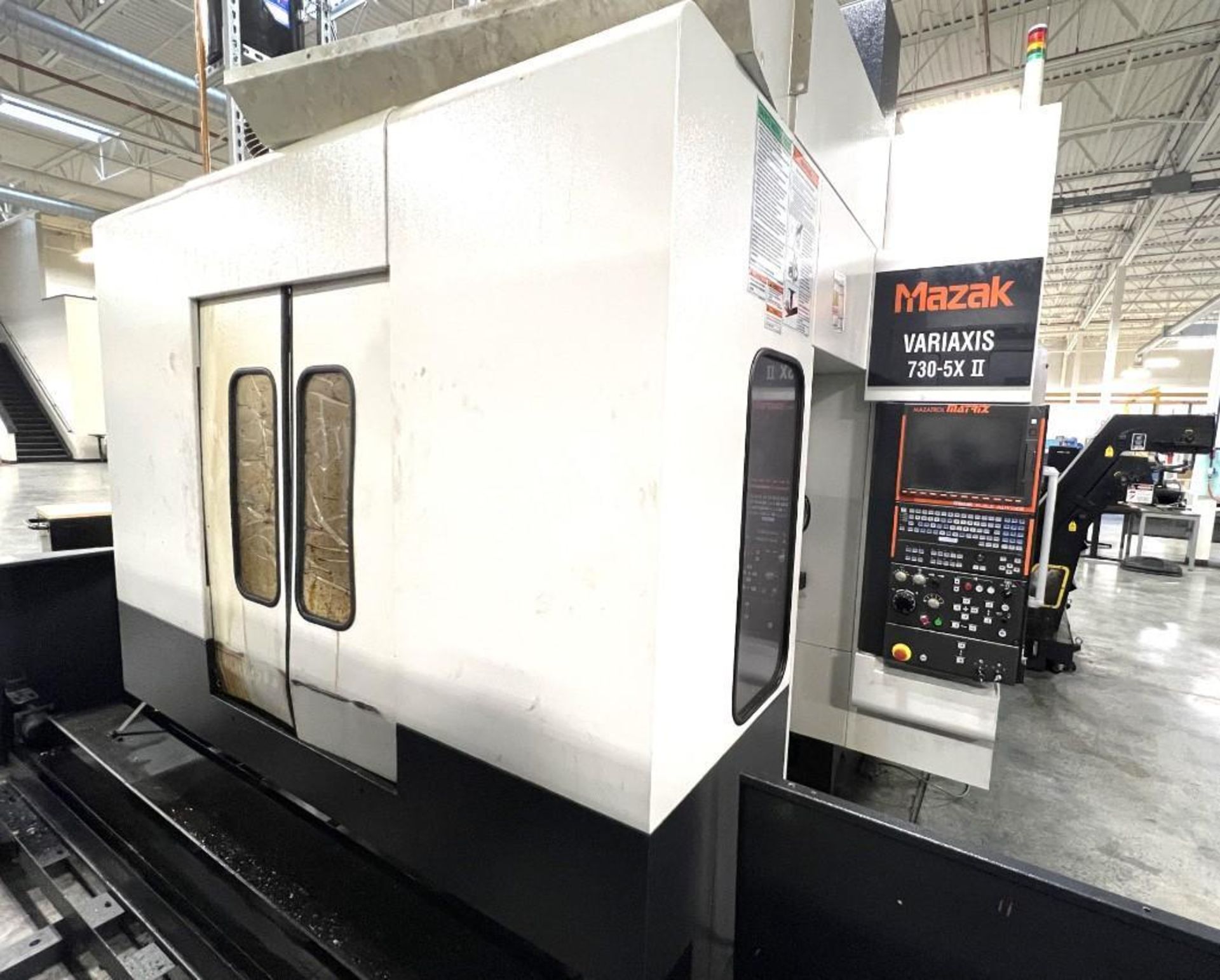

- Full Enclosure
|
| Capacity: |
- Table Size: Ø 25.6″
- Max Workpiece Diameter: 28.7″
- Max Workpiece Height: 19.7″
- Max Table Load: 1,323 lbs
|
| Travels: |
- X-Axis Travel: 28.7″
- Y-Axis Travel: 33.5″
- Z-Axis Travel: 28.7″
- A-Axis Tilt: −120° to +30°
- C-Axis Rotation: 360° Continuous
|
| Spindle: |
- Spindle Taper: CAT-40
- Spindle Speed: 18,000 RPM
- Spindle Motor: 35 HP (10 min) / 25 HP (Continuous)
- Spindle Torque: 118 ft-lbs
|
| Feedrates: |
- Rapid Traverse X/Y/Z: 2,362 IPM
- Cutting Feedrate: 0 – 787 IPM
|
| Automatic Tool Changer: |
- Tool Capacity: 30 Tools (Standard)
- Optional Tool Capacity: 48 / 60 Tools
- Max Tool Diameter: 3.15″ (6.3″ Adjacent Empty)
- Max Tool Length: 15.75″
- Max Tool Weight: 17.6 lbs
|
| General: |
- Power Requirement: 220V / 3-Phase
- Air Requirement: 72 PSI
- Machine Dimensions (Approx.): 150″ × 118″ × 120″
- Machine Weight (Approx.): 27,600 lbs
|
