Mighty Viper HB-3190-1
Mighty Viper HB-3190-2
Mighty Viper HB-3190-3

Mighty Viper HB-3190 CNC Bridge Mill – 40 ATC

SKU 11216
Make/Model Mighty Viper HB-3190
Year 2001
Condition Used - Good
Video On Request
Out of stock
SKU: 11216
Make/Model: Mighty Viper HB-3190
Year: 2001
Condition: Used – Good
Video: On Request
SKU: 11216

*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Mighty Viper
Model No.: HB-3190
Year of Manufacture: 2001
Condition: Used – Good
Machine Type: CNC Bridge Type Vertical Milling Machine

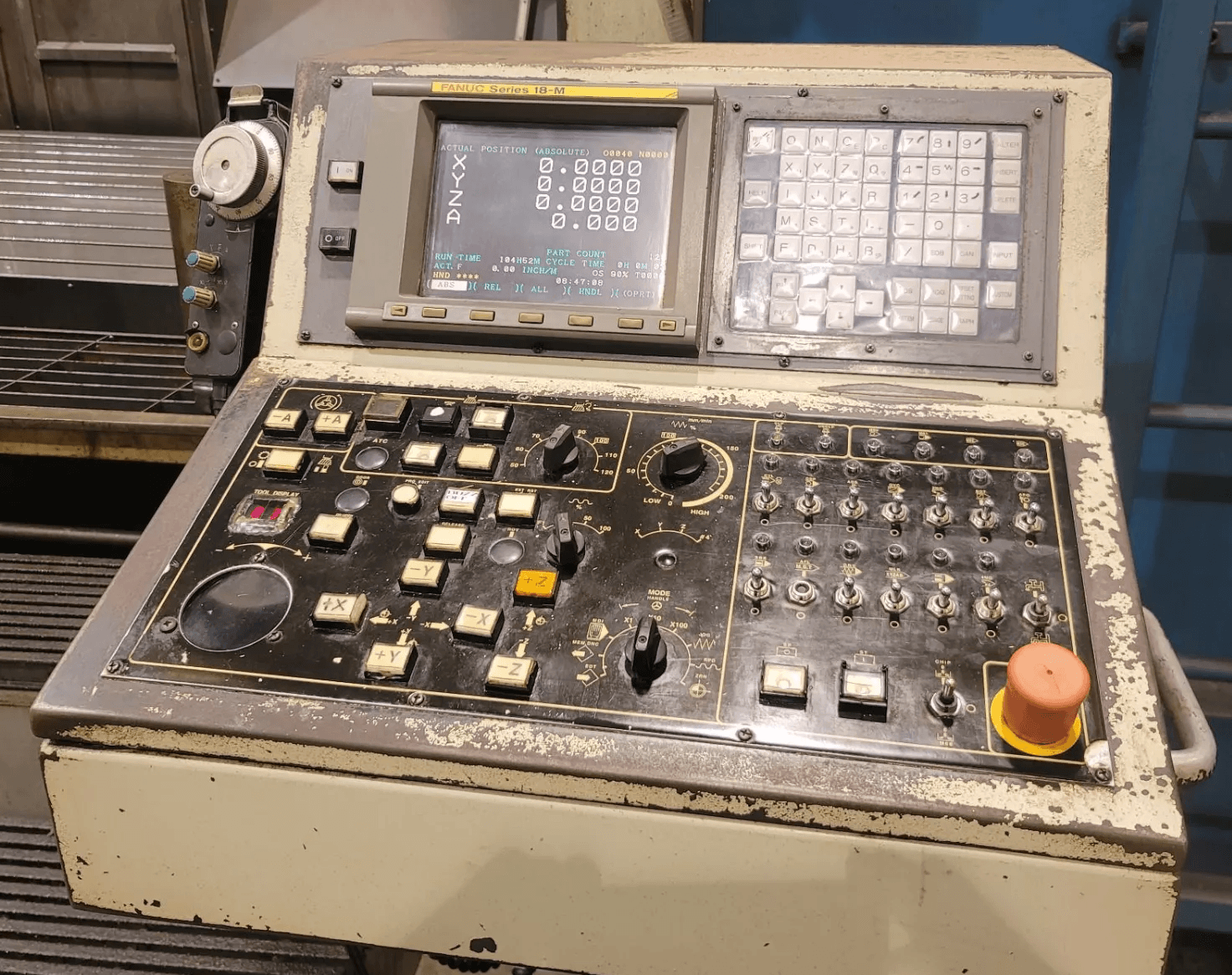

CNC Control: Fanuc Series 18-M CNC Control
Equipped With:
Fanuc 18-M CNC Control
40-Position Automatic Tool Changer
CAT 50 Spindle
High-Pressure Coolant System
Full Enclosure / Guarding
Pendant Control
Heavy-Duty Bridge Construction
Capacity:
Table Size: 72″ × 122″
Maximum Table Load: 20,000 lbs
Distance Between Columns: 86″
Spindle Nose to Table: 6″ – 50″
Travels:
X-Axis Travel: 118″
Y-Axis Travel: 77″
Z-Axis Travel: 36″
Spindle:
Spindle Taper: CAT 50
Spindle Speed: Up to 4,000 RPM
Spindle Motor: 35 HP
Tooling:
Tool Capacity: 40 ATC
Tool Changer Type: Automatic

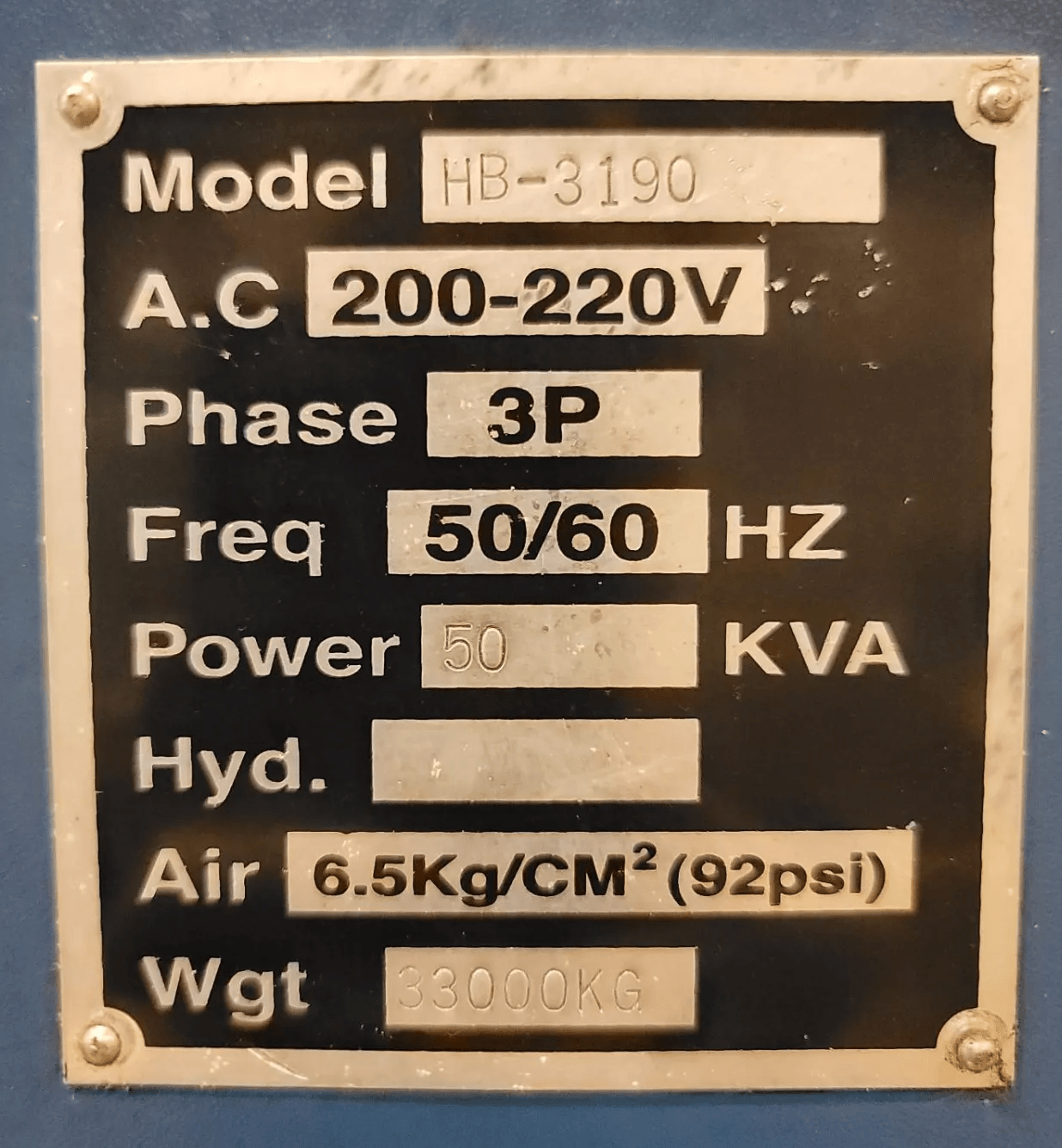

Electrical:
Voltage: 200–220V
Phase: 3-Phase
Frequency: 50/60 Hz
Power Requirement: 50 kVA
Air Requirement: 6.5 kg/cm² (92 PSI)
General:
Machine Weight: ~33,000 kg
Machine Type: Heavy-Duty Floor Type Bridge Mill
Features:
Large-format machining ideal for oversized plates and components
Rigid bridge design ensures high accuracy and stability
CAT 50 spindle for heavy cutting applications
40-tool ATC supports complex multi-operation jobs
High-pressure coolant improves tool life and chip evacuation
Excellent for aerospace, mold & die, energy, and heavy fabrication
Equipped With:
Fanuc 18-M CNC Control
40-Position Automatic Tool Changer
CAT 50 Spindle
High-Pressure Coolant System
Full Enclosure / Guarding
Pendant Control
Heavy-Duty Bridge Construction
Capacity:
Table Size: 1,829 mm × 3,099 mm
Maximum Table Load: 20,000 lbs
Distance Between Columns: 2,184 mm
Spindle Nose to Table: 152 mm – 1,270 mm
Travels:
X-Axis Travel: 2,997 mm
Y-Axis Travel: 1,956 mm
Z-Axis Travel: 914 mm
Spindle:
Spindle Taper: CAT 50
Spindle Speed: Up to 4,000 RPM
Spindle Motor: 35 HP
Tooling:
Tool Capacity: 40 ATC
Tool Changer Type: Automatic
Electrical:
Voltage: 200–220V
Phase: 3-Phase
Frequency: 50/60 Hz
Power Requirement: 50 kVA
Air Requirement: 6.5 kg/cm² (92 PSI)
General:
Machine Weight: ~33,000 kg
Machine Type: Heavy-Duty Floor Type Bridge Mill
CategoriesCNC Bridge / Gantry Mill
MakeMighty Viper
ModelHB-3190
  • Large-format machining ideal for oversized plates and components
  • Rigid bridge design ensures high accuracy and stability
  • CAT 50 spindle for heavy cutting applications
  • 40-tool ATC supports complex multi-operation jobs
  • High-pressure coolant improves tool life and chip evacuation
  • Excellent for aerospace, mold & die, energy, and heavy fabrication
