*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*
we are parting this machine out, it is a good running machine we just are unable to find the chip conveyer or the coolant sump for this machine.
Major Components:
- Siemans Servo Drives
- Step Tec High Precision Spindle (HSK E40) – 42,000 RPM – 15hp – $7200 (Free Shipping Con US)
- Heidenhain CNC Control Panels – (display and input together or separately up to you)
- Complete Tool Changer- 36 tool capacity
- Burn Engineering AG Coolant Chiller – WK 5805-C25

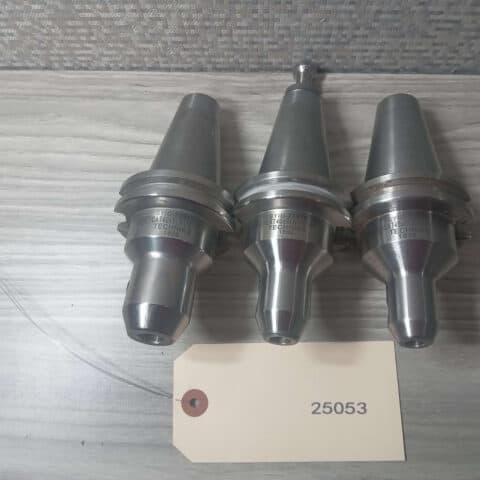

- HSK E40 – TOOL HOLDERS
SPINDLE: HSK E40
| Features: |
|---|
| Heidenhain CNC Control |
| 5 Axis Simultaneous Machining |
| Programmable Swivelling Trunnion Table |
| 360° (0.001°) Rotary Table Positioning |
| 36 Station Automation Tool Changer |
| MPG Handwheel Remote Control |
| Thermal Compensation |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| Fast Rapid Traverse Rate |
| Table: | |
|---|---|
| Length: | 9.05″ |
| Width: | 9.05″ |
| Max Weight on Table: | 55 lbs |
| Rotary Table Diameter: | 6.14″ |
| Travel: | |
|---|---|
| X Axis: | 15.75″ |
| Y Axis: | 9.44″ |
| Z Axis: | 13.78″ |
| A Axis: | +110° – 110° ( Table Tilt ) |
| C Axis: | 360° (0.001°) ( Table Rotate ) |
| Spindle: | |
|---|---|
| Taper Size: | HSK E40 |
| Speed Range: | 42,000 RPM |
| Spindle Power: | 15 HPFeed |
| Rates: | Rapid X Y & |
| Z: | 1575 Inch Per Minute |
| Feed Rate: | 1575 Inch Per Minute |
| Tool Changer: | |
|---|---|
| Capacity: | 36 Tools |
| Taper: | HSK E40 |
| Max Tool Size: | 4″ |
| Max Tool Weight: | 22 lbs |
| General: | |
|---|---|
| Air Required: | 80 psi, 4 scfm |
| Power: | 15Kw / 400v / 3-Phase |
| Overall Dimensions: | 126″ x 114″ x 118″ High |
| Weight: | 12,125 lbs |
