*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

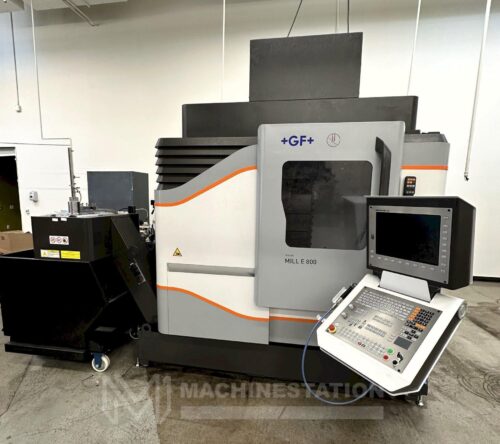

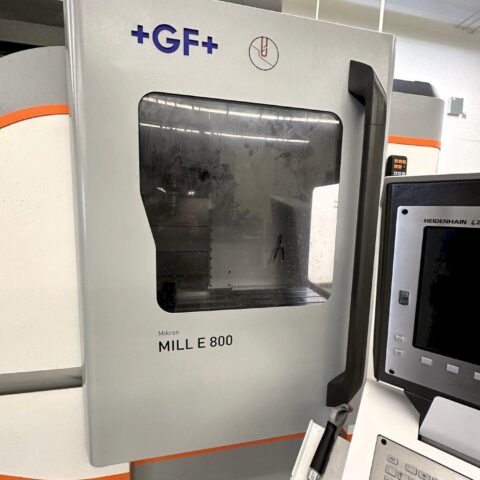

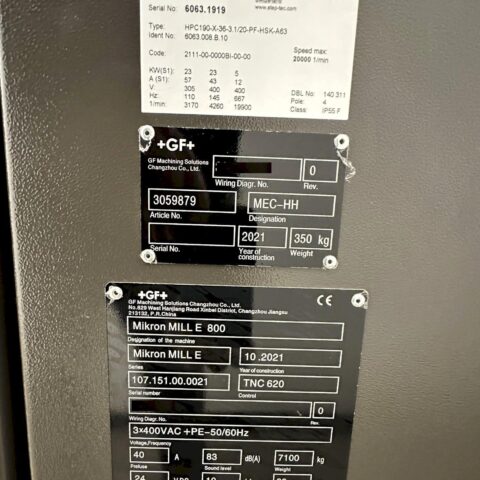

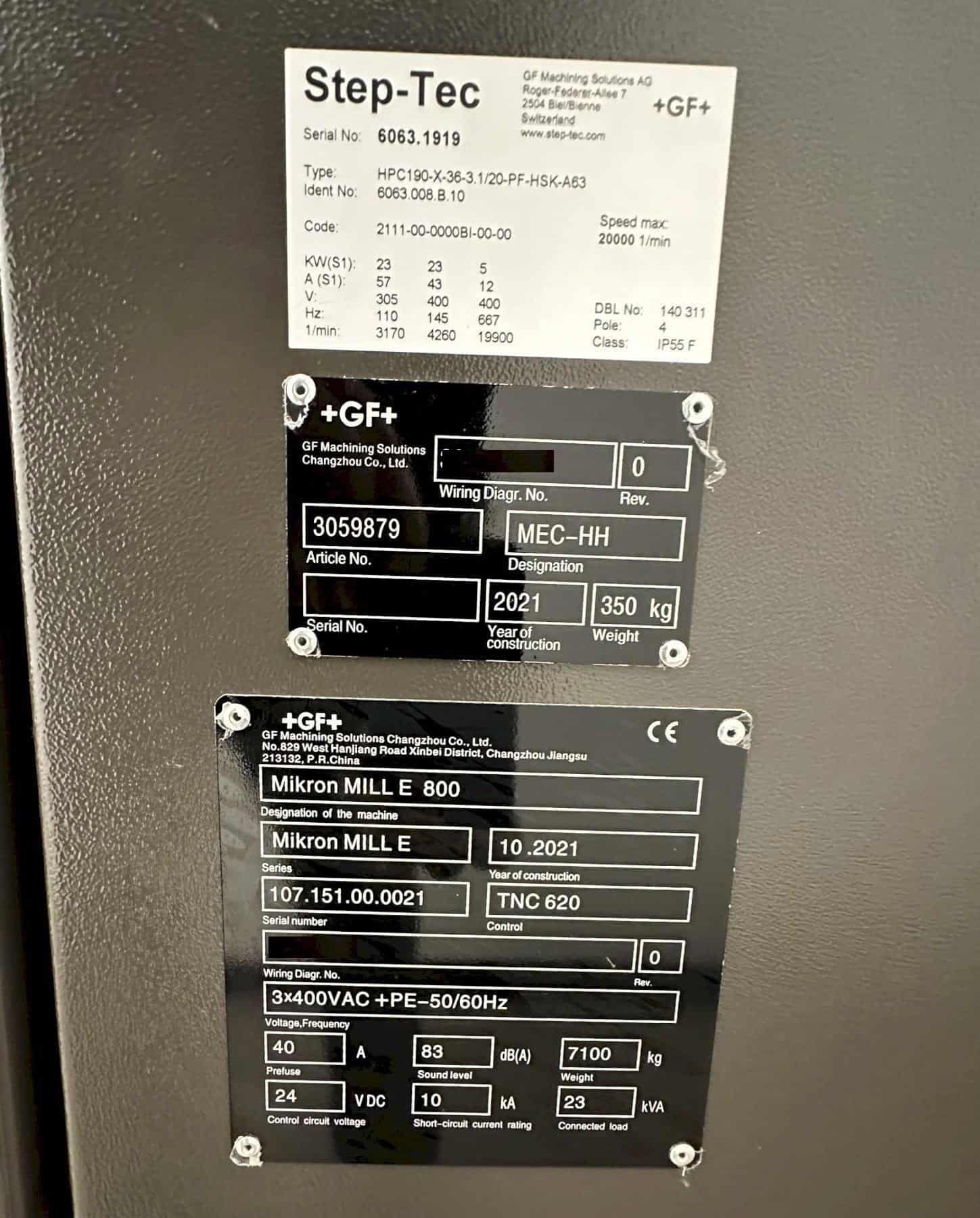

| Make: | Mikron |

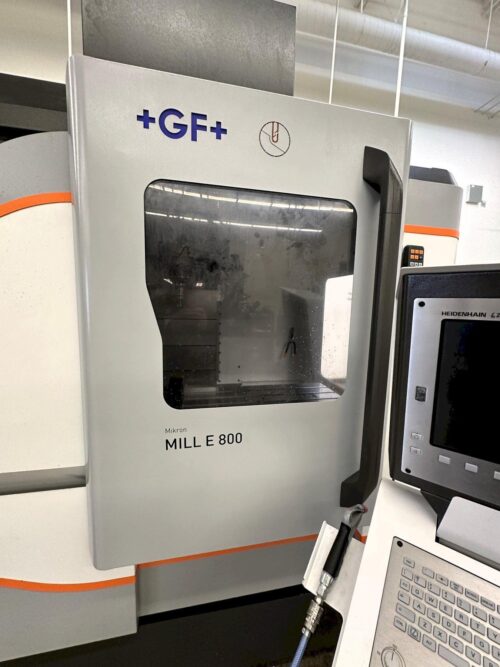

| Model: | Mill E 800 |
| Year: | 2021 |
| Key Features of the Mikron Mill E 800: |
|---|

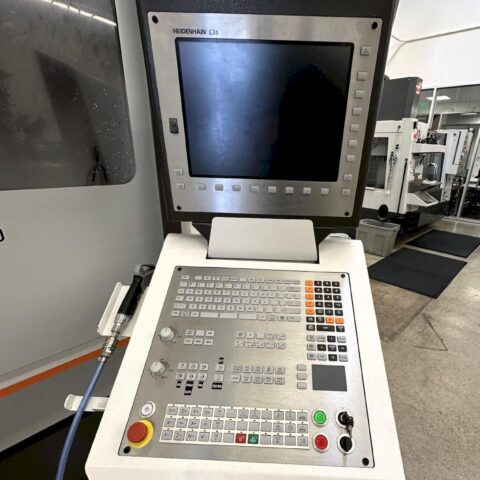

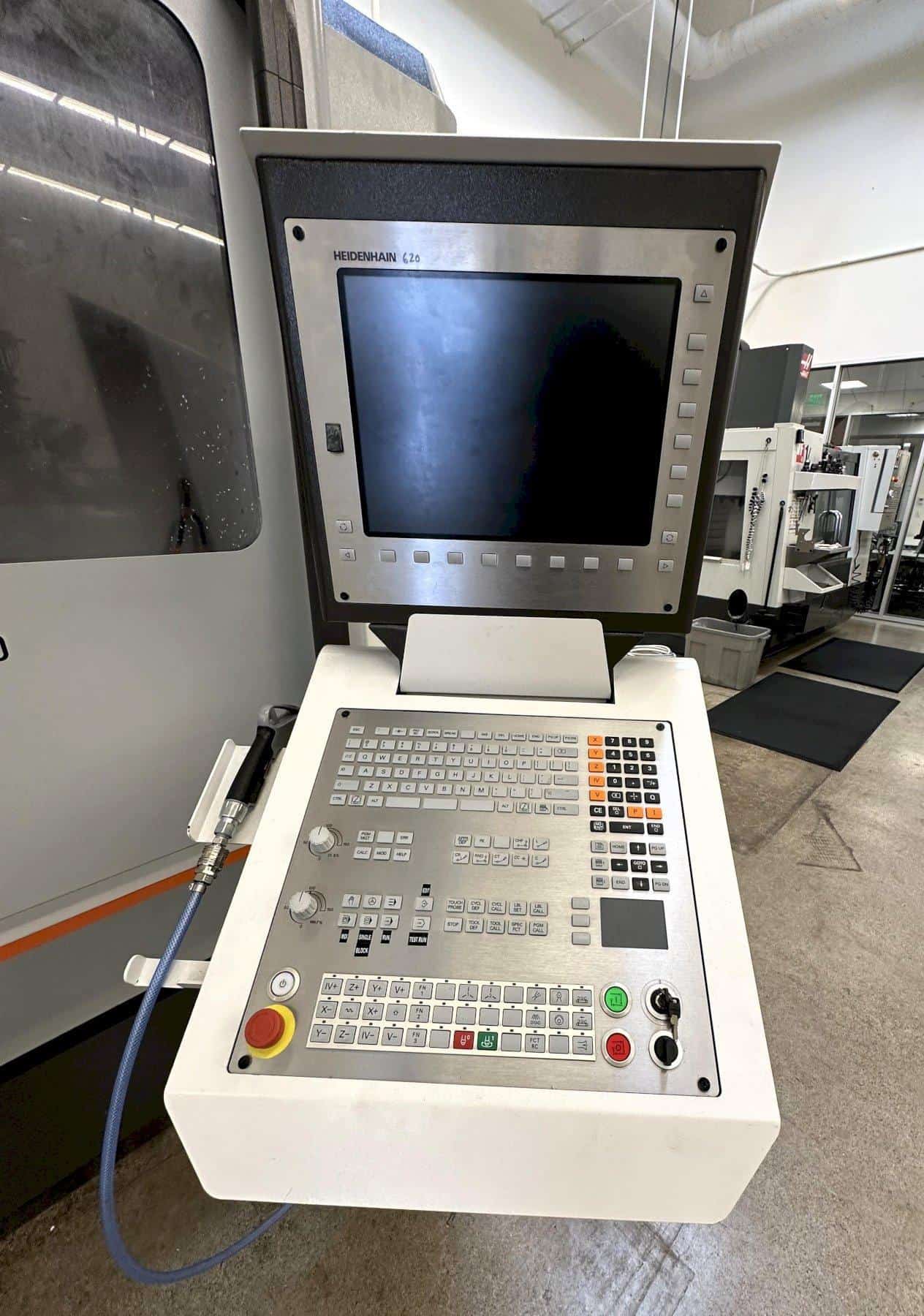

| Heidenhain TNC 620 CNC Control |

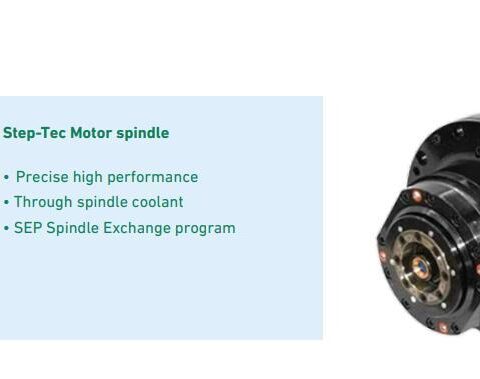

| 20,000 RPM High-Speed Step – Tec Spindle |
| HSK-A63 Spindle Taper |
| 30 Station Automatic Tool Changer |
| Infrared Touch Probe |
| Laser Tool Measuring System |
| Glass Scales |

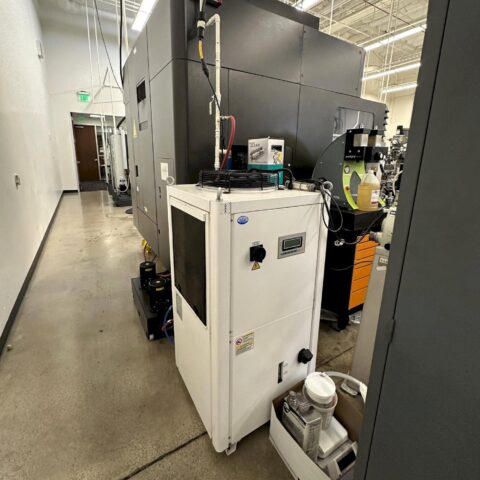

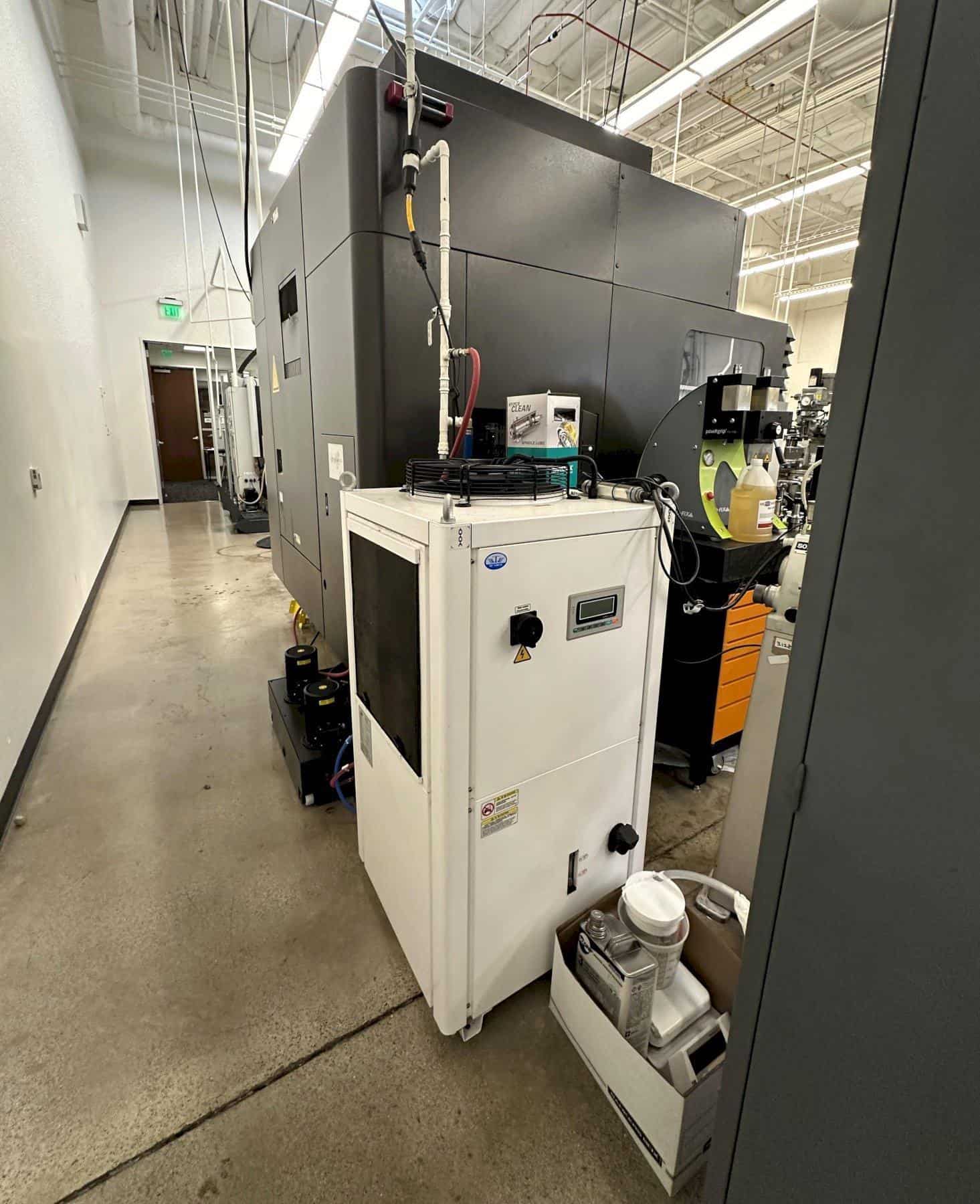

| Chiller Unit |
| Coolant Tank |
| Lift-up Chip Conveyor |
| Travel: |
|---|
| X-Axis: 33.46″ |
| Y-Axis: 23.62″ |
| Z-Axis: 23.62″ |
| Rapid Traverse Rates: 1574 Inch Per Minute |
| Feed Cutting Rates: 590 Inch Per Minute |
| Feed Force: 4200 N |
| Spindle Nose to Table (Min.- Max.): 5.90″ – 29.62″ |

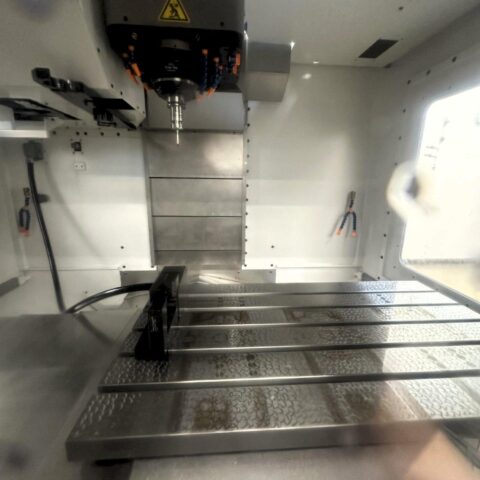

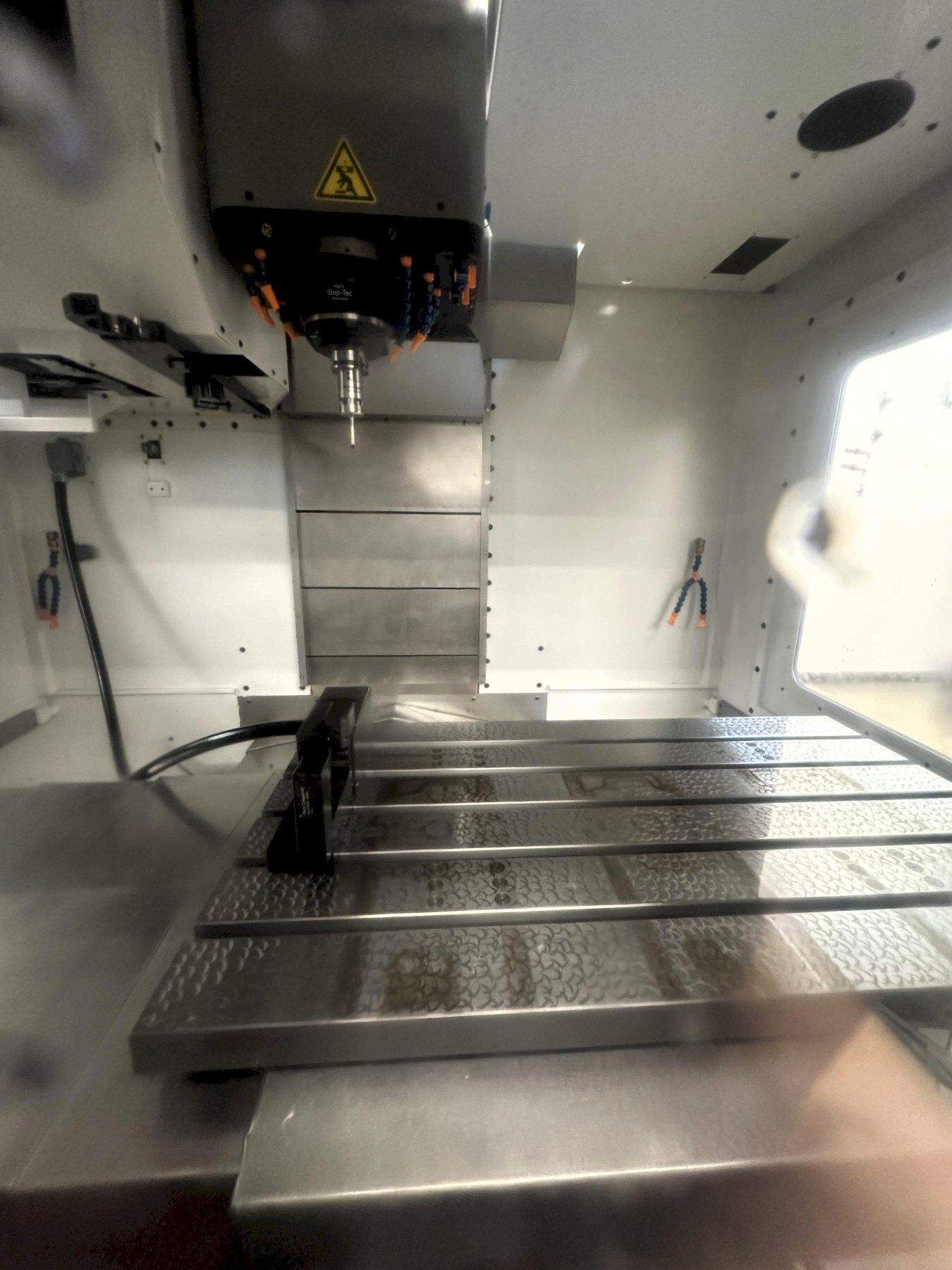

| Table: |
|---|
| Length: 41.33″ |
| Width: 23.62″ |
| Max Weight on Table: 2204 lbs |

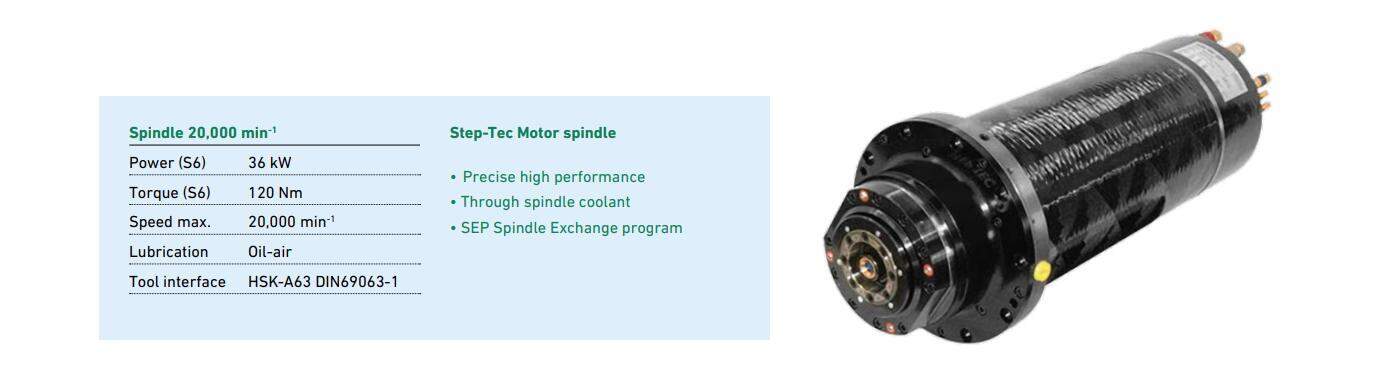

| Spindle: |
|---|
| Taper Size: HSK-A63 |
| Speed Range: 20,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Tools |
| Max Tool Weight: 17.83 lbs |
| Max Tool Dia: 3.14″ |
| Max Tool Length: 11.81″ |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 400v / 50/60 Hz / 3-Phase / 23 KVA |

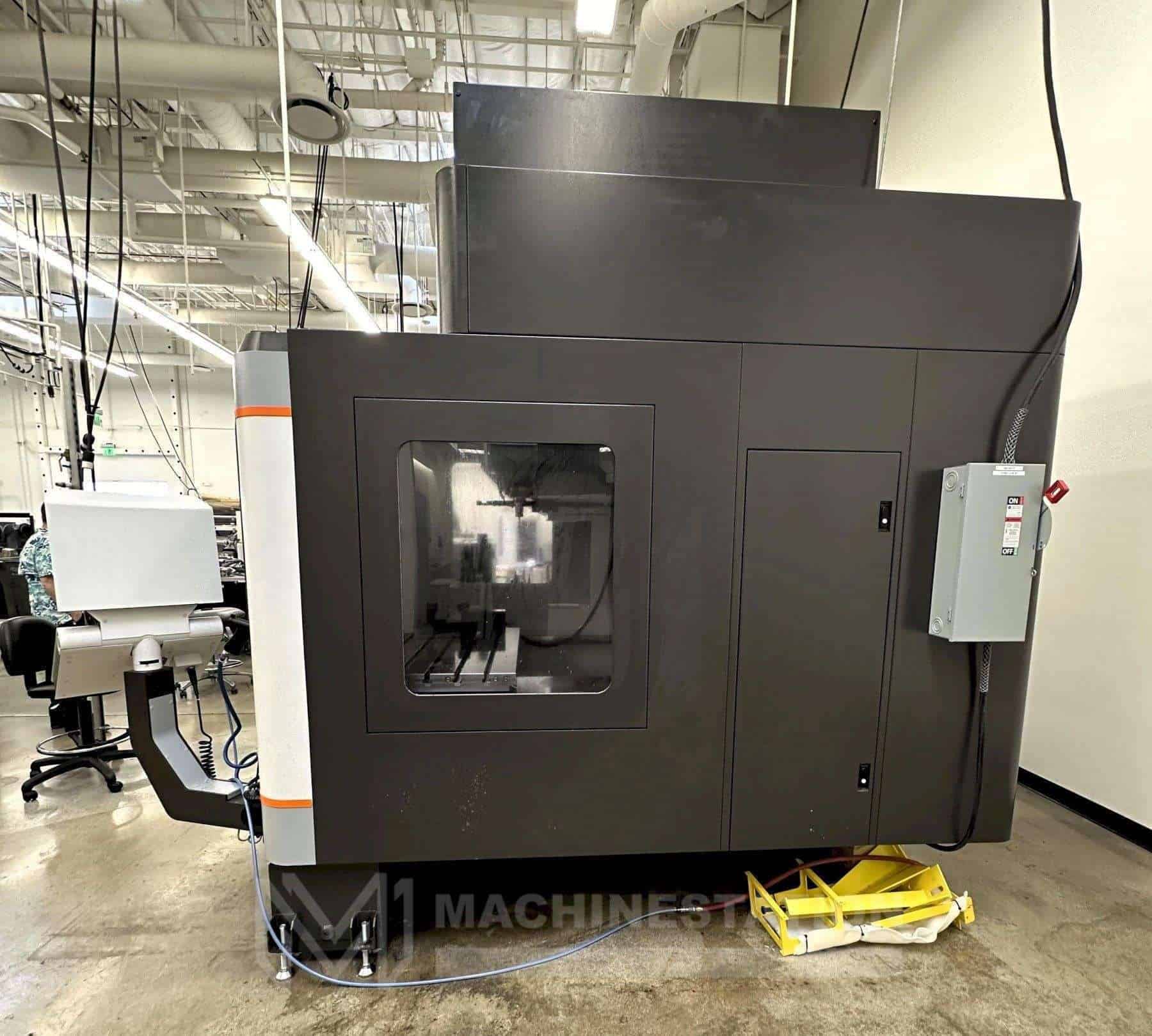

| Overall Dimensions: 87.79″ x 106.92″ x 119.37″ High |
| Weight: 15,682 lbs Approx. |
