*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mikron |
| Model: | VCP 600-HS |
| Year: | 2000 |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | Heidenhain TNC 430 |
| Features: |
|---|
| Heidenhain TNC 430 CNC Control |

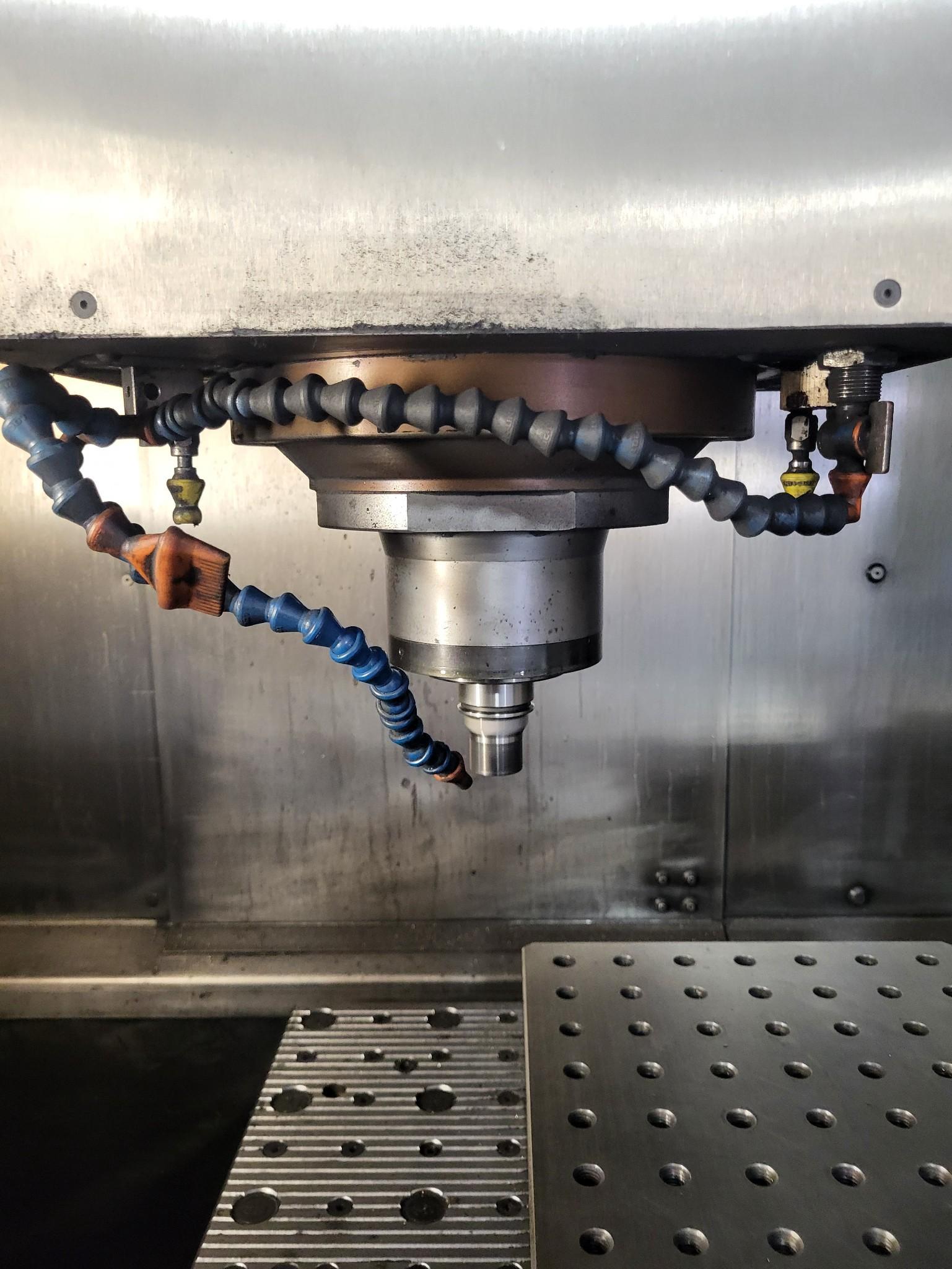

| 42,000 RPM High-Speed Spindle |
| HSK E40 Spindle Taper |
| 36-Position Automatic Tool Changer |
| Renishaw Probing System |
| Blum Laser Tool Setting System |
| System 3R Refix Table |
| Pneumatic Dynafix Chuck |
| Pneumatic Macro Chuck |
| All Tooling Shown |
| Manuals |
| Fully Enclosed Machining Area |
| Table: |
|---|
| Table Size: 33.5″ × 21″ |
| Table Type: System 3R Refix Table |
| Table Top to Spindle Nose: 5.9″–26″ |
| Travels: |
|---|
| X-Axis Travel: 23.5″ |
| Y-Axis Travel: 17.5″ |
| Z-Axis Travel: 17.5″ |
| Spindle: |
|---|
| Maximum Spindle Speed: 42,000 RPM |
| Spindle Taper: HSK E40 |
| Spindle Type: High-Speed Spindle |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 36 Positions |
| Tool Taper: HSK E40 |
| General: |
|---|
| Power Source: 400V / 3-Phase / 60 Hz |
| Machine Dimensions (Approx.): 98.4″ L × 63.0″ W × 102.4″ H |
| Machine Weight (Approx.): 14,330 lbs. |
