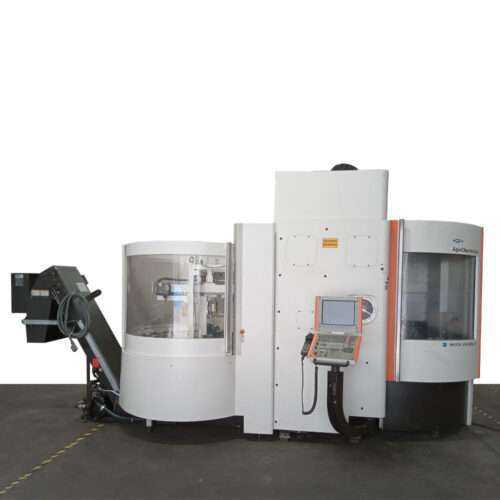

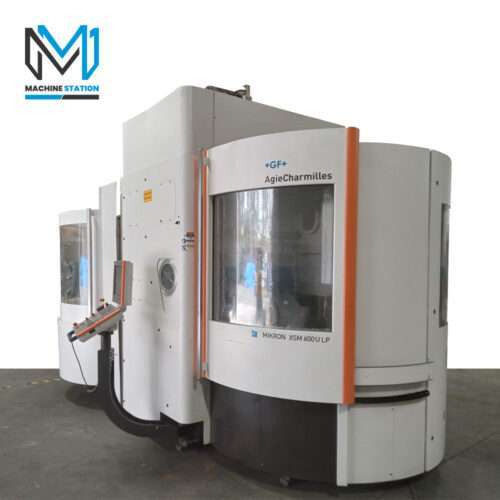

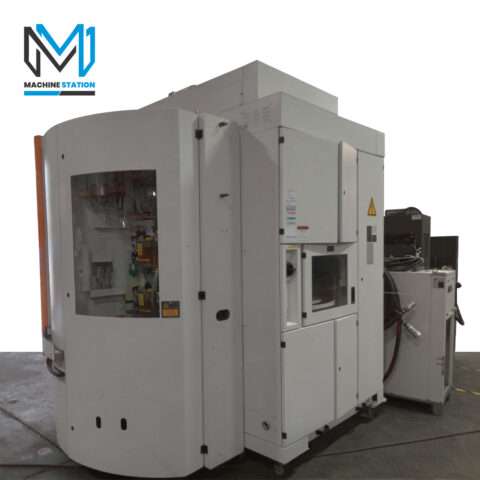

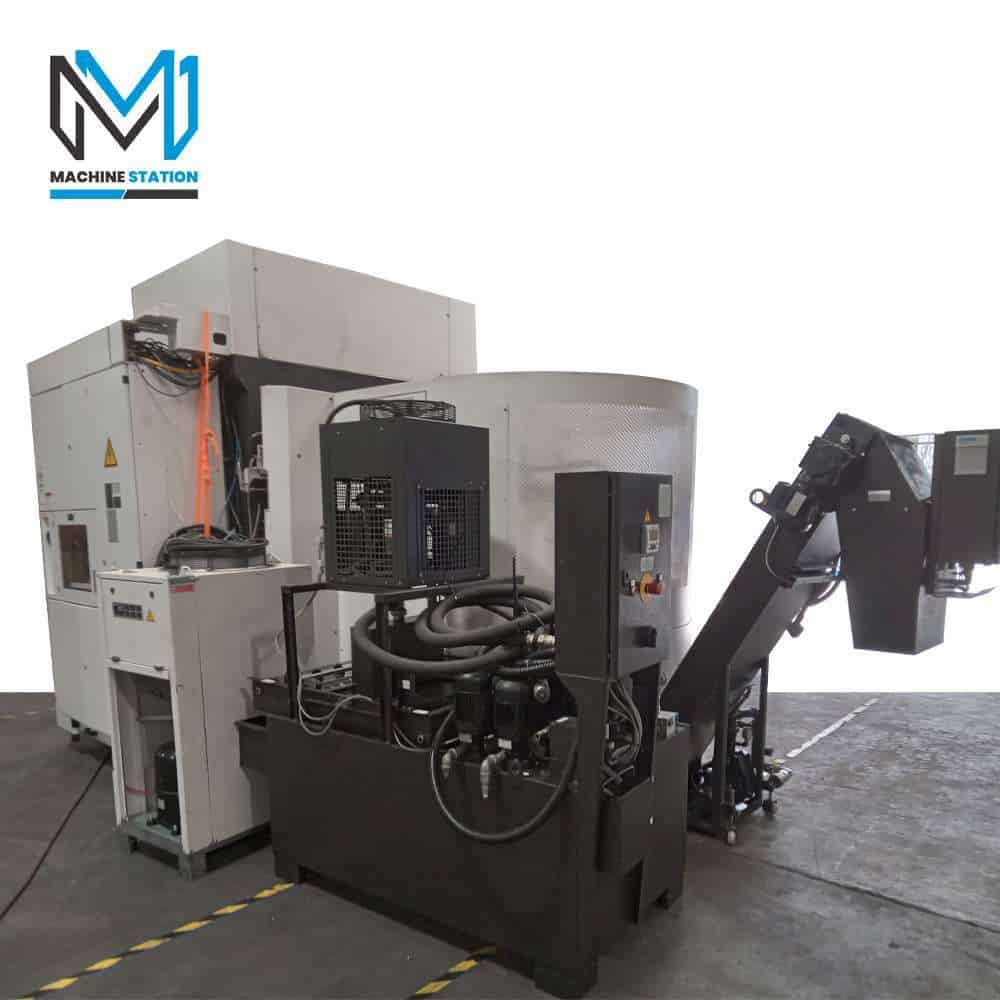

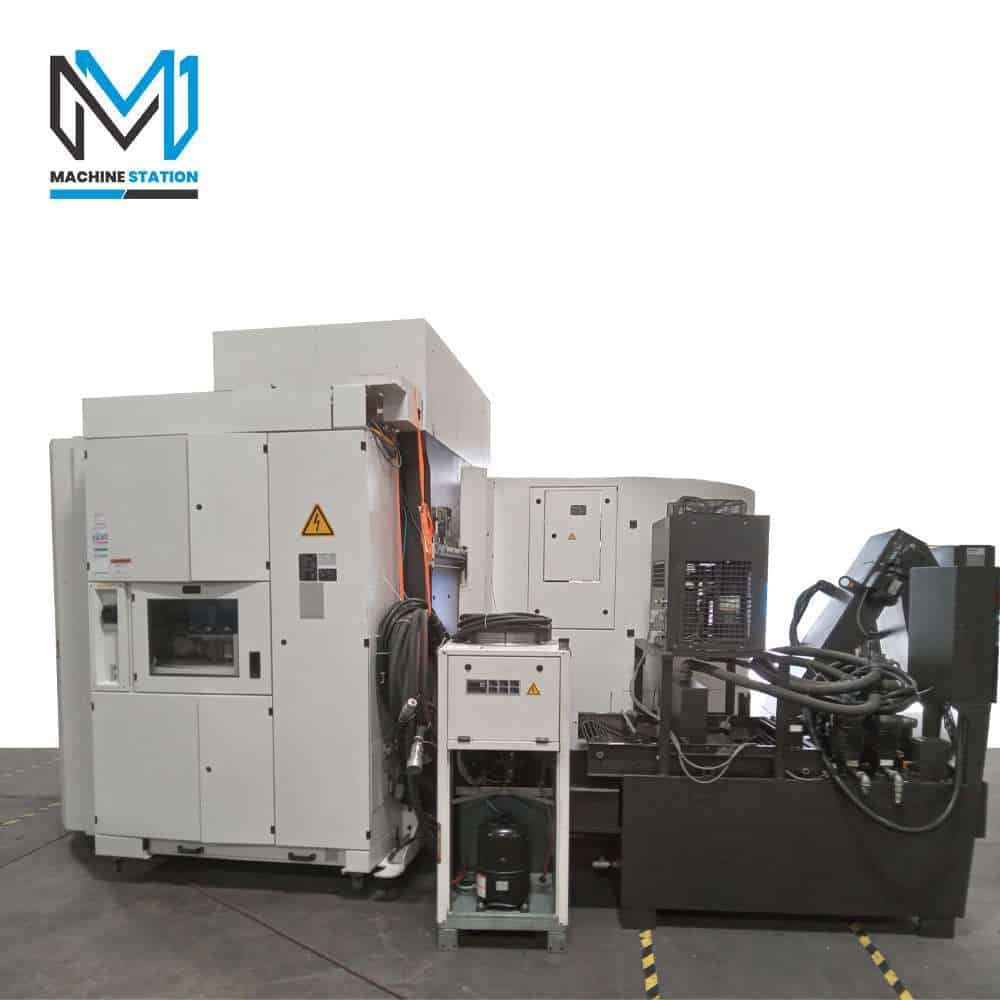

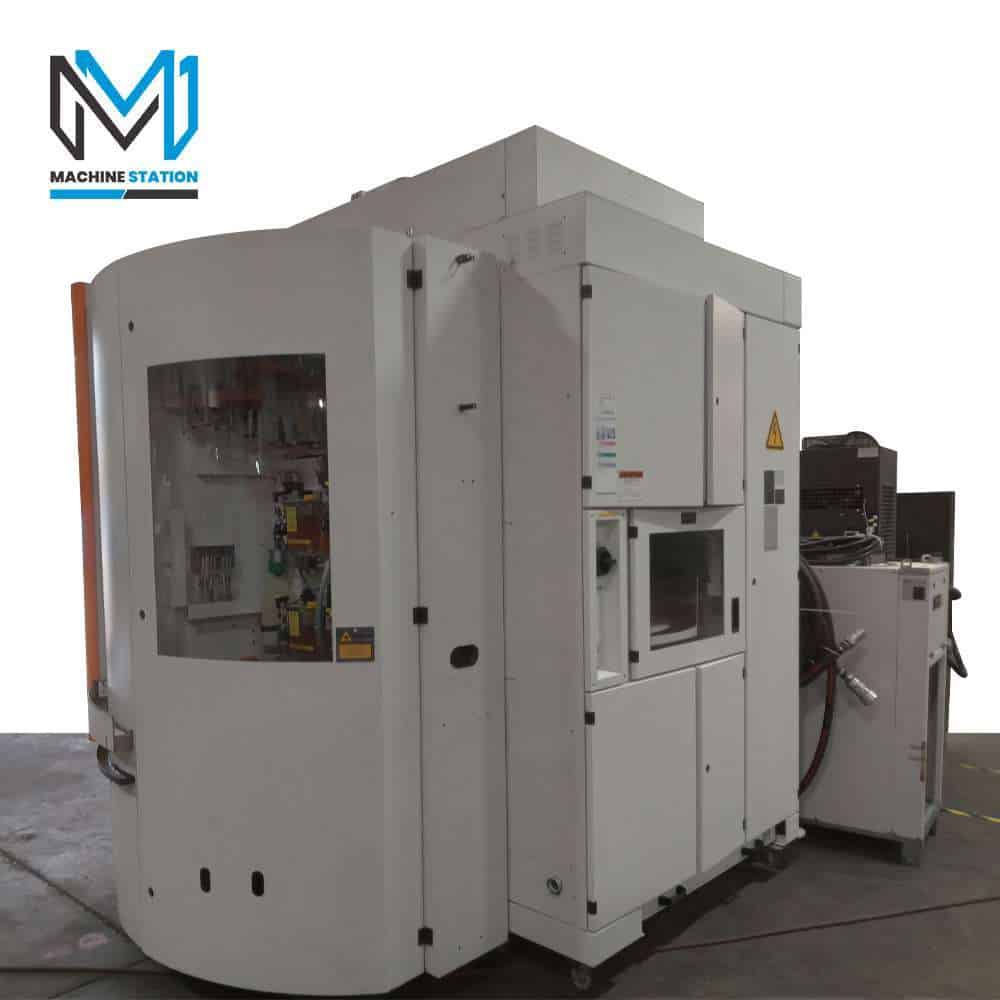

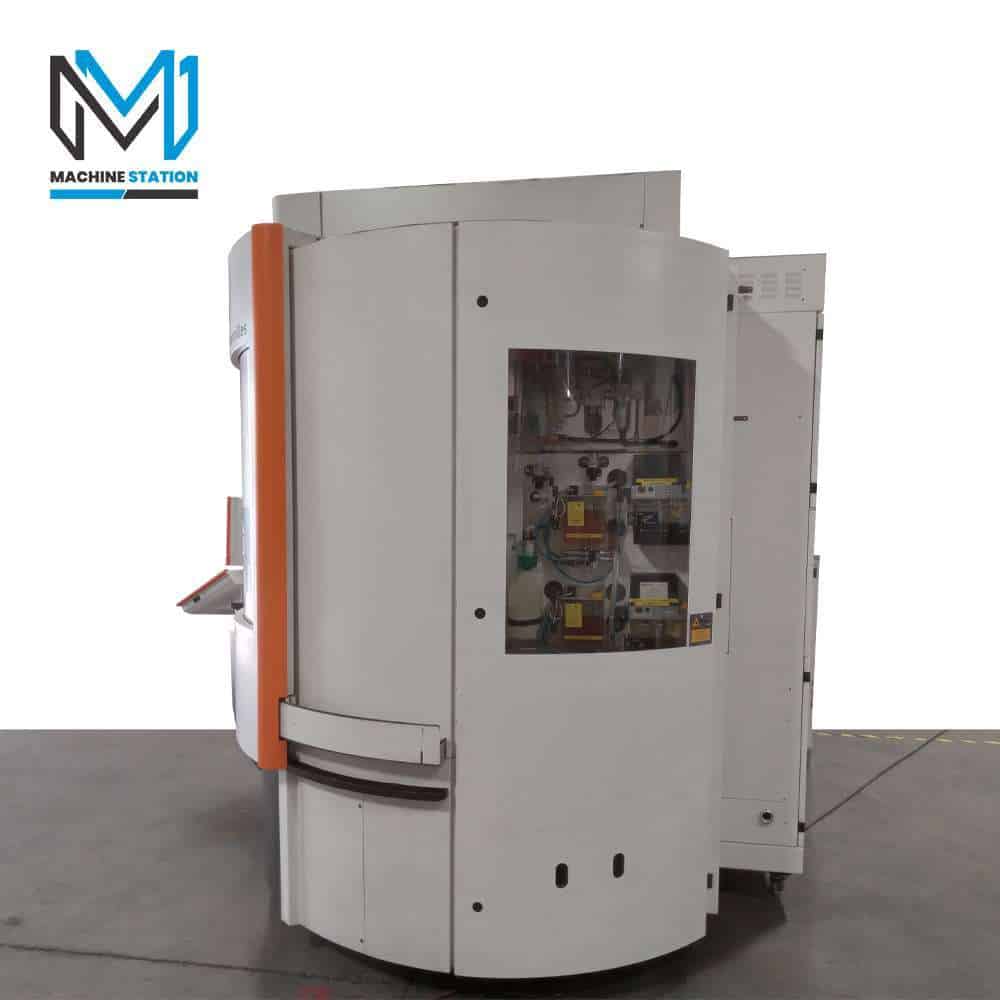

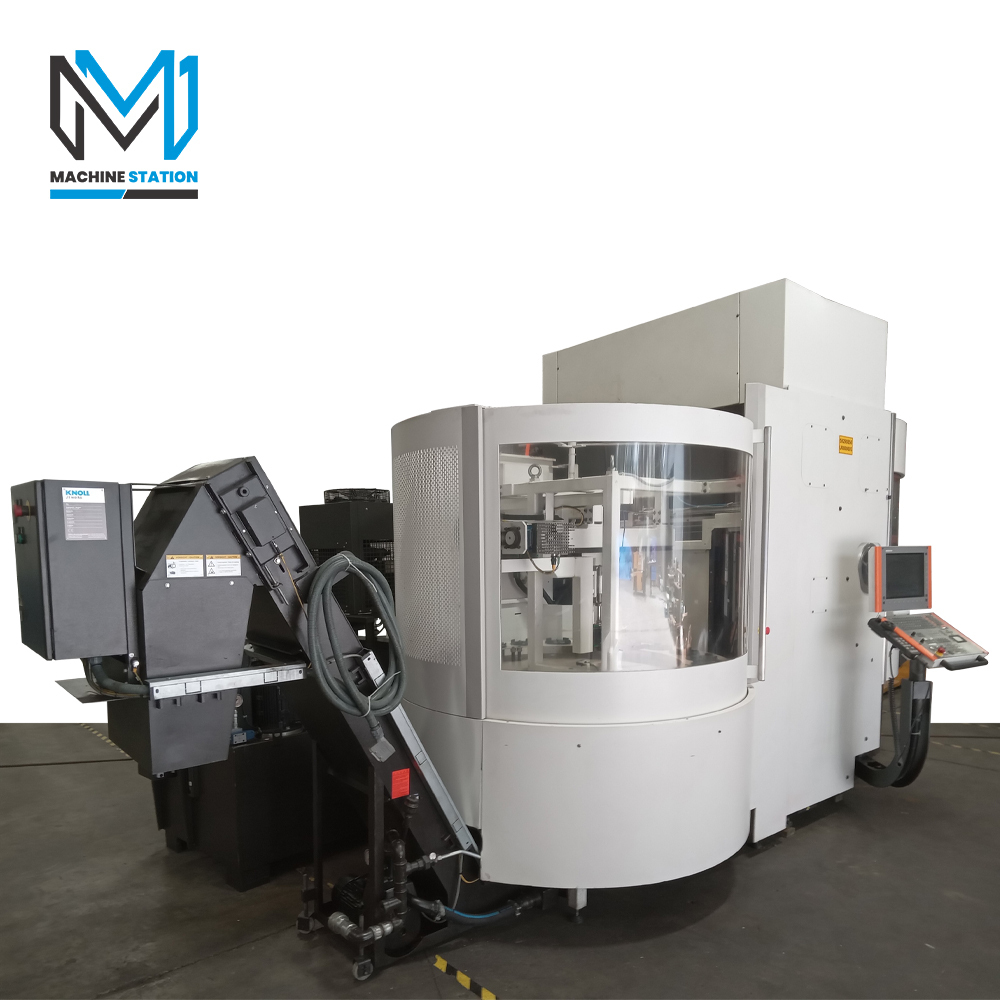

Mikron XSM-600U LP 5 Axis CNC Vertical Machining Center

$297,000.00

1 in stock
Location: Lake Elsinore, CA
SKU: 2535
Make: Mikron
Model: XSM-600U LP
Video: On Request
SKU: 2535

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 2535
Make: Mikron
Model: XSM-600U LP
Year: 2014
Condition: Used – Excellent



Features:

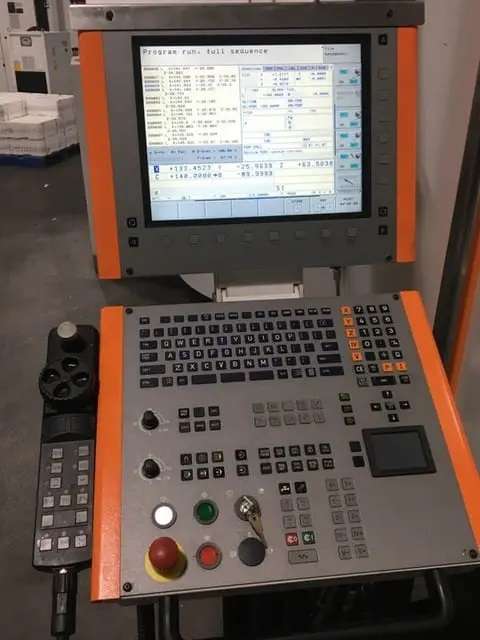

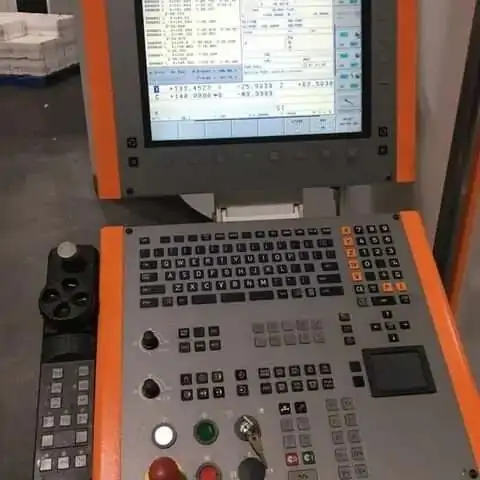

Heidenhain iTNC 530 CNC Control
5 Axis Simultaneous Machining

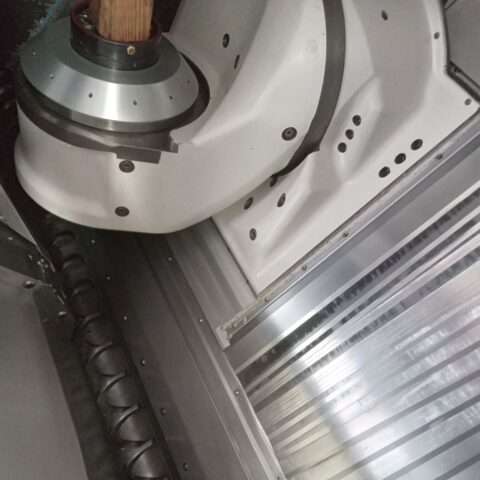

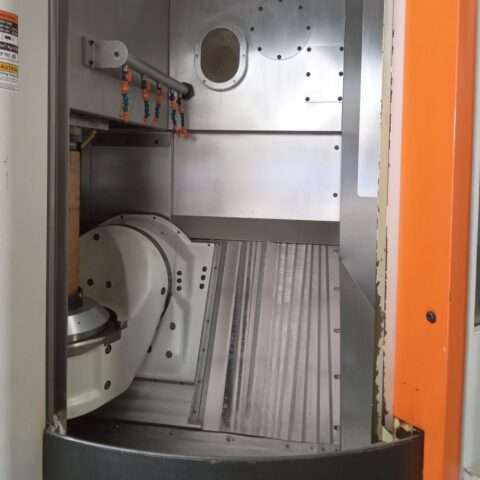

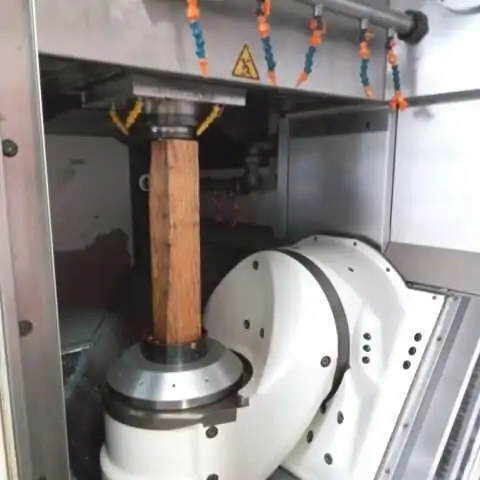

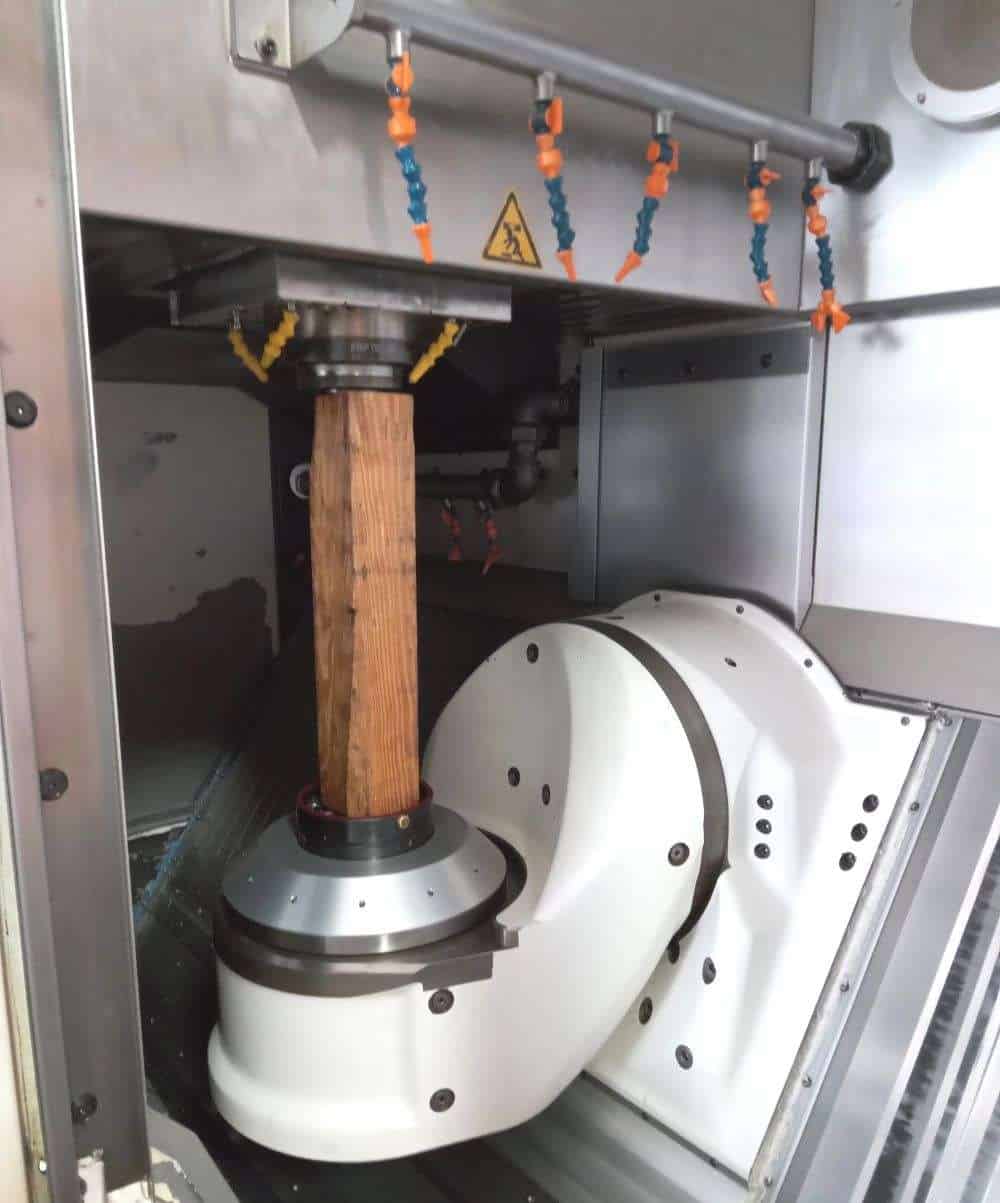

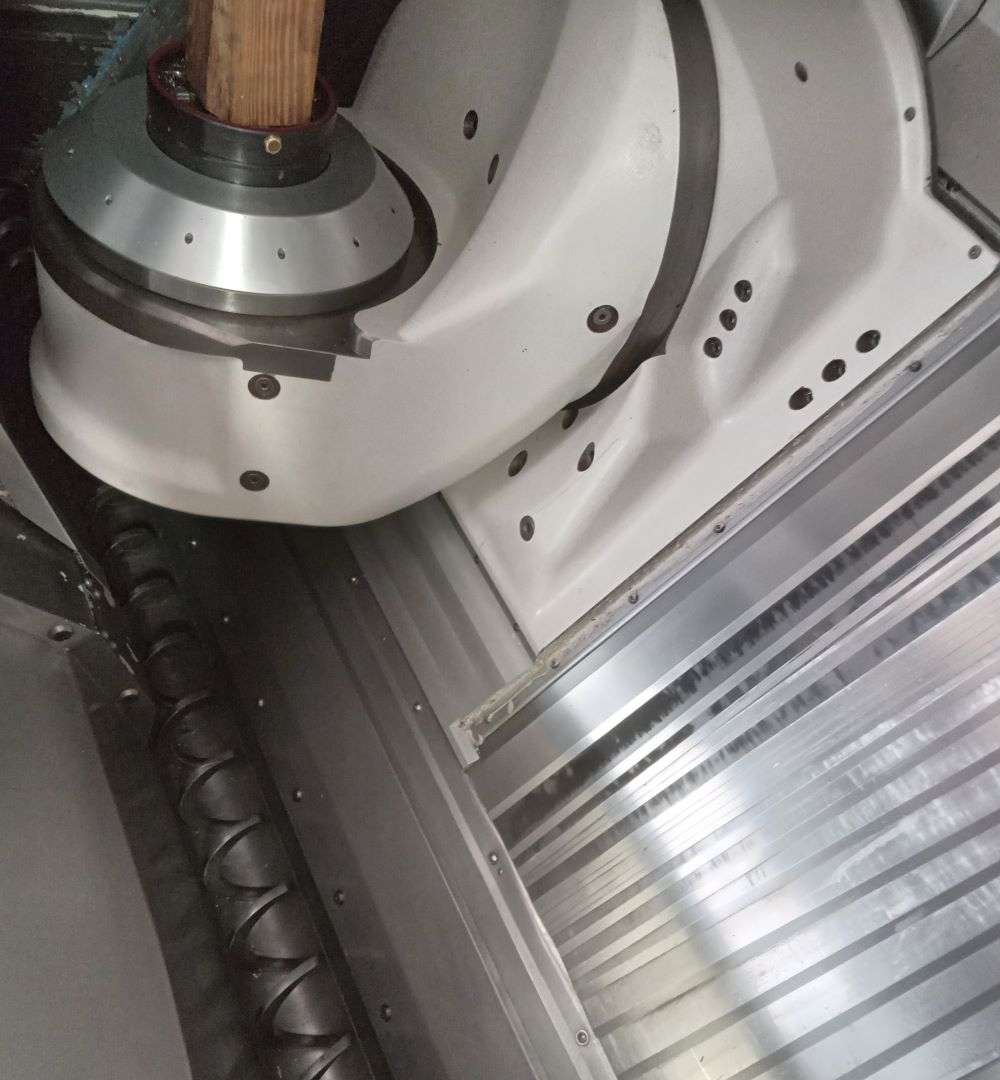

Programmable Swivelling Trunnion Table

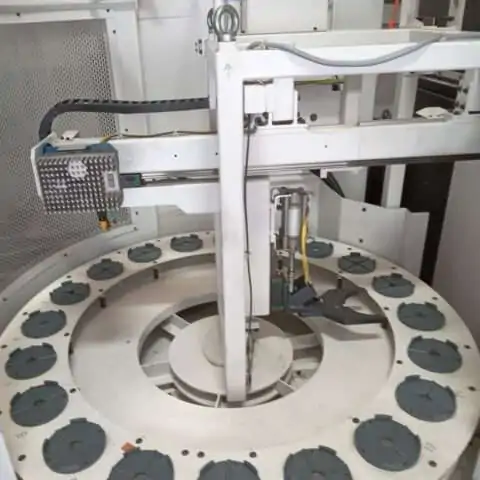

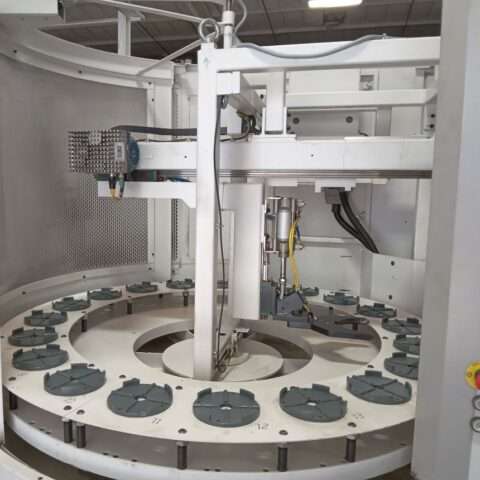

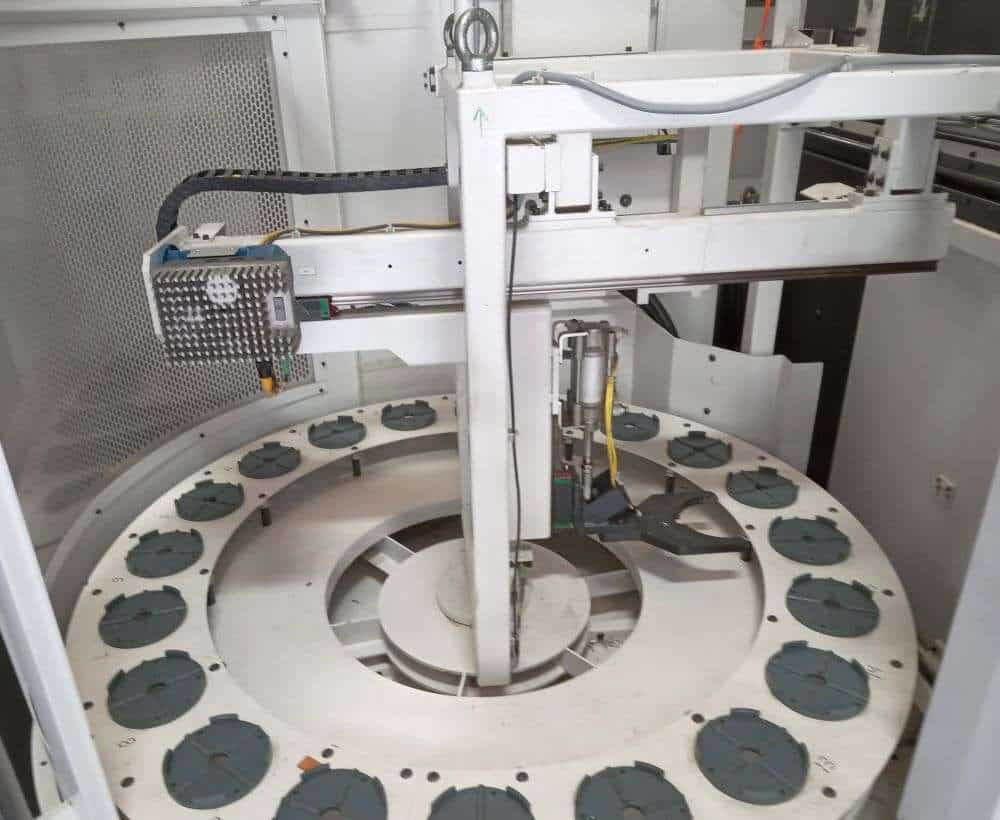

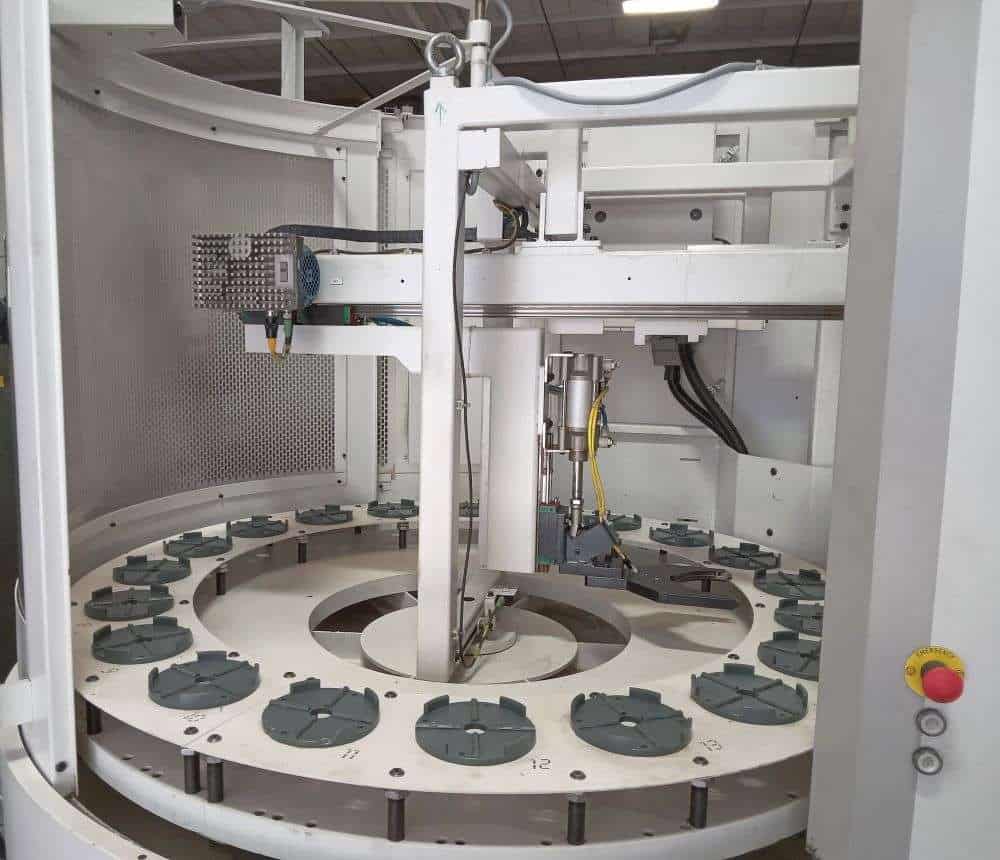

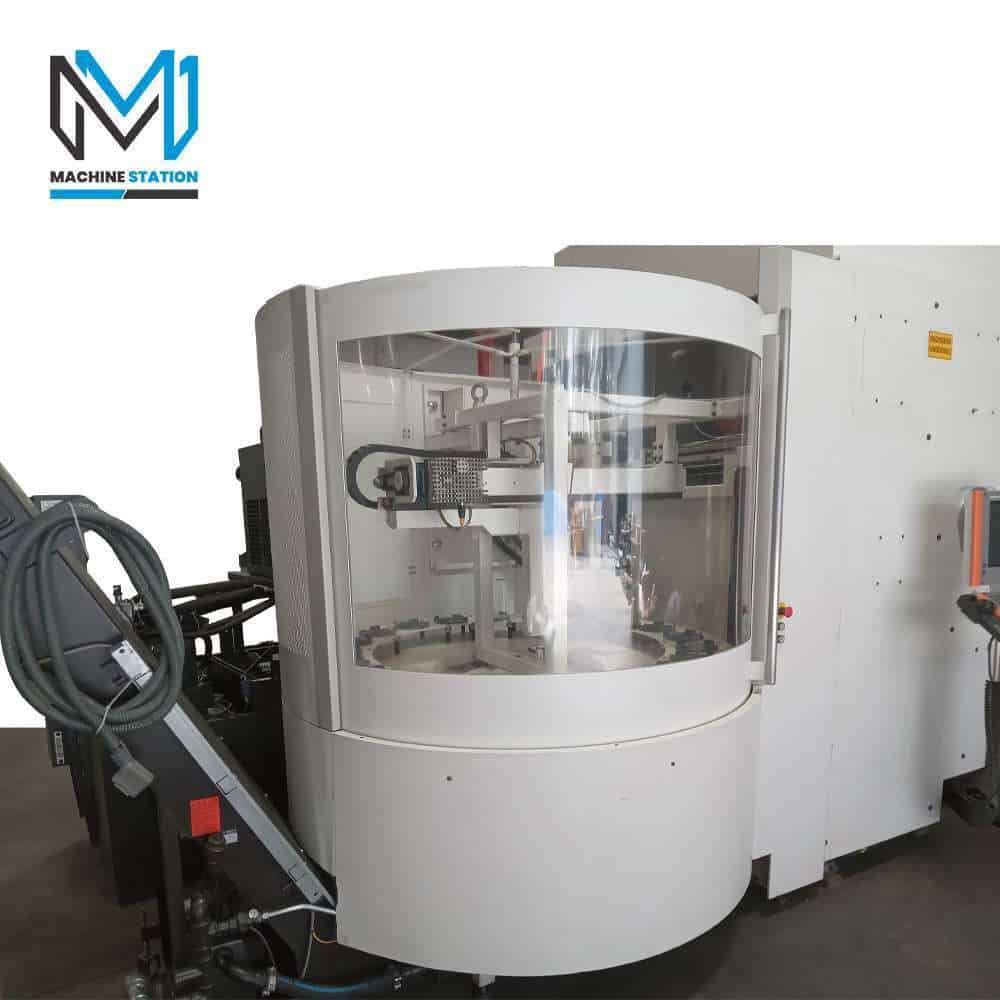

20 Station Pallet Pool System
36,000 RPM High Speed Spindle

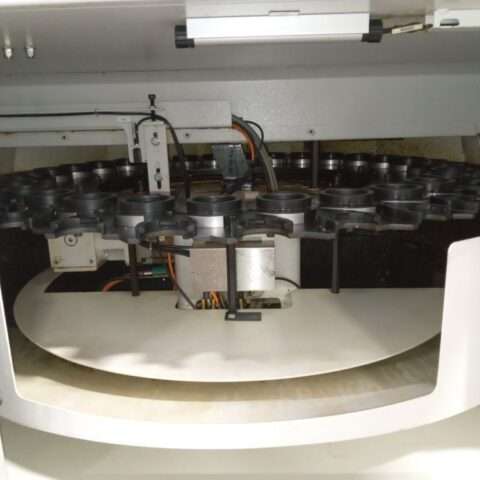

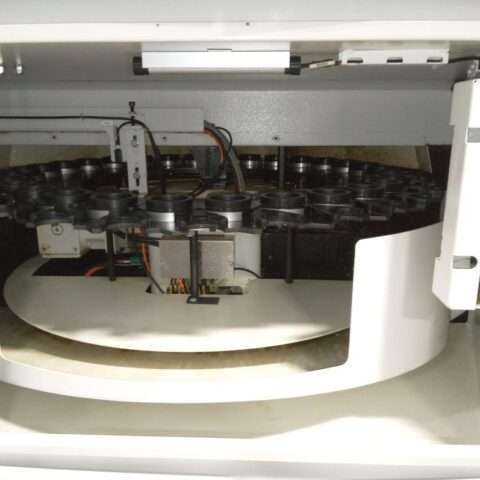

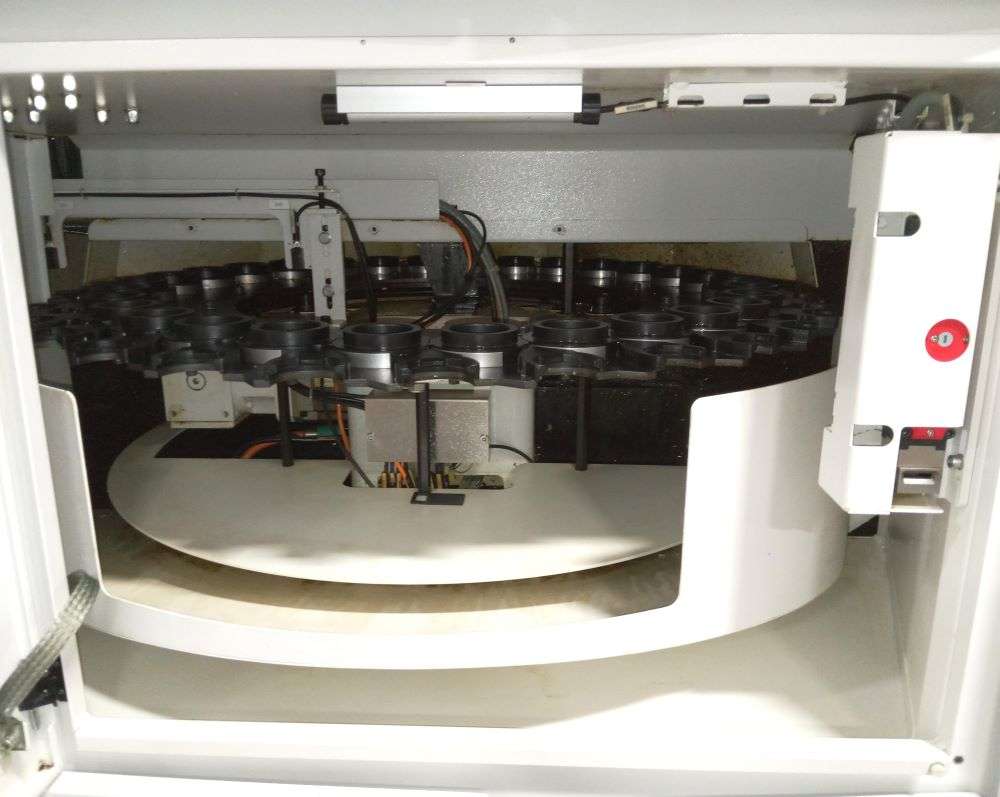

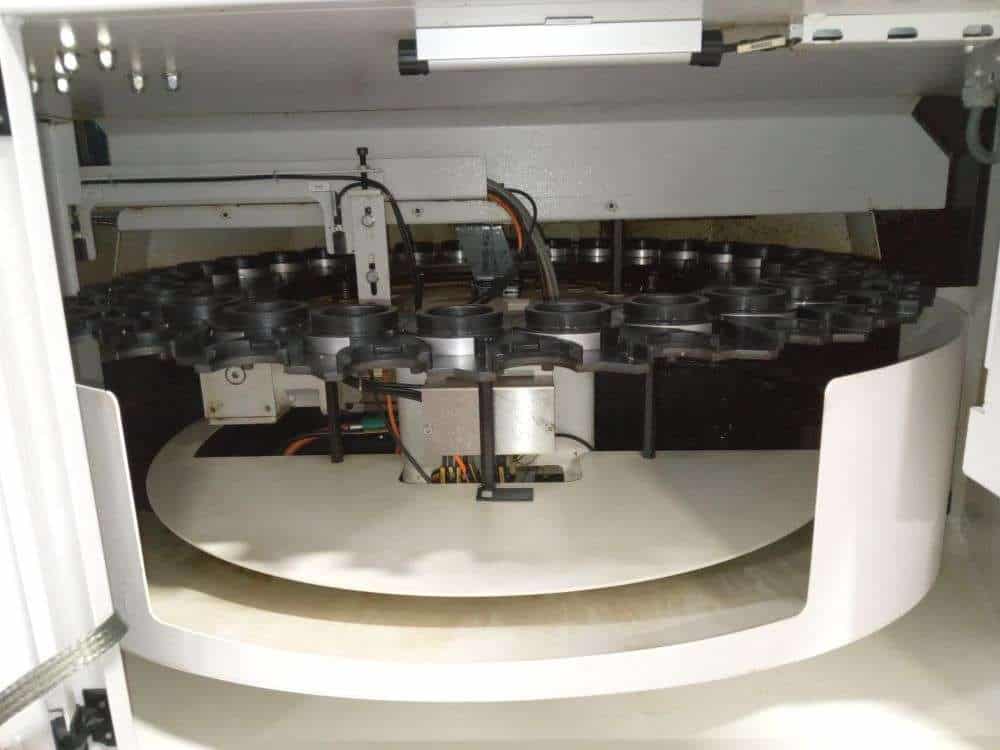

60 Station Automation Tool Changer
Through Spindle Coolant
Kinematics Option-Touch Probe Cycle for Inspection
Spindle Protection System
Washdown System Krones
Tool and Workpiece Measuring System
Paper Band Filtration System
PFP Power Fail Protection
Tool Blow Off Unit
MPG Handwheel Remote Control
Intelligent Thermal Control
Spindle Orientation
Helical Interpolation
Rigid Tapping
Fast Rapid Traverse Rate
Oil Skimmer

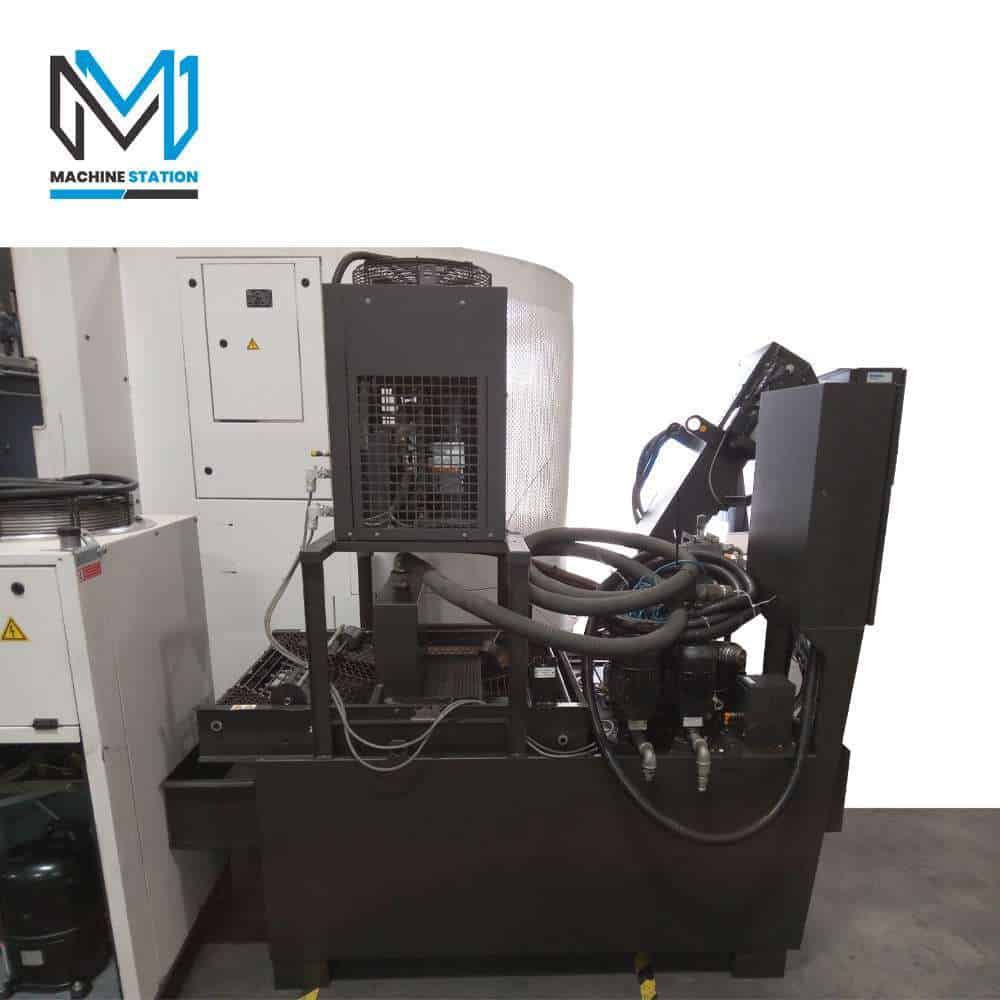

High Pressure Coolant System

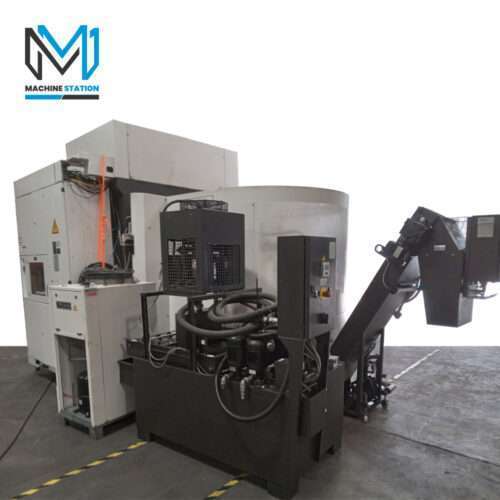

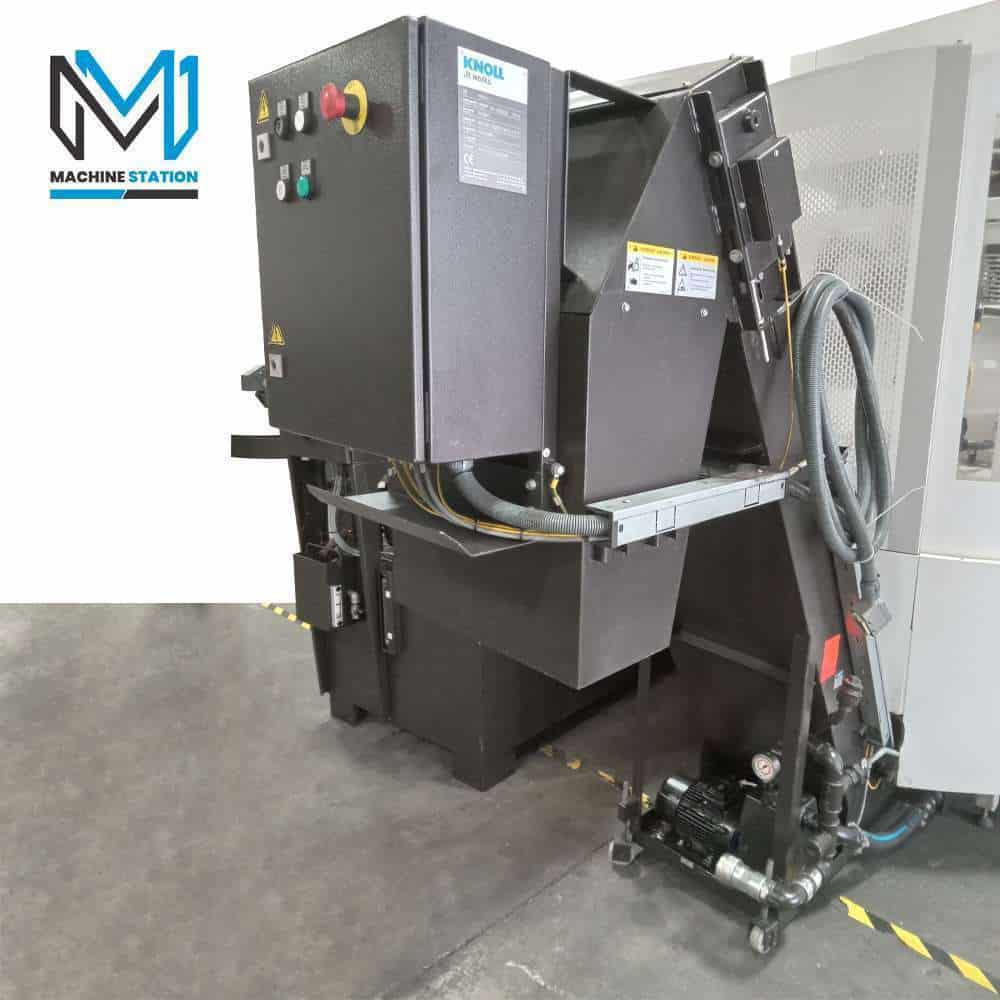

Chip Conveyor

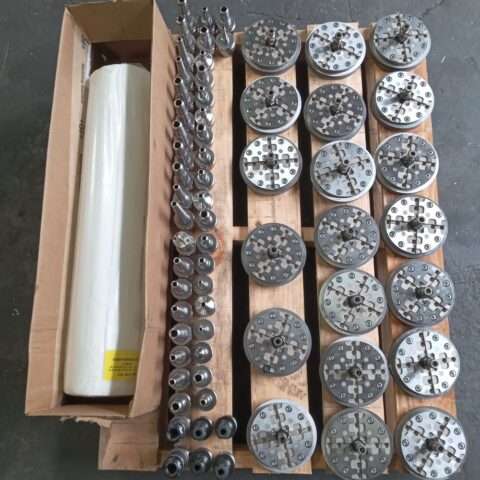

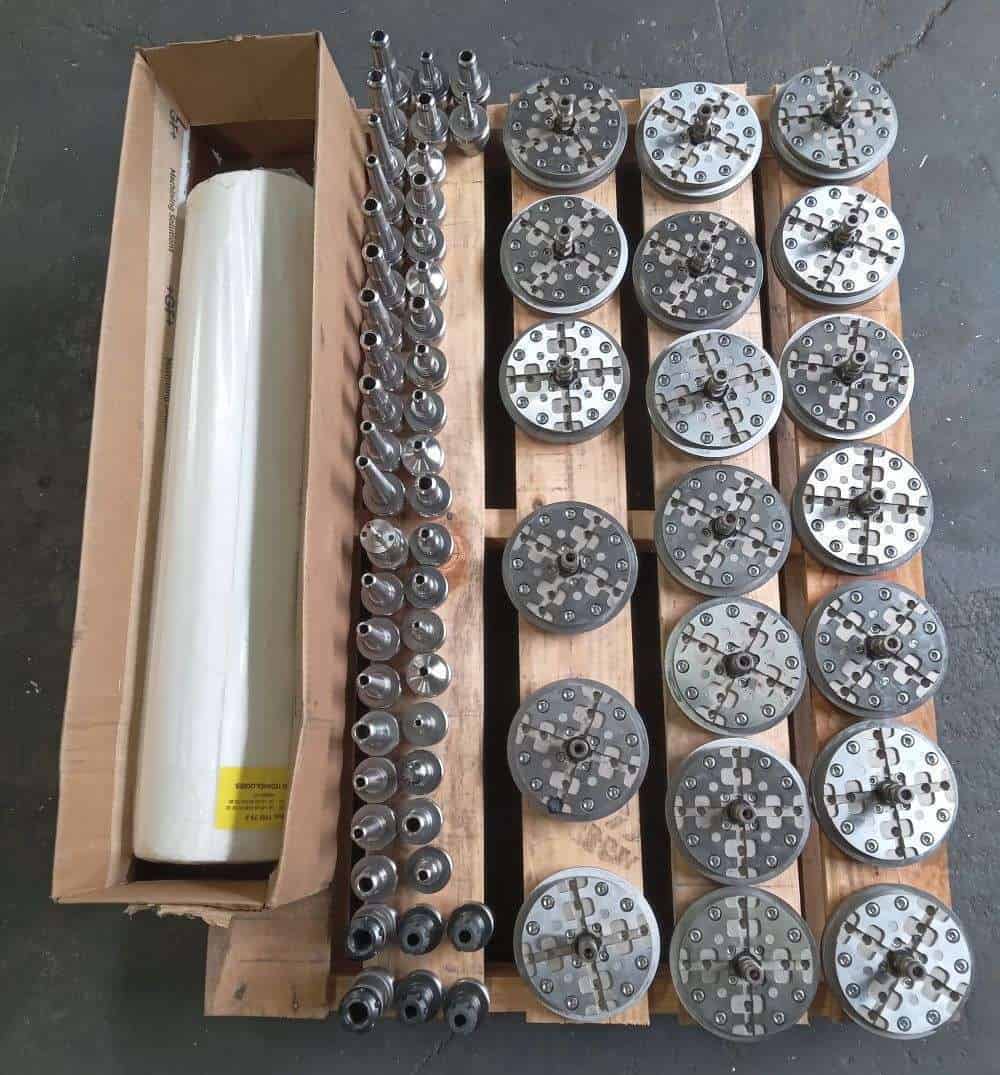

Tool Holders

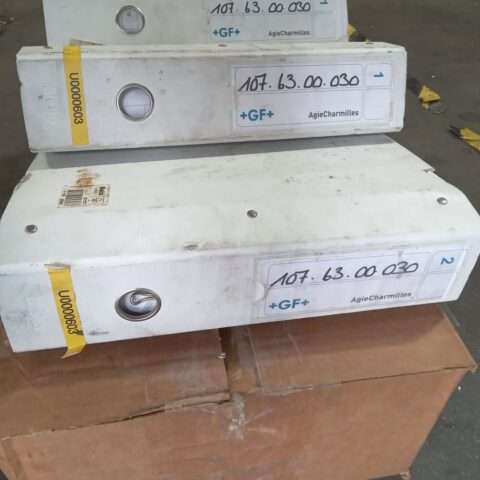

Books and Manuals



Table:
Length: 12.60″
Width: 12.60″
Max Weight on Table: 264 lbs



Travel:
X Axis: 31.49″
Y Axis: 23.62″
Z Axis: 19.68″
A Axis: +30° – 110° ( Table Tilt )
C Axis: 360° (0.001°) ( Table Rotate )



Spindle:
Taper Size: HSK E50
Speed Range: 36,000 RPM
Spindle Power: 33 HP



Feed rates:
Rapid X Y & Z: 3937 Inch Per Minute
Feed Rate : 2362 Inch Per Minute



Tool changer:
Capacity: 60 Tools
Taper: HSK E50
Max Tool Diameter: 2.55″
Max Tool Length: 8.62″
Max Tool Weight: 5.51 lbs.
Tool Change Time: 9 Seconds



General:
Air Required: 80 psi, 4 scfm
Power: 50Kw / 400v / 3-Phase
Machine Dimensions: 105″ x 128″ x 132″ High (Without Chip Conveyor)
Weight: 22,046lbs
